1MORE S50 Fit Open Earbuds User Manual

1MORE S50 Fit Open Earbuds

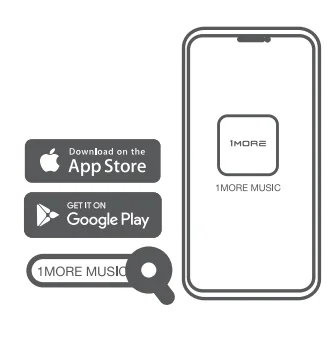

1MORE MUSIC APP

For users outside mainland China, please download the 1MORE MUSIC APP for product upgrades and additional features. APP UI in the user guide may vary, and for reference only, please refer to the UI on the device.

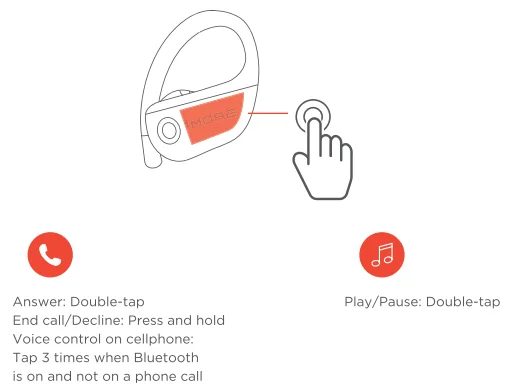

• To change a song or volume control, please set up on the 1MORE MUSIC APP or operate on the paired mobile phone/device.
• The above functions are available for either earbud in individual or stereo mode. Custom settings are available on the APP.
• The above functions may vary with different devices.

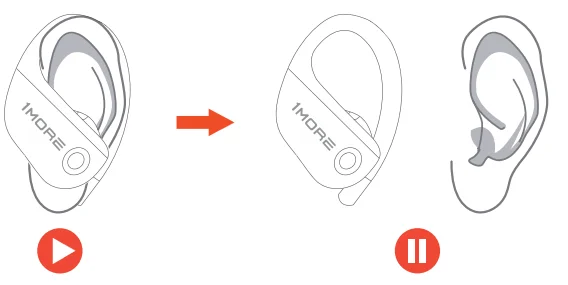

Smart Playback

Automatically pause music when taking out your headphones, and resume once you put them back on. To turn off Auto-Play, connect the headphones to the 1MORE MUSIC App and change the settings.

Extra Functions

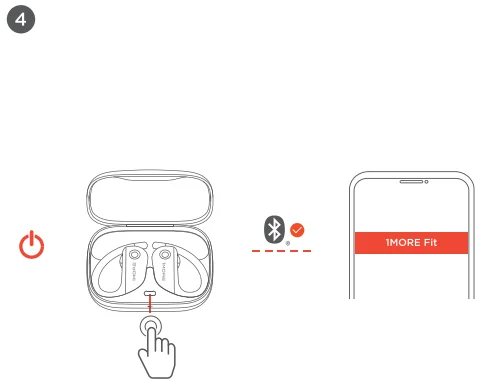

1. If only one earbud can be connected to the device, please put the two earbuds back into the case and triple-tap the pairing button, then click “1MORE Fit” in the device pairing list to connect to your device.
2. Clear The Pairing Records: Put both Left and Right earbuds into the case, press and hold the pairing button for 8 seconds, and the pairing records will be cleared.
3. OTA Firmware Update: It can be synchronously upgraded via the 1MORE MUSIC APP while the Left and Right earbuds are connected with at least 50% battery.
   • Functions of the 1MORE MUSIC APP may vary with different devices or operating systems. For more details, please contact our customer service.

1MORE (1) Year Limited Warranty

1MORE warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of one year from the date of purchase if it is properly used and maintained. If this product proves defective in either material or workmanship, 1MORE, at its option, will (a) repair the product with new or refurbished parts, or (b) replace the product with an equivalent new or refurbished product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, 1MORE, at its sole option, may replace the unit with a current model of equal or greater value.

In some cases, modification to the mounting surface may be required where a new model is substituted. 1MORE assumes no responsibility or liability for such modification. TO OBTAIN A REPAIR OR REPLACEMENT UNDER THE TERMS OF THIS WARRANTY, PLEASE RETURN TO THE ORIGINAL DEALER FIRST, AND THE ORIGINAL DEALER SHALL REPAIR THE PRODUCT WITH NEW OR REFURBISHED PARTS OR REPLACE THE PRODUCT WITH AN EQUIVALENT NEW OR REFURBISHED PRODUCT. You will be required to submit proof of purchase details, including but not limited to a receipt or sales invoice. Return shipping for exchanges/repairs is the sole responsibility of the original retail purchaser.

Limitations:

• This limited warranty does not cover the failure of the product resulting from improper installation, misuse, abuse, accident, neglect, mishandling, or wear from ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises, which may result from any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance with 1MORE’s instructions.
• This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an AUTHORIZED dealer.
• This limited warranty terminates if you sell or otherwise transfer this product to another party.

We Appreciate Your Business

We know you will enjoy the new 1MORE headphones as much as we do. At 1MORE, we value your satisfaction. If you would like more details on this product or any of our other products, please visit us online by scanning the QR code. Go to www.1more.com and sign up for VIP, and 1MORE will treat you like one.

Tips

1. Please read this instruction manual carefully and retain it for future reference.
2. Please fully charge the battery before first use.
3. If the headphones have been unused for more than 3 months, we recommend that you charge them. This will improve battery capacity.
4. Only use chargers that are FCC (Federal Communications Commission) approved.
5. In dry environments, static electricity may numb your ear. This is not related to the quality of the product.

Safety Information

• Never disassemble the headphones. There are no user-serviceable parts inside.
• Do not expose the headphones to temperatures below 32 °F (0°C) or temperatures above 113 °F (45 °C).
• Do not use headphones in a thunderstorm. This could prevent the headphones from working properly and also increase your chance of being electrically shocked.
• Do not use oil or any volatile liquid to clean this product.
• Do not listen to high volumes for extended periods.
• Do not use headphones in traffic. Do not use the headphones at any time, as it would be dangerous to be unaware of the noises around you.
• Adult supervision is required for children of age 6 and under.

FCC

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Caution!

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The SAR limit of the USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device type EF906 has also been tested against this SAR limit.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates radio-frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FAQ

1. Why can’t the headphones be turned on?

Check if your headphones have enough battery life. If not, please charge them for at least 30 minutes.

2. Why the headphones connect to my cellphone, or take a long time to connect?

1. If the headphones cannot pair normally when powered on. Open the case, triple-tap the pairing button to initiate searching for Left & Right pairing, and then click “1MORE Fit” in the device pairing list.
2. To pair the headphones to a new device, simply place them into the charging case and triple-tap the pairing button. Then click “IMORE Fit” in the new device pairing list to connect.

3. Why can’t the headphones play music after successfully connecting to my Android device?

After pairing successfully, in the Bluetooth menu of your device, tap the icon on the right of your device name and make sure the “Media Audio” option is on.

4. Why is there no sound from the headphones while making phone calls after successfully connecting to my Android device?

After pairing successfully, in the Bluetooth menu of your device, tap the icon on the right of your device name and make sure the “Phone Audio” option is on.

5. Why is the Bluetooth connection not stable and causes some interruptions?

1. Try shortening the distance between your headphones and device. Avoid solid barriers in between.
2. Please keep away from strong interference sources, such as Wi-Fi and GPRS.
3. Please make sure the Bluetooth antenna of your device is not blocked.

6. Why do some control functions not match those in the manual while using third-party music/video player Apps?

Your operating system and the third-party music/video player apps may have different settings for the control functions. We recommend that you use the music/video player apps that your device originally provided.

For more detailed product FAQs, please visit the product support section under www.1more.com.

WEE

All products bearing this symbol are waste electrical and electronic equipment (WEEE, as in directive 2012/19/EU), which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.

Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location, as well as the terms and conditions of such collection points. Your 1MORE retailer will advise you of the correct way of disposal in your country.

Safety Caution

Do not expose batteries or battery packs to excessive heat, such as sunshine, fire, or the like.

Tiinlab Corporation hereby declares that this product complies with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The full text of the EU declaration of conformity is available at the following internet address: www.1more.com.

Hereby, Tiinlab Corporation declares that the radio equipment type EF906 is in compliance with Radio Equipment CA Regulations 2017. The full text of the UKCA declaration of conformity is available at the following internet address:www.1more.com.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. The Qi logo is a registered trademark of the Wireless Power Consortium.

Warning

Replacement of a battery with an incorrect type that can defeat a safeguard (such as catching fire, explosion, leakage of corrosive electrolyte, etc.); Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; and A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. The symbol indicates DC voltage.

IC

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

• Name: Wireless Earphones
• Model: EF906
• Earbud Weight: 10 g
• Case Weight: 63 g
• Product Weight: 82.5 g
• Earbud Size: 50.68 × 38.27 × 20.26 mm
• Case Size: 86 × 65 × 29.8 mm
• Earbud Battery Capacity: 60 mAh
• Case Battery Capacity: 500 mAh

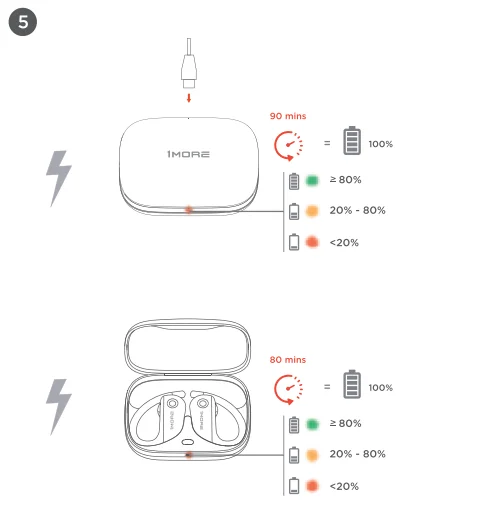

• Earbud Charging Time: 80 mins*
• Case Charging Time: 90 mins*
• Earbud Playtime (Fully Charged): 11 hours*
• Total Playtime (Fully Charged): 38 hours*
• Impedance: 16 Ω
• Wireless Range: 10 m
• Bluetooth: Bluetooth® 5.3
• Bluetooth Protocol: HFP/A2DP/AVRCP
• Input: 5V-0.75A
• Working Temperature: O °C – 45 °C
• Frequency Band: 2.400 GHz-2.4835 GHz
• Operation Frequency/Max. EIRP: 2400-2483.5MHz, Left ear Max. EIRP is 9.67dBm, Right ear Max. EIRP is 7.35dBm.
• IC: 24662-EF906
• FCC ID: 2ASDI-EF906

The specifications are acquired from laboratory-tested data. The playback time, tested under the laboratory conditions of AAC format and 50% volume, may vary with different device settings, environments, usage, and other factors.
