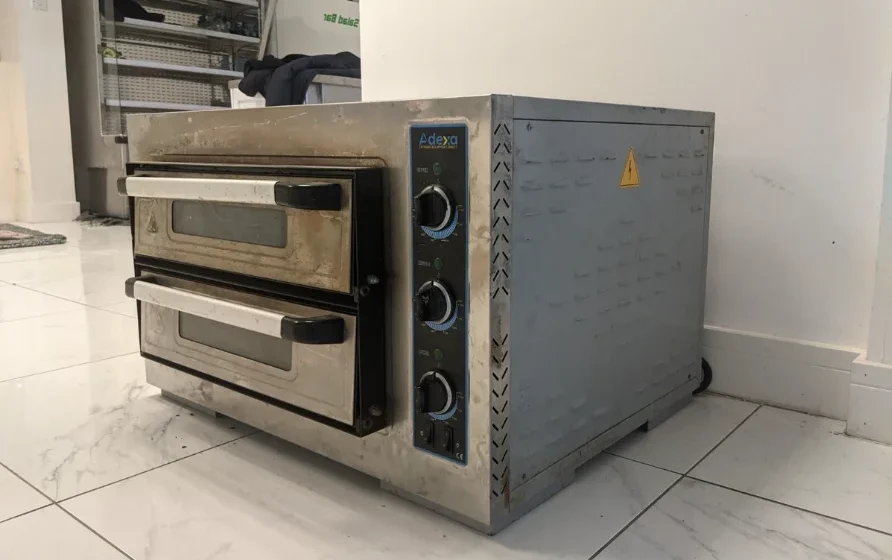

Adexa EP2PT Commercial Double Pizza Oven
Control board operating instruction

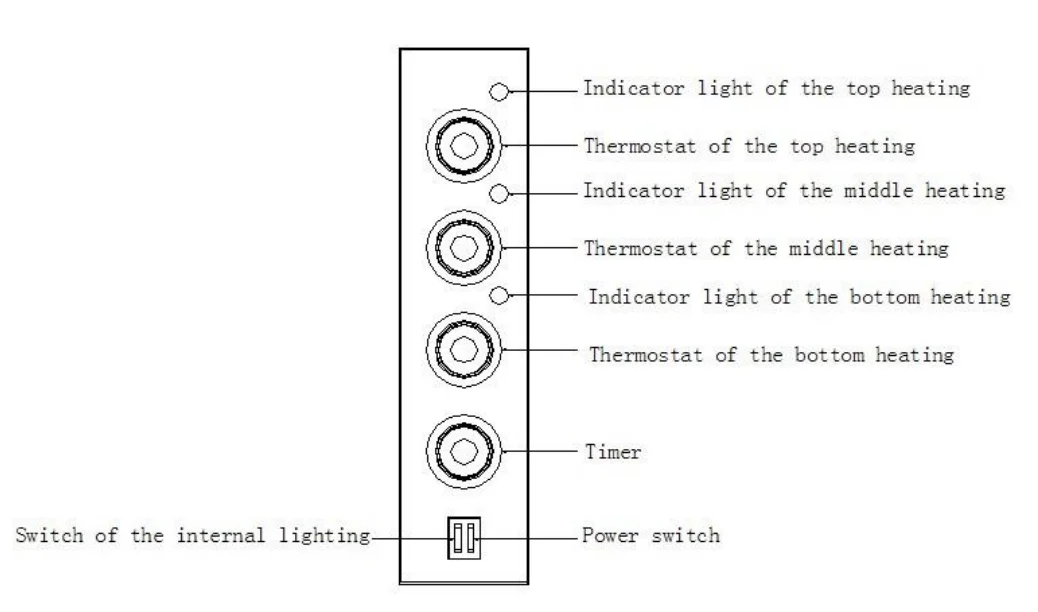

Operating instructions of the EP2PT control board.
- The right switch is for controlling the internal lighting.
- The left switch is for controlling all the heating elements; turn it on, and then the thermostats can be used. The indicator lights turn off when the heating elements reach the set temperature. (If the power switch is “On”, the timer would be out of function. If you need to use the timing function, please first turn off the power switch; by now, the timer also acts as a “power switch”.)
- These three thermostats separately control the top、 middle and bottom heating elements and their indicator lights.
Functions
Functions
- Heating up quickly. This oven is equipped with 350 thermostat, greatly saving the cooking time.
- Equipped with a baking stone, which makes the food heat more evenly.
- Two thermostats separately control the top and bottom heating elements, and you can freely adjust the temperature of each heating element.
Application
- Applicable for baking all the fresh and frozen bread and flour products.
- Applicable for baking fresh and frozen meat.
Machine illustration diagram

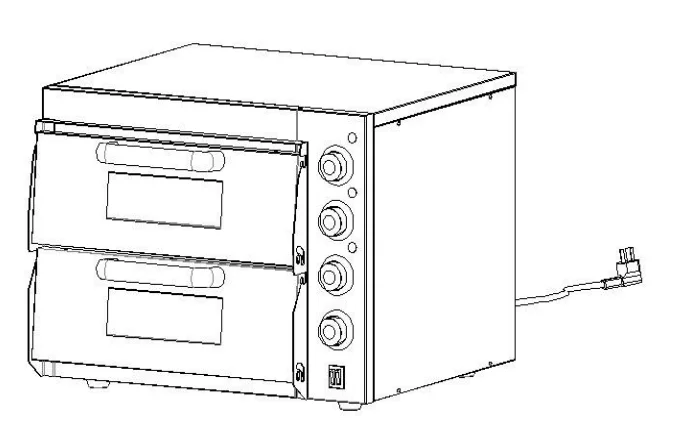

Appearance

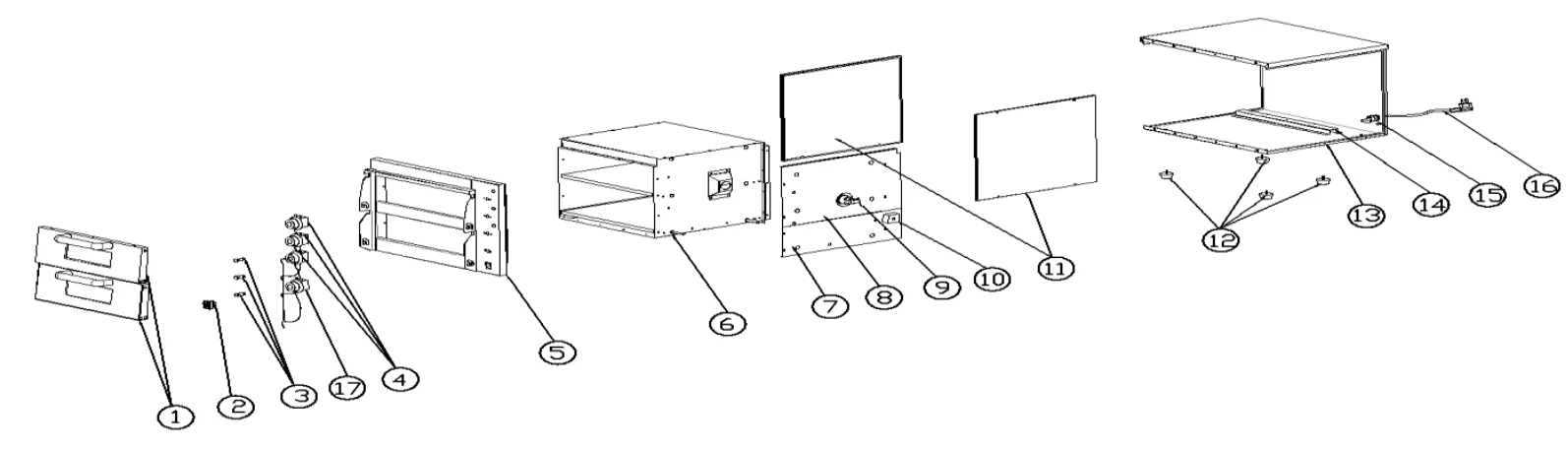

Case

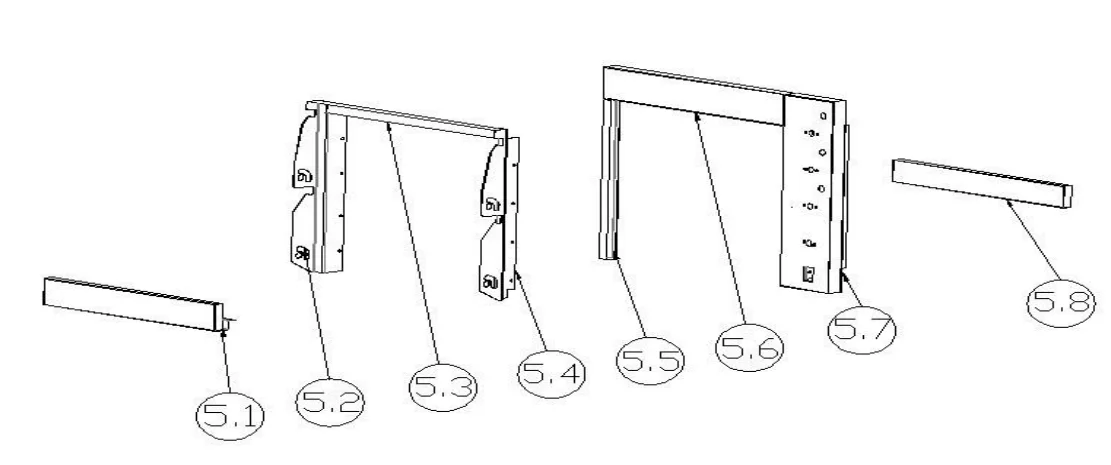

Front Panel

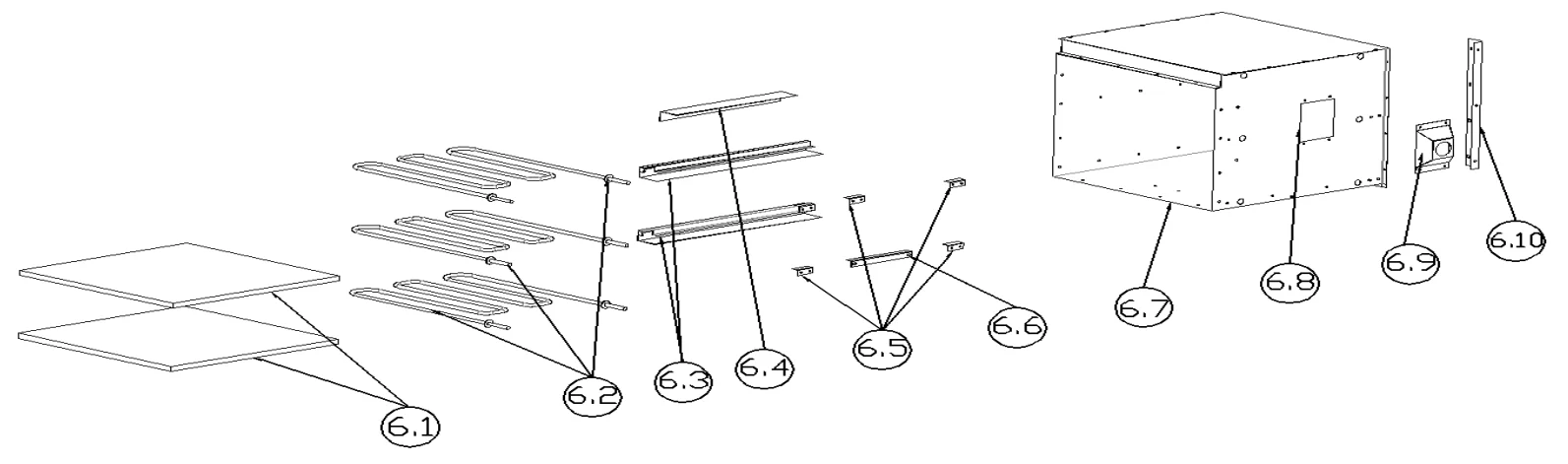

Chamber

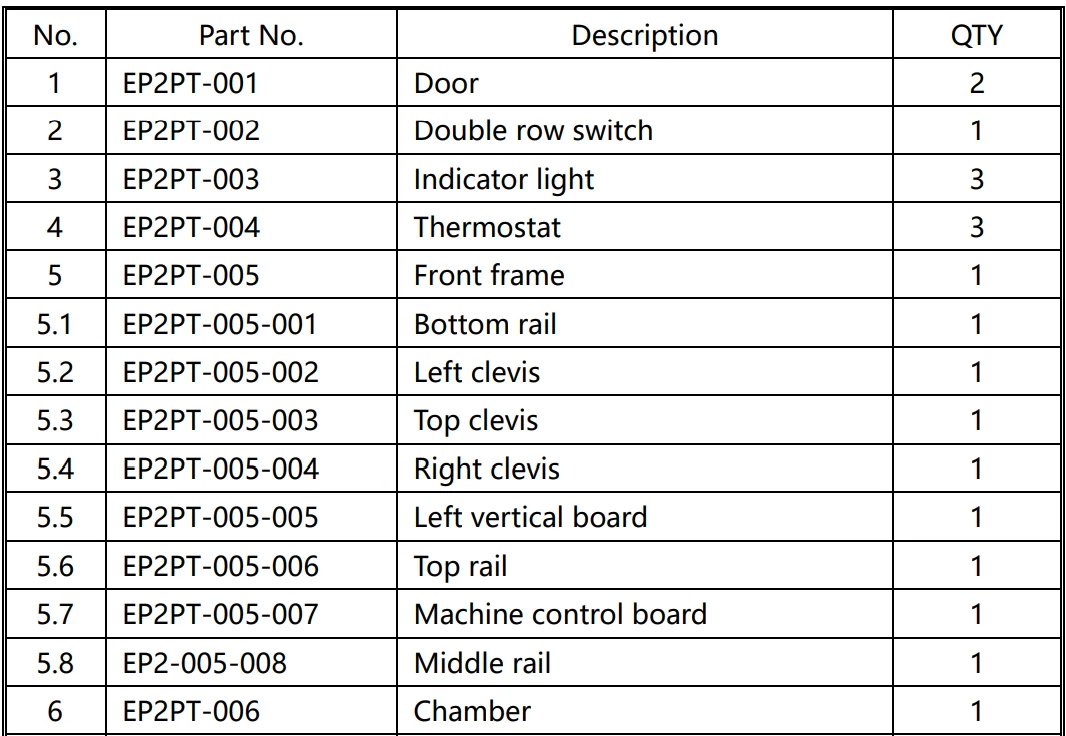

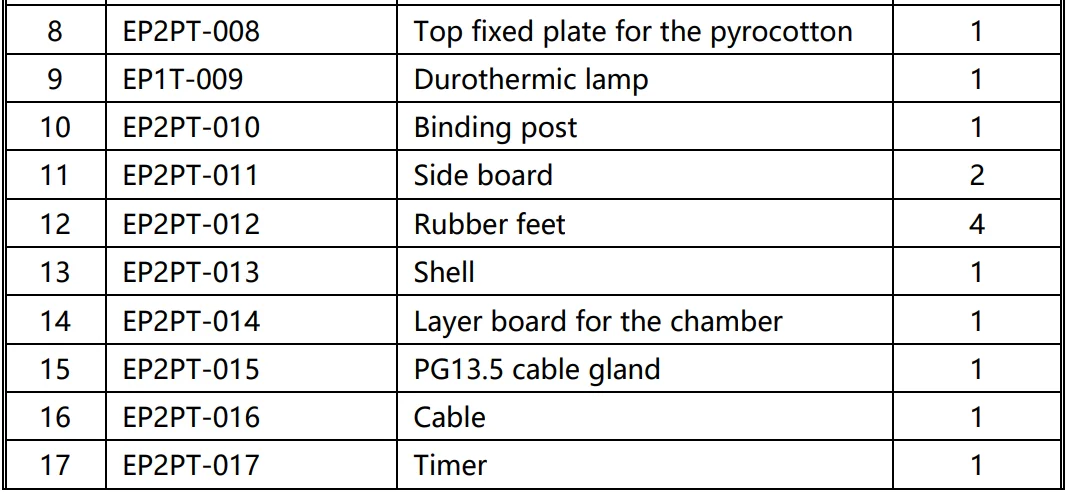

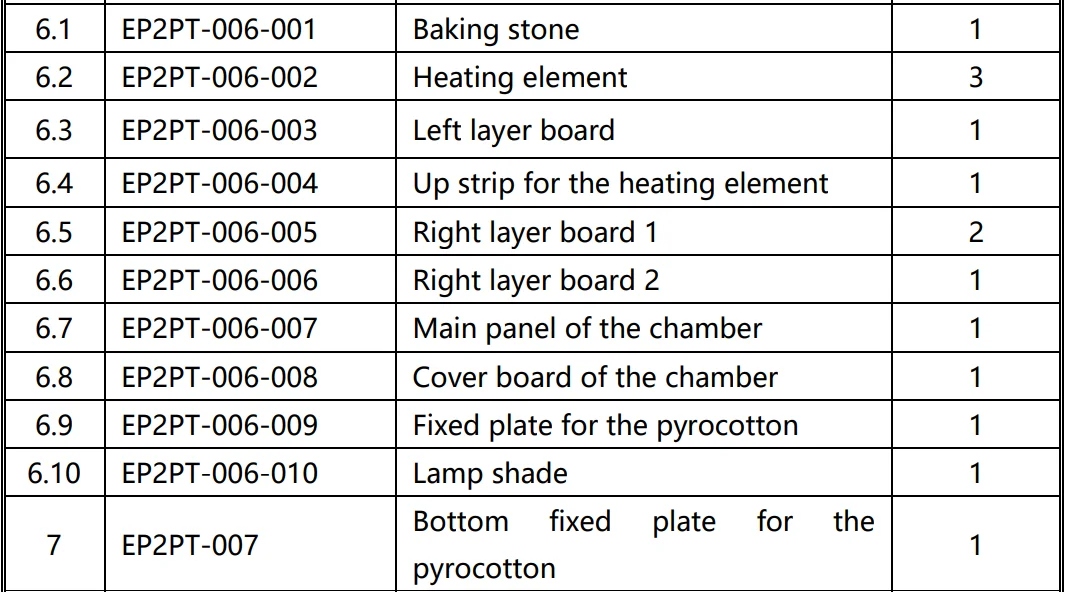

Parts list
Installation instruction
- All the electrical power units and circuits must be installed by a qualified electrician to safety standards
- Connection must be based on requirements.
- Make sure the rubber feet have been installed securely.
- The product should be placed in a well-ventilated place on a solid platform, and we suggest to least at least 10cm space between the product and the wall or barriers. Also, place the product away from combustible materials, and there should be a fire extinguisher equipped around.
- Remove the packaging film from the surface.
- The power wire should be connected according to safety standards. Make sure the voltage and frequency conform to the parameters. And please install a double-pole switch before connection. When the voltage is working, the voltage error should be under 10%.
(Product must be connected to ground.) - Connect the cable to the power supply fixed by using a screwdriver according to the connection diagram, then loosen the screw inside the power point, and plug in the cable, making sure the copper sheet compresses the power line tightly. If the connection is incorrect, it may cause joint heating and burn off the power cord.
Operation instruction
- Turn on the power supply.
- The temperature of the oven can be adjusted between 0~350℃℃.
- Turn the timer clockwise to the desired time, then the indicator light turns on and the heating element starts working. When it reaches the set temperature, the indicator light turns off. If the temperature is below the set temperature, the heating element will be automatically reheated,, and the indicator light will be on.
- The internal lighting can help monitor the baking process.
- Cooking time depends on the amount of food; the more food there is, the longer the time required.
- Please turn off the power if not in use.
Warning
- If you want to clean、 repair, or move the machine, please pull out the plug first.
- Please don’t touch the switch or plug with h wet hand.
- The machine can’t be flushed directly, and please be careful, don’t let any water flow into the switch when cleaning.
- Keep the children from touching or using the machine.
- The ground wire must be connected, and all connections must be reinstated after maintenance.
Maintenance
- Please pull out the plug first before maintenance, and clean it after cooling down the chamber.
- For daily cleaning, you can use a dry cloth to wipe off the grease on the cchamberr, don’t flush the chamber with water directly. For cleaning the baking stone, please take it ouof t the baking stone, use a fur brush to clean its surface, rinse it with water, then dry it. (Don’t use any cleanser to clean the baking stone, because the baking stone can strongly absorb water, so that the cleanser would be absorbed at the same time, which may affect the flavor of the food.)
- We suggest maintaining the machine by a qualified electrician once a month.

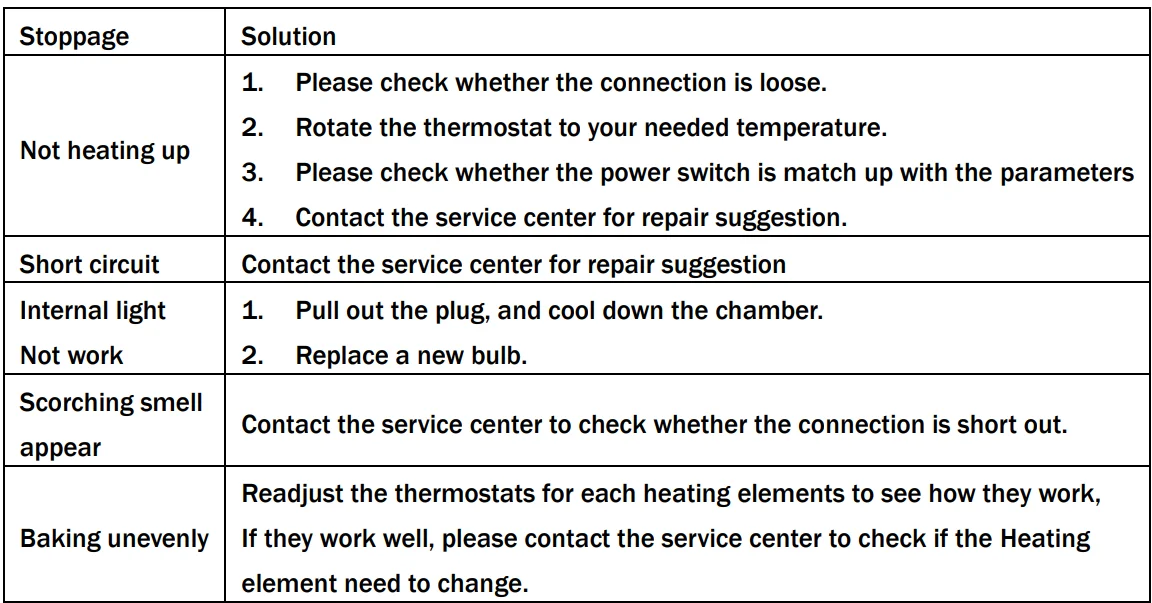

Trouble shooting

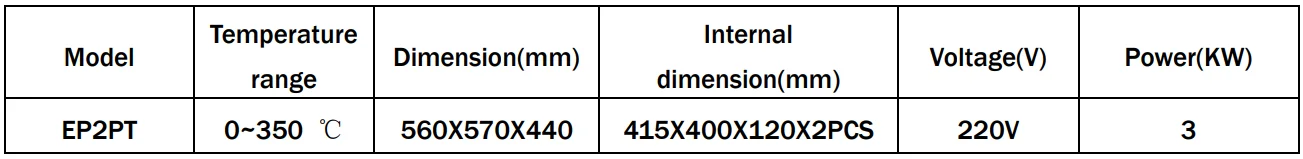

Specification

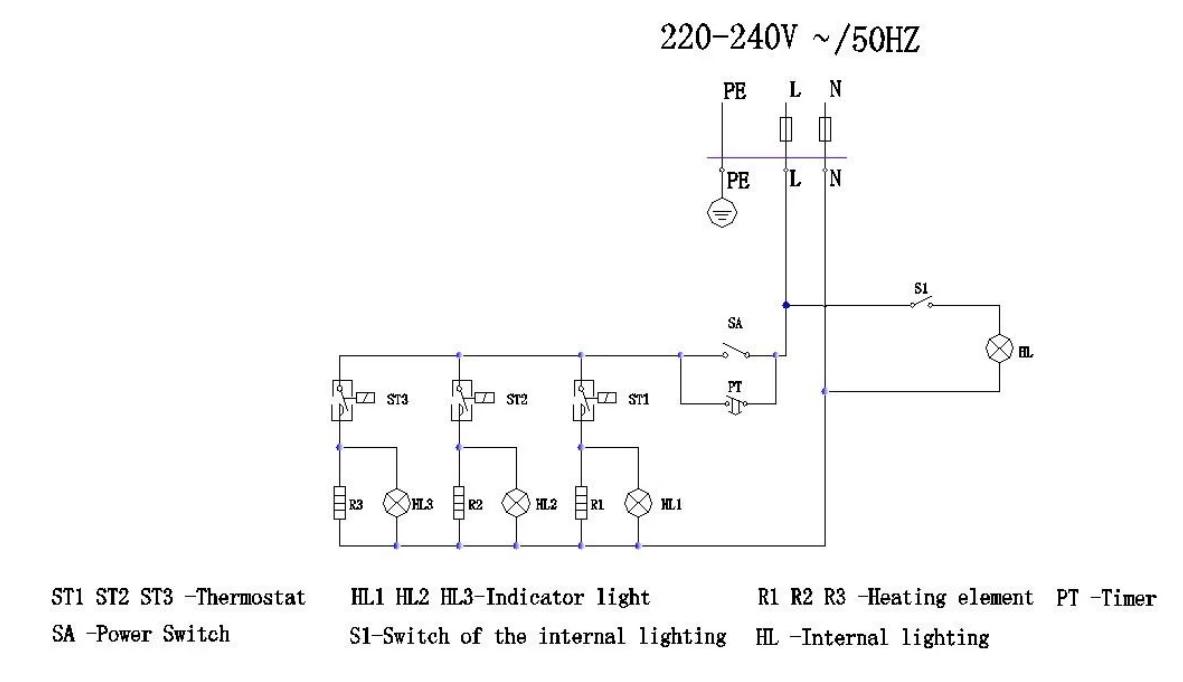

Wiring diagrams
