Airmoto Tire Inflator Smart Air Pump
Portable Smart Tire Inflater
NOTE: AIR HOSE IS STORED INSIDE THE DEVICE. PRESS THE RELEASE BUTTON ON THE BOTTOM
TUTORIAL: GetAlrmoto.com/HowTo
Packing list
- 1 x smart air pump
- 1 x flexible hose (US standard connector)
- 1 x French standard adapter
- 1 x ball needle
- 1 x nozzle for swimming ring
- 1 x Type-C cable
Specification
- Product name Portable smart air pump
- Product model: BP198
- Product size: 38 x 60 x 152mm
- Weight: 340g
- Inflation pressure: 120PSI (M~)
- No-load flow: 20L/M c
- Charging temperature: O – 45
- Working temperature: -10-60
- Battery capacity: 2000mA/7.2V (14.4WH)
- Charging input: 5V/2A
- USS output: 5V/1.5A
- Charging time 2.5-4.5h
- Pressure accuracy +/- 1 PSI
- LED lighting 0.5W
- Over-current protection: 9A/1S
- Over-discharge protection: 6V

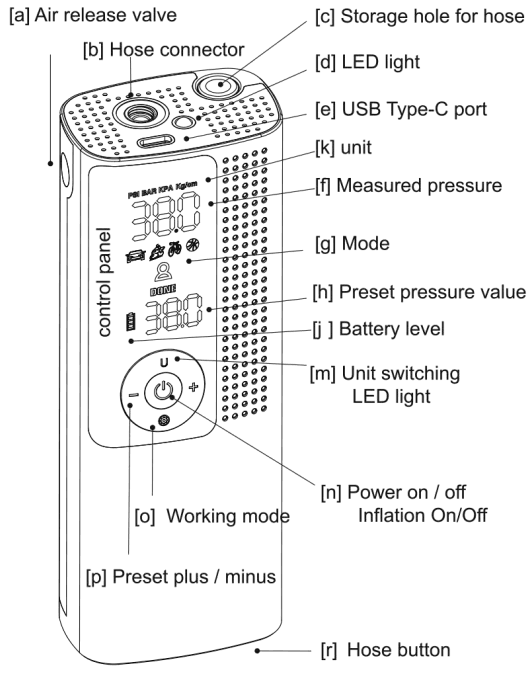

Illustration
ATTENTION:
- Do not leave during inflation
- Keep away from combustible and explosives
- Avoid moisture, sand and fall.
- Do not store the product in a place that is too cold or hot.
- It is forbidden to throw the product into fire or discard it at random due to the built-in lithium battery.
- Not for children
How to use

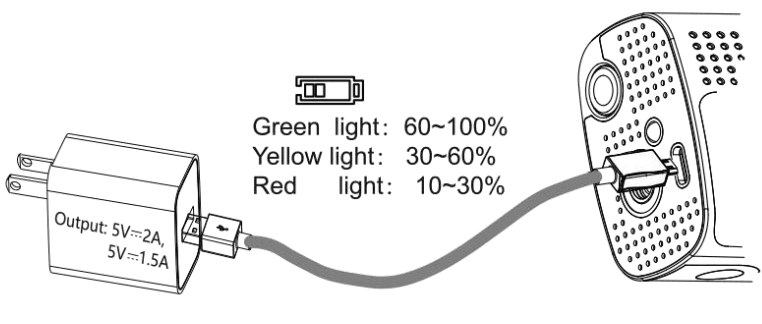

Charging method
The USS charger is recommended to use 5V / 2A. Use the Type-C charging cable to connect the air pump and power adapter (sold separately) for charging
- Charging s1atus: battery indicator flashes
- Full state: the battery indicator is green and does not flash
- The product cannot be used during charging
Startup and shutdown

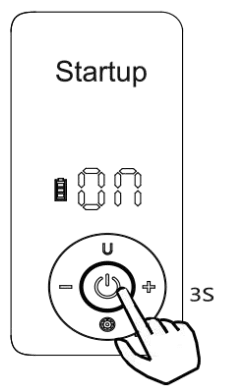

*Long press the power button for 3 seconds, as shown in the figure. Switch on successfully

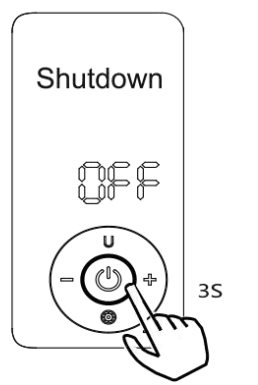

- *Long press the power button for 3 seconds, as shown in the figure Shut down successfully
- *Automatic shutdown in 3 minutes without operation
- *Automatically shut down when the battery is low

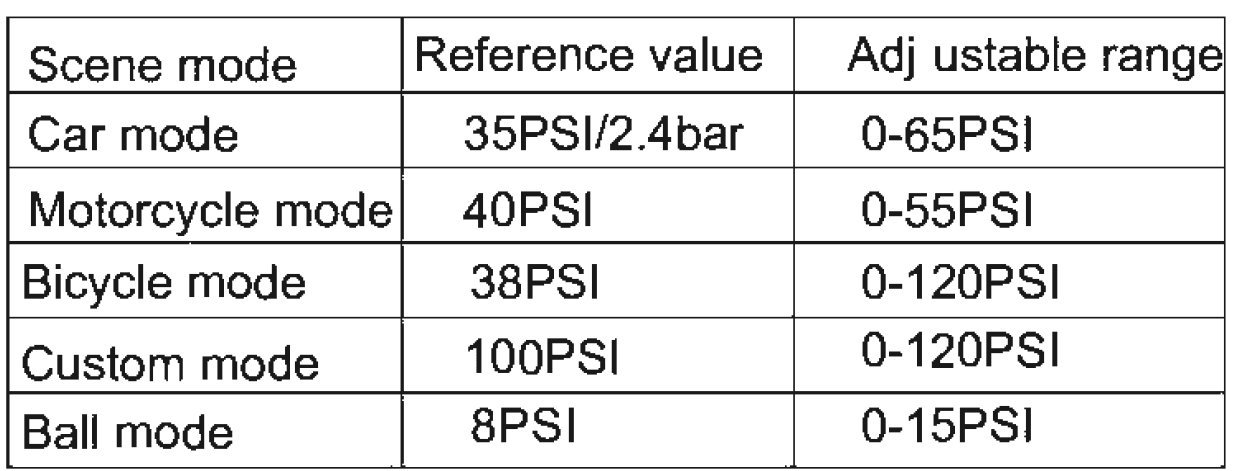

Application scenario switching
Short press mode selection key (o) SETTING you can choose 5 inflatable scene modes. They are:
Unit switching
Short press the unit switch key [m], and you can switch the air pressure display unit. The unit conversion formula is shown below 1PSI = 6.89KPA 1BAR = 100KPA 1Kg/cm. = 98KPA
Preset pressure value
Short press +/- button [p]: Adjust the preset pressure value +/- 0.5PSI. Long press +/- button [p]: can quickly adjust the preset pressure value
Note: The scene switch and preset pressure value are automatically saved by the software. You only need to switch the scene for the next use, and the preset pressure is automatically set.
Hose connection

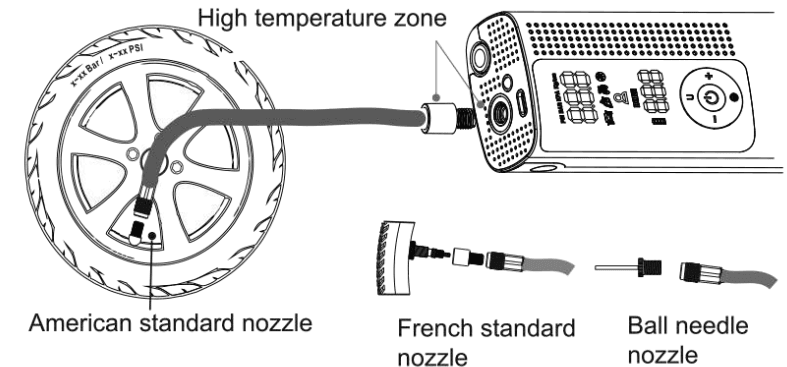

The connection of the hose is shown in the following figure:
Start inflation
Short press the inflation switch [n] to start inflation. The digital display of the real-time air pressure value [f] changes during inflation. Noise will be generated during inflation, and the hose produces high
temperatures during long-term work. Avoid prolonged contact with hose and hose joints by hand [b].
Stop Inflation
- Short press the inflation switch (n) to stop inflation manually.

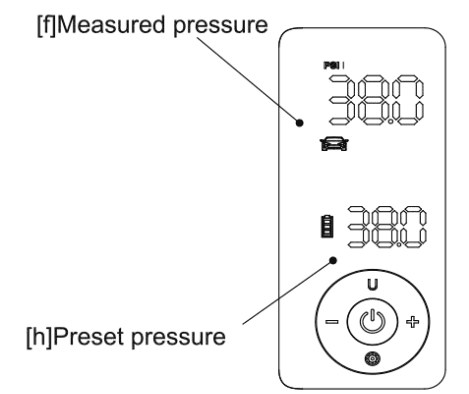

- When the measured pressure [f] reaches the preset pressure [h] stop inflation automatically.
LED Lighting
- * Long press LED [m] to turn on LED lighting.
- * Press and hold the LED light button [m] to turn off the LED light.
Hose storage

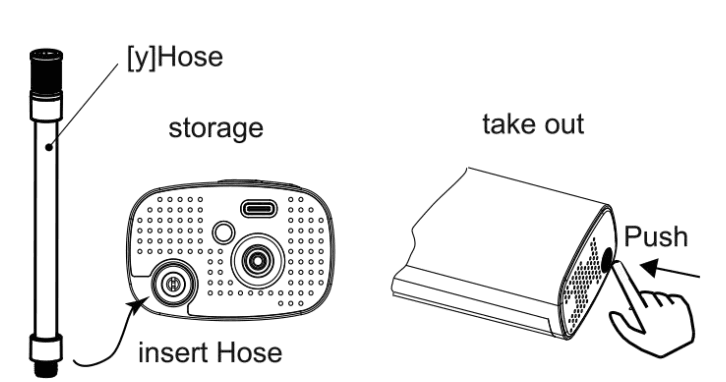

The hose can be stored in the storage hole as the following figure shows, just put the thread head of the hose inside the hole to store it.
Measuring pressure
After switching on, connect the air pipe to the measured object, and the measured pressure value [f] shows the current pressure value.
Air release valve
Connect the air pipe to the measured object and press the air release valve [a] to deflate.
Clearing the pressure
After switching on, when the measured pressure value is not zero, press the preset +/- key [m] for 3 seconds at the same time to enter auto clear.
Note:
The product has been cleared from the factory. When the difference in altitude or the sensor tolerance shows that the measured pressure is not zero, manual clearing can improve the accuracy of pressure detection. Do not connect inflatable objects when clearing.

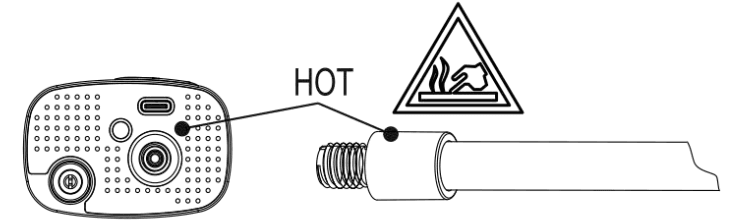

High-temperature safety precautions
When the hose is unscrewed, the air pipe and the joint will generate high temperatures due to long-term work. Do not touch it with your hands for a long time.

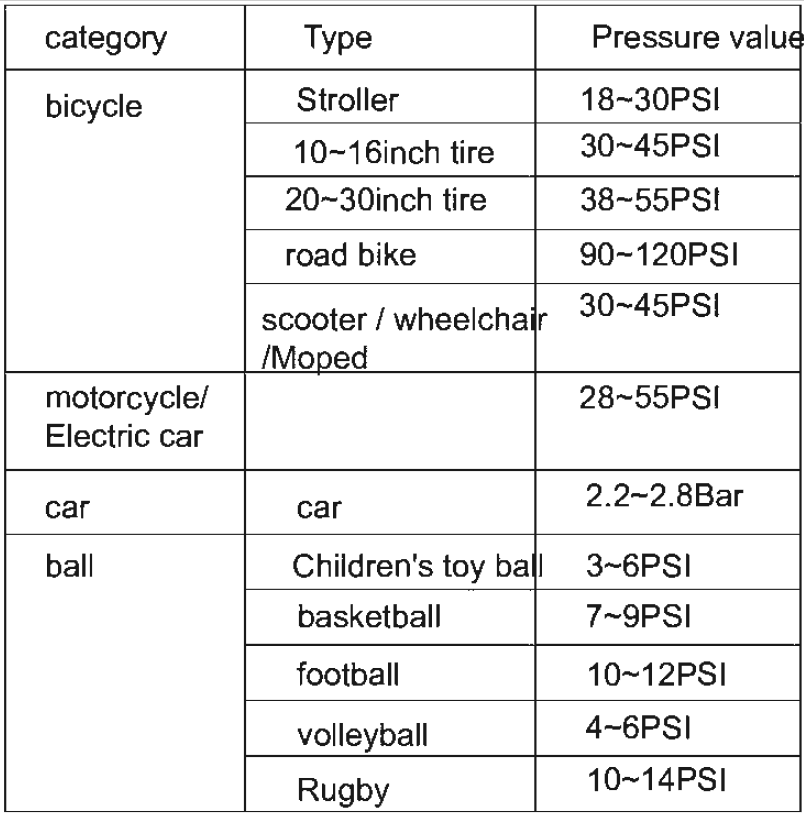

Common product pressure values
