Aiworth E36 Professional Voice Recorder

Charging

Do not use the recorder or leave the recorder on the bed, under the pillow, or in other locations accessible to children during the charging process.

Document Completeness

Do not push the power switch to prevent the current recording document from being lost during the recording process.

Interferences

All devices are possibly interfered with, which may influence their functions. Please keep far from the interference sources when the Recorder works.

Backup

Digital voice recorder

Please keep backup documents in case external errors or operation failures may lead to the machine losing its documents.

Transmission

Do not disconnect the Recorder from the computer during the data transmission to prevent data loss.

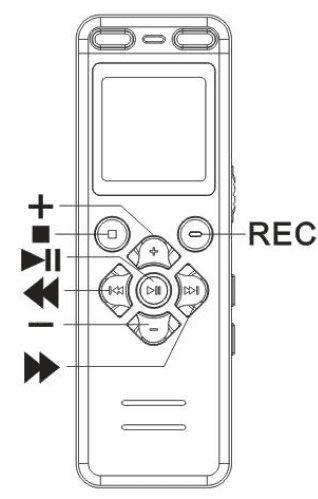

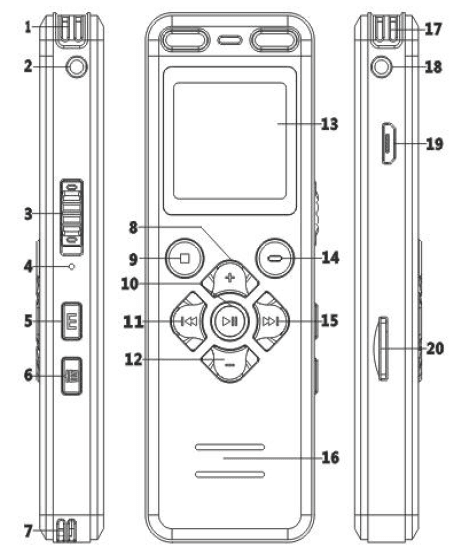

Parts and Controls

Digital voice recorder

1. Right channel soundhole
2. Headphone jack
3. Lock
4. Reset
5. Menu
6. Delete/A-B
7. Lanyard hole
8. Volume up button
9. Stop/Escape button/Save button
10. Pause/Play button
11. Rewind/Previous file button
12. Volume down button
13. Screen
14. Record
15. Fast forward/Next file button
16. Bellmouth orifice
17. Left channel soundhole
18. Line in jack
19. USB port
20. TF card socket

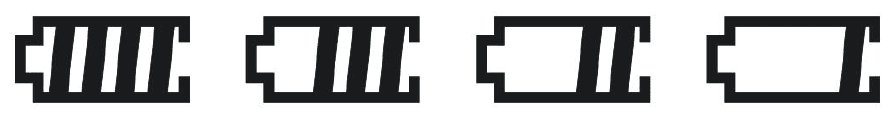

Charge

Connect the recorder to your computer via the USB cable(Supplied). Insert the micro USB end to the recorder, and the USB end to the USB port of a running computer. When the recorder is charging, the screen will show the electric quantity atop the right. The battery will be fully charged after about 3 hours and then can work 70 hours

Turn the Power On

1. When the machine is in a dormant state, long-press the boot.
2. When the machine is asleep, press the “REC” key, turn on the machine, and start recording.

Turn the Power Off

When the machine is in shutdown, press  off.

Hint

When the recorder is in the stop mode, and you leave the recorder without attempting. an operation for approximately 2 minutes, the auto power-off function will take effect.

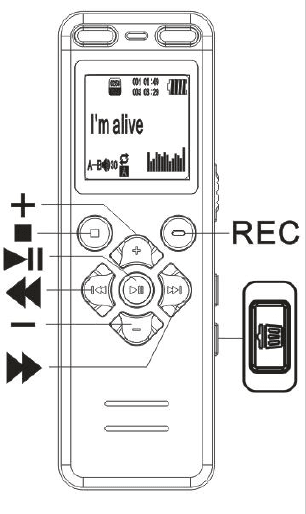

Record

1. In the standby mode, press the “REC” machine to enter the recording state, press the button to save the recording file, press , pause the recording, and then lock other key functions by “lock key”.
2. In sleep, long press REC to boot and enter the recording state, the short press will save the recording file, and short press , to pause the recording, you can lock other key functions by “lock key”.
   • Place the recorder so that the built-in microphones face the direction of the source to be recorded. The new file will be automatically recorded as the last file in the current folder.

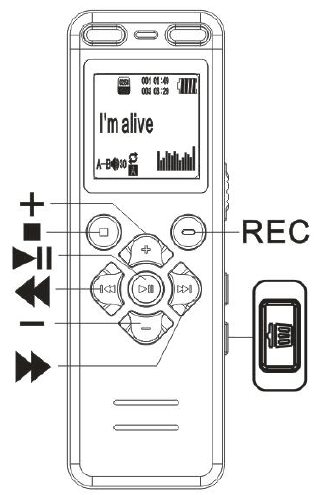

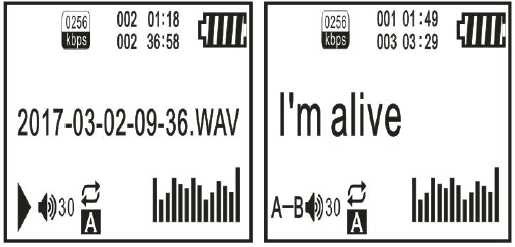

Play

• Music player: after booting, press the “M” button to switch to music mode. Press the play button to the music file.
• Voice play: after booting, press the “M” button to switch to the voice mode, and press the to play the recording file.

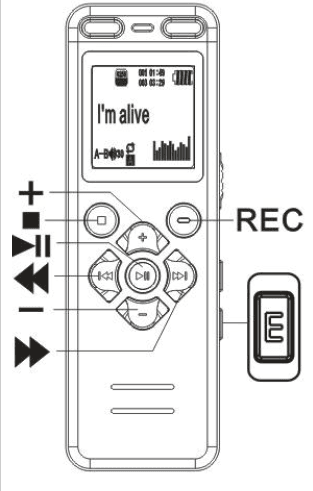

“A-B” Repeat Play

• In the playback state, short press “delete” a screen display “A” in the flesh, said to enter the repeat mode, and then press the delete key once, the screen shows “B” in the flicker, expressed as the starting point of the repeat section, then Press “delete” a “B” section of the endpoint and repeat, repeat play in the range of A. Press again “delete” once, and exit the A repeat mode.

Erase

• In standby mode, short press the “M” button to enter the main menu, press,select “delete files”, and short press in a short press exit.
• Short press “+” / “-” select “single deletion”, Press enter, press “+” / “-“, “yes / no”, press to confirm, press shortly , and then exit.
• Short press “+” / “-” select “delete all”, press enter, press “+” / “-“, select “yes / no”, press to confirm, press shortly , then exit.

SETUP MENU

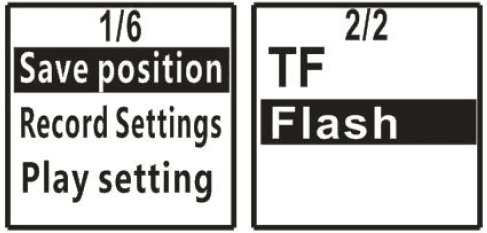

• Memory location

1. In the standby mode, short Press the “M” button to enter the main menu, press ,select “memory location” short press in a short press exit.
2. Press “+” / “-“, select “TF”, and “Flash”, and press to save. At this point, the recording file is stored according to the storage location of your choice, and the short press is exited.

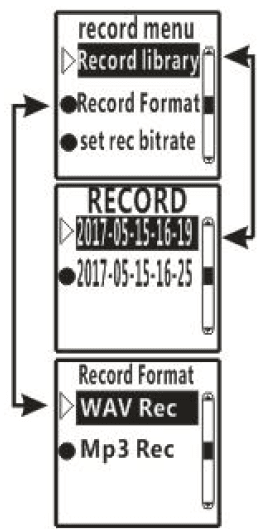

Record-setting

1. In the standby mode, short press the “M” button to enter the main menu, press，select “recording settings”, and short press in a short press exit.
2. Enter the “library”, press “+” / “-” to select the recording files you want to play, press short, and press exit.
3. Short press,choose the “recording format”, short press “+” / “-” choose “WAV”, “MP3”, press to confirm the save, short press ” ” exit, then according to the audio file, you set the audio format recording.
4. Short press，choose the “Recording bit rate”, short press ” ” to enter, when choosing”WAVRec (256kbps/512kbps/1536kbps) /”MP3Rec” (32KBPS/64KBPS/128KBPS) short press “+” / “-“, short press ” ” to confirm the save settings, press ” ” to exit, then the audio file, will you set the bit rate according to the tape recording.
5. Short press，select “voice” mode, short Press to enter, press “+” / “-” select “normal mode /voice mode”short press confirmation to save the settings, press the exit, then according to the mode of your recording tape set up. (reminder: when opening the “voice” mode, in the recording state, the machine will automatically sense the sounds around when the ambient sound reaches a certain standard, the machine will automatically record, below the standard, automatic pause recording, an environment, not recommended to use this function)
6. Short press，select the “recording source” option, press “play” to enter, press “+” / “-” select “microphone /line-in”, short press to confirm the save settings, press the exit, then the tape will be set according to your recording the source of the recording.
7. Short press,select the “recording light switch” option, press ” ” to enter, press “+” / “-” select  “open/close”, short press to confirm the save settings, press the exit when choosing the recording light off “when recording when the indicator light is turned off when the choice of recording light” on” when recording flashing lights.

• Playback settings

In the standby mode, short press the “M” button to enter the main menu, press ,select “Settings”, and short press in a short press exit.（一）Play Mode

1. Press “+” / “-” to select “play settings”, press enter, and press exit.
2. Short press “+” / “-” select “Settings”, short press to enter, press “+” / “-” select “repeat single / repeat/random play” short press to confirm the save settings, press the exit, then play the file according to your will set the playing mode.

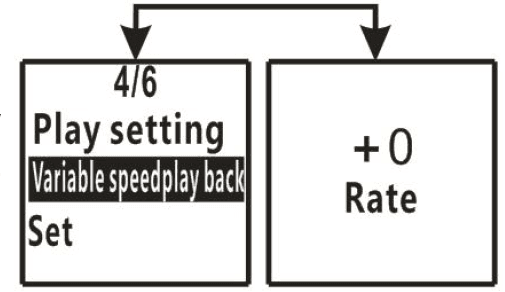

3. Short press “+” / “-” select “speed play”, short press to enter, press “+” / “-” digital “+8, -8” a total of 17 kinds of variable speed playback mode, short press to confirm the save settings, press the exit, then play the file according to set the playback speed you are playing.

• System settings In the standby mode, short press the “M” button to enter the main menu, press ，select “system settings”, and short press ” ” in short press ” ” exit. （一）Date and Time
• System settings

In the standby mode, short press the “M” button to enter the main menu, Press，select “system settings”, and short press the short press exit. （一）Date and Time

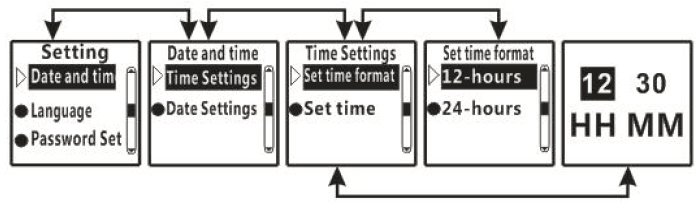

Set time

1. Short press “+” / “-” select “time settings”, short press ” ” to enter, press “+” / “-” select “set time format”, short press to enter, press “+” / “-” select “12 hour /24 hours.” short press to confirm the save setting, press exit.
2. Short press “+” / “-” select “set time”, short press to enter, press “+” / “-” digital regulation, short press，regulation digits, short press to confirm the save settings, and press the exit.

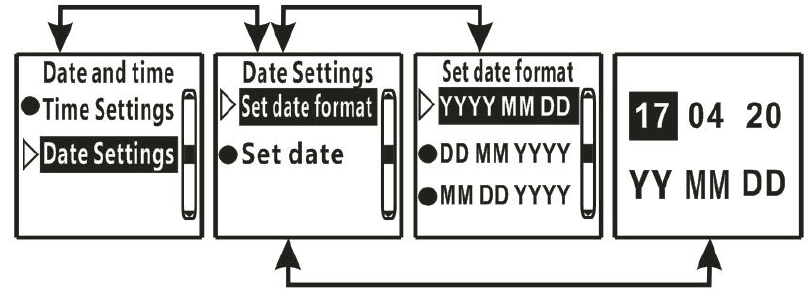

Date settings

1. Short press “+” / “-” select “date set, short press” “to enter, press” + “/” – “select” set date format “, short press to enter, press” + “/” – “select” YYYY MM DD/DD MM YYYY/MM DD YYYY “. Short press to save the settings confirmation, and short press exit.
2. Short press “+” / “-” select “set the date”, short press to enter, press “+” / “-” digital regulation, short press,regulation digits, short press to confirm the save settings, press the exit.

Password Setting

1. Short press “+”/”-” select “password”, and short press to enter. Short press exit.
2. Short press “+”/”-” select “password switch”, short press to enter, press “+” / “-” select “password to open” short press to confirm the save settings, and press the exit.
3. Short press “+”/”-” select “password”, short press to enter, press “+”/”-” digital regulation, short press  ,regulation digits, short press to confirm the save settings, and press the exit.

Formatting the device

1. At this point, you should be formatted, the recorder is plugged into the computer’s USB interface, enter “USB” connection mode, and the recording notes memory format. (Note: WINDOW2000 above version, select the “FAT32” format.), please backup the data recorder, formatted will delete all files in the recording pen.
2. In any computer system under the format, such as your computer hard disk formatted floppy disk, the same method (i.e. select “formatted removable disk”).

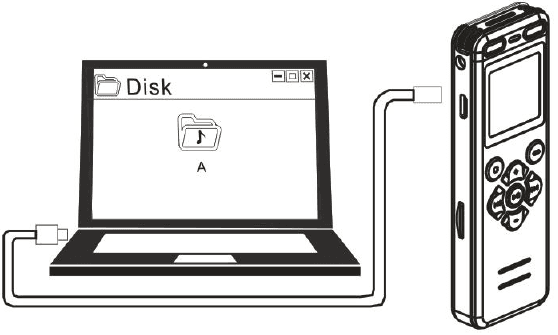

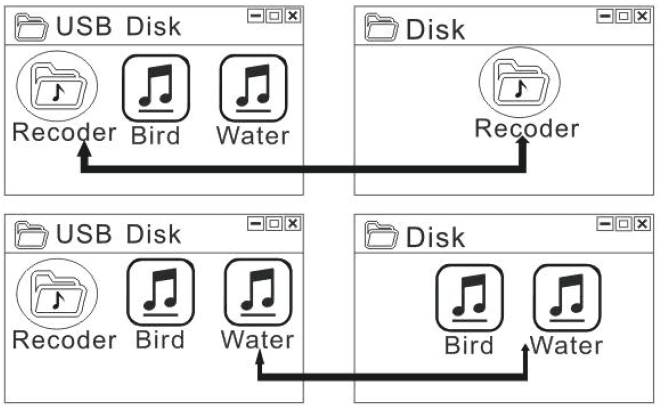

Copy Files with PC

Connect the Recorder to the PC via the USB cable. Copy files or folders to your computer.Note

Copy the PC side of the music to the recording pen.

General Specification
