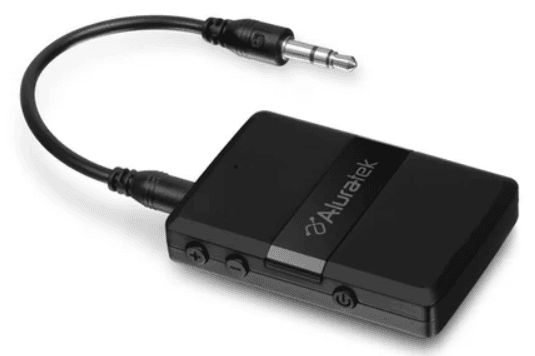

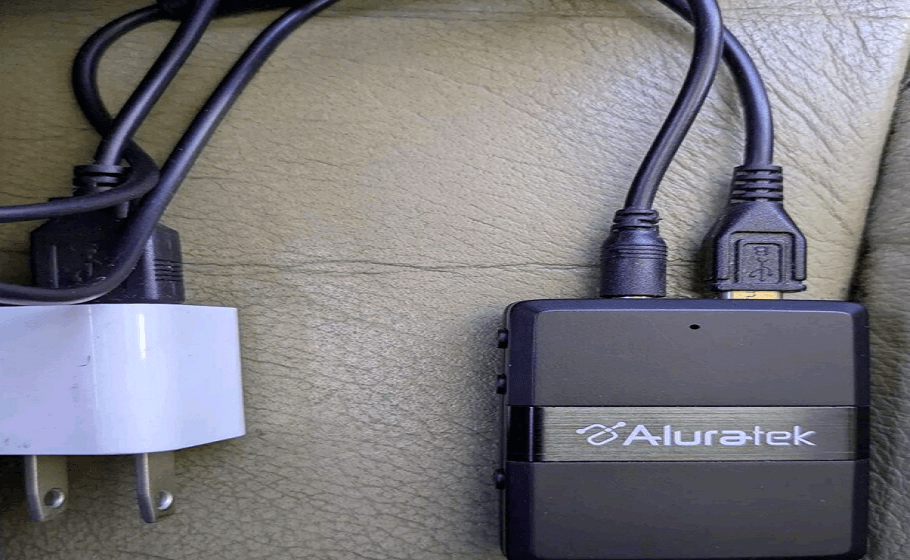

Aluratek Universal Bluetooth Audio Receiver and Transmitter
Package Contents

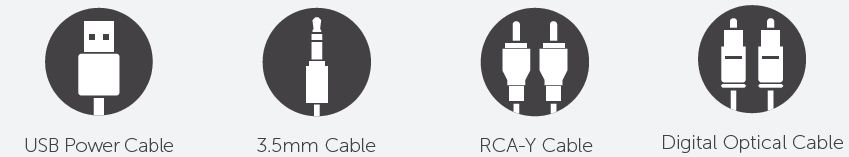

- Your order has been carefully packaged and inspected. The following accessories should be included in your package. Please inspect the contents of the package to ensure that you have received all items and that nothing has been damaged. If you discover a problem, please contact us immediately for assistance.
Product Highlights
- In SPDIF mode, connect devices through SPDIF IN for TX mode and SPDIF OUT for RX mode

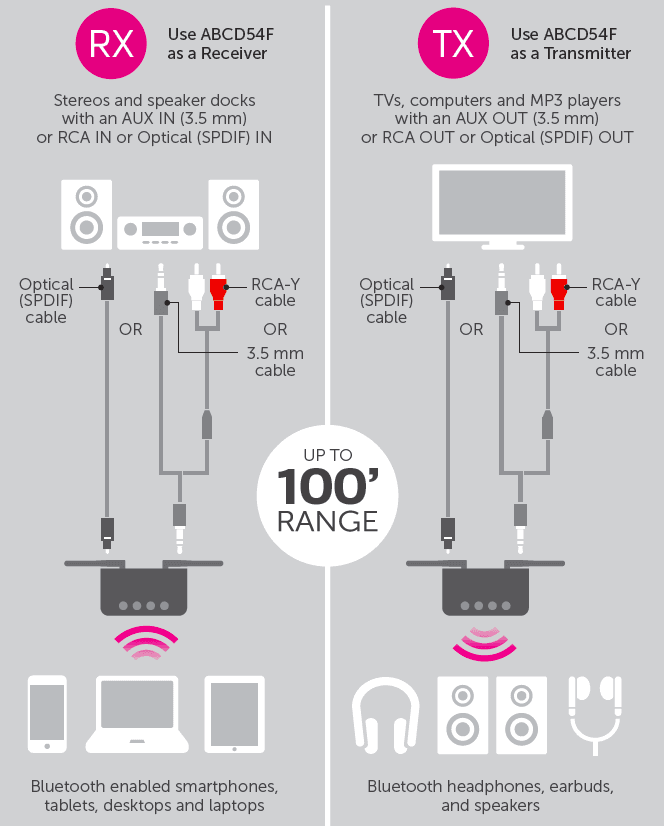

Product Application
Operation

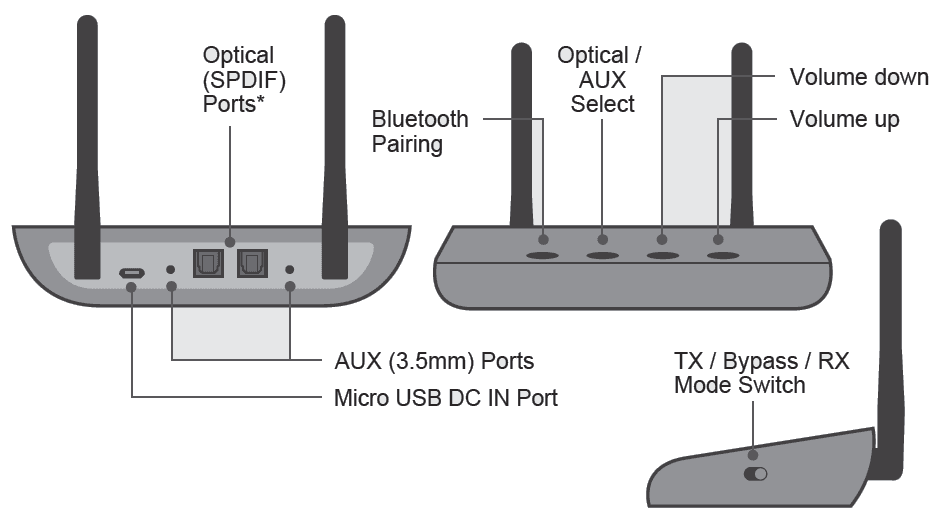

Control Functions
| Button | Function | Operation Method | |
|
Pairing | Enable pairing mode | Press the pairing button twice to enter the pairing mode | |
| Play / Pause (in RX mode only) | Press the pairing button to play/pause during music playback | ||
| Turn aptX-HD ON / OFF | Press and hold the pairing button for 7 seconds to turn ON / OFF aptX-HD when powered on (only when you are paired with a compatible device) | ||
| Volume + | Volume + (in RX mode only) | Short press the volume+ button during music playback | |
| The next song (in RX mode only | Long press the volume+ button to skip to the next song | ||
| Volume – | Volume – (in RX mode only) | Short press volume- button during music playback | |
| Previous song (in RX mode only) | Long press the volume – button to skip to the previous song | ||
| Tx /Rx mode selection | Switch the button to the TX side for transmit mode / Rx side for receive mode / BYPASS (middle) for pass-through mode | ||
| Mode switch | Short press mode button to switch between OPT and AUX | ||
LED Indicators
| Status | LED Indicator | |
| Pairing Mode | TX LED flashes rapidly (TX Mode) | |
| RX LED flashes rapidly (RX Mode) | ||
| Standby / Reconnect Mode | TX LED flashes once every 3 seconds (TX Mode) | |
| RX LED flashes once every 3 seconds (RX Mode) | ||
| Connected with one device | LED “A” shows blue | |
| Connected with two devices | LED “A” and LED “B” shows blue | |
|
Connected CODEC mode | aptX™ HD | LED “HD” shows blue |
| aptX™ low latency | LED “LL” shows blue | |
| aptX™ | LED “aptX” shows blue | |
| SBC | The above 3 LEDs stay off | |
Pairing in Transmitter Mode (TX)
Please make sure the device supports the A2DP profile. The pairing procedure will vary depending on the actual device. Please refer to the user guide of your device for detailed instructions. The general pairing procedures are as follows:
- Make sure ABCD54F is switched to TX
- Connect the USB DC input to ABCD54F
- ABCD54F will enter pairing mode automatically with TX LED flashing rapidly (Quick Press the pairing button twice if it is not in pairing mode)
- Activate your device’s Bluetooth function and set your device to search for Bluetooth devices.
- Please make sure ABCD54F and the device are next to each other and they will pair automatically
- After connecting successfully, both “TX” and “A” LED lights will illuminate steady blue.
Pair with two devices at the same time in TX mode
In TX mode, ABCD54F is able to pair/stream to two Bluetooth stereo headphones/speakers at the same time.
- Follow the previous instructions in the “Pairing in Transmitter Mode” section to pair ABCD54F with your first device.
- Press the pairing button twice on ABCD54F to enter pairing mode
- Power on your second device and enable Bluetooth pairing mode
- Once connected, both “A” and “B” LED lights will illuminate steady blue
Bypass Mode Setup
- This mode can be used if you just want to use the ABCD54F as a converter without using the Bluetooth function. Slide the switch to bypass mode and connect the power source to ABCD54F to enable the following functions: aux to aux, opt to opt etc…
- To enable aptX-HD For Supported Device
- While ABCD54F is on, press and hold the pairing button for 7 seconds to turn on/off aptX-HD mode
- To Clear Pairing Records
- For TX mode, while ABCD54F is on, press and hold the “+” button for approximately 7 seconds until both TX and RX LED lights flash 2 times simultaneously.
Radio and TV Interference Statement
WARNING This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by whatever measures may be required to correct the interference.
Warranty
Aluratek warrants this product against defect in material or workmanship for 1 YEAR from the date of purchase. This warranty becomes invalid if the factory-supplied serial number or “warranty void” sticker has been removed or altered on the product. This warranty does not cover:
- A) Cosmetic damage or damage due to acts of God
- B) Accident, misuse, abuse, negligence or modification of any part of the product.
- C) Damage due to improper operation or maintenance, connection to improper equipment, or attempted repair by anyone other than Aluratek.
- D) Products sold AS IS or WITH FAULTS.
- IN NO EVENT SHALL ALURATEK’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR IT’S DOCUMENTATION
Technical Support
If you need further assistance, please contact the Aluratek support department for troubleshooting prior to returning this device.
- E-mail: support@aluratek.com
- Web: www.aluratek.com/helpdesk
