Anker SOLIX F3800 Portable Power Station

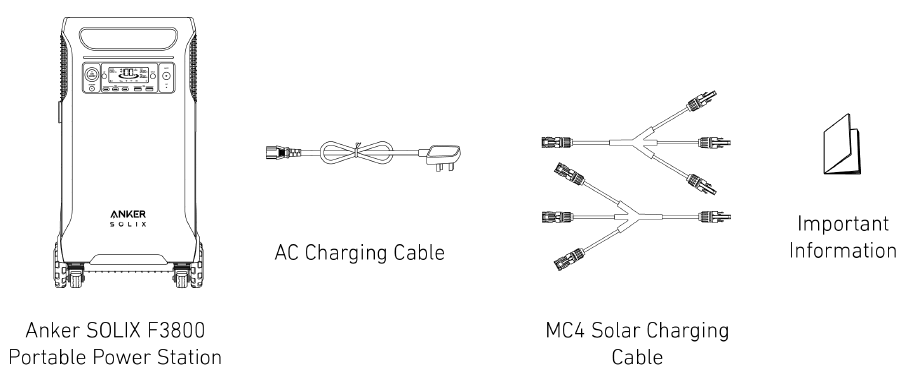

What’s in the Box
Overview

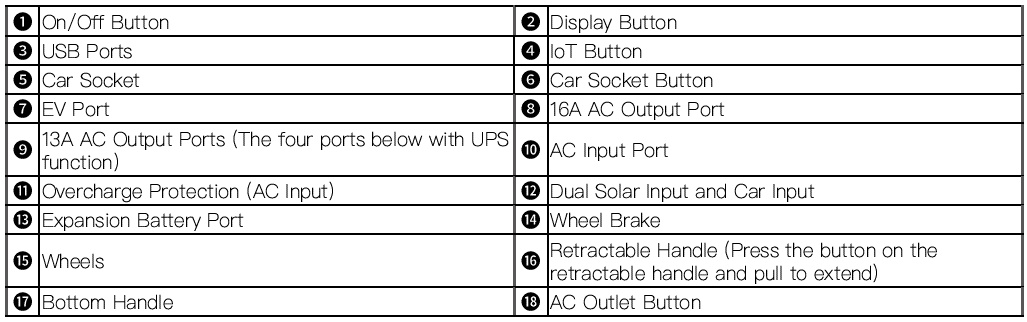

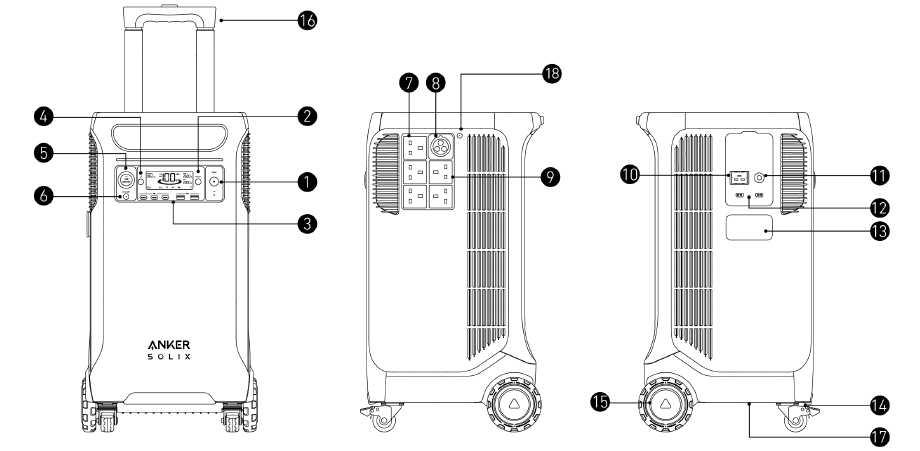

Product Overview

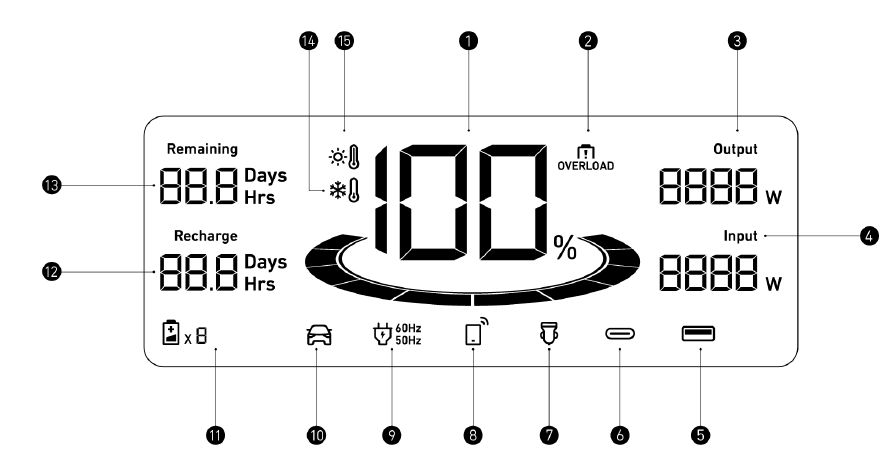

LCD Screen Guide
- Remaining Battery for Power Station and Expansion Battery
- Overload Warning
This icon appears when a port is overloaded. The port will turn off to avoid any damage. Please remove the device causing the overload. - Current Output Power
- Current Input Power
- USB-A Output Port
- USB-C Output Port
- Car Charging
- IoT
Press the IoT button for 2 seconds and connect your devices through the app when this icon appears on the screen. - AC Charge and Voltage Frequency
- Electrical Vehicle Charging
- Number of Expansion Battery Connected
When the expansion battery is connected successfully, this icon appears on the screen. - Estimated Time to Fully Recharge
- Estimated Time for Battery to Deplete
- Low-Temperature Alert
When this icon shows, stop using the power station until the icon disappears. - High-Temperature Alert
When this icon shows, stop using the power station and let it cool down until the icon disappears.
Recharging Your Power Station
When your portable power station only has 1% battery remaining, the “Remaining Battery” indicator will flicker to remind you to recharge.

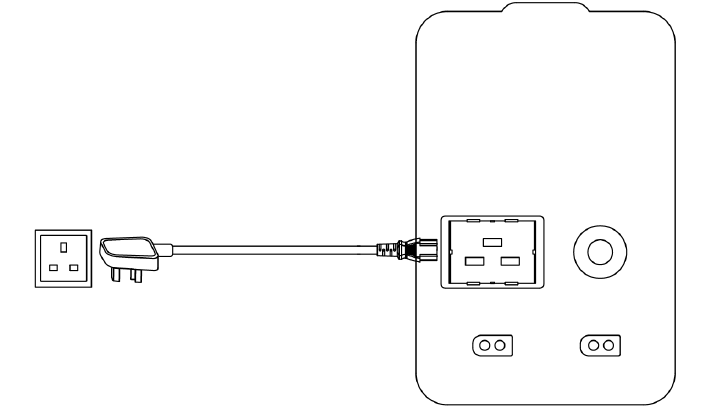

AC Recharging (2990W Max)
Recharge your power station by connecting to a wall outlet with the AC charging cable.

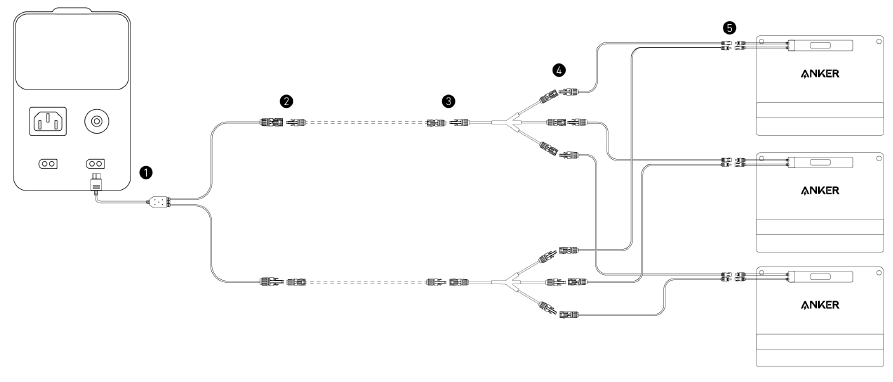

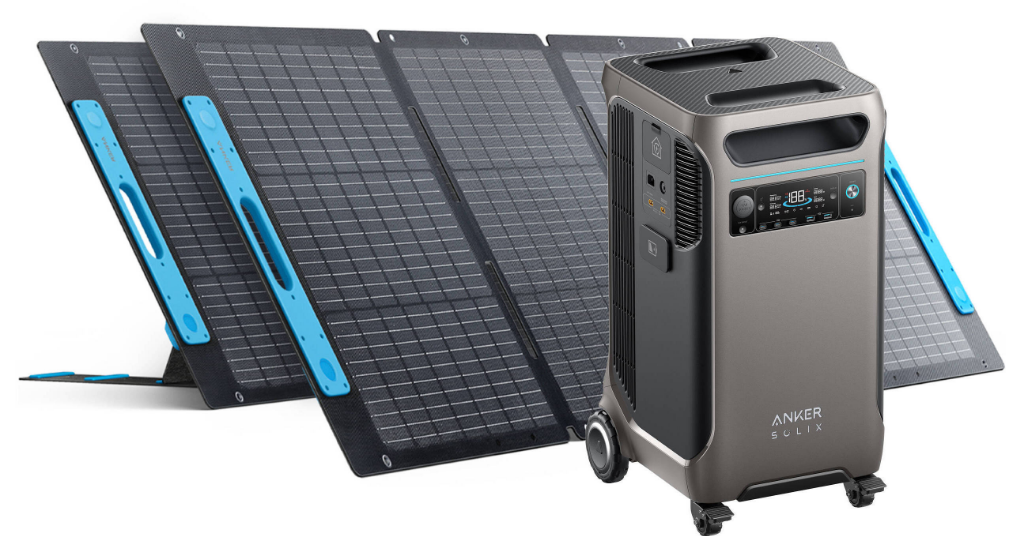

Solar Panel Recharging (2400W Max)
Recharge your power station with a maximum solar input of 2400W.
*If the solar panel is far from the power station, you can purchase the Anker SOLIX Solar Panel MC4 Charging Cable as an extension cable from Anker’s website, and connect it to the part indicated by the dotted line in the diagram.

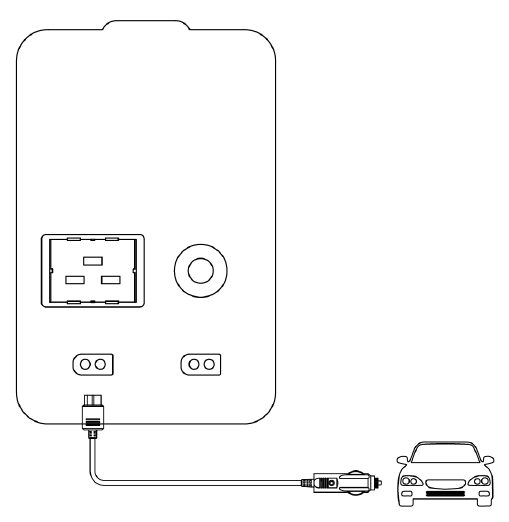

Car Recharging (120W)
Recharge your power station by connecting to a car’s output port with the car charging cable (not included).

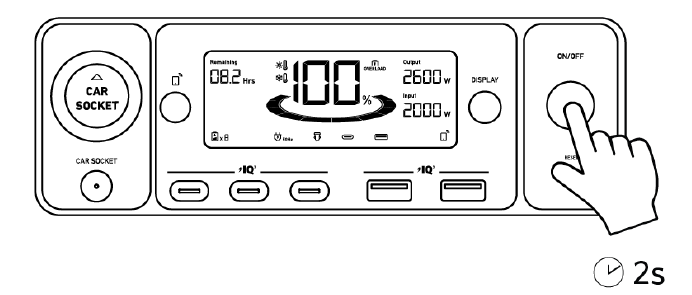

Powering On / Off
Press the ON/OFF button for 2 seconds to turn your power station on or off.
When the “Remaining Battery” indicator shows on the LCD screen, your power station is ready to charge devices.
Note:
- When powered on, press the Display button to turn the screen on or off.
- The auto-off time can be set in the Anker app.
- The power station will power off automatically if the output buttons are turned off and no power loads are detected for 12 hours. The standby duration can be set in the Anker app.
Powering Your Devices

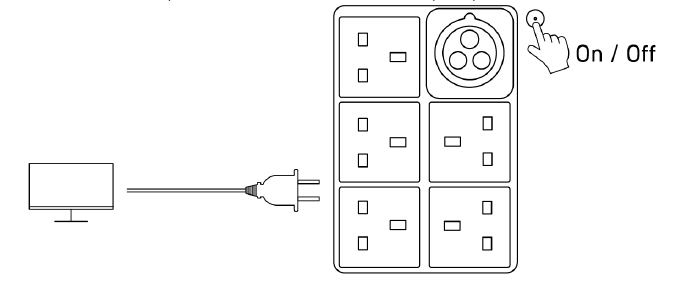

AC Charging
Press the AC outlet button and connect your device to the AC output ports.

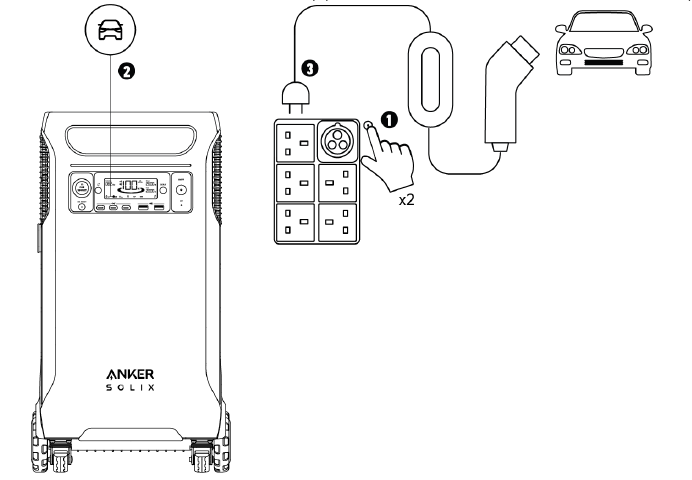

Double-click the AC outlet button, wait until the car icon appears on the screen, then connect your EV charger to the EV port.

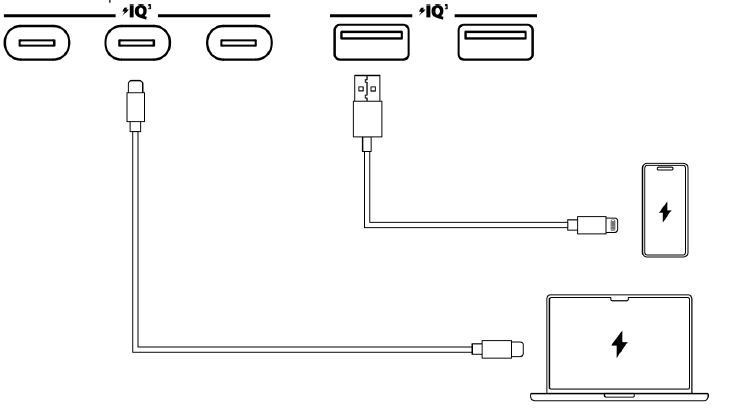

USB Charging
Connect your devices to the USB ports.

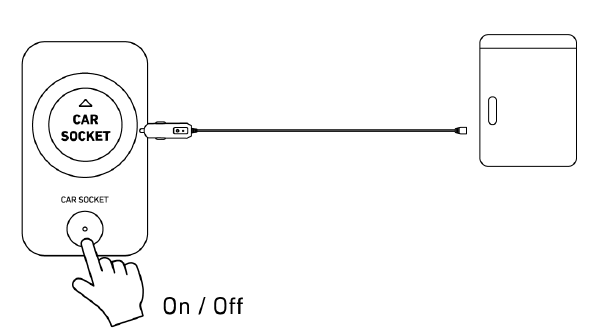

Car Socket Charging
Turn on the car’s socket and connect your devices to start charging.
Uninterruptible Power Supply (UPS)
To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet button and connect your devices via the AC output ports.

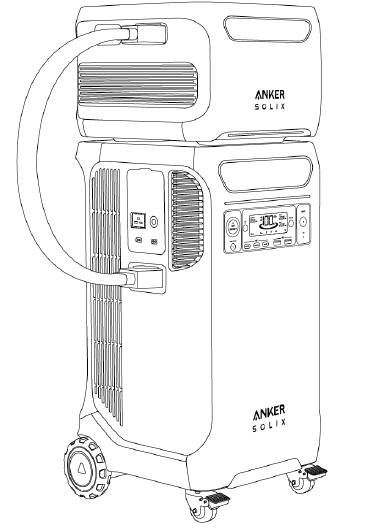

Connect With an Expansion Battery
Your power station can be connected with expansion batteries to increase the capacity up to 26,880Wh. Please refer to the user manual of Anker SOLIXBP3800 Expansion Battery for detailed instructions.
Anker App for Smart Control
You can remotely control your power station using the Anker app.
- Download the Anker app from the App Store (iOS devices) or Google Play (Android devices), or by scanning the QR code.
- Connect the device to a network before using the app for the first time. After connecting successfully, you can connect your device off-grid source.
- Firmware update:
You will be informed once a new firmware version is detected when you connect the power station to the app. During the update, ensure the power station is being charged and connected to Wi-Fi.

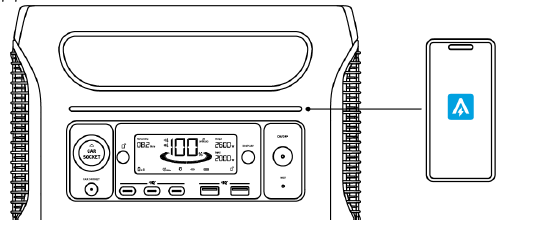

Light
Turn ON/OFF the light on the Anker App.

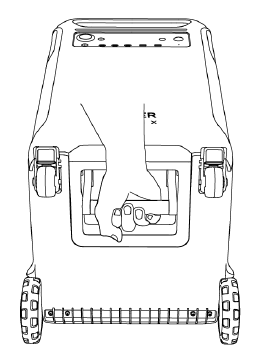

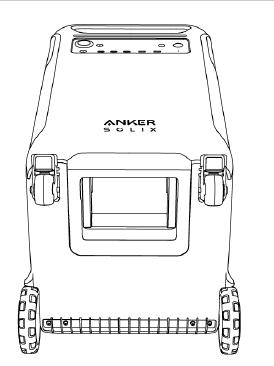

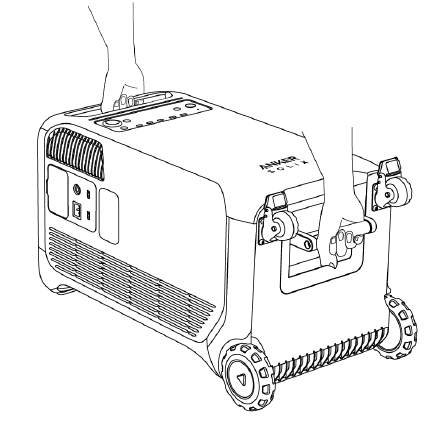

Carry Your Power Station
- Lay the power station flat.
- Open the bottom folding handle.
- Grab the bottom and top handles to lift the power station.
FAQ
Q1: What is the maximum power output of the AC output ports?
The AC output ports can deliver a maximum of 6000W to connected devices.
Q2: What should I do when using a solar charger to charge my power station?
The solar input supports an 11-60V solar charger with an XT-60 connector. If you use an 11-32V solar charger, the current supports 10A max. When you use a 32-60V solar charger, the current supports 25A max.
Q3: Can the USB-C ports charge the power station (input only), or are they output only?
The USB-C ports support output only.

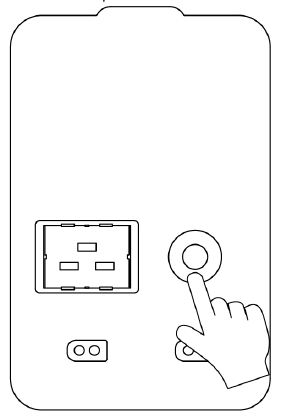

Q4: What should I do when AC recharging fails?
If AC recharging does not work, check if the overload protection switch is turned on. If it is on, press down to reset and then continue recharging.
Q5: How do I reset my power station?
If your power station is not working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn’t work, please contact [email protected].
Q6: Why is the power station not working after it hasn’t been used for a long time?
If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power, which may lead to a quick discharge. Thioften leads to poor conductivity and a reduced battery lifespan that causes the battery not to work.
Q7: How should I store and maintain the power station?
When storing your power station, please make sure that you:
- Turn off the main power button.
- Store the power station in a dry and cool environment.
- Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Do not forget to charge it 10everyery 3 months.
Specifications
- Battery Type: LiFePO4 Cell
- Cell Part Number: 32140FS-15000mAh
- Cell Number: 80
- Cell Capacity: 51.2Vdc 75Ah/3840Wh
- AC Input: 220V-240V~ 13A Max, 50Hz, L+N+PE
- AC Input Power (Charging): 2990W Max
- AC Input Power (Bypass Mode): L+N+PE, 2990VA/2990W Max
- Solar Panel Input: 11-32V 10A; 32V-60V 25A (1200W Max Each)
- Car Charger Output: 12V 10A
- AC Output Power (Total): 6000W Max
- AC Output 1: 230V~ 13A Max, 50Hz
- AC Output 2: 230V~ 16A Max, 50Hz
- USB-A Output: 5V 2.4A (12W Max Per Port)
- USB-C Output: 5V 3A / 9V 3A / 15V 3A / 20V 3A / 20V 5A (100W Max Per Port)
- UPS:20ms
- Discharging Temperature: -20°C-40°C
- Charging Temperature: 0°C-40°C
- Size: 70.2×38.8×39.5 cm
- Net Weight: 60 kg
For more manuals by Anker, visit ManualsLibraryy
Anker SOLIX F3800 Portable Power Station- FAQs
How long does the Anker SOLIX F3800 last?
The F3800 is built with EV-grade LFP batteries and InfiniPower™ technology, giving it a 10+ year lifespan even with daily use. It also comes with a 5-year warranty.
Can I use the F3800 indoors?
Yes. Unlike gas generators, the F3800 is safe for indoor use since it produces no fumes. You can pre-charge it with a wall outlet or solar panels and use it during power outages.
How do I charge the Anker SOLIX F3800?
You can recharge it through a standard wall outlet, solar panels (up to 2,400W input), or a compatible pure sine wave generator. Always fully charge before first use.
What is the maximum solar input for the F3800?
The F3800 supports up to 2,400W solar input using both XT-60 ports with up to six 400W solar panels.
How long can the F3800 power household devices?
With its 3,840Wh capacity, it can power an LED light for about 36 hours, a TV for 20 hours, and a standard refrigerator for up to 15 hours. Larger appliances like ACs can also run with the Home Power Panel setup.
Does Anker SOLIX stop charging when full?
Yes, it automatically stops charging once the battery or connected device is fully charged, preventing overcharging.
What is the recommended storage temperature?
For best performance and battery life, store and use the F3800 between 20°C and 30°C (68°F–86°F) in a cool, dry location.
Why does my F3800 turn off automatically?
If the battery drops to 1% or lower, the unit powers off to protect itself. Recharge it above 2%, then press the IoT button to reactivate.
