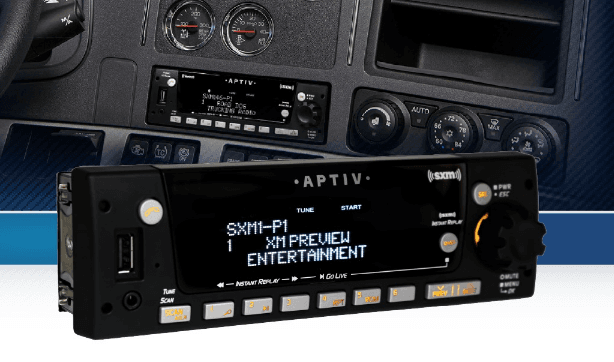

Aptiv DEA700 Digital Car Radio

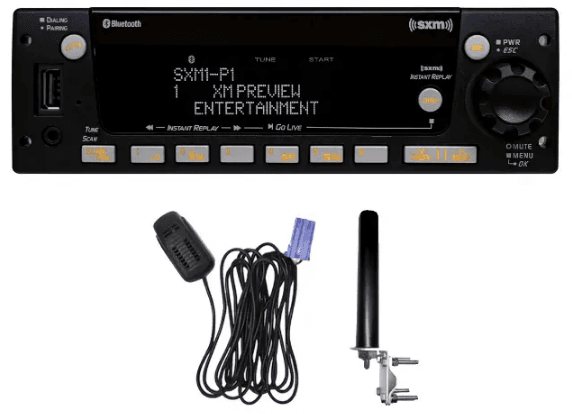

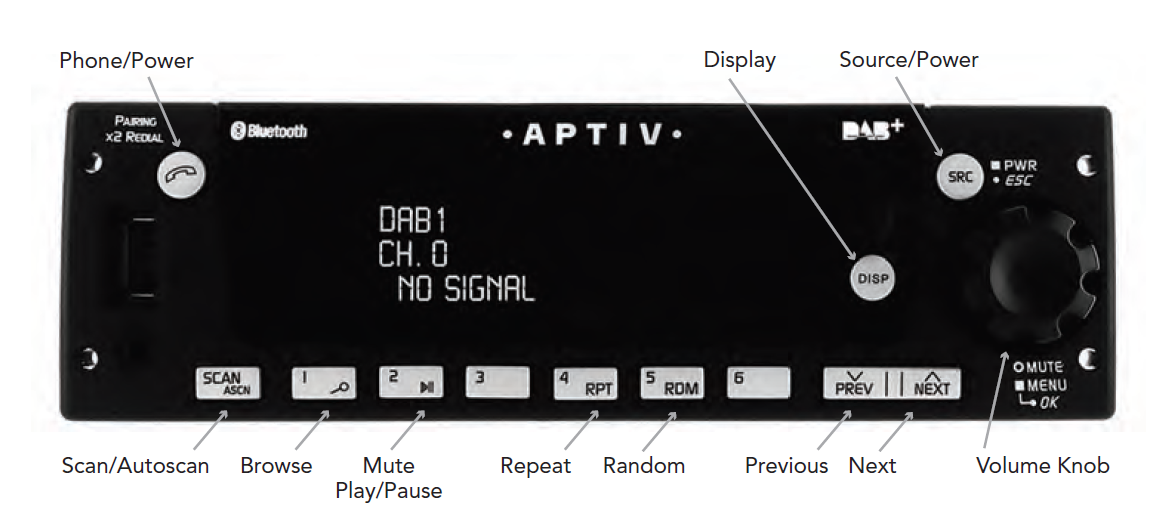

RADIO BUTTON OPERATION

SRC (SOURCE / POWER)

Press to turn the radio ON and to toggle between sources. FM -> AM -> SXM or DAB (if supported) -> WX or LW -> USB/iPod (if supported and connected) -> Front AUX (if connected) -> Rear AUX -> Bluetooth Audio (if supported and connected). Press and hold to turn the radio OFF.

ONE-HOUR TIMER

With the ignition off, pressing the SRC button will turn on the radio and activate the radio’s one-hour timer. The radio will turn off after one hour or by pressing and holding the SRC button.

VOLUME KNOB / OK

Rotate to increase or decrease audio volume. Press for less than 3 seconds to mute audio. Press for more than 3 seconds to show the setting adjustments Menus. Rotating will allow you to scroll through the available Menus. Select a Menu and press to confirm.

PREV (PREVIOUS/REVERSE)

Press to select the previous track or station. Press and hold for Fast Reverse (FR) or Tune Down.

NEXT (NEXT/FORWARD)

Press to select the next track or station. Press and hold for Fast Forward (FF) or Tune Up.

PHONE (IF SUPPORTED)

Press the Phone button to show the Bluetooth Menu. When Bluetooth is enabled and a device is connected, long-press the button to display the Dial Menu or short-press to accept an incoming call.

SCAN/ASCAN

Scans station/MP3/WMA files and folders, and stores the strongest stations to radio presets.

PLAY/PAUSE

Press to pause/unpause current media.

RPT (REPEAT)

Press to repeat the current track. Press again to stop repeating. Look for the RPT icon in the radio display to turn this feature ON or OFF.

BROWSE

Press to navigate on a device and select a specific song or play content (applicable to USB sticks and iPods).

RDM (RANDOM)

Press to play the tracks randomly. Press again to stop random mode. Look for the RDM icon in the radio display to turn this feature ON or OFF.

ESC/SCR (ESCAPE)

Press to exit one Menu level. While in Bluetooth (if supported): Press to reject or cancel a call.

DISP (DISPLAY)

If the vehicle ignition is ON, Press to change the source display views. If the vehicle ignition is OFF, press to turn on the radio and show the clock for a few seconds.

TUNING

Select the desired ‘Tuner Configuration’ by following the steps in the Menu section. If set to MANUAL, the radio will:

• Execute Manual Tuning when the NEXT or PREV buttons are short-pressed.
• Execute Seek when the NEXT or PREV buttons are long pressed. If set to AUTO, the radio will:
• Execute Seek when the NEXT or PREV buttons are short-pressed.
• Execute Manual Tuning when the NEXT or PREV buttons are long pressed.

MANUAL TUNING

The current frequency will be increased or decreased by 1 step of 0.2MHz (USA FM mode), 10 kHz (USA AM mode), and one channel (25 kHz) in WX mode.

SEEKING A STATION

When the Seek function is activated, the radio increments/decrements the frequency until a tunable station is found. If a tunable station is not found, the radio will display ‘NO STATION FOUND.’

PRESETS

STORING RADIO STATION PRESETS

Short press any of the Preset (1-6) buttons. The frequency stored at the preset location is tuned when the button is released.

SCAN

To initiate the Scan function, short-press the SCAN/ASCN button. When SCAN is initiated, the radio searches up in frequency and stops on the next strong frequency for 8 seconds before continuing to scan for the next strong station. If no station is found in two passes through the band, the radio will display ‘NO STATION FOUND’ and return to its initial frequency.

AUTOSCAN

This function temporarily stores the strongest six stations of the current band in the presets until the radio is powered off or the source is changed. AUTOSCAN does not store the frequencies on the presets in numerical order; they are stored based on the order in which they were found and on the quality of the frequency.

SXM (IF SUPPORTED)

Vehicles with a valid SiriusXM® satellite radio subscription can receive SXM programming. SiriusXM has a wide variety of programs and commercial-free music, coast-to-coast and in digital-quality sound.

SXM DISPLAY

When SiriusXM is active, the channel number, channel name, artist name/content info, song title, or category name will be displayed on the screen. SiriusXM may update the information at any time. To change the current display view, short-press the DISP button. When a new channel is selected, a song change occurs, SXM source is selected (from power up or source change), or the information is updated, all the elements will be displayed using paging; the paging can be stopped by short pressing the DISP button.

SXM CATEGORIES SELECTION

SiriusXM channels are organized in categories. The category list for SXM channels is available on the following webpage: [http://www.siriusxm.com/sxm/pdf/sirius/channelguide.pdf(http://www.siriusxm.com/sxm/pdf/sirius/channelguide.pdf). To change the current category long long-press the NEXT/PREV button, and the radio will tune to the first channel on the next or previous category.

CATEGORY MODE ENABLE/DISABLED

‘Category Search Mode Enabled’ means that only channels in the current ‘Category’ are searched. When enabled, the Category icon is turned on and will display on the screen. ‘Category Search Mode Disabled’ means that all channels are searched. When disabled, the Category icon is turned off. The default setting at power up is: Category Disabled. See CATEGORY ENABLE/DISABLE on page 20 of this manual for steps to change the default setting.

SXM CHANNEL SELECTION

Presets and SCAN functions work the same as defined in the SCAN subsection of AM-FM-WX/LW Radio. NEXT button: While in SXM mode, the radio will scroll to the next channel available in numerical order. PREV button: While in SXM mode, the radio will scroll to the previous channel available in numerical order. If the SXM service is not activated, only the free-to-air channels will be available.

STORING SXM CHANNEL PRESETS

Tune to the desired channel, then long-press any of the Preset (1 – 6) buttons until the radio beeps, confirming the station is a preset. For tuning to the stored channels, short-press any of the Preset (1 – 6) buttons.

SXM RADIO ID

If tuned to channel 0, ‘RADIO ID’ will display, and then the SXM radio eight-digit code. These two messages will alternate on the screen. The eight-digit code is needed to activate the SXM service. The DISP button does not work when the radio is tuned to channel 0. Channel 0 is not available in ‘Category Mode Enabled.’

SXM MESSAGES

SXM BUSY: The radio is acquiring and/or processing audio from SXM satellites and/or text data. No action is needed.

CHECK ANTENNA:

SXM antenna or antenna cable is not connected to the radio, or the antenna is shorted. SXM programming will not be available until the SXM antenna is properly connected.

DAB (IF SUPPORTED)

When DAB is active, the station name and category name will be displayed on the screen.

DAB TRAFFIC ANNOUNCEMENT (TA)

The radio makes an alert to notify that there is an available TA. To hear it, press the Volume Knob in the option LISTEN when the alert is active. To close the announcement press ESC button or select the CANCEL option by scrolling with Volume Knob and pressing it.

DAB ANNOUNCEMENT

When a DAB announcement event occurs (and you are not on a phone call), the radio will automatically tune to the necessary station, and a full-screen pop-up will be shown. Pressing ESC will close the popup, return to the last screen and clear the announcement.

DAB ANNOUNCEMENT CATEGORY

With DAB announcements, you can receive alerts from different categories. You can select your preferred category from the list in the DAB ANNCMNTS CAT Menu. See page 19.

ALTERNATE FREQUENCY (AF)/SERVICE FOLLOWING (DAB-FM LINK)

While ON, if the current station loses signal, the radio will attempt to find a station in DAB currently in simulcast, the display won’t change from the current station, only new audio will come through and be updated if necessary.

REGIONAL (DAB RADIOS ONLY)

This functionality allows you to lock down the current regional programming or let the radio tune in to other region-specific programming as you drive through other regions.

REFRESH LIST (DAB RADIOS ONLY)

The ‘Refresh List’ function allows you to update all the DAB lists. In the REFRESH LIST Menu, you can activate this option. During the updating process, the radio will inform you of the ongoing operation. To cancel the update, press the ESC button.

iPOD (IF SUPPORTED)

This radio supports the following iPod models:

• iPod classic (7th generation)
• iPod nano (7G)
• iPod touch (7G)
• iPhone (from 5S to XS). Other iPod models may be played, but the functionality is not guaranteed. The radio provides up to 2.1 A of charge, so any device connected to the USB that requires less than 2.1 A will be charged.

NOTE: Some DEA7XX radio models are limited to 1 A. When an iPhone is connected as the Bluetooth audio source, connecting as iPod will disconnect the iPhone as the Bluetooth audio source.

There may be problems with the operation and function in the following situations:

• When connecting an iPod on which a more recent version of the firmware is installed than is supported by the radio.
• When connecting an iPod with firmware from other providers is installed.
• Connecting an iPod or iPhone with a non-authentic Apple cable to the USB port cannot be guaranteed for charging or playback (it is recommended to always use authentic Apple-certified cables to avoid this failure mode).
• The cable length is greater than two meters.

PLAYING FROM AN iPOD

To connect an iPod:

1. Connect one end of the standard iPod USB cable to the dock connector on the iPod.
2. Connect the other end of the cable to the USB port on the front radio display.
3. The radio will start playing from the iPod through the vehicle’s speakers, and music info will be displayed (track number, song, artist, elapsed time, and album name, if available).
4. If the iPod is an unsupported model, it can still be listened to in the vehicle by connecting to the auxiliary input jack using a standard 3.5mm (1/8 in) stereo cable.

Expected behavior when iPod is connected:

• The iPod battery recharges automatically while the vehicle is on.
• The iPod shuts off and stops charging when the vehicle is shut off.

USB (IF SUPPORTED)

PLAYING FROM A USB. A USB storage device can be connected to the USB port. The USB port is located on the front of the radio. Five volts DC power is limited to 2.1 amps from this port. Some models are limited to 1 amp.

USB MP3 PLAYER AND USB

DRIVES

Any USB MP3 player or USB drive connected to the radio must comply with the following USB storage specifications:

• MS-DOS partition only.
• Class specification (USB MSC) and supports formats of FAT32, FAT16, NTFS, and HFS+.
• Hard disk drives may be played, but they are not supported.
• The radio will not be able to play back write-protected music.
• MTP players are not supported.
• USB 3.0 devices are supported; however, they cannot be guaranteed for media playback (unless backwards compatibility is supported by the device).

The following guidelines must be met when creating MP3 files; otherwise, the files might not play:

FOR MP3 FILES

• Bit rates: 32, 40, 48, 56, 64, 80, 96, 112, 124, 160, 192, 224, 256, 320 kbps for MPEG-1 Audio Layer 3.
• Sampling frequencies: 32, 44.1, and 48 kHz for MPEG-1 Audio Layer 3.
• Maximum number of folders: Eight folders with 255 files per folder.
• M3U and pls playlist versions are supported.

FOR UNPROTECTED WMA FILES

• Versions: 1, 2, 7, 8, 9, and 9.1.
• Bit rates: 32 – 320 kbps.
• Sampling frequencies: 32 – 48 kHz.

BLUETOOTH (IF SUPPORTED)

The radio can connect to a Bluetooth (BT) device. To use this functionality, your device requires Bluetooth and to be paired and connected to the radio. You can connect up to ten BT devices to the radio; the radio will connect to the first available paired device, starting from the last paired/connected device. The BT Menu is available when the Phone button is pressed. To navigate through this Menu, rotate the Volume Knob. The BT Menu consists of the following options: BT ENABLE, CONNECT PHONE, DISCONNECT PHONE, ADD PHONE, DELETE PHONE, and BT PROFILES (some options are only available when a device has been paired previously).

ENABLING/DISABLING BLUETOOTH

To enable or disable Bluetooth in your radio (if it is not already activated):

• Press the Phone button while the radio is ON. The Bluetooth Menu will be shown.
• Rotate the Volume Knob until the display shows: “BT DISABLE” or “BT ENABLE”.
• Press the Volume Knob to select to enable or disable the Bluetooth. When BT devices were previously paired, the Phone icon will be active and the Arrow icons will blink until the reconnection of the previously paired phone is attempted (each phone reconnection will be attempted 3 times).

PAIRING A BLUETOOTH DEVICE

To complete pairing a BT device to the radio, the following steps must be followed: ‘Enable Bluetooth’ on the radio and on your BT device. Refer to your device’s user guide for more information. Pair a BT device to the radio:

• Press the Phone button. The Bluetooth Menu will be shown.
• Rotate the Volume Knob until the display shows: ADD PHONE.
• Press the Volume Knob to confirm the action. The radio will display ADDING PH for 3 seconds. In this discoverable mode, the Bluetooth status icon will blink for up to 3 minutes. If no phone is found, the radio will display NO PH FOUND, and the Phone and Arrows icons will be disabled.
• During the discoverable mode, set your cellular phone to add a Bluetooth device and look for the name “DEA700.” Follow the instructions on your phone to add a BT connection. When necessary, use the 4-digit PIN ‘0000’ to connect to the radio. When the cellular phone has been successfully added, the radio will display PH CONNECTED and then the Bluetooth device’s name. The Phone icon will be active on the display, and the Arrows icon will be disabled.

VOICE RECOGNITION (IF SUPPORTED)

If a BT device supports voice recognition, an option is made visible in the Bluetooth Menu to allow you to activate it. In order to use voice recognition, it is necessary to ensure the option is active in the connected Bluetooth device. While attempting to use voice recognition, there can be a delay of 1 – 2 seconds to start the session due to device delay.

RADIO SYSTEM SETTINGS

The radio contains several Menus for setting adjustments. These Menus are shown in a scrolling list when the Volume Knob is pressed for more than two seconds. These Menus are available in all radio Source (SRC) modes:

• AUDIO CONTROLS
• SPEAKERS
• SPEED DEP VOL (ONLY When Applicable)
• CLOCK SETUP
•  ALARM SETUP
• DIMMING
• HUE ADJUST
• REFRESH LIST (DAB Radios ONLY)
• RADIO SETUP (DAB Radios ONLY)

Submenus:

• REGIONAL
• TRAFFIC ANNCM (Announcements)
• DAB ANNCMNTS (announcements)
• DAB ANNCMNTS CAT (Categories)
• ALT FRQ (Alternative Frequencies)
• DAB STATION LIST (DAB Radios ONLY)

TIPS AND TROUBLESHOOTING CHART

RADIO
Unable to tune stations. You are in a weak signal area.

•  Increase the Seek Sensitivity (see Seek Sensitivity section for details).

IPOD

iPod does not play, or there is no sound. The iPod has not been recognized.

• Verify that the iPod is supported.
• If the iPod is supported, reset the iPod and reconnect again (see iPod section for details).
  iPod not functioning
• Out of the operation range, the operating temperature of the iPod player is -20° to 85°C (-4°F to 185).
• Allow the vehicle´s interior temperature to be in a supportable range.
• The Apple interface cable may be damaged or a non-authentic Apple product; therefore unsupported.
• While using a device with a charging case, charging or media playback cannot be guaranteed.

BLUETOOTH

My radio doesn’t recognize my Bluetooth-enabled device.

Try one of the following actions:

1. Remove the device, then reconnect and pair the device. Refer to the ” DELETE ONE OR DELETE ALL DEVICES and to Pairing a Bluetooth Device and Connecting a Bluetooth Device sections.
2. Make sure the device is turned on.
3. Make sure Bluetooth on your radio is enabled, refer to the Bluetooth Enabling/Disabling section.
4. The device might be out of range. Try moving it closer.

The BT device and radio can’t communicate.

Try one of the following actions:

1. Make sure that you selected the correct BT device to be connected. For example, you might have two or more devices previously paired or connected, so make sure you select the right device.
2.  Some devices require a passkey before they can be connected to the radio.
3. Possibly an incorrect passkey was typed, or the time limit expired for typing the passkey. Refer to Connecting a Device section.
4. If the BT device is close to other devices that use radio frequencies (such as microwave ovens, cordless phones, remote controls for electronics or lighting, or 802.11 wireless networks), those devices might be creating interference. Try moving the BT device that isn’t working farther away from the other devices using radio frequencies.

Bluetooth device music cannot be heard.

1. Verify the BT device is paired and connected. Refer to sections: Pairing a Bluetooth Device and Connecting a BT Device.
2. Make sure BT AUDIO SRC is selected in the source list menu. Refer to the SRC (Source Power) button section.
3. Adjust the Volume on the radio by rotating the Volume Knob.
4. Verify that your BT device is not paused.
5. Make sure your BT device has music files.
6. In the event you have connected a phone to the aux, the device controls the audio behavior, so this may require disconnection of the AUX from the device to recover audio.

PRECAUTIONS

Product Cleaning

Use a soft, dry cloth for periodic cleaning. For more severe stains, please dampen the cloth with water only. Anything else might affect the appearance or damage the lens or plastics.
