Introduction

Thank you for purchasing ASRock H510M-HDV/M.2 SE motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with a robust design conforming to ASRock’s commitment to quality and endurance.

Package Contents

• ASRock H510M-HDV/M.2 SE Motherboard (Micro ATX Form Factor)
• ASRock H510M-HDV/M.2 SE User Manual
• 1 x I/O Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Screw for M.2 Socket (Optional)

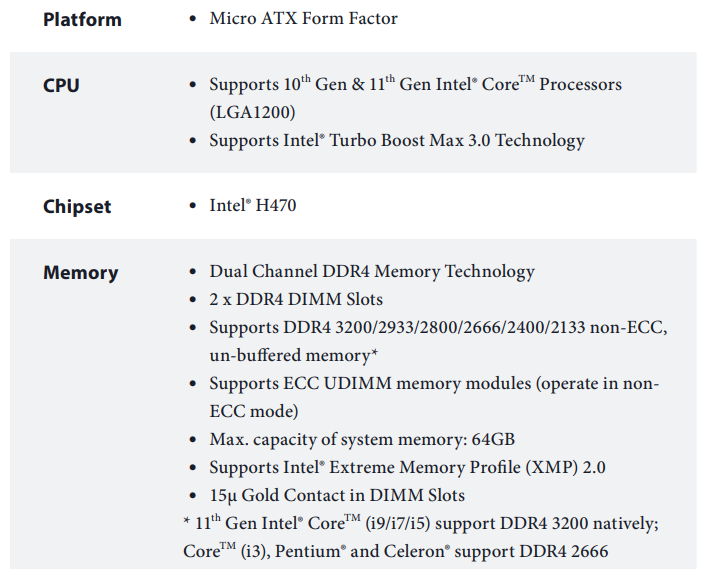

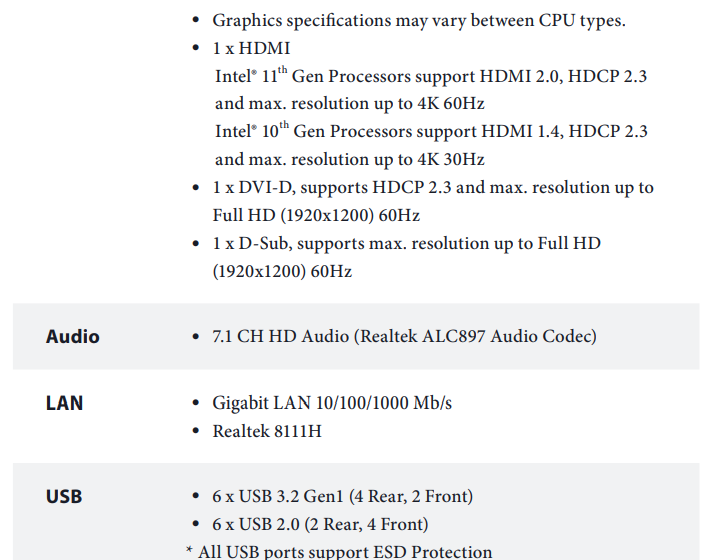

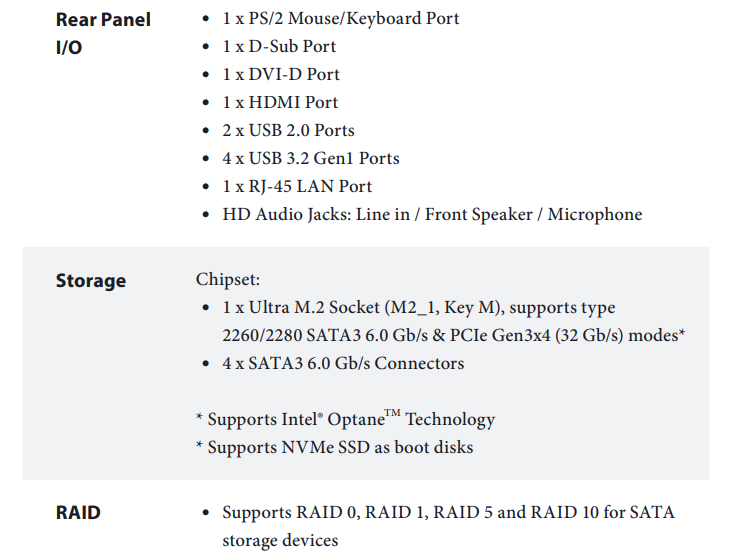

Specifications

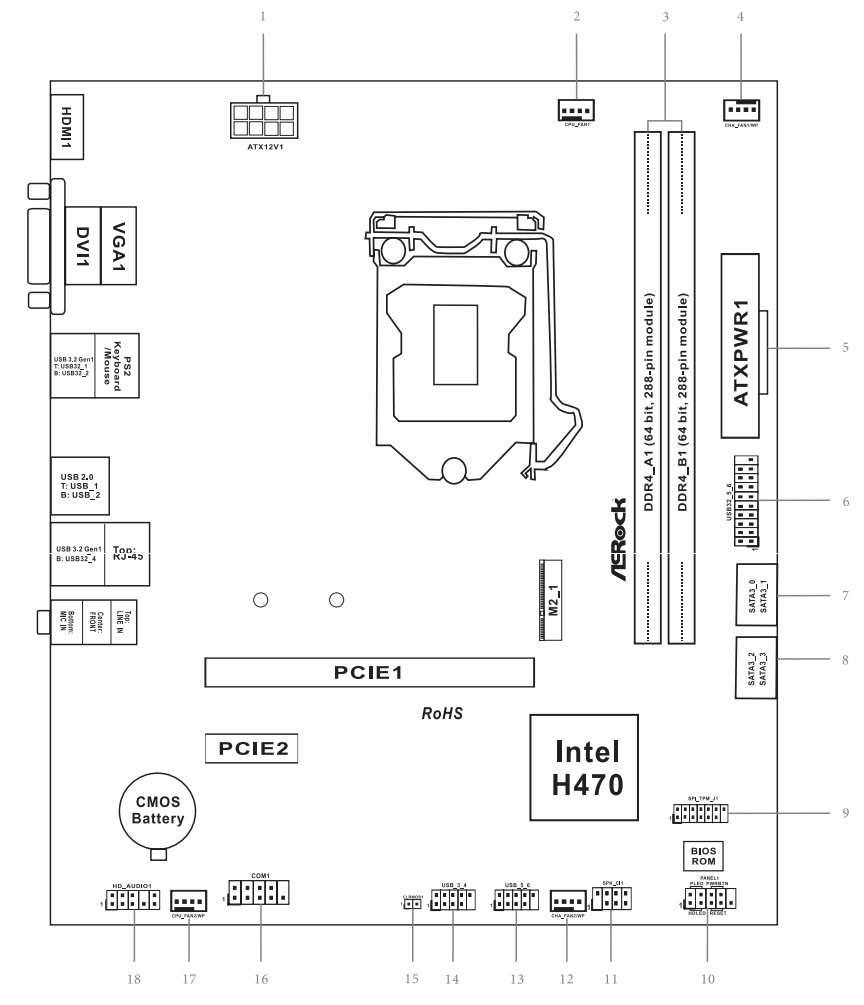

Motherboard Layout

No. Description

1. ATX 12V Power Connector (ATX12V1)
2. CPU Fan Connector (CPU_FAN1)
3. 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4. Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
5. ATX Power Connector (ATXPWR1)
6. USB 3.2 Gen1 Header (USB32_5_6)
7. SATA3 Connectors (SATA3_0)(Upper), (SATA3_1)(Lower)
8. SATA3 Connectors (SATA3_2)(Upper), (SATA3_3)(Lower)
9. SPI TPM Header (SPI_TPM_J1)
10. System Panel Header (PANEL1)
11. Chassis Intrusion and Speaker Header (SPK_CI1)
12. Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
13. USB 2.0 Header (USB_5_6)
14. USB 2.0 Header (USB_3_4)
15. Clear CMOS Jumper (CLRMOS1)
16. COM Port Header (COM1)
17. CPU/Water Pump Fan Connector (CPU_FAN2/WP)
18. Front Panel Audio Header (HD_AUDIO1)

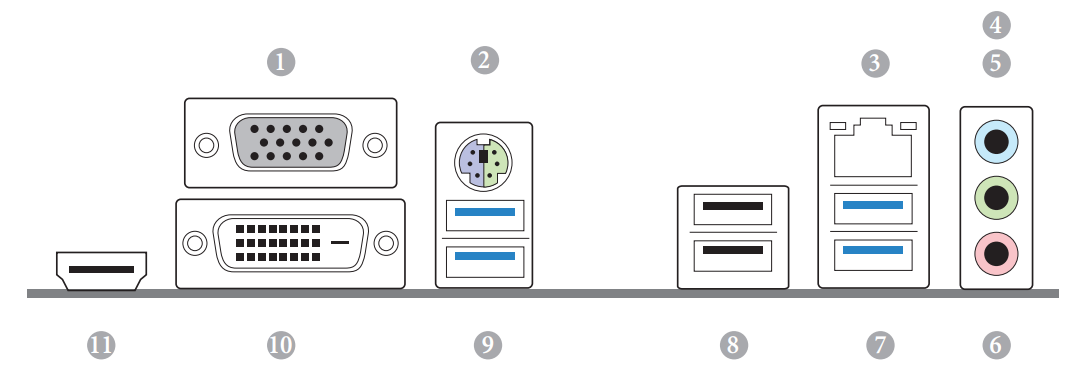

I/O Panel

1. D-Sub Port
2. PS/2 Mouse/Keyboard Port
3. LAN RJ-45 Port
4. Line In (Light Blue)
5. Front Speaker (Lime)
6. Microphone (Pink)
7. USB 3.2 Gen1 Type-A Ports (USB32\_34)
8. USB 2.0 Ports (USB\_12)
9. USB 3.2 Gen1 Type-A Ports (USB32\_12)
10. DVI-D Port
11. HDMI Port

Block Diagram

Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damage to motherboard components.
• In order to avoid damage from static electricity to the motherboard’s components, NEVER place your motherboard directly on a carpet. Also, remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.

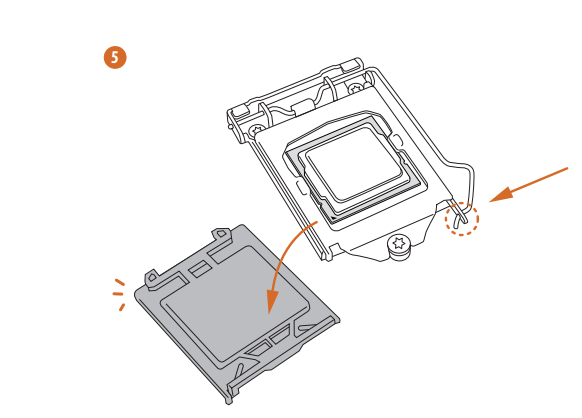

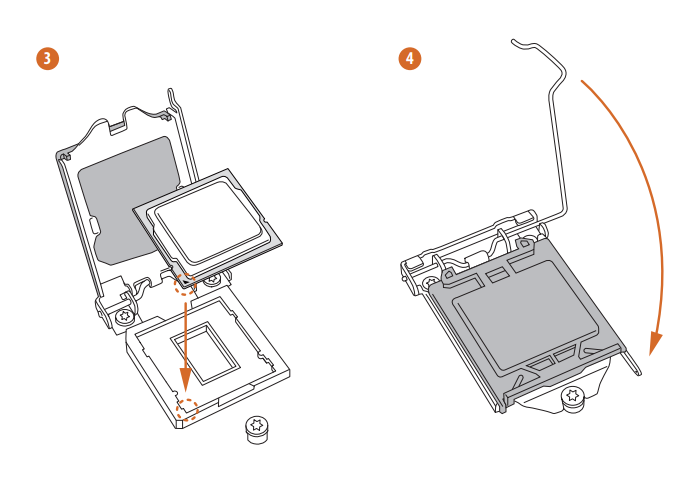

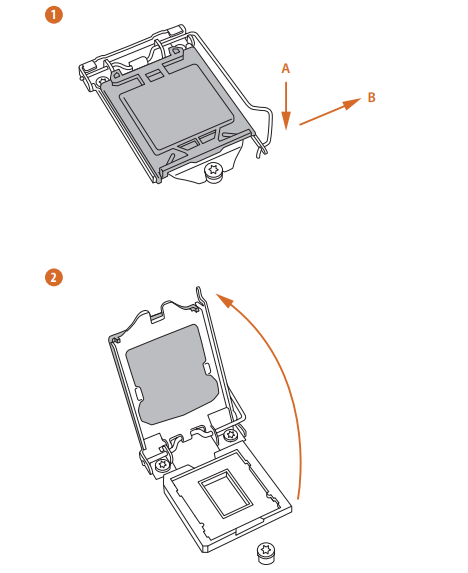

Installing the CPU

1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force the insertion of the CPU into the socket if the above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

Installing the CPU Fan and Heatsink

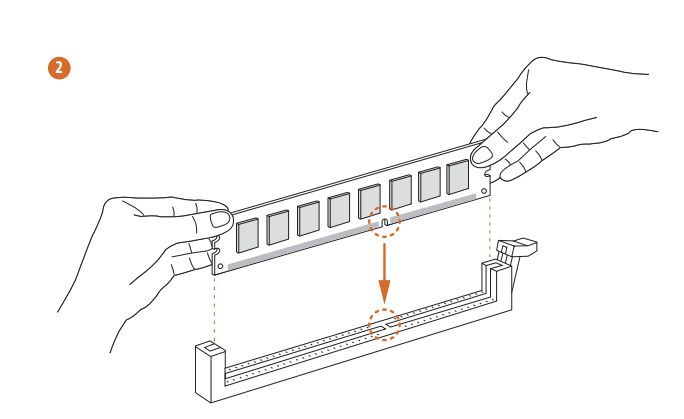

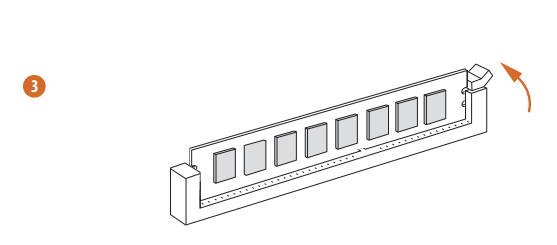

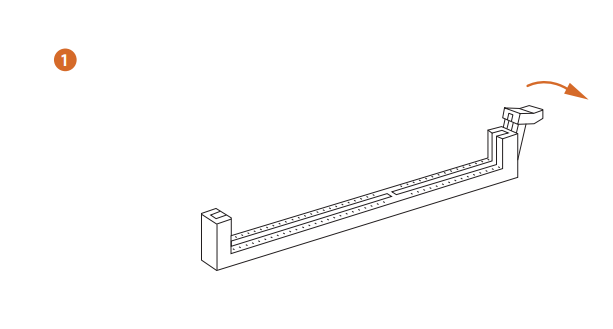

Installing Memory Modules (DIMM)

This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots and supports Dual Channel Memory Technology.

1. For a dual-channel configuration, you always need to install identical (the same brand, speed, size, and chip type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2, or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
4. The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at the incorrect orientation.

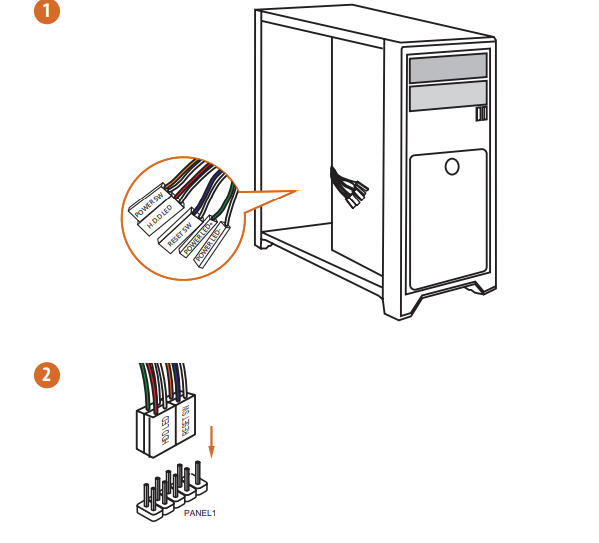

Connecting the Front Panel Header

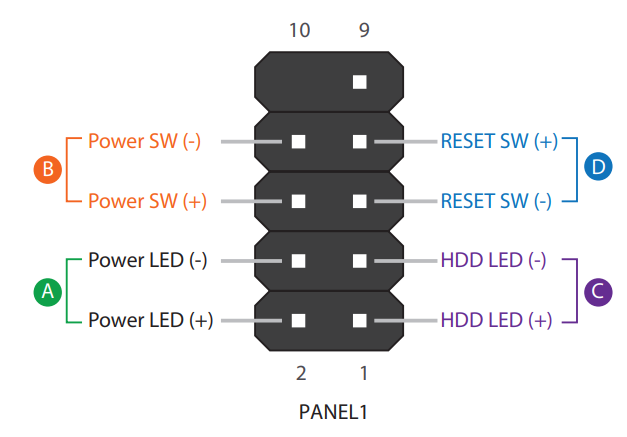

• System Panel Header

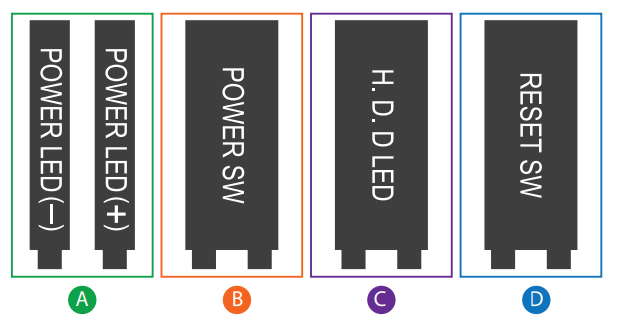

• Front Panel Wires

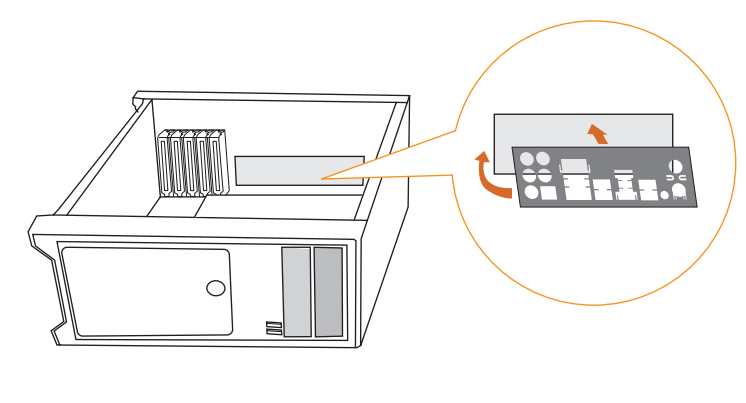

Installing the I/O Panel Shield

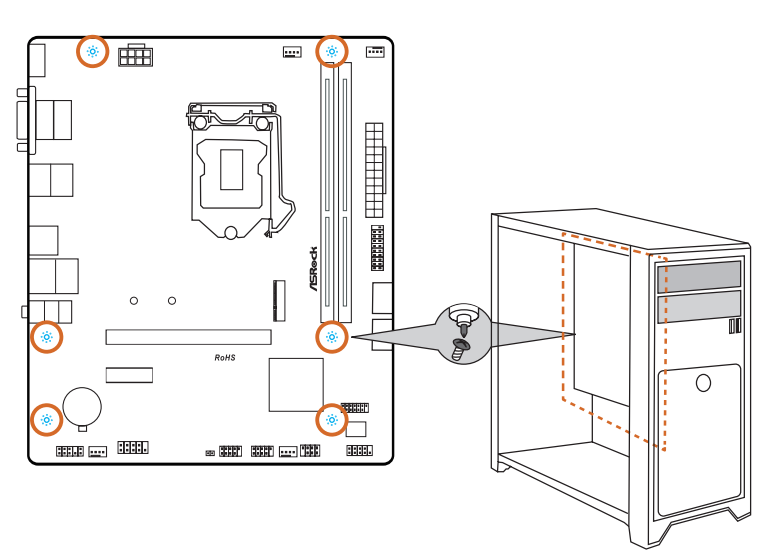

Installing the Motherboard

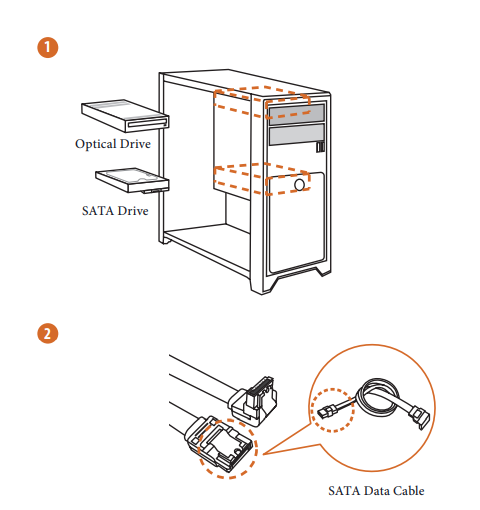

 Installing SATA Drives

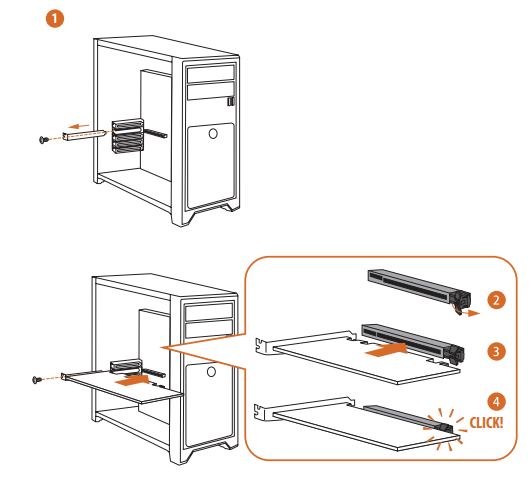

Installing a Graphics Card

Expansion Slots (PCIe Slots)

There are 2 PCI Express slots on the motherboard.

PCIe slots:

• PCIE1 (PCIe 4.0 x16 slot) is used for PCIe x16 lane-width graphics cards.
• PCIE2 (PCIe 3.0 x1 slot) is used for PCIe x1 lane-width cards.

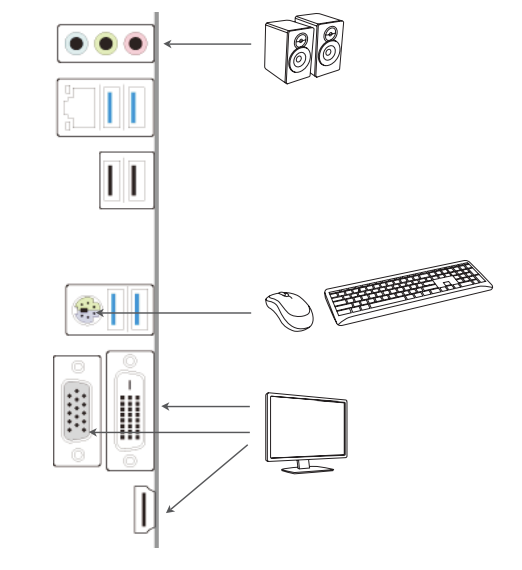

Connecting Peripheral Devices

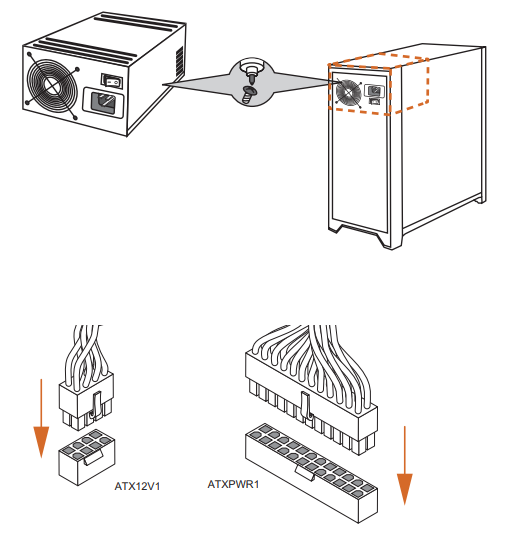

Connecting the Power Connectors

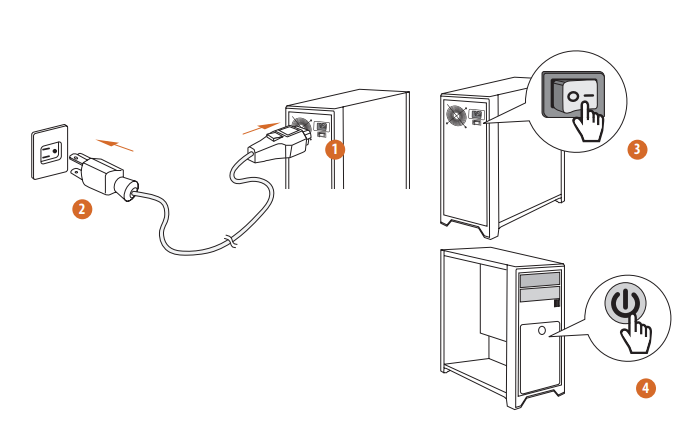

Power On

Jumpers Setup

The illustration shows how jumpers are set up. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”.

Clear CMOS Jumper

(CLRMOS1) (see p.5, No. 15) CLRMOS1 allows you to clear the data in CMOS. The data in CMOS includes system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to the default setup, please turn off the computer and unplug the power cord, then use a jumper cap to short the pins on CLRMOS1 for 3 seconds. Please remember to remove the jumper cap after clearing the CMOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action.

M.2 SSD Module Installation Guide (M2\_1)

The M.2 is a small size and versatile card-edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2\_1, Key M) supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes.

Installing the M.2 SSD Module

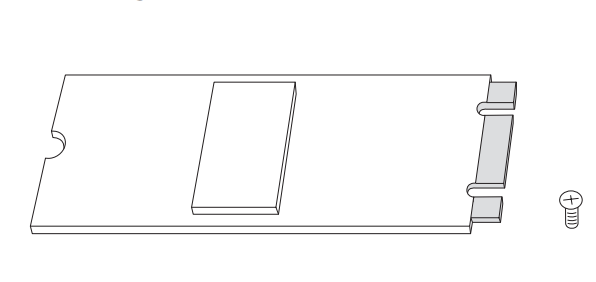

• Step 1: Prepare an M.2 SSD module and the screw.

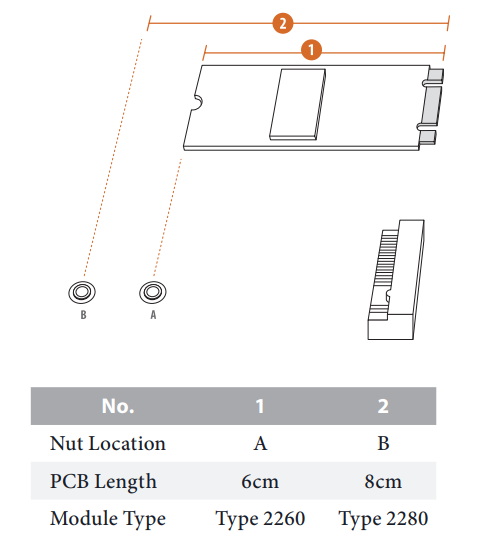

• Step 2: Depending on the PCB type and length of your M.2 SSD module, find the corresponding nut location to be used.

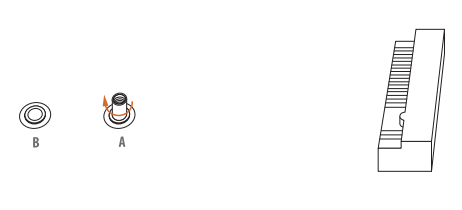

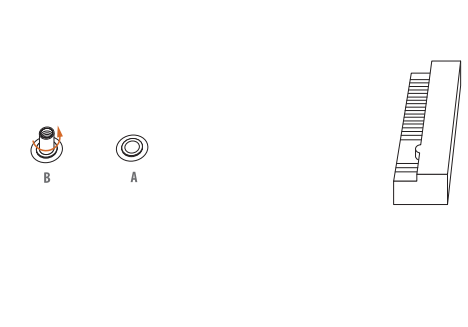

• Step 3: Move the standoff based on the module type and length. The standoff is placed at the nut location B by default. Skip Steps 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
• Step 4: Peel off the yellow protective film on the nut to be used. Hand-tighten the standoff into the desired nut location on the motherboard.

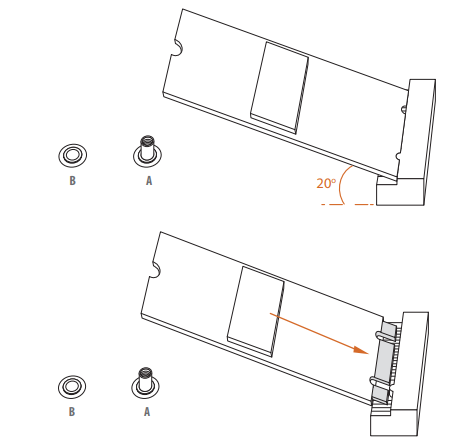

• Step 5: Align and gently insert the M.2 SSD module into the M.2 slot. Please be aware that the M.2 SSD module only fits in one orientation.
• Step 6: Tighten the screw with a screwdriver to secure the module in place. Please do not overtighten the screw, as this might damage the module.
