Chapter 1 Introduction
- Thank you for purchasing the ASRock H510M-HDV/M.2 motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. In this documentation, Chapter 1 and 2 contains the introduction of the motherboard and step-by-step installation guides. Chapter 3 contains the operation guide of the software and utilities. Chapter 4 contains the configuration guide for the BIOS setup.
Specifications
| Platform | • Micro ATX Form Factor • Solid Capacitor design |
| CPU | • Supports 10th Gen Intel® CoreTM Processors and 11th Gen Intel® CoreTM Processors (LGA1200) • 5 Power Phase design • Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | • Intel® H510 |
| Memory | • Dual Channel DDR4 Memory Technology • 2 x DDR4 DIMM Slots • Supports DDR4 3200(OC)/2933/2800/2666/2400/2133 non- ECC, un-buffered memory * 11th Gen Intel® CoreTM (i9/i7/i5) support DDR4 up to 3200(OC); CoreTM (i3), Pentium® and Celeron® support DDR4 up to 2666. * 10th Gen Intel® CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3), Pentium® and Celeron® support DDR4 up to 2666. * Please refer to the Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) • Supports ECC UDIMM memory modules (operate in non- ECC mode) • Max. capacity of system memory: 64GB • Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Expansion Slot | 11th Gen Intel® CoreTM Processors • 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® CoreTM Processors • 1 x PCI Express 3.0 x16 Slot* * Supports NVMe SSD as boot disks • 1 x PCI Express 3.0 x1 Slot |
| Graphics | • Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated. • 11th Gen Intel® CoreTM Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® CoreTM Processors support Gen 9 Graphics • Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 • Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc • Three graphics output options: D-Sub, DVI-D and HDMI * Supports up to 2 displays simultaneously • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz • Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz • Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) • Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports * 11th Gen Intel® CoreTM Processors support HDMI 2.0. 10th Gen Intel® CoreTM Processors support HDMI 1.4. |
| Audio | • 7.1 CH HD Audio (Realtek ALC897 Audio Codec) • Supports Surge Protection |
| LAN | • Gigabit LAN 10/100/1000 Mb/s • Giga PHY Intel® I219V • Supports Wake-On-LAN • Supports Lightning/ESD Protection • Supports Energy Efficient Ethernet 802.3az • Supports PXE |
| Rear Panel I/O | • 1 x PS/2 Keyboard Port • 1 x PS/2 Mouse Port • 1 x D-Sub Port • 1 x DVI-D Port • 1 x HDMI Port • 4 x USB 2.0 Ports (Supports ESD Protection) • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) • HD Audio Jacks: Line in / Front Speaker / Microphone |
| Storage | • 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. • 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
| Connector | • 1 x COM Port Header • 1 x SPI TPM Header • 1 x Chassis Intrusion and Speaker Header • 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. • 1 x Chassis Fan Connector (4-pin) * The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power. • 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto-detect if a 3-pin or 4-pin fan is in use. • 1 x 24-pin ATX Power Connector • 1 x 8 pin 12V Power Connector • 1 x Front Panel Audio Connector |

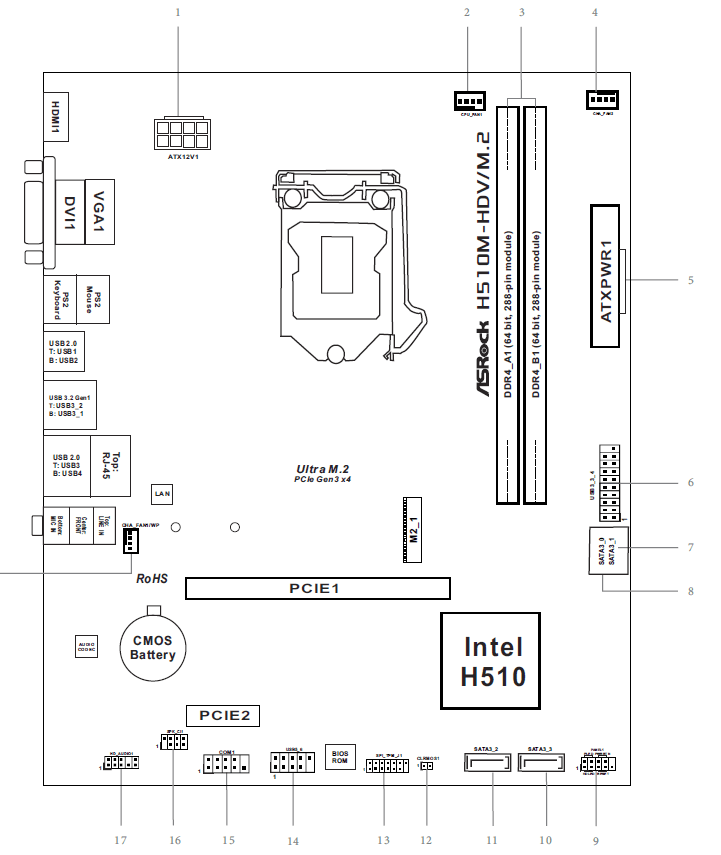

Motherboard Layout
| No. | Description |
| 1 | ATX 12V Power Connector (ATX12V1) |
| 2 | CPU Fan Connector (CPU_FAN1) |
| 3 | 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) |
| 4 | Chassis Fan Connector (CHA_FAN2) |
| 5 | ATX Power Connector (ATXPWR1) |
| 6 | USB 3.2 Gen1 Header (USB3_3_4) |
| 7 | SATA3 Connector (SATA3_1)(Lower) |
| 8 | SATA3 Connector (SATA3_0)(Upper) |
| 9 | System Panel Header (PANEL1) |
| 10 | SATA3 Connector (SATA3_3) |
| 11 | SATA3 Connector (SATA3_2) |
| 12 | Clear CMOS Jumper (CLRMOS1) |
| 13 | SPI TPM Header (SPI_TPM_J1) |
| 14 | USB 2.0 Header (USB_5_6) |
| 15 | COM Port Header (COM1) |
| 16 | Chassis Intrusion and Speaker Header (SPK_CI1) |
| 17 | Front Panel Audio Header (HD_AUDIO1) |
| 18 | Chassis/Water Pump Fan Connector (CHA_FAN1/WP) |

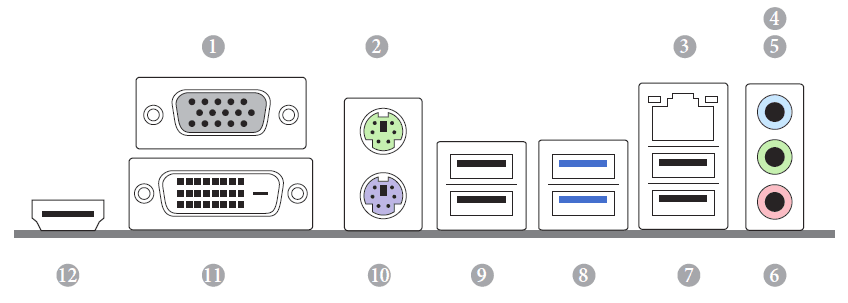

I/O Panel
| No. | Description | No. | Description |
| 1 | D-Sub Port | 7 | USB 2.0 Ports (USB_34) |
| 2 | PS/2 Mouse Port | 8 | USB 3.2 Gen1 Ports (USB3_12) |
| 3 | LAN RJ-45 Port* | 9 | USB 2.0 Ports (USB_1_2) |
| 4 | Line In (Light Blue)** | 10 | PS/2 Keyboard Port |
| 5 | Front Speaker (Lime)** | 11 | DVI-D Port |
| 6 | Microphone (Pink)** | 12 | HDMI Port |
Chapter 2 Installation
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings.
- Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damage to motherboard components.
- In order to avoid damage from static electricity to the motherboard’s components, NEVER place your motherboard directly on a carpet. Also, remember to use a grounded wrist strap or touch a safety-ground object before you handle the components.
- Hold components by the edges and do not touch the ICs.
- Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
- When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.
Installing the CPU

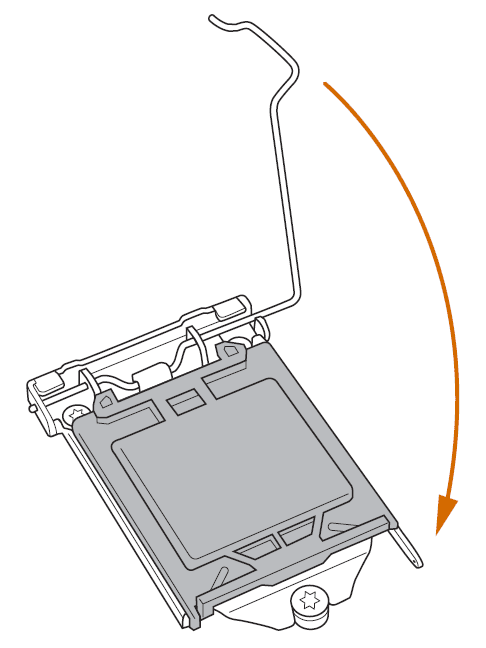

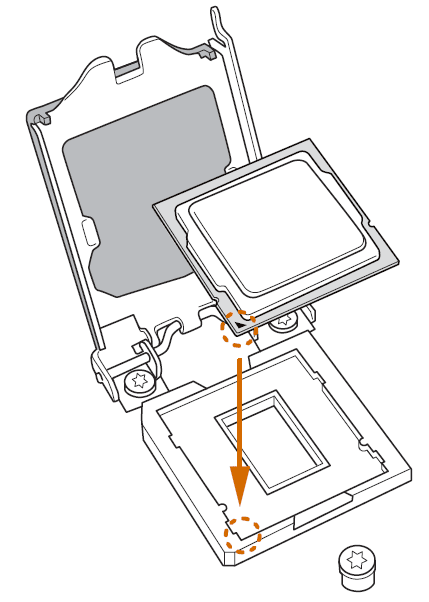

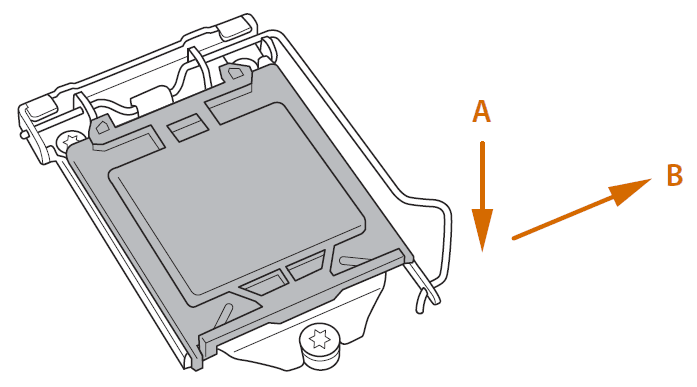

- Before you insert the 1200-pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if the above situation is found. Otherwise, the CPU will be seriously damaged.
- Unplug all power cables before installing the CPU.

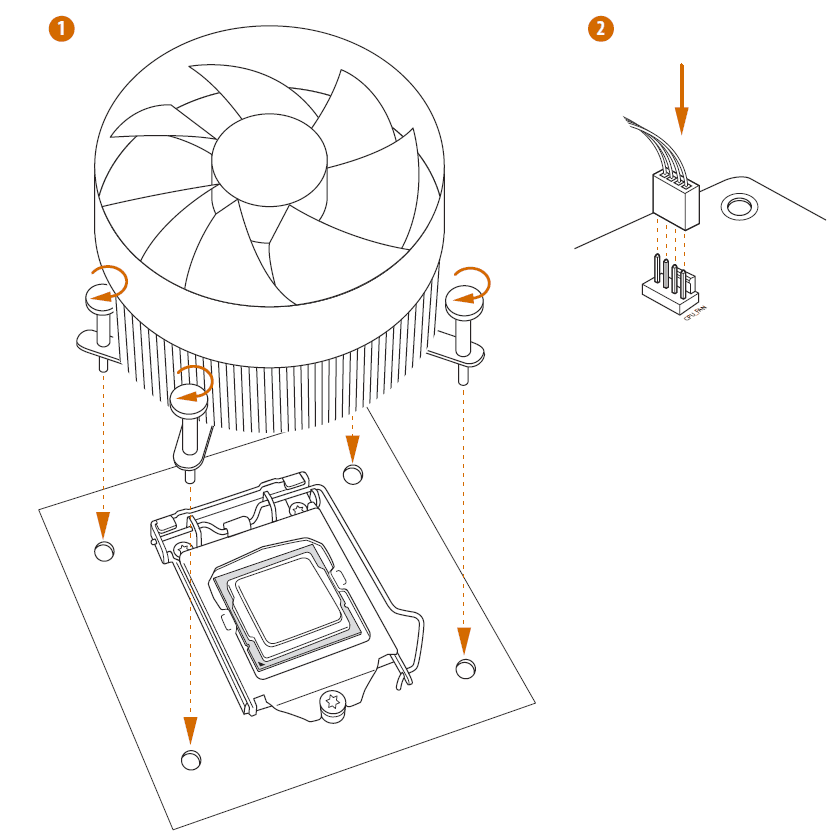

Installing the CPU Fan and Heatsink
Expansion Slots (PCI Express Slots)
There are 2 PCI Express slots on the motherboard.
PCIe slots:
- 11th Gen Intel® CoreTM Processors:
- PCIE1 (PCIe 4.0 x16 slot) is used for PCI Express x16 lane-width graphics cards.
- PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
- 10th Gen Intel® CoreTM Processors:
- PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane-width graphics cards.
- PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
Onboard Headers and Connectors
- PWRBTN (Power Switch):
- Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.
- RESET (Reset Switch):
- Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
- PLED (System Power LED):
- Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in an S1/S3 sleep state. The LED is off when the system is in an S4 sleep state or powered off (S5).
- HDLED (Hard Drive Activity LED):
- Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data. The front panel design may differ by chassis. A front panel module mainly consists of the power switch, reset switch, power LED, hard drive activity LED, speaker etc.
- When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
M.2_SSD (NGFF) Module Installation Guide (M2_1)
- The M.2, also known as the Next Generation Form Factor (NGFF), is a small-size and versatile card edge connector that aims to replace mPCIe and mSATA.
The Ultra M.2 Socket (M2_1) supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

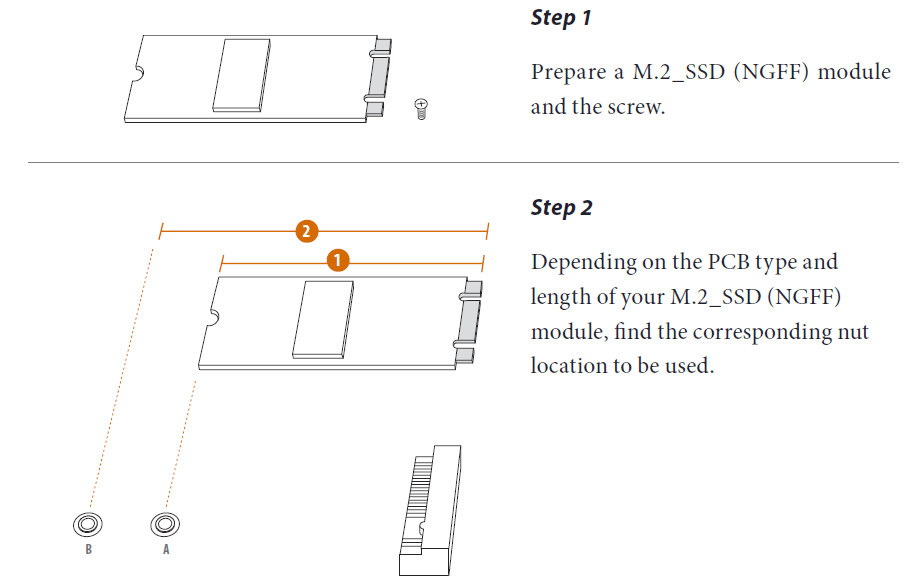

Installing the M.2_SSD (NGFF) Module
M.2_SSD (NGFF) Module Support List
| Vendor | Interface | P/N |
| ADATA | SATA3 | AXNS330E-32GM-B |
| ADATA | SATA3 | AXNS381E-128GM-B |
| ADATA | SATA3 | AXNS381E-256GM-B |
| ADATA | SATA3 | ASU800NS38-256GT-C |
| ADATA | SATA3 | ASU800NS38-512GT-C |
| ADATA | PCIe3 x4 | ASX7000NP-128GT-C |
| ADATA | PCIe3 x4 | ASX8000NP-256GM-C |
| ADATA | PCIe3 x4 | ASX7000NP-256GT-C |
| ADATA | PCIe3 x4 | ASX8000NP-512GM-C |
| ADATA | PCIe3 x4 | ASX7000NP-512GT-C |
| Apacer | PCIe3 x4 | AP240GZ280 |
| Corsair | PCIe3 x4 | CSSD-F240GBMP500 |
| Crucial | SATA3 | CT120M500SSD4 |
| Crucial | SATA3 | CT240M500SSD4 |
| Intel | SATA3 | Intel SSDSCKGW080A401/80G |
| Intel | PCIe3 x4 | SSDPEKKF256G7 |
| Intel | PCIe3 x4 | SSDPEKKF512G7 |
| Kingston | SATA3 | SM2280S3 |
| Kingston | PCIe3 x4 | SKC1000/480G |
| Kingston | PCIe2 x4 | SH2280S3/480G |
| OCZ | PCIe3 x4 | RVD400 -M2280-512G (NVME) |
| PATRIOT | PCIe3 x4 | PH240GPM280SSDR NVME |
| Plextor | PCIe3 x4 | PX-128M8PeG |
| Plextor | PCIe3 x4 | PX-1TM8PeG |
| Plextor | PCIe3 x4 | PX-256M8PeG |
| Plextor | PCIe3 x4 | PX-512M8PeG |
| Plextor | PCIe | PX-G256M6e |
| Plextor | PCIe | PX-G512M6e |
| Samsung | PCIe3 x4 | SM961 MZVPW128HEGM (NVM) |
| Samsung | PCIe3 x4 | PM961 MZVLW128HEGR (NVME) |
| Samsung | PCIe3 x4 | 960 EVO (MZ-V6E250) (NVME) |
| Samsung | PCIe3 x4 | 960 EVO (MZ-V6E250BW) (NVME) |
| Samsung | PCIe3 x4 | SM951 (NVME) |
| Samsung | PCIe3 x4 | SM951 (MZHPV256HDGL) |
| Samsung | PCIe3 x4 | SM951 (MZHPV512HDGL) |
| Samsung | PCIe3 x4 | SM951 (NVME) |
| Samsung | PCIe x4 | XP941-512G (MZHPU512HCGL) |
| SanDisk | PCIe | SD6PP4M-128G |
| SanDisk | PCIe | SD6PP4M-256G |
| Team | SATA3 | TM4PS4128GMC105 |
| Team | SATA3 | TM4PS4256GMC105 |
| Team | SATA3 | TM8PS4128GMC105 |
| Team | SATA3 | TM8PS4256GMC105 |
Chapter 3 Software and Utilities Operation
- Installing Drivers
- The Support CD that comes with the motherboard contains the necessary drivers and useful utilities that enhance the motherboard’s features.
- Running The Support CD
- To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the file “ASRSETUP.EXE” in the Support CD to display the menu.
- Drivers Menu
- The drivers compatible to your system will be auto-detected and listed on the support CD driver page. Please click Install All or follow the order from top to
bottom to install those required drivers. Therefore, the drivers you install can work properly. - Utilities Menu
- The Utilities Menu shows the application software that the motherboard supports. Click on a specific item then follow the installation wizard to install it.
Using ASRock Motherboard Utility (A-Tuning)
- There are four sections in the ASRock Motherboard Utility (A-Tuning) main menu: Operation Mode, System Info, FAN-Tastic Tuning, and Settings
Operation Mode
- Choose an operation mode for your computer.

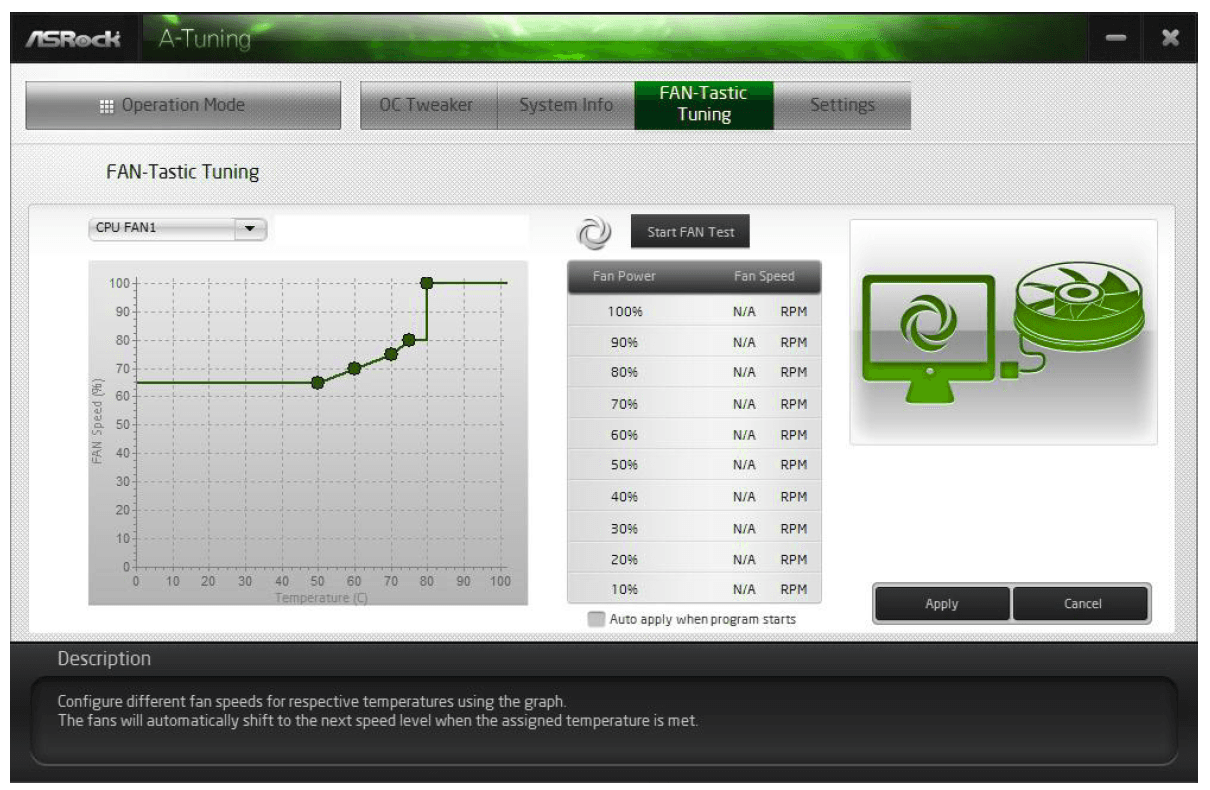

FAN-Tastic Tuning
- Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
Chapter 4 UEFI SETUP UTILITY
- EZ Mode

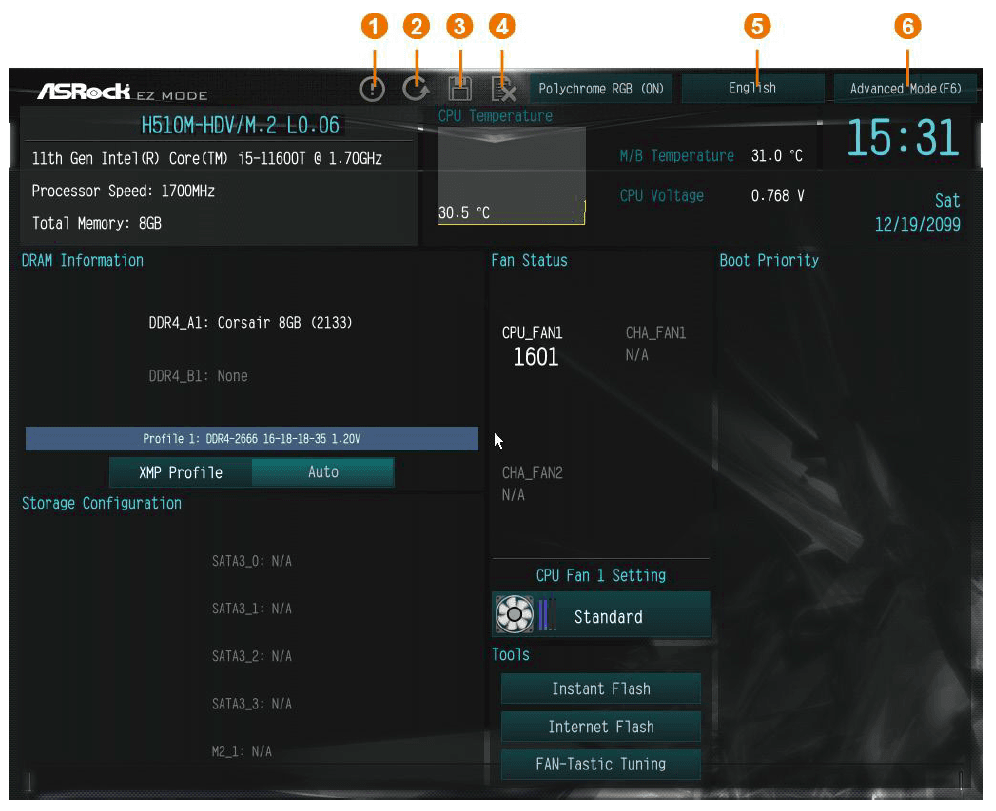

- The EZ Mode screen appears when you enter the BIOS setup program by default. EZ mode is a dashboard that contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc. Press <F6> or click the “Advanced Mode” button at the upper right corner of the screen to switch to “Advanced Mode” for more options.
No. Function 1 Help 2 Load UEFI Defaults 3 Save Changes and Exit 4 Discard Changes 5 Change Language 6 Switch to Advanced Mode
UEFI Menu Bar
- The top of the screen has a menu bar with the following selections
| Main | For setting system time/date information |
| OC Tweaker | For overclocking configurations |
| Advanced | For advanced system configurations |
| Tool | Useful tools |
| H/W Monitor | Displays current hardware status |
| Security | For security settings |
| Boot | For configuring boot settings and boot priority |
| Exit | Exit the current screen or the UEFI Setup Utility |
Navigation Keys
| Navigation Key(s) | Description |
| + / – | To change the option for the selected items |
| <Tab> | Switch to the next function |
| <PGUP> | Go to the previous page |
| <PGDN> | Go to the next page |
| <HOME> | Go to the top of the screen |
| <END> | Go to the bottom of the screen |
| <F1> | To display the General Help Screen |
| <F5> | Add / Remove Favorite |
| <F7> | Discard changes and exit the SETUP UTILITY |
| <F9> | Load optimal default values for all the settings |
| <F10> | Save changes and exit the SETUP UTILITY |
| <F12> | Print screen |
| <ESC> | Jump to the Exit Screen or exit the current screen |

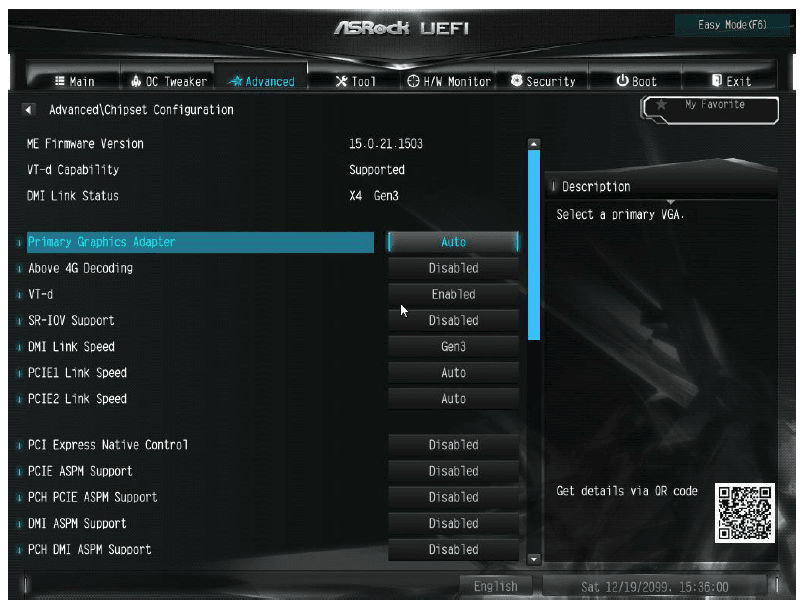

Chipset Configuration
- Primary Graphics Adapter
- Select a primary VGA.
- Above 4G Decoding
- Enable or disable 64-bit capable Devices to be decoded in the Above 4G Address Space (only if the system supports 64-bit PCI decoding).
- VT-d
- Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and
reliability, and providing additional levels of manageability, security, isolation, and I/O performance. - SR-IOV Support
- If the system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support.
- DMI Link Speed
- Configure DMI Slot Link Speed. Auto mode is optimized for overclocking.
- PCIE1 Link Speed
- Select the link speed for PCIE1
