Baby Relax Glider Rocker Chair
GLIDER ROCKER & OTTOMAN DA8847 / DA8847-DC

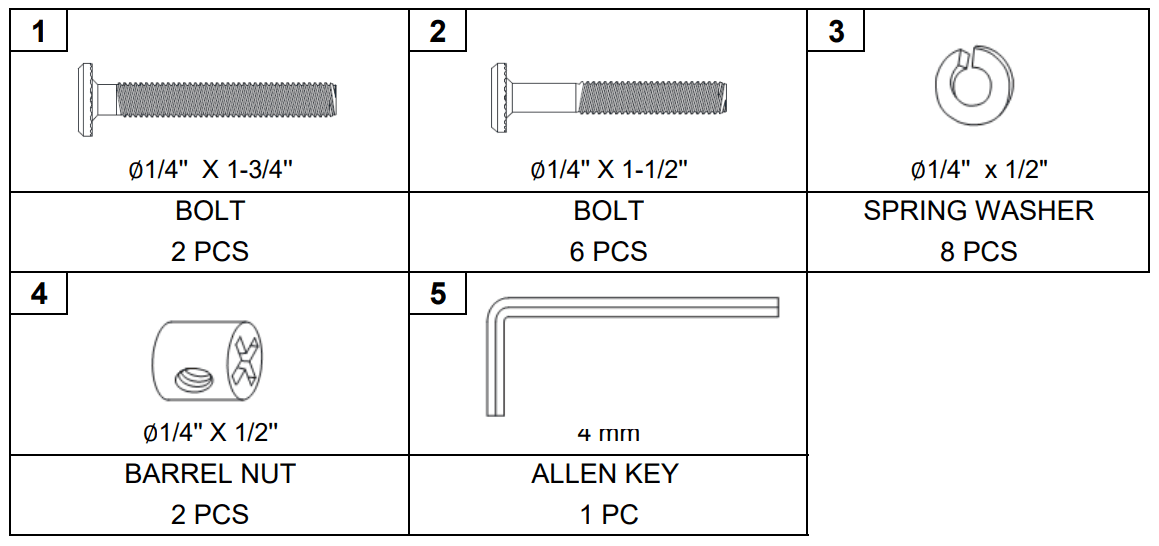

HARDWARE LIST

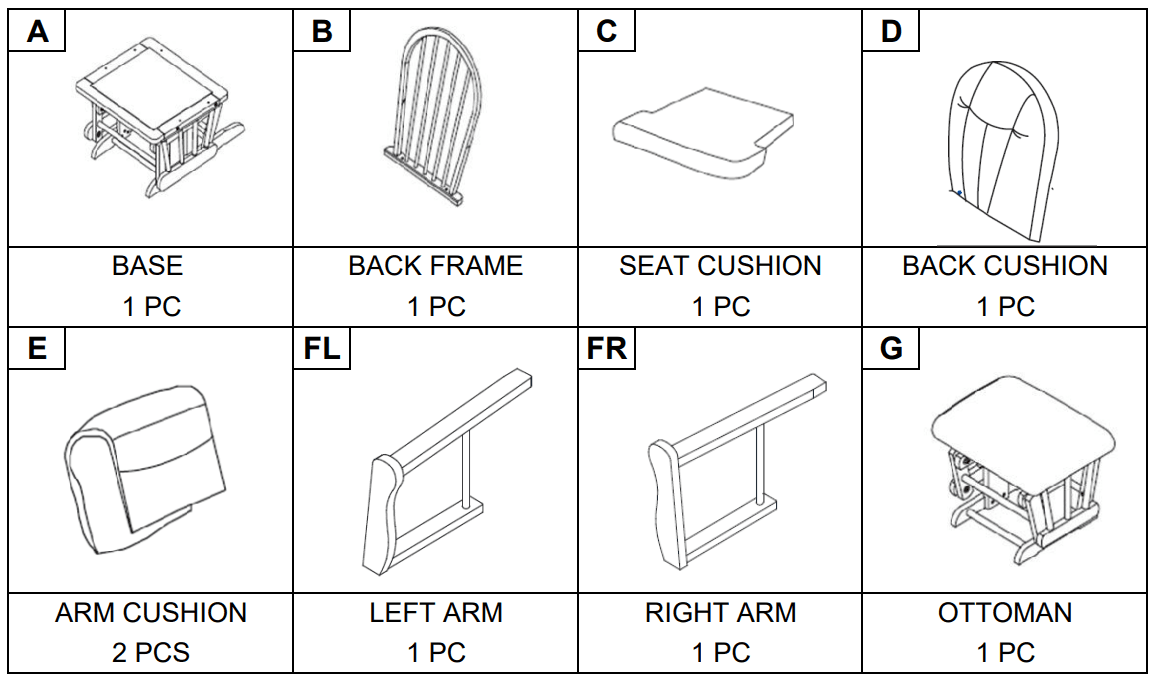

PARTS LIST

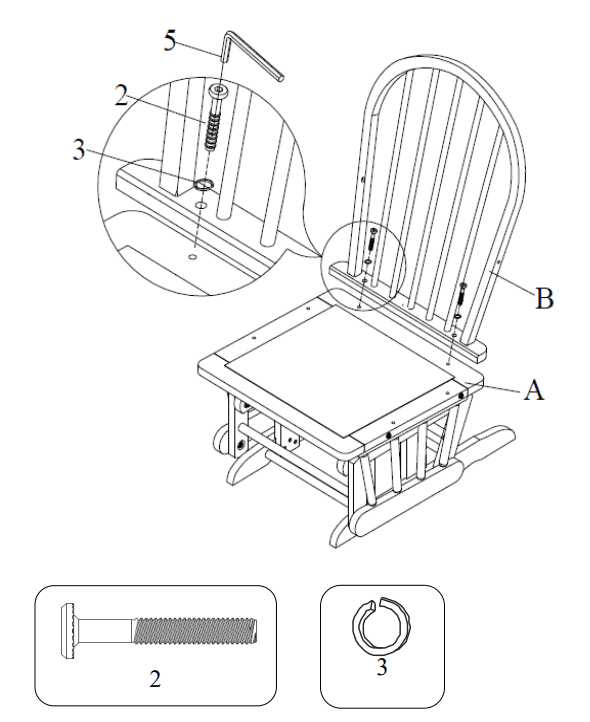

STEP 1
Attach back frame (B) to base (A) with bolts (2) and spring washers (3). Use Allen Key (5) to install the bolts.
NOTE: Do not fully tighten the bolts. Leaving them loose will facilitate assembly in the following step.

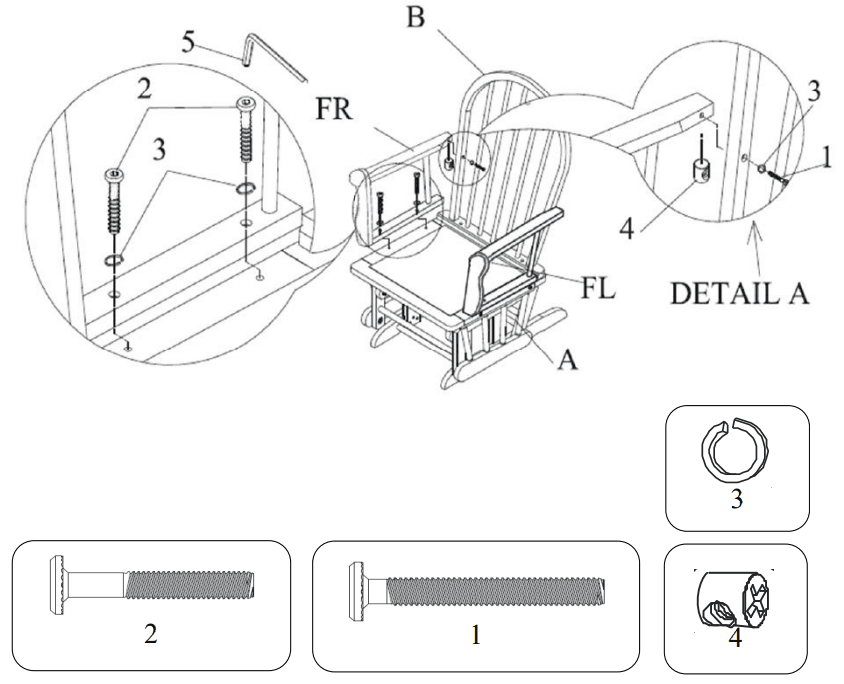

STEP 2:
Attach the right arm (FR) to the back frame (B) with bolt (1), spring washer (3), and barrel nut (4). Insert the barrel nut (4) into the hole underneath the armrest as per detail A. Insert the bolt (1) with spring washer (3) through the hole in the back frame (B) as per Detail A. Use Allen Key (5) to tighten the bolts. Attach the right arm (FR) to the base (A) with bolts (2) and spring washers (3). Use Allen key (5) to tighten bolts. Repeat this to attach the left arm (FL).
NOTE: Do not fully tighten the bolts until all bolts have been installed.

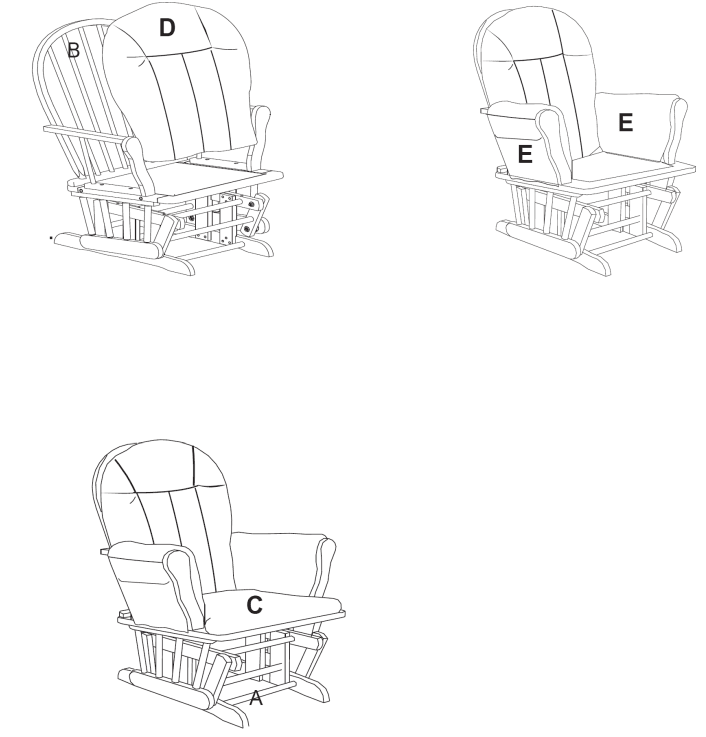

STEP 3
Attach the arm cushions (E) to the armrests by buttoning the buttons along the interior of the seat and on the sides. Attach the seat cushion (C) to the base (A). Attach back cushion (D) to back frame (B).

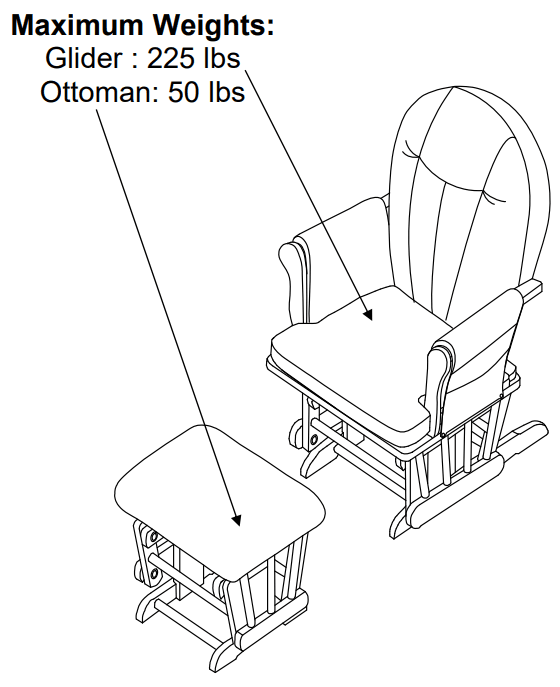

CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- DO NOT sit on the edge of the seat, armrests, or the backrest, as this could cause the chair to tip over.
- DO NOT use your chair and ottoman as a step stool.
- DO NOT leave children unattended on or beside the chair and ottoman.
- DO NOT use the ottoman as a seating surface.
That’s it! You’ve finished assembling your glider rocker & ottoman.
