BASS JAXX Touch Top Wireless Speaker

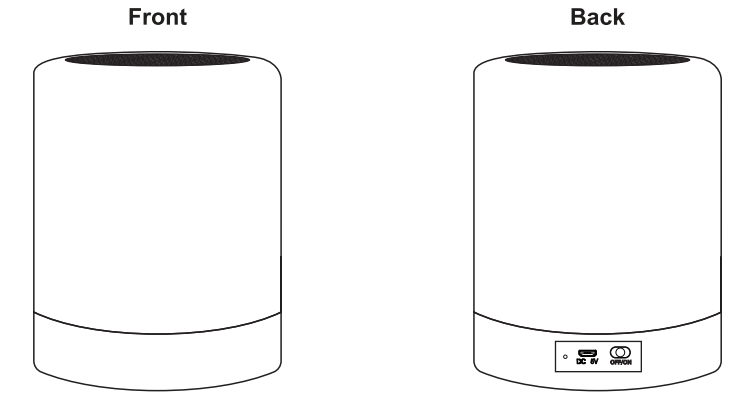

Product Overview
Package Contents
- Touch Top Wireless Speaker x 1pc
- Micro USB Charging Cable x 1pc
- Instruction Manual x 1pc
Power On/Off
- Power on
- Slide the ON/OFF switch to the “ON” position.
- Power off
- Slide the ON/OFF switch to the “OFF” position.
Pair a Wireless speaker with your mobile device
- Keep the distance between your wireless speaker and mobile phone (or other devices) within 32.8 Feet.
- Power on the wireless speaker.
- Activate the Bluetooth function on your phone within range and select “TOUCH TOP SPK” from the list shown.
- You will hear a beep sound when pairing is successful.
Reconnect Wireless speaker to your mobile device
- When powered on, the wireless speaker will automatically connect with the last successfully paired device.

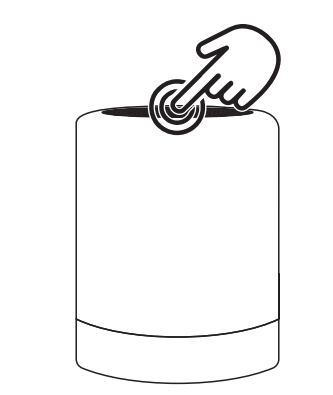

Touch Light Changing Function
- Touch the top of the speaker to change the color of the light.
Charging your Wireless speaker

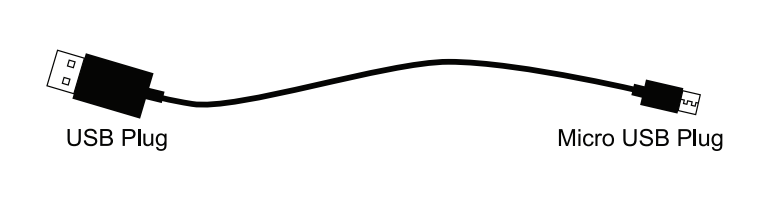

- Use the Micro USB charging cable provided with this wireless speaker.
- Connect the Micro USB plug to the Micro USB charging port on the speaker, then plug the USB end into a charging source.
- The light will turn on once charging begins.
NOTE
- You must select a qualified charger from a regular manufacturer.
- You must charge the Wireless speaker if it has not been used for more than 12 months.
Technical Specification
- Driver Diameter: 52 mm
- Impedance: 4 Ohms
- Charging Time: 1.5 – 2 Hours
- Playing Time: 1.5 Hours
- Rechargeable Li-Ion Battery 3.7V 300mAh
- Bluetooth Range: 32.8 feet
- Micro USB Charging Cable Included
- Micro USB Plug
FAQ
If the Wireless speaker cannot be paired with your device, please try the following:
- Ensure that your speaker is in pairing mode or reconnection mode.
- Ensure that the Bluetooth search function of your mobile device is activated.
If the Wireless speaker cannot be recharged:
- If you use a power outlet, ensure that the power supply is connected securely and the outlet works.
- If you use a computer, ensure that it is connected and the USB port is powered.
Safety instructions for the lithium battery and charging the product
- The input voltage to the product is DC 5V 1A.
- In order to charge the product in a safe manner and under reliable conditions, please only use a certified, appropriate charger/adapter for charging the product.
- Only charge the product at ambient temperatures between 10°C/50°F and 40°C/104°F.* Do not heat above 70°C/158°F, e.g., do not expose to sunlight or throw into fire.
- Switch off the product after use.
- Please note that we won’t take any responsibility for any wrong operation (e.g., voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user uses this product.
- In extreme cases, abuse or misuse of a Lithium battery pack can lead to an explosion, heat generation, fire development, or smoke.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet the general RF exposure requirement. The device can be used in portable exposure conditions without restriction.
For More Manuals By BassJaxx, Visit ManualsLibraryy.
BASS JAXX Touch Top Wireless Speaker -FAQs
How do I connect my Bass Jaxx wireless speaker?
Turn on the speaker → Enable Bluetooth on your phone → Select “HT CLUTCH SPEAKER” (or your model name) from the list → Pair and enjoy music. Keep your device within 32 ft (10 m) for the best connection.
How do I connect a Bass Jaxx speaker to an iPhone?
Press and hold the Power button for 3 seconds until the LED flashes red/blue → On iPhone, go to Settings > Bluetooth → Select the speaker name → Once paired, the LED flashes slowly in blue.
How long does it take to charge a Bass Jaxx speaker?
Most Bass Jaxx speakers take 1–2 hours to fully charge.
How long does the battery last on a full charge?
On average, you get 5–6 hours of playback, depending on volume and usage.
How do I know if my Bass Jaxx speaker is charging?
Check the LED indicator – it usually lights up (red or orange) while charging and turns off or changes color when fully charged.
Can I use the speaker while charging?
Yes, most Bass Jaxx speakers work while charging, but battery life may shorten over time if used this way often.
How do I reset my Bass Jaxx speaker?
Press and hold the Power button (or Power + Mode, depending on model) for about 10 seconds until the speaker restarts.
Does a wireless speaker need Wi-Fi?
No. The BASS JAXX Touch Top connects via Bluetooth, so you don’t need Wi-Fi to play music.
How do I recharge my wireless speaker?
Plug the USB charging cable into a phone charger, laptop, or power bank. Avoid overcharging or using incompatible chargers.
