Belifu SM9126 MINI Massager
Included in this standard package
- Device x 1pc
- Large pad x 2pcs
- Medium pad x 6pcsSmall pad x 2pcs
- Electric wire x 3pcs
When use 4 line cable, make sure to use at least 1pc white(positive)+1pc blue line(negative)at the same time. - USB cable x1pc
- Instruction manual x 1pc
- Bagx1pc
Features
- 2 output with 24 modes
- 20 level intensity
- 20 minutes default timer, can be adjustable from 10-60 minutes
- Rechargeable lithium battery
- Battery indicator to know when need to recharge battery
- 110-240v

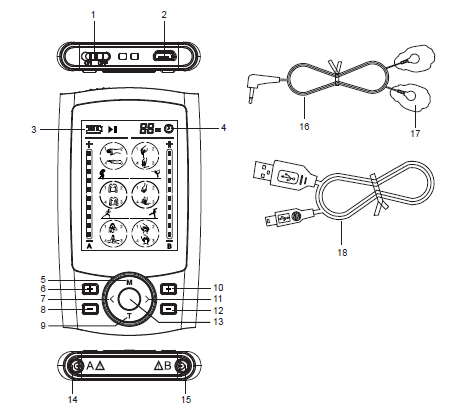

Illustrations of the device and accessories
On/ Off switch- USB port
- Battery indicator
- Time
- Mode selector
- A Intensity adjustment (+)
- Mode adjustment
- A Intensity adjustment (-)
- Time adjustment
- B Intensity adjustment (+)
- Mode adjustment
- B Intensity adjustment (-)
- Pause
- A output connector
- B output connector
- Pad wires
- Massage pad
- USB cable
On/ Off switchModes
There are 24 modes to choose from. The “M” button cycles through the 6 main modes, all of these 6 main modes contain different built-in 4 modes.
- Lateral palm kneading
- Flat palm kneading
- Crosscut fist kneading
- Vertical fist kneading
- Acupuncture
- Moxibustion
- Acupuncture kneading
- Moxibustion kneading
- Rubbing
- Rubbing reduction
- Tapping
- Fibrillation massage
- Lifting-pinching manipulation
- Vibrating manipulation
- High frequency manipulation
- Fibrillation manipulation
- Shiatsu-Deep
- Thai Massage
- Shiatsu
- Strength Alternate Massage
- Twinkling Cupping
- Cupping
- Fibrillation Cupping
- Cup retaining
Operating instructions
- Connect the pads to the wire by snapping them on, then remove the protective film.
- Place pads where the massage sensations are desired. And plug into one of the ports on the device. For additional relief, use the second port and repeat steps 1&2 for two additional pads. Make sure both pads on the skin and not overlapping. Make sure your skin is free from any dirt, oil or lotion.
- Turn the device on by pressing the on/ off switch on the top of the unit. The unit will be now activated and start in Model1.
- Press the mode button to try different mode. Then press the center button to choose the waves within that selection. There are six icons on the screen, press “<” and “>”button to change the six icons. Each icon contains different built-in 4 modes, press the “M” to choose the built-in 24 modes. Please increase the intensity because it will return to lowest automatically when you change to a new mode.
- Once you select a mode, gradually increase the A/B intensity by pressing the + button on the right/ left side; decrease it by pressing ‐ button on the right/ left side of the tens.
- Adjust the tens using time by pressing the T button on the side of the tens. The timer can be increased by 10 minute intervals and the tens will automatically turn off after the set time has finished.
- Turn the device off by pressing the on/ off switch on the top of the unit If you need to turn off the device during massaging.
Precautions
- Do not apply the massage pads near the heart, on the head, above the neck, in the pubic region, over Scarred areas, on the throat or over the mouth.
- Avoid touching the pads when the unit is on.
- Pregnant women must avoid using this massager.
- Do not use this massager if you are using pacemaker or other life support equipment such as an artificial lung or respirator.
- Should not be used while driving, operating machinery, or during any activity in which involuntary muscle contractions may put the user at undue risk or injury
- Do not use if you have following medical conditions:
Acute disease, trauma or surgical procedure in past six month
- Cardiac dysfunction
- Epilepsy
- High blood pressure
- High fever
- cancer
- Infectious disease
- Malignant tumors
- Recent surgery
- Skin problems
- Pregnancy
Maintenance and care
- When you are finished using the device, turn it off and take off the pads. Store the unit in a cool, dry place until next use.
- After usage, please cover the pads with the protective film. Applying a few drops water before and after usage will increase the longevity of the pads.
- Charge the unit at least every 3 month in event it is not used regularly.
- Please replace the pads after using 15-20 times (Varies widely depending on use, body type and care)
- Do not apply pads to the same area more than 30 minutes at a time.

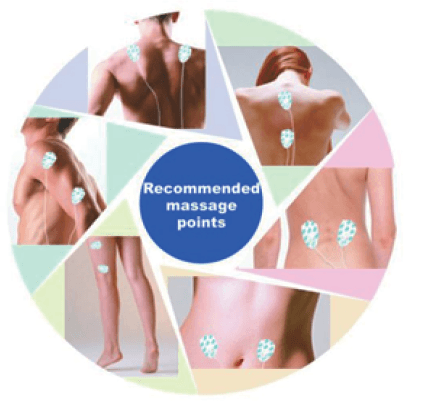

Recommend massage points
Troubleshooting
| Problem | Cause | Solution |
| During the massage, the skin feels a painful burning sensation or the stimulation becomes weakened. | Adhesive gel pads are not adhering firmly to the skin. Or the gel pads are too dry. | Apply a few drops of water to adhesive surface of each pad and make sure the pads are pressed firmly to the skin during application. |
| Unit is on, but no sensation is felt in the pads. | Both pads are not firmly on the skin. Or there is a loose connection. Or the intensity level needs to be increased. | Make sure both pads are firmly pressed to the skin. Make sure all connections are secure from the unit to the wires and the wires to the pads. Increase the intensity level. |
| Adhesive gel pads do not stick to skin even after cleaning and moistening the gel pad. | Adhesive gel pads need to be replaced. | Replace the set of pads. Pads can be purchased from local distributor. |
| Unit does not turn on or the screen is dim. | Battery is low. | Recharge the battery. |
| Does not provide adequate pain relief. | Not using it long enough. Not lying down then massaging neck. | Use your massager 20-30 minutes at a time, 3-6 times per day. Lie on your back for neck support when you need relief for headaches or neck pain. |
For more manuals by Belifu visit, ManualsLibraryy
Belifu SM9126 MINI Massager-FAQs
How does the Belifu MINI Massager work?
The Belifu TENS EMS unit uses electric pulse waves to stimulate sensory nerves, relieving muscle soreness and pain. It can also aid in muscle building.
How does an electronic pulse massager work?
Pads are placed on the skin along nerve pathways in the targeted area. The device sends adjustable electrical pulses to provide a strong but comfortable sensation for relief.
How does electrical stimulation benefit the body?
Electrical stimulation mimics natural muscle movement by causing muscles to contract through impulses, improving range of motion and circulation.
What are the side effects of using a TENS machine?
Potential side effects include buzzing sensations, skin irritation, spasms, or injury. TENS machines are not recommended for people who are pregnant, have epilepsy, heart issues, or metal implants.
Does the Belifu massager improve blood flow?
Yes, it can improve blood circulation when used correctly, contributing to better overall circulation in the body.
Is pulse massage safe?
Yes, when used properly, portable pulse massagers like the Belifu are safe and effective for relieving stress and tension in areas like the neck, shoulders, and back.
What are the benefits of electrical stimulation?
Electrical stimulation can relieve pain, improve blood flow, reduce muscle spasms, and enhance joint mobility.
What is the principle of electrical stimulation?
Electrical stimulation delivers current to tissues, causing controlled muscle contractions. This improves blood flow and helps in pain management and rehabilitation.
What are the side effects of electrical stimulation?
Possible side effects include skin irritation, burns, anxiety, depression, pain, and tissue damage if not used correctly.
What are the side effects of the MINI massager?
For sensitive skin, repeated use may cause irritation or worsen existing skin conditions. Overuse in one area can result in minor burns from friction and heat.
