Bell Howell 2963 Motion Solar Powered Bionic Spotlight

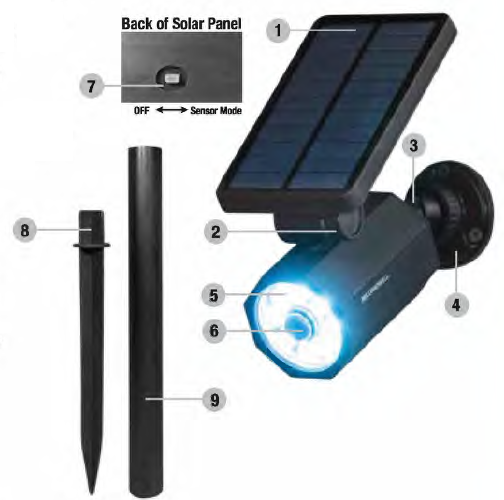

PARTS & FEATURES
- Adjustable Solar Panel
- Adjustment Knob
- Swivel Arm
- Mounting Plate
- 8 LED Lights 7
- Motion Sensor
- Sensor Mode/OFF Switch
- Ground spike
- Stake
INSTALLATION
PLEASE READ THIS MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE USE.
- When picking a place to install your Bionic Spotlight, CHOOSE A LOCATION WITH MAXIMUM SUN EXPOSURE DURING THE DAY.
- Do not use the spotlight to force the stake into the ground. First, insert the stake into the ground and then place spotlight over the stake.
- Avoid areas under trees or bushes as this will prevent a proper charge of the
Bionic Spotlight. - Do not install Bionic Spotlight near an existing outdoor light. The built-in sensor
will prevent it from turning the solar lights on. - When using the Bionic Spotlight in the fall and winter, please note that due to fewer daylight hours, the batteries might not charge fully. This may affect the amount of time the Bionic Spotlight will be on.
- During cold winter months, we recommend to remove the Bionic Spotlight to prevent damage to the unit due to frost and freezing temperatures.
MOUNTING SPOTLIGHT
- Remove the Mounting Plate from the spotlight by twisting the dial counterclockwise.
- Choose a location with maximum sun exposure. Drill holes matching the
pattern on the Mounting Plate and install the plastic anchors (included). Attach the Mounting Plate using 3 screws (included).
- Align the arm of the spotlight with the opening on the Mounting Plate. Twist the dial clockwise to tighten and secure it.
FOR IN-GROUND INSTALLATION
Make sure that the Mounting Plate is attached to the swivel arm of the unit.
- Insert the Ground Spike into the Stake.
- Make sure the soil is softened. Insert the Stake into the ground.
- Insert spotlight over the Stake.
ADJUSTING ANGLES
- To adjust the angle of the Solar Panel, loosen the Adjustment Knob (2). Once the desired angle has been selected, tighten the knob.
- Swivel the arm (3) of the spotlight to direct the light where needed.
USAGE
Make sure you read and follow the installation directions prior to use.
- When using for the first time, turn the Bionic Spotlight ON by sliding the switch located on the back of the solar panel to Sensor Mode position.
- Leave the unit under direct sunlight for solar charging at least 5-6 hours. UNIT NEEDS TO BE FULLY CHARGED BEFORE INITIAL USE. If there isn’t ample sunlight, it may take longer for the batteries to charge.
- Once it becomes dark, the Bionic Spotlight will turn on automatically when it
detects motion. The light will stay on for 30 seconds and then will go off if no motion has been detected. - The Bionic Spotlight will turn off during the day or if unit runs out of battery.
- Security Camera likeness: Once the unit is in Sensor Mode (ON) position, red LED
light will blink on the front of the spotlight. The red light will remain blinking until
motion is detected and spotlight turns on

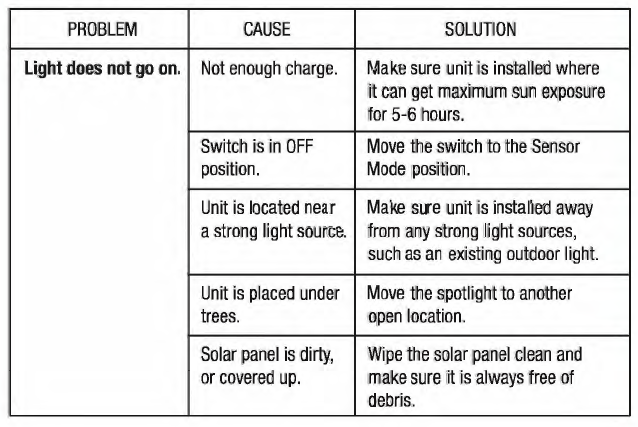

TROUBLESHOOTING
TECHNICAL INFORMATION
- Product size: L6.3 x W3.58 x H4.721n / 16×9.1x12cm
- Net weight: 0.64Ib / 290g
- Sensor distance: 6-9 meters
- Lighting time: 30s
- Color Temperature: 6500K-75D0K
- IPX Rating: IPX4
FOR MORE MANUALS BY BELL+HOWELL, VISIT MANUALSLIBRARYY
Bell Howell 2963 Motion Solar Powered Bionic Spotlight-FAQs
How does the Bionic Spotlight work?
The Bionic Spotlight is solar-powered and turns on automatically when it detects motion up to 25 ft. away. It doesn’t need wiring or batteries—just place it where the solar panel can get plenty of sunlight.
How do I turn on my Bionic Spotlight?
Press the ON/OFF button to activate. Once it gets dark, the light will turn on automatically if it has been charged during the day.
How do I install the Bionic Spotlight?
Installation is simple:
Mount it in a sunny spot outdoors.
Adjust the light angle for best coverage.
Turn it on and let it charge in direct sunlight.
Does the Bionic Spotlight work in winter?
Yes. It is weatherproof and frost-resistant, designed to work all year round—even in colder months.
How long does it take to charge?
For best results, let the spotlight charge in direct sunlight for 6–8 hours before first use.
Do solar lights need direct sunlight?
Direct sunlight is best, but the spotlight can still charge in partial shade. However, less sunlight may reduce brightness and run time.
How do I check if my solar spotlight is charging?
Place it in sunlight and look for an indicator light (if available). To test, cover the solar panel—if the light turns on, it’s charging properly.
Why is my Bionic Spotlight not working?
Make sure it’s switched ON.
Ensure the solar panel is clean and placed in sunlight.
Check and replace the rechargeable batteries if needed.
How long does the Bionic Spotlight last at night?
On a full charge, it can stay illuminated for up to 8 hours, depending on sunlight exposure and motion activity.
Is the Bionic Spotlight good for home security?
Yes. Many customers say it works well as a motion-activated security light, adding brightness and deterrence without the need for wiring.
