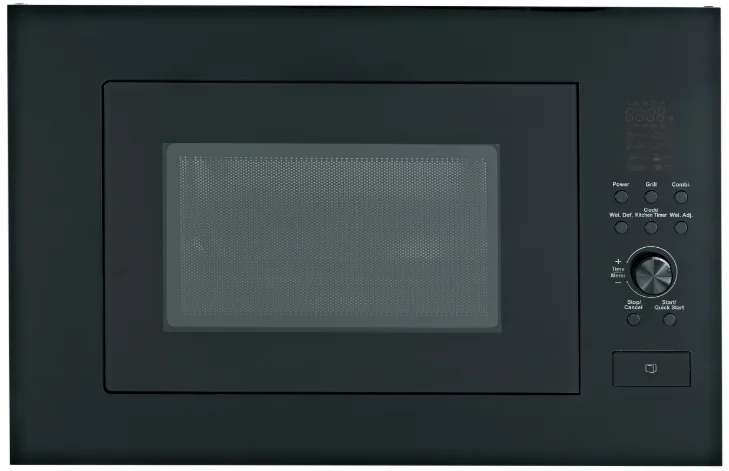

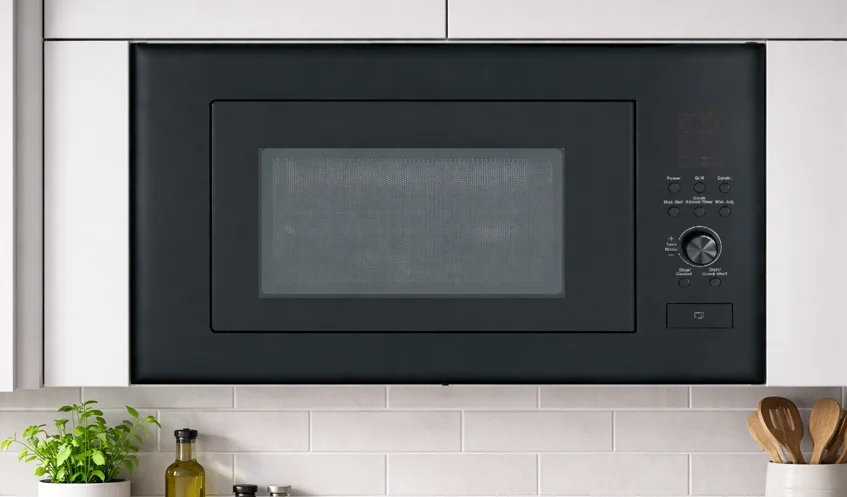

Bellini BMWM28 28L Built-In Microwave Oven
Specifications
CLEANING
Be sure to unplug the appliance from the power supply.
- Clean the cavity of the oven after using it with a slightly damp cloth.
- Clean the accessories in the usual way in soapy water.
- The door frame, seal, and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
- Cleaning Tip—For easier cleaning of the cavity walls that the cooked food can touch: Place half a lemon in a bowl, add 300 ml (1/2 pint) water, and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.
See the instructions on “Materials you can use in a microwave oven or to be avoided in a microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.
Utensil Test:
- Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil in question.
- Cook on maximum power for 1 minute.
- Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
- Do not exceed 1 minute cooking time.
Installation

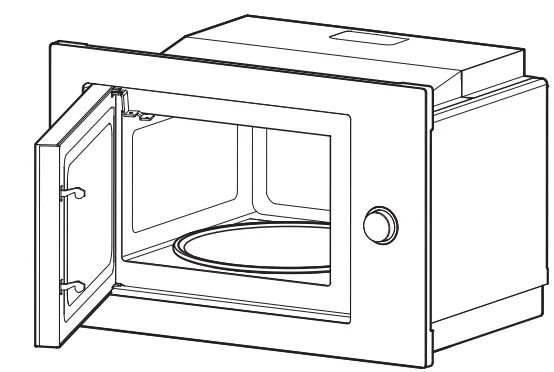

TURNTABLE INSTALLATION
Clean the cooking compartment and put the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

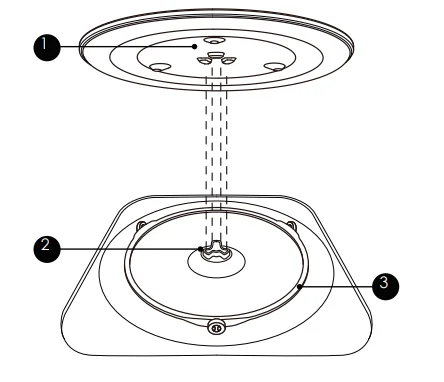

How to put the turntable in place:
- Place the turntable ring assembly ③ into the recess in the cooking compartment.
- Place the glass tray ① on the turntable ring assembly ③. Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray ① engages in the turntable shaft ② in the center of the cooking compartment floor. The rollers on the ③ should fit inside the turntable bottom ridge.
- Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anticlockwise.
- Never place the glass tray upside down. The glass tray should never be restricted.
- Both the glass tray and turntable ring assembly must always be used during cooking.
- All food and containers of food are always placed on the glass tray for cooking.
- Never restrict the movement of the turntable.
- If the glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.
Installation and connection
- This appliance is only intended for domestic use.
- This oven is intended for built-in use only. It is not intended for countertop use or for use inside a cupboard.
- Please observe the special installation instructions.
- The appliance can be installed in a 60 cm wide wall-mounted cupboard.
- The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
- The mains voltage must correspond to the voltage specified on the rating plate.
- The socket must be installed, and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3 mm.
- Adapters, multi-way strips, and extension leads must not be used. Overloading can result in a risk of fire.

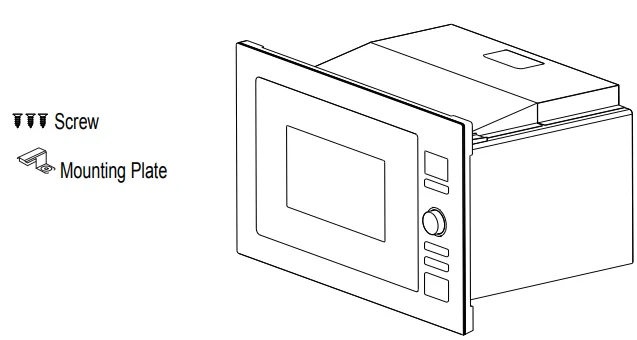

Installing the Appliance
The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed, and the connecting cable must only be replaced by a qualified electrician, in accordance with appropriate regulations. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm. The fitted cabinet must not have a back wall behind the appliance. A gap must be maintained between the wall and the base of the unit above. The specific gap size can be referenced by the diagrams. Minimum installation height: 85 cm. Do not cover ventilation slots and suction holes.
Note: Do not trap or bend the power cable.

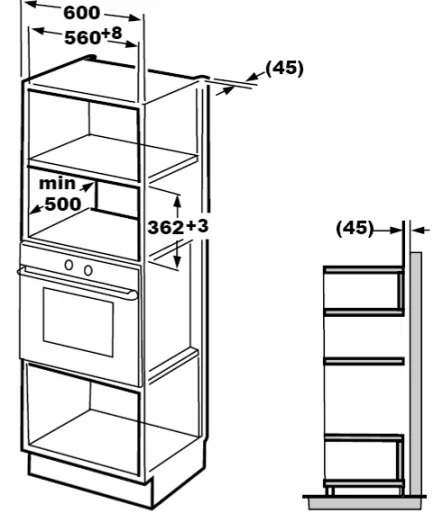

A. Built-in furniture

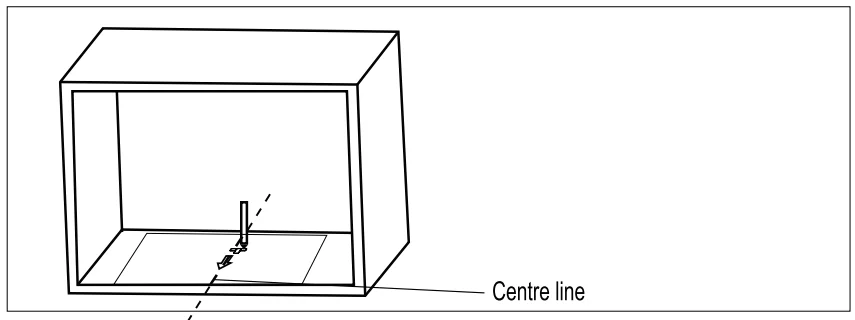

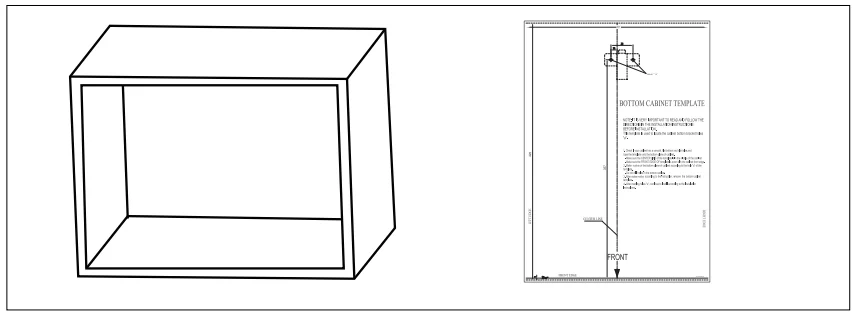

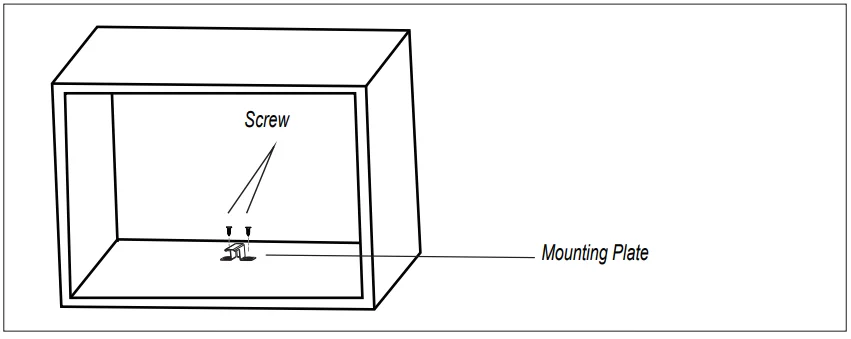

B. Prepare the cabinet
- Read the instructions on the BOTTOM CABINET TEMPLATE. Put the template on the bottom plane of the cabinet.
- Make the marks on the bottom plane of the cabinet according to mark “a” on the template.
- Remove the bottom cabinet template and fix the mounting plate with screws.

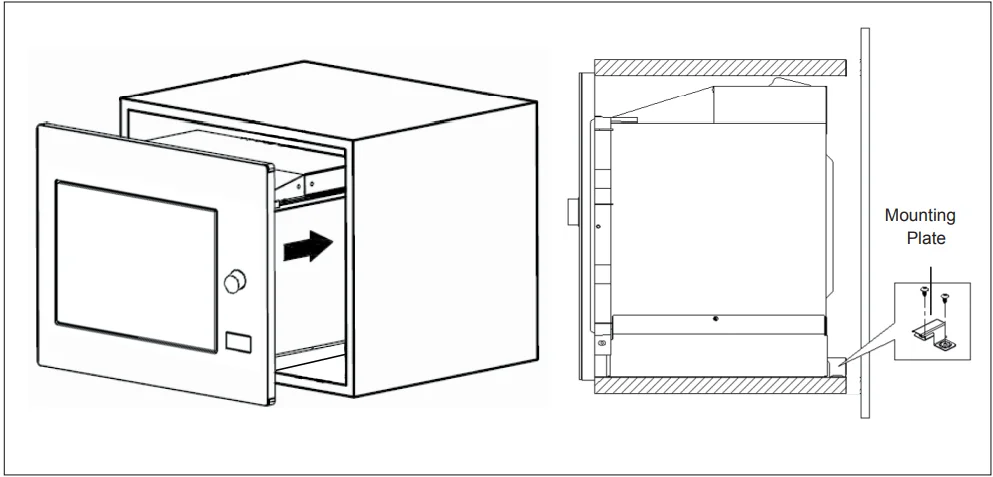

C. Install the oven
- Install the oven into the cabinet.
- Make sure the back of the oven is locked by the mounting plate.
- Do not trap or kink the power cord.
- Open the door, fix the oven to the cabinet, then screw it into the installation hole.
Control Panel

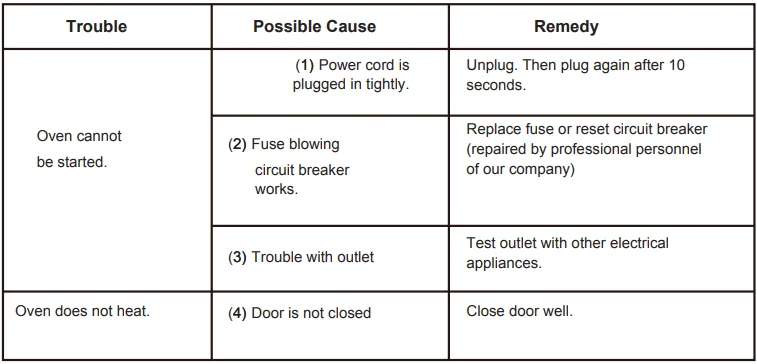

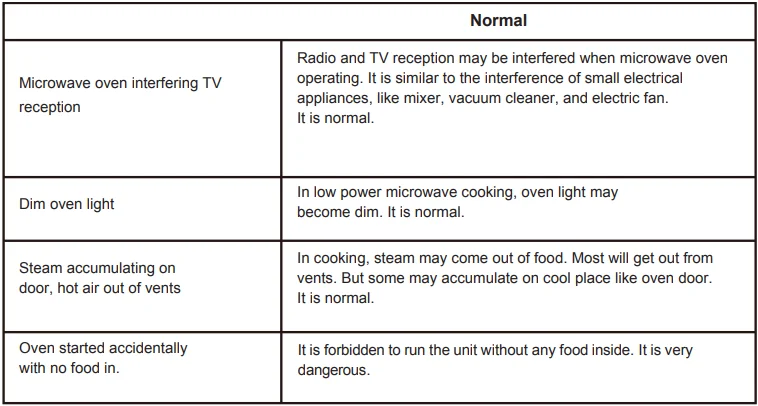

Troubleshooting
WARRANTY
1.1 In this warranty:
- Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
- Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park, SA 5067. Telephone 1300 373 199. Email [email protected].
- Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Bellini product;
- Consumer Guarantees means the guarantees under the Australian Consumer Law;
- You means the Consumer.
- Nothing in this warranty affects any person’s rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.
- Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company’s specifications.
- The benefit of this warranty extends only to the Consumer as the original purchaser of a Bellini product, which is installed in a domestic household area.
- The in-home warranty does not apply to commercial and/or industrial usage. Please see 1.7.7 for additional information.
- This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of three (3) years (Warranty Period).
- If, within the Warranty Period, a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components, or workmanship (Defect), then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.
- This warranty will not apply to any Bellini product:
- Installed by any person other than a qualified tradesperson; or
- Subjected to misuse, neglect, negligence, or accidental damage; or
- Operated in any way contrary to any operating or maintenance instructions; or
- Improperly handled, installed, or maintained; or
- Altered or modified before or after installation; or
- Damaged directly or indirectly by power surges, electrical storm damage, or connection to an incorrect power supply.
- Industrial and/or commercial usage is inclusive of staff areas in office/shop environments, hotel/motel or other similar accommodation or rental-type properties, including Bed and Breakfast establishments.
- You must provide proof of your purchase of the Bellini product and the date of purchase to obtain the benefit of this warranty.
- If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service, nor the service agent’s traveling costs to and from your home.
- If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage to the Bellini product prior to it being received by the Company or its service agent.
- You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
- The Company or its service agent will examine any Bellini product, and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.
DO NOT SEND IN THIS WARRANTY
Fill out the following details and file with your purchase invoice for safekeeping.
RETAIN & FILE WITH YOUR RECEIPT
Your Purchase Receipt/Invoice is proof of the date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges. GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs, and change specifications without incurring obligation. Whilst every effort is made to ensure that descriptions, specifications, and other information in this publication are correct, no warranty is given in respect thereof, and the company shall not be liable for any errors therein.
- Purchased from:
- Co. Name:
- Address:
- Date of Purchase:
- Serial number:
NOTE: Consistent with our continuing product development policy, improvements may have been made that render the contents of this packaging slightly different from those shown. For warranty and technical queries: New Zealand 0800 764 912, www.belliniappliances.com.au.
