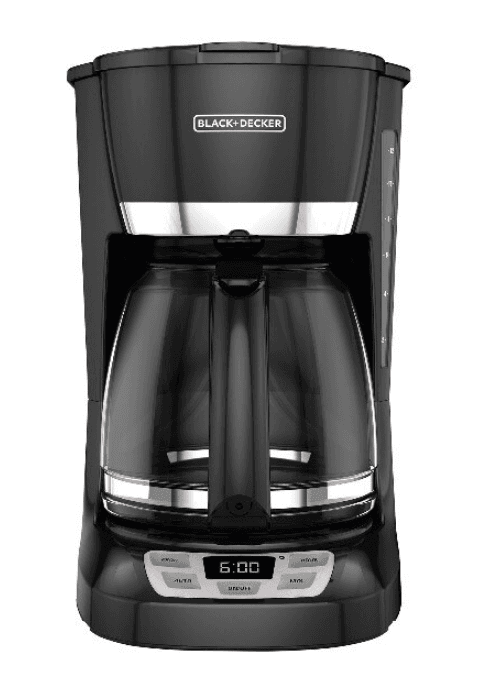

BLACK DECKER CM1165GY 12-Cup Digital Coffee Maker
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:
- Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against fire, electric shock, and injury to persons, do not immerse the cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from the outlet when either the appliance or display clock is not in use, and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact Consumer Support at the number listed in this manual.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- To disconnect, make sure the brew indicator light is off by pressing ON/OFF button, then remove the plug from the wall outlet.
- Do not use this appliance for anything other than its intended use.
- Keep lid on the carafe when in use.
- Scalding may occur if the lid is removed during the brewing cycles.
- The carafe is designed for use with this appliance. It must never be used on a range top.
- Do not set a hot carafe on a wet or cold surface.
- Do not use a cracked carafe or a carafe having a loose or weakened handle.
- Do not clean the carafe with cleansers, steel wool pads, or other abrasive material.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
GETTING TO KNOW YOUR COFFEEMAKER
- One-piece cover
- Showerhead
- Removable brew basket (Part # CM1100B-01)
- Brew-thru lid
- Duralife™ glass carafe Black (Part# CM1100B-02)White (Part# CM1100W-02) Gray (Part# CM1100G-02) Red (Part# CM1100R-02)
- Keep Hot” carafe plate
- Control panel
- Water reservoir with cup level markings
- Sneak-A-Cup™ feature
- Cord storage (inside of unit)
- Brew indicator light
HOW TO USE
This product is for household use only.
GETTING STARTED
- Remove all packing material, any stickers, and plastic band around the power plug.
- Wash removable parts as instructed in CARE AND CLEANING.
- Pour fresh cold water up to the 12 MAX mark.
- Place a basket-style paper filter into the removable brew basket. Place basket into brew basket holder.
- Plug the cord into a standard electrical outlet.
- Brew water through the appliance without adding coffee grounds. This removes any dust or residue that may remain in the system during the manufacturing process.
- Discard the water and paper filter.
- Turn off the appliance, unplug it, and allow it to cool down.
SETTING THE CLOCK
- Plug the appliance into a standard electrical outlet.
- The digital clock display flashes 12:00 A.M.
- To set the time: Press HOUR button until the correct hour appears on the display. Small dot in the top left corner of the digital display indicates P.M. when lit.
- Press MIN button to select minutes.
Note: If the unit is unplugged or power is interrupted even momentarily, the time will need to be reset.
BREWING COFFEE
- Open one-piece cover. Fill the water reservoir with cold tap water. Use lines on the side of the reservoir as a guide. Do not fill past the “MAX/12” line.

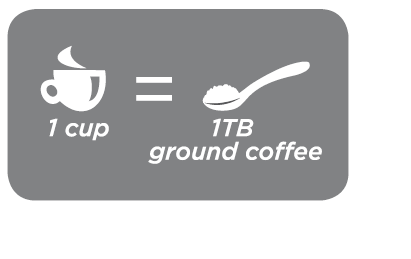

- Place a paper filter into the brew basket. Add ground coffee (we suggest 1 heaping tablespoon per cup). Place the brew basket in place.
- Close the one-piece cover securely.
- Place the brew-through lid on the empty carafe, making sure it is in the down position. Then set the carafe on the carafe plate.
- Plug the cord into an outlet. Press the ON/OFF button (the indicator light to the left of the HOUR button will illuminate), and brewing begins. The “Keep Hot” carafe plate will keep the coffee warm for two hours or until the ON/Off button is pressed.
- When coffee grounds are cool, carefully remove and discard the used grounds and filter.
- To turn off the coffeemaker at any time, press ON/OFF button (the indicator light to the left of the HOUR button will turn off).
- Unplug the appliance when not in use.
- Press the tab on the carafe lid to pour coffee.
SNEAK-A-CUPTM FEATURE:
Remove the carafe and brewing is paused. The carafe must be placed back on the carafe plate in 30 seconds to prevent overflow. Brewing begins again.
SETTING AUTO BREW TIME
- Press PROG button. The AUTO light (small dot in the bottom left corner of the digital display) flashes several times. Digital clock displays 12:00.
- Quickly press HOUR button then MIN button to select the time you would like automatic brewing to begin (for example, 7:15 A.M. Make sure the P.M. light is not on.)
- Press AUTO button, holding it down until the AUTO light stops flashing. The digital display changes to time of day.
- To check preset auto time, press PROG button and the preset auto time is displayed. Press AUTO button to reactivate the timer. The AUTO light will turn on.
- To cancel Auto Brew function, press the AUTO button. The AUTO light will turn off.
CARE AND CLEANING
This product contains no user-serviceable parts. Refer service to qualified service personnel.
CLEANING
Make sure your coffeemaker is unplugged and cool.
- Remove the brew basket. Discard the used paper filter and coffee grounds.
- Wash the brew basket and carafe in the dishwasher (top rack) or by hand in hot, soapy water.
- Wipe the outside of the coffeemaker, control panel, and carafe plate with a soft, damp, damp cloth.
Note: Do not use abrasive cleansers or scouring pads. Never immerse the coffeemaker in water. - To clean the inside of the cover, open the cover and leave it in the open position; wipe with a damp cloth.
CLEANING WITH VINEGAR
Note: With regular use, minerals and hard water can clog your coffeemaker. A full cleaning with vinegar is recommended once a month.
- Pour white vinegar into the water reservoir up to the 6-cup mark on the water window. Add cold water up to the 12-cup mark.
- Put a paper filter in the brew basket and close the cover. Set the empty carafe on the carafe plate.
- Turn on the coffeemaker. Let half the cleaning mixture brew into a carafe (until the level is around 5). Turn off the coffeemaker and let it soak for at least 15 minutes
- Turn on the coffeemaker again and brew the remaining cleaning mixture into the carafe. Turn off the coffeemaker; empty the carafe and discard the paper filter.
- Fill the reservoir with cold water to the 12-cup mark; replace the carafe on the carafe plate and then turn on the coffeemaker for a complete brewing cycle to flush out the remaining
cleaning mixture. You may want to repeat this step to completely remove the vinegar smell/taste. - Wash the brew basket and carafe as instructed in CLEANING

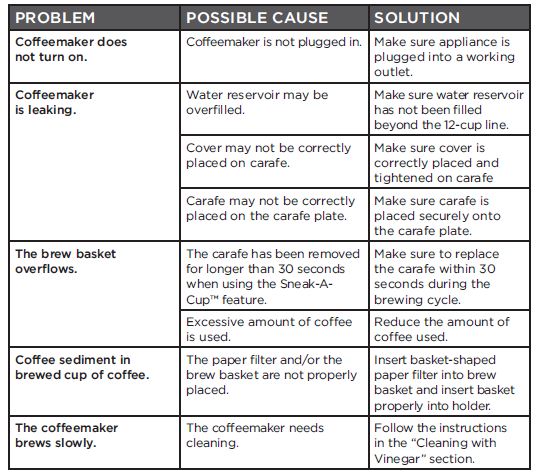

TROUBLESHOOTING
NEED HELP?
For service, repair, or any questions regarding your appliance, please call our Customer Service Line at 1-800-465-6070. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail the product back to the manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this pamphlet.
Warranty Information (Applies only in the United States and Canada) What does it cover?
- Any defect in material or workmanship provided; however, Spectrum Brands’ liability will not exceed the purchase price of the product. For how long?
- Two years from the date of the original purchase with proof of such purchase. What will we do to help you?
- Provide you with a reasonably similar replacement product that is either new or factory refurbished.
How do you get service?
- Save your receipt as proof of the date of sale.
- Visit the online service website at www.prodprotect.com/blackanddecker, or call toll-free 1-800-465-6070, for general warranty service.
- If you need parts or accessories, please call 1-800-738-0245.
How does state law relate to this warranty?
- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.
What does your warranty not cover?
- Damage from commercial use
- Damage from misuse, abuse, or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
- Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)
Are there additional warranty exclusions?
- This warranty shall not be valid where it is contrary to U.S. and other applicable laws, or where the warranty would be prohibited under any economic sanctions, export control laws, embargos, or other restrictive trade measures enforced by the United States or other applicable jurisdictions. This includes, without limitation, any warranty claims implicating parties from, or otherwise located in, Cuba, Iran, North Korea, Syria, and the disputed Crimea region.CM1160.
