BlueDri BD-MS35 Max Storm Commercial Air Mover
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock, and injury to persons. Read and Save All Instructions Before Using this Fan.
WARNING
- TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR PERSONAL INJURY, ALWAYS FOLLOW
- THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:
DO NOT use this Fan to ventilate areas where flammable liquids or vapors are used, stored, or are present, including paints, gasoline, varnishes, floor refinishing products, or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products!
ALWAYS be sure the plug fits tightly into the outlet. When plugs fit loosely in outlets, they may partially slip out of the outlet, resulting in a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition should be replaced by a qualified electrician.
ALWAYS unplug the power cord when servicing, cleaning, or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in.- ALWAYS turn off and unplug the Fan when not in use.
- Use ONLY GFCI-protected receptacles if utilizing as an installation type Fan.
BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or any other power source.- The power cord is equipped with a three-prong grounded plug that must be inserted into a matching receptacle.
- Under no circumstances should the grounding prong be cut off the plug. Where a two-prong wall receptacle is encountered, it must be replaced with a properly grounded three-prong receptacle installed in accordance with the National Electrical Code (NEC) and all applicable local codes and ordinances. This work must be done only by a qualified electrician, using copper wire only.
- DO NOT USE A THREE-PRONG TO TWO-PRONG ADAPTER. IMPROPER CONNECTION MAY CREATE THE RISK OF ELECTRICAL SHOCK. USE OF SUCH ADAPTERS IS NOT PERMITTED IN CANADA.
- WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT USE THIS FAN WITH ANY SOLID STATE SPEED CONTROL DEVICES.
DO NOT use this Fan to ventilate areas where flammable liquids or vapors are used, stored, or are present, including paints, gasoline, varnishes, floor refinishing products, or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products!
ALWAYS unplug the power cord when servicing, cleaning, or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in.CAUTION
- To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
- DO NOT operate any fan with a damaged cord or plug. Discard the fan or return to an authorized service facility for examination and/or repair.
- Unplug or disconnect the unit from the power supply before servicing.
- DO NOT use extension cords, power strips, power taps, outlet-style air fresheners, or other cord-connected devices, as these devices may overheat and cause a fire hazard.
- DO NOT route power cord under rugs, carpets, runners, or furniture. This may damage the cord or cause it to overheat, creating a fire hazard.
- ALWAYS place the fan on a stable, flat, level surface while in operation to prevent the fan from overturning.
- NEVER insert or allow fingers or objects to enter grill openings while the fan is in operation, as injury and/or damage to the fan may occur.
- DO NOT block, cover, or obstruct air flow to or from the fan while in operation.
- DO NOT use this fan outdoors or near wet locations such as a bathtub, pool, hot tub, or pool water. Use of this fan in a wet location may create a shock hazard.
- DO NOT run cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from the traffic area where it will not be tripped over.
- DO NOT use this fan if it has been damaged or is not functioning properly.
- DO NOT operate the unit in the stacked position.
- DO NOT DROP the fan; it may cause damage that could affect safety.
- WARNING: To reduce the risk of fire, electric shock, or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g., parts made at home using a 3D printer).
- THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008). This Fan is not suitable for use in agricultural facilities, including areas where livestock, poultry, or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for agricultural buildings.
- THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous locations. Please refer to the National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for hazardous locations.
Introduction
Designed to move large volumes of air, the BD-MS35 is a commercial air mover used in water damage restoration, mold remediation, carpet drying, janitorial, and sanitation work. The air mover forces water to quickly evaporate and can be used for drying wet carpet, walls, furniture, and floors. The BD-MS35 is easy to carry, maneuver, and transport. Its size is ideal for setting up for use in crawl spaces, cabinets, closets, or any other cramped areas that need to be dried.
Product Features
- No assembly required
- 3-speed operation
- Energy efficient – draws only 3.3A on high
- Grounded outlets with GFCI
- Integrated cord wrap
- 3 operating positions – 0º, 45º or 90º
- Daisy chainable – connect up to 5 units
Operation
- Place the unit on a level and stable surface.
- Plug the unit into a 120 volt GFCI grounded outlet with the correct voltage and amperage. For maximum protection against electrical shock, ALWAYS use a circuit that is protected by a ground fault circuit interrupter. If you are unsure about the outlet, check with a qualified electrician or service person. Do not use an adapter or extension cord.
- To switch the unit on, locate the control panel and rotate the switch knob to the desired speed setting.

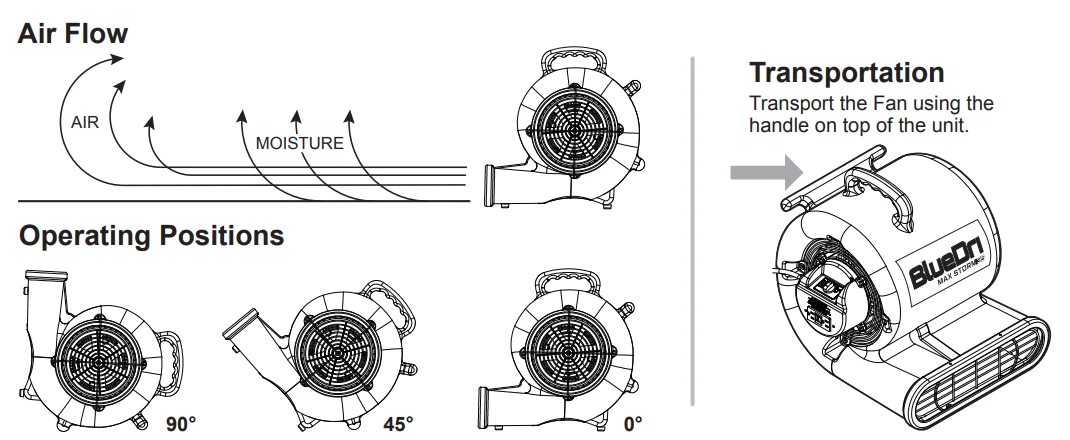

- The multipurpose design allows operating positions for horizontal, 45°, and 90° angles. The balanced handle also acts as an optimum cord wrap assembly, freeing the BD-MS35 of obstructions.
SAFETY FEATURE
- A thermal overload protector is built in to prevent overheating.
- If an overheated temperature is reached, the Air Mover will automatically shut off. It can only resume operation when the user resets the unit.
To Reset Air Mover:
- Unplug the Air Mover and wait 10 minutes for the heater to cool down.
- After the Air Mover has cooled down, plug the unit into a 120v~ electrical outlet and follow the operation instructions described in this manual.
MAINTENANCE
WARNING
- To reduce the risk of electrical shock and fire, please observe the following instructions:
- Always unplug the cord before moving, servicing, or cleaning.
- NEVER place the Fan in or near water.
- Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from inside the Fan.
Never attempt to take apart the Fan.- Clean the body of the Fan with a soft cloth only.
- NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.
TROUBLESHOOTING TIPS
- If your Fan fails to operate, see below for a list of probable causes and solutions: Be sure the power cord is plugged into a working electrical outlet.
- Breaker Reset: A 12-amp breaker is provided as a safety feature of your blower fan. When you use an appliance that has more amperage than allowed, the breaker will trip. To reset, unplug the appliance causing the breaker to trip and push the Reset Button adjacent to the outlets on the fan.
- If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at (800) 233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. Eastern.
- STORAGE: Store the Fan with these instructions, in the original carton, in a cool, dry place.
- LUBRICATION: Motor is permanently lubricated. No maintenance is required.
- DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com.

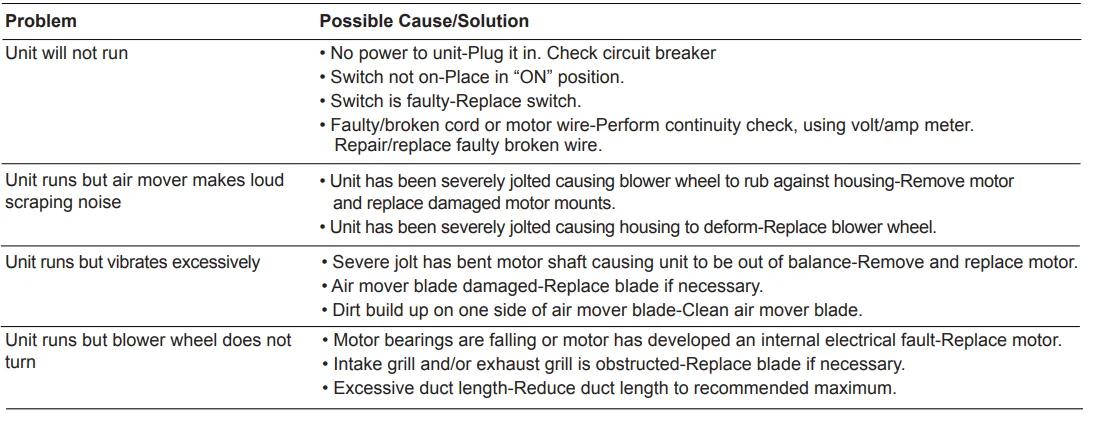

Troubleshooting

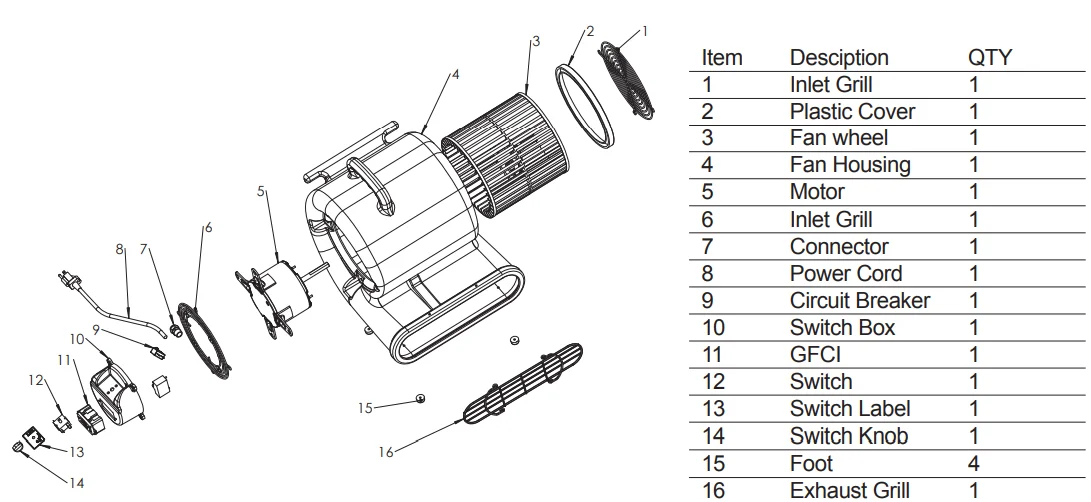

Unit Assembly

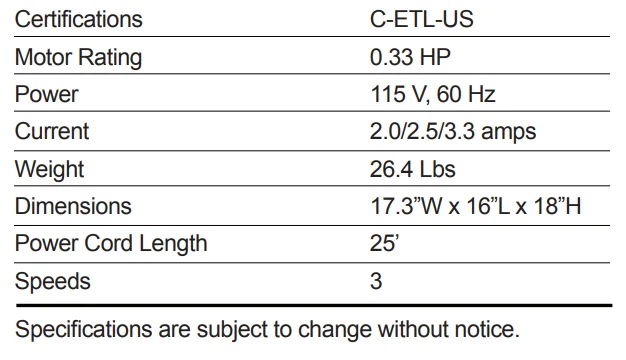

Unit Specifications
LIMITED MANUFACTURER’S WARRANTY
Intertex, LLC warrants that this product, sold to the original user (the “User”), shall be free from defects in material and workmanship as follows: This limited warranty shall extend for 1 year for the entire Product and five (5) years on the Product housing. At the sole discretion of the manufacturer, the limited warranty may include replacement parts, labor for repair or replacement of the Product. The User shall provide proof of purchase to establish coverage under this limited warranty.
This limited warranty shall not cover:
- Useful filter life and replacement filters.
- Damage due to failure to perform normal maintenance as outlined in the Instruction Manual.
- Failures of the Product due to voltage conditions, blown fuses, open circuit breakers, or any other damages due to the inadequacy or interruption of electrical services.
- Damage due to consumer misuse or failure to follow instructions or warnings, including but not limited to unauthorized alteration, improper servicing, or operation outside the voltage and frequency limitations as stated on the unit rating plate.
- Damage due to flooding, fires, lightning, freezing of residual water, corrosive environment, or other conditions.
- Damage due to the use of replacement parts not supplied by the manufacturer.
- Shipping damage.
Further, the manufacturer does not warrant that the Product is merchantable or fit for any particular purpose. All other warranties, guarantees, or representations, express or implied, by operation of law or otherwise, are expressly disclaimed. Returned Product for limited warranty service, which is found by the manufacturer to be free from defect and to conform to specifications, shall be held for a reasonable period of time (as determined in the sole discretion of the manufacturer) for the User’s shipping instructions and payment.
The manufacturer shall not be liable under any circumstances for special, contingent, incidental, or consequential damages, losses, or expenses directly or indirectly arising from the use of the Product, including, without limitation, warehousing, labor, handling, and service charges, die, equipment, or machine breakage, lost profits, or loss of goodwill. Any replacement parts supplied under this limited warranty will be warranted for the balance of the Product’s limited warranty. For warranty information and assistance, contact customer service at 877.800.2247 or email [email protected].
For More Manuals By BlueDri, Visit ManualsLibraryy.
BlueDri BD-MS35 Max Storm Commercial Air Mover -FAQs
What is the BlueDri BD-MS35 Max Storm and what tasks is it best suited for?
The BlueDri BD-MS35 Max Storm is a commercial-grade air mover designed for high-performance air circulation, drying and restoration tasks. With a powerful 1/3 HP motor and up to 2900 CFM airflow, it excels at drying wet floors, carpets, walls, and venting large spaces after water damage or construction work. Its rugged, lightweight design also makes it popular with restoration professionals.
How does the Max Storm compare energy-wise to similar air movers?
Despite its strong output, the BD-MS35 is relatively energy efficient, drawing around 3.3 amps at high speed, which helps keep operating costs down compared with older or less efficient commercial fans. This makes it a balanced choice for frequent use in commercial settings.
What warranty and support can users expect with this model?
The BlueDri BD-MS35 typically comes with a 1-year limited warranty covering defects in materials or workmanship from the manufacturer. Warranty terms may vary by retailer or region, so check your purchase documentation for full details.
What maintenance does the Max Storm 35 require?
Routine maintenance is minimal: keep the intake and outlet clear of debris, wipe down the housing to prevent dust buildup, and check the power cord for damage. Because of its rotary-molded polyethylene body, it’s built to withstand rough use with little ongoing servicing.
Can this air mover be used for residential drying jobs?
While designed for professional use, the Max Storm BD-MS35 can also be used in residential situations like basements, garages, or after floods. However, due to its high airflow and commercial focus, it may be louder and more powerful than typical residential fans, so consider noise tolerance and space size before use.
Is the BD-MS35 safe to use in commercial environments?
Yes — the unit is C-ETL-US listed for safety, comes with a grounded plug and built-in circuit breaker, and meets standard electrical safety requirements for commercial equipment. Its rotomolded polyethylene construction also enhances durability in tough job site conditions.
How easy is the Max Storm 35 to transport and store?
Despite its power, the BD-MS35 weighs around 26.4 lbs with a compact footprint (approx. 17.3″ W × 16″ L × 18″ H), making it highly portable. It includes an ergonomic handle and integrated cord wrap to make transporting between job sites or storing in vehicles more convenient.
What are the speed settings and positioning options?
This air mover has three speed settings that let you tailor airflow to specific tasks or space sizes. It can also be positioned at three angles (0°, 45°, 90°) to direct airflow where you need it most — from floor to wall or elevated drying — improving versatility for different jobs.
Can I use multiple units together for bigger jobs?
Yes — the BD-MS35 includes a GFCI outlet that allows safe daisy-chaining of up to five units. This lets users link multiple blowers together to cover larger areas or increase drying performance without needing additional wall outlets, which is especially useful in commercial or restoration environments.
