Bose SoundLink Revolve II Bluetooth Speaker User Guide

Bose SoundLink Revolve II Bluetooth Speaker

IMPORTANT SAFETY INSTRUCTIONS

REGULATORY AND LEGAL INFORMATION

• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
  • Reorient or relocate the product.
  • Increase the separation between the equipment and the receiver.
  • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Bose Corporation could void the user’s authority to operate this equipment.
• This device complies with part 15 of the FCC Rules and with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
  • (1) This device may not cause harmful interference, and
  • (2) this device must accept any interference received, including interference that may cause undesired operation of the device.
• This device complies with FCC and ISED Canada radiation exposure limits set forth for general population. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter

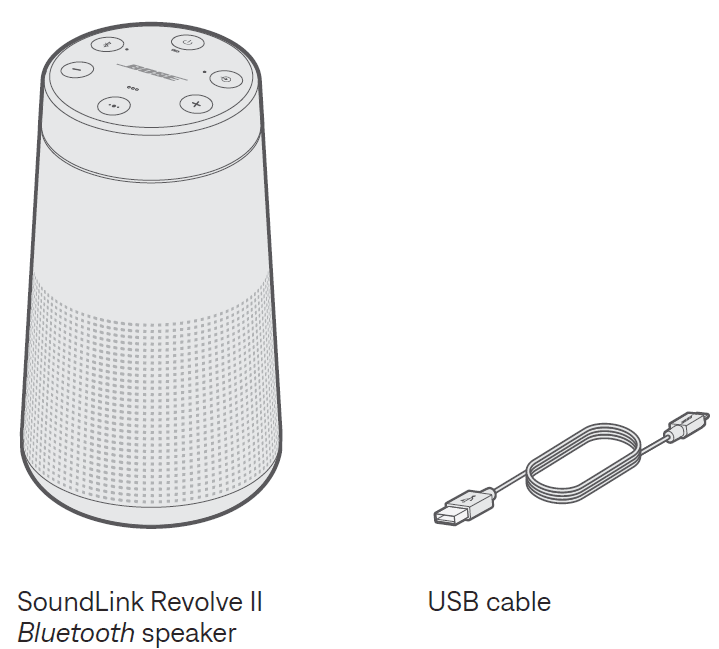

WHAT’S IN THE BOX

CONTENTS

Confirm that the following parts are included

• NOTE: If any part of the product is damaged, don’t use it. Contact your authorized Bose dealer or Bose customer service. Visit: worldwide.Bose.com/Support/SLRii

BOSE CONNECT APP SETUP

• The Bose Connect app lets you set up and control the speaker from any mobile device, such as a smartphone or tablet. Using the app you can manage Bluetooth connections, choose your voice prompt language, manage speaker settings, and get new features.

DOWNLOAD THE BOSE CONNECT APP

1. On your mobile device, download the Bose Connect app.
2. Follow the app instructions

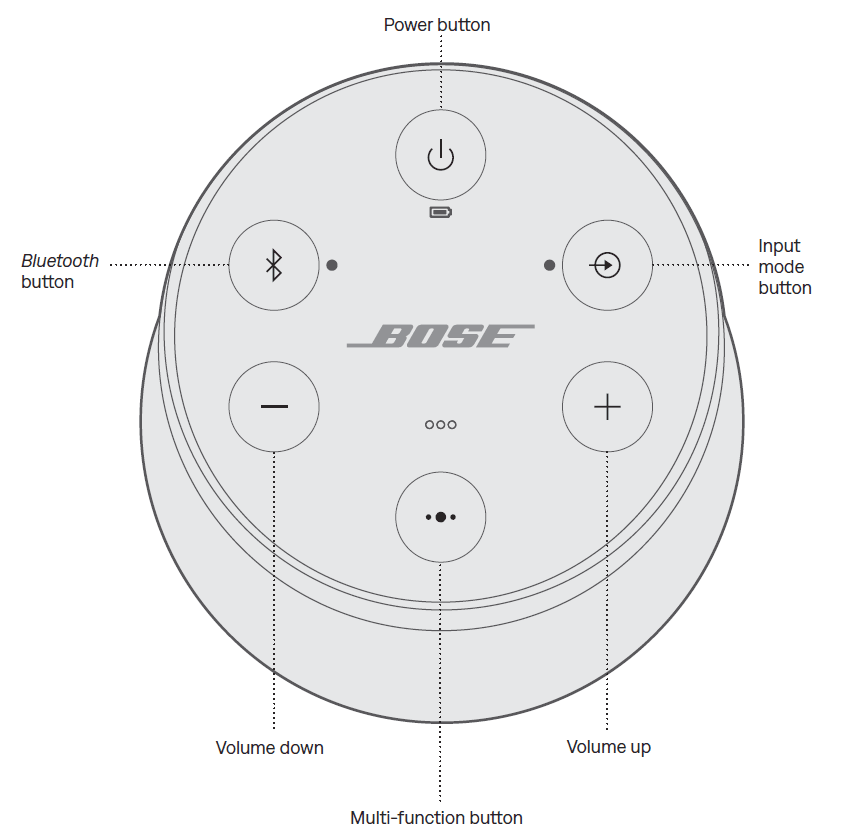

SPEAKER CONTROLS

• The button pad enables you to power on your speaker and control your speaker’s playback, volume, and speakerphone.
• NOTE: Certain mobile devices may not support these functions

Speaker Controls

PHONE CALLS

VOICE PROMPTS

CHANGE THE LANGUAGE

When you power on the speaker for the first time, the voice prompts are in English.

1. Press and hold the Multi-function buttons three dots  _ simultaneously until you hear the voice prompt for the first language option.
2. Press + or – to move through the list of languages.
3. When you hear your language, press and hold three dots to select

BLUETOOTH CONNECTIONS

CHOOSE YOUR PAIRING METHOD

• You can pair your device with your speaker using Bluetooth wireless technology or Near Field Communication (NFC). You can also use the Bose Connect app to pair your device (see page 11).
• What is NFC?
• NFC is a technology that enables mobile devices to establish wireless communication with each other by simply tapping the devices together. Refer to your device owner’s guide to see if your model supports NFC.


  If your device does not support Bluetooth pairing via NFC or if you are unsure:	Follow the instructions for “Pair your mobile device” on page 20.
  If your device supports Bluetooth pairing using NFC:	Follow the instructions for “Pair a mobile device with NFC” on page 21.

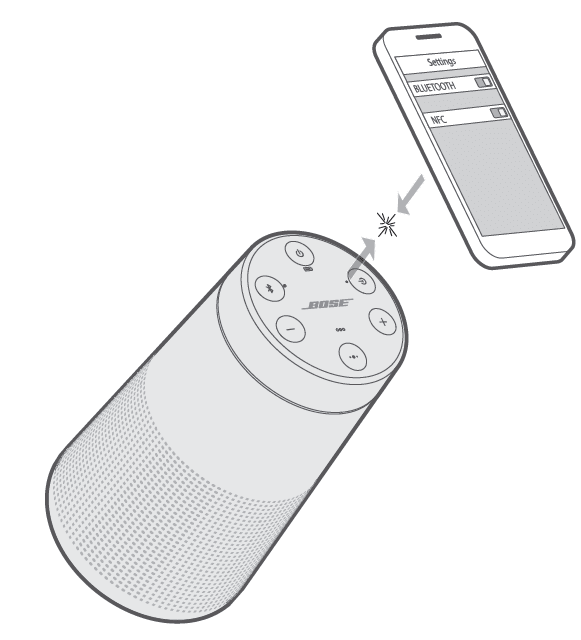

PAIR A MOBILE DEVICE WITH NFC

NOTE: When you power on your speaker for the first time, make sure a language is selected before you pair your mobile device with NFC.

1. Unlock your mobile device, and turn on the Bluetooth and NFC features. Refer to your device owner’s guide to learn more about these features.
2. Tap and hold the NFC touchpoint on your device to the top center of your speaker. The target area is the Bose logo. Your device may prompt you to accept pairing.

DISCONNECT A DEVICE

• Turn off the Bluetooth feature on your device.
• If your device supports pairing via NFC, tap and hold the NFC touchpoint on your device to the top center of your speaker. The target area is the Bose logo.
• RECONNECT A DEVICE
• When powered on, your speaker tries to reconnect with the two most recently-connected devices.
• NOTE: The devices must be within range and powered on. If your device supports pairing via NFC, tap and hold the NFC touchpoint on your device to the top of your speaker. The target area is the Bose logo.

WIRED CONNECTIONS

USE THE BOSE CONNECT APP

• You can also easily manage multiple connected devices using the Bose Connect app (see page 11).
• You can connect the audio output of a smartphone, tablet, computer or other type of mobile device to the AUX connector or micro-B USB connector

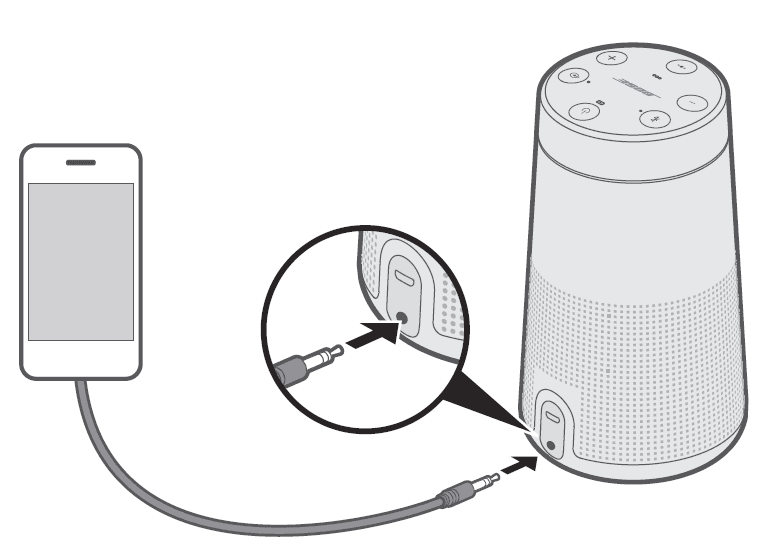

CONNECT THE 3.5 MM STEREO CABLE

The AUX connector accepts a 3.5 mm stereo cable plug (not provided).

• Using a 3.5 mm stereo cable, connect your mobile device to the AUX connector on your speaker.

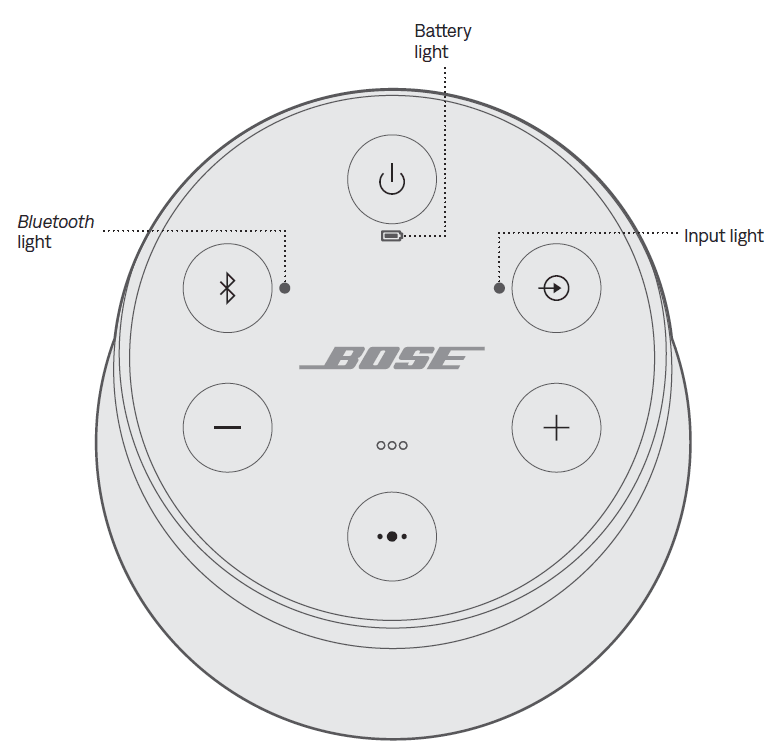

SPEAKER STATUS

• The top of the speaker has a series of lights that glow according to the system’s state

BATTERY STATUS

• NOTE: Battery performance varies with the content played and the volume level at which it is played. In typical use, the speaker battery lasts up to 13 hours

BLUETOOTH STATUS

• Shows the connection status of a mobile device.

CHOOSE YOUR PAIRING METHOD

• The way you pair with another Bose speaker varies depending on the type of speaker you’re pairing with. Choose your pairing method from the table below.

PAIR WITH ANOTHER BOSE SOUNDLINK BLUETOOTH SPEAKER

You can pair your Bose SoundLink Bluetooth speakers together to play in the following modes using the Bose Connect app (recommended) or the speaker control buttons:

• Party mode (left and right speakers play in unison)
• Stereo mode (left speaker and right speaker play separately) You can set this up using the Bose Connect app (recommended) or the speaker control buttons. Refer to your Bose owner’s guide to determine if your secondary speaker supports these modes.

Pair Bose Products

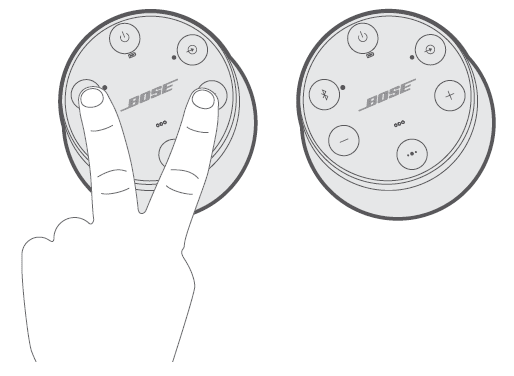

Pair the speakers manually

If you are unable to access the Bose Connect app, follow the instructions below. Party mode

1. Make sure both speakers are powered on.
2. Make sure a speaker is connected to your mobile device. On the speaker connected to your device, press and hold the Bluetooth buttons l and H simultaneously.
3. Release the buttons when you hear “Press the Bluetooth and volume down buttons simultaneously on a second Bose device.”

PAIR WITH A BOSE SMART SPEAKER OR SOUNDBAR

• With Bose SimpleSync™ technology, you can pair your SoundLink Revolve II speaker with a Bose Smart Speaker or Bose Smart Soundbar to listen to the same song in two different rooms at the same time.
• NOTE: SimpleSync™ technology has a Bluetooth range of 30 ft (9 m). Walls and construction materials can affect reception.

COMPATIBLE PRODUCTS

You can pair your SoundLink Revolve II speaker with any Bose Smart Speaker or Bose Smart Soundbar. Popular compatible products include:

• Bose Smart Soundbar 700/Bose Soundbar 700
• Bose Smart Soundbar 300
• Bose Smart Speaker 500/Bose Home Speaker 500
• Bose Home Speaker 300
• Bose Portable Smart Speaker/Bose Portable Home Speaker New products are added periodically. For a complete list and more information, visit:
  worldwide.Bose.com/Support/Groups

RECONNECT TO A BOSE SMART SPEAKER OR SOUNDBAR

• Use the Bose app to reconnect the speaker to a previously-paired compatible Bose product. For more information, visit: worldwide.Bose.com/Support/Groups

NOTES:

• Your Bose Smart Speaker or Bose Smart Soundbar must be within range (30 ft or 9 m) and powered on.
• If your SoundLink Revolve II speaker doesn’t connect, see “Speaker does not reconnect to a previously-paired Bose Smart Speaker or Soundbar” on page 35.

CARE AND MAINTENANCE

CLEAN THE SPEAKER

• Clean the surface of the speaker with a soft, damp cloth (water only).
• Do not use any sprays near the speaker. Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia or abrasives.
• Do not allow liquids to spill into any openings.

REPLACEMENT PARTS AND ACCESSORIES

• Replacement parts and accessories can be ordered through Bose customer service. Visit: worldwide.Bose.com/Support/SLRii
