Bose SoundLink Wireless Music System User Guide

Bose SoundLink Wireless Music System

SAFETY INFORMATION

Information about products that generate electrical noise

• The SoundLink Wireless Music System complies with FCC and Industry Canada RF radiation exposure limits set forth for the general population. The system must not be co-located or operating in conjunction with any other antennas or transmitters.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
• (1) This device may not cause harmful interference, and
• (2) This device must accept any interference received, including interference that may cause undesired operation

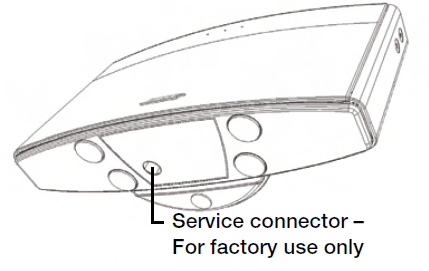

• Note: The round connector on the bottom of the SoundLink™the  speaker is for Bose® factory service use only

Overview

Features:

• Simple wireless connection using the SoundLink USB key – no software to install
• Long-range wireless link lets you listen in and around your home
• Rechargeable lithium-ion battery provides hours of Bose® performance
• Handy remote included

Unpacking

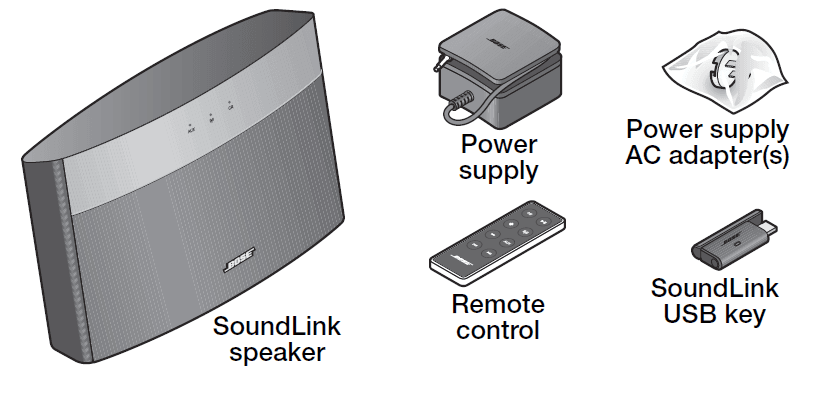

• Check the carton for all the parts shown. Save the carton and packing materials, which provide the safest way to transport this product.

INTRODUCTION

• If any part of the product appears to be damaged, do not attempt to use it. Contact your authorized Bose dealer immediately or call Bose Customer Service. Refer to the address list enclosed in the carton for contact information

SYSTEM SETUP

Activating the system

Initially, the battery is not fully charged and may be in a protection or inactive mode. To activate your new system and charge the battery:

1. Place the SoundLink™ speaker on a flat, stable surface.

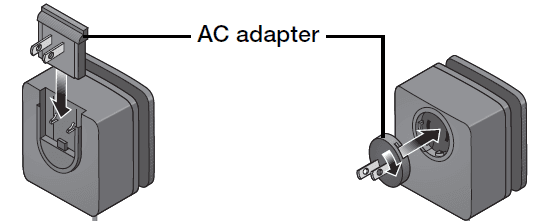

2. Attach the AC adapter for your region (more than one may be included) to the power supply.
3. Plug the DC power cord on the power supply into the DC POWER connector on the SoundLink speaker.
4. Plug the power supply into a live AC outlet.

Connecting your computer

1. Make sure that the wireless source light on the SoundLink™ speaker is flashing. If not, press the remote wireless source button. The wireless source light should start flashing
2. Make sure your computer is on and all music applications are closed.

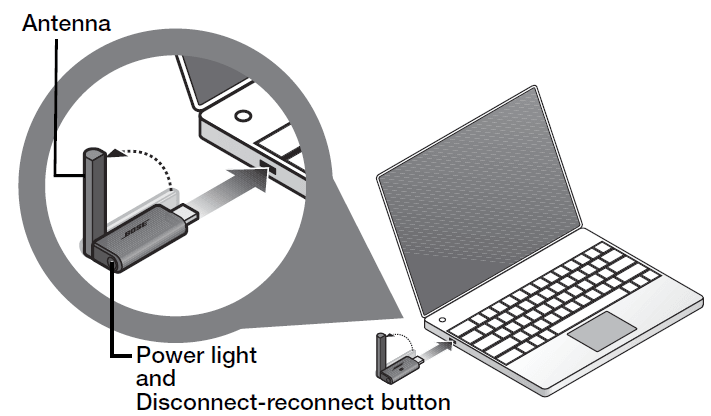

3. Lift the antenna on the SoundLink USB key to the vertical position and plug it into a USB port on your computer. Confirm that the SoundLink USB key power light turns on and starts flashing
4. Wait a few seconds for your computer to recognize the SoundLink USB key. When ready, it will automatically establish a wireless link with the SoundLink
   speaker. This may take up to 20 seconds the first time, much less after that. You may notice the wireless source light and USB key power light start flashing faster as the SoundLink™ system establishes a wireless connection. When both lights change from flashing to always on, and you hear a tone from the speaker, your SoundLink™ system is ready to use.
5. Open the music application on your computer, or navigate to an Internet radio station and play the music you want to hear. To disconnect or reconnect, press the button on the end of the SoundLink USB key. See “Using the USB key” on page 5 for more information

If you don’t hear music from the SoundLink speaker

• Mac users: Go to System Preferences, Sound settings and make sure “Bose SoundLink Audio” is the selected Output device
• Both Mac and PC users: You may need to restart your music application

System status lights

• The status lights on the SoundLink™ speaker front panel indicate source selection and battery condition
• Off: …..AUX source not selected
• On: …..AUX source is selected
• Off: ………………. No wireless connection
• Fast flashing: … Wireless source is connecting
• On: ………………. Wireless source is connected
• Brief flash: …….. Wireless source is (every 3 sec) selected, but disconnected at the computer

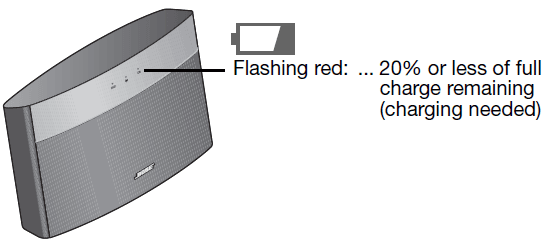

• Indicates battery level during portable operation. See “Operating on battery power” on page 8.
• Indicates battery charging status. See “Charging the battery” on page 9.

Using the USB key

• The USB key will automatically connect your computer with the SoundLink speaker whenever you insert it into a USB port
• Press to disconnect or reconnect the SoundLink speaker
• Off: …………………..USB key is not powered
• Slow flashing: ……Powered and available for connecting to the SoundLink speaker
• Fast flashing: ……..Establishing a connection
• On:……………………Connected to the SoundLink speaker

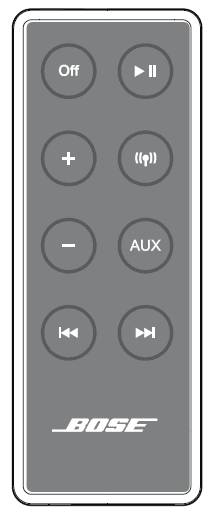

Remote control

• Press any remote button except Off to turn on your SoundLink™ system.
• Each time you press a remote button, the front panel light for the selected source flashes briefly.
• Depending on the music application you are using on your computer, you can use the play/pause and skip buttons to control the music playback
• Press to turn off the SoundLink system.
• Press to play or pause the current track on your computer.
• Press to select your computer as a wireless source.
• Press to select the AUDIO IN source.
• Press to increase (+) or decrease (–) the volume.
• Press and hold for faster adjustment.
• Press to skip to the beginning of the next track.
• Press to skip to the beginning of the previous track

SoundLink™ speaker volume controls

• Touch-sensitive volume controls are located on the right side of the SoundLink™ speaker. These raise and lower the SoundLink system volume in the same way as the remote control volume buttons.
• Touch to increase (+ ) or decrease ( -) the volume.
• Touch and hold for faster adjustment.

Adding another music source

You can use another audio device, such as a portable digital music player, with your SoundLink system. This requires using a stereo audio cable (not provided) that is
appropriate for the connected audio device and has a 3.5mm mini plug on the end that plugs into the AUDIO IN connector on the SoundLink system.

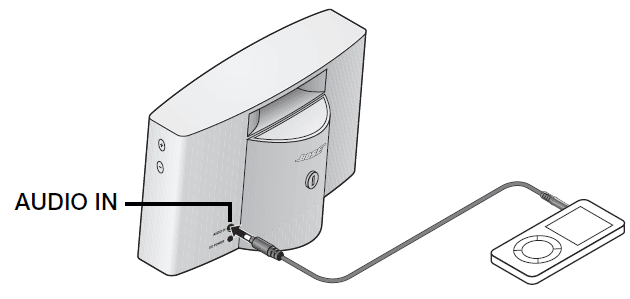

1. Plug the cable from the audio device into the AUDIO IN connector on the back of the SoundLink speaker.
2. Press the remote AUX button.
3. Set the connected device to full volume, then use the SoundLink system volume buttons to adjust the level.

Operating on battery power

• A fully charged battery provides approximately three hours of use if the SoundLink™ system is set to maximum volume. However, the rate of battery discharge varies with the type of music played and the volume setting. You can extend the battery operating time significantly by lowering the volume. The battery status light on the SoundLink speaker indicates when charging the battery is necessary. See “Charging the battery” on page 9.

When to replace the battery

The battery should be replaced when:

• The battery status light remains yellow after 10 hours of charging
• The period of battery operation decreases

Battery protection mode

• If the SoundLink system is unplugged and unused for more than 14 days, it enters battery protection mode to preserve battery power. Your system is in this state when you first set it up. To reactivate your SoundLink system, connect the power supply to the SoundLink speaker and charge the battery.

Taking the system with you

To turn off the SoundLink system and pack it for travel:

1. Unplug the SoundLink USB key and lower the antenna to its compact position.
2. If necessary, unplug the power supply from the AC outlet and the SoundLink speaker.

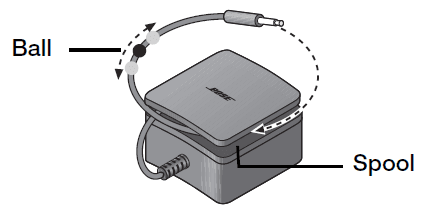

3. Wrap the power supply cord around the spool built into the top of the power supply. Slide the ball toward the end of the cord as needed and press it into the
   spool to hold the cord in place

CARE AND MAINTENANCE

Replacing the SoundLink™ speaker battery

To purchase replacement batteries, contact your local authorized Bose dealer or visit www.Bose.com to order from Bose directly. To contact Bose by phone, refer to
the contact list provided in the carton. WARNING: Replace the battery only with a genuine Bose® replacement battery. Bose cannot warrant the safety and
compatibility or assure the operability of batteries from other manufacturers when used in the SoundLink system.

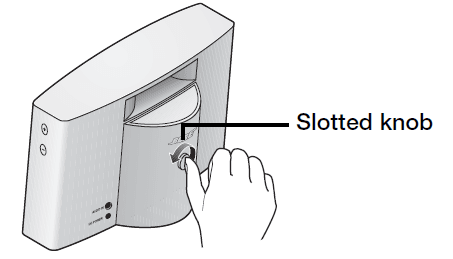

1. Using your thumbnail or a coin, push in the slotted knob and turn it counterclockwise to unlock the battery.
2. Carefully pull the battery away from the back of the SoundLink speaker.

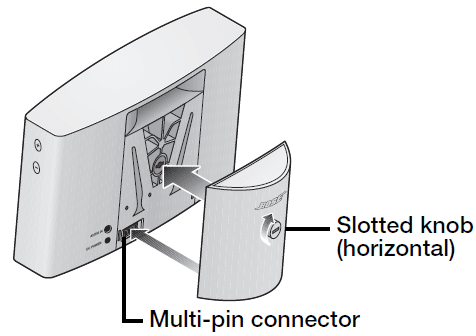

3. On the new battery, turn the slotted knob so the slot is horizontal.
