Breville BJE510XL Multi-Speed Juice Fountain User Manual

Breville BJE510XL Multi-Speed Juice Fountain

Important safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

• To protect against fire, electrical shock, and injury to persons, do not immerse the appliance, motor base, cord, or plug in water or any other liquid.
• Close supervision is necessary when the appliance is used by or near children.
• Unplug from the outlet when not in use, before putting on or taking off parts, and before cleaning or attempting to move the appliance.
• Avoid contact with moving parts.
• Regularly inspect the supply cord, plug, and actual appliance for any damage. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Contact Breville consumer support for assistance.
• The use of attachments not recommended or sold by Breville may cause fire, electric shock, or injury.
• This appliance is for household use only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.
• Do not let the power cord hang over the edge of a table or countertop.
• Do not let the power cord touch hot surfaces, including the stove, or become knotted.
• Always make sure the juicer cover is clamped securely in place (with safety locking arm) before the motor is turned on. Do not unfasten the clamps (safety locking arm) while the juicer is in operation.
• Always ensure the juicer is turned off after each use. Make sure the filter basket has stopped rotating and the motor has completely stopped before disassembling.
• Do not push food into the feed chute with your fingers or other utensils. Always use the food pusher provided.
• Do not place your hand or fingers into the food chute when it is attached to the appliance. If food becomes lodged in the feed chute, use the food pusher provided or another piece of fruit or vegetable to push it down. Turn the motor off and ensure that all moving parts have stopped before disassembling the juicer to remove the remaining food.
• Do not use the appliance if the rotating sieve (filter basket) is damaged.
• Do not use the appliance without the pulp container attached to the juicer and juicer cover. Please see assembly instructions for proper placement.
• Do not modify the plug in any way. If the unit has a 2-pin plug, it is a polarized plug. To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

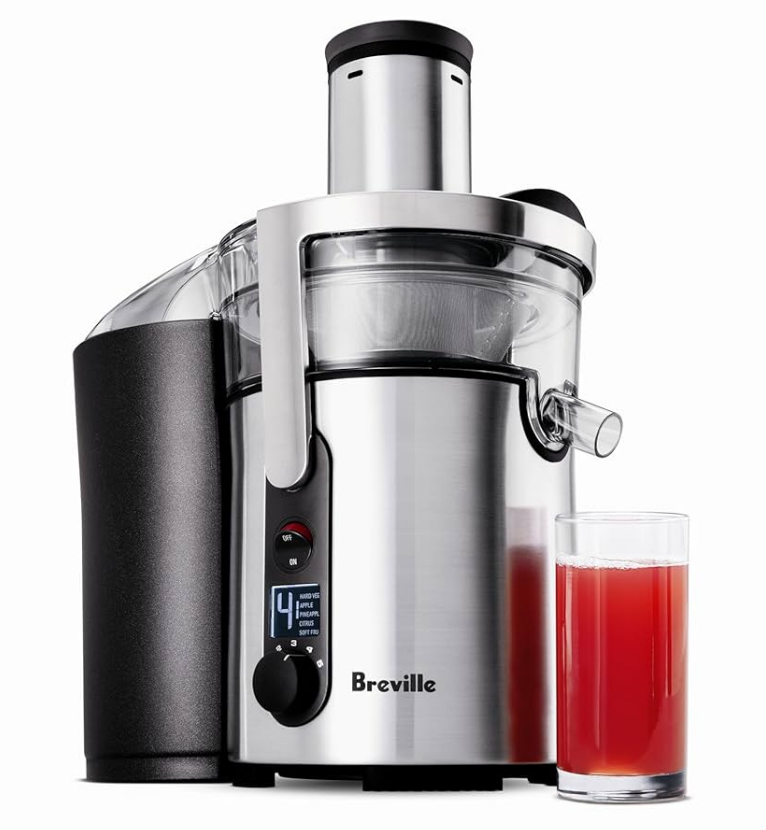

KNOW your Breville Product

• A. Unique Direct Central Feed System – Ensures maximum juice extraction.
• B. 3 Inch Extra Wide Feed Chute – Fits larger fruit and vegetables whole.
• C. Juicer Cover (Top shelf dishwasher safe)
• D. 3 Litre Pulp Container (Top shelf dishwasher safe)
• E. Stylish Stainless Steel Design
• F. ON/OFF Switch
• G. LCD Speed Indicator – With juicing speed guide.
• H. Electronic Variable Speed Control Dial
• I. Food Pusher – For pushing whole fruit and vegetables down the feed chute. (Not dishwasher safe)
• J. Die-Cast Metal Interlocking Safety Arm – Stops the juicer from operating without the juicer cover locked in place.
• K. Nutri Disc™ – Stainless steel, titanium reinforced micro mesh filter basket. (Top shelf dishwasher safe)
• L. Motor Drive Coupling
• M. Filter Bowl Surround (Top shelf dishwasher safe)
• N. 1.2 Litre Juice Jug and Lid – With in-built froth separator. (Top shelf dishwasher safe)
• O. Heavy Duty Motor – With one-year motor warranty
• P. Custom Designed Juice Nozzle – Perfect for mess-free juicing straight into a glass. (Top shelf dishwasher safe)
• Q. Cleaning Brush – Flat end of brush assists in removal of pulp from the pulp container when juicing large quantities, nylon brush end makes for easy cleaning of the stainless steel Nutri Disc™. (Top shelf dishwasher safe)
• R. Nutri Disc™ – Allows you to extract only the juice from fruit and vegetables.
• S. Built-In Froth Separator – Ensures juice froth is separated from juice when poured into a glass (If preferred).
• T. Juice Jug Lid – Allows the juicer to operate with the lid on, therefore eliminating any splatter during operation. Place the lid onto the juice jug to store juice in the refrigerator.

NOT SHOWN: Cord – Exits at rear of juicer and wraps around feet.

Assembling your Breville Product

Before first use

Before using your juicer for the first time, remove any packaging material and promotional stickers, and labels. Ensure the appliance is turned off and the power cord is unplugged. Wash the filter bowl surround, Nutri Disc™, juicer cover, food pusher, pulp container and juice jug, and lid in warm, soapy water with a soft cloth. Rinse and dry thoroughly. The motor base can be wiped with a damp cloth. Dry thoroughly.

For use with Nutri Disc™

1. Place the motor base on a flat, dry surface such as a bench top. Ensure the appliance is turned OFF and the power cord is unplugged.
2. Place the filter bowl surround on top of the motor base.

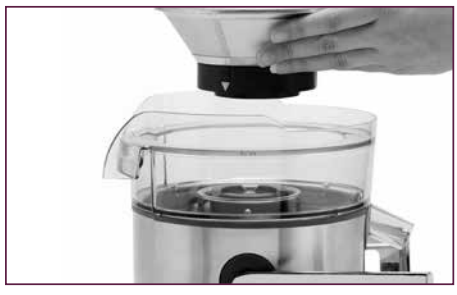

3. Align the arrows at the base of the Nutri Disc™ with the arrows on the motor drive coupling and push down until it clicks into place. Ensure the Nutri Disc™ is fitted securely inside the filter bowl surround and onto the motor base.

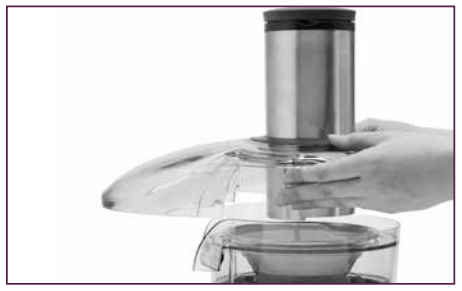

4. Place the juicer cover over the filter bowl surround, positioning the feed chute over the Nutri Disc™ and lower into position.

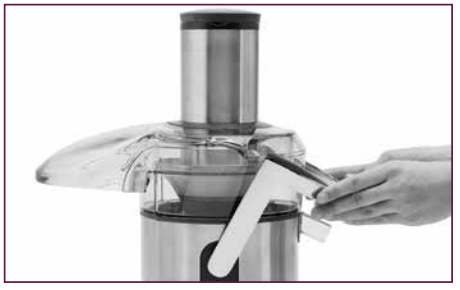

5. Raise the safety locking arm up and insert it into the two grooves on either side of the juicer cover. The safety locking arm should now be in a vertical position and locked into place on top of the juicer cover.

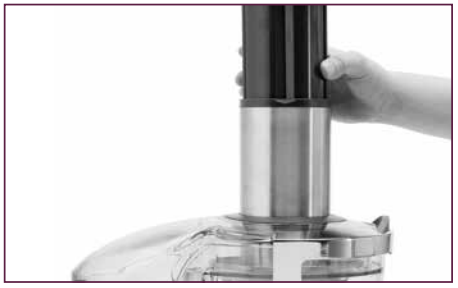

6. Slide the food pusher down the feed chute by aligning the groove of the food pusher with the small protrusion on the inside top of the feed chute. Continue to slide the food pusher down into the feed chute.

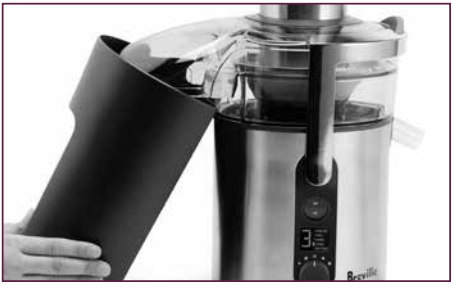

7. Place the pulp container into position by tilting the base of the pulp container away from the motor base and sliding the top of the pulp container over the bottom of the juice cover. Tilt the base of the pulp container back into the motor base, ensuring it is supported by the container support extending from under the motor base.
   NOTE: To minimize cleaning, line the pulp container with a produce bag to collect the pulp. Pulp can then be used in other dishes, or as compost for the garden, or discarded.
8. Place the juice jug provided under the spout on the right-hand side of the juicer. The juice jug lid can be used to avoid any splatter. Alternatively, you can fit the custom-designed juice nozzle over the juice spout and place a glass underneath. The juice nozzle will prevent splatter, ensuring mess-free juicing.

Operating your Breville Product

1. Wash a selection of fruit and vegetables to be juiced. NOTE: Most fruit and vegetables, such as apples, carrots, and cucumbers, will not need to be cut or trimmed to size as these will fit whole into the feed chute. Ensure vegetables such as beets, carrots, etc., have all soil removed, are well-washed, and trimmed of leaves before juicing.
2. Ensure the juicer is correctly assembled. Refer to Assembling your juicer. Ensure the juice jug (or a glass) is placed under the spout and the pulp container is in position before commencing juicing.
3. Plug the power cord into a 110/120V power outlet. The LCD display will illuminate.
4. Press the ON/OFF switch on the control panel to ON. The juicer will start to operate at the selected speed. The speed can be changed at any time during the juicing process by adjusting the variable speed control dial.
5. With the motor running, place food into the feed chute and use the food pusher to gently guide food down. To extract the maximum amount of juice, always push the food pusher down slowly.
6. As fruit and vegetables are processed, juice will flow into the juice jug, and the separated pulp will accumulate in the pulp container. The pulp container can be emptied during juicing by turning the juicer OFF at the control panel and then carefully removing the pulp container. Replace the empty pulp container in position before continuing to juice.

Disassembling your Breville Product

JUICE EXTRACTOR

1. Ensure the juicer is turned off by pressing the ON/OFF switch on the control panel to OFF. Then unplug the cord.
2. Remove the pulp container by tilting the base away from the motor base, then pull it out from under the juicer cover and the container support extending from under the motor base.
3. Use the grip handle located on the safety locking arm to lift the locking arm from the juicer cover and lower down out of position.

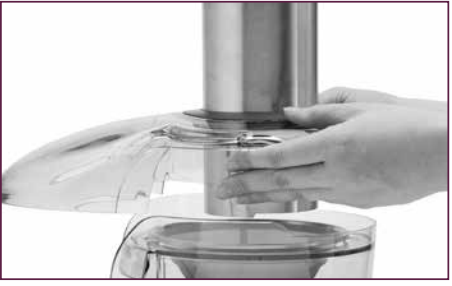

4. Lift the juicer cover off the juicer.

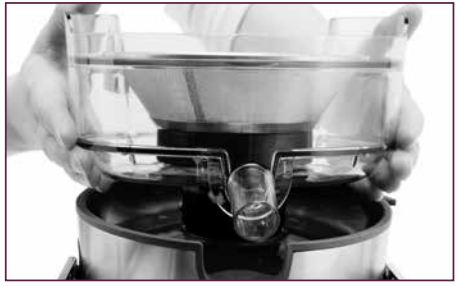

5. Remove the filter bowl surround with the Nutri Disc™ still in place.
6. To remove the Nutri Disc™ from the filter bowl surround, insert fingers under the grooves and lift the juice disc up. For easy cleaning, it is recommended to remove the Nutri Disc™ over the sink.

Care & cleaning

Ensure the juicer is turned off by pressing the ON/OFF button on the control panel to OFF. Then unplug the cord. Ensure the juicer is correctly disassembled. Refer to Disassembling your juicer.

NOTE – FOR EASIER CLEANING:

Clean as you go and avoid dried-on juice or pulp residue. Immediately after each use, rinse removable parts in hot water to remove wet pulp. Allow parts to air dry. To minimize cleaning, line the pulp container with a produce bag to collect the pulp. Pulp can then be used in other dishes or as compost for the garden or discarded.

Cleaning the motor base

1. Wipe the motor base with a soft, damp cloth, then dry thoroughly.
2. Wipe any excess food particles from the power cord.

NOTE: Do not use abrasive scouring pads or cleaners when cleaning the parts or motor base, as they may scratch the surface.

Cleaning the filter bowl surround, juicer cover, food pusher, pulp container

1. Wash all parts in warm, soapy water with a soft cloth. Rinse and dry thoroughly. NOTE: The filter bowl surround, juicer cover, and pulp container are dishwasher safe (top shelf only).

Cleaning the Nutri Disc™

For consistent juicing results, always ensure that the Nutri Disc™ is thoroughly cleaned using the supplied cleaning brush.

1. Soak the Nutri Disc™ in hot soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on the filter, it may clog the fine pores of the filter mesh, thereby lessening the effectiveness of the juicer.

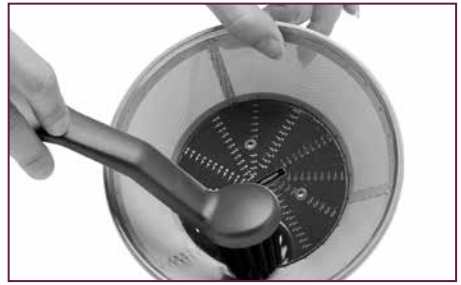

2. Using the cleaning brush, hold the juice disc under running water and brush from the inside of the basket to the outer rim. Avoid touching the small, sharp blades in the center of the Nutri Disc™. After cleaning the Nutri Disc™, hold it up towards a light to ensure the fine mesh holes are not blocked. If the holes are blocked, soak the Nutri Disc™ in hot water with 10% lemon juice to loosen the blocked holes. Alternatively, wash the Nutri Disc™ in the dishwasher.

Cleaning the juice jug

1. Rinse the juice jug and lid with the froth attachment under running water.
2. Wash both parts in warm, soapy water with a soft cloth. Rinse and dry thoroughly.

Removing stubborn or strong food stains and odors

Discoloration of the plastic may occur with brightly colored fruit and vegetables. To help prevent this, wash parts immediately after use. If discoloration does occur, the plastic parts can be soaked in water with 10% lemon juice, or they can be cleaned with a non-abrasive cleaner.

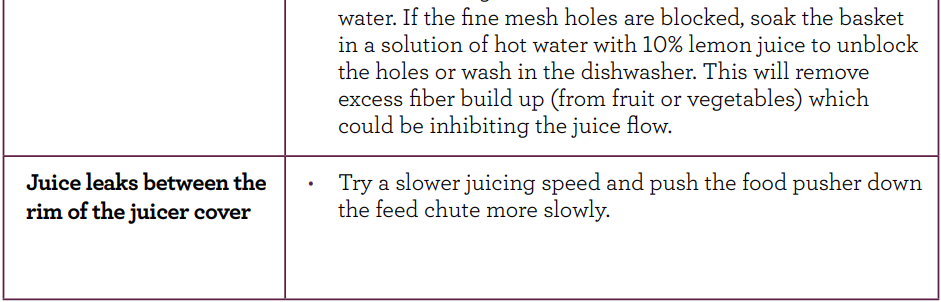

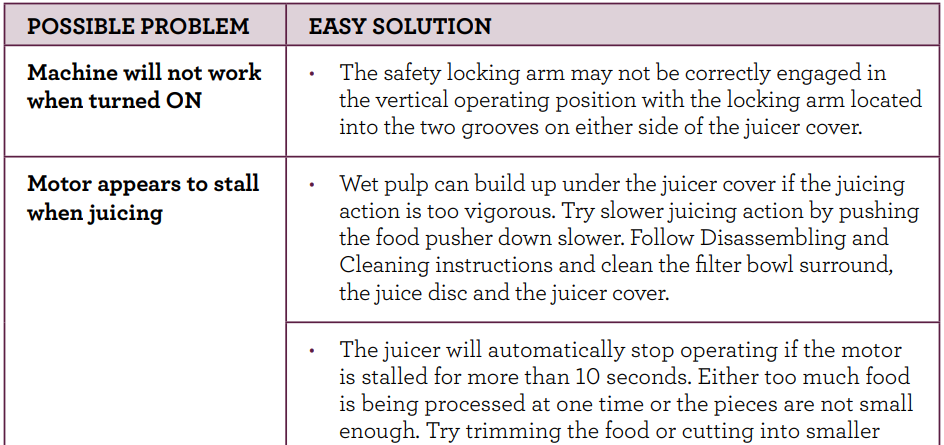

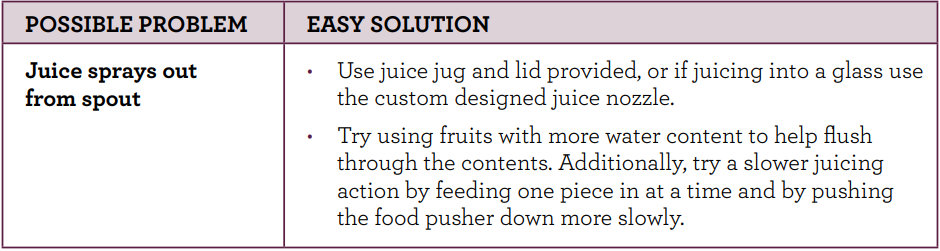

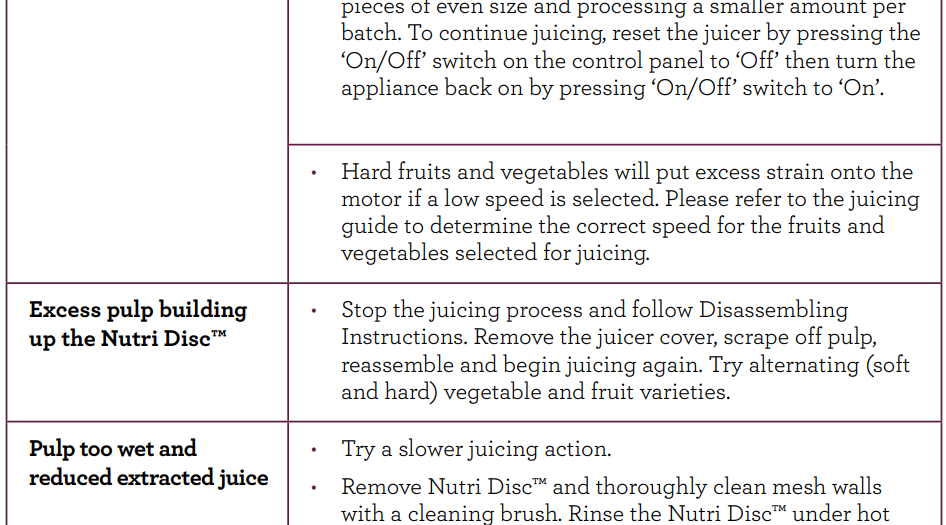

Troubleshooting

Tips on juicing

The inside information on juicing

Although the juice drinks contained in this booklet were developed with flavor, texture, and aroma at the forefront, the health benefits certainly add to the pleasurable taste experience. 70% of the nutrient content of fruit and vegetables is found in the juice. Liquids extracted from fresh fruits and vegetables form an important part of a well-balanced, healthy diet. Fresh fruit and vegetable juices are an easy source of vitamins and minerals. Juices are rapidly absorbed into the bloodstream, therefore being the quickest way in which the body can digest nutrients.

When you make your own fruit and vegetable juices, you have complete control over what is included. Select the ingredients and decide if you need to add sugar, salt, or other flavoring agents after juicing. Freshly extracted juices should be consumed immediately after they have been processed to avoid a loss of vitamin content.

Purchasing and storage of fruit and vegetables

• Always wash fruit and vegetables before juicing.
• Always use fresh fruit and vegetables for juicing.
• To save money and obtain fresher produce, purchase fruit or vegetables that are in season. Refer to the Fruit and Vegetable Facts chart.
• Keep your fruit and vegetables ready for juicing by washing and drying them before storing.
• Most fruits and hardier types of vegetables can be stored at room temperature. The more delicate and perishable items, such as berries, leafy greens, celery, cucumbers, and herbs, should be stored in the refrigerator until required.

Preparation of fruit and vegetables for Juicer attachment

• If using fruits with hard or inedible skins, such as mangoes, citrus, melons, or pineapple, always peel before juicing.
• Some vegetables, such as cucumbers, can be processed unpeeled, depending on the softness of the skin and the juicing requirements.
• All fruits with large pits, hard seeds or stones, such as nectarines, peaches, mangoes, apricots, plums, and cherries must be pitted before juicing.
• Ensure vegetables such as beets, carrots, etc. have all soil removed, are well washed, and trimmed of leaves before juicing.
• Ensure fruits such as strawberries are hulled before juicing, and pears have their stalks removed.
• Citrus fruit can be juiced in the juicer, but remove the skin and excess pith before juicing.
• A small amount of lemon juice can be added to apple juice to reduce discoloration.

Recipes

Apple, carrot, and celery juice

(Makes 2 servings)
You may alter the amounts of either the carrots or the apples to make the juice sweeter or savory to suit your taste buds.

Ingredients:

• 4 small Granny Smith apples
• 3 medium-sized carrots, trimmed
• 4 stalks of celery

Method:

1. Process apples, carrots, and celery through the juicer. Mix well and serve immediately.

Tomato, carrot, celery, and lime juice

(Makes 2 servings)

Ingredients:

• 2 medium tomatoes
• 1 large carrot, trimmed
• 2 celery stalks, trimmed
• 1 lime, peeled

Method:

1. Process tomatoes, carrots, celery, and lime through a juicer. Serve immediately.

Carrot, beets, and orange juice

(Makes 2 servings)

Ingredients:

• 2 medium carrots, trimmed
• 3 medium beets, trimmed
• 4 oranges, peeled

Method:

1. Process carrots, beets, and oranges through a juicer. Serve immediately.

Apple, peach, and grapefruit juice

(Makes 2 servings)

Ingredients:

• 1 small Delicious apple
• 2 large peaches, halved and seeds removed
• 2 grapefruits, peeled

Method:

1. Process apples, peaches, and grapefruit through the juicer. Serve immediately.

Pineapple, peach, and pear juice

(Makes 2 servings)

Ingredients:

• ½ small pineapple, peeled and halved
• 2 peaches, halved and seeds removed
• 2 small ripe pears

Method:

1. Process pineapple, peaches, and pears through the juicer.
