Buture Pro BP10 Cordless Vacuum Cleaner User Guide

Buture Pro BP10 Cordless Vacuum Cleaner

WARNING

Thank you for purchasing the Buture Pro BP10 cordless vacuum cleaner. Before using this machine, please read the following safety warning first and take
Safety protection measures to avoid malfunctions caused by improper operation.

1. This Buture Pro appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction by a responsible person concerning use of the appliance to ensure that they can use it safely.
2. Suitable for dry locations only. Do not use or store outdoors with wet surfaces. Do not handle any part of the plug or appliance with wet hands. Store properly in a dry place indoors.
3. Do not use a damaged cable or plug. If the device or charger does not work properly, is dropped, damaged, or dropped into water, please contact [email protected], Buture Pro after-sales team for support.
4. Do not vacuum flammable or combustible liquids, such as petrol, or use in areas where liquids may be present.
5. Turn off the power switch before unplugging the adapter.
6. Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
7. Do not use without filters or a dust cup to avoid damaging the motor and contaminating the air. Wash your hands after using the vacuum cleaner.
8. FIRE WARNING: Do not place this product on or near a cooker or any other hot surface, and do not incinerate this appliance even if it is severely damaged. The battery might catch fire or explode.
9. Unplug the charger from the power outlet before performing routine cleaning or maintenance.
10. Battery leaks may occur under extreme conditions. If any liquid gets on your skin, wash quickly with soap and water. If liquid gets into your eyes, rinse with water for at least 15 minutes immediately. Seek medical attention immediately.
11. Charge the unit with the charger we provided.
12. Avoid using this product to vacuum hard, sharp objects, as this may cause damage.

Note: The vacuum cleaner uses thermal protection to prevent overheating and will stop working if it overheats.

PACKAGE LIST

Please check and confirm the accessories and parts according to the following sheet before using.

KNOW THE PRODUCT

Product Details

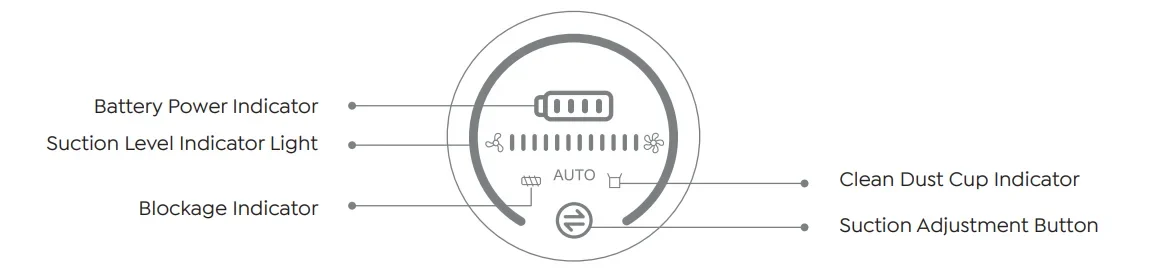

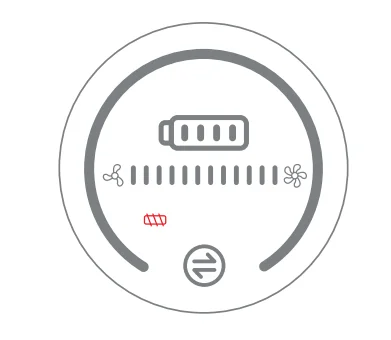

Digital Touch Screen

Accessories Function

• 2-in-1 Upholstery Brush
  Easy to snap-on design, can help you remove dust and hair from the carpet.
• Long Crevice Nozzle
  Remove dust on the hard-to-reach areas like windows, bed feet, gaps between the sofa, etc.
• Wall Mount
  Fix the vacuum cleaner and accessories on the wall hanger for easy storage.

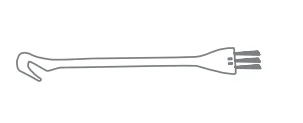

• Mini Cleaning Brush
  Remove hair, rubbish, and micro dust from the accessories or filters.
• Multi-function Rolling Brush
  Remove dust, debris, and hair from all kinds of floors, carpets, and velvet.

PRODUCT ASSEMBLY

Install a vacuum cleaner

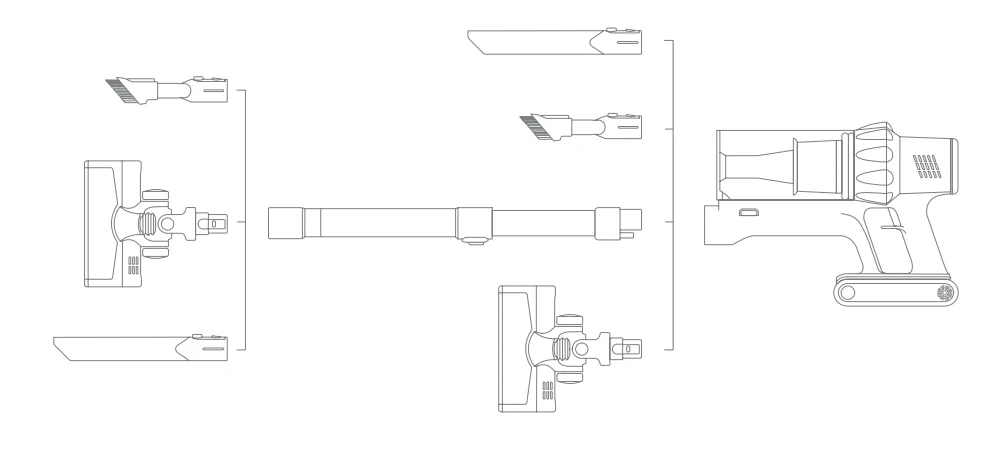

• Directly Install Cleaning Accessories

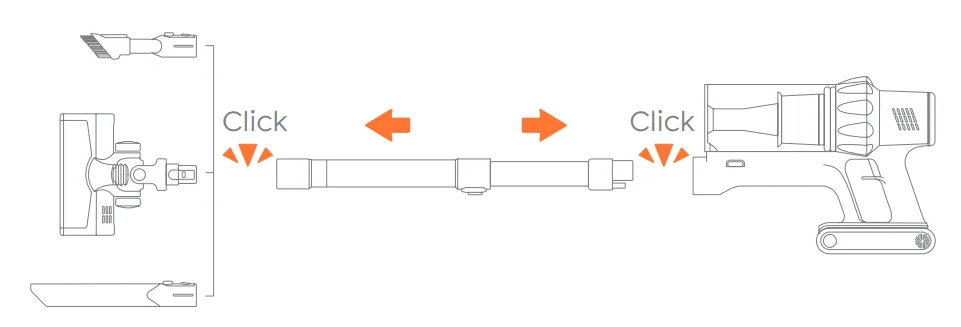

• Install Extension Tube & Cleaning Accessories

Install Wall Mount

WARNING

• Please make sure there is no gas, water, or electrical cables or wires behind the mounting area.
• To avoid the dock dropping down, please make sure it is installed firmly.
• Store appropriately indoors in a dry place. Do not expose the machine to sunlight or freezing temperatures. Recommended temperature range: 39.2°F (4°C)-104°F(40°C).

HOW TO USE

Charging

• When using a new battery or using it for the first time after long-term storage, please fully charge the battery first.
• When storing and not using the vacuum cleaner for a long time, please ensure that it is charged and discharged at least once every three months.

Charging Methods

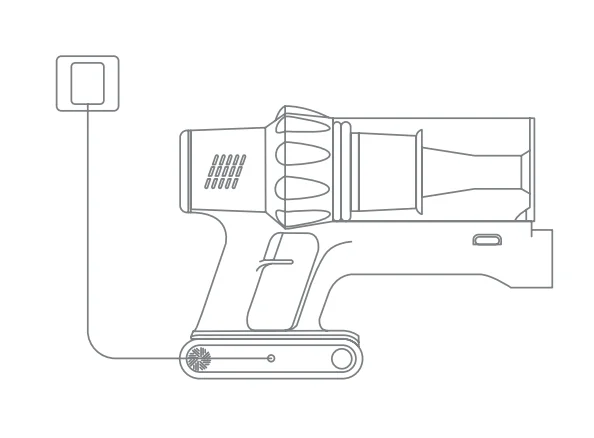

1. Connect the main body to the charger.

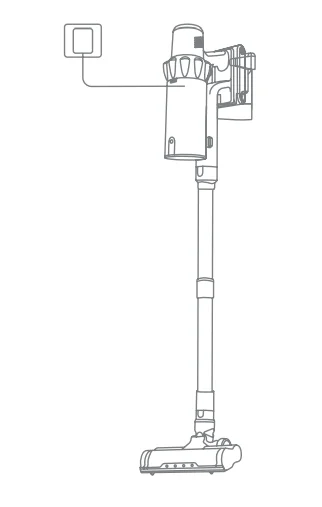

2. Hang it on the wall mount to charge.

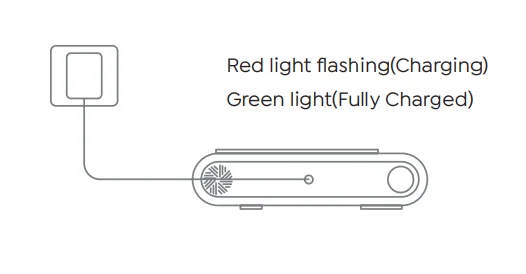

3. Charge the battery directly

Operating

Before each use, make sure that

• The battery is fully charged and fixed in place.
• The dust cup and filters are cleaned and fixed in place.

Start To Work

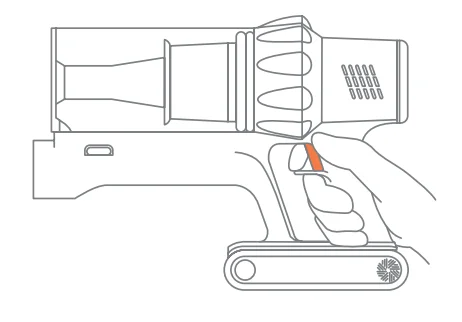

Press the switch button to turn it on, and it will start MANUAL mode.

Select Cleaning Mode

1. In MANUAL mode, touch the “” button to switch suction level. With the adjustment of the suction mode, the suction indicator light will change from gradient color to red in turn: MIN>MID>MAX.
2. After switching to the highest suction level in manual mode, continue pressing the “” button to switch to AUTO mode.

Abnormal Indicator

When the red light flashes and the motorized floor brush does not work, it means that the motorized floor brush/telescopic tube/dust cup is blocked. Please clean it immediately. When the floor brush is blocked, the red lock rotor prompt light will always be on, and when the ventilation port is blocked, the red lock rotor prompt light will flash 5 times. At the same time, the floor brush will stop working and the main motor will continue to operate.

MAINTENANCE

Tip: Please clean the vacuum cleaner regularly to extend its lifespan.

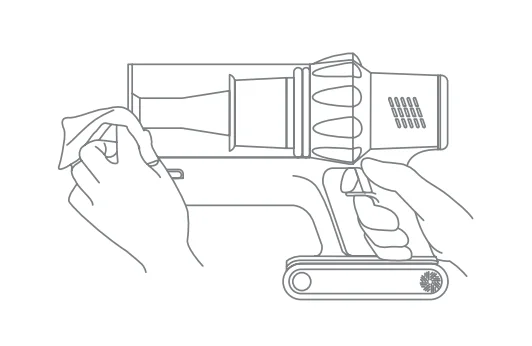

Clean the Main Body

• Turn off the power before cleaning the body.
• Please use a neutral detergent, and wipe the body with a half-wet cloth.
• Please avoid sun exposure and store in a cool and dry place.

Clean the Dust Cup/Filters

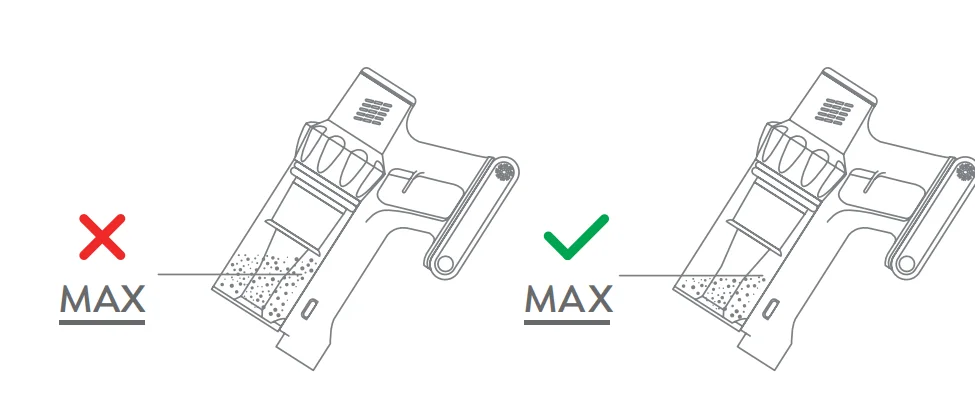

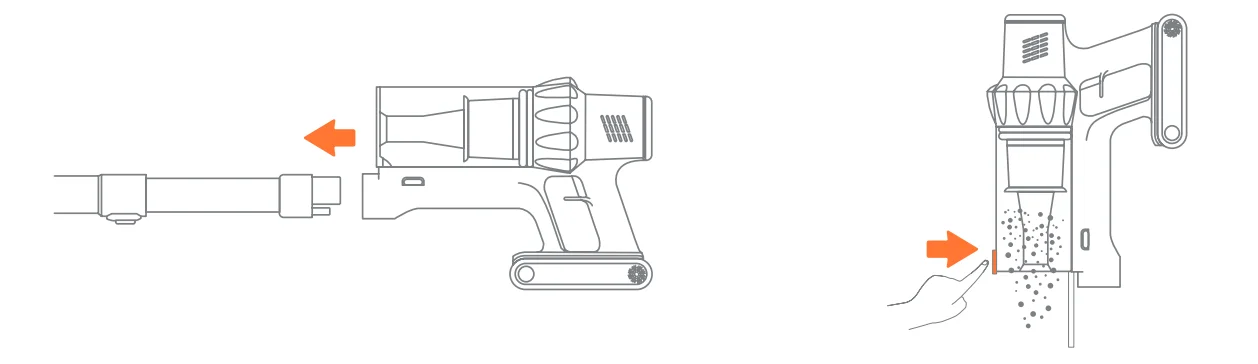

• Empty Dust Cup
  When using, if the garbage in the dust cup exceeds the MAX Line, please empty it in time.
• Press the dust empty button to empty the dust.

Wash Dust Cup and Filters

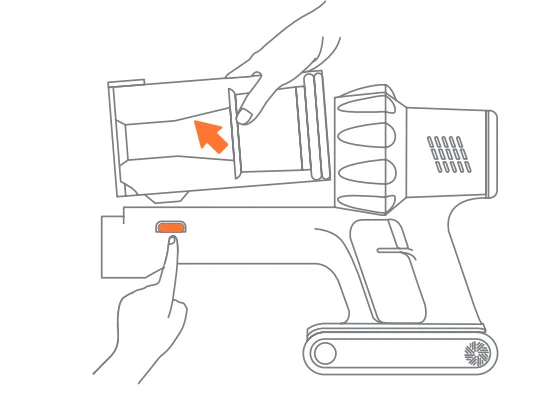

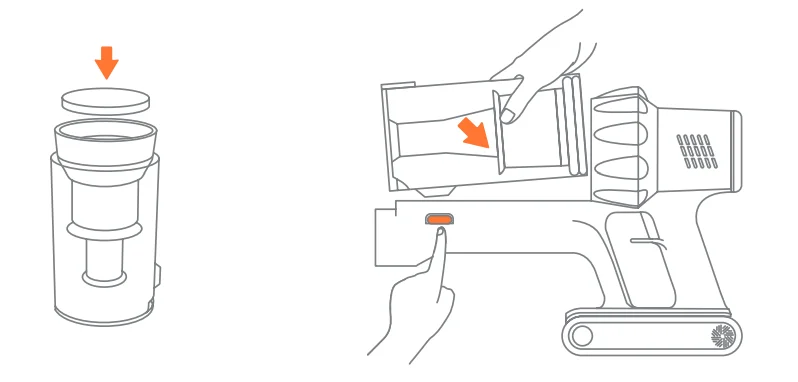

• Remove the dust cup from the main body.
  Press the dust cup release button on the main body, then get the dust cup released from the main body.
• Remove filters from the dust cup.
  First, lift the sponge filter, then lift the entire cyclone filter, including the multi-cone filter.

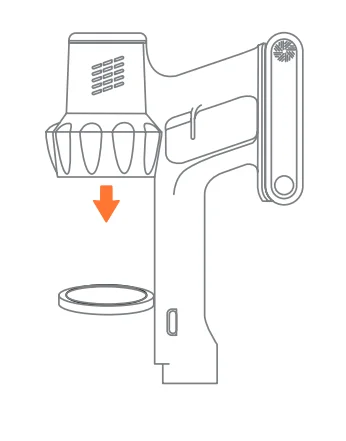

• Remove the HEPA filter from the main body.
  First, lift up the sponge filter, then lift up the entire cyclone filter, including the multi-cone filter.
• Clean the dust cup and filters with water. Make sure that the dust cup and filters have dried before use.
• Install the multi-cone filter and HEPA filter clockwise, aligning the clips to install the cyclone filter. Then install the sponge filter and dust cup.

Brush Roller Cleaning

Tip: After long periods of use, the bristle may be jammed by hair or similar build-up. It’s recommended to clean the brush roller periodically to ensure efficient operation and maintain suction.

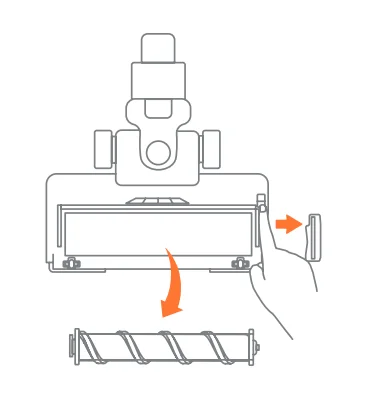

• Push the button to the “unlock” sign, and remove the brush roller.

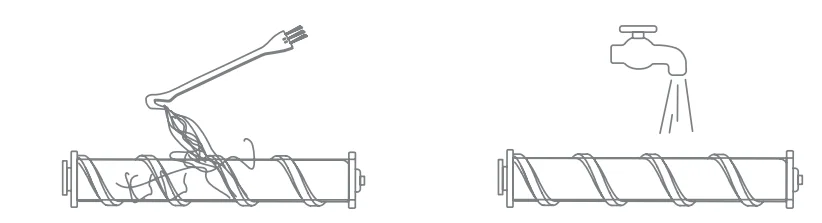

• Remove the debris wrapped around the roller with the mini cleaning brush, then flush the roller with water.

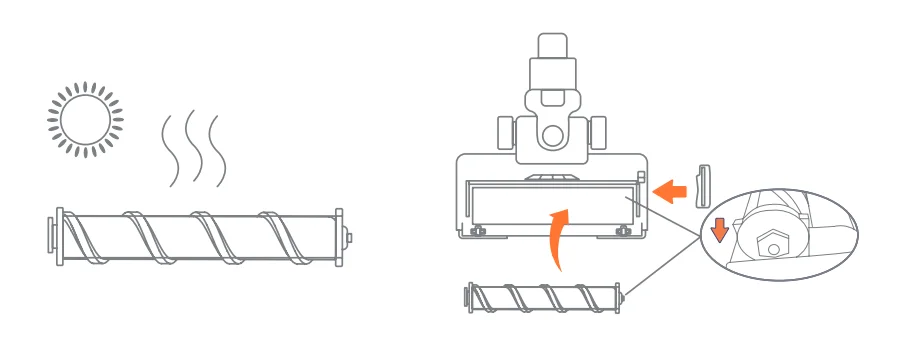

• Gently push the brush roller into the motorized brush until securely in place. Make sure the brush roller is completely dry before using.

SPECIFICATION

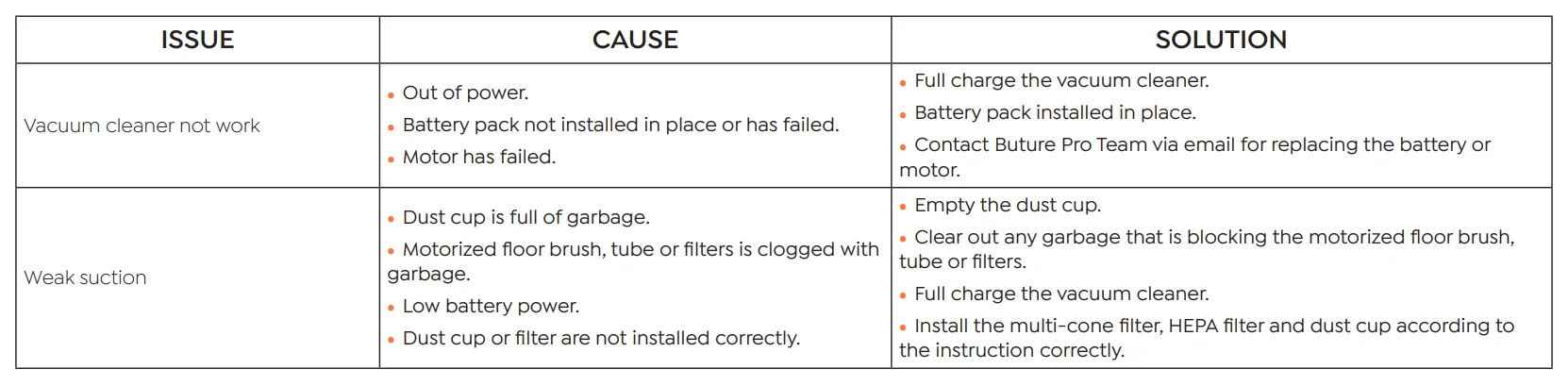

TROUBLESHOOTING

WARRANTY

The 2-Year Warranty

• Our Buture Pro machine has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Buture Pro Instruction Manual.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your machine is in proper operating condition during the warranty period.

What is covered?

• Only applies to purchases made from authorized retailers of Buture Pro. This warranty will only be valid if the machine is used in the country in which it was sold.

How to claim?

Please keep your proof of purchase. To make a claim under our warranty, you need to provide your original purchase receipt with the purchase date and order number on it.

If your machine is not functioning properly, or you still have any questions after reading this manual carefully, please feel free to contact us, we will reply to you in 24 hours and try our best to provide you with a satisfactory solution.
