Instrument Panel

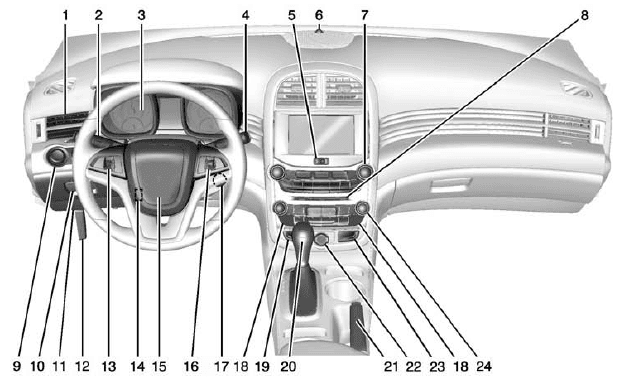

Instrument Panel Overview

Initial Drive Information

This section provides a brief overview of some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual.

Remote Keyless Entry (RKE) System

The Remote Keyless Entry (RKE) transmitter may work up to 60 m (197 ft) away from the vehicle.

Power Seats

To adjust a power seat, if equipped:

• Move the seat forward or rearward by sliding the control forward or rearward.
• Raise or lower the front part of the seat cushion by moving the front of the control up or down.
• Raise or lower the entire seat by moving the entire control up or down.

Lumbar Adjustment

If equipped, press and hold the front or rear of the control to increase or decrease lumbar support.

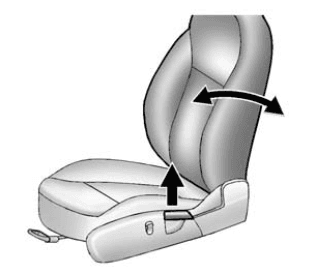

Reclining Seatbacks

Manual Reclining Seatbacks

To recline a manual seatback

1. Lift the lever.
2. Move the seatback to the desired position, and then release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is locked.

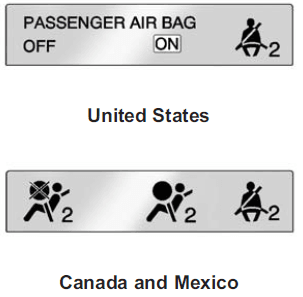

Passenger Sensing System

The passenger sensing system turns off the front outboard passenger frontal airbag and knee airbag under certain conditions. No other airbag is affected by the passenger sensing system.

Mirror Adjustment

Interior Mirror

Adjust the rearview mirror for a clear view of the area behind your vehicle.

Manual Rearview Mirror

If equipped, push the tab forward for daytime use and pull it rearward for nighttime use to avoid the glare of the headlamps from behind.

Automatic Dimming Rearview Mirror

If equipped, the mirror will automatically reduce the glare of the headlamps from behind. The dimming feature comes on when the vehicle is started.

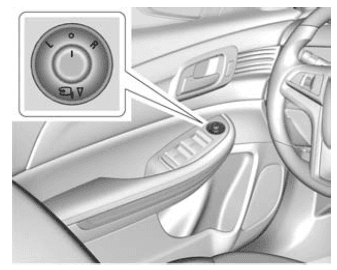

Exterior Mirrors

1. Turn the selector switch to L (Left) or R (Right) to choose the driver or passenger mirror.
2. Move the control to adjust the mirror.
3. Turn the selector switch to o to deselect the mirror.

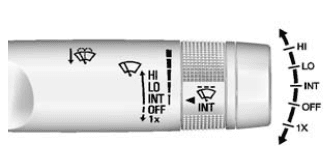

Windshield Wiper/Washer

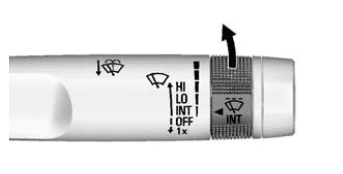

The windshield wiper/washer lever is on the right side of the steering column. With the ignition in ACC/ ACCESSORY or ON/RUN/START, move the lever to select the wiper speed.

• HI: Use for fast wipes.
• LO: Use for slow wipes.

Parking Assist

If equipped, this system uses sensors on the rear bumper to assist with parking and avoiding objects while in R (Reverse). It operates at speeds less than 8 km/h (5 mph). Rear Parking Assist (RPA) uses audible beeps to provide distance and system information. Keep the sensors on the vehicle’s rear bumper clean to ensure proper operation.

Power Outlets

The accessory power outlets can be used to plug in electrical equipment, such as a cell phone or MP3 player. There are two accessory power outlets: one on the center stack below the climate control and one under the armrest inside the center console storage. Open the protective cover to use the accessory power outlet.

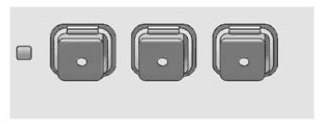

Universal Remote System

If equipped, this system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices. Read the instructions completely before attempting to program the Universal Remote system. Because of the steps involved, it may be helpful to have another person available to assist with programming the Universal Remote system.

Rear Vision Camera (RVC)

If equipped, RVC displays a view of the area behind the vehicle, on the center stack display, when the vehicle is shifted into R (Reverse).

Sunroof

On vehicles with a sunroof, the switches used to operate it are on the headliner above the rearview mirror. The ignition must be in ON/ RUN or ACC/ACCESSORY, or in Retained Accessory Power (RAP) to operate the sunroof. See Ignition Positions (Keyless Access) on pages 9-14 or Ignition Positions (Key Access).

Engine Oil Life System

The engine oil life system calculates engine oil life based on vehicle use and displays the CHANGE ENGINE OIL SOON message when it is time to change the engine oil and filter.

Driving for Better Fuel Economy

Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible.

• Avoid fast starts and accelerate smoothly.
• Brake gradually and avoid abrupt stops.
• Avoid idling the engine for long periods.
• When road and weather conditions are appropriate, use cruise control.
• Always follow posted speed limits or drive more slowly when conditions require.
• Keep vehicle tires properly inflated.
• Combine several trips into a single trip.
• Replace the vehicle’s tires with the same TPC Spec number molded into the tire’s sidewall near the size.
• Follow recommended scheduled maintenance.

Disarming the Alarm System

Do one of the following to disarm the alarm system or turn off the alarm if it has been activated:

• Press the Lock on the RKE transmitter.
• Unlock the vehicle using the Keyless Access system, if equipped.
• Start the vehicle.

To avoid setting off the alarm by accident:

• Lock the vehicle after all occupants have left the vehicle and all doors are closed.
• Always unlock a door with the RKE transmitter or use the Keyless Access system, if equipped.

Unlocking the driver door with the key will not disarm the system or turn off the alarm.

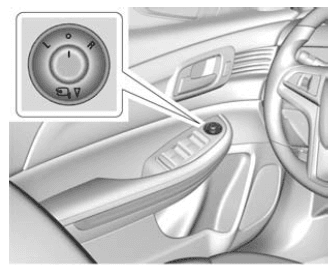

Power Mirrors

To adjust the mirrors:

1. Turn the selector switch to L (Left) or R (Right) to choose the driver or passenger mirror.
2. Move the control to adjust the mirror.
3. Turn the selector switch to   deselect the mirror.

Reverse Tilt Mirrors

If equipped with the memory package, the outside mirrors have a reverse tilt feature. This feature tilts the outside mirrors to a preselected position when the vehicle is in R (Reverse). This allows the driver to view the curb for parallel parking. The passenger and/or driver mirror returns to its original position when the vehicle is shifted out of R (Reverse), or the ignition is turned off or to OFF/LOCK. This feature can be turned on or off through the Driver Information Center (DIC).

Seats and Restraints

Head Restraints

Front Seat

The vehicle’s front seats have adjustable head restraints in the outboard seating positions.

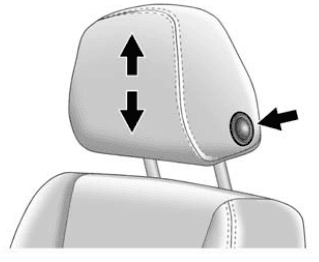

To raise or lower the head restraint, press the button located on the side of the head restraint and pull up or push the head restraint down and release the button. Pull and push on the head restraint after the button is released to make sure that it is locked in place. The front seat outboard head restraints are not removable.

Rear Seat

The vehicle’s rear seats have adjustable head restraints in the outboard seating positions.

The height of the head restraint can be adjusted. Pull the head restraint up to raise it. Try to move the head restraint to make sure that it is locked in place. To lower the head restraint, press the button, located on the top of the seatback, and push the head restraint down. Try to move the head restraint after the button is released to make sure that it is locked in place. If you are installing a child restraint in the rear seat, see “Securing a Child Restraint Designed for the LATCH System” under Lower Anchors and Tethers for Children (LATCH System) .

Front Seats

Seat Adjustment

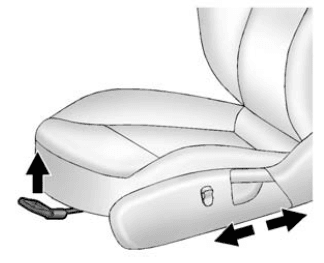

To adjust a manual seat:

1. Pull the handle at the front of the seat.
2. Slide the seat to the desired position and release the handle.
3. Try to move the seat back and forth to be sure it is locked in place.

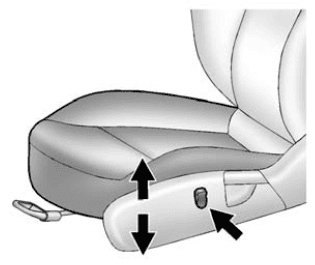

Seat Height Adjuster

Press and hold the top or bottom of the switch to raise or lower the seat. Release the switch when the desired height is reached.

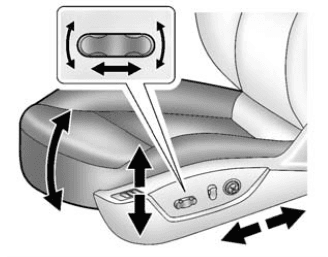

Power Seat Adjustment

To adjust a power seat, if equipped:

• Move the seat forward or rearward by sliding the control forward or rearward.
• Raise or lower the front part of the seat cushion by moving the front of the control up or down.
• Raise or lower the entire seat by moving the entire control up or down.

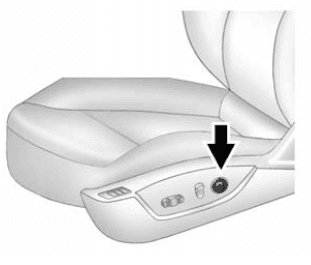

Lumbar Adjustment

If equipped, press and hold the front or rear of the control to increase or decrease lumbar support.

Reclining Seatbacks

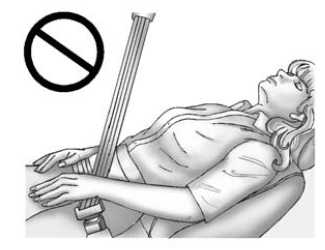

Do not have a seatback reclined if the vehicle is moving.

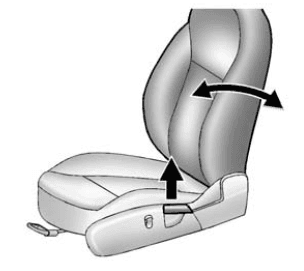

Manual Reclining Seatbacks

To recline a manual seatback:

1. Lift the lever.
2. Move the seatback to the desired position, and then release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is locked.

To return the seatback to the upright position:

1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position.
2. Push and pull on the seatback to make sure it is locked.

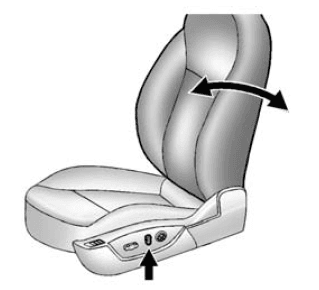

Power Reclining Seatbacks

To adjust a power seatback, if available:

• Tilt the top of the control rearward to recline.
• Tilt the top of the control forward to raise.

Rear Seats

Folding the Seatback

Either side of the seatback can be folded down for more cargo space. Fold a seatback only when the vehicle is not moving.

To fold the seatback down:

1. Lower the rear seat head restraints completely. See Head Restraints on page 3-2.
2. Lift the rear seat armrest and place it in the folded position, if necessary.

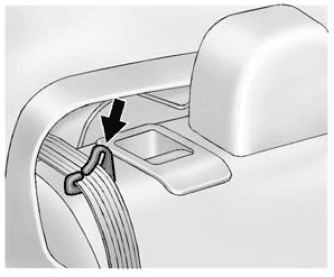

3. Make sure the outboard safety belt is in the belt guide.

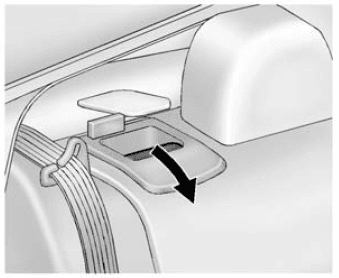

4. Pull on the lever on the top of the seatback to unlock it. A tab near the seatback lever raises when the seatback is unlocked.
5. Fold the seat back down. Repeat the steps for the other seatback, if desired.

Raising the Seatback

To raise a seatback:

1. Lift the seatback and push it rearward to lock it in place. Make sure the safety belt is in the belt guide and is not twisted or caught in the seatback. A tab near the seatback lever retracts when the seatback is locked in place.  The center rear safety belt may lock when you raise the seatback. If this happens, let the belt go back all the way and start again.
2. Push and pull the top of the seatback to be sure it is locked into position.
3. Repeat Steps 1 and 2 for the other seatback, if necessary. When the seat is not in use, it should be kept in the upright, locked position.

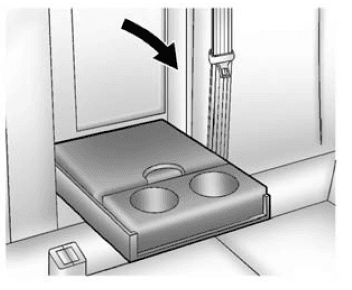

Rear Seat Armrest

The rear seat has an armrest in the center of the seatback. Lower the armrest to access the two cupholders and the storage area. To fold, lift the armrest and push it rearward until it is flush with the seatback.

Questions and Answers About Safety Belts

• Q: Will I be trapped in the vehicle after a crash if I am wearing a safety belt?
  A: You could be — whether you are wearing a safety belt or not. Your chance of being conscious during and after a crash, so you can unbuckle and get out, is much greater if you are belted.
• Q: If my vehicle has airbags, why should I have to wear safety belts?
  A: Airbags are supplemental systems only; so they work with safety belts — not instead of them. Whether or not an airbag is provided, all occupants still have to buckle up to get the most protection. Also, in nearly all states and all Canadian provinces, the law requires wearing safety belts.

How to Wear Safety Belts Properly

This section is only for people of adult size. There are special things to know about safety belts and children. There are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children on pages 3-31 or Infants and Young Children on pages 3-33. Follow those rules for everyone’s protection.

All occupants need to buckle up. Statistics show that unbelted people are hurt more often in crashes than those who are wearing safety belts. There are important things to know about wearing a safety belt properly

• Sit up straight and always keep your feet on the floor in front of you.
• Always use the correct buckle for your seating position.

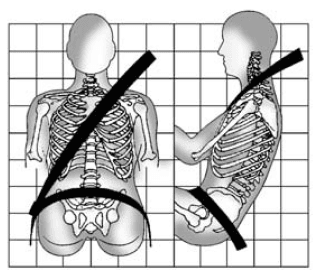

• Wear the lap part of the belt low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones and you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force on your abdomen. This could cause serious or even fatal injuries.
• Wear the shoulder belt over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash.

Lap-Shoulder Belt

All seating positions in the vehicle have a lap-shoulder belt. The following instructions explain how to wear a lap-shoulder belt properly.

1. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see “Seats” in the Index.

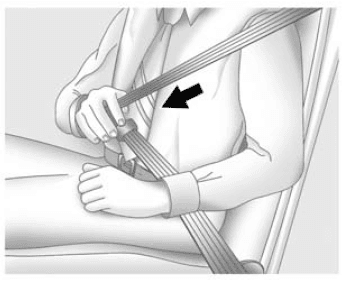

2. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. If the shoulder portion of a passenger belt is pulled out all the way, the child restraint locking feature may be engaged. If this happens, let the belt go back all the way and start again.

Vehicle Care

If this vehicle has a tire sealant and compressor kit, there may not be a spare tire or tire changing equipment, and on some vehicles, there may not be a place to store a tire. The tire sealant and compressor can be used to temporarily seal punctures up to 6 mm (0.25 in) in the tread area of the tire. It can also be used to inflate an under-inflated tire.

If the tire has been separated from the wheel has damaged sidewalls, or has a large puncture, the tire is too severely damaged for the tire sealant and compressor kit to be effective. See Roadside Assistance Program on page 13-5. Read and follow all of the tire sealant and compressor kit instructions.

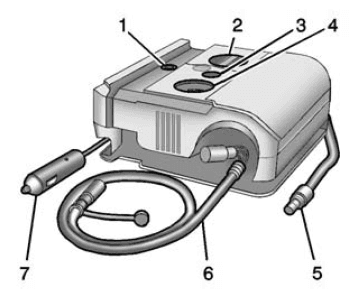

The kit includes

1. On/Off Button
2. Selector Switch (Sealant/Air or Air Only)
3. Pressure Relief Button
4. Pressure Gauge
5. Air Only Hose (Black)
6. Sealant/Air Hose (Clear)
7. Power Plug

Tire Sealant

Read and follow the safe handling instructions on the label adhered to the compressor.

Recommended Fluids, Lubricants, and Parts

Recommended Fluids and Lubricants

Service and Maintenance

Maintenance Replacement Parts

Replacement parts identified below by name, part number, or specification can be obtained from your dealer.

Vehicle Data

Capacities and Specifications
