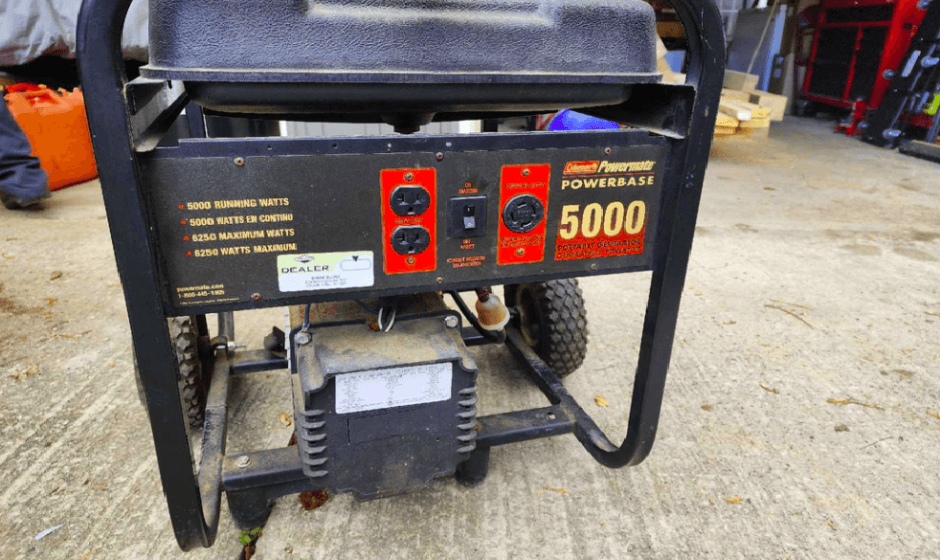

Coleman Powermate Powerbase 5000 ER Electric Generator
Powerbase 5000 ER – ELECTRIC GENERATOR
- IMPORTANT – Please make certain that persons who are to use this equipment thoroughly read and understand these instructions and any additional instructions provided prior to operation.

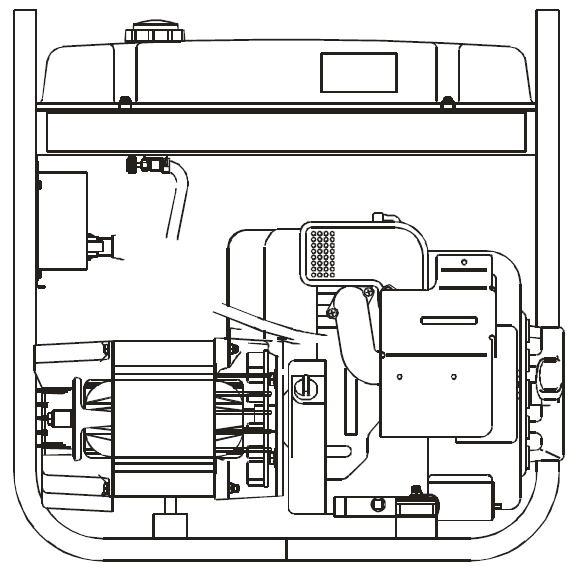

MAJOR GENERATOR FEATURES
- 10 HP Tecumseh engine
- Cast-iron cylinder sleeve
- Low oil sensor
- Receptacles on the control panel
- Automatic voltage regulator (AVR)
- 5-gallon plastic fuel tank
CONTROL PANEL
- A. 120 V, 15 Ampere Duplex Receptacle
This duplex is split so that 15 amps of current may be drawn from each half of the receptacle. However, the total power drawn must be kept within nameplate ratings. These receptacles may be used along with the twist lock receptacle provided the generator is not overloaded. - B. 120/240 V, 20 Ampere Twistlock Receptacle
A maximum of 20 amps may be drawn from the 120/240 volt receptacle, provided it is the only receptacle used. However, current must be limited to the nameplate rating. If the 120/240 volt receptacle is used along with the 120 volt receptacle, the total load drawn must not exceed the nameplate ratings - C. Circuit Breakers
The receptacles are protected by an AC circuit breaker. If the generator is overloaded or an external short circuit occurs, the circuit breaker will trip. If this occurs, disconnect all electrical loads and try to determine the cause of the problem before attempting to use the generator again. If overloading causes the circuit breaker to trip, reduce the load.
NOTE: Continuous tripping of the circuit breaker may cause damage to generator or equipment. The circuit breaker may be reset by pushing the button of the breaker.
LIMITED WARRANTY (NOT VALID IN MEXICO)
- This product is warranted by Coleman Powermate, Inc. to the original retail consumer against defects in material and workmanship for a period of one year from the date of retail purchase and is not transferable. This one-year warranty applies only to products used in consumer applications. If this generator is used in a commercial application, then the period of warranty coverage is limited to ninety (90) days from the date of purchase.
- Please complete and return the enclosed Customer Information Card so that we can reach you in the unlikely event a safety recall is needed. Return of this card is not required to validate this warranty.
- WHAT IS COVERED: Replacement parts and labor.
- WHAT IS NOT COVERED: Transportation charges to Coleman Powermate, Inc. for defective products. Transportation charges to consumer for repaired products. Brushes, fuses, rubber feet, and receptacles. Damages caused by abuse, accident, improper repair, or failure to perform normal maintenance. Power units or engines which are covered exclusively by the warranties of their manufacturer. Sales outside of the United States or Canada. Any other expense including consequential damages, incidental damages, or incidental expenses, including damage to property. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
- IMPLIED WARRANTIES: Any implied warranties, including the Implied Warranties of Merchantability and Fitness For A Particular Purpose, are limited in duration to one (1) year from the date of retail purchase. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
- HOW TO OBTAIN WARRANTY PERFORMANCE
- Replacement parts and service are available from Coleman Powermate, Inc. Service Centers. Locate your nearest Service Center by calling TOLL FREE 1-800-445-1805. In the unlikely event a Service Center can not be located you may call Coleman Powermate, Inc. for a return authorization number. Any unit returned WITHOUT an authorization number will be refused.
- To the extent any provision of this warranty is prohibited by federal, state, or municipal law, and cannot be preempted, it shall not be applicable. This warranty gives you specific rights, and you may also have other rights which vary from state to state.
For more manuals by Coleman Powermate, visit ManualsLibraryy
Coleman Powermate Powerbase 5000 ER Electric Generator-FAQs
What kind of oil does a Coleman 5000-watt generator take?
1. For temperatures above 50°F, use straight 30-weight oil.
2. For temperatures below 50°F, use 10W30 oil.
What is a Powermate generator?
A Powermate generator is a portable power source ideal for use in motor homes or during power outages. It features a 7.0-gallon fuel tank and comes with oil, a funnel, and a tool kit for convenience.
How much fuel does a 5000-watt generator use?
A 5000-watt generator typically consumes about one gallon of gas per hour of operation.
How much oil does a generator need?
Most generators require between 1 to 2 quarts of oil, but always refer to your owner’s manual for the specific oil capacity.
Who makes Powermate engines?
Powermate engines are made by Generac Power Systems, a leading manufacturer of energy technology and power products.
How do you troubleshoot a Coleman generator?
1. Check for fuel in the tank.
2. Tighten any loose spark plugs.
3. Pull the starter rope sharply if the engine won’t start.
4. Ensure the oil level is adequate.
5. Verify the fuel grade is correct and that it hasn’t been sitting too long.
How do you start a generator with a dead battery?
1. Use jumper cables to connect the generator’s battery to a car battery.
2. Start the car, then use the cables to start the generator.
3. The generator will recharge the battery once it starts.
How do I turn off the Coleman PowerMate 5000?
1. To turn off the generator, locate the shut-off valve under the gas tank.
2. Rotate the valve 360 degrees to close it.
How much oil does a Powermate generator hold?
A Powermate generator holds 1.1 liters (1.1 quarts) of oil.
Can I power my house with a 5000-watt generator?
Yes, a 5000-watt generator can power essential household appliances like the refrigerator, sump pump, lights, and more during an outage.
