WARRANTY STATEMENT

CRAFTSMAN FULL WARRANTY

FOR TWO YEARS from the date of purchase, all non-expendable parts of this riding equipment are warranted against any defects in material or workmanship. A defective non-expendable part will receive free in-home repair or replacement if repair is impossible.

FOR FIVE YEARS from the date of purchase, the frame and front axle of this riding equipment are warranted against any defects in material or workmanship. A defective frame or front axle will receive free in-home repair or replacement if repair is impossible.

FOR 90 DAYS from the date of purchase, the battery (an expendable part) of this riding equipment is warranted against any defects in material or workmanship (our testing proves that it wi ll not hold a charge). A defective battery will receive free in-home replacement

ADDITIONAL LIFETIME LIMITED WARRANTY on CAST IRON FRONT AXLE (if equipped)

FOR AS LONG AS IT IS USED by the original owner after the fifth year from the date of purchase, the cast iron front axle (if equipped) of this riding equipment is warranted against any defects in material or workmanship. With proof of purchase, a defective cast front axle will receive free in-home replacement

WARRANTY SERVICE

For warranty coverage details to obtain free repair or replacement, call 1-800-659-5917 or visit the web site:www.craftsman.com In all cases above, if part repair or replacement is impossible, the riding equipment will be replaced free of charge with the same or an equivalent model. All of the above warranty coverage is void if this riding equipment is ever used while providing commercial services or if rented to another person.

This warranty covers ONLY defects in material and workmanship. Warranty coverage does NOT include:

• Expendable parts (except battery) that can wear out from normal use within the warranty period, including but not limited to blades, spark plugs, air cleaners, belts, and oil filters.
• Standard maintenance servicing, oil changes, or tune-ups,
• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.
• Tire or wheel replacement or repair resulting from normal wear, accident, or improper operation or maintenance.
• Repairs necessary because of operator abuse, including but not limited to damage caused by towing objects beyond the capability of the riding equipment, impacting objects that bend the frame, axle assembly or crankshaft, or over-speeding the engine.
• Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical damage caused by improper storage, failure to use the proper grade and amount of engine oil, failure to keep the deck clear of flammable debris, or failure to maintain the riding equipment according to the instructions contained in the operator’s manual.
• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized (stale). In general, fuel should be used within 30 days of its purchase date.
• Normal deterioration and wear of the exterior finishes, or product label replacement
  This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

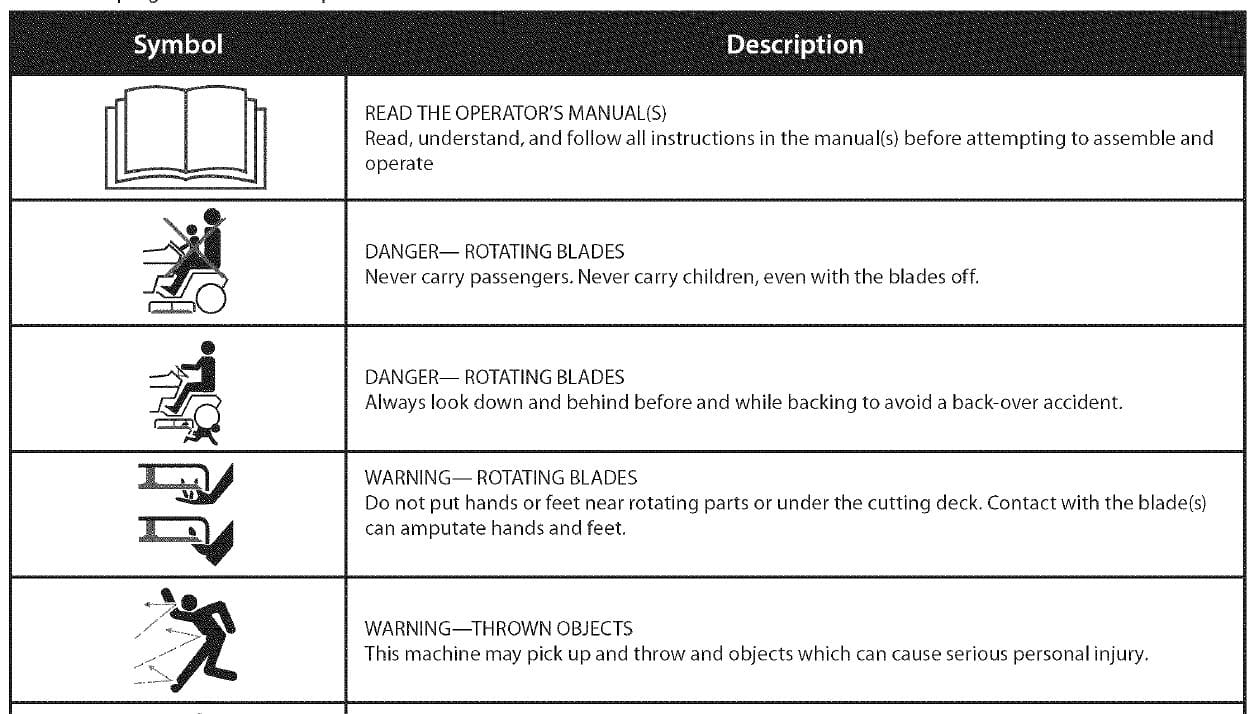

SAFETY INSTRUCTIONS

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine, Failure to comply with these instructions may result in personal injury, When you see this symbol, HEED ITS WARNING!

DANGER

This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury, This machine is capable of amputating fingers, hands, toes and feet and throwing debris. Failure to observe the following safety instructions could result in serious injury or death.

WARNING

CALIFORNIA PROPOSITION

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm. Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

WARNING

Your Responsibility-Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

SAVE THESE INSTRUCTIONS!

GENERAL OPERATION

• Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate, Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
• Be familiar with all controls and their proper operation, Know how to stop the machine and disengage them quickly.
• Never allow children under 14 years old to operate this machine, Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should
  be trained and supervised by a parent
• Never allow adults to operate this machine without proper instruction.
• To help avoid blade contact or a thrown object injury, keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation, Stop machine if anyone enters the area,
• Thoroughly inspect the area where the equipment is to be used, Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s), Thrown objects can cause serious personal injury.
• Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.
• Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes, Thrown objects which ricochet can cause serious injury to the
  eyes.
• Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Loose fitting clothes and jewelry can be caught in movable parts. Never operate this machine in bare feet or sandals,
• Be aware of the mower and attachment discharge direction and do not point it at anyone, Do not operate the mower without the discharge cover or entire grass catcher in its proper place.
• Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet
• A missing or damaged discharge cover can cause blade contact or thrown object injuries.
• Stop the blade(s) when crossing gravel drives, walks, or roads and while not cutting grass,
• Watch for traffic when operating near or crossing roadways, This machine is not intended for use on any public roadway,
• Do not operate the machine while under the influence of alcohol or drugs,
• Mow only in daylight or good artificial light
• Never carry passengers.
• Disengage blade(s) before shifting into reverse, Back up slowly, Always look down and behind before and while backing to avoid a back-over accident.
• Slow down before turning. Operate the machine smoothly. Avoid erratic operation and excessive speed.
• Disengage blade(s), set parking brake, stop the engine and wait until the blade(s) come to a complete stop before removing the grass catcher, emptying the grass, unclogging the chute, removing any grass or debris, or making any adjustments.
• Never leave a running machine unattended. Always turn off the blade(s), set parking brake, stop the engine and remove the key before dismounting.
• Use extra care when loading or unloading the machine into a trailer or truck. This machine should not be driven up or down ramp(s), because the machine could tip over, causing serious personal injury. The machine must be pushed manually on ramp(s) to load or unload properly.
• The muffler and engine become hot and can cause a burn. Do not touch.
• Check overhead clearances carefully before driving under low-hanging tree branches, wires, door openings etc., where the operator may be struck or pulled from the machine, which could result in serious injury.
• Disengage all attachment clutches and depress the brake pedal completely before attempting to start engine.
• Your machine is designed to cut normal residential grass of a height no more than 10″. Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the mower deck presenting a potential fire hazard.
• Use only accessories and attachments approved for this machine by the machine manufacturer. Read, understand and follow all instructions provided with the approved accessory or attachment. For a list of approved accessories and attachments, call 1-800-659-5917.
• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.
• If situations occur which are not covered in this manual, use care and good judgment. Contact 1-800-659-5917 for information and assistance.

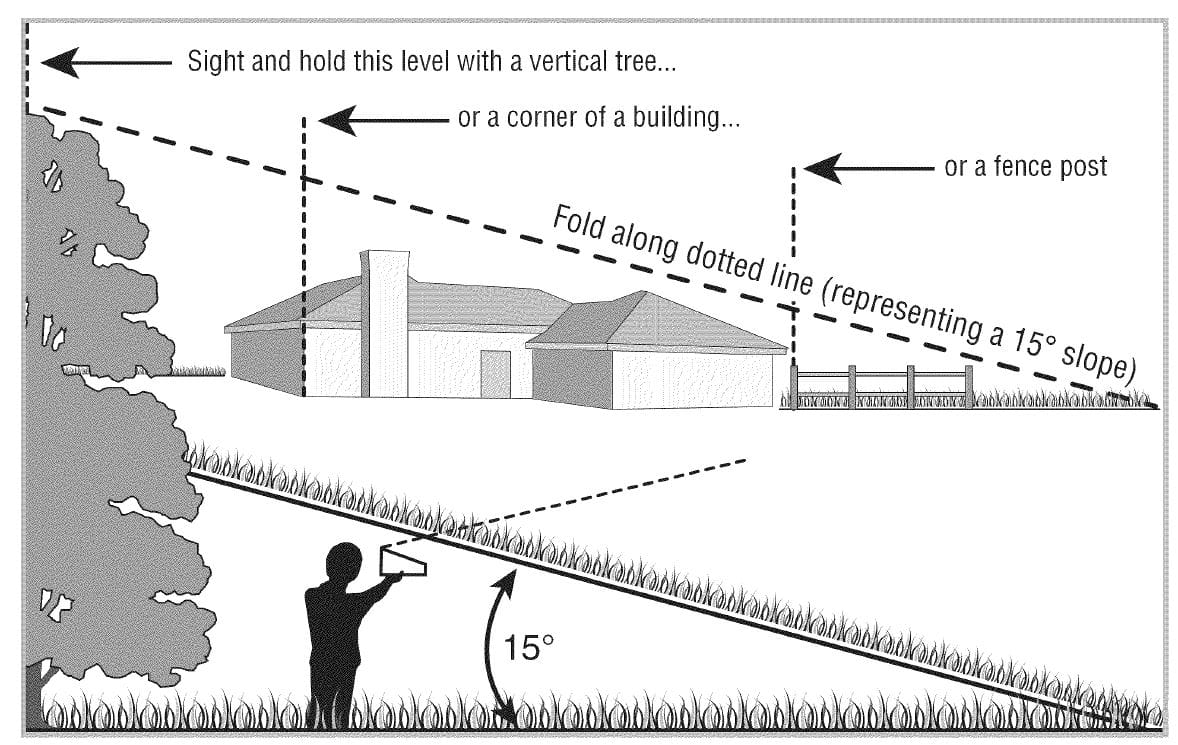

SLOPE OPERATION

Slopes are a major factor related to loss of control and tip-over accidents which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it. For your safety, use the Slope Guide included as part of this manual to measure slopes before operating this machine on a sloped or hilly area. If the slope is greater than 15 degrees as shown on the Slope Guide, do not operate this machine on that area or serious injury could result.
Do:

• Mow up and down slopes, not across. Exercise extreme caution when changing direction on slopes.
• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.
• Use slow speed. Choose a low enough speed setting so that you will not have to stop or shift while on the slope. Tires may lose traction on slopes even though the brakes are functioning properly. Always keep the machine in gear when going down slopes to take advantage of engine braking action.
• Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability. For recommendations, call 1-800-659-5917.
• Use extra care with grass catchers or other attachments. These can change the stability of the machine.
• Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction. Rapid engagement or braking could cause the front of the machine to lift and rapidly flip over backward which could cause serious injury.
• Avoid starting or stopping on a slope. If tires lose traction, disengage the blade(s) and proceed slowly straight down the slope.

Do Not:

• Do not turn on slopes unless necessary; then, turn slowly and gradually downhill, if possible.
• Do not mow near drop-offs, ditches or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff, ditch, or if an edge caves in.
• Do not try to stabilize the machine by putting your foot on the ground.
• Do not use a grass catcher on steep slopes.
• Do not mow on wet grass. Reduced traction could cause sliding.
• Do not attempt to coast downhill. Over-speeding may cause the operator to lose control of the machine resulting in serious injury or death.
• Do not tow heavy pull behind attachments (e.g. loaded dump cart, lawn roller, etc.) on slopes greater than 5 degrees. When going down hill, the extra weight tends to push the tractor and may cause you to loose control (e.g. tractor may speed up, braking and steering ability are reduced, attachment may jack-knife and cause tractor to overturn).

CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and in watchful care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the area.
• Before and while backing, look behind and down for small children.
• Never carry chi ldren, even with the blade( s) shut off. They may fall off and be seriously injured or interfere with safe machine operation.
• Use extreme care when approaching blind corners, doorways, shrubs, trees or other objects that may block your vision of a child who may run into the machine.
• To avoid back-over accidents, always disengage the cutting blade(s) before shifting into Reverse. If equipped, the “Reverse Caution Mode” (blades operate while machine rides in reverse) should not be used when chi ldren or others are around.
• Keep children away from hot or running engines. They can suffer burns from a hot muffler.
• Remove key when machine is unattended to prevent unauthorized operation. Never allow children under 14 years of age to operate this machine. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the machine and should be trained and supervised by an adult.

TOWING

• Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point.
• Follow the manufacturers recommendation for weight limits for towed equipment and towing on slopes. For recommendations, call 1-800-659-5917.
• Never allow children or others in or on towed equipment.
• On slopes, the weight of the towed equipment may cause loss of traction and loss of control.
• Always use extra caution when towing with a machine capable of making tight turns (e.g. “zero-turn” ride-on mower). Make wide turns to avoid jack-knifing.
• Travel slowly and allow extra distance to stop.
• Do not coast downhill.

SERVICE

Safe Handling of Gasoline
To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

• Use only an approved gasoline container.
• Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.
• When practical, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.
• Extinguish all cigarettes, cigars, pipes and other sources of ignition.
• Never fuel machine indoors.
• Never remove gas cap or add fuel whi le the engine is hot or running. Allow engine to cool at least two minutes before refueling.

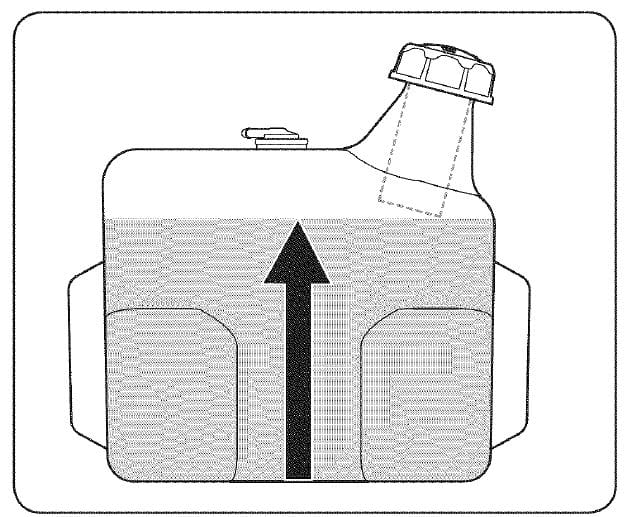

• Never over fill fuel tank. Fill tank to no more than ½ inch below bottom of filler neck to allow space for fuel expansion.
• Replace gasoline cap and tighten securely.
• If gasoline is spi lled, wipe it off the engine and equipment. Move machine to another area. Wait 5 minutes before starting the engine.
• To reduce fire hazards, keep machine free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage and remove any fuel soaked debris.
• Never store the machine or fuel container inside where there is an open flame, spark or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances.
• Allow a machine to cool at least five minutes before storing.

SAFETY INSTRUCTIONS

General Service

• Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless, and deadly gas.
• Before cleaning, repairing, or inspecting, make certain the blade(s) and all moving parts have stopped. Disconnect the spark plug wire and ground against the engine to prevent unintended
  starting.
• Periodically check to make sure the blades come to complete stop within approximately (5) five seconds after operating the blade disengagement control. If the blades do not stop within the this time frame, your machine should be serviced professionally by a Sears or other qualified service dealer .
• Check brake operation frequently as it is subjected to wear during normal operation. Adjust and service as required.
• Check the blade(s) and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade(s) for damage (e.g., excessive wear, bent, cracked). Replace the blade(s) with the original equipment manufacturer’s (O.E.M.) blade(s) only, listed in this manual. Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!
• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
• Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
• Never tamper with the safety interlock system or other safety devices. Check their proper operation regularly.
• After striking a foreign object, stop the engine, disconnect the spark plug wire(s) and ground against the engine. Thoroughly inspect the machine for any damage. Repair the damage before starting and operating.
• Never attempt to make adjustments or repairs to the machine while the engine is running.
• Grass catcher components and the discharge cover are subject to wear and damage which could expose moving parts or allow objects to be thrown. For safety protection, frequently check components and replace immediately with original equipment manufacturer’s (O.E.M.) parts only, listed in this manual. Use of parts which do not meet the original equipment specifications may  or 270 hours lead to improper performance and compromise safety!
• Do not change the engine governor settings or over-speed the engine. The governor controls the maximum safe operating speed of the engine.
• Maintain or replace safety and instruction labels, as necessary.
• Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
• According to the Consumer Products Safety Commission (CPSC) and the U.S. Environmental Protection Agency (EPA), this product has an Average Useful Life of seven (7) years, or 270 hours of operation. At the end of the Average Useful Life, buy a new machine or have the machine inspected annually by a Sears or other  qualified service dealer to ensure that all mechanical and safety systems are working properly and not worn excessively. Failure to do so can result in accidents, injuries or death.

DO NOT MODIFY ENGINE
To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting
of engine governor.

NOTICE REGARDING EMISSIONS
Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certified to operate on regular unleaded gasoline, and may include the following emission control systems: Engine Modification (EM) and Three Way Catalyst (TWC) if so equipped.

SPARK ARRESTOR

WARNING
This machine is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brushcovered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrestor meeting applicable local or state laws (if any).

If a spark arrestor is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrestor for the muffler is available through your nearest Sears Parts and Repair Service Center.

ASSEMBLY

IMPORTANT: Your tractor is shipped with motor oil in the engine. However, you MUST check the oil level before operating. Refer to the Service & Maintenance section for instructions on checking the oil
level.

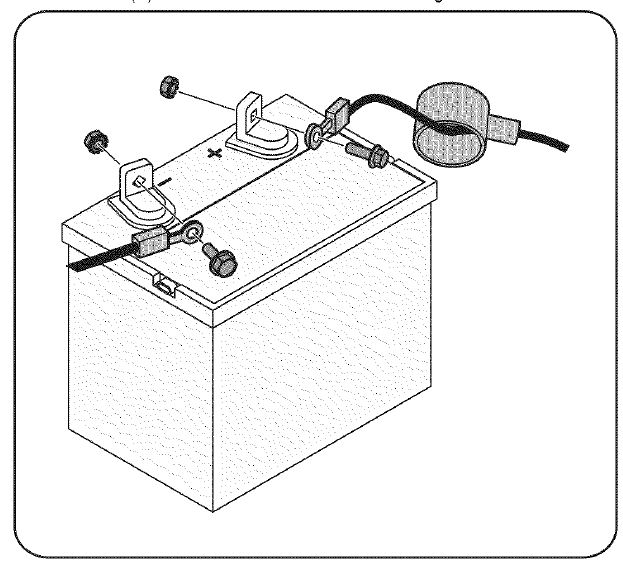

Attaching the Battery Cables
For shipping reasons, both battery cables on your equipment have been left disconnected from the terminals at the factory. To connect the battery cables, proceed as follows:

NOTE: The positive battery terminal is marked Pos. (+). The negative battery terminal is marked Neg,(-).

1. Remove the plastic cover, if present, from the positive battery terminal and attach the red cable to the positive battery terminal (+) with the bolt and hex nut See Figure 1.
2. Remove the plastic cover, if present, from the negative battery terminal and attach the black cable to the negative battery terminal(-) with the bolt and hex nut See Figure 1.
3. Position the red rubber boot over the positive battery terminal to help protect it from corrosion.
   NOTE: If the battery is put into service after the date shown on top of battery, charge the battery as instructed in the Service & Maintenance section of this manual prior to operating the tractor.

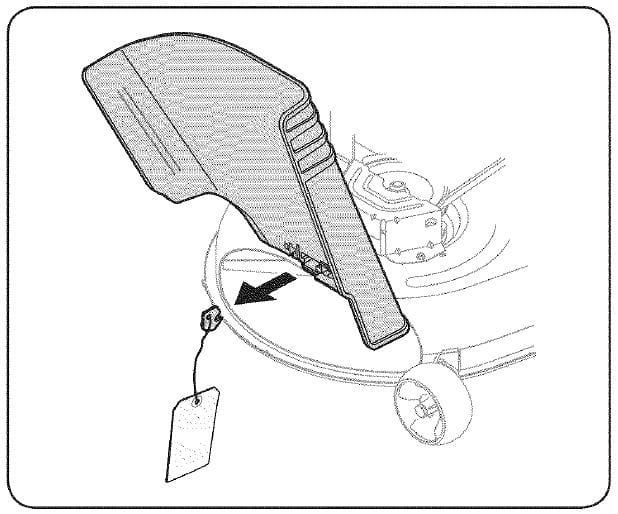

Shipping Brace Removal

• Locate the shipping brace, if present, and accompanying warning tag found on the right side of the mower, between the discharge chute deflector and the cutting deck. See Fig. 2.
• Place the deck lift lever in the highest cutting position. Refer to Setting the Cutting Height in the Operation section of this manual.
• While pushing the discharge chute deflector towards the machine with your left hand, remove the shipping brace with your right hand by grasping it between your thumb and index finger and rotating it clockwise.

Attaching The Steering Wheel

If the steering wheel for your tractor did not come attached, the hardware for attaching it has been packed within the steering wheel, beneath the steering wheel cap, Carefully pry off the steering wheel cap and remove the hardware.

1. With the wheels of the tractor pointing straight forward, place the steering wheel over the steering shaft
2. Place the washer (with the cupped side down) over the steering wheel and secure with the hex bolt See Fig. 3.
3. Place the steering wheel cap over the center of the steering wheel and push downward until it “clicks”intoplace.

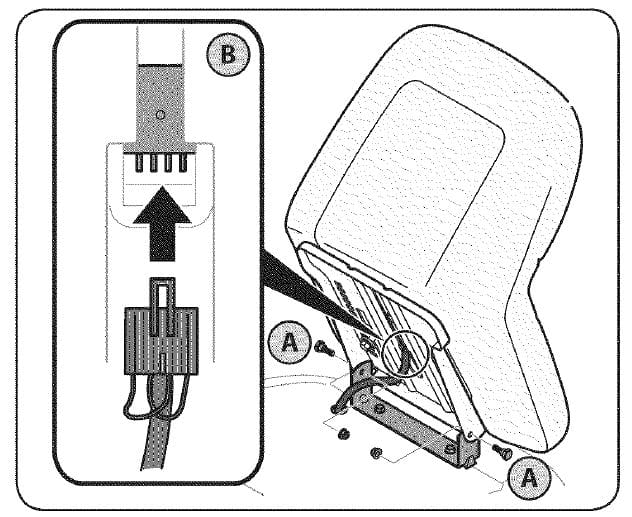

Attaching The Seat

NOTE:For shipping reasons,the seat is either fastened to the tractor seat’s pivot bracket with a plastic tie, or mounted backward to the pivot bracket.In either case, free the seat from its shipping position being careful not to bendor kink the wiring harness and follow the instructions below to attach it.

1. Remove the two hex screws and nuts from the seat pivot bracket.
2. Align the front holes of the seat mounting bracket with the holesin the seat pivot bracket on your tractor and secure with previously removed hex screws and nuts. SeeA in Figure4.
3. Plugthe wiring harness in to the seat safety switch in the bottom of the seat,as shown in B of Figure4.
   NOTE:The tractor will not operate with the wiring harness disconnected.

Adjusting the Seat

To adjust the position of the seat, pull up and hold the seat adjustment lever.Slide the seat forward or rearward to thedesired position;then release the adjustment lever.Make sure seat is locked into position in a seat-stop before operating the tractor.See Figure 5.

Tire Pressure

The recommended operating tire pressure is:

• Approximately 10 psi for the rear tires
• Approximately 14 psi for the front tires

IMPORTANT: Refer to the tire side wall for exact tire manufacturer’s recommended or maximum psi. Do  not over inflate. Un even tire pressure could cause the cutting deck to mow unevenly.

Operation

• A ParkingBrakeLever
• B Throttle/ChokeControlLever
• C IgnitionSwitchModule
• D Auto-drivePedal
• E DeckLift Lever
• F PTOLever(BladeEngage)
• G Cup Holder

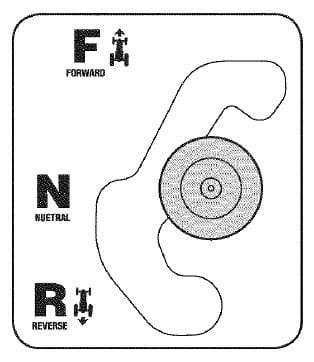

• H ShiftLever
• I SeatAdjustmentLever
• J BrakePedal

NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator’s seat position facing forward towards the front of tractor.

PARKING BRAKE LEVER

To set the parking brake: Fully depress the brake pedal. Move the parking brake lever into the parking brake position. Release the brake pedal to allow the parking brake to engage.

To release the parking brake: Depress the brake pedal and the parking brake lever will move out of the parking brake position on its own. The parking brake will then be released. Release the brake pedal.

NOTE: The parking brake must be set if the operator leaves the seat with the engine running or the engine will automatically shut off.

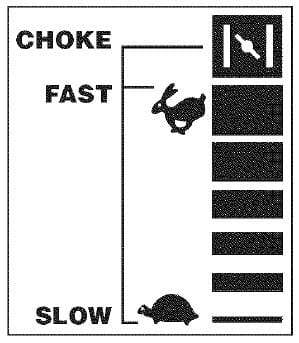

THROTTLE/CHOKE CONTROL LEVER

The throttle/choke control lever is located on the right side of the tractor’s dash panel. This lever controls the speed of the engine and when pushed all the way forward, the choke control also. When set in a given position, the throttle will maintain a uniform engine speed.

IMPORTANT: When operating the tractor with the cutting deck engaged, the throttle/choke control
lever must always be in the FAST (rabbit) position.

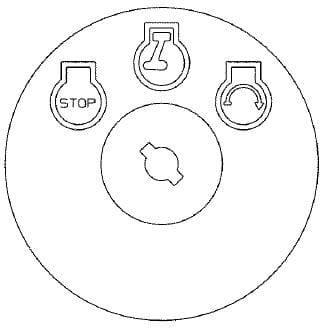

IGNITION SWITCH

The key switch module is used to start and stop the engine. Insert key into the key switch module and turn clockwise to the START position. Release the key into the normal mowing position once engine has started. The headlights will be activated automatically. To stop the engine, turn the ignition key counterclockwise to the STOP position.

IMPORTANT: Prior to operating the tractor, refer to both the “Safety Interlock System” and “Starting The Engine” later in this section of this manual for detailed instructions regarding the Ignition Switch Module.

SEAT ADJUSTMENT LEVER

The seat adjustment lever is located below the fronVleft of the seat. The lever allows for adjustment of the fore and aft position of the seat. Refer to the Assembly section of the manual for more detailed instructions for adjusting the seat position.

AUTO-DRIVE PEDAL

The drive pedal is located on the right side of the tractor, along the running board. Depress the drive pedal forward and the tractor willmove in the direction that the shift lever is engaged in. To cause the tractor to travel forward, while at a complete stop, move the shift lever into the Forward position. Gradually step on the drive pedal and the tractor will begin to move forward. To move in Reverse, follow the same procedure only move the shift lever into the reverse position. The ground speed is controlled with the drive pedal. The further forward that the pedal is pivoted, the faster the tractor will travel.

The pedal will return to its original position when it’s not depressed. Refer to the Operation section of this manual for detailed instructions regarding the drive pedal.

IMPORTANT: Always set the parking brake when leaving the tractor unattended.

DECK LIFT LEVER

Found on your tractor’s right fender, the deck lift lever is used to change the height of the cutting deck. To use, move the lever to the left, then place in the notch best suited for your application.

PTO(BLADEENGAGE)LEVER

Found on the tractor’s right fender, the PTO (blade engage) lever is used to engage power to the cutting deck or other (separately available) attachments. To operate, move the lever all the way forward. Moving the lever all the way rearward into the PTO OFF position disengages power to the cutting deck/ attachment.

NOTE: The PTO (blade engage) lever must be in the disengaged (PTO OFF) position when starting the engine.

CUP HOLDER: The tractor’s cup holder is located on the fender to the left of the seat.

SHIFT LEVER

The shift lever is located on the left side of the fender and has three positions, FORWARD, NEUTRAL and REVERSE. The brake pedal must be depressed and the tractor must not be in motion when the moving shift lever.

IMPORTANT: Never force the shift lever. Doing so may result in serious damage to the tractor’s transmission.

BRAKE PEDAL

The brake pedal is located on the left side of the lawn tractor, along the running board. Depress the brake pedal to engage the disc brake and bring the tractor to a complete stop.

NOTE: The pedal must be depressed to start the engine. Refer to Safety Interlock Switches later in this section of this manual.

GAS AND OiL FILL-UP

0il

IMPORTANT: Your tractor is shipped with motor oil in the engine. However,you MUST  check the oil level before operating.Be careful not to overfill. For instructions on how to check the engine oil, refer to Checking The Engine Oil in the Service and Maintenance section of this manual.

Gasoline

The gas online tank is located under the hood. Do not overfill.

NOTE: Purchase gasoline in small quantities.Do not use gasoline left over from the previous season, to minimize gum deposits in the fuel system.

• This engine is certified to operateon unleaded gasoline.For best results,fill the fuel tank  with only clean, fresh, unleaded gasoline with a pump sticker octane rating of 87 or higher.
• Gasohol (upto 10%ethyl alcohol, 90% unleaded gasoline by volume)is an approved  fuel.  Other gasoline/alcohol blends, such as E85, are not approved.
• Methyl Tertiary Butyl Ether(MTBE) and unleaded gasoline blends (upto a maximumof 15%MTBE by volume)are approved fuels. Other gasoline/ether blend sare not approved.
• Fill fuel tank out doors or in well-ventilated area.
• Do not over fill fuel tank. Fill tank to no more than 1/2 inch below bottom of filler neck to allows pace for fuel expansion.
• Never remove gas capor add fuel while the engine is hot or running. Allow engine to cool at least two minutes before fueling.
• If gasoline is spilled, wipe it off the engine and equipment. Move machine to another area. Wait 5 minutes before starting the engine.

To Add Gasoline

1. Turn the engine off and let engine cool at least2 minutes before removing the fuel cap.The gasoline  tank is located under the hood. Remove the fuel cap by turning it counter clockwise.
2. Fill the fuel tank with gasoline. Use only clean, fresh(no more than 30 days old), un leaded gasoline. Fill tank to no more than 1/2 inch below bottom of filler neck to allow space for fuel expansion.
3. Re install the fuel cap.
   IMPORTANT: Do not overfill the tank. Fill tank to no more than 1/2 inch below bottom of filler neck to allow space for fuel expansion. See Fig. 7.

SAFETY iNTERLOCK SYSTEM

The safety interlock system is designed for safe operation of the tractor. If this system should ever mal function, do not operate the tractor, Immediately contact 1-800-4-MY-HOME to have the system serviced.

• The safety interlock system prevents the engine from starting unless the parking brake is engaged and the PTO (BladeEngage) lever is in the disengaged(OFF)position.
• The safety interlock system will automatically shut off the engine if the operator leaves the seat before engaging the parking brake.
• The safety interlock system will automatically shutoff the engine if the operator leaves the tractor’s seat with the PTO (Blade Engage) lever engaged, regardless of whether the parking brake is engaged.

IGNITION SWITCH

The ignition switch is activated to start the engine, insert the key into the ignition switch, and turn clockwise to the START position. Release the key into the ON position once the engine has fired. To stop the engine, turn the ignition key counterclockwise to the OFF position.

For more manuals about Craftsman, visit ManualsLibraryy

Craftsman LT2000 Lawn Tractor Manual-FAQs
