Deco Chef DGTQAIRGUN 1700W 24QT Toaster Oven Air Fryer

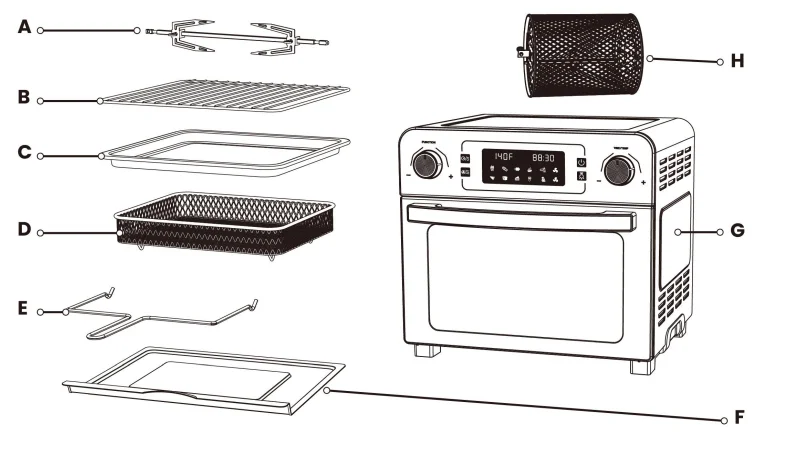

Parts and Accessories:

A. Rotisserie assembly
B. Wire rack
C. Baking pan/drip pan
D. Air fryer basket
E. Fetching rack
F. Removable crumb tray
G. Air fryer oven
H. Rolling cage

A: Rotisserie Shaft, Forks & Set Screws

Use for roasts and whole chickens. Force the shaft lengthwise through the meat and center. Slide Forks onto the shaft from either end into the meat, then lock in place with Set Screws. There are indentations on the shaft for the set screws. The screws are positioned closer to the middle, if needed, but never outward towards the ends.

B: Wire rack

The Wire Rack can be used in three rack positions: bottom, middle, and top.

C: Baking pan

The Baking/Drip Pan can be placed in any of the three rack positions.

D: Air fryer basket

The Air Fryer Basket is designed to allow air to pass through the basket for even cooking. The Air Fryer Basket can only be used in conjunction with either the Baking/Drip Pan or the Wire Rack. The Air Fryer Basket should be placed in the middle rack position unless a recipe states otherwise.

E: Fetch rack

The Fetch Rack is used to remove a rotisserie chicken.

F: Removable crumb tray

The Removable Crumb Tray slides out from the bottom front of the Air Fryer Oven for easy cleaning. Always ensure that the Removable Crumb Tray is placed underneath the bottom heating elements whenever the oven is being used.

H: Rolling cage

Use for popcorn or French fries.

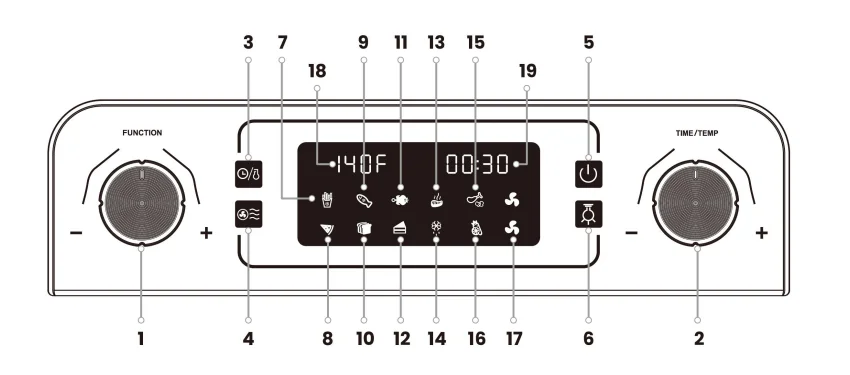

Features and benefits

1. Function selection knob

Use to select different functions.

2. Temperature/Time adjusting knob

Use to adjust the desired time and temperature.

3. Time / Temperature adjust mode switch button

Use to select either time or temperature for adjusting.

4. Fan speed adjust

The oven has two fan speeds: low and high. Pressing this button can switch the fan speed between low and high. One fan icon lights on when the fan works at low speed, two fan icons light on together when under fan works at high speed.

5. Start/ Stop button

Use to start or stop the oven after set well.

6. Oven light

Press this button to turn the Oven Light On or off.

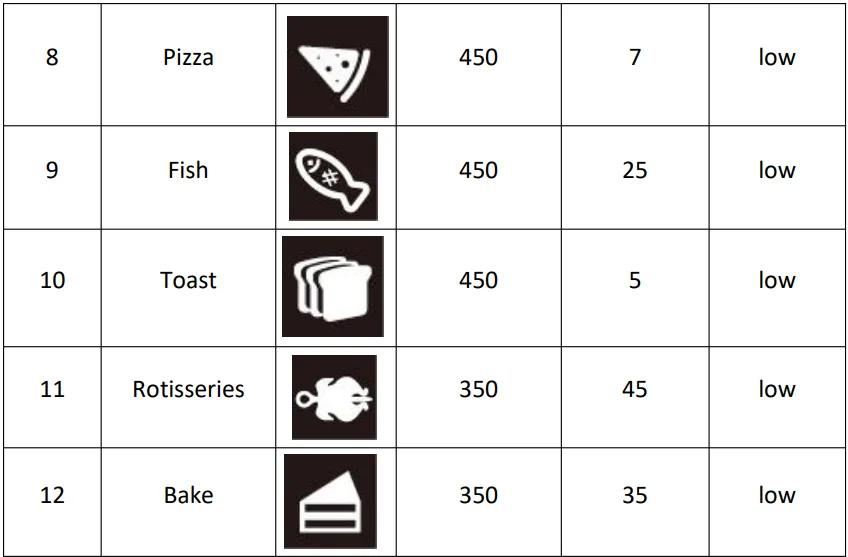

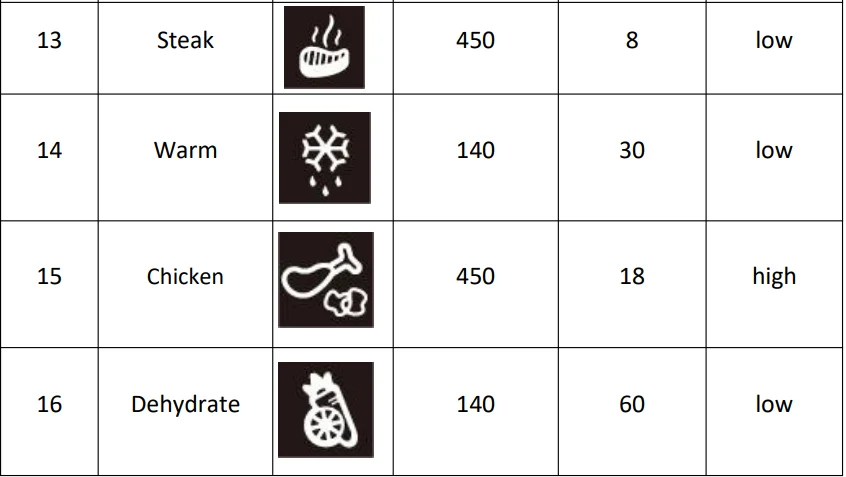

Functions general review.

17. Fan speed indication icon

Works with low fan speed, upper icon light on; works with high fan speed, two fan icons light on together.

18. Temperature display

Digital display for working with temperature.

19. Time display

Digital display for working time.

Oven Rack

There are 3 rack positions: top, middle, and bottom.

Before First Use

Unpack the Air Fryer Oven and remove all packaging materials. Clean the Air Fryer Oven according to the Care & Cleaning section of this manual.
Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2to4inchesaway from the wall or any other objects.
We recommend performing a trial run of your Air Fryer Oven to eliminate any protective substance from the heating elements. Conduct the trial run in a well-ventilated area, as a small amount of smoke and odor may be detected. This is normal and should be expected.

Operating your Oven

Note:

Under each function mode, the time and temperature can be adjusted. If you need a different time and/or temperature, press the Time/Temperature adjust mode button on the top left of the display window. Press once, and the temperature display will flash – then turn the knob on the right side to adjust the temperature. If you want to adjust the time, press the button again. With the second press, the oven enters cooking time adjust mode. The time display will flash, and you can then turn the knob on the right side to set the desired time.
Fan speed: The oven has a unique fan speed adjustment feature. Underneath the function mode, the oven has a default fan speed. If you want to change the fan speed, press the speed selection button to get your desired setting.

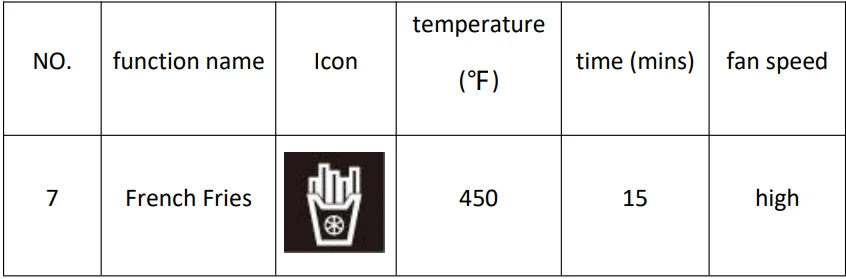

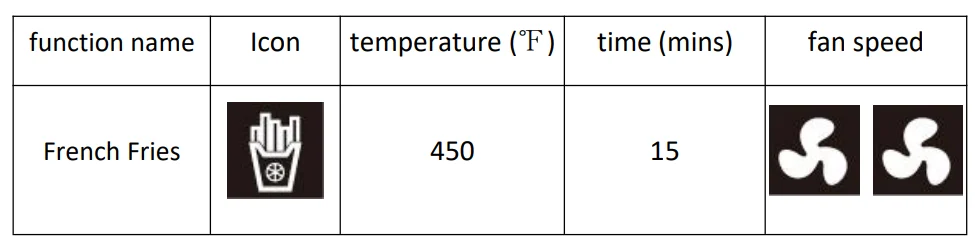

French Fries

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
The Air Fryer Basket can be placed on top of the Wire Rack or in the Baking/Drip Pan. Use the Air Fryer function in the middle or bottom rack position of the oven.
Plug in the oven with power, and the LED shows OFF. In this mode, any knob turn or start/stop button press can activate the machine into standby mode.
Turn the function knob, select the French Fries function. In this mode, time and temperature, and fan speed are displayed as below
Press the start/stop button to turn on the oven. The French fries icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired.
Unplug from the wall outlet when not using the oven.

Pizza

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Place the pizza on the wire rack; then place the wire rack in the middle rack position.
Plug in the oven with power, the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine entering into enter standby mode.
Turn the function knob, select the pizza, under this mode, time and temperature, and fan speed display as below.
Press the start/stop button and turn on the oven. The pizza icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired.
Unplug from the wall outlet when not using the oven.

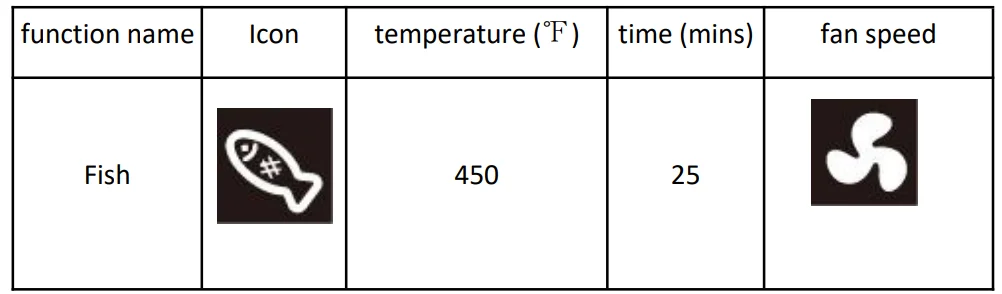

Fish

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Place food on the wire rack; then place the wire rack in the middle rack position.
Plug in the oven with power, and the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine entering into enter standby mode.
Turn the function knob, select the fish function. Under this mode, time and temperature, and fan speed are displayed as below
Press the start/stop button and turn on the oven. The fish icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired.
Unplug from the wall outlet when not using the oven.

Toast

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Place bread on the wire rack; then place the wire rack in the middle rack position.
Plug in the oven with power, the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine entering into enter standby mode.
Turn the function knob, select the function of toast, under this mode, time and temperature, and fan speed display as below.
Press the start/stop button and turn on the oven. The toast icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired.
Unplug from the wall outlet when not using the oven.

Rotisseries

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Place one Rotisserie Fork on the end of the Rotisserie Spit with the center and tighten the Rotisserie Screw.
Slide the solid end of the Rotisserie Spit through the center of the food to be cooked.
Place the other Rotisserie Fork on the other end of the Rotisserie Spit with the Rotisserie Fork facing the roast.
Adjust the roast so that it is centered on the Rotisserie Spit. Make sure the Rotisserie Forks secure the roast on the Rotisserie Spit and tighten the Rotisserie Screws.
When cooking poultry, it is necessary to secure legs and wings to the body with a string to make the roast as compact as possible for the Rotisserie Spit (see trussing instructions).
Season or baste the roast as desired.
Put the solid end (Right Side – see Figure 1) of the Rotisserie Spit in the drive socket on the right interior wall of the oven.
Place the grooved end (Left Side – see Figure 1) of the Rotisserie Spit on the left interior wall of the oven.
Plug in the oven with power, and the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine to enter best by mode.
Turn the function knob, select the rotisserie function of rotisseries. Under this mode, time and temperature, and fan speed are displayed as below.
Press the start/stop button, turn on the oven. The rotisseries icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF.
Unplug from the wall outlet when not using the oven.
Remove the roast from the oven using the Rotisserie Removal Tool, the tool underneath the grooved edges of the Spit. Lift the left side up and towards you at an angle, and slide the right side of the Spit out of the Rotisserie Socket.
Place the roast on a cutting board or platter and allow it to stand for 10-15 minutes.
Using a pot holder, loosen the Rotisserie Screws on the Rotisserie Forks and remove the Rotisserie Spit from the roast.
Carefully remove the Rotisserie Forks and carve the roast.

Trussing Poultry

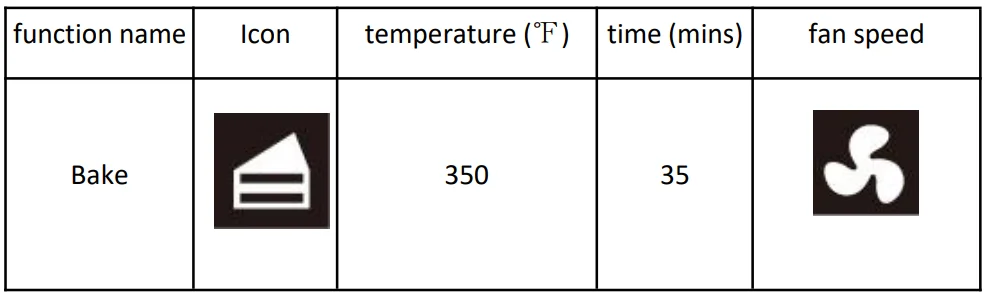

Bake

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Use the Wire Rack on the Baking/Drip Pan when using the Bake function. You can also use bakeware or any oven-safe glassware in your oven if the dimensions do not exceed 12″x12″. Only use the Bake function in the middle or bottom rack position of the oven.
Plug in the oven with power, and the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine entering into enter standby mode.
Turn the function knob to select the function of bake. Under this mode, time and temperature, and fan speed are displayed as below
Press the start/stop button and turn on the oven. The bake icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired.
Unplug from the wall outlet when not using the oven.

Steak

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Place the Baking/Drip Pan in the middle position of the oven.
Plug in the oven with power, and the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine entering into enter standby mode.
Turn the function knob, select the function of steak. Under this mode, time and temperature, and fan speed are displayed as below
Press the start/stop button and turn on the oven. The steak icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired.
Unplug from the wall outlet when not using the oven.

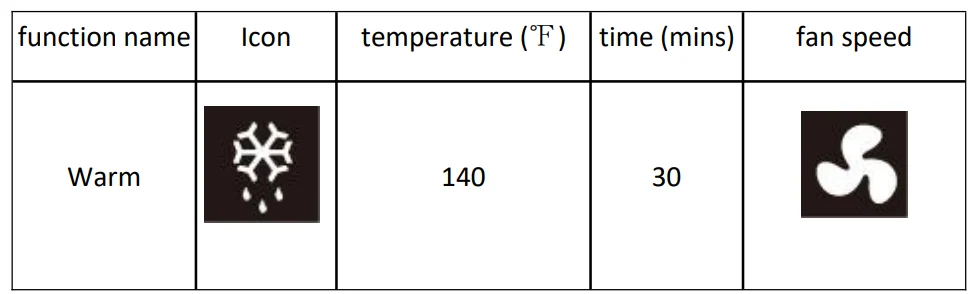

Warm

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Place the Baking/Drip Pan in the middle position of the oven
Plug in the oven with power, and the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine to enter into be mode
Turn the function knob, select the warm. Under this mode, time and temperature, and fan speed are displayed as below
Press the start/stop button and turn on the oven. The warm Conwill flash, the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired.
Unplug from the wall outlet when not using the oven.

Chicken

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Place the Baking/Drip Pan in the middle position of the oven
Plug in the oven with power, the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine entering into enter standby mode.
Turn the function knob, select the function of chicken, under this mode, time and temperature, and fan speed display as below.
Press the start/stop button and turn on the oven. The chicken icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired.
Unplug from the wall outlet when not using the oven.

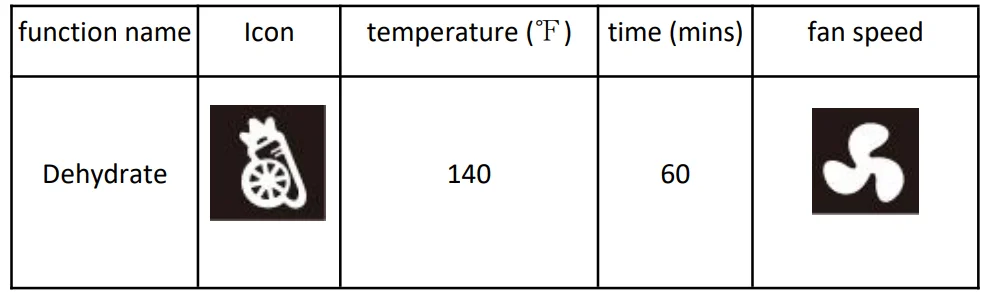

Dehydrate

Place the Air Fryer Oven on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects.
Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
Place the air fry basket in the middle position of the oven. Arrange food evenly on the included air fry basket. For best results, place food in a single layer and leave space between pieces.
Plug in the oven with power, and the LED shows OFF. Under this mode, any knob turn or start/ stop button press can activate the machine entering into enter standby mode.
Turn the function knob, select the function of dehydration. Under this mode, time and temperature, and fan speed are displayed as below
Press the start/stop button and turn on the oven. The dehydrated icon will flash, and the remaining icons shut off. When the set time has expired, the display screen shows OFF. Note: the time/ temperature as well as fan speed can be adjusted as desired. 7. Unplug from the wall outlet when not using the oven

Care & Cleaning

Unplug your Air Fryer Oven and allow it to completely cool before cleaning. Do not use abrasive cleaners, as they will damage the finish. Simply wipe the exterior with a clean, damp cloth and dry thoroughly. Apply the cleaning agent to a cloth, not directly onto the Air Fryer Oven. Do not use excess pressure when cleaning the area of the control panel, as it could cause the text to be removed over time.
To clean the interior walls and bottom of the oven (remove the Removable Crumb Tray first), use a damp soapy cloth or sponge. Never use harsh abrasives or corrosive products, including oven cleaner sprays. These could damage the oven surface. Never use a steel wool pad on the Air Fryer Oven or accessories.
The Wire Rack, Baking/Drip Pan, Air Fryer Basket, and Removable Crumb Tray should be hand-washed in hot, sudsy water or use a nylon scouring pad or nylon brush. These parts are not dishwasher safe.
Always clean the Removable Crumb Tray after each use. Excess food particles could cause smoking and will be hard to remove from the tray. To remove baked-on grease or burnt food particles, you can soak the Removable Crumb Tray in hot, sudsy water or use non-abrasive cleaners. Never operate the oven without the Removable Crumb Tray in place.
The Rotisserie Spit, Forks, Screws, and Removal Tool can be cleaned with a cloth or sponge in hot, sudsy water. For stubborn stains, soak them in hot sudsy water prior to cleaning.
The top interior of the Air Fryer Oven should be cleaned to remove excess grease that may accumulate after cooking greasy foods or after using the rotisserie function. Doing so will prevent smoking in the oven during subsequent uses.

Manufacturer’s 1-Year Limited Warranty

The manufacturer warrants that all parts and components are defect-free in materials and workmanship for 1 year. This warranty is valid only in accordance with the conditions set forth below:

The warranty extends only to the original consumer purchaser and is not transferable. In addition, proof of purchase must be demonstrated.
This limited warranty is the only written or express warranty given by the manufacturer. Any implied warranty of merchantability or fitness for a particular purpose on this product is limited in duration to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary by state

Procedure for Replacement or Return within the 1 Year:

To return the product for replacement or refund within the 1 year, the original purchaser must pack the product securely and send it postage paid with a description of the reason for replacement or refund, proof of purchase, and include your order number on the package, to the following address:

Deco Chef
80 Carter Drive
Edison, NJ 08817
