DeLonghi Portable Air Conditioner User Manual

DeLonghi Portable Air Conditioner

Important safeguard

• Use this appliance only as described in this instruction manual. As with any electrical appliance, the instructions aim to cover as many situations as possible.
  Caution and common sense should be used when operating and installing this air conditioner.
• This appliance has been manufactured to cool and dehumidify domestic environments and must not be used for other purposes.
• It is dangerous to alter or modify the unit’s characteristics in any way.
• The appliance must be installed in accordance with the relevant national legislation.
• Should repairs be necessary, contact the nearest authorized Repair Service Center. Unauthorized servicing can be dangerous.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance

INTRODUCTION

• Thank you for choosing a De’Longhi product. Please take a few moments to read the instructions to avoid risks or damage to the appliance.

DESCRIPTION

Description of the appliance (see page 3 – A)

• A1 air outlet grille
• A2 control panel
• A3 handles
• A4 castor wheels
• A5 BioSilver filter
• A6 air intake grille
• A7 air exhaust hose housing
• A8 air intake grille
• A9 power cable
• A10 drainage hose with 2 caps
• A11 remote control signal receiver
• A12 remote control compartment

Description of the accessories (see page 3 – B)

• B1 wall flange with cap
• B2 air exhaust hose
• B3 hose adaptor
• B4 accessory for wall mounting
• B5 window bracket with pins
• B6 additional window bracket
• B7 window outlet
• B8 remote control
• B9 end of season dust cover
• B10 end of season accessories bag

Electrical connection

Before plugging the appliance into the outlet, check that:

• The outlet’s power supply corresponds to the value indicated on the rating label on the back of the appliance;
• The outlet and electrical circuit are adequate for the appliance;
• The outlet is a 3-hole grounded outlet. If this is not the case, you must choose another outlet. Failure to follow these important safety instructions absolves the manufacturer of all liability.
• If it becomes necessary, the power cable must be replaced by a qualified professional only. The instructions below will enable you to prepare your air conditioner for operation as efficiently as possible. Before use, make sure the air intake and outlet grilles are unobstructed.

USE

AIR CONDITIONING WITHOUT INSTALLATION

For optimal results, set up in a double-hung window:

• 1) Place the bracket in the window sill, extend the bracket fully within the window frame, fix the bracket by using the pin, then lower the window onto the bracket. (Should the window bracket be too large for the window. The plastic can be cut with a saw by a qualified professional.)
• 2) Screw the hose adaptor B3 to the hose’s end B2.

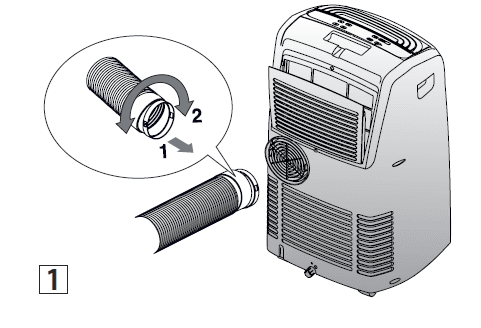

• 3) Fit the air exhaust hose in the housing at the back of the appliance. Insert it as shown in Figure 1.
• 4) Connect the window outlet B7 to the other end of the exhaust hose.

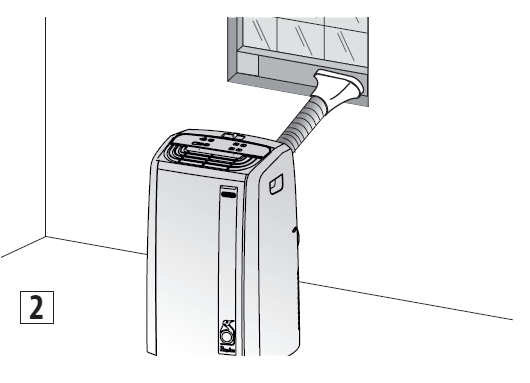

• 5) Insert the window outlet end of the exhaust hose into the slot of the window bracket (fig. 2).

Other set-up methods:

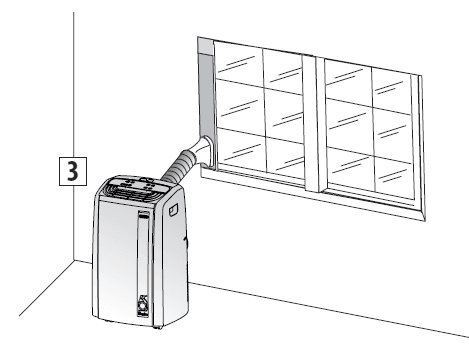

• Thanks to the locking pins, it’s possible to use the window bracket also for sliding windows. Position the hole of the bracket so to allow a correct installation of the exhaust hose (see figure 3).

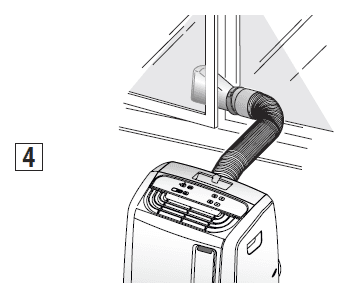

• If you have a casement window (figure 4) follow steps 2 & 3 and place the window outlet B7 outside the window to exhaust the hot air.

SEMI-PERMANENT INSTALLATION

• If required, your appliance can also be installed semi-permanently (Fig. 5).

Proceed as follows:

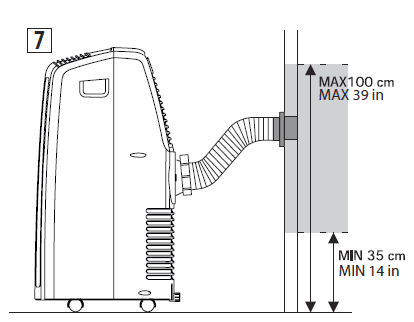

• Drill a hole ø 5,25 inches (134 mm) in an outside wall or through a window pane. Respect the dimensions and height of the hole given in figure 6 and 7.

As special tools are required for installation, we suggest you have the appliance installed by specialized personnel.

• Fit the wall flange B1 into the hole.
• Fit the air exhaust hose B2 in the relevant housing located on the rear side of the appliance. (fig. 1).
• Fit the end of the hose B2 to the wall flange B1 as shown in fig. 7.
• When the hose B2 is not connected, the drilled hole can be closed with the flange cap B1.
• NOTE: When installing the air conditioner semi-permanently, you should leave a door slightly open no more as 1/2“ (1 cm) to guarantee correct ventilation and room pressure.
• NOTE: Keep the air hoses as short and free of curves as possible to avoid constrictions.

CONTROL PANEL

DESCRIPTION OF THE CONTROL PANEL (C)

• C1 ON/STAND-BY button
• C2 MODE selection button (conditioning, dehumidifying, fan, heating)
• C3 Timer button
• C4 Increase temperature/programmed operation time button
• C5 Decrease temperature/programmed operation time button
• C6 Fan speed selection button (LOW/MED/HIGH/AUTO)
• C7 WHISPER COOL selection button
• C8 REAL FEEL selection button
• C9 REAL FEEL light
• C10 Air-conditioning symbol
• C11 Dehumidifying symbol
• C12 Fan symbol
• C13 Heating symbol
• C14 Timer symbol
• C15 Alarm symbol
• C16 REAL FEEL symbol
• C17 WHISPER COOL symbol
• C18 Temperature value set, programmed delayed ON/OFF time
• C19 Fan speed indicator
• C20 Timer indicator
• C21 Temperature selected scale indicator
  Note: The panel buttons are backlit but only the buttons relevant to the active function will be on. After a few seconds of the control panel inactivity, its brightness will be automatically reduced and in the next few minutes it will be further reduced.

OPERATING FROM THE CONTROL PANEL

TURNING THE APPLIANCE ON/OFF

• Before plugging the appliance, check that the cap on the back of the unit is correctly inserted on the drainage hose A10
• Plug the appliance into the mains. Two lines appear on the display, indicating that the appliance is in stand-by and the buttons and light on.
• Touch button (C1) to switch the appliance on. When turned on, the air conditioner starts operating in the same mode as when it was turned off.
• Note: If you don’t switch on the appliance, after a few minutes, the and buttons switch off and the display fades to reduce energy consumption. To turn off the appliance, touch the button, then unplug the appliance.
• Note: Never switch off the appliance by unplugging it: always use the button, wait a few minutes, and then unplug. Doing so, the appliance will run a check of the operating conditions

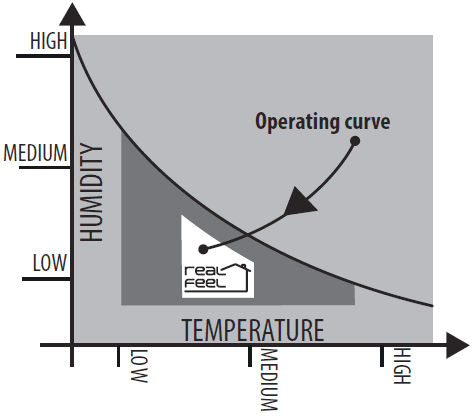

• REAL FEEL light (C9) changes color when approaching the best comfort level (see following diagram).
• ORANGE LIGHT: Room conditions far from optimal level.
• GREEN LIGHT: Most people feel good about room conditions, near optimal level.
• BLUE LIGHT: Best comfort level.
• The well-being feeling is a subjective condition: for this reason, different people may judge differently the same environmental conditions.
• In particularly severe environmental conditions (large size of the environment, high temperature or humidity outside, poor insulation of the room, too many of people or strong heat load in the room, strong exposure to the sun …) this device may not be able to reach the best comfort level.

AIR CONDITIONING MODE

Ideal for hot muggy weather when you need to cool and dehumidify the room. To set this mode:

• Touch repeatedly the MODE button until the conditioning symbol is displayed: the display shows the desired temperature.
• Press + (C4) or – (C5) buttons to adjust the desired temperature.
• Select the fan speed by pressing the button (C6)

DEHUMIDIFYING MODE

Ideal to reduce room humidity (spring and autumn, damp rooms, rainy periods, etc). In dehumidifying mode, the appliance MUST be set-up in the same way as for air conditioning, with the air exhaust hose (B2) attached to enable the moisture to be discharged outside. To set this mode:

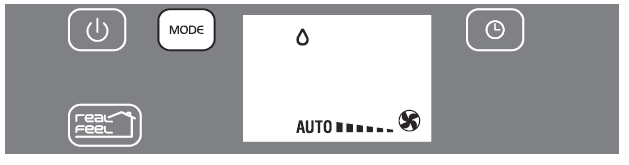

• Touch repeatedly the MODE button until the dehumidifying symbol is displayed

SETTING THE TIMER

How to program a delayed startup

• Plug the appliance into the mains and turn the unit to standby.
• Touch the timer button (C3): the timer symbol (C13) and the number of hours come on.
• Use the + (C4) or – (C5) buttons to set the number of hours delay before the appliance comes on.
• The appliance works using the mode previously set. The appliance can be set to come on within the next 24 hours. A few seconds after set, the setting is memorised, the timer symbol is lit and the display shows that the appliance is in standby.
• To delete the setting, touch the timer button (C3). The timer symbol (C13) switches off.

DESCRIPTION OF THE REMOTE CONTROL (D)

• D1) ON/STAND-BY button
• D2) Increase/decrease temperature/programmed operation
• D3) “MODE” selection button
• D4) Fan speed selection button
• D5) REAL FEEL selection button
• D6) WHISPER COOL selection button
• D7) Switch button °C/°F
• D8) TIMER button

INSERTING OR REPLACING THE BATTERIES

• Remove the cover on the rear of the remote control;
• Replace the old batteries with two new R03 “AAA” 1.5V batteries, inserting them correctly (see the instructions inside the battery compartment);
• Replace the cover.

MODE SELECTION

• The controls on the remote control are the same as those on the control panel of the appliance (C). You should therefore refer to the instructions in the chapter “OPERATING FROM THE CONTROL PANEL” to select the desired functions. Press button D7, to switch the temperature display from °C to °F and vice versa

SELF-DIAGNOSIS

• The appliance has a self-diagnosis system to identify a number of malfunctions. Error messages are displayed on the appliance display.

IF … IS DISPLAYED

• Low Temperature (frost prevention)
• WHAT SHOULD I DO?
• The appliance is fitted with a frost protection device to avoid excessive formation of ice. The appliance starts up again automatically when the defrosting process is completed

TIPS FOR CORRECT USE

To ensure optimal results from your air conditioner, follow these recommendations:

• close the windows and doors in the room to be air conditioned. When installing the air conditioner semi-permanently, you should leave a door slightly open (as little as 0.39 inch (or 1 cm) to guarantee proper ventilation.
• Never use the appliance in very damp rooms (laundries for example).
• Protect the room from direct exposure to the sun by partially closing curtains and/or blinds to make the appliance much more economical to run

CLEANING

CLEANING THE CABINET

• You should clean the appliance with a slightly damp cloth, then dry with a dry cloth. For safety reasons, never wash the air conditioner with water.
• Precautions
• Never use petrol, alcohol or solvents to clean the appliance. Never spray insecticide liquids or similar.

CLEANING THE BIO SILVER AIR FILTER

• If the filter is dirty, air circulation is compromised and the efficiency of the dehumidifying and air purifying functions decreases.
• It is therefore good practice to clean the filter at regular intervals. The frequency depends on the duration and conditions of operation.
• If the unit is used constantly or systematically, you are recommended to clean the filter once a week. The filter is housed in the intake grille. To clean the filter, extract as shown in Fig. 12
• Use a vacuum cleaner to remove the dust collected on the filter. If it is very dirty, immerse it in warm water and rinse it a number of times. The water should never be hotter than 104°F.
• After washing the filter, allow it to dry completely before repositioning it. The BioSilver filter helps capture dust and pollen and reduces the growth of bacteria and mold on the filter.

END OF SEASON OPERATIONS

• To drain all water from the circuit, remove the external cap by unscrewing it in the anticlockwise direction, then, remove the internal cap from the drainage on the back of the appliance and allow the water to drain out into a basin (fig. 13).
• In order to properly store the appliance at the end of the season, we suggest you cover it with the supplied end of season dust cover B9, and you put the accessories in the relevant end of season accessories bag B10.

TECHNICAL SPECIFICATIONS

• Power supply voltage, see rating label
• Max. absorbed power during air conditioning “ Refrigerant “
• Cooling capacity

TROUBLESHOOTING
