Delta Children Richmond 6-in-1 Convertible Baby Crib

BABY SAFE SLEEP TIPS

• Read all warnings and follow all instructions.
• DO NOT place any items in the crib.
• The safest place for your baby to sleep is in a JPMA Certified crib.
• Your baby should sleep on a firm mattress.
• Adult beds are not safe for babies: NEVER co-sleep.
• Pillows and blankets have caused infants to suffocate. NEVER use in a crib.
• NEVER place the crib near a window or any wall hangings.
• Missing or broken parts, any questions? www.DeltaChildren.com/Help

FURNITURE SAFETY TIPS

• Read all warnings and follow all instructions.
• NEVER open more than one drawer at a time.
• ALWAYS use the provided tipover restraints.
• DO NOT set TVs or other heavy objects on the top of bedroom or nursery furniture.
• Place the heaviest items in the lowest drawers.
• DO NOT leave drawers open when not in use.
• NEVER allow children to climb or hang on drawers, doors, or shelves.
• Missing or broken parts, any questions? www.DeltaChildren.com/Help

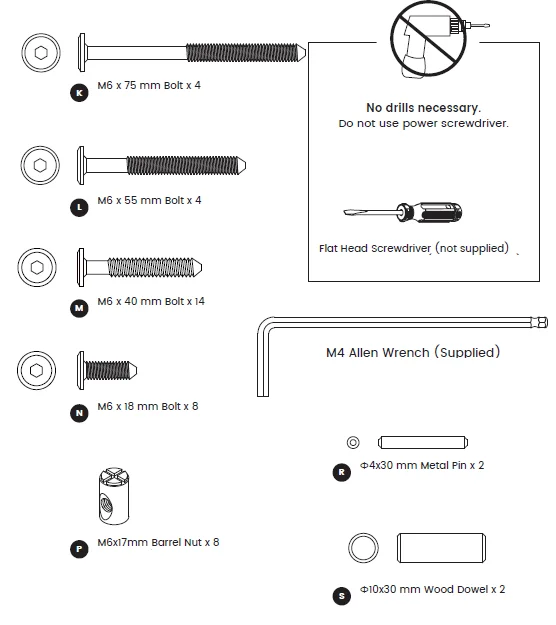

PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT

Pouch attached to mattress support- keep instructions in this pouch after assembly. Warnings related to the safe use of this crib are printed on the pouch.

SECTION 1: CRIB ASSEMBLY, STEP 1

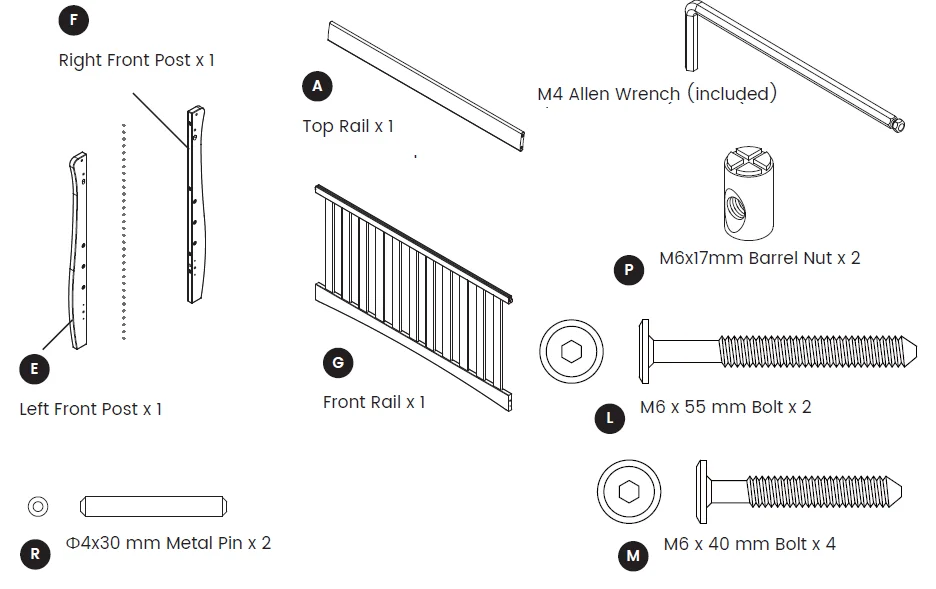

Parts and tools required to complete step

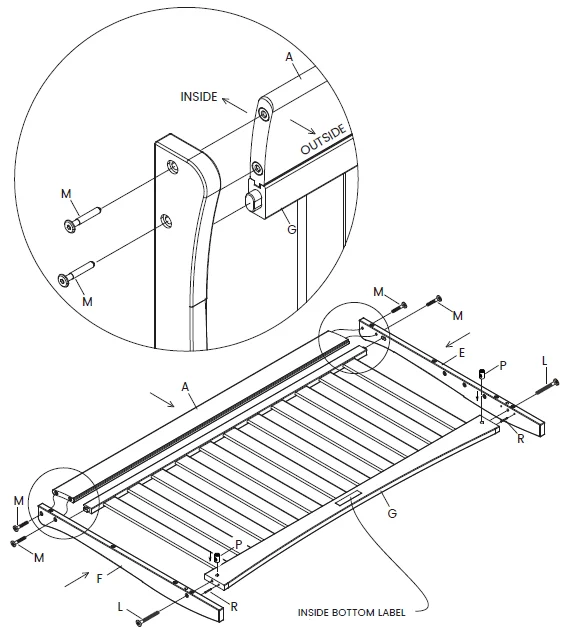

Attach (1) Right Front Post (Part F) and (1) Left Front Post (Part E) to (1) Top Rail (Part A) and (1) Front Rail (Part G) using (2) Φ4×30 mm Metal Pins (Part R), (4) M6 x 40 mm Bolts (Part M), (2) M6 x 55 mm Bolts (Part L) and (2) M6x17mm Barrel Nuts (Part P). Tighten with the M4 Allen Wrench. Use the Flat Head Screwdriver to hold the Barrel Nut in the proper alignment.

Note: Follow the diagram carefully to ensure the curved top rail is installed correctly.

SECTION 1: CRIB ASSEMBLY, STEP 2

Parts and tools required to complete the step

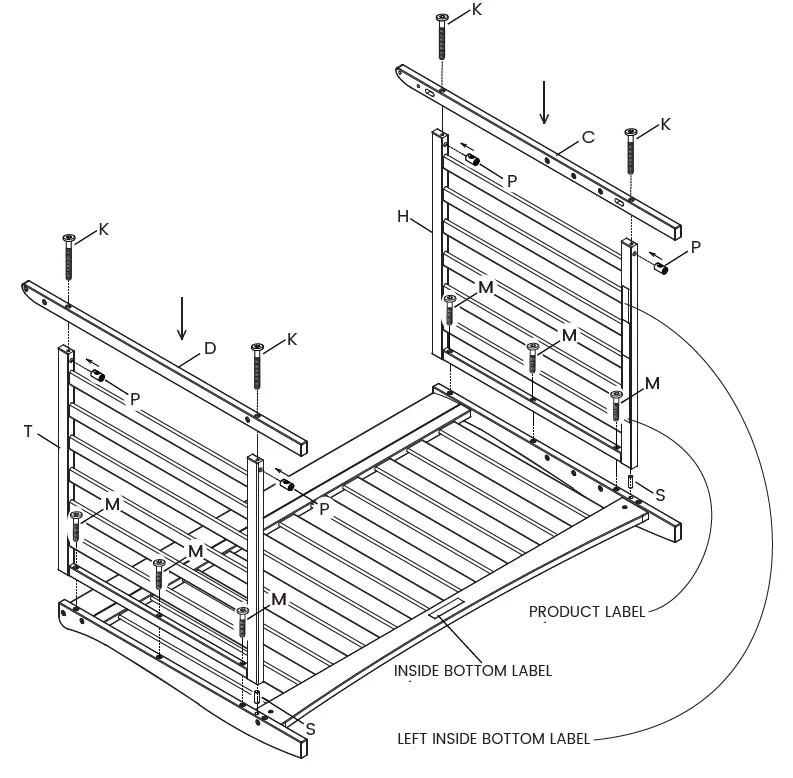

Attach (1) Left Crib Side (Part H), (1) Right Crib Side (Part T), (1) Left Back Post (Part C), and (1) Right Back Post (Part D) to the assembly from step 1 using (2) Φ10×30 mm Wood Dowels (Part S), (6) M6 x 40mm Bolts (Part M), (4) M6 x 75 mm Bolts (Part K), and (4) M6x17mm Barrel Nuts (Part P). Tighten with the M4 Allen Wrench. Use the Flat-Head Screwdriver to hold the Barrel Nut in proper alignment.

SECTION 2: CRIB ASSEMBLY, STEP 3

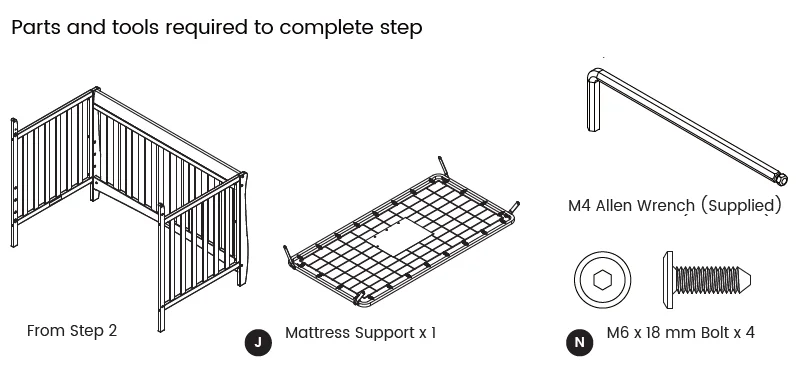

Parts and tools required to complete the step

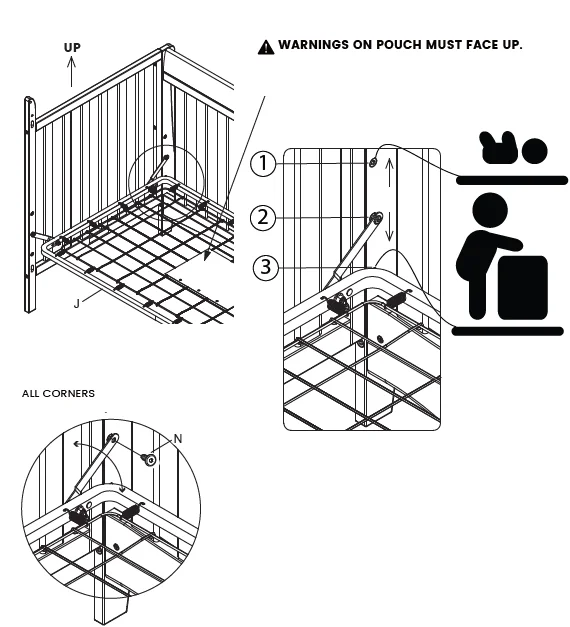

Attach the Mattress Support (Part J) in all corners using (1) M6x18 mm Bolt (Part N) in each corner. Tighten with the M4 Allen Wrench.

The WARNINGS printed on the pouch attached to the mattress support must face up; the springs must face up. This crib has (3) adjustment positions; use the highest only for newborns; move the mattress down as the child grows.

WARNING: Fall Hazard: When the child can pull to a standing position, set the mattress to the lowest position and remove bumper pads, large toys, and other objects.

To adjust the mattress support to 1 of the 3 height positions, remove the 18mm bolts (Part N). Then install in the desired location.

SECTION 1: CRIB ASSEMBLY, STEP 4

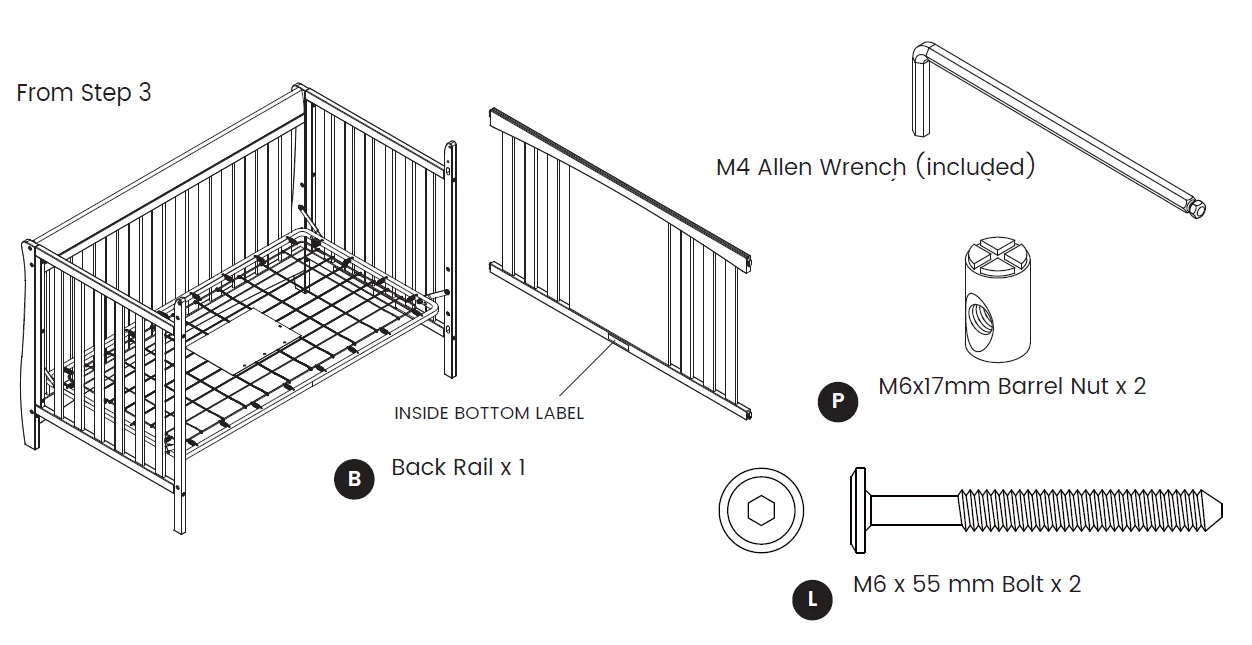

Parts and tools required to complete the step

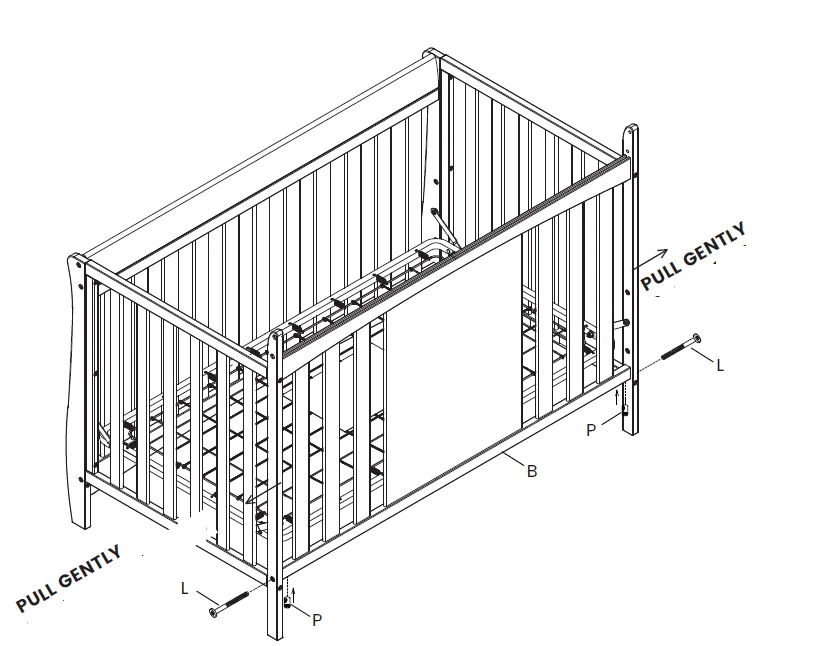

Attach (1) Back Rail (Part B) to the assembly from step 3 using (2) M6 x 55 mm Bolts (Part L) and (2) M6 x 17mm Barrel Nuts (Part P). Tighten with the M4 Allen Wrench. Use the Flat Head Screwdriver to hold the Barrel Nut in the proper alignment.

SECTION 1: CRIB ASSEMBLY, STEP 5

Parts and tools required to complete the step

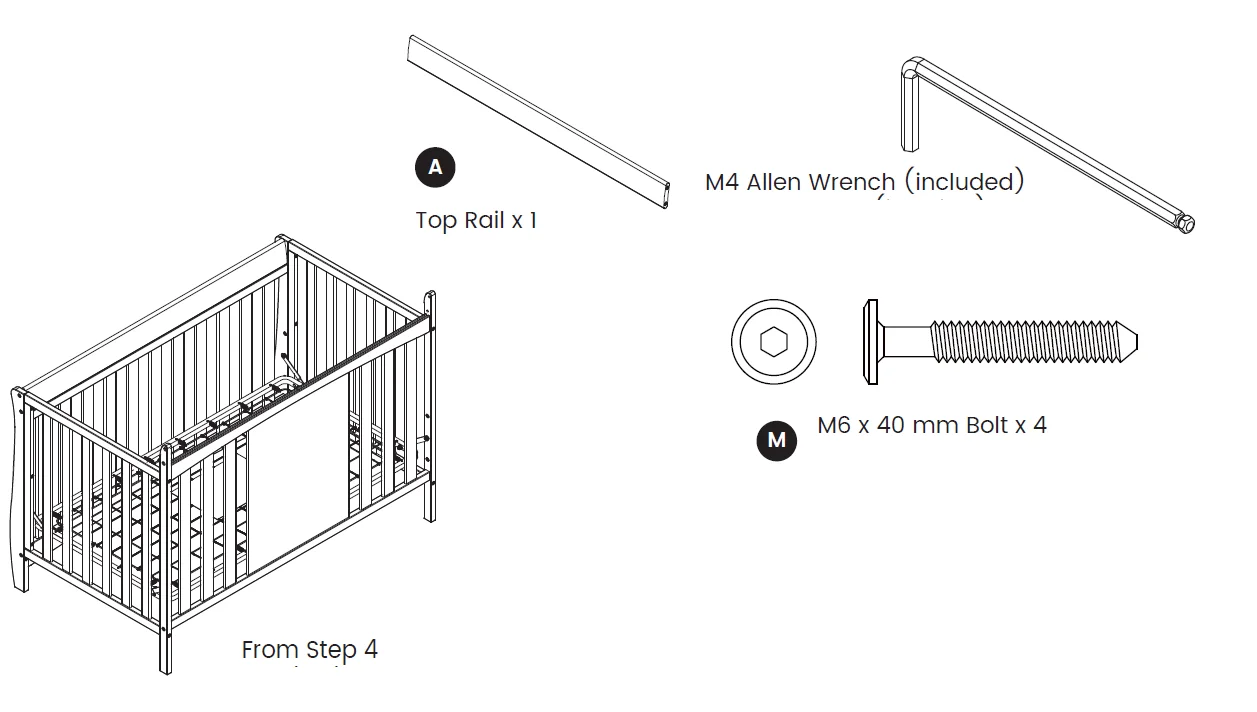

Attach (1) Top Rail (Part A) to the assembly from step 4 using (4) M6 x 40 mm Bolts (Part M). Tighten with the M4 Allen Wrench.

Note: Follow the diagram carefully to ensure the curved top rail is installed correctly.

SECTION 1: STORING INSTRUCTION BOOKLET

Parts and tools required to complete the step

Assembly Instruction Booklet

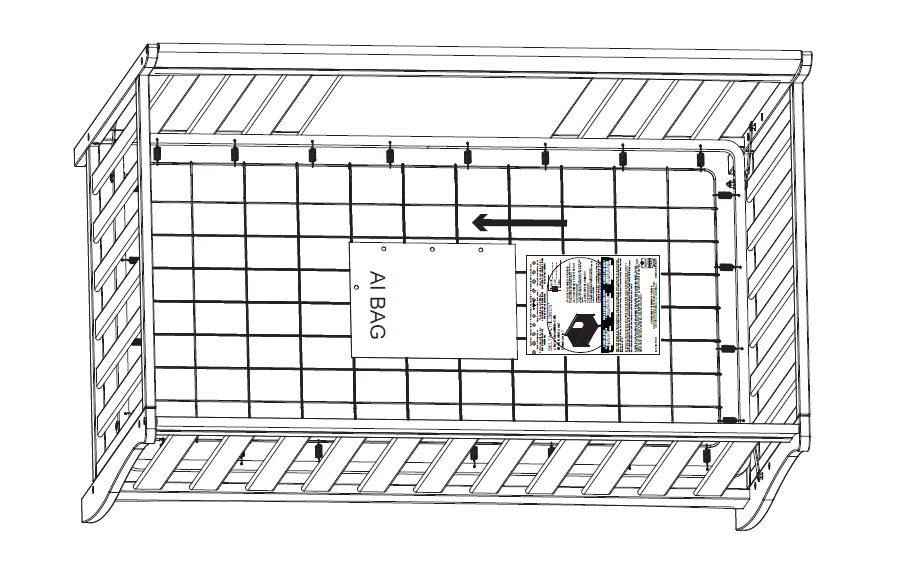

Store the assembly instruction booklet in the pouch attached to the mattress support. Store all parts and tools separately, in a safe place.

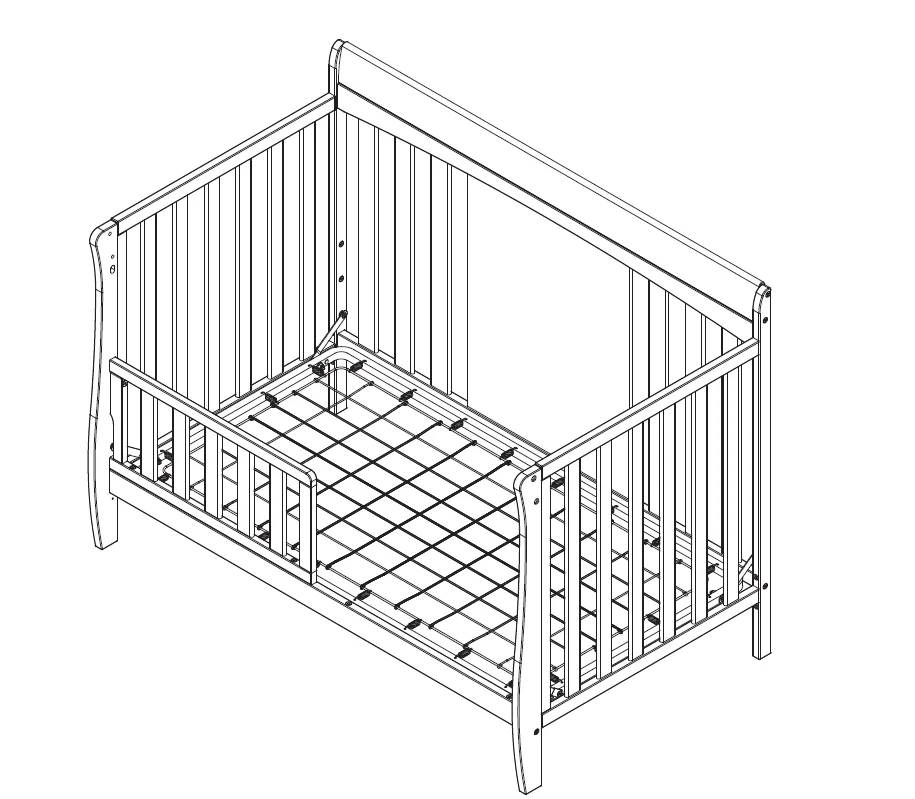

SECTION 2: TODDLER BED GUARDRAIL & DAYBED RAIL

A toddler bed guardrail & daybed rail is available for this crib. Please see your crib retailer, visit www.DeltaChildren.com, or contact Delta Consumer Care for more information. This crib uses Style # W147725 Guardrail.

CAUTION:

WARNING:

• *Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant.
• *Failure to follow these warnings and the assembly instructions could result in serious injury or death. DO NOT use this crib if you cannot exactly follow the accompanying instructions.
• *To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.
• *Strangulation Hazard: STRINGS CAN CAUSE STRANGULATION! Do not place items with a string around a child’s neck, such as hood strings or pacifier cords. Do not suspend strings over a crib or attach strings to toys.
• *Strangulation Hazard: To help prevent strangulation, tighten all fasteners. A child can trap parts of the body or clothing on loose fasteners.
• *Strangulation Hazard: Do not place the crib near a window or patio door where cords from blinds or drapes may strangle a child.
• *Fall Hazard: When the child can pull to a standing position, set the mattress to the lowest position and remove bumper pads, large toys, and other objects that could serve as steps for climbing out. This crib has an adjustable mattress support. For the convenience of the parent when the baby is very small, the mattress support may be used in the highest position. Important: with the mattress support and mattress in the highest position, be absolutely sure that the top of the front crib side is at least 3 inches higher than the top surface of the mattress. If it is not, lower the mattress support and the mattress to the next highest position.
• *Fall Hazard: Stop using the crib when the child begins to climb out or reaches a height of 35in. (89cm), whichever occurs first. The child should be placed in a youth or regular bed.
• *Check this product for damaged hardware, loose joints, loose bolts or other fasteners, missing parts, or sharp edges before and after assembly and frequently during use. Securely tighten loose bolts and other fasteners. Do not use the crib if any parts are missing, damaged, or broken. Contact Delta Children’s Products for replacement parts and instructional literature if needed. Do not substitute parts.
• *Follow warnings on all products in a crib.
• *If refinishing, use a non-toxic finish specified for children’s products.
• *Never use plastic shipping bags or other plastic film as mattress covers because they can cause suffocation.
• *Infants can suffocate in gaps between crib sides and a mattress that is too small.
• *Ensure a safe environment for the child by checking regularly, before placing the child in the crib, that every component is properly and securely in place.
• *To avoid head injury, do not allow any child to play underneath the crib.
• *Never add an accessory such as a bassinet or changing table that extends over the sleeping area.
• *In Canada Only – Use a crib mattress that is no thicker than 15 cm and is of such a size that, when it is pushed firmly against any side of the crib, it does not leave a gap of more than 3 cm between the mattress and any part of the sides of the crib. Do not use this crib for a child who can climb out of it or who is taller than 90 cm.

SAFETY LEADERS

Visit Deltachildren.Com/Pages/Leaders-In-Safety for more information

• SAFE MATERIALS: Safe products start with safe materials. We test all of our products to create the safest and healthiest environment for your baby.
• PRODUCTS YOU CAN TRUST: We have 8 cutting-edge safety labs around the world where we test our products above and beyond the industry standards. All of our cribs are JPMA certified to meet or exceed all safety standards set by the CPSC & ASTM.
• WE GO ABOVE & BEYOND: Mattress Support Test simulates a baby jumping up and down in the crib. Delta Standard: 3,000 impacts, Federal Standard: 750 impacts. To see more tests, visit DeltaChildren.com
• SLEEP SOUNDLY WITH DELTA CHILDREN: The crib is the only place you leave your newborn unattended. You can sleep soundly knowing that your little one is safe in a Delta Children crib!

SECTION 3: FULL-SIZE BED CONVERSION, STEP 1

Parts and tools required to complete the step

You have the option to convert the crib to a full-size bed.

1. Simply follow the steps in reverse order to disassemble the crib.
2. The Footboard is the Front Rail assembly done through step 1 of section 1.

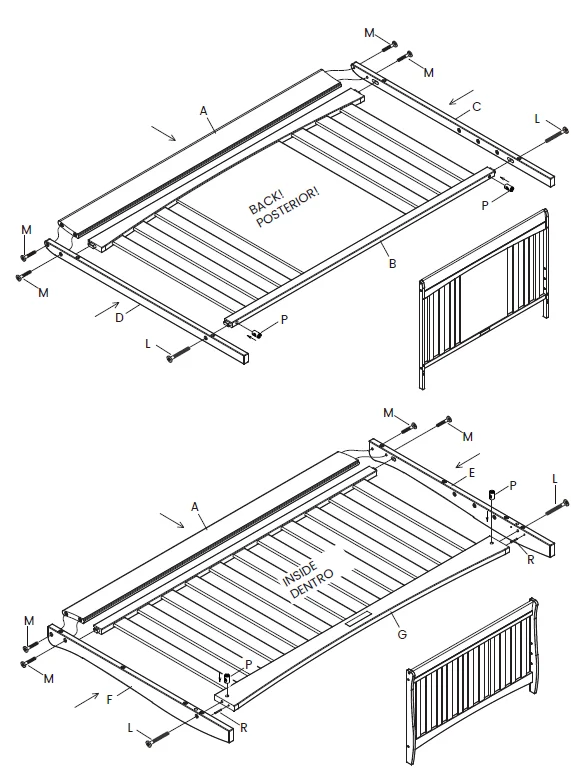

3. To create the Headboard, assembled the Left Back Post (Part C), Right Back Post (Part D), Top Rail (Part A) and Back rail (Part B) using (4) M6 x 40 mm Bolts (Part M), (2) M6 x 55mm Bolts (Part L) and (2) M6 x 17mm Barrel Nuts (Part P). Tighten with the M4 Allen Wrench. Use the Flat Head Screwdriver to hold the Barrel Nut in the proper alignment.
4. Store all parts and hardware in a safe place.

SECTION 3: FULL-SIZE BED CONVERSION, STEP 2

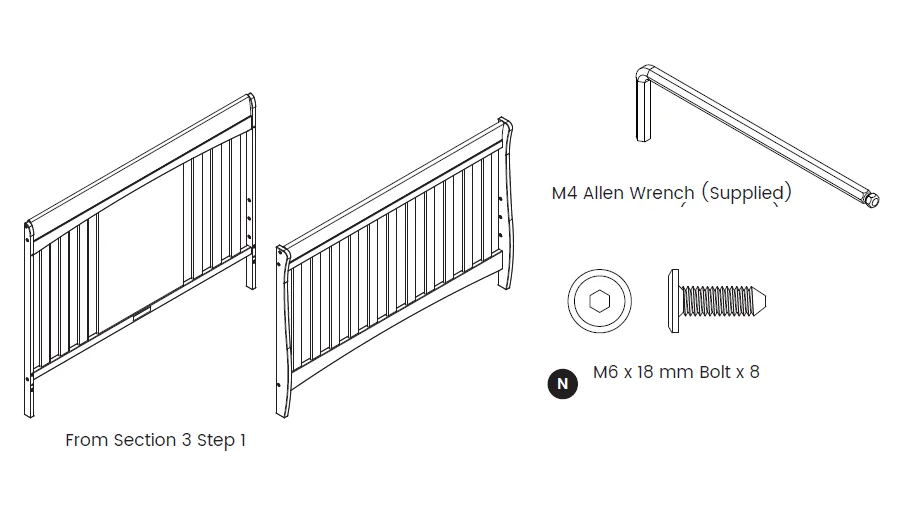

Parts and tools required to complete the step

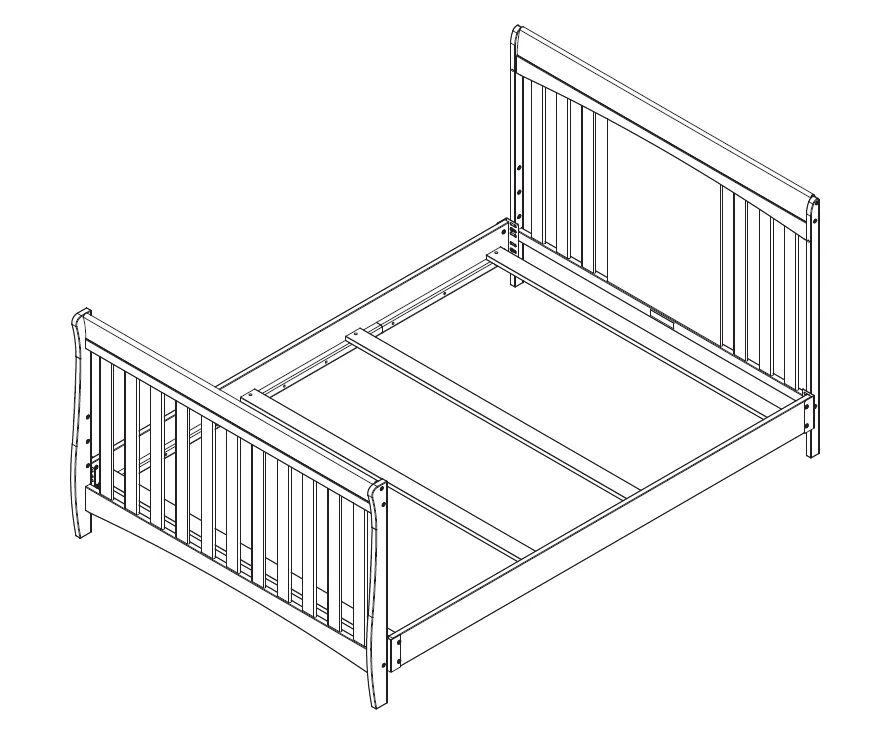

Attach Bed Rails to the Headboard (From Section 3 Step 1) and Footboard (From Section 3 Step 1) using (8) M6 x18mm Bolts (Part N). Follow all instructions supplied with the Bed Rails. This crib uses Style # 0050 Conversion Rails to convert to a full-size bed (pictured below).
Note: Bed Rail System is not included; see your furniture or mattress retailer. Contact Delta Children’s Products for information or with questions..

NOTE: SHOWN AS A FULL-SIZE HEADBOARD AND FOOTBOARD, NOT ALL BED RAIL SYSTEMS ALLOW USE OF A FOOTBOARD.
As an alternative, this item can be set up with only a headboard using Delta Item #0040 Metal Bed Frame (not pictured).

Limited Warranty:

This Delta Crib is warranted to be free from defects for a period of 1 year from the date of purchase under normal use. If a product is defective during this period, we will at our option repair or replace the defective part or product. This limited warranty extends only to the original retail purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta. This limited warranty does not cover the following:

• Products purchased as floor models or samples.
• Items purchased on an “as-is” basis, as a second-hand product, or as a resale product.
• Items purchased at a Final sale, a “Going out of Business” sale, or a Liquidation sale.
  This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To register your product for important safety alerts and updates to your product, please visit www.deltachildren.com

To report a problem, please log on to www.deltachildren.com/help
