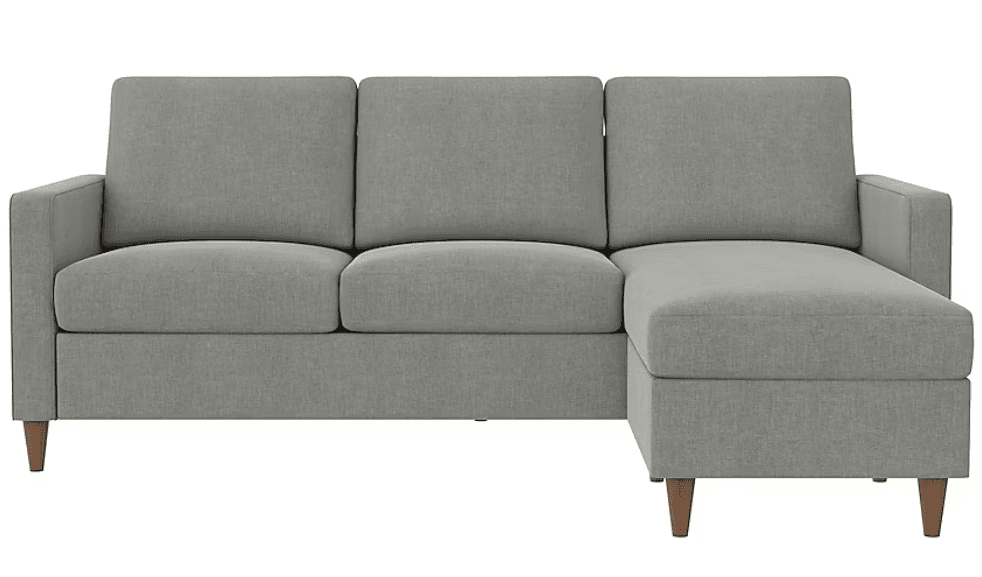

Dorel Home Products 2489429LO Sectional Sofa Instruction Manual

Dorel Home Products 2489429LO Sectional Sofa

Limited 1 year Warranty

• Dorel warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the
  date of original purchase from authorized retailers. This is solely limited to the repair or replacement of defective parts and assembly labor is not included.
  This warranty does not apply to any product which has been improperly assembled, subjected to misuse or abuse or which has been altered or repaired in
  any way.
• The warranty does not cover wearing, tearing, fading or splitting of the fabric (where applicable). Liability for consequential damages is excluded to the extent exclusion is permitted by law. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to
  province.
• To obtain warranty service, purchaser must present original bill of sale. Components repaired or replaced are warranted through the remainder of the original warranty period only. The defective components will be repaired or replaced without charge, subject to the terms and conditions described above. Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and Canada.

PARTS

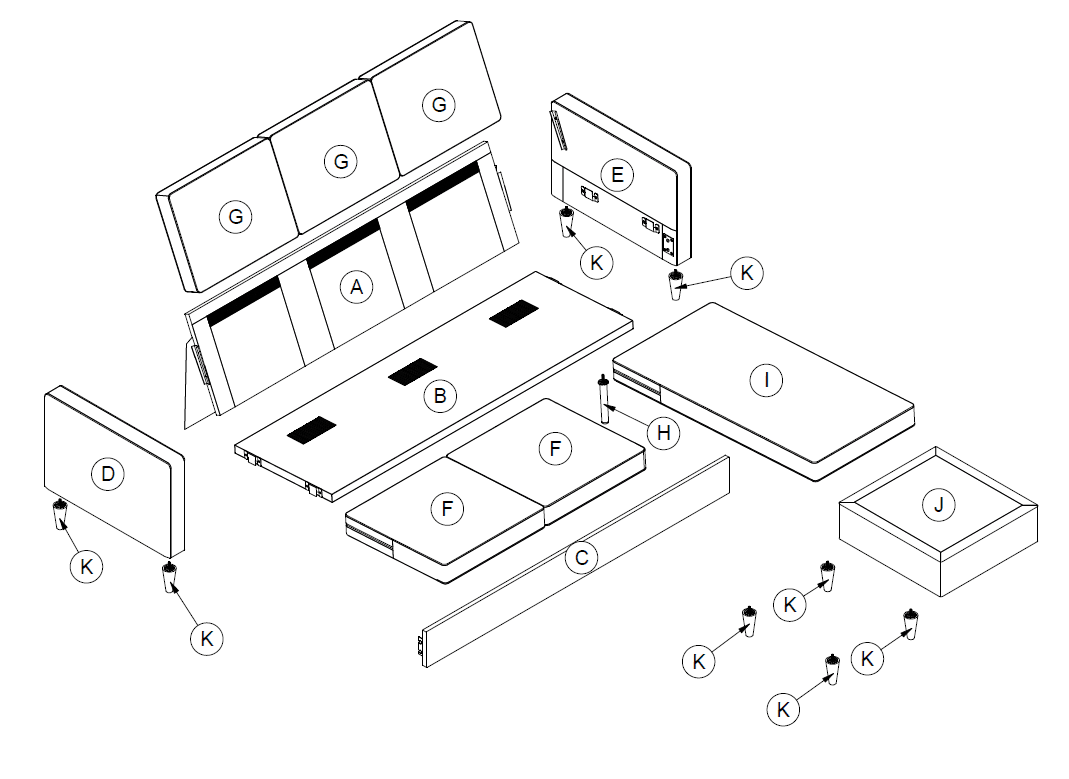

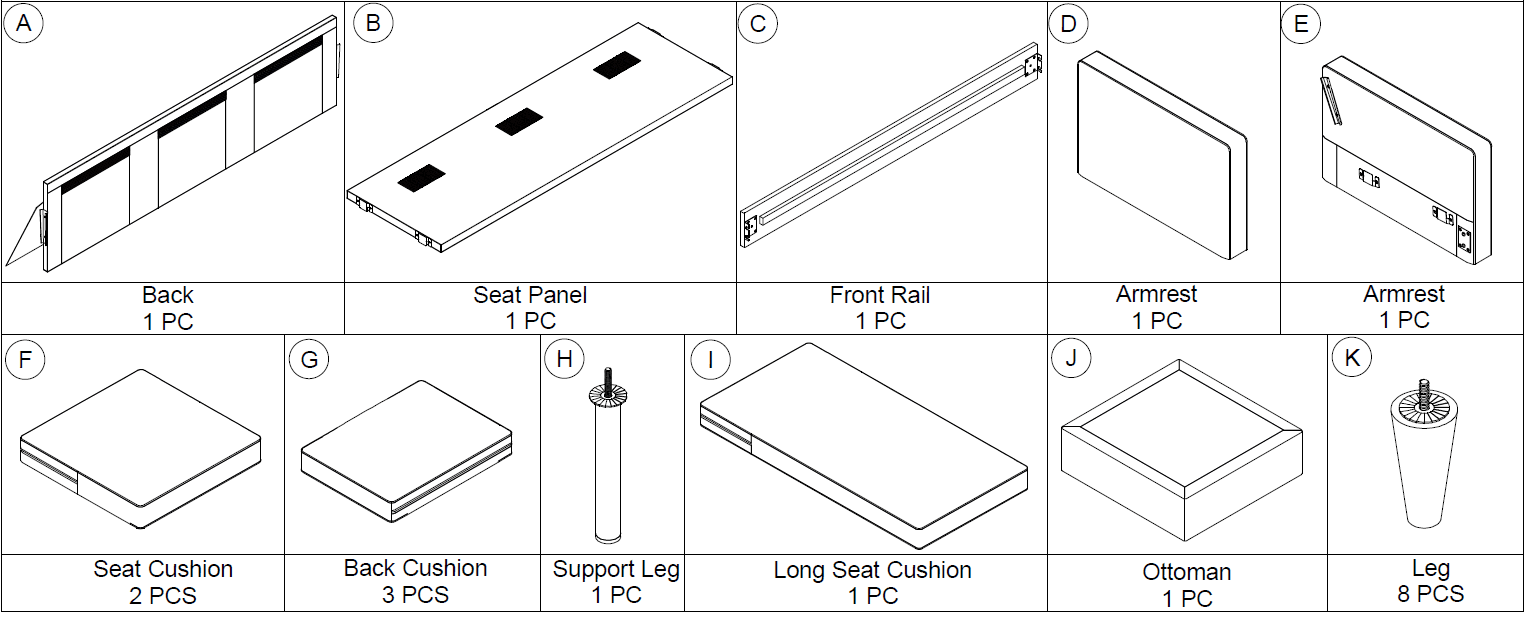

PARTS LIST

• Each part has a unique part number. Please reference the appropriate part number when contacting customer service for replacement parts.
• Before throwing any packaging, please verify all contents and make sure you have received all the parts listed above


  PART NUMBERS
  PART LABELS	2489429LO (Light Gray Linen)	2489029LO (Dark Gray Linen)	2489329LO (Ivory Linen)
  A	T809190	T809270	T809350
  B	T626700	T626700	T626700
  C	T809200	T809280	T809360
  D	T809210	T809290	T809370
  E	T809220	T809300	T809380
  F	T809230	T809310	T809390
  G	T809240	T809320	T809400
  H	T626760	T626760	T626760
  I	T809250	T809330	T809410
  J	T809260	T809340	T809420
  K	T808980	T808980	T808980

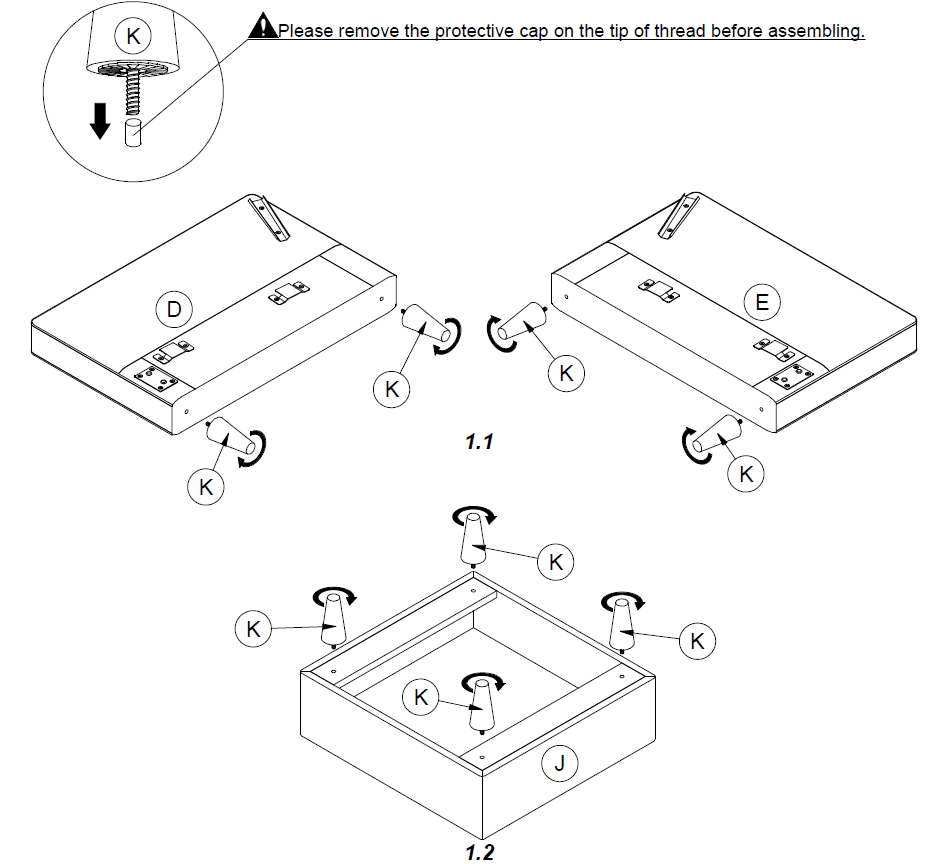

Step 1

• Place all parts on a clean, smooth surface.
• 1.1 Manually screw legs K x 4 to armrests D & E.
• 1.2 Manually screw legs K x 4 to ottoman J as shown.

Step 2

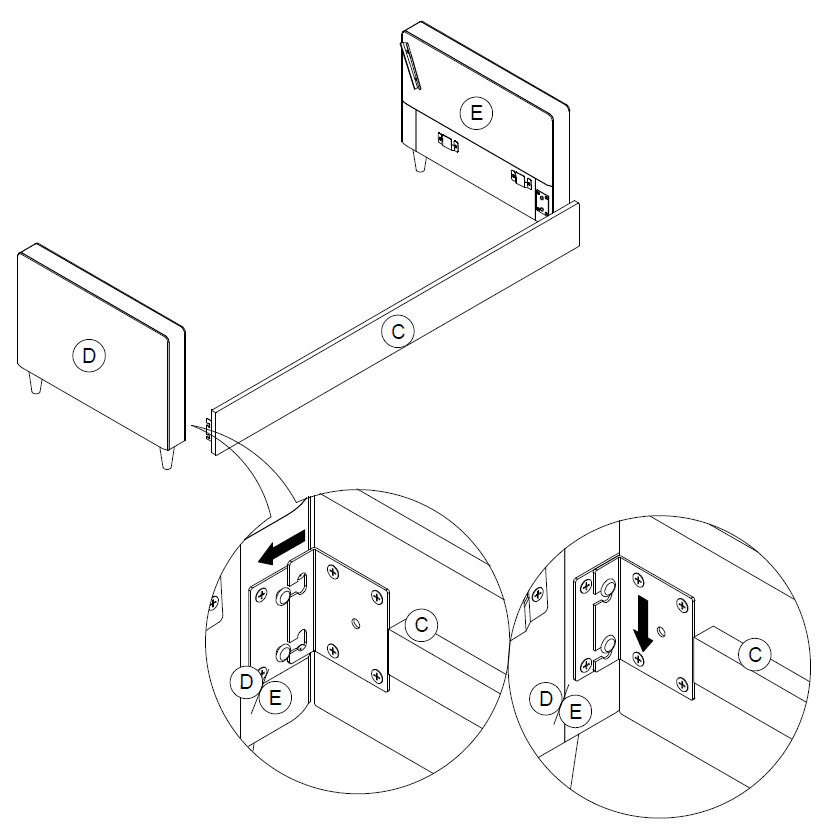

• Attach front rail C to armrests D & E by inserting the brackets on front rail C into the metal plate on armrests D & E, as shown.
• Push front rail C downwards to secure it into place.

Step 3

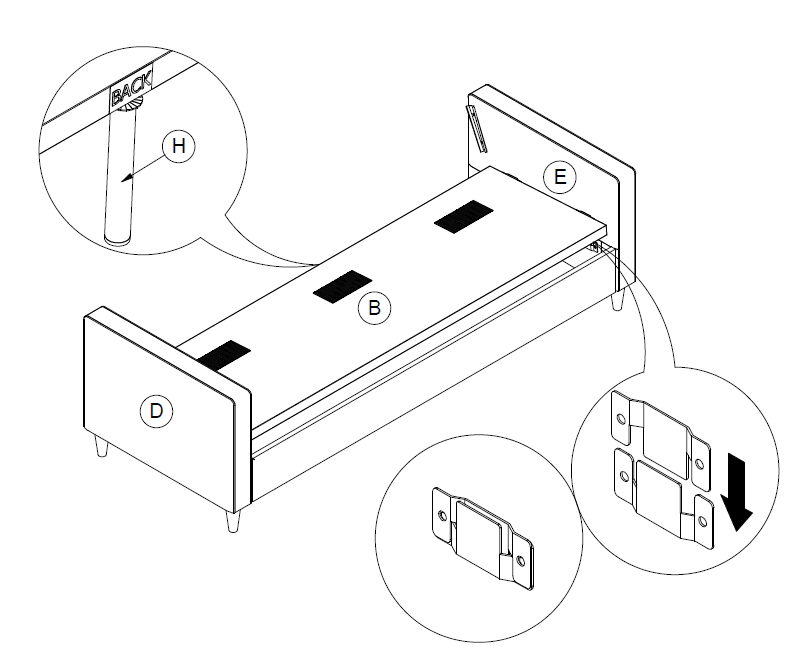

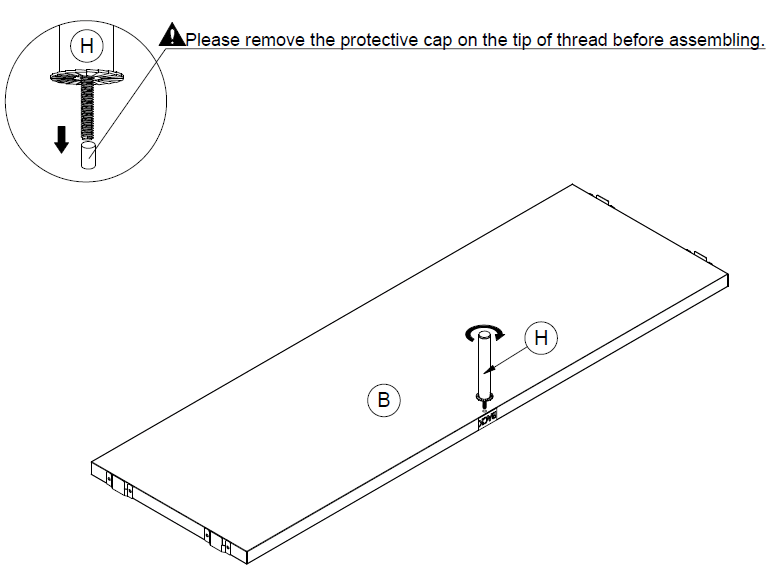

• Manually screw support leg H to seat panel B, as shown.

Step 4

• Attach seat panel B to armrests D & E by inserting the metal brackets on seat panel B into the metal glides on armrests D & E, as shown.
• Push seat panel B downwards to secure it into place.

Step 5

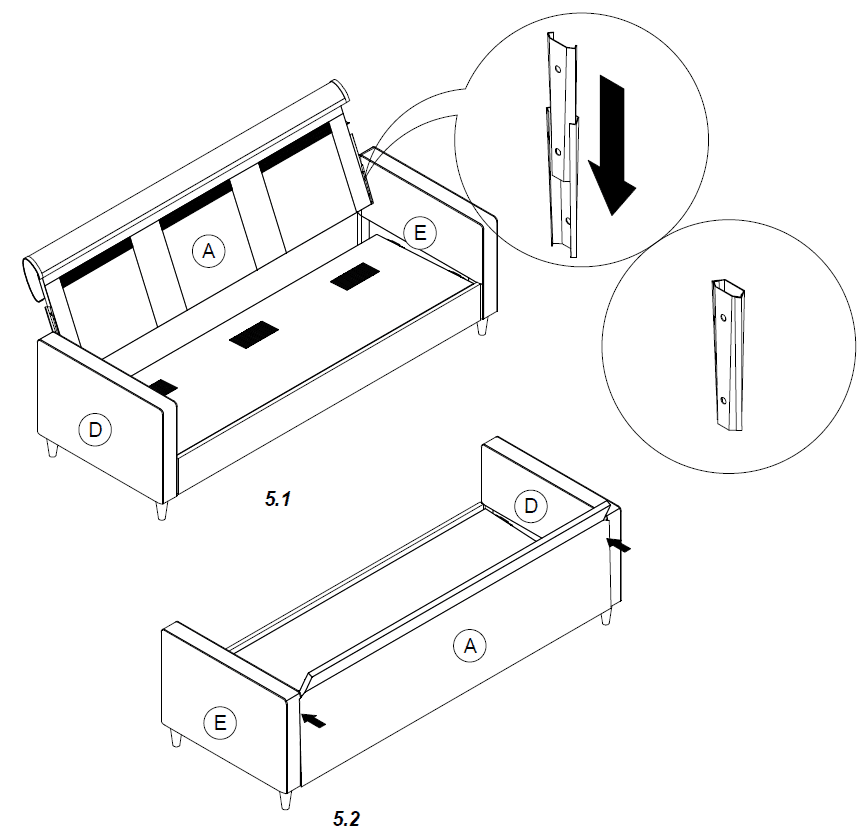

• 5.1 Attach back A to armrests D & E by inserting the brackets on back A into the metal glides on armrests D & E.
• Push back A downwards to secure it into place.
• 5.2 Secure the fabric flap on back A to armrests D & E using the velcro strips
  • Note: Both sides must be inserted at the same time. This step is best performed with 2 people

Step 6

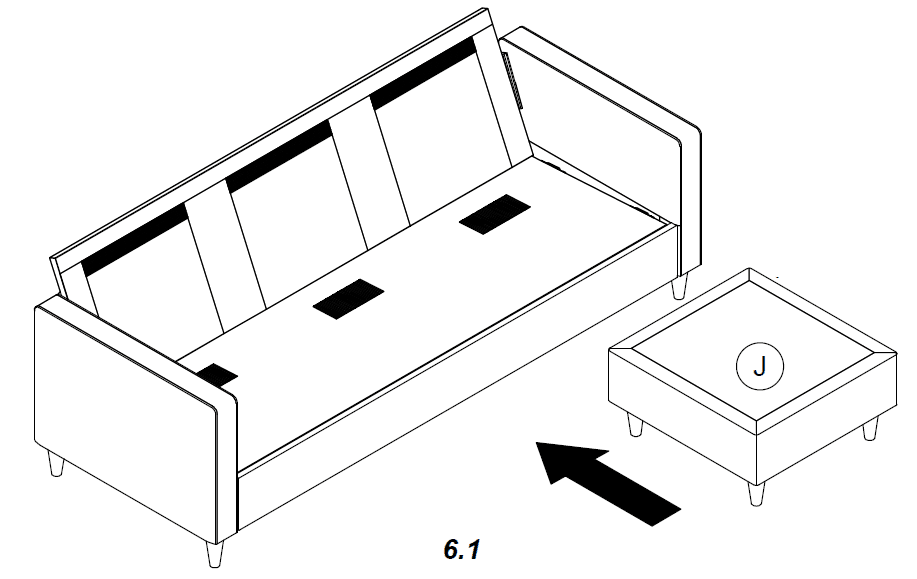

• 6.1 Place ottoman J in front of the assembled sofa.

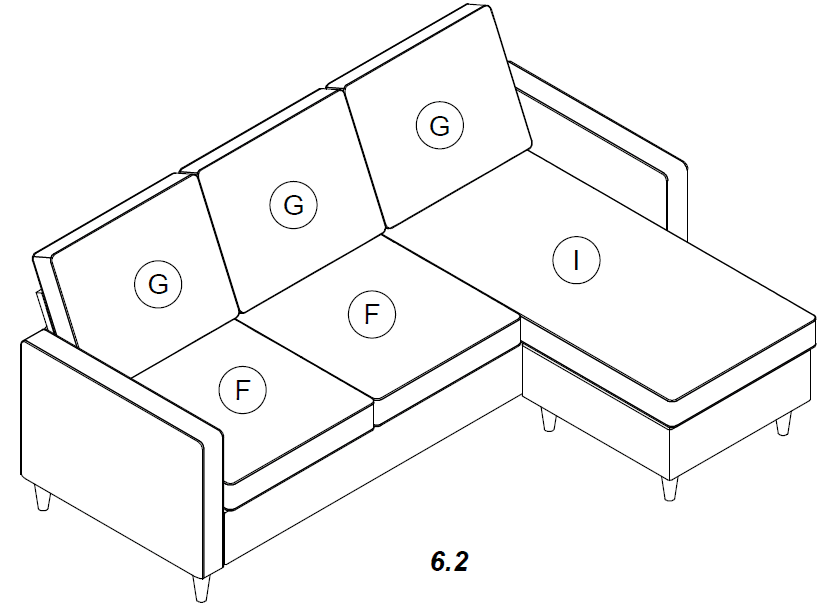

• 6.2 Remove the seat cushions from their vacuumed sealed package.
• Place seat cushions F x 2, back cushions G x 3 & long seat cushion I onto the sofa
  • Note: Ottoman J can be placed on either the left or right side of the sofa’s main body
  • Note: The seat cushions have been vacuum-packed for transportation purposes. After unpacking, please allow up to 72 hours so that they can return to
    their original shape
• CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.

Helpful Hints

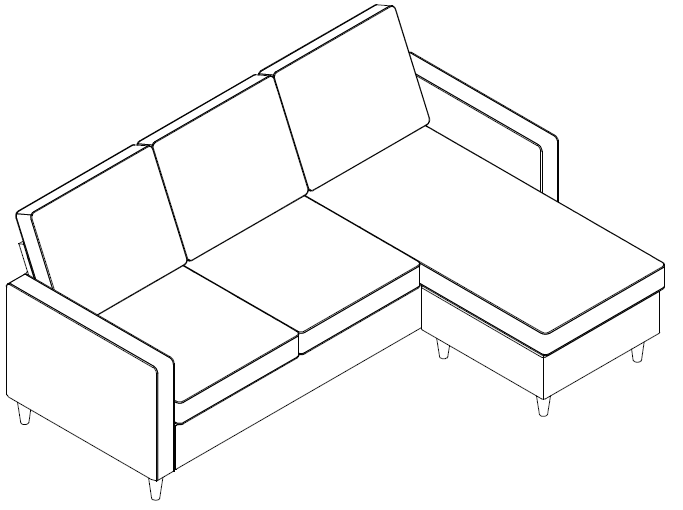

That’s it ! You’ve finished assembling your Sectional Sofa!

• Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
• Your furniture can be disassembled and reassembled to move.
• Clean the product with a soft damp cloth. DO NOT use harsh chemicals or abrasive cleaners.
