DS18 MXRC-BT Weather-Resistant Marine Receiver
General Specifications
- Frequency Response ……………………………………….20Hz-20KHz
- Signal to Noise Ratio ………………………………………………… ≧80dB
- Total Harmonic Distortion (T.H.D) ……………………………… ≦0.1%
- Channel Separation ………………………………………………… ≧60dB
- Operation Voltage ………………………………………………10V – 15V DC
- BT Wireless Audio Version ………………………………… 5.0 + A2DP
- RCA Line Out (Pre-Amp) ………………………………….. 1 Pair (Left & Right) 2.5 Volts
- Remote Output (Turn-on Signal) ……………………………. Up to 200mA
Features
- Wireless Connection Range ………………………. up to 35Ft (conditions may vary)
- Aux Line Input ………………………………………………… Plug 3.5mm
- USB Player …………………………………………….. Up to 32GB
- Water Resistance Rating …………………………….. IPX5
- UV + Salt Resistance ……………………………………. YES
- Conformal Coating ………………………………………. YES
- LED Backlit Push Button ……………………… YES (blue)
- Buttons Material ……………………………………………. Rubber

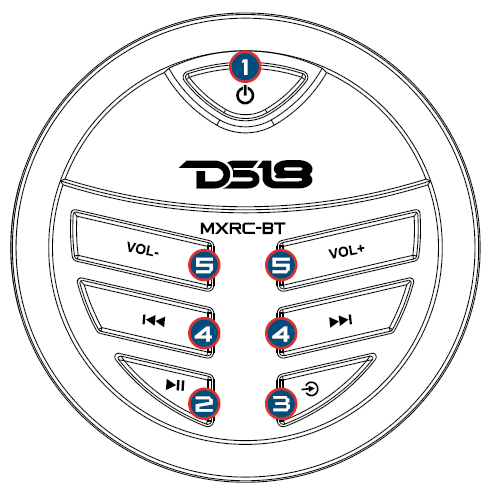

Key Functions
- Power ON/OFF (Short Press)
- USB/BT Mode: PLAY or PAUSE
- AUX Mode: Mute ON/OFF
- RESET (Long Press)
- Source Select (Short Press)
- USB/BT Mode: Previous/Next TRACK (Short Press)
- USB/BT Mode: Fast Forward/Rewind (Press and Hold)
- Adjust Volume Level

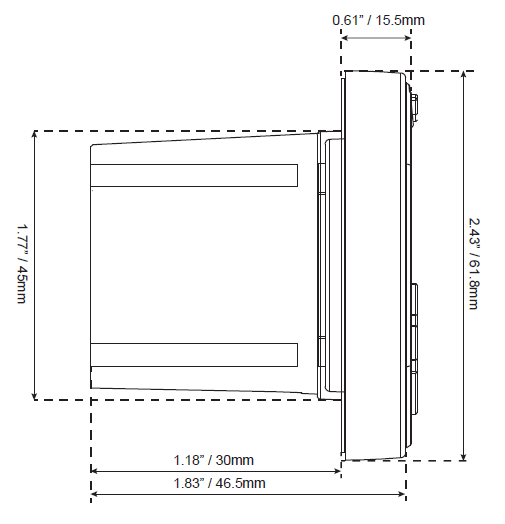

Measurements
- Overall Diameter ……………………………………………………….2.43″ / 61.8 mm
- Overall Depth ………………………………………………………..1.83″ / 46.5 mm
- Mounting Hole Diameter …………………………1.77″ / 45 mm
- Mounting Depth ……………………………………………….1.18″ / 30 mm

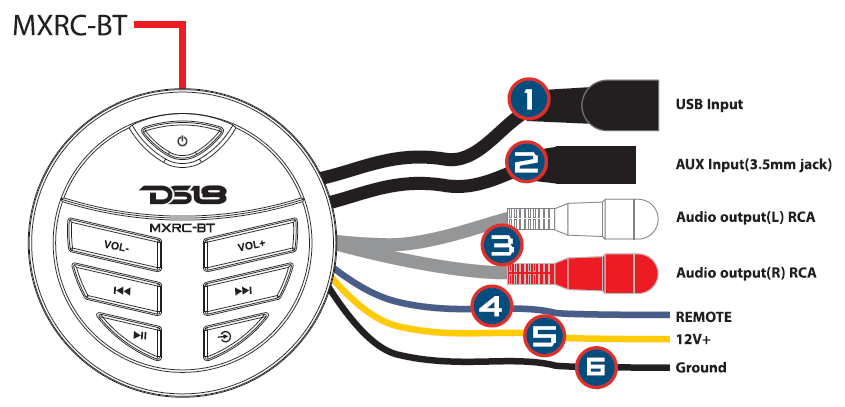

Wiring Diagram
- USB Port
Connect a USB Drive up to 32GB with MP3/WMA Audio files. - 3.5mm Jack Audio Input
Analog Audio Auxiliary input using a stereo plug wire. - RCA Pre-Output
Audio Signal to the external amplifier (White: Left Ch, Red: Right Ch). - Blue Wire
Remote Output: Connect this to the external amplifier. - Yellow Wire
Power +12V, connect this to an Accessory switch or a Master Switch; you could connect it directly to the battery for continuous operation (you could have a risk of battery discharge in long periods). - Black Wire
Negative/Ground: Connect this directly to the Negative post or chassis ground.
Installation
Once a suitable location has been determined, drill a 45mm (1-3/4) hole and secure your MXRC-BT using the metal mounting bracket. If the bracket needs to be shortened, remove the appropriate number of breakaway segments using a pair of pliers.
- The MXRC-BT should be installed by a professional technician.
- Please read the instructions and operation of the equipment carefully before installing.
- Make sure to connect the other wires first before the power connection.
- To avoid a short circuit, please make sure all the exposed wires are insulated.
- Please secure all the wires after installation.
- Please make the connection to the headunit accordingly to this manual. A wrong connection may cause severe damage.
- This player is only for 12V DC electric systems, and please make sure your boat belongs to this kind of cathode grounding electrical system.
- Please connect the wires correctly. A wrong connection will cause a malfunction or damage the electrical system.
