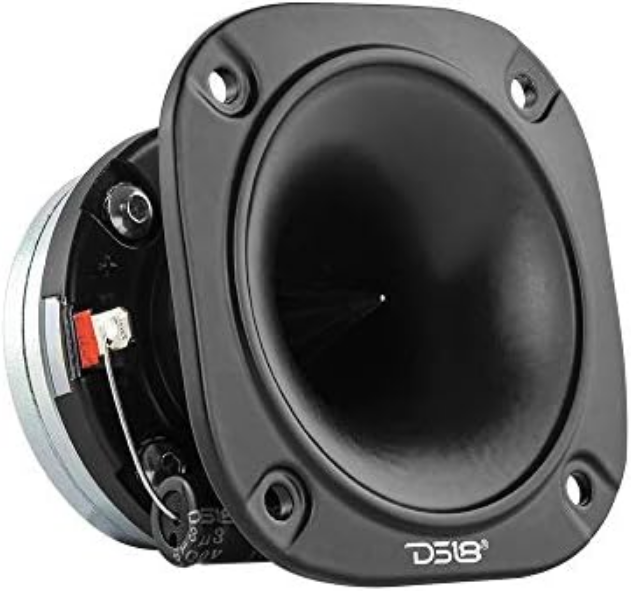

DS18 PRO-TWN2 Neodymium Hybrid Driver Super Bullet Tweeter
PRO-TWN2
SPECIFICATIONS
- Nominal Diameter………………………………………………………………………………………………………3″
- Nominal Impedance…………………………………………………………………………………….4 OHMS
- AES Power Handling……………………………………………………………………………………50W
- Program Power Handling………………………………………………………..100W
- Peak Power Handling ………………………………………………………………………..200W
- Sensitivity (1w/1m)………………………………………………………………………………………108dB

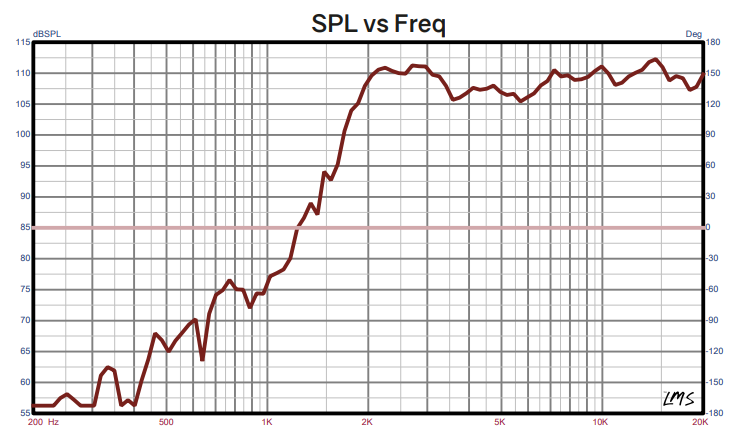

- Frequency Response…………………………………………………………………… 1KHz-20KHz
- Recommended Hi Pass Crossover…………………………………………………. 2KHz
- Pair or Single…………………………………………………………………………………………………Single
MOTOR
- Voice Coil Diameter………………………………………………………………………..1” / 25.4mm
- Voice Coil Former Material ……………………………………………………………..Kapton
- Winding Material…………………………………………………………………………….CCAW
- Diaphragm Material……………………………………………………………………….. Composite Polyimide
- Magnet Material…………………………………………………………………………….. Neodymium
- Magnet Size…………………………………………………………………………………….2.2×0.15″ / 56x4mm
- Magnet Weight………………………………………………………………………………..1.86 Oz
- Body Material………………………………………………………………………………….Aluminum

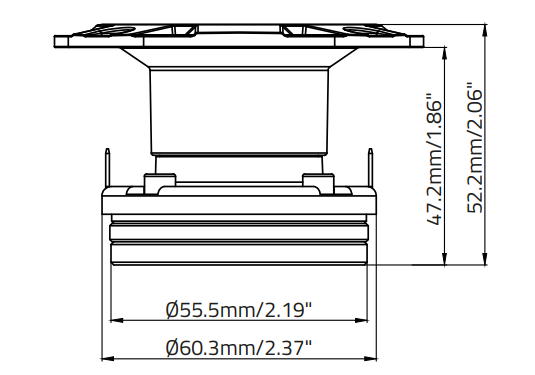

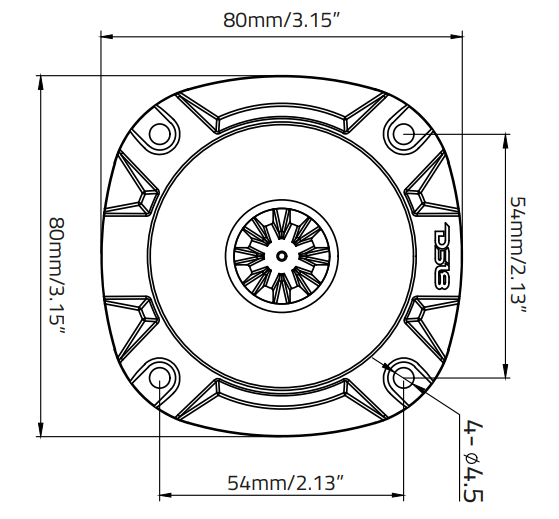

MEASUREMENTS
- Overall Diameter…………………………………………………………………………….3.15″/80mm
- Overall Depth………………………………………………………………………………….2.06″/52.2mm
- Front Mount Baffle Cutout………………………………………………………………. 2.4″/61mm
- Mounting Depth………………………………………………………………………………1.86″/47.2mm
FOR MORE INFORMATION, PLEASE VISIT DS18.COM
For more manuals by DS18, visit ManualsLibraryy
DS18 PRO-TWN2 Neodymium Hybrid Driver Super Bullet Tweeter- FAQs
Q1. How do I connect a super tweeter?
Super tweeters connect in parallel with your main speakers using the same amplifier channels. Simply link the positive and negative terminals from your speakers to the tweeter.
Q2. What is the frequency range of super tweeters?
Most super tweeters cover around 5 kHz to 40 kHz, delivering ultra-clear highs beyond the range of standard tweeters.
Q3. What is the purpose of a super tweeter?
A super tweeter enhances high-frequency detail, improving clarity, imaging, and overall sound accuracy in your audio system.
Q4. What frequency should tweeters be set to?
Tweeters generally perform best with a high-pass filter between 2,000 Hz and 5,000 Hz to protect them from low-frequency signals.
Q5. Do tweeters need an amplifier?
Yes, tweeters require power from an amplifier, though they only need a few watts since they handle high frequencies.
Q6. Do tweeters have voice coils and magnets?
Yes, most tweeters use a voice coil and magnet design to reproduce high-frequency sounds efficiently.
Q7. Where should I place super tweeters?
For best results, place them on top of your main speakers and align them with the front baffle for balanced sound projection.
Q8. What are the benefits of DS18 tweeters?
They offer high sensitivity, clear highs, and durable construction, ensuring accurate reproduction of vocals and instruments at high volume.
