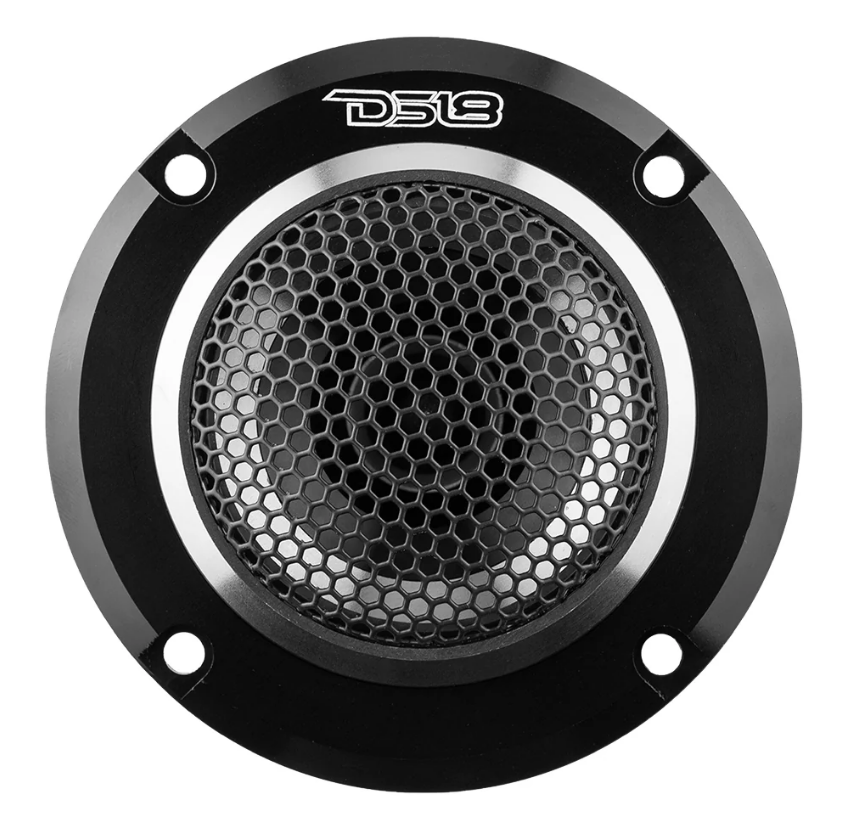

DS18 PRO-TWN5 Neodymium Super Bullet Tweeter
PRO-TWN5
SPECIFICATIONS
- Nominal Diameter ………………………………………………….3.6″
- Nominal Impedance …………………………………………..4 OHMS
- Peak Power Handling ……………………………….400W
- Program Power Handling…………………………..200W
- AES Power Handling ……………………………………….100W
- Sensitivity (1w/1m) …………………………………………107 dB

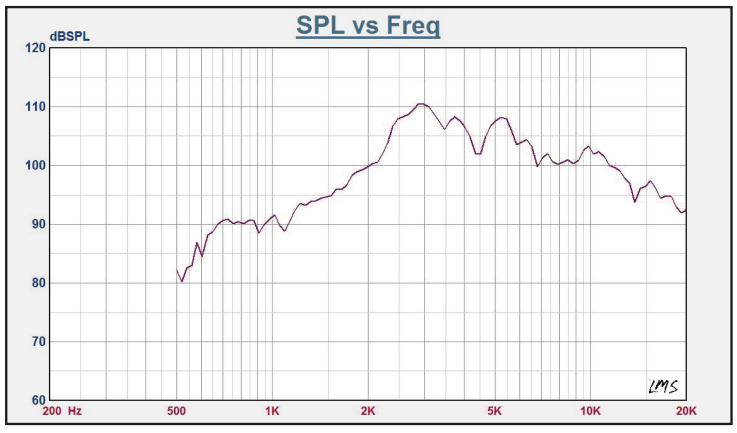

- Frequency Response ……………………1.5KHz – 20KHz
- Recommended Hi Pass Crossover ………..2 KHz
MOTOR
- Voice Coil Diameter …………………..1.5″/37.8mm
- Voice Coil Former Material …………………KSV
- Winding Material …………………………………………………..CCAR
- Diaphragm Material ……………………………………………..PEN
- Magnet Material ………………………………..Neodymium
- Magnet Size ……………………………………………………….2.75″ X 0.2″
- Body Material ……………………………….Aluminum
- Bullet Material ………………………………….CNC Aluminum

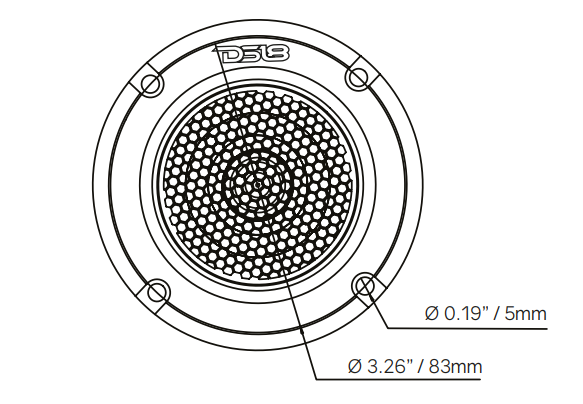

MEASUREMENTS
- Overall Diameter …………………………………………3.66″/93mm
- Overall Depth ……………………………………………..2″/52.2mm
- Front Mount Baffle Cutout ……………2.75″/70mm
- Mounting Depth……………………………….1.27″/32.3mm
FOR MORE INFORMATION, PLEASE VISIT DS18.COM
For more manuals by DS18, visit ManualsLibraryy
DS18 PRO-TWN5 Neodymium Super Bullet Tweeter- FAQs
Q1. What is the frequency range of the DS18 PRO-TWN5?
It covers a wide range from around 800 Hz up to 20 kHz, delivering crisp and powerful high frequencies.
Q2. What are the benefits of using DS18 tweeters?
They offer high sensitivity, clear vocals, and accurate highs, making them ideal for achieving loud and precise sound in car audio systems.
Q3. What is a super tweeter used for?
A super tweeter enhances ultra-high frequencies that standard tweeters may miss, improving overall clarity and detail in your audio setup.
Q4. How do I test if my tweeter is working?
Use a multimeter on the resistance (ohms) setting. Place the probes on the tweeter terminals—if you get a reading, the tweeter is functional.
Q5. Do DS18 tweeters need power to work?
Yes. They are passive tweeters and require connection to an amplifier or crossover to function properly.
Q6. Who makes DS18 audio products?
DS18 is owned by Spirit LLC, headquartered in Miami, Florida.
Q7. What impedance does the DS18 PRO-TWN5 tweeter have?
It typically runs at 4 ohms, which is compatible with most car amplifiers and crossovers.
Q8. What is the best frequency range for tweeters?
Tweeters generally perform best between 2,000 Hz and 4,000 Hz as their crossover point, ensuring clean high-frequency reproduction.
