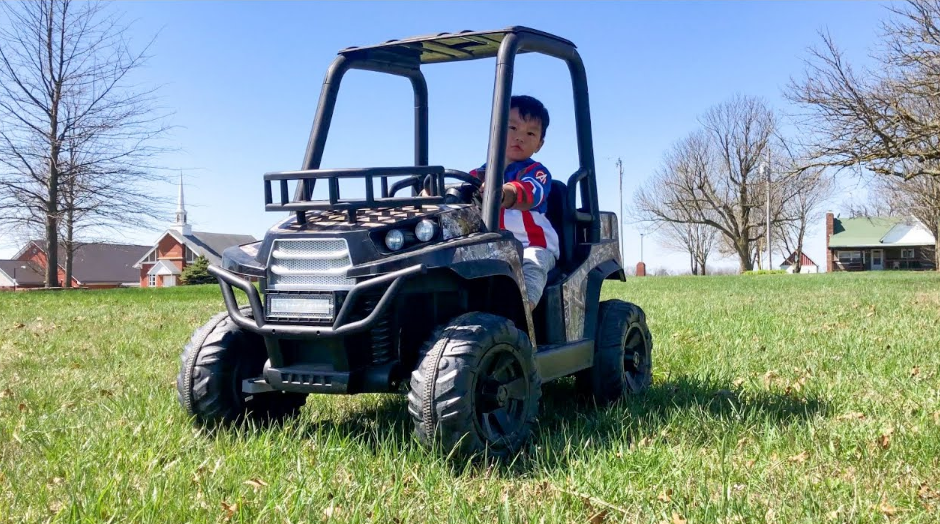

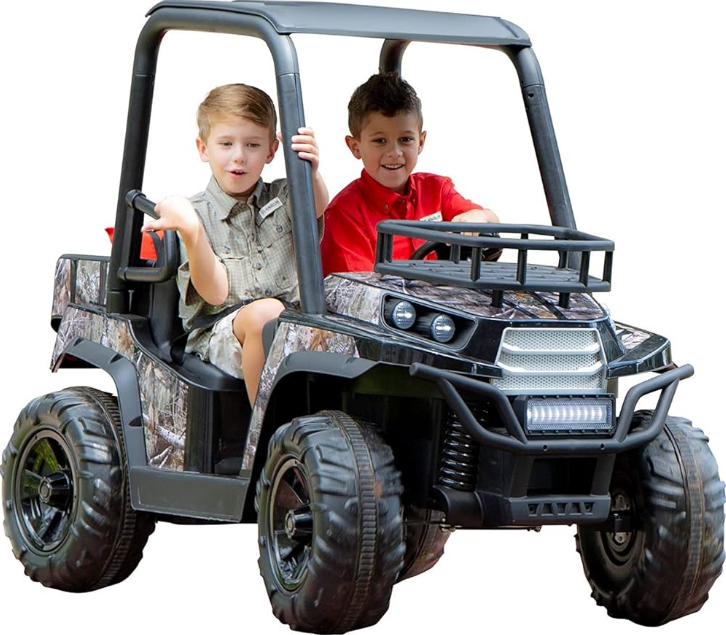

Dynacraft Realtree Motorized Toy Car User Manual

Dynacraft Realtree Motorized Toy Car

SAFE RIDING PRACTICES AND WARNINGS

• Check and obey all local laws or regulations that may be in effect in the locations where the electric ride-on toy may be used.
• Always wear appropriate clothing and shoes.
• Observe the age and weight limitations on the cover of this manual.
• Always stay seated while riding the electric ride-on toy.
• Children must be supervised by an adult at all times to be safe.
• Always be alert and ride your electric ride-on toy defensively. Watch out for obstacles that could catch one of the electric ride-on toy’s wheels or force you to turn suddenly and/or lose control. Be careful to avoid pedestrians, persons using other wheeled products (including roller or in-line skates, skateboards, scooters, bikes, etc.), children, or animals who may enter your path. Always respect the rights and property of others.
• Do not activate the foot pedal unless you are seated in the ride-on toy and in a safe, outdoor environment that is suitable for riding your electric ride-on toy.
• Do not attempt or perform any stunts or tricks on the electric ride-on toy. It is not made to withstand such misuse and abuse.
• Keep both hands on the steering wheel at all times.
• Do not touch the motor on the electric ride-on toy when in use or directly after use, as these parts can become extremely hot.
• Never allow more than two persons to ride the electric ride-on toy at one time, and never try to tow anything.
• Do not use near steps, water, or swimming pools.
• Do not ride in wet weather.
• Never immerse the electric ride-on toy in water; electrical and drive components could be damaged by water or create other potentially unsafe conditions.
• Keep your fingers and other body parts away from the motor, steering system, wheels, and all other moving components.
• Never hitch onto another vehicle or let yourself be pulled or pull anyone or anything while riding the electric ride-on toy.
• Ride only on smooth, flat, dry surfaces such as pavement or level ground without loose debris, such as sand, leaves, rocks or gravel. Water, mud, ice, bumpy, uneven, slick, or rough surfaces could impair traction and contribute to a possible loss of control.
• Do not ride on or near hills or steep inclines. Ride only on level ground to avoid tipping over.
• Avoid sharp turns, bumps, drainage grates, and other obstacles.
• Do not ride at night or where there is limited visibility.
• Do not ride indoors or on surfaces that could become damaged, such as carpet or flooring.
• Do not ride on streets, around cars, or in foot or vehicle traffic.
• Regularly check the electric ride-on toy and its components. If any parts are broken or worn, do not ride the electric ride-on toy until you have fixed or replaced the broken or worn parts.

PRE-RIDE SAFETY CHECKLIST

• Check to make sure that all components are properly secured and are functioning according to the manufacturer’s specifications.
• Components must be maintained and repaired, and only with the manufacturer’s authorized replacement parts. Installation should be performed only by adult, qualified personnel.

USING THE CHARGER

The charger should be examined regularly for damage to the cord, plug, enclosure, and other parts. In the event such damage has occurred, the electric ride-on toy should not be charged until the charger has been repaired by qualified personnel or replaced. Use only the supplied, recommended charger.

• Always use caution when charging.
• The charger is not a toy and should be operated by an adult.
• Never operate the charger near flammable materials or liquids, and operate the charger in well-ventilated areas.
• Disconnect the charger and unplug it from the electric ride-on toy when not in use.
• Do not exceed the recommended charging time.
• Always disconnect the charger from the electric ride-on toy prior to wiping down or cleaning the electric ride-on toy with any liquid.

BEFORE YOU BEGIN ASSEMBLY

Remove all packing and items from the display box.

NOTE: Parts are packaged at both ends of the box and in a ride-on chassis. Ensure all parts are present before assembly.

ESTIMATED ASSEMBLY TIME

Because this ride-on toy is heavy and large, we strongly suggest that two people complete the assembly. Allow approximately 60 minutes for assembly by two people, not including initial charging time. Initial charging can take approximately 18 hours.

WARNING: DO NOT USE NON-ORIGINAL OR NON-RECOMMENDED PRODUCTS WITH YOUR ELECTRIC RIDE-ON TOY.

Alterations of the original components or the use of non-recommended replacement parts may or may not be compatible with the design and will void the warranty and may cause an unsafe condition resulting in serious injury or death.

If you experience a problem with this product or are missing a part, please contact our Customer Service Team at dynacraftwheels.com/contact, rather than returning this product to the store.

Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

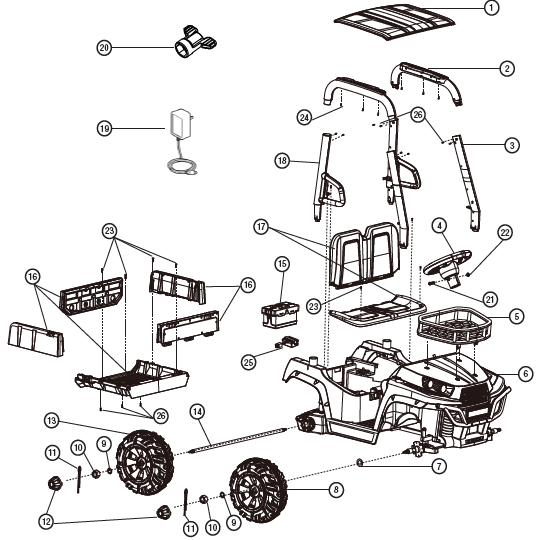

PARTS DIAGRAM

1. Roof x1
2. U shape Support x2
3. Roof Front Support x2
4. Steering Wheel Assembly x1
5. Cargo Basket x1
6. Plastic Body Assembly x1
7. Ø19 Front Axle Washer x2
8. Front Wheel x2
9. Ø12 Washer x4
10. M10 Lock Nut x4
11. Split Pin x4
12. Axle Cap x4
13. Rear Wheel x2
14. Rear Axle x1
15. Battery x1
16. Cargo Bed (5 pcs)
17. Seat (2 pcs)
18. Roof Rear Support x2
19. Charger x1
20. 17 mm Socket Wrench (for wheels) x2
21. M5x35 Machine Screw x1
22. M5 Lock Nut x1
23. M5 x 16 mm Screw x6
24. 4×16 mm Round Head Screw x16
25. Controller x1
26. 4×12 mm Round Head Screw x11

NOTE: Some parts shown are assembled on both sides of the ride-on toy. Parts are packaged at both ends of the box and in the ride-on chassis. Ensure all parts are present before assembly.

ASSEMBLY

Your new ride-on toy requires adult assembly. Because your new ride-on toy is heavy and large, we strongly suggest using two people to finish assembly. Set aside around 60 minutes for assembly. Identify all parts before assembly and save all packaging material until assembly is completed to ensure that no parts are discarded.

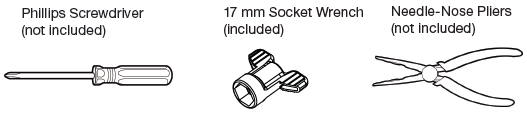

TOOLS REQUIRED:

WARNING: Children can be harmed by small parts, sharp edges, and sharp points in the ride-on toy’s unassembled state, or by electrical items. In the unassembled state, this package contains small parts. Adult assembly is required; children should not handle parts or help in the assembly of the ride-on toy.

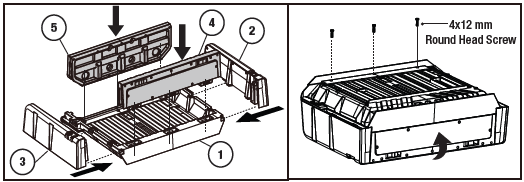

CARGO BED ASSEMBLY

• Find the plastic board marked with “1” on its back.
• Find the other two boards that are marked with “2” and “3”, and push them horizontally until they sit well as shown.
• Find a plastic board marked with “4” on its back, and push it vertically until you hear it click into place.
• Find a plastic board marked with “5”, there are slots along two sides of it, slide it into the sticking tabs on “2” and “3” as shown, making sure the door is secure.
• Gently turn the cargo bed upside down, and use three 4×12 round head screws to tighten properly.

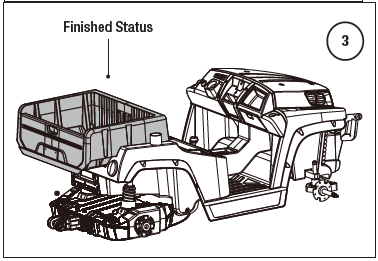

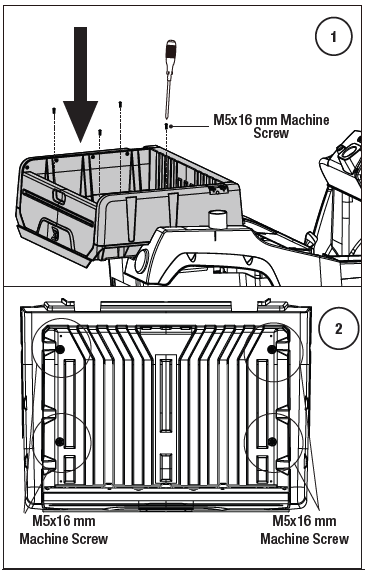

CARGO BED INSTALLATION

Align the cargo bed assembly with the four screw holes on the ride-on toy body. Use four M5x16 machine screws to tighten each corner securely.

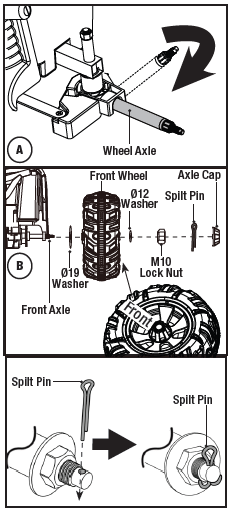

FRONT WHEEL ASSEMBLY

• Turn the ride-on toy body upside down (this should be handled carefully by two adults)
• Cut the tie on the front axle with scissors.
• Adjust the front wheel axle until the axle clicks into position to ensure that it is secure for safety (see Figure A).
• Remove washers and nuts from the front wheel axle. CAUTION: To avoid pinching your fingers, do not put your hand into the slot when adjusting the front wheel axle.
• Fit a Ø19 washer onto the axle.
• Find a front wheel marked with an “R” and labeled “Front”. Find the “R” marking on the front of the ride-on toy body to match this wheel and slide the wheel onto the axle. NOTE: Refer to the drawing below showing “R” and “L” locations on the ride-on toy body.
• Fit a Ø12 washer and M10 locknut onto the axle, then tighten it with a socket wrench. NOTE: Do not over-tighten. For your safety, make sure you insert a split pin into the hole at the end of the front axle and split it using standard needle-nose pliers.
• Insert the axle cap until it clicks into place.
• Find the other front wheel, marked with an “L” and labeled with “Front”. Find the “L” marking on the front end of the ride-on toy body to match this wheel and slide the wheel onto the axle. Secure this wheel with the same steps as the other front wheel above.
• Front wheels should spin freely; if not, loosen the nut slightly.

REAR WHEEL ASSEMBLY

• First, remove all washers and nuts from the rear axle.
• Insert the rear axle through the hole in the ride-on toy body, making sure the axle exposure at the left and right ends is equal.
• Find a rear wheel marked with an “R” and labeled “Rear”. Find the “R” marking at the rear end of the ride-on toy body to match this wheel and slide the wheel onto the axle.
• Insert a Ø12 washer onto the axle.
• While holding the rear axle with a 17 mm socket wrench, fit the M10 locknut to the end of the rear axle with another 17 mm socket wrench. DO NOT over-tighten; the rear axle ends are supposed to be exposed; 1-2 threads exposed is acceptable.
• For your safety, insert a split pin into the hole at the end of the rear axle, and split it using standard needle-nose pliers. (Refer to the drawings illustrated for the front wheel on page 9).
• Insert the axle cap.
• Find the other rear wheel, marked with an “L” and labeled with “Rear”. Find the “L” marking at the rear end of the ride-on toy body to match this wheel and slide the wheel onto the axle. Secure this wheel with the same steps as the other rear wheel above.

IMPORTANT! CHECK WHEEL GAP

After assembling any wheel onto the axles, check the gap between the screw thread and the outside of the wheel.

If the gap is too big, add two or three washers on the axle to the inside of the wheel. After tightening the nut on the outside of the wheel, spin the wheel to check if the wheel spins smoothly. If the wheel gets caught or does not spin smoothly, the friction may cause damage to the motor. Try increasing the gap by removing one or two washers to ensure the wheel spins smoothly.

NOTE: If the wheel nuts are loose, the wheels will not engage the forward gear. Tighten the nut with the socket wrench.

STEERING WHEEL ASSEMBLY

• Gently turn the ride-on toy body upright.
• Remove the M5x35 machine screw and nut from the steering wheel.
• Insert the steering wheel onto the end of the steering column, line up the hole in the steering wheel and the hole in the steering column, reinsert the M5x35 machine screw as shown, and tighten it securely with an M5 nut.

STEERING WHEEL BATTERIES INSTALLATION

NOTE: Batteries are not included.

• Unscrew the screw in the steering wheel and remove the cover.
• Insert 2x 1.5V size AA AM-3 or LR6 batteries.
• Replace the cover and tighten the screw to secure it in place.

STEERING WHEEL BATTERY SAFETY INFORMATION:

Batteries may leak fluids that can cause chemical burns, injury, or ruin your product.

To avoid battery leakage:

• Install batteries correctly, observing the polarity (+/-) signs to avoid leakage.
• Do not mix old and new batteries.
• Do not mix batteries of different types: alkaline, standard (carbon-zinc), or rechargeable (NiMH).
• Remove the batteries from the battery compartment when the unit will not be used for an extended period of time.
• Always remove exhausted batteries from the battery compartment.
• Do not dispose of batteries in a fire.
• Do not short-circuit the supply terminals.
• Replace the batteries when the horn sounds become distorted.
• Non-rechargeable batteries should not be recharged.
• Use only batteries of the same or equivalent type as recommended.
• If rechargeable batteries are used, they should only be charged by an adult.
• Remove rechargeable batteries from the product before charging.
• Battery chargers used with toys must be examined regularly for damage to the cord, plug, enclosure, and other parts. In the event that such damage is found, the toy must not be used with the battery charger until the damage has been repaired.

ROOF ASSEMBLY

• Find the roof and two U-shaped supports.
• The U-shaped supports are marked with either an “L” or “R”. Find the corresponding “L” and “R” markings on the roof panel and then fit each U-shaped support to the corresponding spot on the roof panel.
• Secure the U-shaped supports to the roof using 3 4×16 mm round head screws on each support.

ROOF FRONT SUPPORTS ASSEMBLY

• Find one Front Support marked with an “R” and attach it to the corresponding U-shaped support also marked with an “R”. Use two 4×12 mm Round head screws to secure the supports.
• Find the other Front Support, marked with an “L”, and attach it to the corresponding U-shaped support also marked with an “L”. Use two 4×12 mm round head screws to secure the supports.

ROOF REAR SUPPORTS ASSEMBLY

• Find the Rear Support marked with an “R” and attach it to the corresponding U-shaped support also marked with an “R”.Use two 4×12 mm round head screws to secure the supports.
• Find the other Rear Support, marked with an “L”, and attach it to the corresponding U-shaped support also marked with an “L”. Use two 4×12 mm round head screws to secure the supports.

ROOF ASSEMBLY INSTALLATION

• Insert the Front and Rear roof supports into the four corresponding holes in the ride-on toy body.
• Secure each of the Front Roof Supports using a 4×16 mm round head screw on each side.
• Secure each of the Rear Roof Supports using two 4×16 mm round head screws on each side.

CARGO BASKET ASSEMBLY

• Place the Basket into the four corresponding holes in the Hood and push down until it clicks into place. Use four 4×16 mm round head screws to secure the basket to the Hood.
• If you do not want the Basket on the Hood, find the four small end caps supplied in the bag with the owner’s manual and snap the end caps into the corresponding holes in the hood.

NOTE: The end caps have been marked with “F” and “R” for front and rear location indication.

WARNING: Small parts present a choking hazard! Keep the four small end caps away from children.

POWER SUPPLY CONNECTION

NOTE: The battery is disconnected for shipment to prevent the battery from draining.

Securely plug the battery connector into the control module connector.

SEAT INSTALLATION

• Find the Seat Back that is marked “6” on its back, also find the Seat Bottom marked “7” on its back.
• Locate the Seat Back on the ground and insert the Seat Bottom into the Seat Back. NOTE: Gently insert the Seat Bottom tabs into the corresponding Seat Back slots and push to hear the Seat Bottom click into place. Once the tab clicks into place, it cannot be pulled out without damaging the seat.
• Hook the clips (in the back of the seat) up into the slots in the ride-on toy body, then click the seat into the ride-on toy body.
• Tighten the seat with two M5x16 mm machine screws.

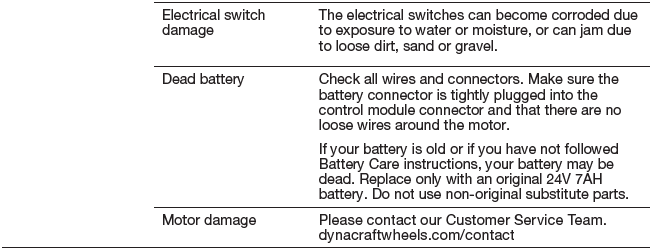

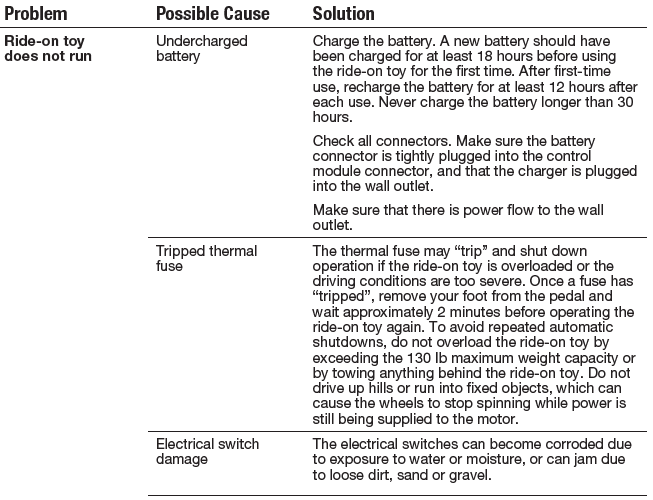

TROUBLESHOOTING GUIDE
