Ekids iHome Wi-B67 Trolls Portable Bluetooth Speaker User Manual

Ekids iHome Wi-B67 Trolls Portable Bluetooth Speaker

IMPORTANT SAFETY INSTRUCTIONS

When used in a directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the unit.

1. Water and Moisture – DO NOT use near water. Keep away from wash basins, showers, sinks, etc.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
5. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
6. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.
7. Attachments – Do not use attachments not recommended by the product manufacturer.
8. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
9. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
10. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
    • A. the power supply cable or plug has been damaged.
    • B. objects have fallen into or liquid has been spilled into the enclosure.
    • C. the unit has been exposed to rain.
    • D. the unit has been dropped or the enclosure damaged.
    • E. the unit exhibits a marked change in performance or does not operate normally.
11. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, fully charge the unit before storing it.
12. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

Pairing with a Different Device

• When the speaker is ON, it will automatically link with the previously paired Bluetooth device as long as that device is still within range (approx. 30 feet). So to pair with a different device you must press and hold the Bluetooth Pairing/Speakerphone Button for 3 seconds to re-enter pairing mode.

Playing Audio Via Bluetooth

1. Move the ON/OFF-DEMO Switch to the ON position to listen to audio streamed wirelessly from your paired iPad, iPhone, iPod or other Bluetooth device. The Power/Charging/Pairing Indicator Light on the unit will flash blue and a tone will sound as the unit searches for a previously paired device, and then turns solid blue once a previously paired device is detected.
2. Use the controls on your device to play or pause audio, navigate tracks, and control volume from your Bluetooth device.
3. When done listening, move the ON/OFF-DEMO Switch to the OFF position to turn the unit off. If no audio is detected for 5 minutes, the unit will power off automatically.

Speakerphone Operation

NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a call.

1. When a call is received, playing music is muted to hear the ringtone. The Power/Charging/Pairing Indicator Light will flash quickly, then turn solid, then repeat the pattern until you answer the call. Press the Bluetooth Pairing/Speakerphone Button to answer the call. For the call waiting function, press the button again to answer the second call, and once more to return to the original call.
2. When a call is completed, press the Bluetooth Pairing/Speakerphone Button to end the call and resume the previous function. Press and hold the Bluetooth Pairing/Speakerphone Button for 2 seconds to reject the call.

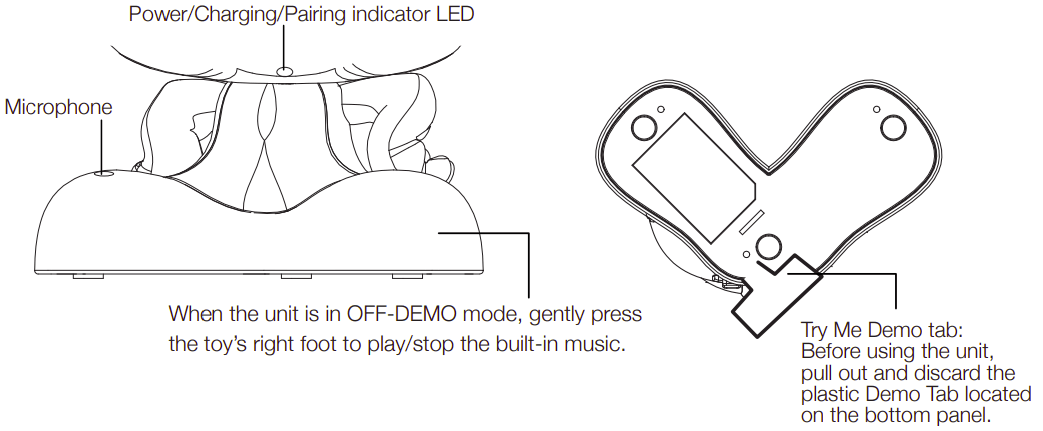

Front View

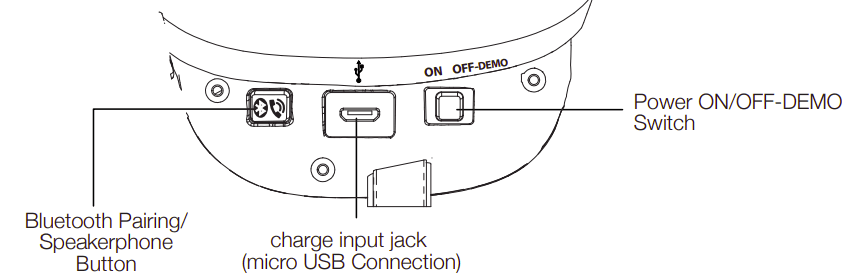

Back View

Troubleshooting

The unit doesn’t respond (no power)

• Make sure the unit is completely charged.
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the Wi-B67.
• Make sure the ON/OFF-DEMO Switch is not in the OFF position.
• The rechargeable battery in your speaker can be replaced only by the eKids Consumer Repair Department.
• Unit doesn’t respond (locked up/ “Frozen”)
• If the unit does not respond, try resetting the unit. Press and hold the Bluetooth Pairing/ Speakerphone button for 9 seconds. Note that doing so will clear settings and any Bluetooth devices will need to be repaired.
• Trouble pairing the device with Wi-B67
• Bluetooth implementation varies depending on your device’s hardware and operating system. Please see our website for updates on pairing.
• When you power ON the speaker, it will automatically link with the last previously paired Bluetooth device if the device is still within range (approx. 30 feet). To pair with a different device you must turn off Bluetooth capability on the already paired device, or take it out of range.
• If your device does not auto-link when within range, re-pair the device. To do so, first, delete the Wi-B67 from your Bluetooth devices menu.
• Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing and linking.

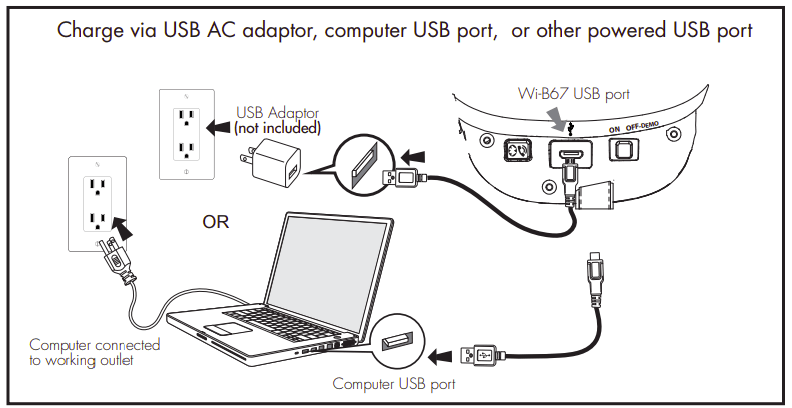

Charging the Unit

CHARGE UNIT BEFORE USE

1. Connect the micro USB plug to the micro USB charging port on the back of the unit.
2. Connect the standard USB plug end of the cable to a power USB port on a computer or other USB charging device. For first-time use, charge the unit for about 5 hours.
3. The Power/Charging/Pairing Indicator Light on the bottom of the head glows red steadily while the unit is charging and turns OFF once the unit is fully charged. If a unit is not powered on when the micro USB plug is connected, the red light glows steadily to indicate the unit is charging

Internal Rechargeable Lithium-ion Battery

• This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact Customer Service at 1-800-288-2792.
• WARNING/DISPOSAL OF UNIT
• Please do NOT attempt to change the battery yourself. If the battery has died and you do not want us to replace your battery, you should follow the disposal instructions below:
• Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
• Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply to the disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal, please dispose of the device in a waste bin for electronic devices.
• Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see which ones in your area do so.
• A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Pairing Your Device

Pairing is the set-up process to introduce your Bluetooth-capable device to the Wi-B67. Once your device is paired, the Wi-B67 can recognize it and you can play your audio through it.

1. “eKids Wi-B67” should appear in your device’s Bluetooth menu. If “Not Paired”, “Not Connected” or a similar message appears, select “eKids Wi-B67” to connect it. If prompted for a passcode, enter “1234” on your device’s keypad.
2. If pairing is successful, a tone will sound and the Bluetooth indicator light will glow solid, indicating the Wi-B67 is ready to play music. There should also be an indication on your device. If no device is successfully paired within 3 minutes the Wi-B67 will default to the previous mode. Once the Wi-B67 is paired to a device, it will attempt to auto-link when the device is within range (about 30 feet).

IMPORTANT

Read before proceeding

• If you have any questions regarding the operation or use of this product, please visit www.ekids.com to view answers to frequently asked questions.

Introduction

• Thank you for purchasing the Wi-B67. This product is designed to provide high-quality wireless sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device. This instruction booklet explains the basic operation and care of the unit. Please read them carefully and keep them for future reference.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as benzene, thinner or similar materials can damage the surface of the unit.
