Energizer CHPRO Recharge Pro Battery Charger User Guide

Energizer CHPRO Recharge Pro Battery Charger

Energizer Recharge PRO

Please read this manual before you use the charger, and save it for reference.

• Battery: Nickel Metal Hydride (NiMH) Rechargeable Batteries
• Sizes: AA and AAA
• Recommended: Energizer NiMH Batteries

CHARGING

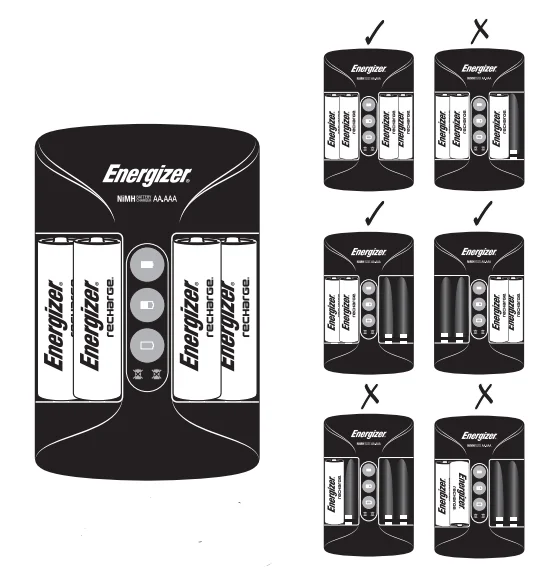

1. Load Batteries into Charger

• Insert batteries to match the polarity marks (+ and -).
• Note: When charging only two batteries, place batteries in the two positions to the left or right. Both AA and AAA-size batteries can be charged simultaneously.

2. Plug in the Charger

• Plug the transformer into a standard AC outlet.

3. Charging Indication

Tri-colored “stop light” LED feature down the center of the charger:

• RED = Charging, approximately 0–49% charged
• AMBER = Charging, approximately 50–99% charged
• GREEN = Charging complete, approximately 99–100% charged (Note: The charger will automatically turn off at 100% charged; however, the green light will stay lit to confirm the batteries have completed their charging and are ready for use.)
• RED X = Bad/Primary Battery Detection

Sound Indication

• Single Beep = Charging has started
• 2 Beeps continued = Charging is completed
• Continuous Beep = Bad/Primary Battery Detection

4. Store

• Unplug the charger from the AC outlet.

Charging Times

SPECIFICATIONS

• Model: CHPRO-US, CHPRO-EU, CHPRO-AR, CHPRO-BR
• Charges: 2 or 4 AA or AAA NiMH
• Input for all plugs: AC 100–240V, 50/60Hz (for all other plugs)
• Charging current/Output: DC 2.8V–500mA (AA × 2 or 4), DC 2.8V–220mA (AAA × 2 or 4)
• Safety features: Auto shut-off – Voltage Detection and Timer, Reverse Polarity Protection, Primary/Bad Battery and Short Circuit Detection

WARNING

To avoid personal injury and property damage from, but not limited to, the risk of electric shock or fire:

• Charge only Nickel Metal Hydride (NiMH) rechargeable batteries. Charging other types of batteries may cause them to leak, rupture, or explode.
• Do not open the battery, dispose of it in fire, put it in backward, mix with used or other battery types, or short circuit – may ignite, explode, leak, or get hot, causing injury.
• Use the charger only in dry locations. Keep away from rain, snow, or excessive moisture.
• This charger is intended to be in a vertical or floor mount position.
• Never plug battery chargers into an extension cord.
• Do not operate the charger if damaged.
• Do not disassemble, modify any part of the charger, or attempt to use the charger as a power source.
• Unplug before attempting maintenance or cleaning.
• For use in other countries beyond the USA, attach the proper plug adapter.
• This charger is not a toy and should not be used by children or infirm persons without adequate training or supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

LIFETIME LIMITED WARRANTY

Lifetime Limited Warranty: Warranty covers any defect in material or workmanship. It excludes damage caused by normal wear and tear, misuse, and modification. Warranty lasts for as long as the original United States or Canadian purchaser owns this Energizer Battery Charger and these Energizer Nickel-Metal Hydride Rechargeable Batteries. Warranty terminates if you sell or transfer them. Energizer will repair or replace them at its option. Call 1-800-383-7323 for warranty service. Warranty is limited to consumer use.

EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY BY JURISDICTION.

Questions? 1-800-383-7323
www.energizer.com
www.energizer.ca

Energizer Holdings, Inc., St. Louis, MO 63141, U.S.A.
Energizer Canada Inc., Walkerton, Ontario N0G 2V0
TM Used under lic./MC Usager lic.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS. DANGER – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
