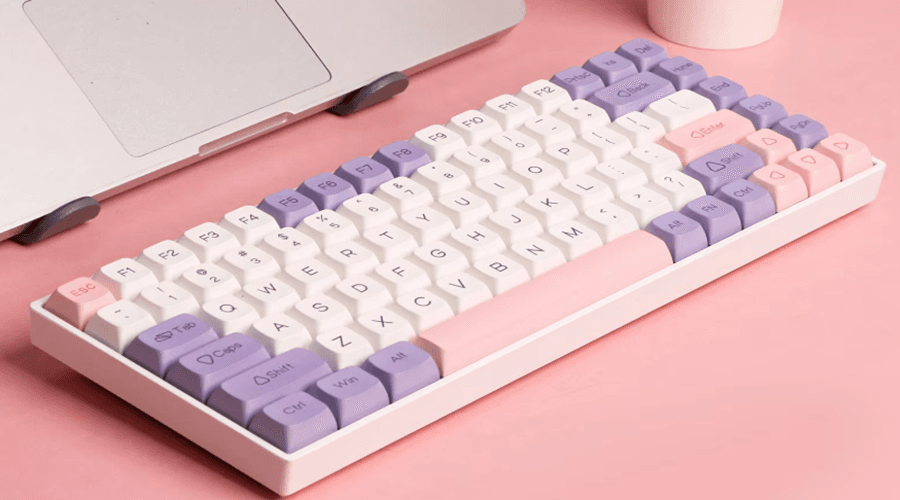

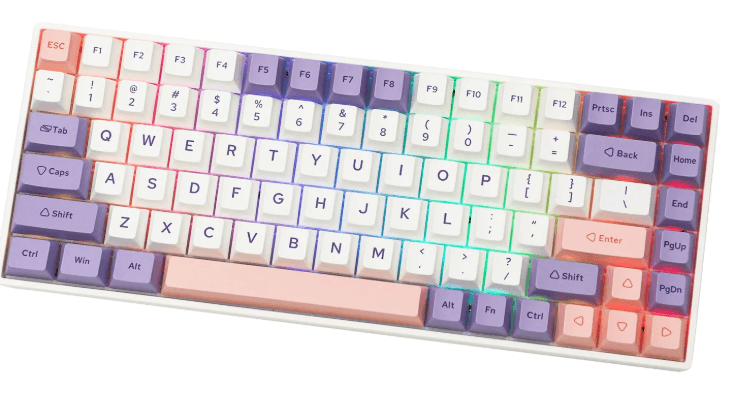

EPOMAKER EP84 Plus RGB Wireless Gaming Keyboard

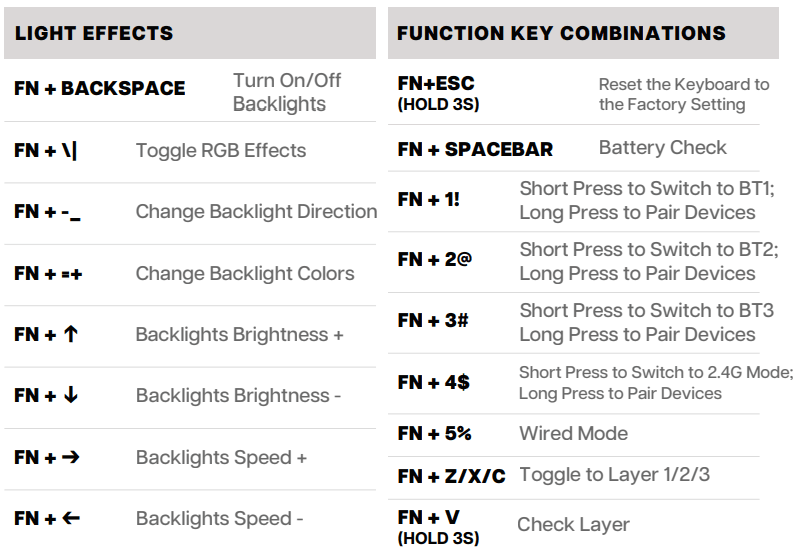

CHANGE RGB EFFECTS
Press Fn + \| to switch the RGB effects of your Epomaker EP84 Plus keyboard.
PAIRING BLUETOOTH
Toggle the switch in the back to ON to make sure that the keyboard is under the Wireless mode
- Press Fn+1!/2@/3# and the whole keyboard flashes white 3 times, the keyboard is under Bluetooth mode;
- Hold Fn+1!/2@/3# for 3-5 seconds till the 1!/2@/3# indicators flash fast in red/green/blue, the keyboard is ready to pair;
- Turn on your Bluetooth device and find ‘EP84 PLUS3.0’ or ‘EP84 PLUS 5.0’, then connect. When the keyboard is connected to the Bluetooth device, the light on the 1!/2@/3# key stops flashing and the connection is done.
- Press Fn+1!/2@/3# to toggle between the Bluetooth devices 1/2/3.
PAIRING WIRELESS 2.4GHZ
Toggle the switch in the back to ON to make sure that the keyboard is under the Wireless mode
- Short press the FN + 4$ key combination, the backlight will flash blue 3 times, the keyboard will enter 2.4G mode
- Long press the FN + 4$ key combination for 3-5 seconds to enter pairing mode, the 4$ indicator light will flash white, insert the receiver, and after successful pairing, the 4$the indicator light will be on for 2 seconds and then turn off, the connection is successful
WIRED MODE
Press Fn+5%, and the keyboard enters the wired mode successfully.
CHECK BATTERY
Hold the Fn+Spacebar, and the keys from 1! to 0) light up to show the battery percentage; for example, if the keys from 1! to 6^ light up when holding the Fn+Spacebar, it means that the battery life is currently 60%; if keys of 1!-0) light up, battery life is 100%.
CHECK LAYER AND MODE
Press the key combination FN+V for 3 seconds, and Z/X/C lights up to show the configuration level of the keyboard, e.g. the X key lights up, which means the keyboard is on level 2.
CHARGING INDICATOR LIGHT (IN THE MIDDLE OF THE KEYBOARD)
- Charging: Red light stays for 2 seconds then off
- Charged: Green light stays for 2 seconds then off

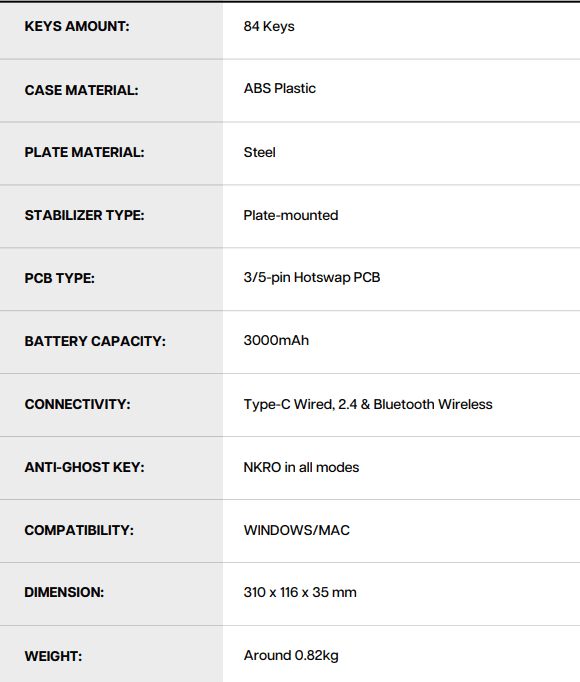

SPECS

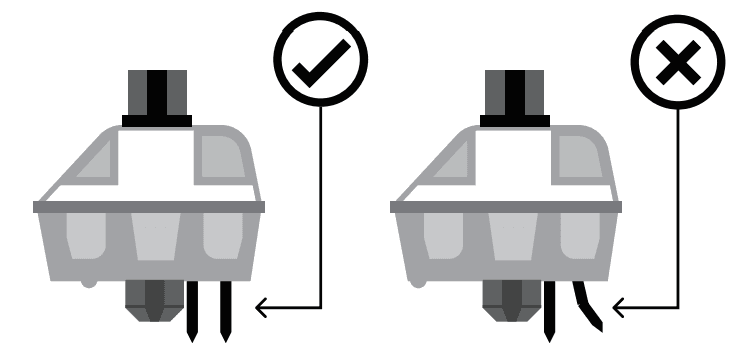

Before installing switches, be sure the pins are clean and straight.

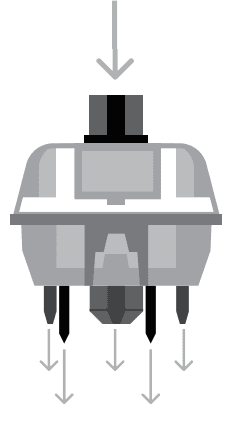

Push Straight Down
Please be gentle. Be sure the pins are aligned with the slots.

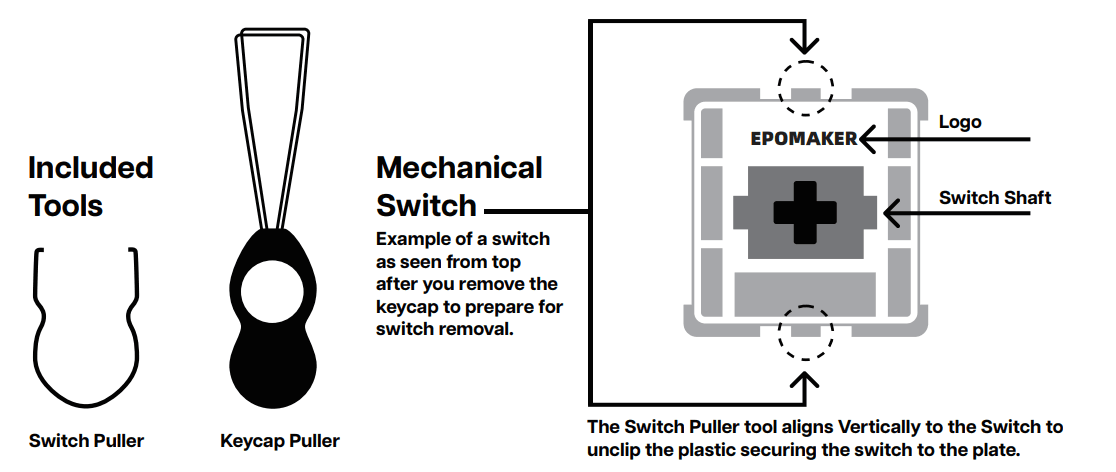

Remove Switches
- Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
- Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
- Using firm but gentle force pull the switch away from the keyboard using a vertical motion.
Install Switches
- Check that all the switch metallic pins are perfectly straight and clean.
- Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
- Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
- Inspect the switch to ensure it’s properly attached to your keyboard, and test it.
Note: If the key doesn’t work it’s possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.
Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.
WARRANTY
EPOMAKER’s Warranty covers any factory defects that might affect the proper functionality of your purchase. It doesn’t cover any damage that may occur from normal wear and tear. If your product is defective we will send you a replacement unit. Replacement units might require you to send the defective unit back to Epomaker.
We provide a 1-year warranty for our products when bought from our website (EPOMAKER.com). Your item will not be covered by your 1-year warranty if the inspection shows any sign of modification or changes unsupported by the original product, these include: Changing internal components, Assembling and reassembling the product, Replacing Batteries, etc.
We will ONLY cover the item if it is bought from our official stores. You do not have a warranty with us if you bought the item from another reseller or likewise. Please contact the store that you bought your product from to resolve issues.
