Epomaker HE65 Mag Wireless RGB Analog Keyboard User Manual

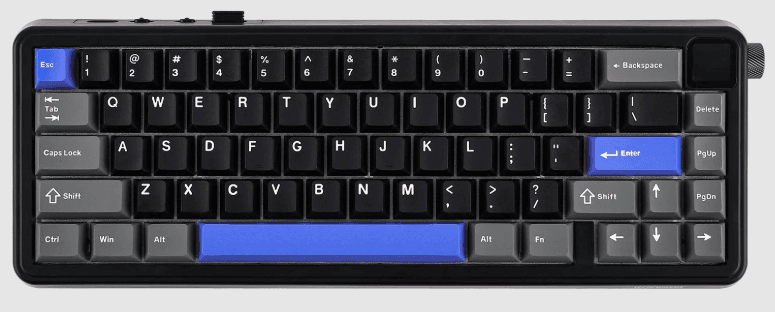

Epomaker HE65 Mag Wireless RGB Analog Keyboard

PAIRING BLUETOOTH

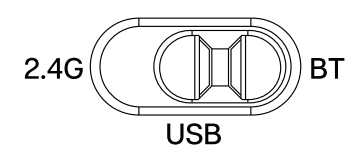

Toggle the switch to the BT side, and make sure that the keyboard is under the BT mode:

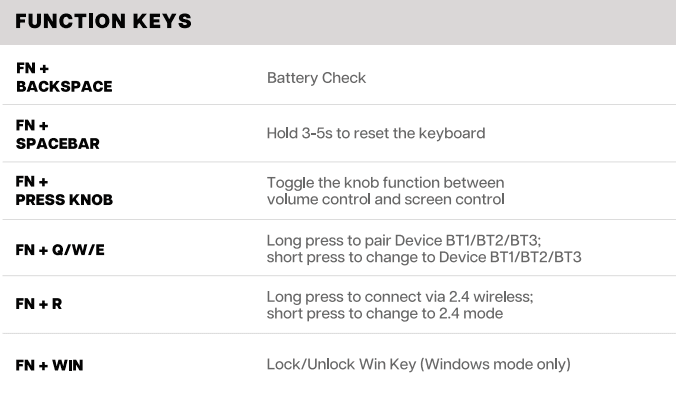

1. Hold Fn+Q/W /E for 3-5 seconds till the Q/W/E key blinks fast, and the keyboard is ready to pair.
2. Turn on your Bluetooth device and find ·HE65 Mag-1/2/3 .., then connect. When the keyboard is connected to the Bluetooth device, the indicator stops flashing and the connection is done.
3. Press Fn+Q/W/E to toggle between the Bluetooth devices 1/2/3.

PAIRING WIRELESS 2.4OHZ

Toggle the switch to the 2.4G, make sure that the keyboard is under the wireless mode:

1. Hold Fn+R for 3-5 seconds till the R key blinks fast. the keyboard is ready to pair.
2. insert the 2.4G dongle to your computer. When the keyboard is connected, the indicator stops flashing.

WIRED MODE

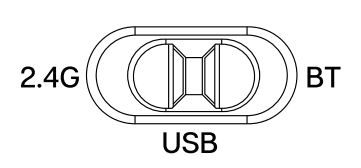

Toggle the switch to the USB, and plug in the keyboard.

BATTERY CHECK

Hold Fn + Backspace, the keys from 1 to O lights up to show the battery percentage;

for example, if the keys from 1 to 6 light up when holding Fn + Backspace, it means that the battery life is currently 60%; if keys of 1-0 light up, the battery life is 100%.

INDICATOR

• capslock: The capslock key lights up when the capslock key is on.
• Win Lock: The Win key lights up when the Win key is locked.

KNOB

• Fn + Press the knob to toggle the knob function between volume control and screen control.
• Control the screen: rotate the knob to choose the setting, and press the knob to confirm the selected setting.
• Control the volume: rotate the knob to increase or decrease the volume, and press the knob to mute/unmute the volume.

HOW TO CUSTOMIZE RT (RAPID TRIGGER):

1. Download and install the latest version of Epomaker Driver via” https://epomaker.com/blogs/software/epomaker-drive“
2. Connect the keyboard under the wired mode and open the driver.
3. Enter the RT setting by Main -> StokeSetting -> Customize -> Frame the keys that need to adjust the actuation.
4. Change the trigger actuation by adjusting the “press· and “up” points. then click the Confirm button.

FUNCTIONS IN ADVANCED SETTING (NOTE: SOME FPS GAMES MAY BAN THESE FEATURES.)

Dynamic Keystroke (DKS): Set up 4 different functions on 4 different positions on your keystroke.

• MT: Set up two different functions and two actions on a key: holding to be one function and tapping to be another function.
• TGL: Keep the key triggered by either holding it or double-tapping it
• Snap (SOCD. Be aware that some FPS games may ban this feature): Set up a pair of keys: when both keys are pressed, It registers the last input.

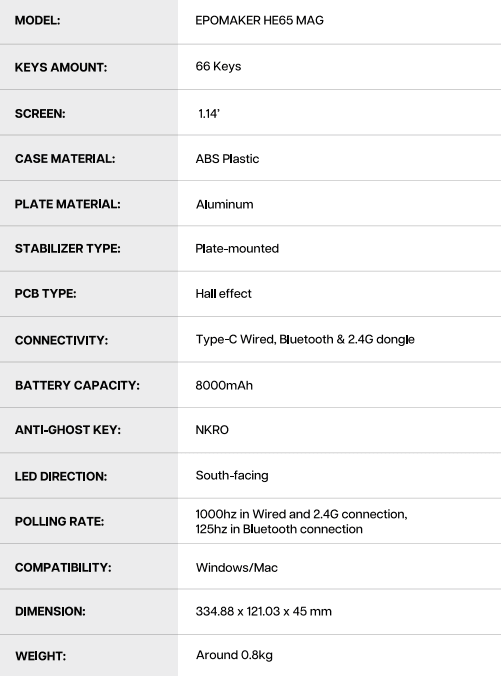

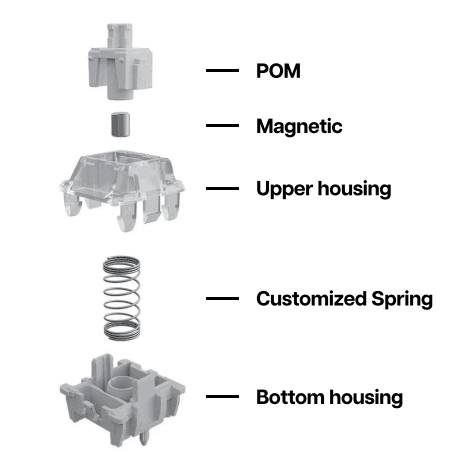

SPEC

Included Tools

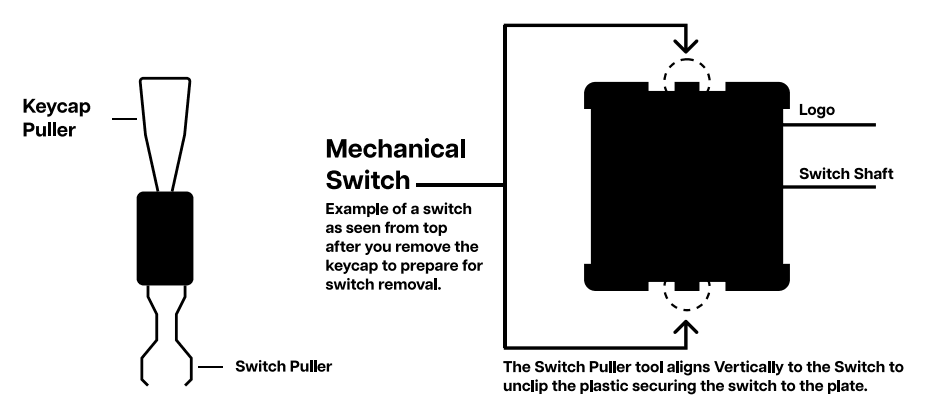

Remove Switches

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switches are perfectly clean and clear.
2. Put the switch vertically to have the LED slot align the RGB light on the PCB.
3. Press the switch down until you hear a click, meaning that the switch clips have attached themselves to the keyboard plate.
4. Inspect the switch to ensure it’s properly attached to your keyboard and test it.

Note: If the key doesn’t work it’s possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.

Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

WARRANTY

EPOMAKER’s Warranty covers any factory defects that might affect the proper functionality of your purchase. It doesn’t cover any damage that may occur from normal wear and tear. If your product is defective we will send you a replacement unit. Replacement units might require you to send the defective unit back to Epomaker.

We provide a 1-year warranty for our products when bought from our website (EPOMAKER.com). Your item will not be covered by your 1-year warranty if the inspection shows any sign of modification or changes unsupported by the original product, these include: Changing internal components, Assembling and reassembling the product, Replacing Batteries, etc.

We will ONLY cover the item if it is bought from our official stores. You do not have a warranty with us if you bought the item from another reseller or likewise. Please contact the store that you bought your product from to resolve issues.
