Evenflo Urbini Omni Travel System Stroller User Manual

Evenflo Urbini Omni Travel System Stroller

WARNING

Failure to follow these warnings and the instructions increases the risk of serious injury or death.

• PLEASE FOLLOW ALL INSTRUCTIONS AND KEEP THE USER GUIDE FOR FUTURE USE.
• ADULT ASSEMBLY REQUIRED. NEVER LEAVE a child unattended.
• AVOID SERIOUS INJURY from falling or sliding out. Always use a seat belt. CHECK to make sure the seat belt is fastened securely by tightening the straps.
• NEVER use a seat in a reclined carriage position unless the straps under the seat are unbuckled and the seat is set up in reclined carriage mode as per the instructions.
• STRANGULATION HAZARD:
  NEVER hang strings or toys from a stroller.
• TO PREVENT the STROLLER FROM BEING IN AN UNSTABLE CONDITION, never place parcels or other items on the stroller handle or canopy. DO NOT place more than 10lbs (4.5 kg) in the storage basket.
• TO AVOID STRESS AND TO PREVENT AN UNSTABLE CONDITION ON THE STROLLER, the stroller is intended for a child who weighs up to 50lbs (22.7 kg) and up to 45 inches in height. Never use with more than one child at a time. When the stroller is in carriage mode, it is intended for a child up to 6 months of age.
• NEVER USE A STROLLER ON STAIRWAYS or escalators. STROLLER IS NOT intended for use while jogging, roller-blading, skating, or similar activity.
• AVOID FINGERS FROM GETTING CAUGHT IN THE STROLLER: Use care when opening and closing the stroller. ALWAYS check to make sure the stroller is completely latched open before using it.
• DO NOT use a storage basket to carry a child.
• NEVER LET A CHILD stand on any part of the stroller. A child could fall and be injured.
• STROLLER IS NOT A TOY. NEVER allow children to play with a stroller.
• DISCONTINUE USING YOUR STROLLER if it becomes damaged or broken.
• NEVER lift or carry a toddler seat by the armbar.
• NEVER use the stroller frame without the toddler seat or car seat attached.
• TO AVOID FALLS, never remove the toddler seat from the stroller frame with the child in it.
• NEVER USE a toddler seat in a car or use it as a booster seat.
• USING THE URBINI PETAL INFANT CAR SEAT WITH THIS STROLLER:
  • ONLY USE THE URBINI PETAL INFANT car seat that originally came with your URBINI OMNI TRAVEL SYSTEM.
  • NEVER use any other manufacturer’s car seats with this stroller.
  • NEVER use the URBINI TOURI PETAL infant carseat with the OMNI stroller as it is not compatible.
  • ALWAYS CHECK to make sure the car seat is securely latched into the car seat mounts by lifting on it.
  • AVOID SERIOUS INJURY TO YOUR CHILD FROM FALLING OR SLIDING OUT OF THE INFANT CAR SEAT :
    • Always snugly secure your child in the car seat with the harness.
    • Make sure the armbar is securely attached on both sides before attaching the car seat to the stroller.
  • NEVER place a car seat in the toddler seat.

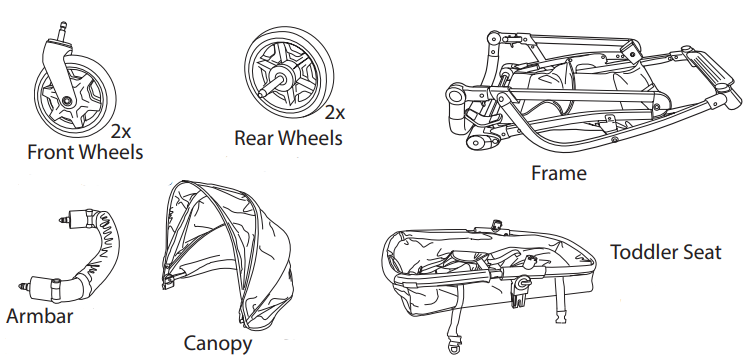

Parts

Please check that you have all the parts shown below before assembling the product. If you are missing any parts, please contact Customer Service at 1-888-569-7288.

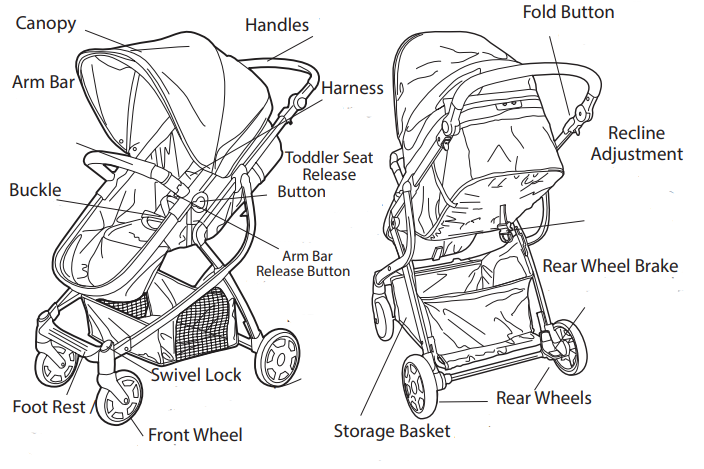

Product Features

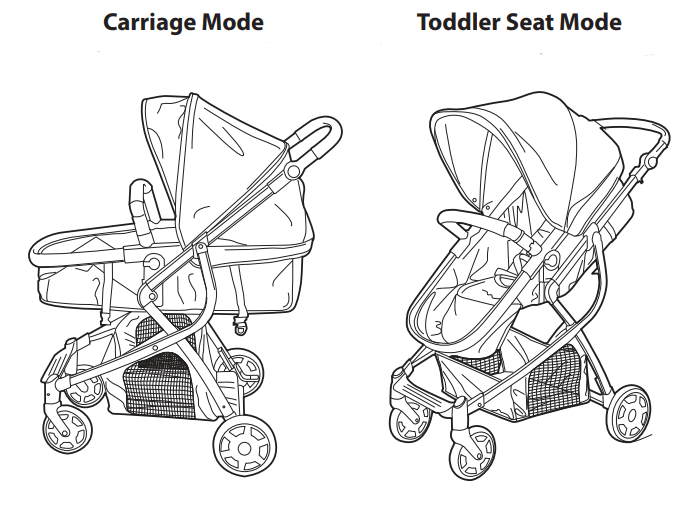

Your stroller seat can be used in two different modes. Toddler Seat Mode and Carriage Mode.

Your stroller seat is shipped in carriage mode with the buckles unfastened under the footrest. You will need to follow the instructions completely to make sure you set up your stroller in your preferred mode of use.

After the frame and the wheels have been assembled, you can choose to set the stroller up in Carriage Mode or Toddler Seat Mode, following instructions on pages 10 – 15.

Frame Assembly

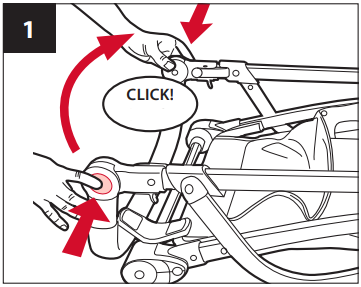

1. Press in buttons on the sides of the handle and rotate the handle up.

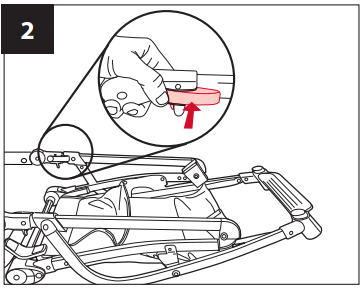

2. To unfold, press both release buttons (on the insides of the handle) and pull up.

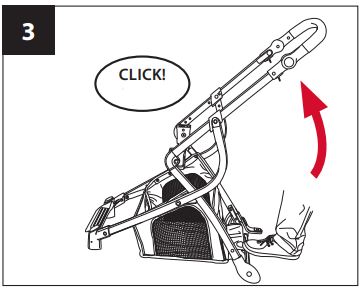

3. Lift on the handle until the stroller frame latches in position.

Wheel Assembly

1. To attach front wheels, push the wheel onto the front leg tube until it clicks into place. Repeat on the other side.
   Pull on the wheels to make sure both of them are attached.

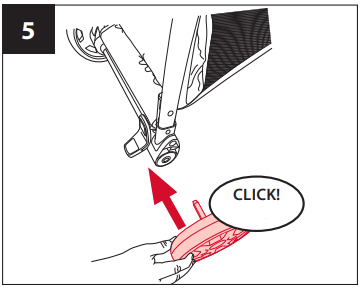

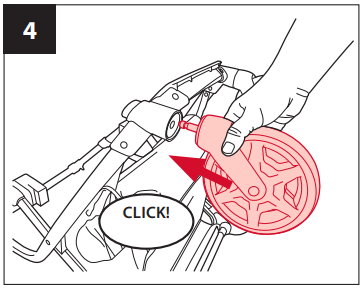

2. To attach the rear wheels, push the wheel onto the rear leg tube until it clicks into place. Repeat on the other side.
   Pull on the wheels to make sure both of them are attached.

Setting Up in Toddler Seat Mode

1. Flip the toddler seat over and attach the 2 buckles on the seat as shown

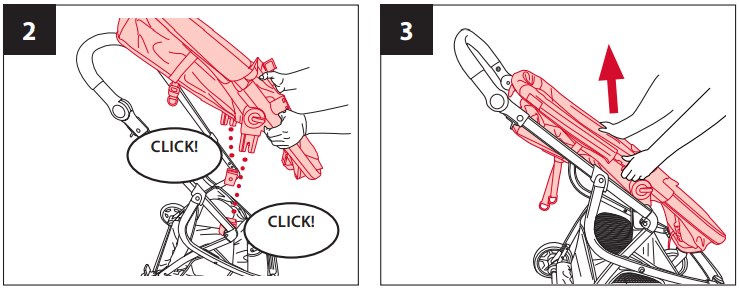

2. Turn the seat back over and attach the toddler seat to the mounts until they both click into place on both sides of the frame.
3. The toddler seat can be placed facing forward or to the rear of the stroller.
   CHECK to make sure it is securely attached by pulling up on it.

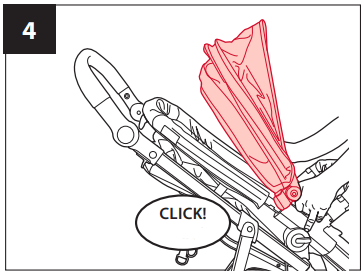

4. Attach the canopy by snapping it to both sides of the toddler seat as shown.
5. Fasten the hook and loop tape to the top edge of the canopy as shown. Repeat on the other side of the canopy.

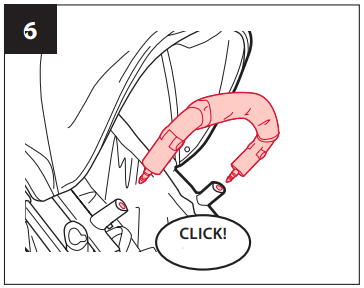

6. To attach armbar push pins into holes on either side of the frame until it clicks into place.

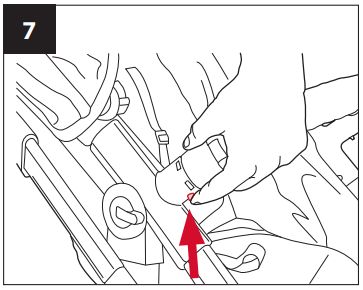

7. To open the armbar, press the release button on either side of the armbar and rotate open.

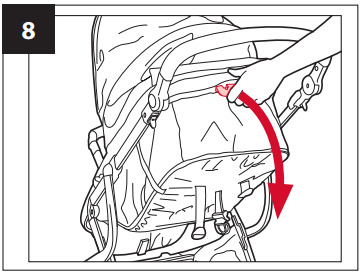

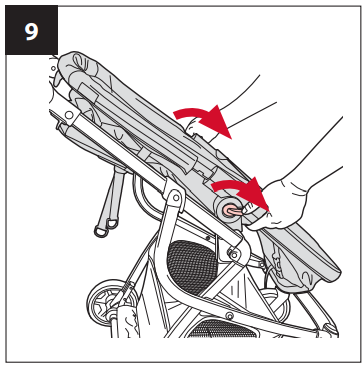

8. To recline the toddler seat, lift the handle and rotate to the desired position.
9. To remove the toddler seat from the frame, press the levers on both sides of the stroller and lift the seat off the stroller.

Setting Up in Carriage Mode from Toddler Seat Mode

WARNING

NEVER use a seat in a reclined carriage position unless the straps under the seat are unbuckled and the seat is set up in reclined carriage mode as per the instructions.

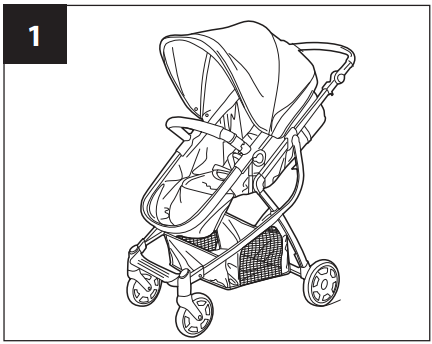

1. If you are in Toddler Seat Mode as shown, follow these steps to convert to Carriage Mode.
2. Fully recline the seat, and pull down the slider on the rear of the seat.

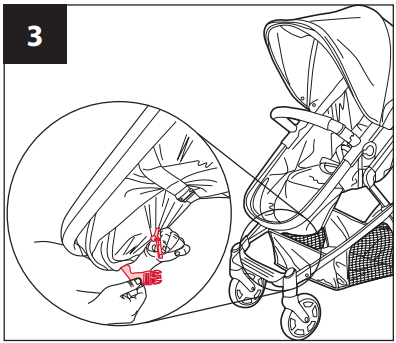

3. 2 sets of buckles must be undone.
   Undo the front buckle behind the leg rest on the toddler seat. Refer to page 10, Step 1, for buckle locations.

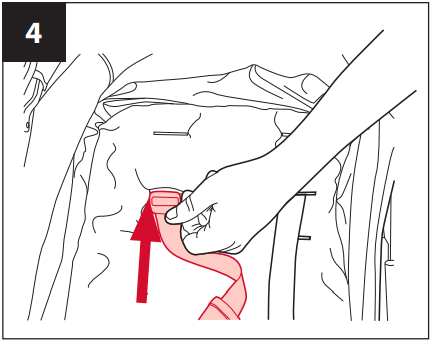

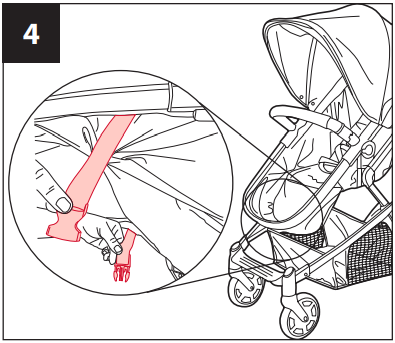

4. Undo the 2nd buckle. Refer to page 10, Step 1, for buckle locations.

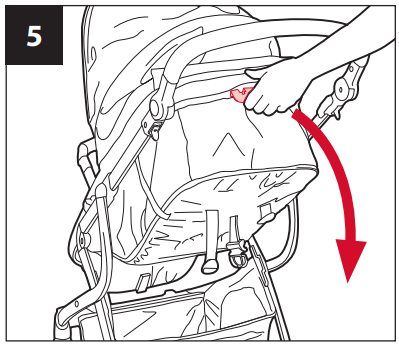

5. Lift the handle and rotate the seat down so that it is flat.

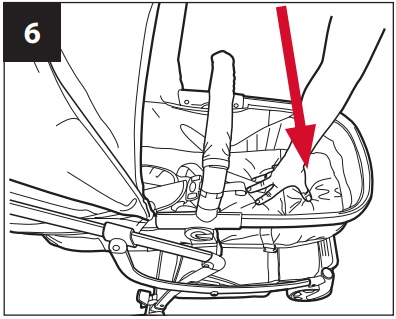

6. Press down on the inside of the toddler seat to flatten out the inside. WARNING: NEVER lift or carry a toddler seat by the armbar.
7. To remove and use in rear-facing mode: depress the release buttons on both sides of the toddler seat, lift the seat off the stroller frame and turn it around, and re-attach.
8. CHECK to make sure it is securely attached on both sides by pulling up on it.

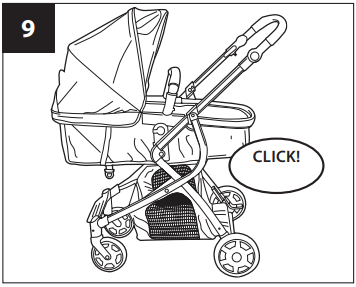

9.

Brakes

WARNING

Always lock both brakes. Make sure the brakes are on by trying to push the stroller.

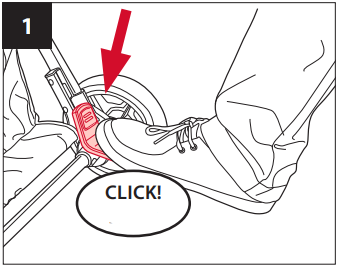

1. To lock, press the lever DOWN on both rear wheels.

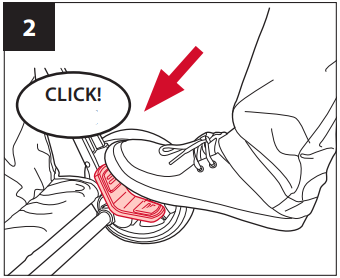

2. To unlock, press the lever UP on both rear wheels.

Swivel Wheels

1. Swivel wheels lock for use on rough surfaces, such as gravel or stones. To lock the front wheels, push the lock button down.
   To unlock the front wheels, push the lock button again to release.

Adjusting Harness

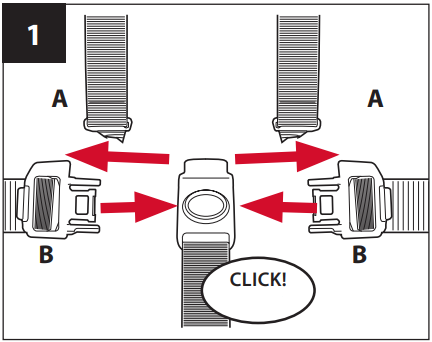

1. To attach the harness and waist straps to the crotch buckle, slide shoulder straps A onto the waist buckles B as shown, then click them into the crotch buckle.

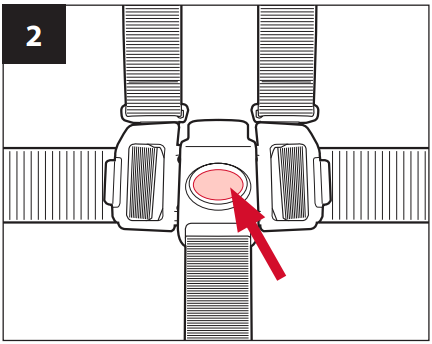

2. To unlock the harness, push the button on the crotch buckle, then slide the shoulder straps off the waist buckles.

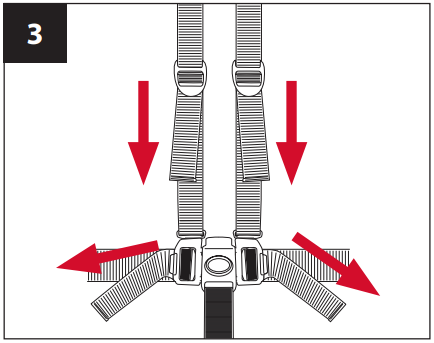

3. To adjust the harness around your child, tighten the shoulder and waist straps by pulling on the free ends of the straps as shown.

Changing Shoulder Strap Position

To change shoulder strap height positions, reach one hand behind the stroller and push the retainer out to the front of the seat, then reinsert it into the desired set of slots that are closest to your child’s shoulder.

Repeat with the other harness strap.

When re-inserting the harness straps, MAKE SURE to always place the harness straps at the same height setting.

Canopy

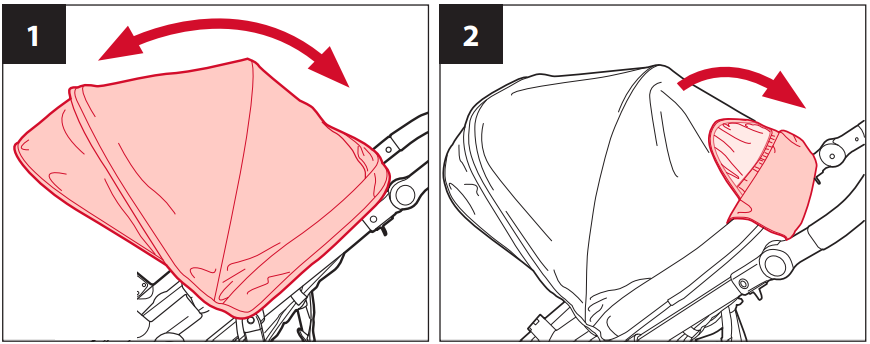

1. To open or close the canopy, push to the front or the rear of the stroller.
2. Canopy has a window that can be rolled back so you can view the child.

Adjustable Handle

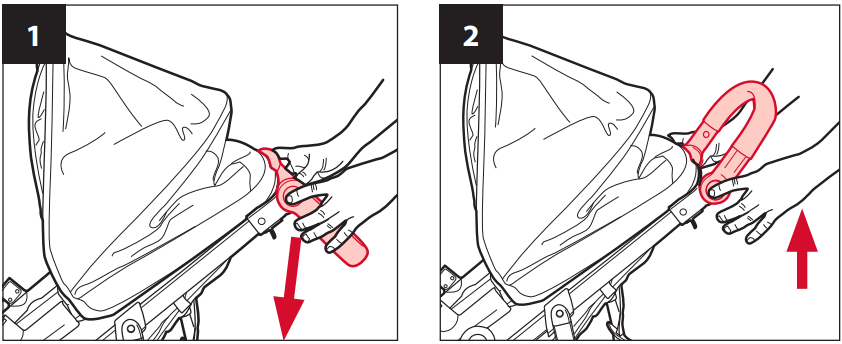

1. To lower the handle, push the buttons on either side of the troller and rotate down.
2. To raise the handle, push the buttons and rotate to the desired height.

Folding Stroller

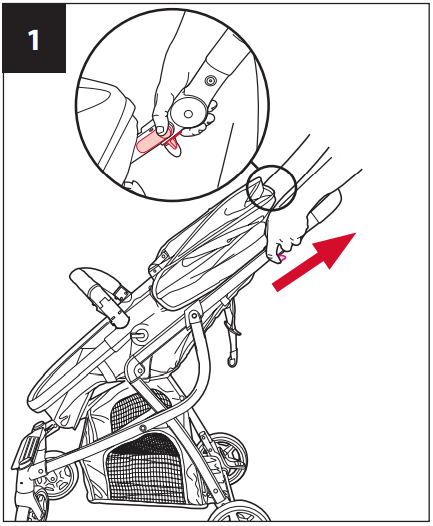

1. To fold the stroller, place the seat in an upright position, lock the brake and push buttons, and pull back on both levers on he sides of the stroller handle at the same time.
   For a more compact fold, remove the odder seat before folding the stroller frame.

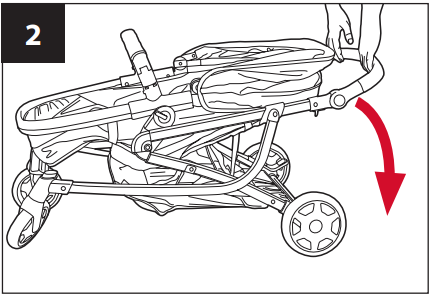

2. Lower the handle down until the stroller is completely folded.

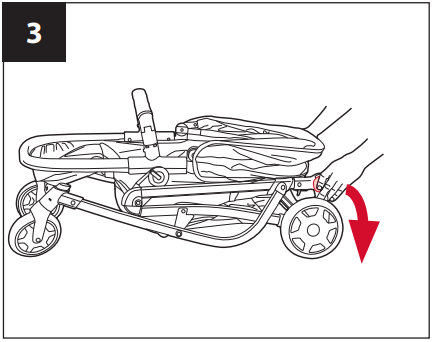

3. For a more compact fold, press the buttons on the side of the handle to lower it.

Attaching the Urbini Omni Petal Infant Car Seat

WARNING

USING THE URBINI PETAAL INFANT SEAT WITH THIS STROLLER:

• ONLY USE THE URBINI PETAL INFANT car seat that originally came with your OMNI URBINI TRAVEL SYSTEM.
• NEVER use any other manufacturer’s car seats with this stroller.
• NEVER use the URBINI TOURI PETAL infant carseat with the OMNI stroller, as it is not compatible.
• ALWAYS CHECK to make sure the car seat is securely latched into the car seat mounts by lifting on it.
• AVOID SERIOUS INJURY TO YOUR CHILD FROM FALLING OR SLIDING OUT OF THE INFANT CAR SEAT :
  • Always snugly secure your child in the car seat with the harness.
  • Make sure the armbar is securely attached on both sides before attaching the car seat to the stroller.
• NEVER place a car seat in the toddler seat.

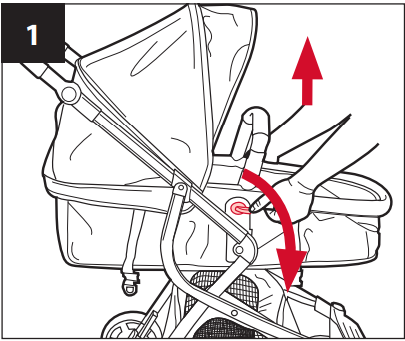

• Remove the toddler seat, press the release buttons down, and remove the seat.

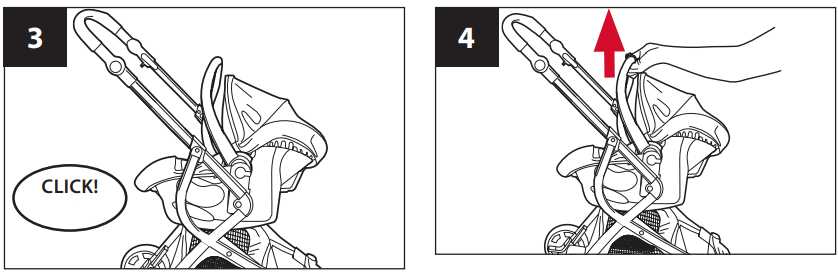

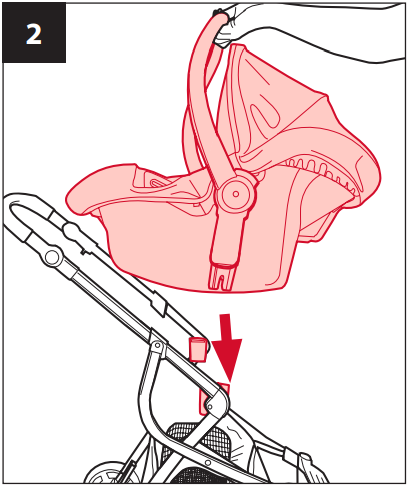

• To attach the car seat, insert the car seat into the mounts until they both click into place on both sides of the frame.

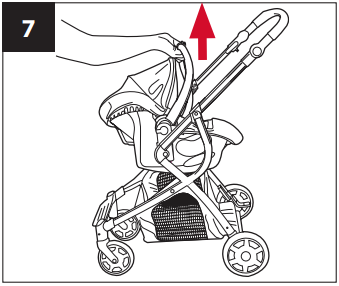

  Lift on seat to ensure that it is securely attached.
•

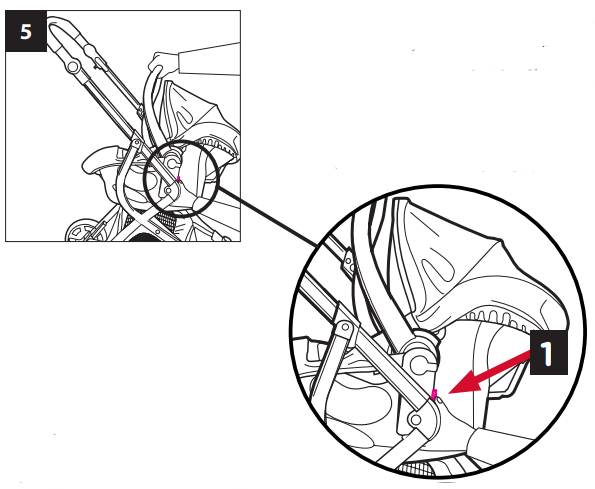

• To remove the car seat, press the grey button 1 to unlock, then press the grey button 2 and remove the car seat from the stroller frame.
•
•

Care and Cleaning

• FOR WASHING INSTRUCTIONS, REFER TO YOUR CARE TAG on your seat pad.
• NEVER use BLEACH.
• To clean the STROLLER FRAME, use a damp cloth with household soap and warm water. NEVER use BLEACH or detergent.
• BEFORE USING THE STROLLER, ALWAYS CHECK for any missing parts, torn material, or if it is broken or damaged. Replace parts as needed by contacting Customer Service.
• NEVER USE a stroller if any parts are missing or damaged.

Replacement Parts and Warranty Information

For customer service, warranty information, or replacement parts, please call us at 1-888-569-7288 or visit us online at www.urbinibaby.com
