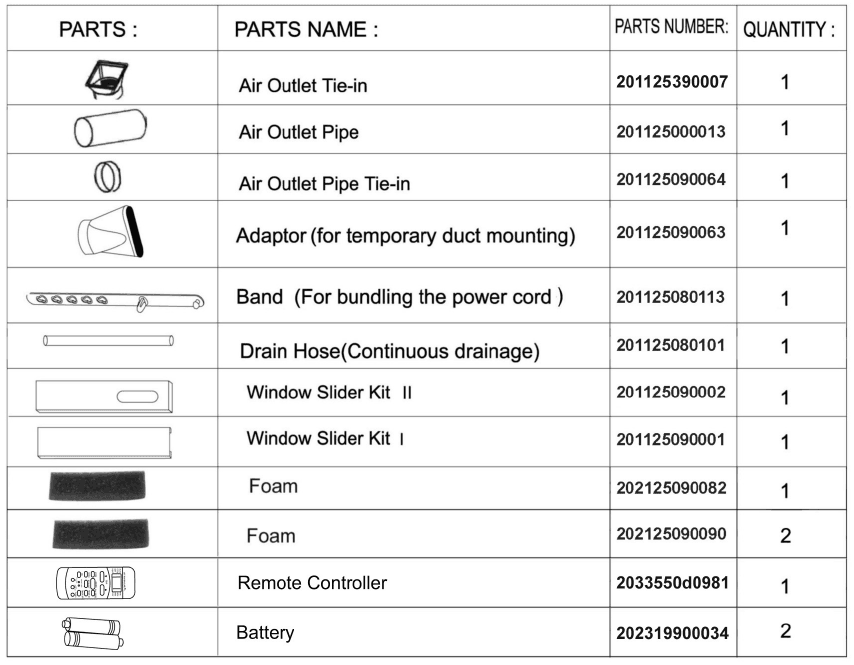

Accessories

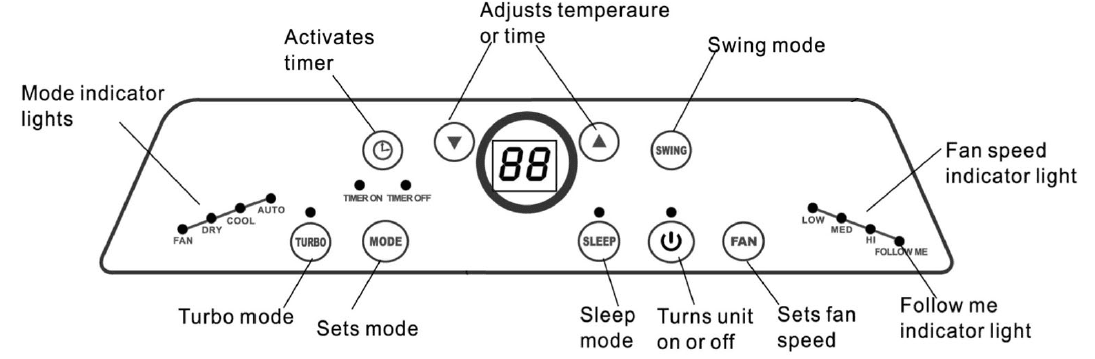

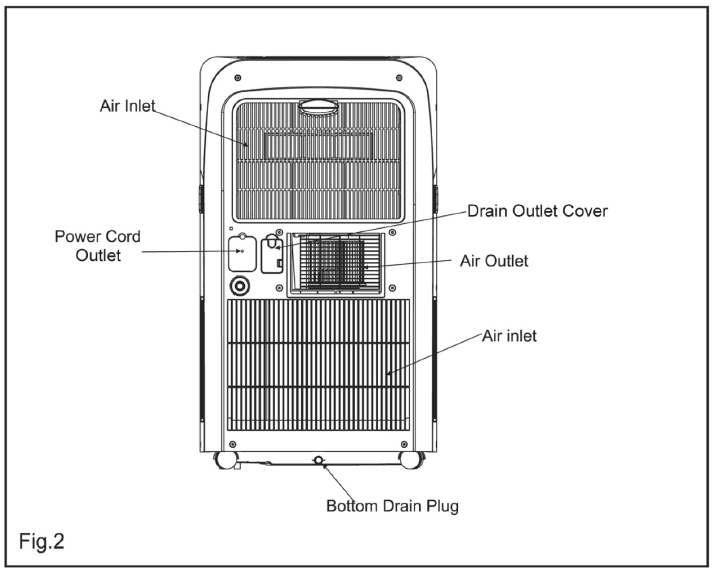

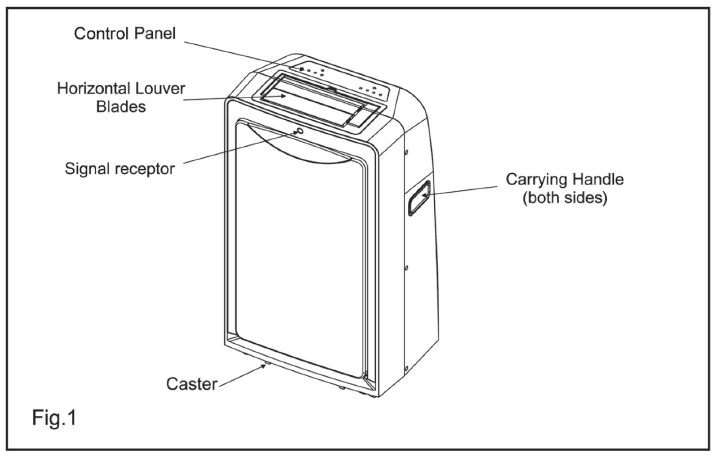

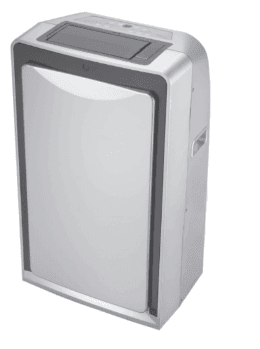

NAMES OF PARTS

ELECTRONIC CONTROL OPERATING INSTRUCTIONS

• Before you begin, thoroughly familiarize yourself with the control panel and remote and all their functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control alone or with the remote.

LED DISPLAY PANEL MODELS:

• NOTE: The following instructions represent the LED Unit Controls.

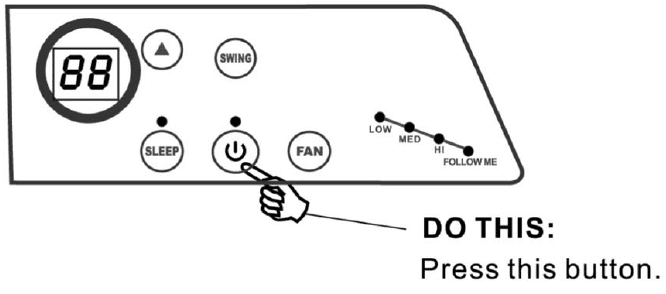

TO TURN UNIT ON:

TO CHANGE TEMPERATURE SETTING:

NOTE:

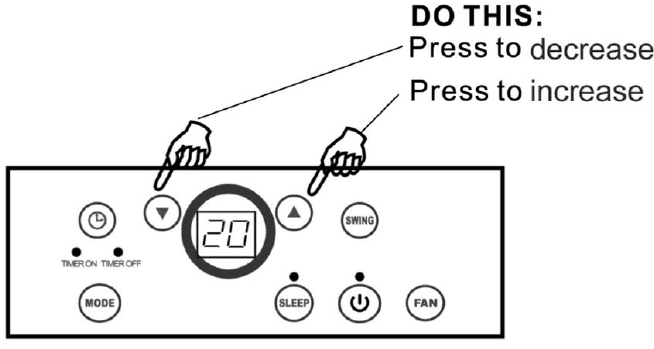

• Press or hold either UP or DOWN button until the desired temperature is seen on the display. This temperature will be automatically maintained anywhere between 62 F (17°C) and 88 F(30 C). If you want the display to read the actual room temperature, see “To Operate on Fan Only” section.

TO SELECT THE OPERATING MODE:

NOTE:

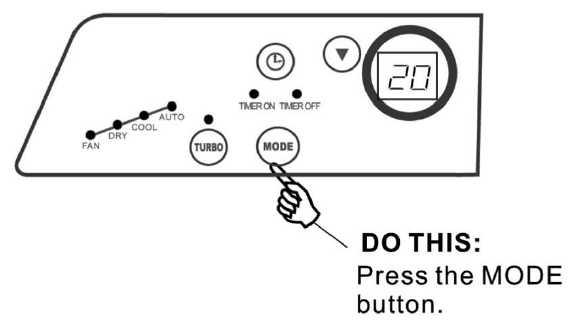

• To choose operating mode, press the MODE button. Each time you press the button, a mode is selected in a sequence that goes from Auto, Cool, Dry, Fan.The indicator light beside will be illuminated and remained on once the mode is selected.
• To operate on Auto feature:
• In this mode the fan speed cannot be adjusted, it starts automatically at a speed according to the room temperature. If the room does not get too warm, it will stay at Low speed.
• To operate on Fan Only:
• Use this function only when cooling is not desired, such as for room air circulation. You can choose any fan speed you prefer.
• During this function, the display will show the actual room temperature, not the set temperature as in the cooling mode.

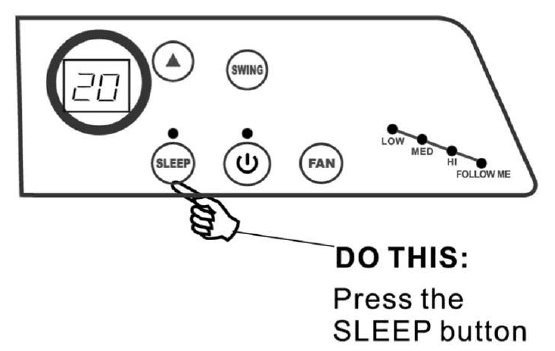

SLEEP FEATURE:

NOTE:

• In this mode, the selected temperature will increase(cooling) by 1°C/2°F 30 minutes after the mode is selected. The temperature will then increase(cooling) by another 1°C/2°F after an additional 30 minutes. This new temperature will be maintained for 7 hours before it return to the original selected temperature. This ends the Sleep mode and the unit will continue to operate as originally programmed.
• The Sleep mode program can be canceled at any time during operation by pressing the SLEEP button again,or turning off the unit, or pressing the MODE or FAN button.
• NOTE: This feature is unavailabe under FAN or DRY mode.

TIMER: AUTO START/ STOP FEATURE

NOTE:

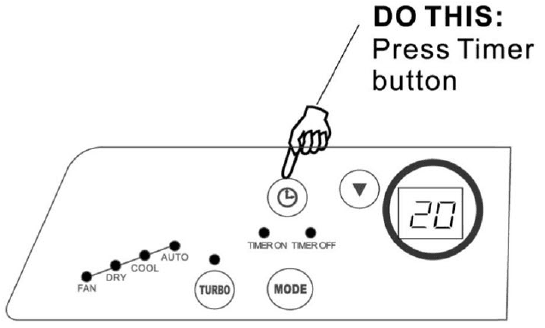

• When the unit is on, first press the Timer button, and the indicator light above word TIMER OFF illuminates. It indicates the Auto Stop program is initiated.
• When the unit is off, first press the Timer button, the indicator light above word TIMER ON illuminates. It indicates the Auto Start program is initiated.
• Press or hold the UP arrow or DOWN arrow to change the Auto time by 0.5-hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start.
• The selected time will register in 5 seconds and the system will automatically revert back to display the previous temperature setting
• Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop function.
• When LED display window displays code of E1, E2, E3, P1, the Auto Start/ Stop function will also be cancelled.

TURBO FEATURE:

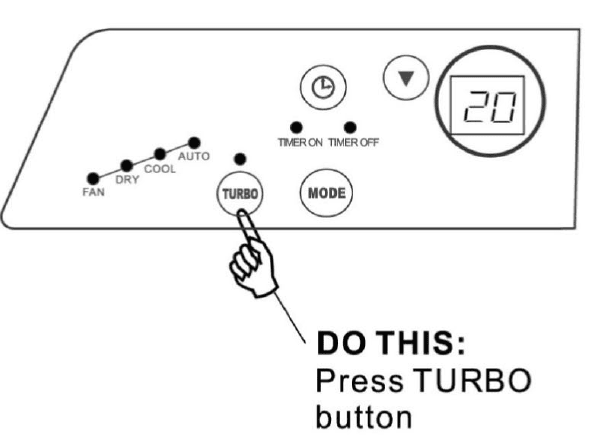

• Press TURBO button on cooling operation, the unit will blow strong cooling air, the set temperature will reach in the shortest time. This feature is only available on cooling mode.

SWING FEATURE:

Use the SWING button to initiate the airflow direction setting operation(This button is available only when the unit is on ).

1. Each press will change the swing angle for 6°. Keep pressing the button to move the horizontal louver to the desired position.
   • Note: If keep pressing the SWING button without releasing for one more second, the horizontal louver would swing up/down automatically.
2. Press the SWING button again to stop the movement.
   • NOTE: When the louver blades swing or move to a position which would affect the cooling effect of the air conditioner, they would automatically change the swing/ moving direction.

OPERATING INSTRUCTIONS

1. COOLING OPERATION (Operating temperature range: 17°C-30°C/62°F-88°F)
   • Press the “MODE” button several times until the “COOL” indicator light comes on.
   • Press the UP and DOWN buttons “A” or “v” to select your desired room temperature. The temperature can be set within a range of 17°C-30°C/62°F-88°F.
   • Press the “FAN ” button to choose the fan speed.
2. DEHUMIDIFYING OPERATION (Operating temperature range: 13°C-35°C/54°F-95°F)
   • First open the water filling cover at the back of the unit, inside you will find a hose connector. Attach a section of drain hose(included with the unit) to the connector. Place the open end of the hose directly over the drain area in your basement floor or in a water container.
   • Under this mode, you cannot select a fan speed or adjust the temperature. The fan motor operates at Low fan speed. The display will show the actual room temperature.
   • Keep windows and doors closed for the best dehumidifying effect.
   • Do not put the duct to window.
   • CAUTION: During Cooling and dehumidifying modes, if the compressor cycle is interrupted (unplugged, power failure, etc.) and reinstated immediately thereafter, a compressor protection circuit is automatically self-affected. The compressor cannot operate during a compressor protection condition. It may take about 3 minutes before the protection circuit self-deactivates.(This is normal)
3. FAN OPERATION
   • Press the MORE CHO are at Even ee on les on.
   • Press the “FAN ” button to choose the fan speed. The temperature cannot be adjusted.
   • Do not put the duct to window.
4. TIMER OPERATION
   The AUTO-TIMER feature offers a unique option to pre-set the on and off times of the unit via a 0.5 hr to 24hr timer.
   Note: The Mode, Fan Speed and Temperature settings must be selected prior to using the Auto-Timer function.
   • 1) Timer-Off setting.
   • Please be aware that in order for the Timer-Off function to work property, the unit must be powered on.
     Example: If at 8:00 pm the Timer-Off is set at 2.0, then the unit will automatically power off and stop cooling at 10:00 p.m. or after 2 hours have elapsed.
   • a) Push the Timer-Off button: – The display will indicate the number of hours until the unit shuts off.
   • b) Press or hold the Timer-Off button until the display window indicates the number of hours that is desired for the unit to continue running.
   • c) After a 5 second delay, the display will switch back from the time increment to the desired temperature setting
5. WATER DRAINAGE
   • During Dehumidifying Mode:

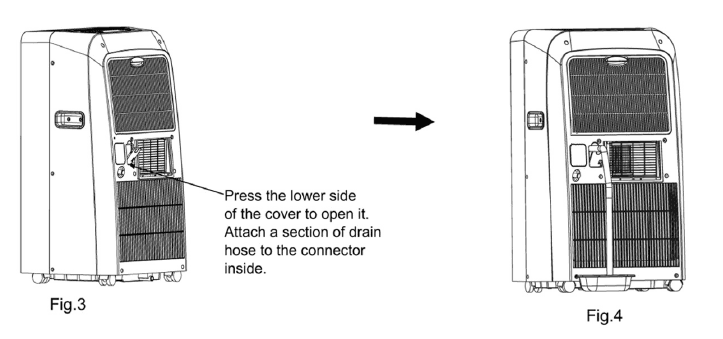

   • Open the drain outlet cover, inside you will find a drain hose connector, attach a section of drain hose (included with this unit) to the connector. Place the open end of the hose directly over the drain area in your basement floor or in a water container (8 liters /17.02 pints) (see Fig. 3 & 4).

INSTALLATION INSTRUCTIONS

Location

• The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit.
• The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. Use caution Smit aurica pee faces. Do not attempt to
• The unit must be placed within reach of a properly rated grounded socket.
• Never place any obstacles around the air inlet or outlet of the unit.

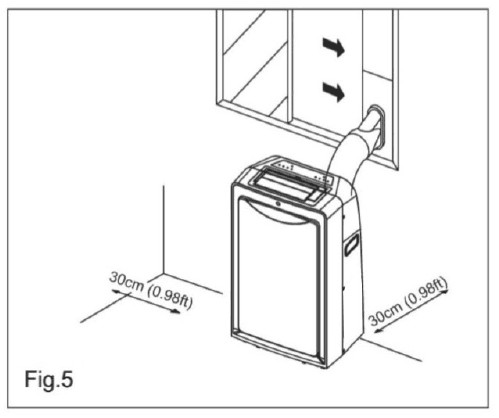

• Allow at least 30cm (0.98f) of space from the wall for efficient air-conditioning.

Window kit Installation

• Your window kit has been designed to fit most standard “Vertical” and “horizontal” window applications, However, it may be necessary for you to improvise/

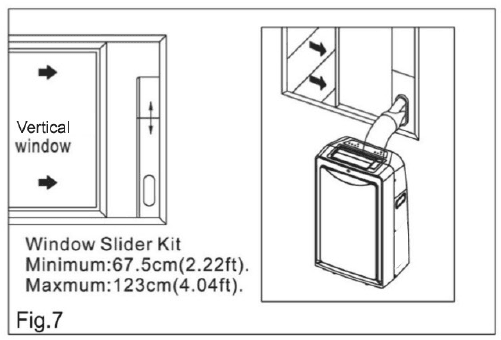

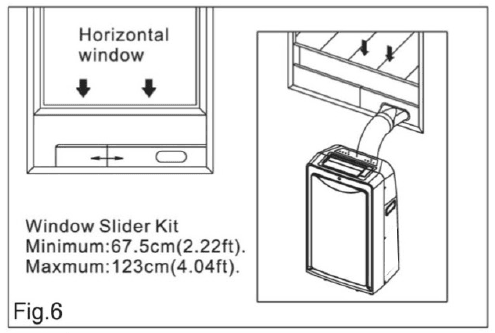

  modify some aspects of the installation procedures for certain types of window. Please refer to Fig. 6& Fig.7 for minimum and maximum window openings.
  Note: If the window opening is less than the mentioned minimum length of the window slider kit, cut that one with holes in it short to fit for the window opening. Do never cut out the hole in the window slider kit.

Installation in a double-hung sash windows

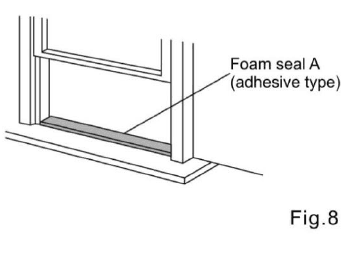

1. Cut the foam seal(adhesive type) to the proper length and attach it to the window stool. Fig.8
2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window.

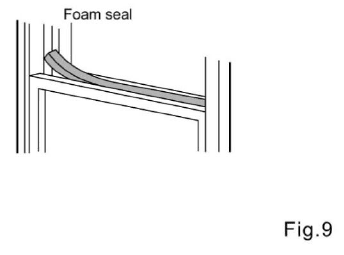

3. Cut the foam seal to an appropriate length and sealing the open gap between the top window sash and outer window sash. Show as in Fig. 9 .

Installation in sliding sash windows

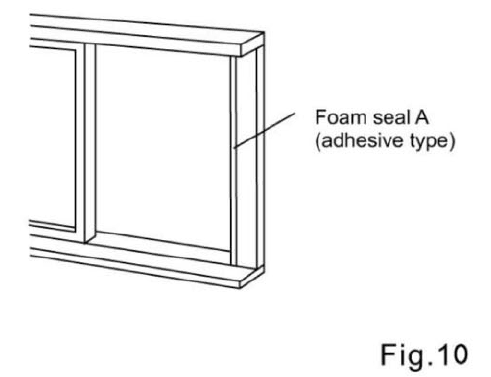

1. Cut the foam seal(adhesive type) to the proper length and attach it to the window frame,Fig. 10.
2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window.

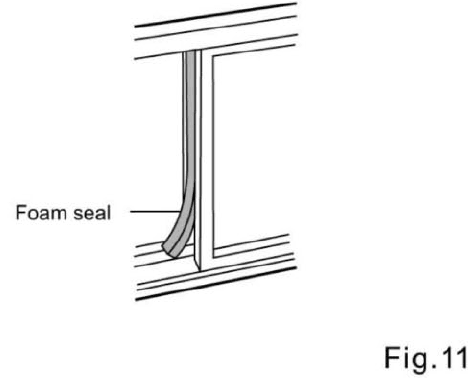

3. Cut the foam seal to an appropriate length and sealing the open gap between the top window sash and outer window sash. Show as in Fig.11.

Exhaust hose installation:

• The exhaust hose and adaptor must be installed or removed in accordance with the usage mode.

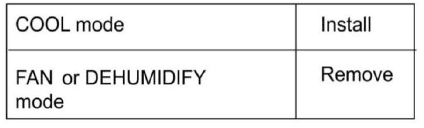

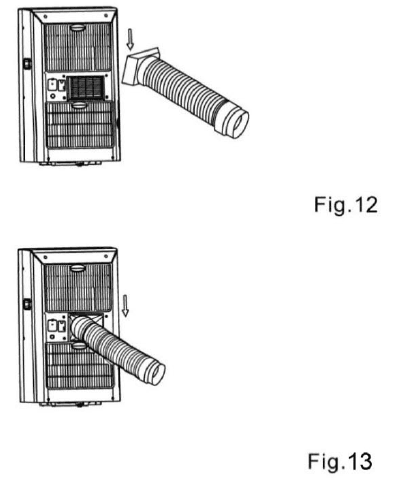

1. Install the flexible Exhaust hose as depicted in Fig. 12 & 13

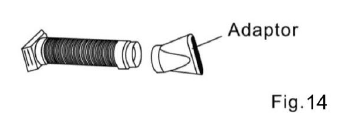

2. Install the window Exhaust adaptor (flat mouth) onto the exhaust hose as shown in Fig. 14. Refer to the previous pages for window kit installation.
   • Note:
   • The duct can be compressed or extended moderately according to the installation requirement, but it is desirable to keep the duct length to a minimum.
   • IMPORTANT:

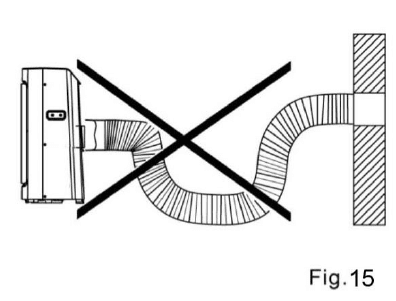

   • DO NOT OVER BEND THE DUCT (SEE Fig. 15)

CARE AND MAINTENANCE

IMPORTANT:

• 1) Be sure to unplug the unit before cleaning or servicing.
• 2) Do not use gasoline, thinner or other chemicals to clean the unit.

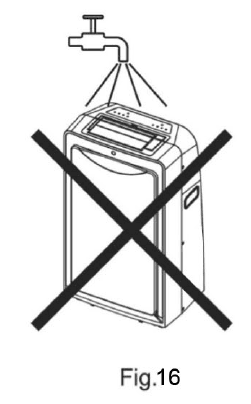

• 3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger.
• 4) If the power cord is damaged, it should be repaired by manufacturer or its agent.

1. AIR FILTER
   • Clean the air filter at least once every two weeks to prevent inferior fan operation because of dust.
   • Removal

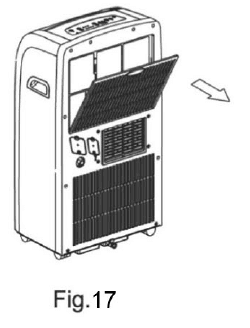

   • Pull out the filter cover and remove the air filter from the filter cover.
   • Cleaning
   • Wash the air filter by immersing it gently in warm water (about 40°C/104°F) with a neutral detergent. Rinse the filter and dry it shady place.
   • Mounting
   • Alach the at her to ho lier cover using the attachment COM hooks on the inner surface of the cover. Put the filter cover back to the unit.
2. UNIT ENCLOSURE
   • Use a lint-free cloth soaked with neutral detergent to clean the unit enclosure. Finished by a dry clean cloth.
3. UNIT IDLE FOR A LONG TIME
   • When you plan to leave this unit unused for a long time, remove the bottom rubber plug from the back hole and attach a section of the continuous drain
     hose. All the water in the bottom tray should drain outside through the drain hose.(See Fig.18)
   • Keep the appliance running on FAN mode for half a day in a warm room to dry the internal components and prevent mold.
   • Stop the appliance and unplug it, wrap the cord and bundle it with the tape. Remove the batteries from the remote controller.
   • Clean the air filter and reinstall it.
   • Disconnect the exhaust hose, and cover the window(wall) hole with the adaptor cap.
