EverStart SL3HE 1000 Lumen Rechargeable Lithium-Ion LED Spotlight User Manual

EverStart SL3HE 1000 Lumen Rechargeable Lithium-Ion LED Spotlight

SAFETY GUIDELINES / DEFINITIONS

• DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
• WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
• CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury and/or property damage.
• RISK OF UNSAFE OPERATION When using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. Manufacturer strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed. Read and understand all warnings and operating instructions before using any tool or equipment.

READ ALL INSTRUCTIONS

WARNING: Read all instructions before operating light. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

WARNING! Risk of fire, electric shock, burst hazard, or injury to persons – when using electrical appliances, basic precautions should always be followed, including the following:

• LED gets HOT quickly!
• Do not touch the LED at any time when operating.
• Only contact trigger when turning on.
• Do not touch hot lens or enclosure.
• Do not remain in light if skin feels warm.
• Do not operate the spotlight with a missing or damaged lens or enclosure.
  WARNING! When using electrical appliances, basic precautions should always be followed, including the following:
• The spotlight is not a toy and cannot be played with as toy. To reduce the risk of injury, close supervision is necessary when these units are used near children.
• Use only attachments recommended or sold by the manufacturer.
  WARNING! To reduce the risk of electric shock:
• Do not put the spotlight in water or other liquid. Do not place or store this light where it can fall or be pulled into water or become wet.
• Charge indoors only. Do not expose USB charging cable to water or any other liquid.
• Do not clean this appliance with a water spray or the like.
• Use only the charging cable supplied by the manufacturer to charge and recharge.
  WARNING! Fire hazard:
• Never contact combustible material to the lens.
• Keep spotlight lamp away from materials that may burn.
  CAUTION! To reduce the risk of injury or property damage:
• All lights give off heat:
  • Do not touch lens while operating.
  • Keep combustibles away from spotlight lens. Extreme heat can cause fires.
  • Never place the light face down on any surface when lit, charging or not in use. Never store the light face down on any surface.
• Never look directly into the light or shine the light into another person’s eyes.
• Keep sharp objects away from lens — it is glass and can break.
• Do not immerse spotlight in water.
• Do not expose this unit to extremely high temperatures.
• Do not drop or throw spotlight. It contains glass and a lithium-ion battery.
• Use only with the USB charging cable provided with the unit. Plug in the charging cable at the light first, then plug into the charging source.
• After charging/recharging, disconnect cable and wait 5 minutes before use.
• Do not crush, cut, pull or expose charging cable to extreme heat.
• Position charging cable so they do not become entangled or become a safety hazard. Keep charging cable away from sharp edges.
• Use in a dry location only.
• There are no user-serviceable parts inside. Do not attempt to disassemble any other parts of the unit.
• To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting.
• Do not attempt to charge the unit if the charging cable is damaged – return the charging cable to manufacturer for repair or replacement.

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM-ION BATTERIES

WARNING! To reduce the risk of fire, electric shock, burst hazard, or injury to persons or property:

Lithium-ion batteries are small, compact and ideal for providing long-lasting power to this unit. However, they must be used and charged properly. Improper use can result in serious injury, fire, or death.

• Lithium-ion batteries can explode in the presence of a source of ignition. Do not use the product in the presence of an open flame.
• Do not place this lithium-ion battery powered unit in fire or apply heat to it.
• Do not subject this lithium-ion battery powered unit to strong impacts or shocks. The battery in this unit contains safety and protection devices which, if damaged, may cause the battery to generate heat, rupture or ignite.
• Do not expose this lithium-ion battery powered unit to water or salt water, or allow the battery to get wet.
• Avoid storing this lithium-ion battery powered unit in the basement, bathroom or other areas of the house that are or may become wet or humid or where moisture may concentrate.
• Do not leave this lithium-ion battery powered unit in direct sunlight, or use or store the unit inside cars in hot weather. Doing so may cause the battery to generate heat, rupture, or ignite. Using the battery in this manner may also result in a loss of performance and a shortened life expectancy.
• Never charge this unit near heat or flammable objects.

NEVER THROW WATER ON A BURNING LI-ION BATTERY

If a lithium-ion battery does catch on fire, it will burn even more violently if it comes in contact with water or even moisture in the air. A fire extinguisher must be used.

Battery Charging and Capacity

This unit is delivered in a partially charged state – you must fully charge it before using it for the first time. When stored at room temperature with a full charge, Li-ion batteries will begin to discharge from the time they are manufactured, even when unused. Deep discharges also decrease their capacity. Battery life can be extended by the following:

• Charge battery to full capacity before storage.
• Optimal storage temperature for this unit is between 5°C and 20°C (41°F and 68°F).
• Never discharge the battery fully.
• Charge after each use.
• Always charge at least once every 3-6 months if not in frequent use to prevent over discharge.

TRANSPORTATION OF LITHIUM-ION BATTERIES

• Always check all applicable local, national, and international regulations before transporting a unit containing a Lithium-Ion battery.
• Transporting an end-of-life, damaged, or recalled battery may, in certain cases, be specifically limited or prohibited.

SAVE THESE INSTRUCTIONS

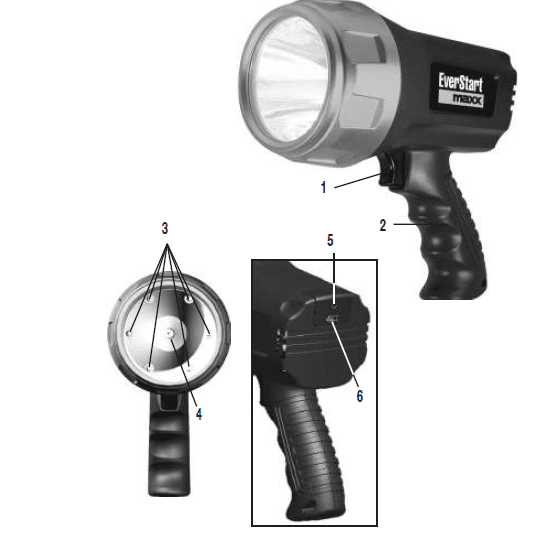

FEATURES

1. 5-Position On/Off Trigger (Full/High/Low/Halo/Off)
2. Pistol Grip Handle
3. Area Lights (total of 6 around the Lens)
4. Main Beam LED
5. Battery/Charge Status LED Indicator
6. Micro-USB charging port (for use with the USB charging cable)

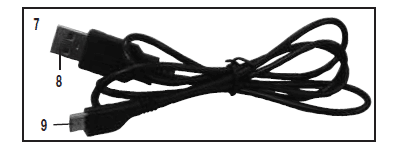

7. USB charging cable
8. Regular USB plug
9. Micro-USB plug

READING THE BATTERY/CHARGE STATUS LED INDICATOR

The battery and charging status LED indicator is located on the back of the unit. It lights or flashes in three colors to indicate the following:

When charging

• Green: Battery is in a fully charged state.
• Green (flashing): Battery is in a high partially charged state.
• Orange (flashing): Battery is in a low partially charged state.
• Red (flashing): Battery needs to be recharged.
  Red (flashing rapidly): The battery of the unit is overheated due to extensive use or recharging. The charging process will stop at this stage and will automatically resume after a cool down period.

When operating

• Green: Battery is operating at full voltage.
• Orange: Battery is operating at partial voltage.
• Red: Battery is operating at low voltage, and should be recharged or the built-in low voltage protection will be activated and the unit will automatically shut down shortly.
• Red (flashing rapidly): The battery of the unit is overheated (due to extensive use or recharging), or is too cold (the ambient temperature has dropped below -20°C). Operation will stop at this stage.

CHARGING/RECHARGING THE SPOTLIGHT

This unit is shipped in a partially charged state. Charge unit after purchase and BEFORE first use until the battery/charge status LED indicator lights green. Recharge after each use until the battery/charge status LED indicator lights green.

IMPORTANT: When the unit is not in use, we recommend that the battery is charged at least every 3 to 6 months.

CAUTION! To reduce the risk of injury or property damage:

• Never place the light face down on any surface when charging.
• Failure to keep the battery charged will cause permanent damage and result in poor performance.

CHARGING/RECHARGING USING THE USB CHARGING CABLE AND A DEVICE WITH A USB POWER PORT (NOT SUPPLIED)

1.  Make sure the spotlight is off.
2. Insert the micro-USB plug of the USB charging cable into the micro USB charging port on the back of spotlight.
3. Insert the regular USB plug of the USB charging cable into a device’s functional USB power port. The battery/charge status LED indicator will light or flash in one of three colours (as described in the “Reading the Battery/Charge Status LED Indicator” section) to indicate the charging status.
4. Charge until the battery/charge status LED indicator lights green.
5. When charging is complete, disconnect the USB charging cable from the device’s USB power port and the spotlight. Store the cable in a safe place.

OPERATING THE SPOTLIGHT

The 5-Position On/Off Trigger turns the unit on and off, and is also used to choose the following modes:

• FULL – all LEDs;
• HIGH – Main Beam LED in its high (brightest) setting;
• LOW – Main Beam LED in its low (dimmest) setting; or
• HALO – 6 Area LED lights.
• CAUTION! Do not operate while charging.

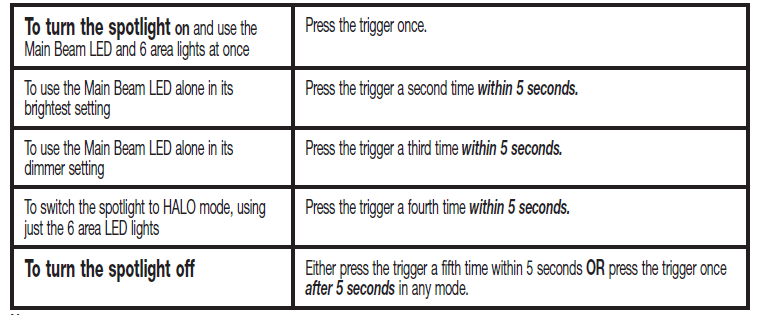

  Disconnect the charging cable, then select the light mode as follows:

Notes: The battery/charge status LED indicator will light in one of three colors (as described in the “Reading the Battery/Charge Status LED Indicator” section) to indicate the battery status. If the light’s battery voltage is nearly low, the unit will switch automatically to Halo mode even if another Light Mode has been selected.

CARE AND MAINTENANCE

All batteries lose energy from self-discharge over time and more rapidly at higher temperatures. When the unit is not in use, we recommend that the battery is charged at least every 3 to 6 months. From time to time wipe the outside of the appliance with a soft cloth. Do not immerse the appliance in water. There are no user-replaceable parts. Periodically inspect the condition of adapters, connectors and wires. Contact manufacturer to replace any components that have become worn or broken.

BATTERY REPLACEMENT/DISPOSAL BATTERY REPLACEMENT

The battery should last the service life of the unit. Service life is dependent on a number of factors including but not limited to the number of recharge cycles, and proper care and maintenance of the battery by the end user. Contact manufacturer for any information you may need.
