Fieety Elite 9 Cordless Vacuum Cleaner User Manual

Fieety-logo

Fieety Elite 9 Cordless Vacuum Cleaner

Fieety Elite 9 Cordless Vacuum Cleaner-product

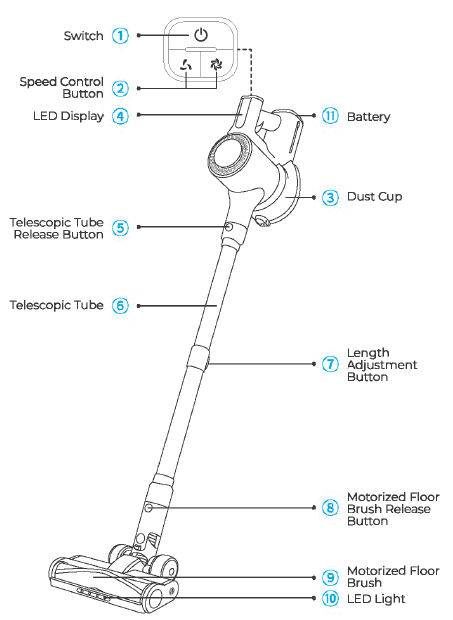

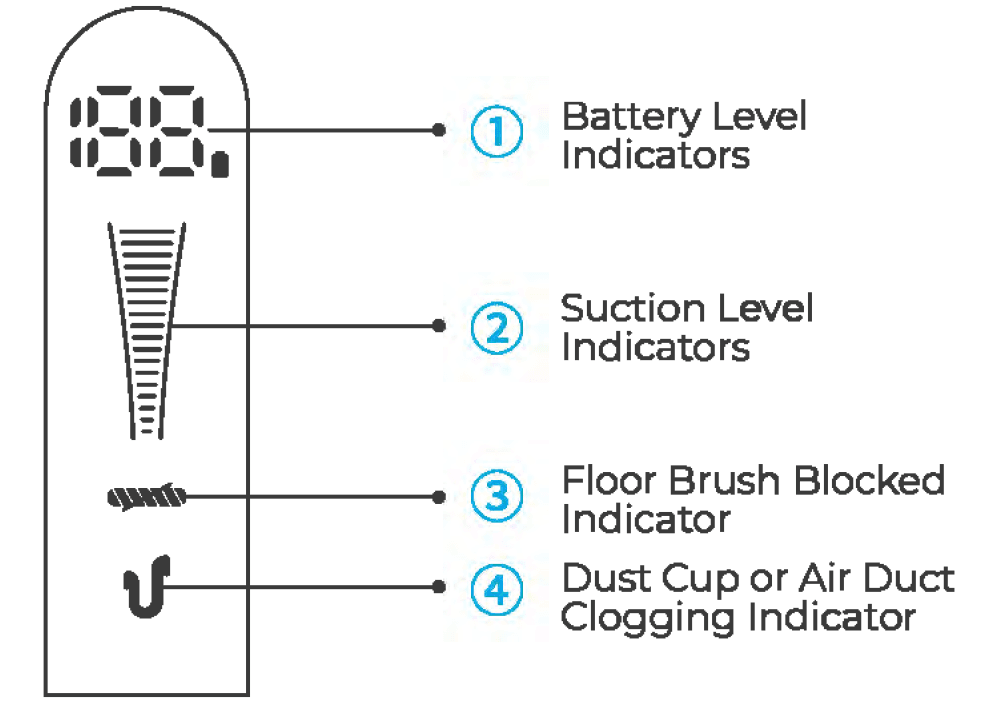

1. Know Your Product

Fieety Elite 9 Cordless Vacuum Cleaner-1

Fieety Elite 9 Cordless Vacuum Cleaner-15

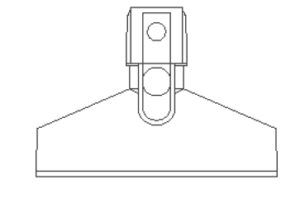

Sofa Brush

Fieety Elite 9 Cordless Vacuum Cleaner-16

2 in l Long Crevice NozzleFieety Elite 9 Cordless Vacuum Cleaner-17

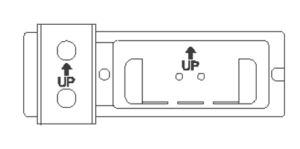

Charging Wall Mount

Fieety Elite 9 Cordless Vacuum Cleaner-18

Extra Hepa Filter

Fieety Elite 9 Cordless Vacuum Cleaner-19

Mini Cleaning Brush

Fieety Elite 9 Cordless Vacuum Cleaner-20

Fragrance Card

Fieety Elite 9 Cordless Vacuum Cleaner-21

Charger

Fieety Elite 9 Cordless Vacuum Cleaner-22

Rolling Brush (Installed)

Fieety Elite 9 Cordless Vacuum Cleaner-2

 Charging

Turn off the power before charging

  • Please fully charged the battery before use.
  • Please ensure that it is charged and discharged at least once every three months.
  • Be sure to use the charger included in the box, other chargers may damage the battery.

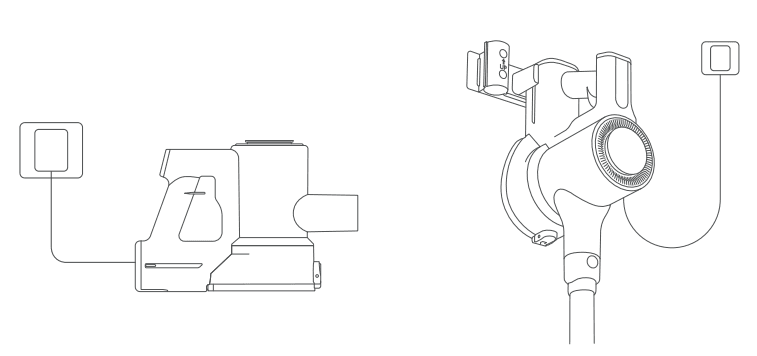

Charging Method

  1. Connect the main body to charge                Fieety Elite 9 Cordless Vacuum Cleaner-3
  2. Hang on the wall mount to charge

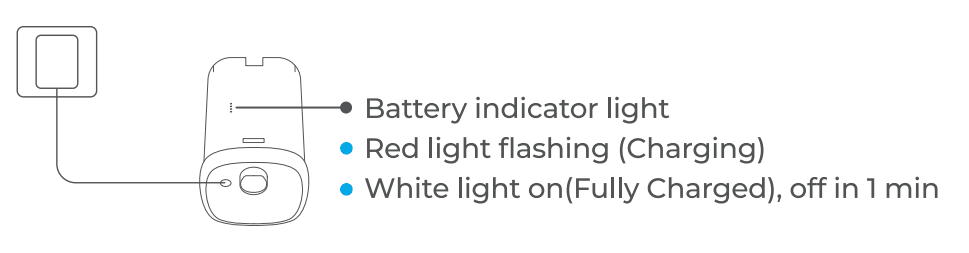

  3. Charge the battery directly

Fieety Elite 9 Cordless Vacuum Cleaner-4

Assembling

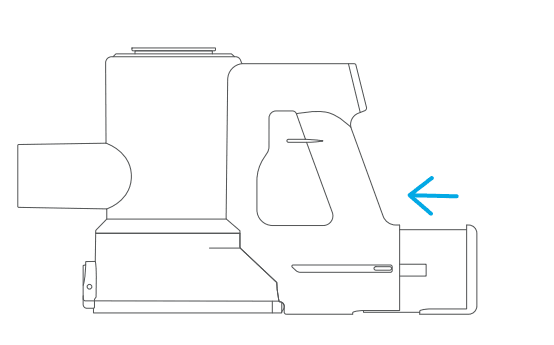

Install the Battery Pack

Fieety Elite 9 Cordless Vacuum Cleaner-5

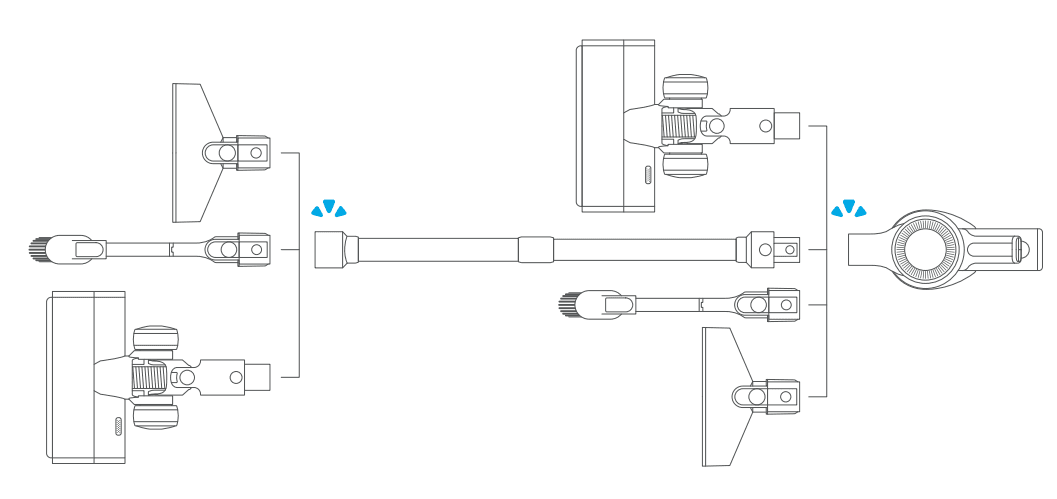

Assembling Cleaning Accessories

Fieety Elite 9 Cordless Vacuum Cleaner-6

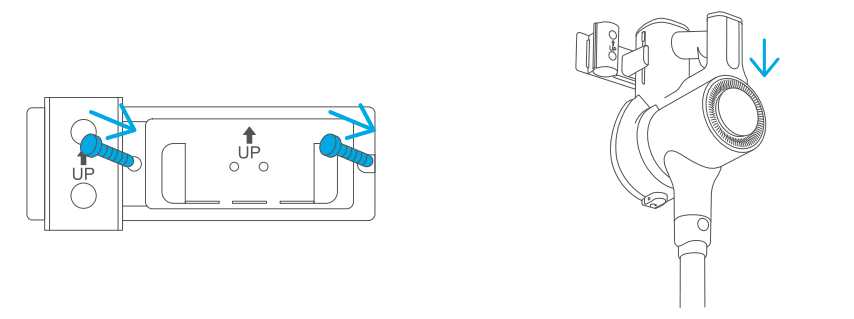

Install Charging Wall Mount

Fieety Elite 9 Cordless Vacuum Cleaner-7

Operating

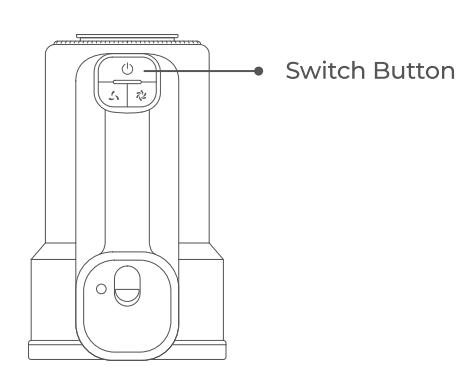

Power On/Off

Press the switch button to turn it on and again to turn it off.
Note: It is not necessary to press it all the time!

Fieety Elite 9 Cordless Vacuum Cleaner-8

Select Cleaning Mode

  • There are three suction modes: ECO<MID<MAX
  • Press the Captureto adjust suction mode.

Fieety Elite 9 Cordless Vacuum Cleaner-9

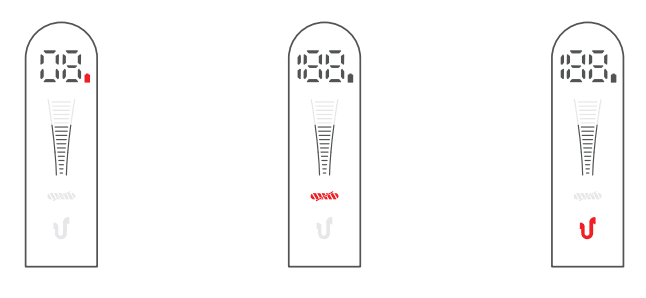

Abnormal Indicator

  • The battery level indicator blinks red indicating that the battery level is below10%. The vacuum cleaner should be charged as soon as possible.
  • The LED on the motorized brush is off and the red brush roll indicator keeps flashing, indicating that the brush roll is locked. Please check and clean immediately.
  • The red curved arrow light blinks and the the machine shuts off, indicating a clogged main unit, dust cup or duct. Please check and clean immediately.

Fieety Elite 9 Cordless Vacuum Cleaner-10

Cleaning

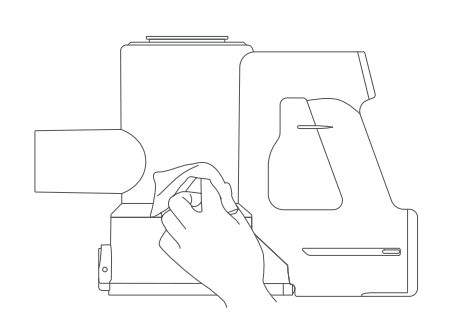

Clean the Main Body

  • Turnoff the power before cleaning the body.
  • Please use a neutral detergent, wipe the body with half-wet cloth.
  • Please avoid sun exposure and store in a cool and dry place.

Fieety Elite 9 Cordless Vacuum Cleaner-11

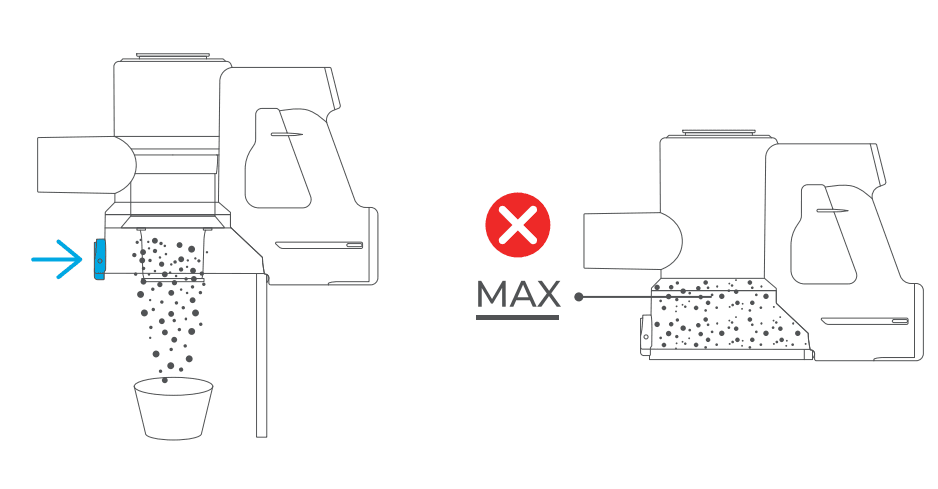

Empty the Dust Cup

  • Press the dust empty button to empty the dust.
  • When using, if the garbage in the dust cup exceeds MAX line, please empty it in time.

Fieety Elite 9 Cordless Vacuum Cleaner-12

How to Maintain the Filter

  •  Press the battery pack button to remove the battery
  • Open the dust cup as below showed
  • Take out the filter case, then take out the filter
  • Wash the cup

NOTE: Assemble it when totally dry.

Fieety Elite 9 Cordless Vacuum Cleaner-13

Maintenance

  • Please clean your vacuum cleaner regularly to prolong its life.
  • It is recommended that the floor brush be cleaned regularly to keep it in effective use and maintain suction power.
  • It is recommended to change the HEPA filter every2 months to ensure excellent performance. Do not use the filter when it is damaged or worn out.
  • Only the original charger can be used in the machine.

Troubleshooting



Not cleaning well

7. Empty the dust bin

  1. Clean the filter
  1. Check if the dust bin is installed correctly
  1. Check the filter is correctly fitted


Stop or doesn’t work

7. Charge battery

  1. Clean the filter
  1. Check battery istallation


Battery not charge



7. Check connections with power cord

2. Check wall socket





Power brush doesn’t

work

7. Make sure dust cup assembled correctly &locked

  1. Make sure power brush & Metal tube connected tightly
  1. Check the brush blocked or not
