Fieety V7 Cordless Vacuum Cleaner User Manual

Fieety V7 Cordless Vacuum Cleaner

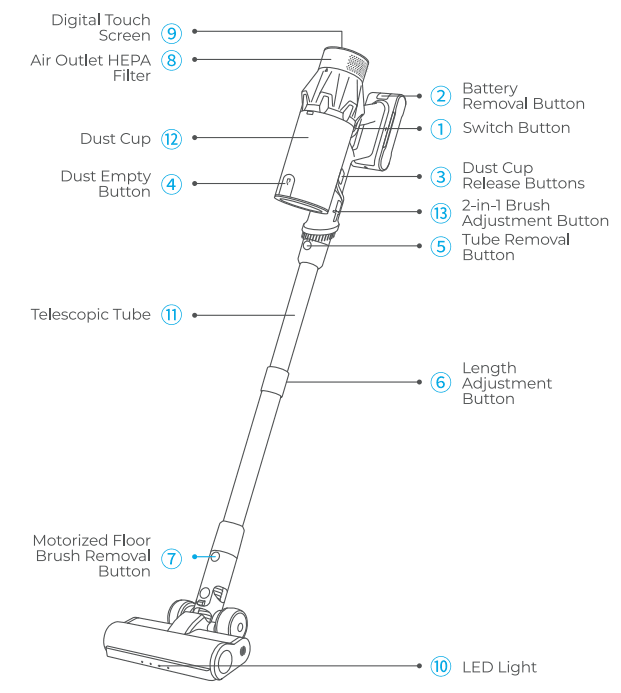

Know Your Product

2 1 upholstery brush (attached to the mainframe)

Charging wall mount

Multi-function Rolling Brush (Installed)

Long Crevice Nozzle

Charger

Extra Hepa Filter

Mini cleaning brush

Charging

Turn off the power before charging
• Please fully charge the battery before use.
• Please ensure it is charged and discharged at least once every three months.
• Be sure to use the charger in the box; other chargers may damage the battery.

Charging Method

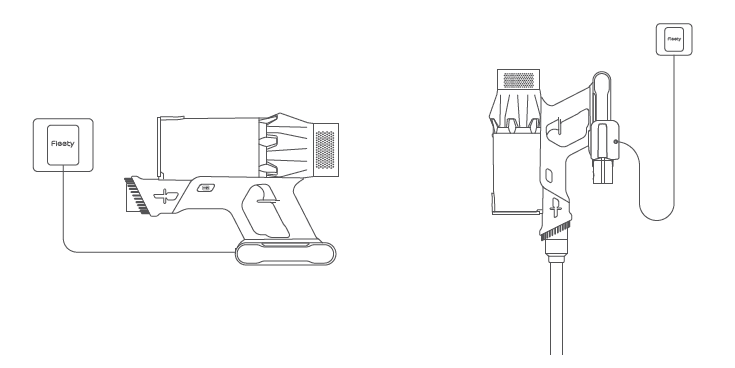

1. Connect the main body to charge
2. Hang it on the wall mount to charge

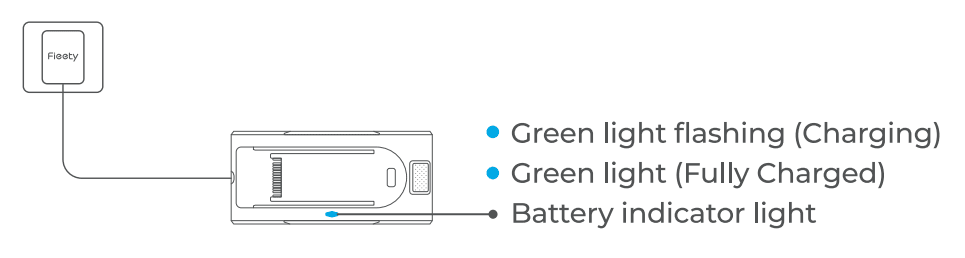

3. Charge the battery directly

Assembling

Install the Battery Pack

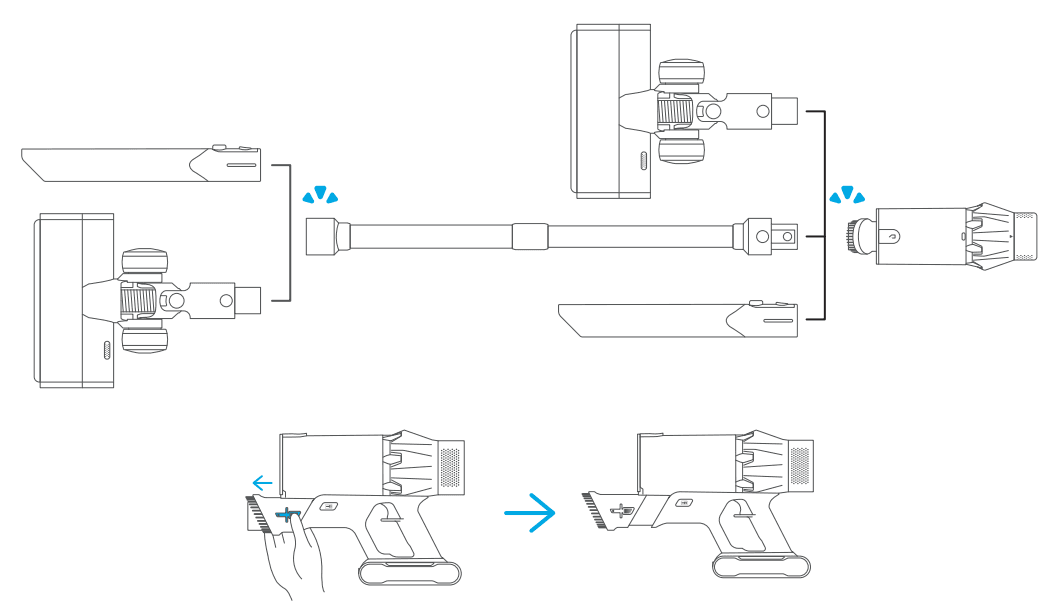

Install Cleaning Accessories

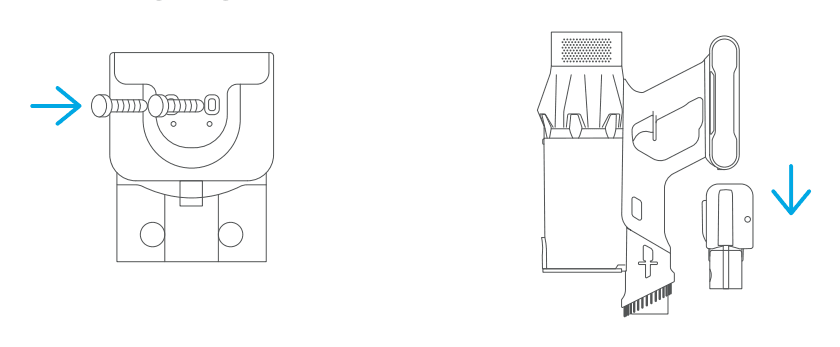

Install Charging Wall Mount

Operating

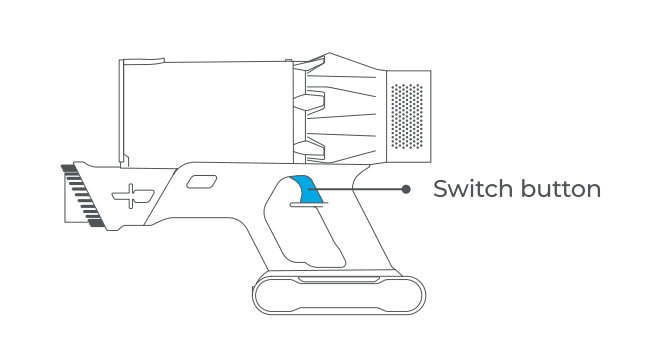

Press the switch button to turn it on, and it will start the MID Mode. Press the button again to turn it off.

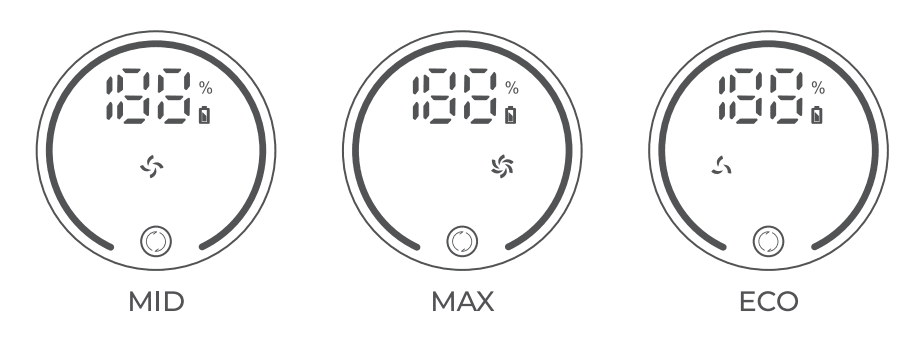

Select Cleaning Mode

• There are three suction modes: ECO<MID<MAX
• Press the Q to adjust the suction mode.
• Press the button once to switch to MAX Mode, twice to switch to ECO Mode.

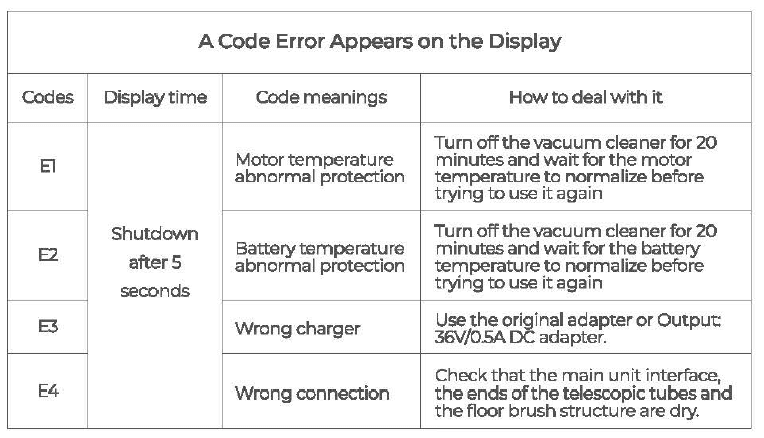

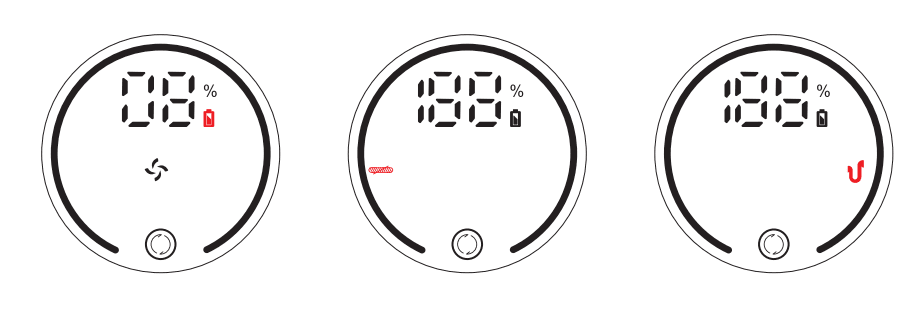

Abnormal Indicator

MAX ECO

• The battery level Indicator blinks red. Indicating that the battery level is below 10%. The vacuum cleaner should be charged as soon as possible.
• The LED on the motorized brush is off, and the red brush roll Indicator keeps flashing, indicating that the brush roll is locked. Please check and clean immediately.
• The red curved arrow light blinks for 10 seconds, indicating a clogged main unit, dust cup, or duct. Please check and clean immediately.

Cleaning

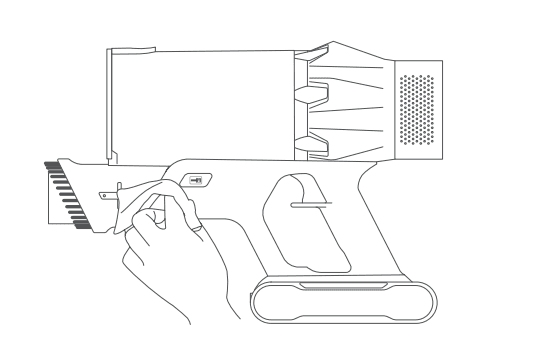

Clean the Main Body

• Turn off the power before cleaning the body.
• Please use a neutral detergent and wipe the body with a half-wet cloth.
• Please avoid sun exposure and store in a cool and dry place.

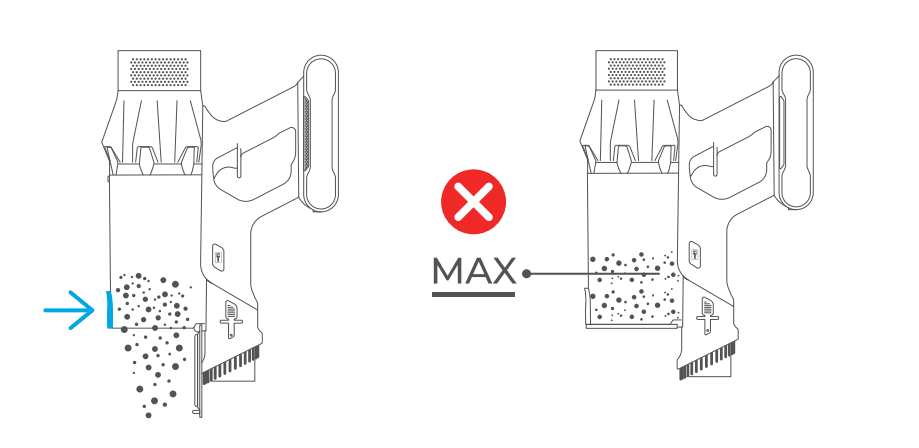

Empty the Dust Cup

• Press the dust empty button to empty the dust.
• When using, if the garbage in the dust cup exceeds the MAX line, please empty it in time.

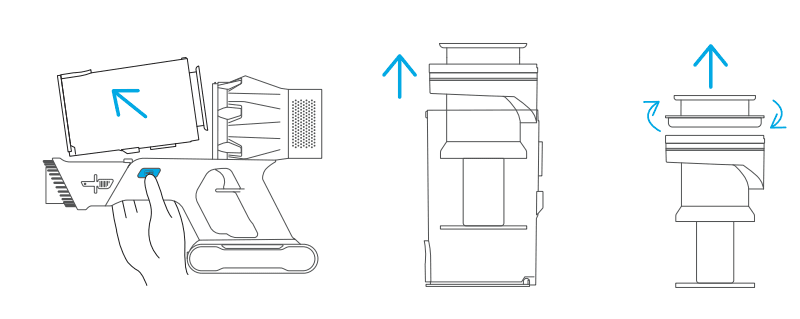

How to remove the dust cup and filter

Remove the dust cup by pressing and holding the dust cup release
buttons on the left and right sides of the handle.

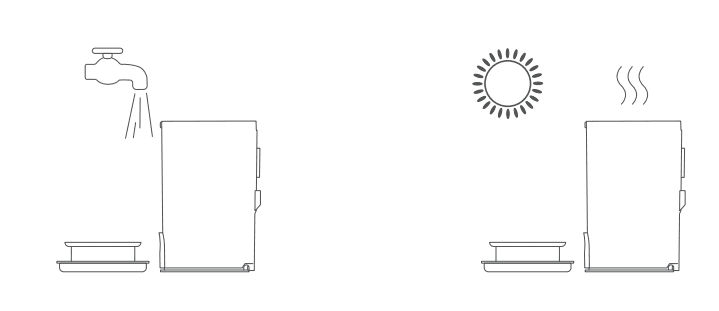

Clean the Filter

HEPA filters and dust cups are washable. Make sure they are thoroughly dry before use.

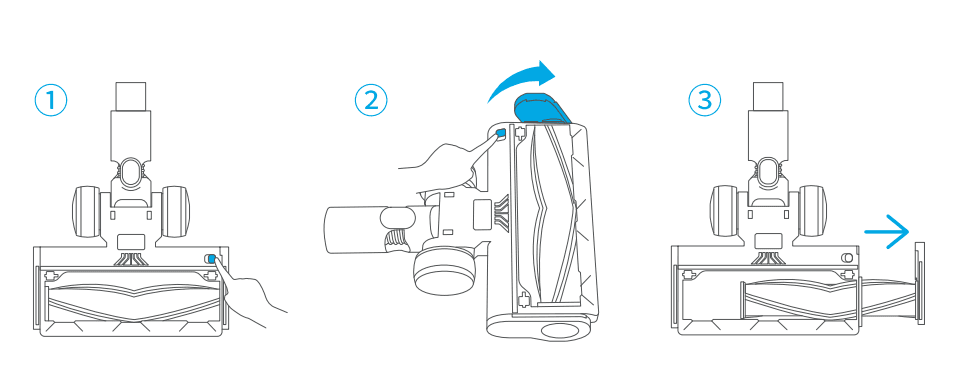

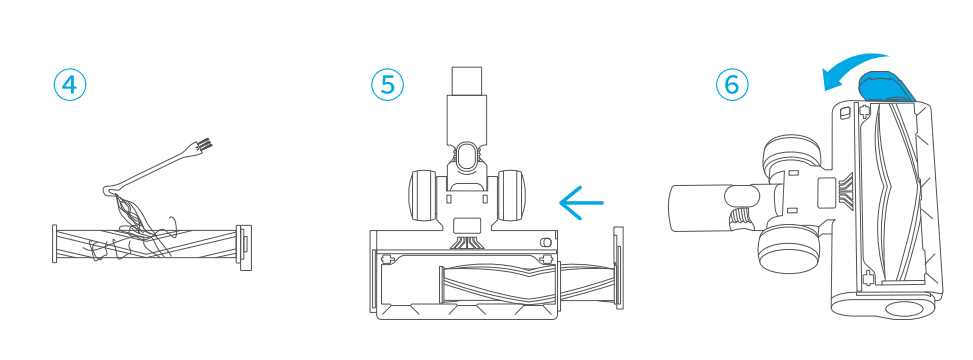

Clean the Brush Roller

• Take out the roller brush.
• Remove any hair or fibers that have been wrapped around it. Using the mini cleaning brush to clean it.
• You can clean it with or without water. Please remember to use the roller after it is completely dry.
• Install the roller brush.

Maintenance

• Please clean your vacuum cleaner regularly to prolong its life.
• It is recommended that the floor brush be cleaned regularly to keep it in effective use and maintain suction power.
• It is recommended to change the HEPA filter every 2 months to ensure excellent performance. Do not use the filter when it is damaged or VI/Orn out.
• Only the original charger can be used in the machine.

FOR MORE MANUALS BY FIEETY, VISIT MANUALSLIBRARYY
