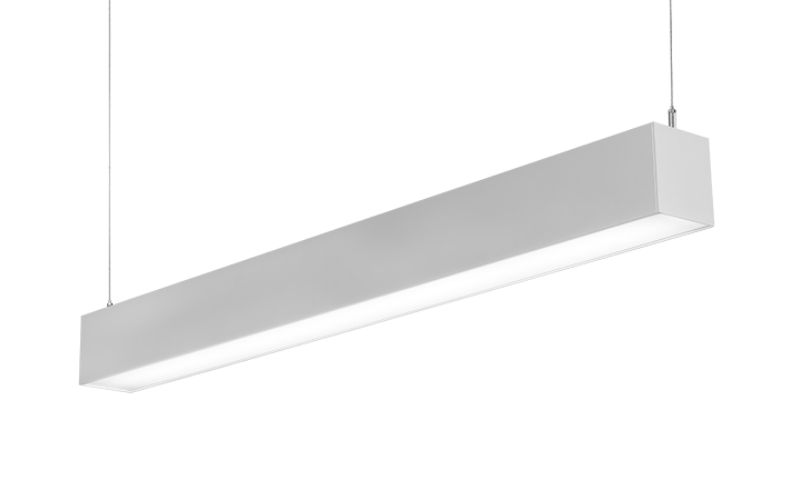

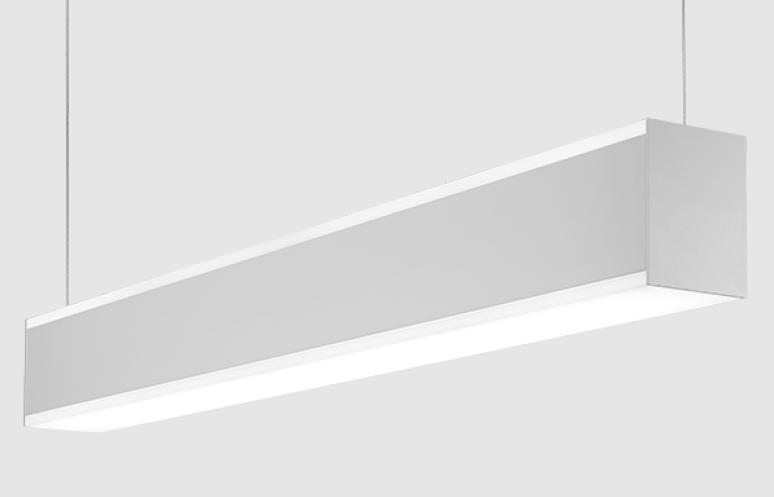

Focal Point FSM4PR Seem 4 LED Perimeter
BEFORE YOU BEGIN
- Luminaires must be installed by a qualified electrician (check with local and national codes for proper installation).
- To prevent electrical shock, disconnect the electrical supply before installation or servicing.
- Contractor is responsible for adequately reinforcing walls and/or ceilings to support fixture weight.
- Focal Point, LLC accepts no responsibility for inadequately reinforced walls and/or ceilings.
- The information contained in this drawing is the sole property of Focal Point, LLC. Any reproduction in part or whole without the written permission of Focal Point, LLC is prohibited.

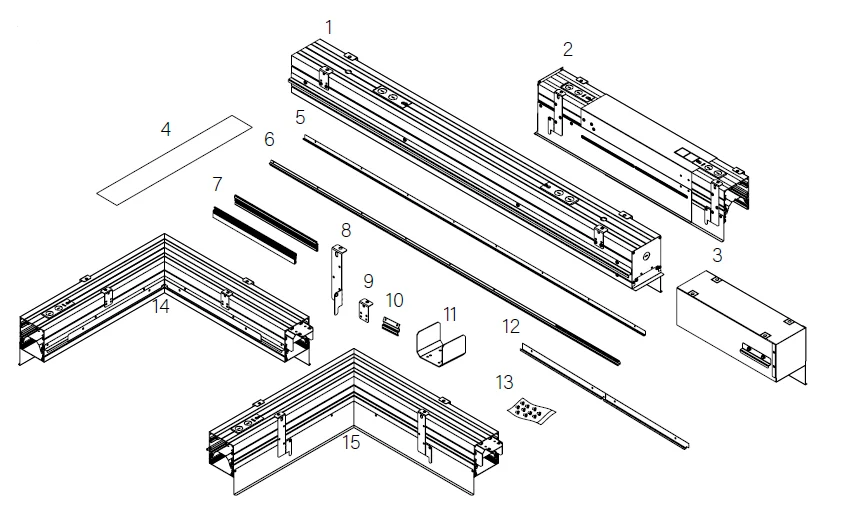

COMPONENT KEY
PARTS LIST
- Housing
- Adjustable housing
- Sliding sleeve (ss) (shipped installed. SSB indicates a sliding sleeve at both ends)
- Finish plate
- J-rail
- Z-rail
- Housing rail kit
- Tie-wire/grid bracket
- Tie-wire bracket
- Joiner bracket
- Joiner bracket
- Corner j-rail
- Hardware bag
- Outside corner
- Inside corner
BY OTHERS

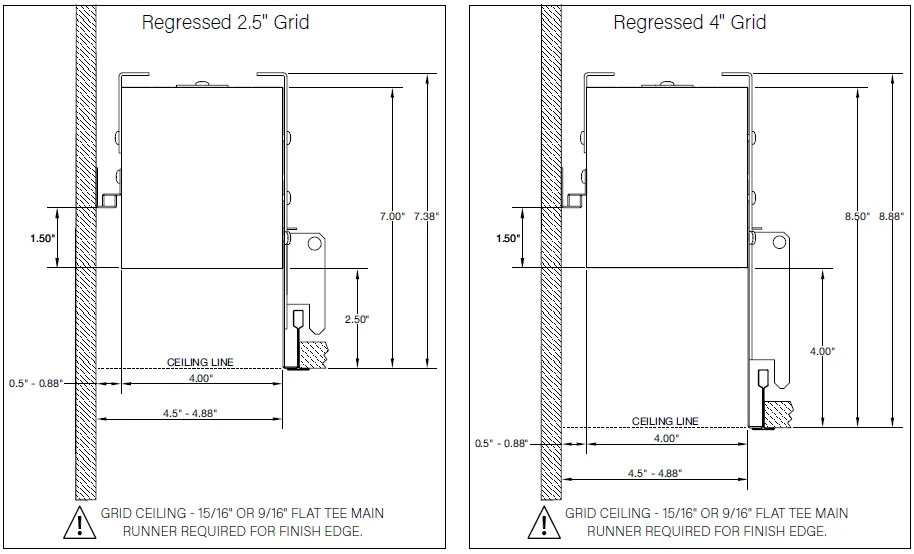

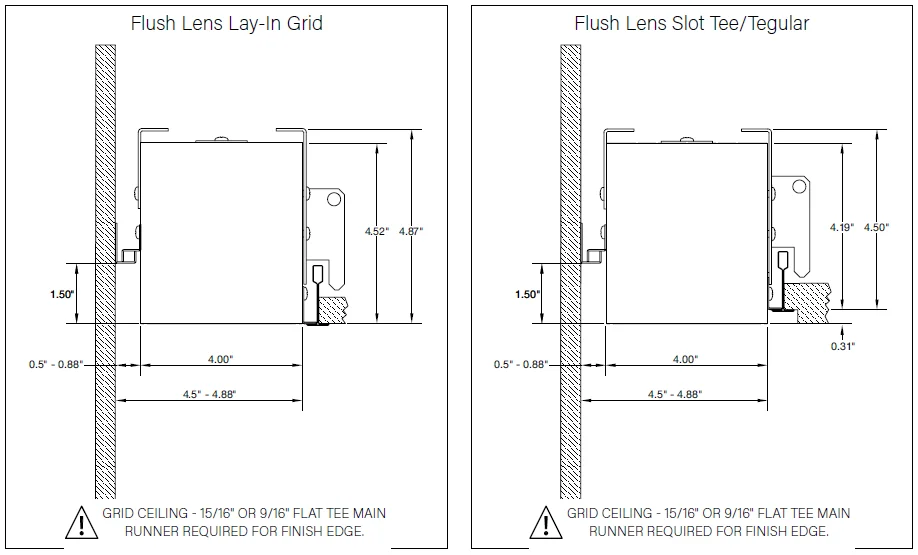

- Grid ceiling – 15/16″ or 9/16″ flat tee main runner required for finish edge.

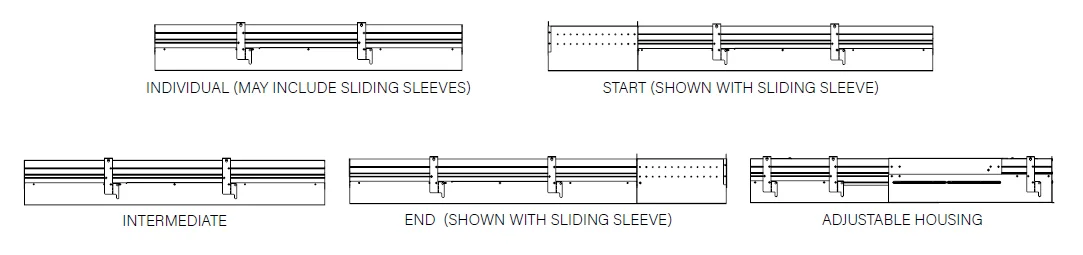

HOUSING TYPES – 4′ SHOWN

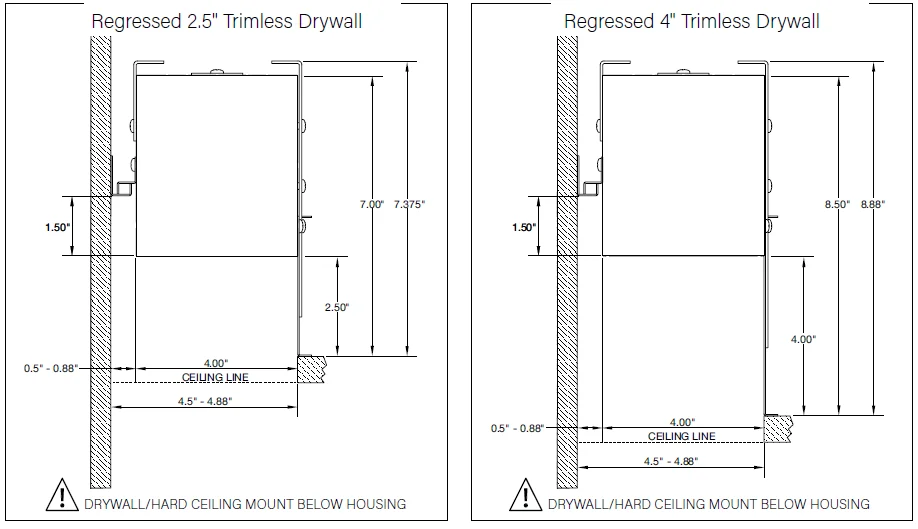

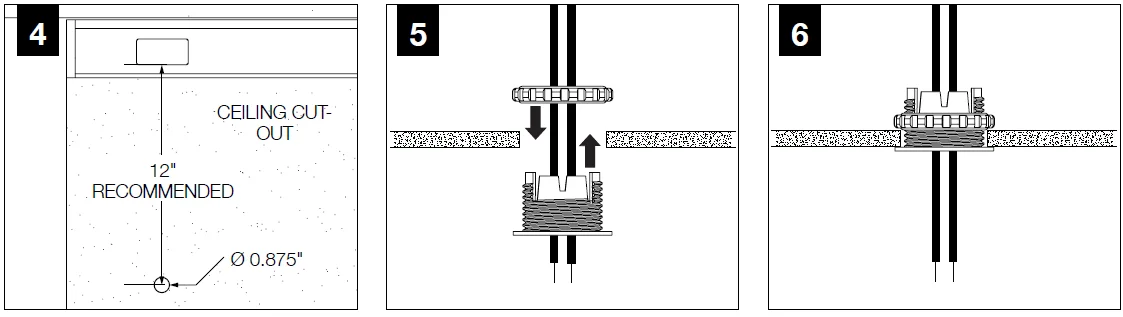

WALL/CEILING PREPARATION
OPTIONAL

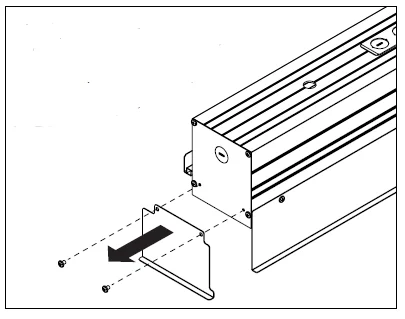

REMOVE END CAP FLANGE ON START AND/OR END OF RUN HOUSINGS WHEN FLUSH INSTALLATION AGAINST FINISHED WALL IS DESIRED
FOCAL POINT RECOMMENDS STARTING WITH CORNER INSTALLATION IF APPLICABLE
BASIC INSTALLATION, STEPS 1-13
ADJUSTABLE HOUSING, PAGE 3
SLIDING SLEEVES, PAGE 5
CORNERS, PAGE 6
SLIDING SLEEVE PAIRS (SSB) START & END WITH A SLIDING SLEEVE

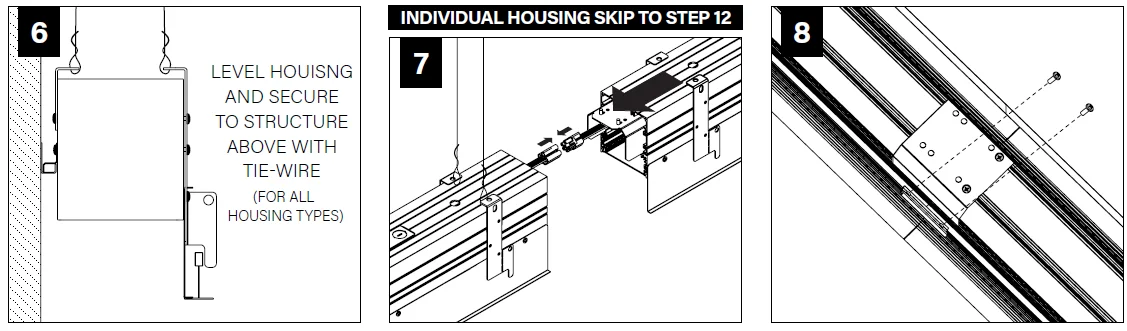

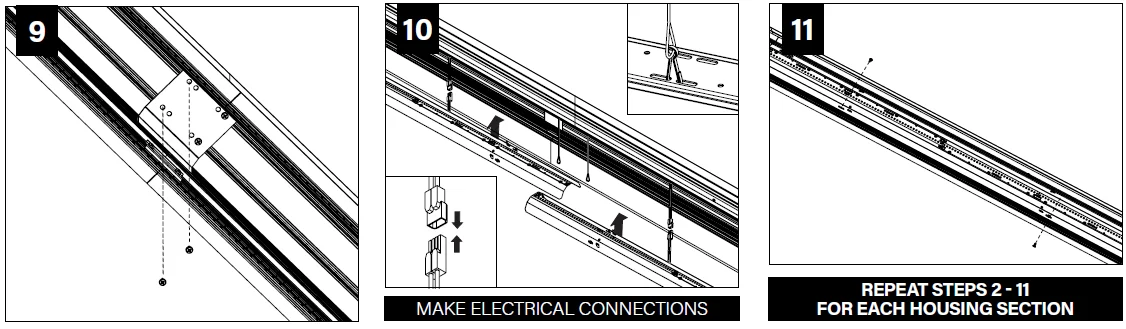

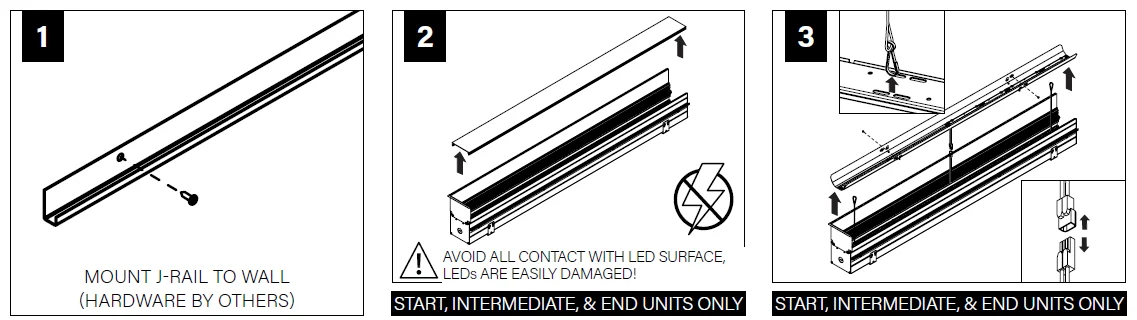

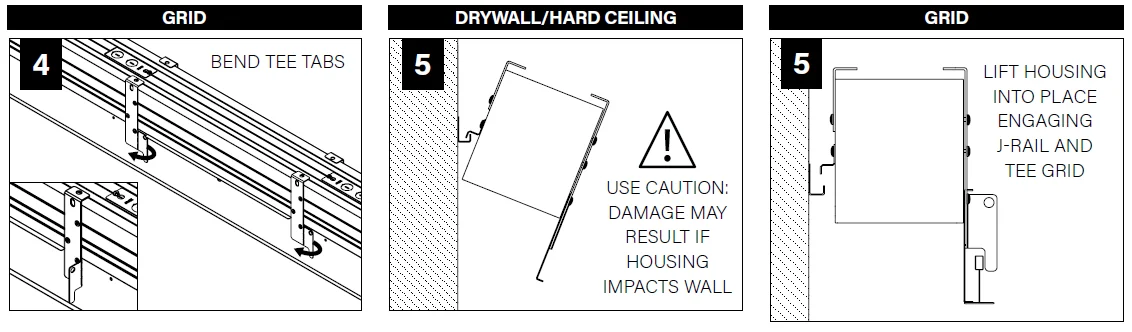

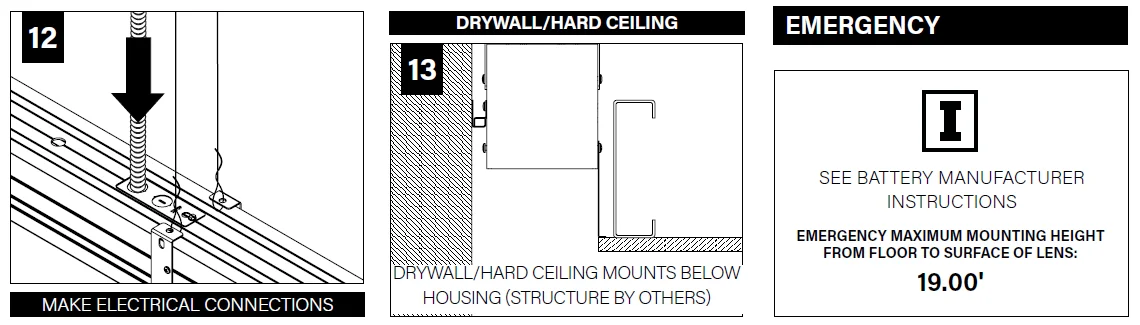

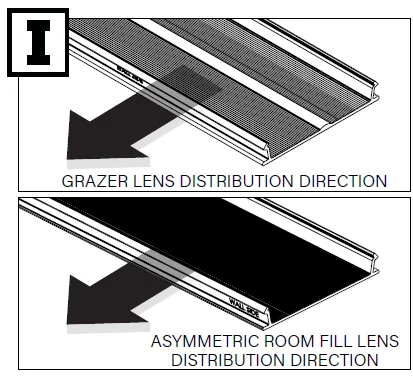

BASIC INSTALLATION

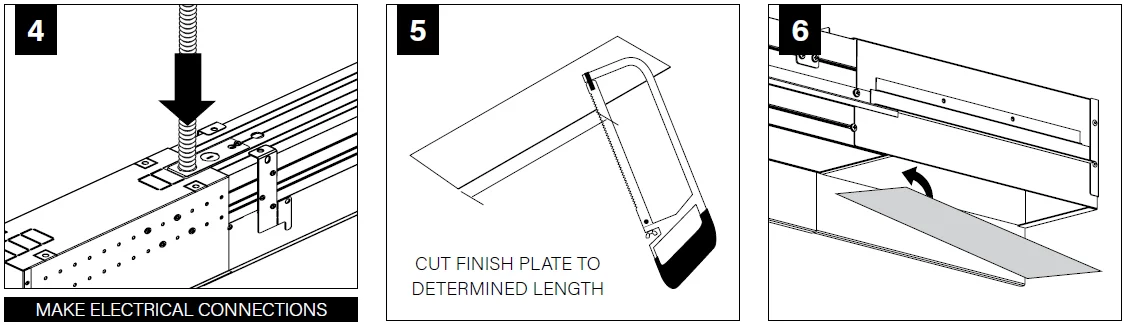

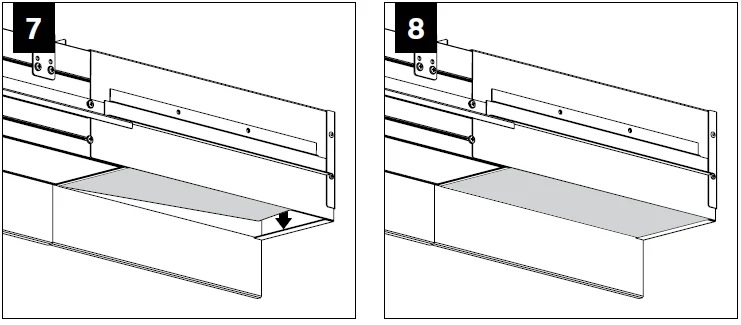

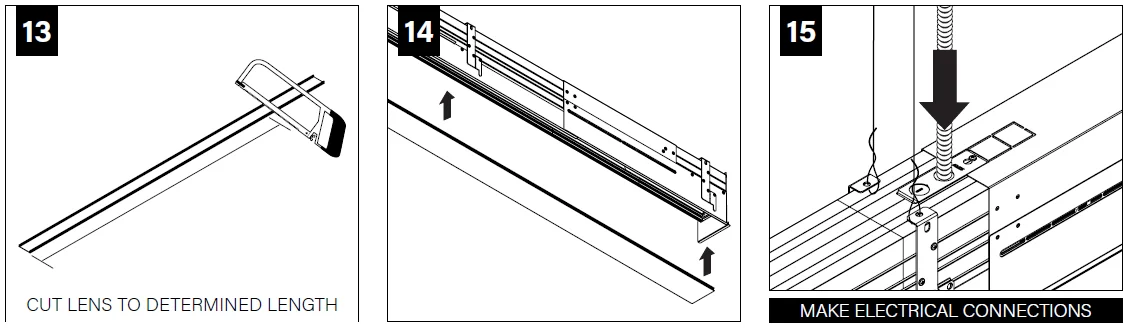

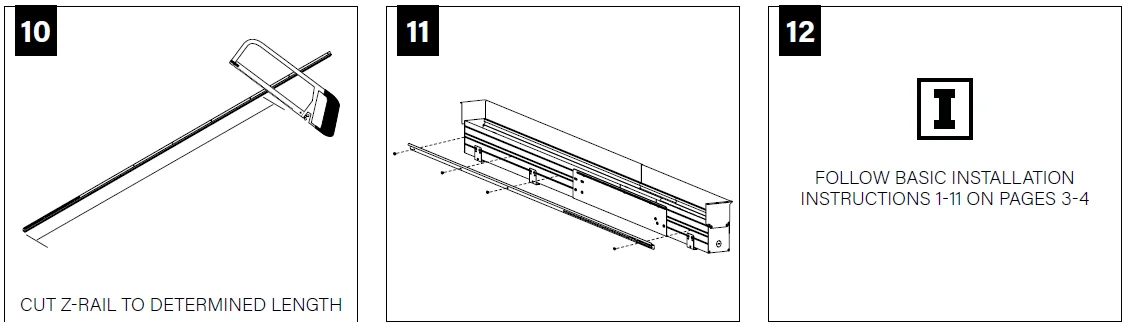

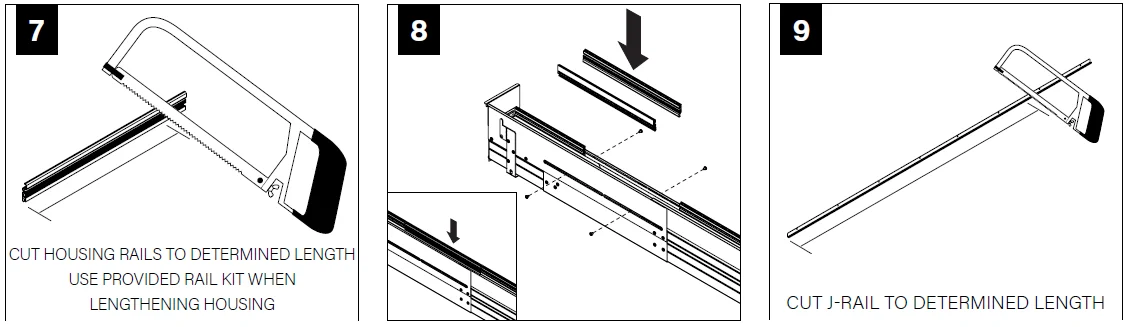

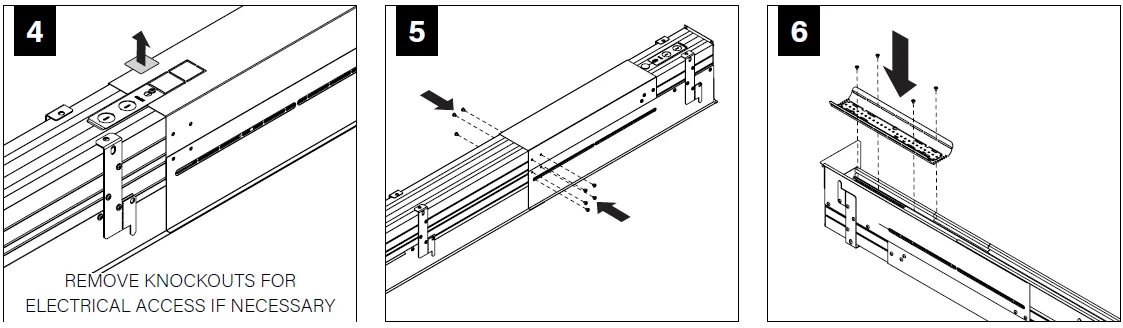

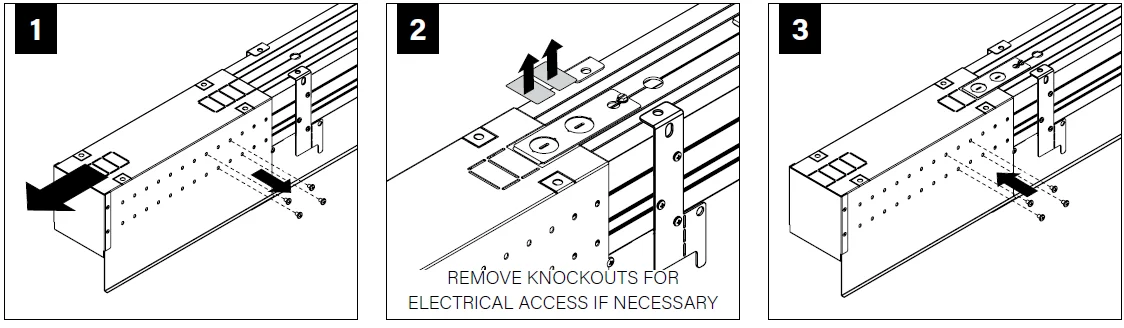

ADJUSTABLE HOUSING

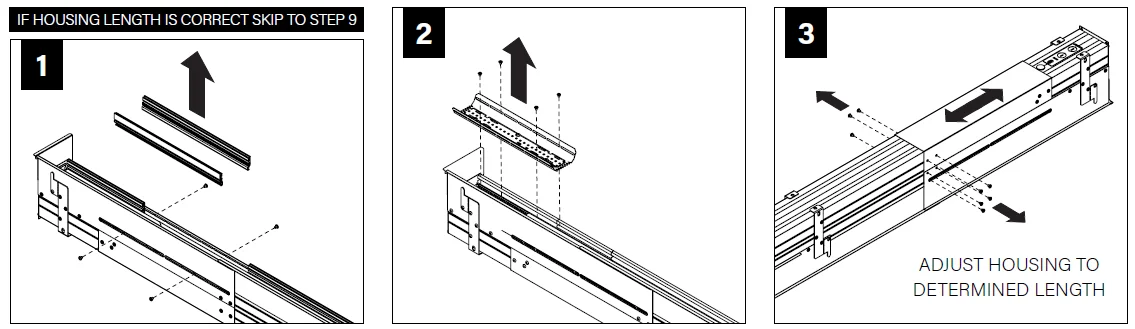

IF HOUSING LENGTH IS CORRECT, SKIP TO STEP 9

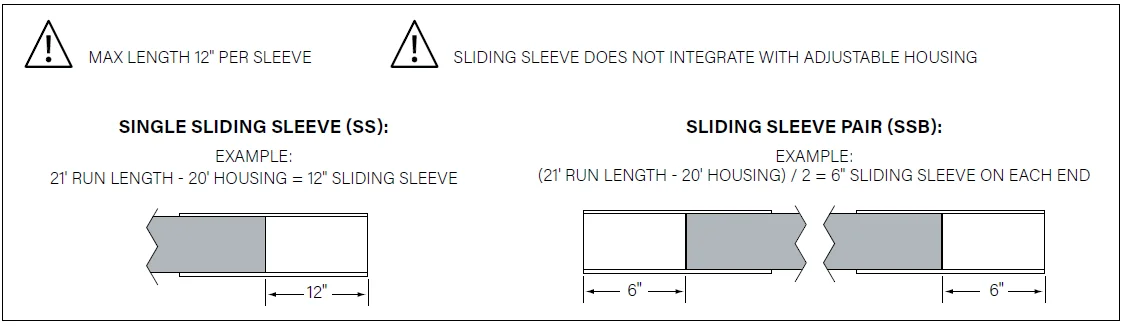

SLIDING SLEEVES

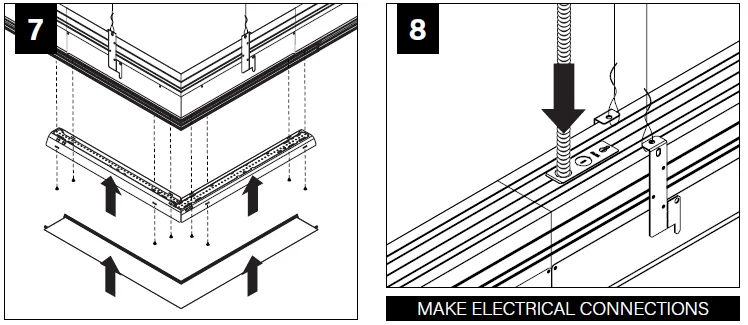

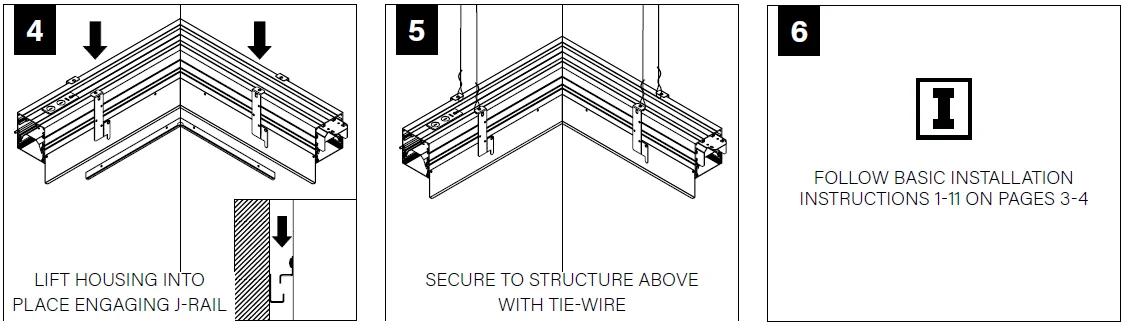

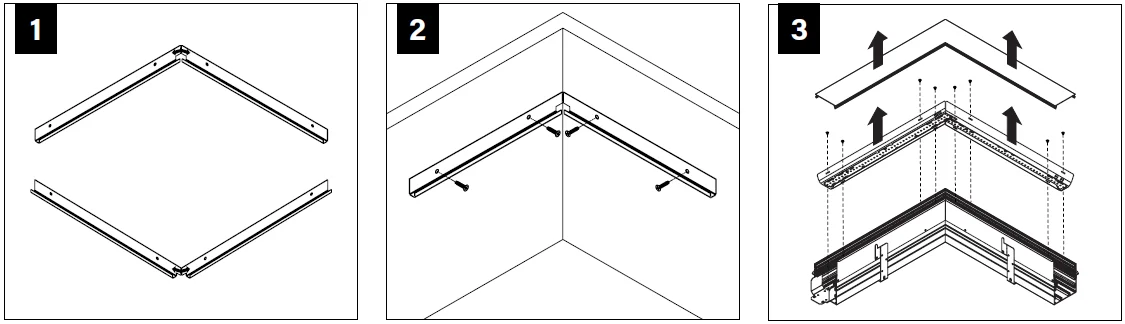

CORNERS

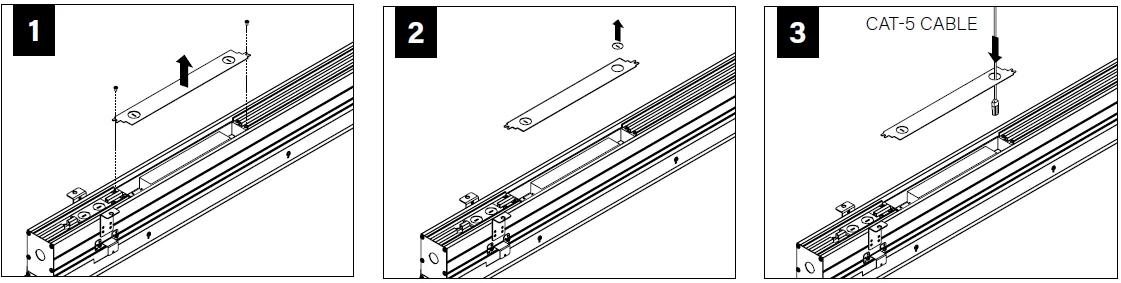

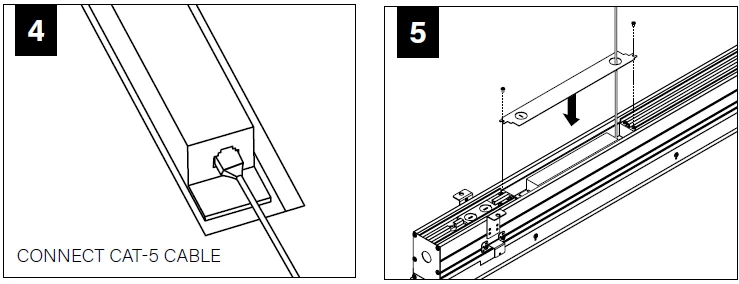

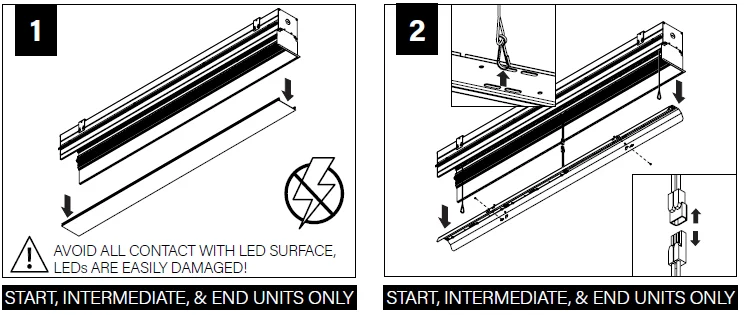

DRIVER SERVICE

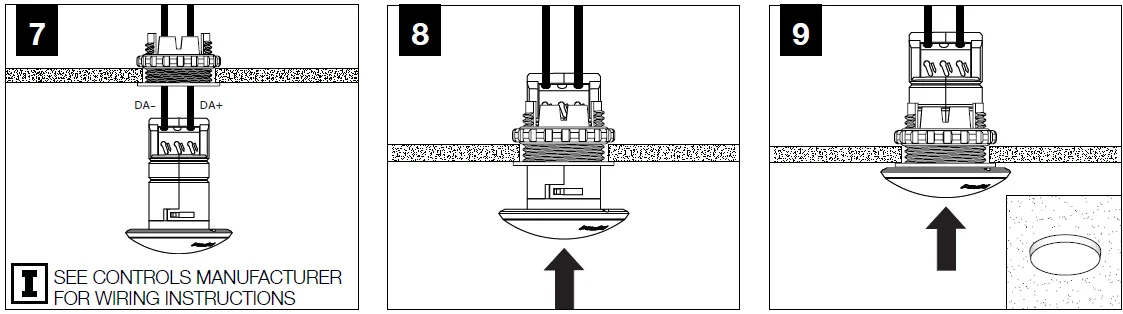

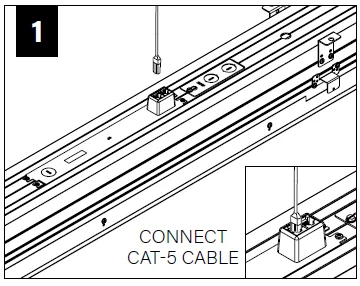

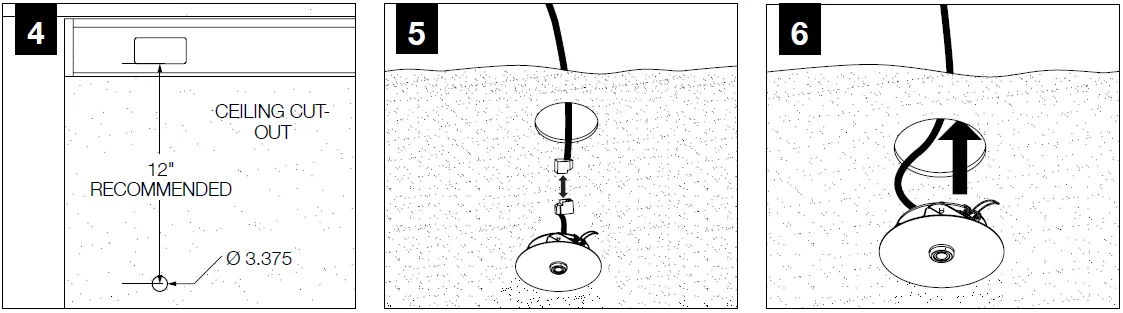

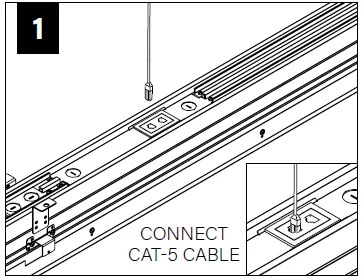

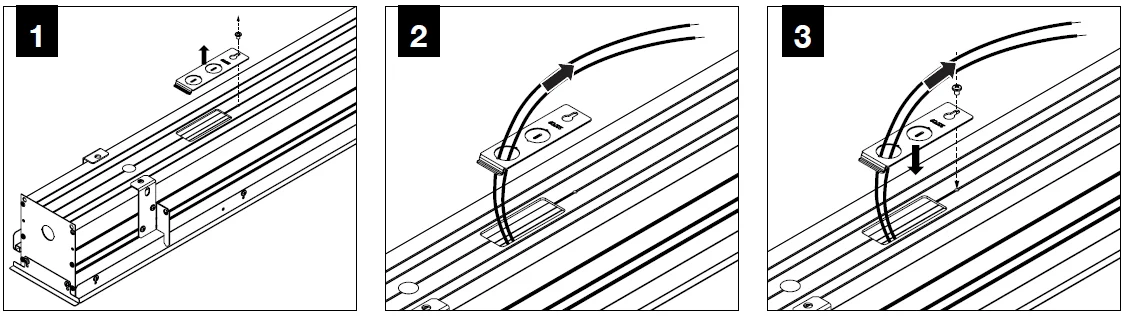

WATTSTOPPER

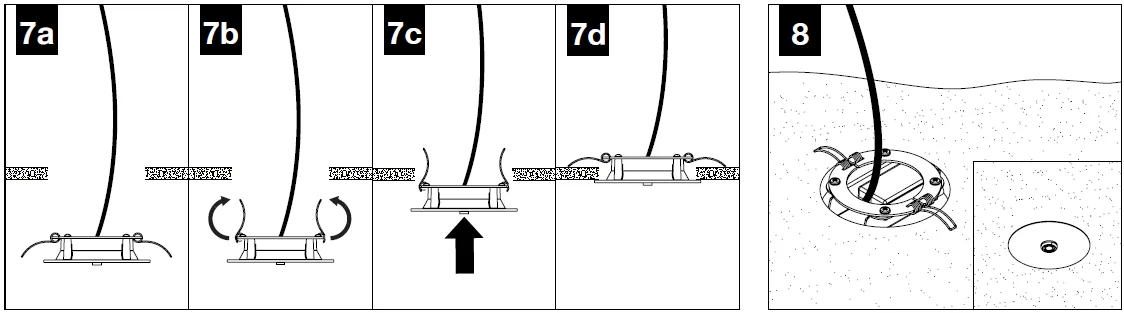

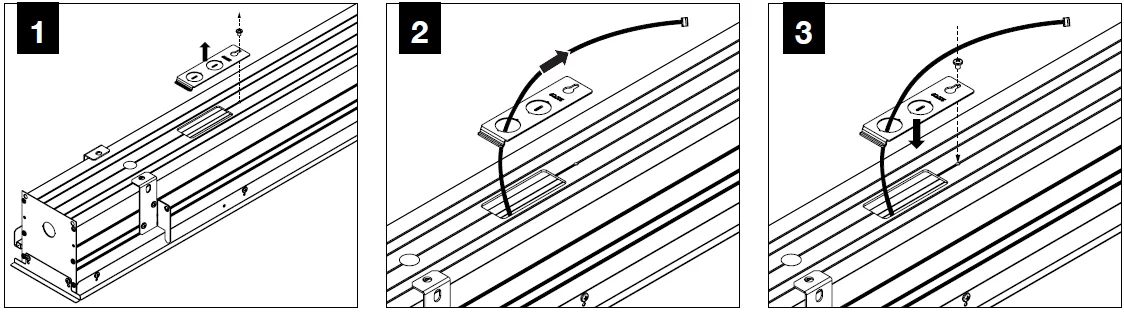

ENLIGHTED

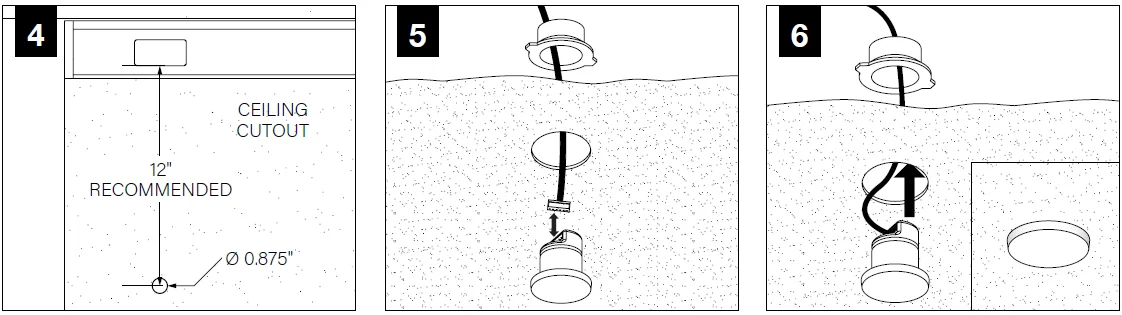

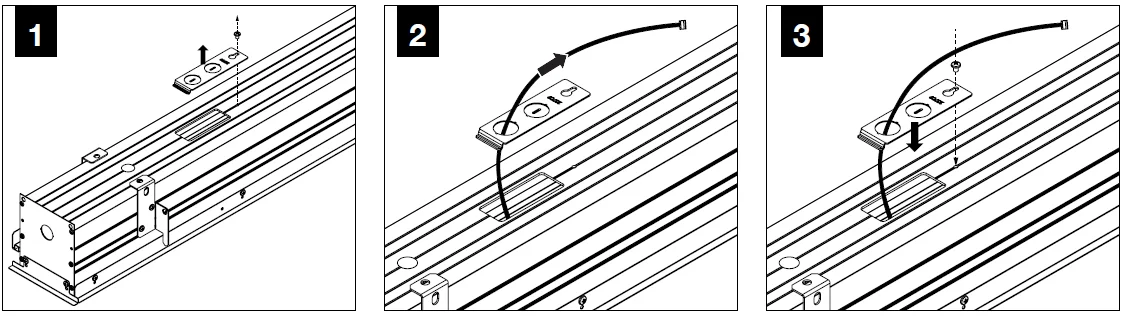

WAVELINX
ACUITY nLIGHT
WATTSTOPPER
HUBBELL NX
