Fujifilm X-H2S Camera User Manual

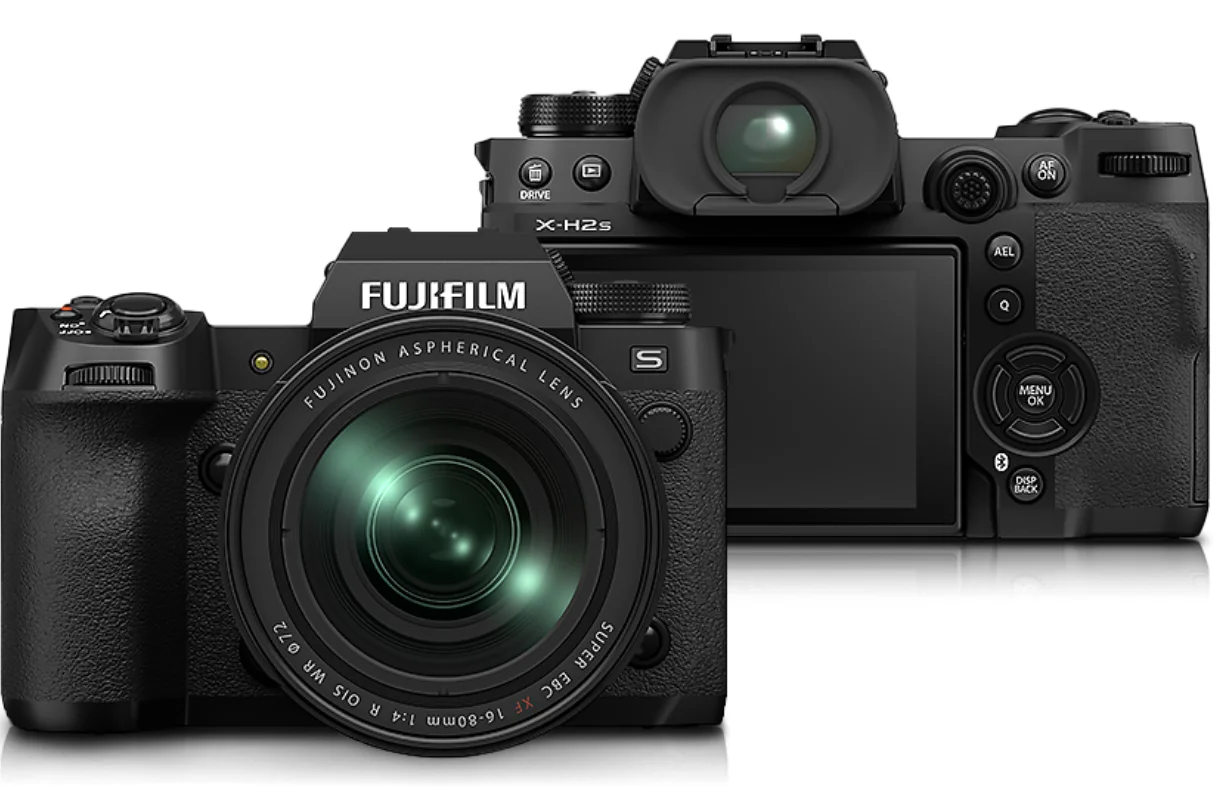

Fujifilm X-H2S Camera

Before You Begin

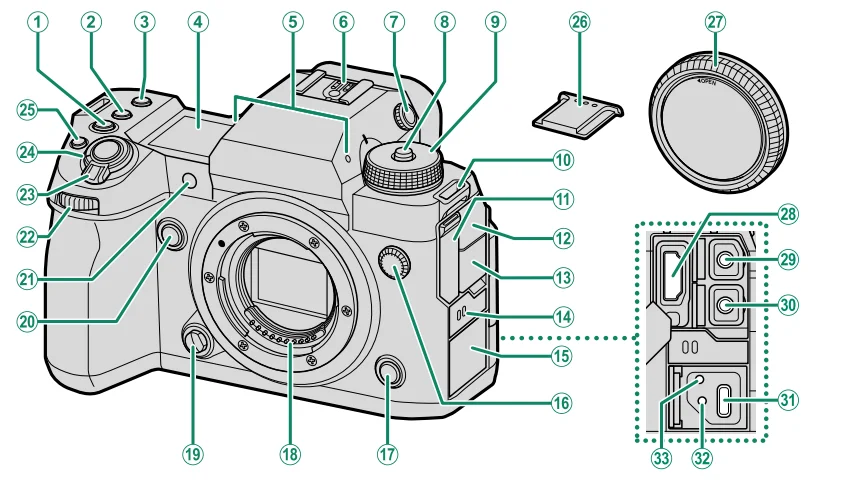

1. ISO button
2. WB button
3. Fn1 button
4. Secondary LCD monitor
5. Microphone
6. Hot shoe
7. Diopter adjustment control
8. Dial lock release
9. Mode dial
10. Strap eyelet
11. HDMI connector cover
12. Microphone jack cover
13. Headphone jack cover
14. Speaker
15. USB connector cover
16. Sync terminal
17. Fn3 button
18. Lens signal contacts
19. Lens release button
20. Fn2 button
21. AF-assist illuminator
    Self-timer lamp
    Tally light
22. Front command dial
23. ON/OFF switch
24. Shutter button
25. (movie recording) button
26. Hot shoe cover
27. Body cap
28. HDMI connector (Type A)
29. Microphone jack (⌀3.5mm)
30. Headphone jack (⌀3.5mm)
31. USB connector (Type-C)
32. Hole to screw the USB cable
33. Hole to screw cable protector
34. DRIVE button
    (delete) button
35. (playback) button
36. Eye sensor
37. Electronic viewfinder (EVF)
38. Eye cup (lockable)
39. VIEW MODE button
40. Secondary monitor backlight button
41. Focus stick (focus lever)
42. AFON button
43. Rear command dial
44. Indicator lamp
    Tally light
45. Remote release connector cover
46. Memory card slot cover latch
47. Memory card slot cover (detachable)
48. Battery-chamber cover latch
49. Battery-chamber cover
50. Selector buttons
51. MENU/OK button
52. DISP (display)/BACK button
    (Bluetooth) button

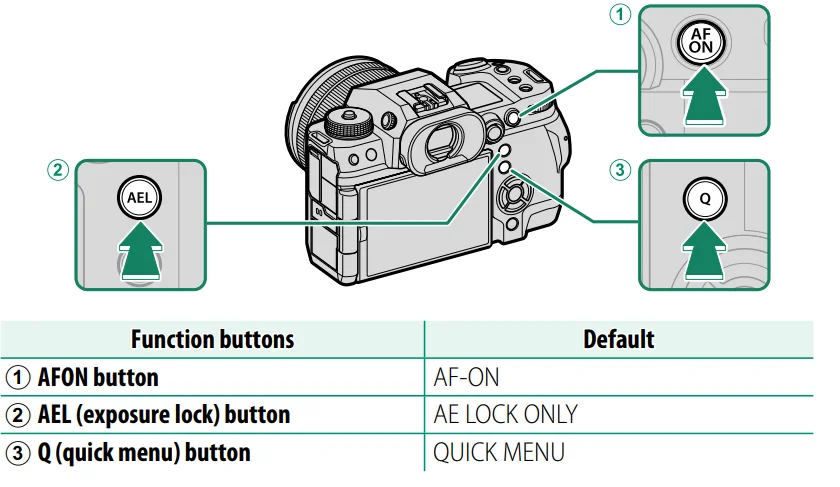

53. Q (quick menu) button
54. AEL (exposure lock) button
55. Tripod mount
56. LCD monitor
    Touch screen
57. File transmitter/vertical battery grip connector cover
58. Remote release connector (⌀2.5mm)

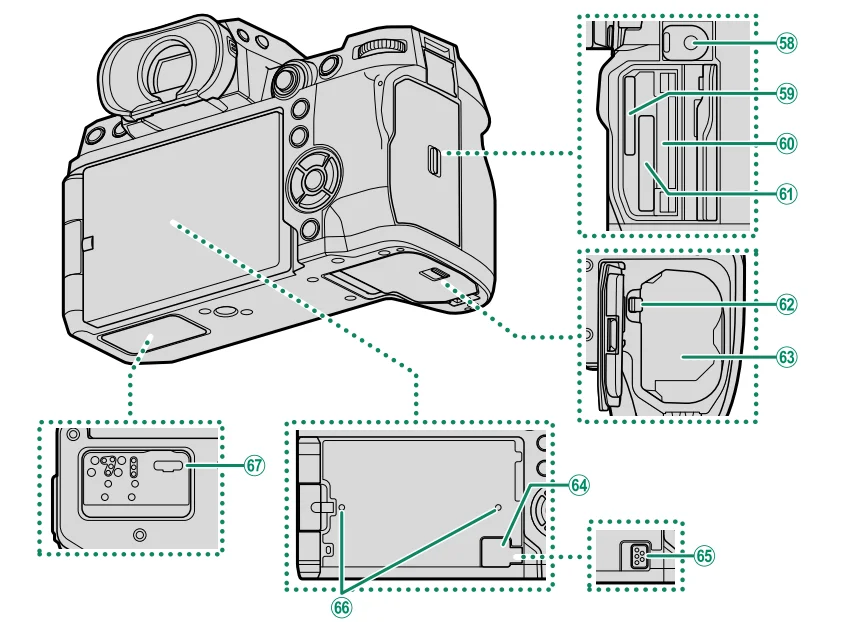

59. Memory card slot 2
    (for SD memory cards)
60. Serial number plate
61. Memory card slot 1
    (for Type B CFexpress cards)
62. Battery latch
63. Battery chamber
64. Cooling fan connector cover
65. Cooling fan connector
66. Hole to screw the cooling fan
67. File transmitter/vertical battery grip connector

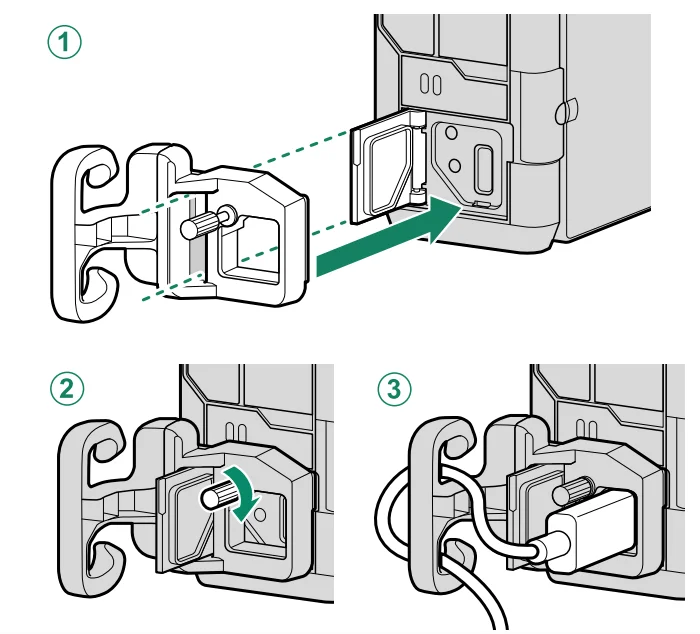

The Cable Protector

Attach the protector as shown to prevent accidental disconnection.

1. Slide the protector over the USB connector cover so that the cover passes through the slot in the protector.
2. Tighten the lock screw.
3. Connect the cable and pass it through the protector as shown.

The Serial Number Plate

Do not remove the serial number plate, which provides the CMIIT ID, serial number, and other important information.

The Memory Card Slot Cover (Detachable)

The memory card slot cover can be removed by lowering the interior latch. Remove the cover for ease of access when a camera rig is attached or in other situations that make it difficult to open or
Close the cover.

Camera Displays

This section lists the indicators that may be displayed during shooting.

• For illustrative purposes, displays are shown with all indicators lit.

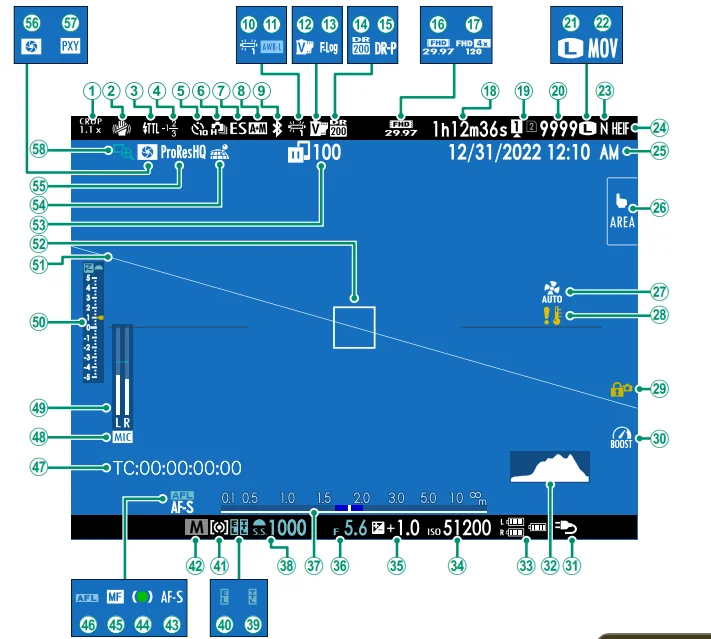

The Electronic Viewfinder

1. Crop factor
2. IS mode 2
3. Flash (TTL) mode
4. Flash compensation
5. Self-timer indicator
6. Continuous mode
7. Shutter type
8. AF+MF indicator 2
9. Bluetooth ON/OFF
10. J White balance
11. AWB lock
12. Film simulation
13. F-Log/HLG recording
14. Dynamic range
15. D-range priority
16. Movie mode
17. High-speed recording indicator
18. Recording time available/ elapsed recording time
19. Card slot options
20. Number of available frames 1
21. Image size
22. File format
23. Image quality
24. HEIF format
25. Date and time
26. Touch screen mode
27. Cooling fan settings
28. Temperature warning
29. Control lock 3
30. Boost mode
31. Power supply
32. Histogram
33. Battery level
34. Sensitivity
35. Exposure compensation
36. Aperture
37. Distance indicator 2
38. Shutter speed
39. TTL lock
40. AE lock
41. Metering
42. Shooting mode
43. Focus mode 2
44. Focus indicator 2
45. Manual focus indicator 2
46. AF lock
47. Time code
48. Microphone input channel
49. Recording level 2
50. Exposure indicator
51. Virtual horizon
52. Focus frame
53. Image transfer status
54. Location data download status
55. Movie compression
56. Depth-of-field preview
57. Proxy setting (ProRes only)
58. Focus check

• 1 Shows “9999” if there is space for over 9999 frames.
• 2 Not displayed when ON is selected forSCREEN SET-UP > LARGE INDICATORS MODE(EVF).
• 3 Displayed when controls have been locked by pressing and holding the MENU/OK button. The control lock can be ended by pressing and holding the MENU/OK button again.

The LCD Monitor

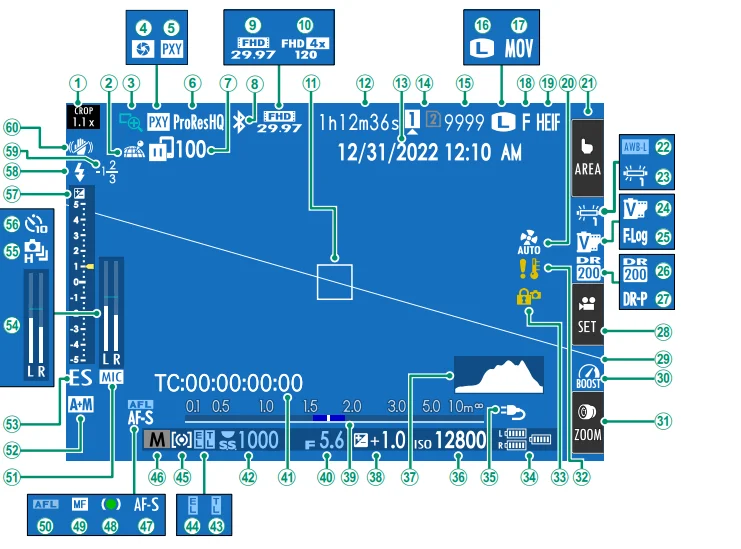

1. Crop factor
2. Location data download status
3. Focus check
4. Depth-of-field preview
5. Proxy setting (ProRes only)
6. Movie compression
7. Image transfer status
8. Bluetooth ON/OFF
9. Movie mode
10. High-speed recording indicator
11. Focus frame
12. Recording time available/ elapsed recording time
13. Date and time
14. Card slot options
15. Number of available frames 1
16. Image size
17. File format
18. Image quality
19. HEIF format
20. Cooling fan settings
21. Touch screen mode 3
22. AWB lock
23. White balance
24. Film simulation
25. F-Log/HLG recording
26. Dynamic range
27. D-range priority
28. Movie optimized control 3
29. Virtual horizon
30. Boost mode
31. Touch Zoom 3
32. Temperature warning
33. Control lock 4
34. Battery level
35. Power supply
36. Sensitivity
37. Histogram
38. Exposure compensation.
39. Distance indicator 2
40. Aperture
41. Time code
42. Shutter speed
43. TTL lock
44. AE lock
45. Metering
46. Shooting mode
47. Focus mode 2
48. Focus indicator 2
49. Manual focus indicator 2
50. AF lock
51.  Microphone input channel
52. AF+MF indicator 2
53. Shutter type
54. Recording level 2
55. Continuous mode
56. Self-timer indicator
57. Exposure indicator
58. Flash (TTL) mode
59. Flash compensation
60. IS mode 2

• 1 Shows “9999” if there is space for over 9999 frames.
• 2 Not displayed when ON is selected forSCREEN SET-UP > LARGE INDICATORS MODE(LCD).
• 3 Camera functions can also be accessed via touch controls.
• 4 Displayed when controls have been locked by pressing and holding the MENU/OK button. The control lock can be ended by pressing and holding the MENU/OK button again.

First Steps

Attaching the Strap

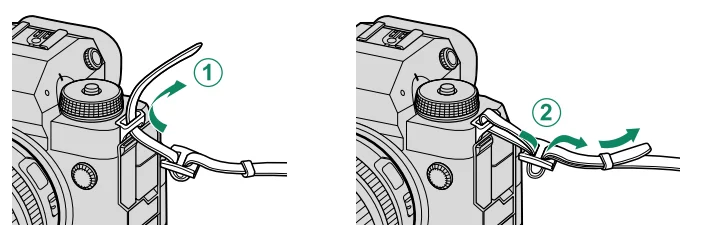

Attach the strap.

Attach the strap to the two strap eyelets as shown below.

• To avoid dropping the camera, be sure the strap is correctly secured.

Attaching a Lens

The camera can be used with lenses for the FUJIFILM X-mount.

Remove the body cap from the camera and the rear cap from the lens. Place the lens on mount, keeping the marks on the lens and camera aligned (1), and then rotate the lens until it clicks into place (2).

• When attaching lenses, ensure that dust or other foreign matter does not enter the camera.
• Be careful not to touch the camera’s internal parts.
• Rotate the lens until it clicks securely into place.
• Do not press the lens release button while attaching the lens.

Removing Lenses

To remove the lens, turn the camera off , then press the lens release button (1) and rotate the lens as shown (2).

• To prevent dust accumulating on the lens or inside the camera, replace the lens caps and camera body cap when the lens is not attached.

Lenses and Other Optional Accessories

The camera can be used with lenses and accessories for the FUJIFILM
X-mount.

• Observe the following precautions when attaching or removing (exchanging) lenses.
• Check that the lenses are free of dust and other foreign matter.
• Do not change lenses in direct sunlight or under another bright light source. Light focused into the interior of the camera could cause it to malfunction.
• Attach the lens caps before exchanging lenses.
• See the manual provided with the lens for information on use.

Inserting the Battery

Insert the battery in the camera as described below.

1. Open the battery-chamber cover.
   Slide the battery-chamber cover latch as shown and open the battery- chamber cover.
   • Do not open the battery-chamber cover when the camera is on. Failure to observe this precaution could damage image fi les or memory cards.
   • Do not use excessive force when handling the battery-chamber cover.
2. Insert the battery as shown.
   • Insert the battery in the orientation shown. Do not use force or attempt to insert the battery upside down or
     backwards.
   • Confi rm that the battery is securely latched.
3. Close the battery-chamber cover.
   Close and latch the cover.
   • If the cover does not close, check that the battery is in the correct orientation. Do not attempt to force the cover shut.

Removing the Battery

Before removing the battery, turn the camera off and open the battery-chamber cover. To remove the battery, press the battery latch to the side, and slide the battery out of the camera as shown.

• The battery may become hot when used in high-temperature environments. Observe caution when removing the battery.

Inserting Memory Cards

Pictures are stored on memory cards (sold separately).

1. Open the memory card slot cover.
   Unlatch and open the cover.
   • Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card.
2. Insert the memory card.
   Holding the card in the orientation shown, slide it in until it clicks into place at the back of the slot. Close and latch the memory card slot cover.
   • Be sure card is in the correct orientation; do not insert at an angle or use force.

Compatible Memory Cards

• The camera can be used with SD, SDHC, SDXC, and CFexpress
  Type B memory cards. Both the UHS-I and UHS-II bus interfaces
  are supported.
• CFexpress or UHS-II memory cards are recommended for highspeed burst photography.
• The types of memory cards suitable for movie recording vary
  with the settings selected (P 68).
• A list of supported memory cards is available on the Fujifi lm
  website. For details, visit: https://fujifilm-x.com/support/compatibility/cameras/.
  • Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card.

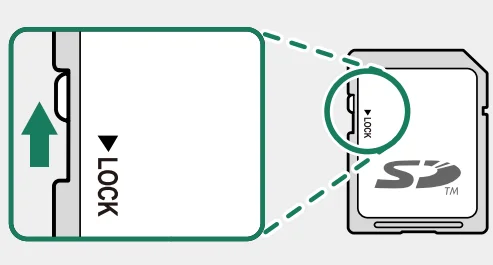

  • Memory cards can be locked, making it impossible to format the card or to record or delete images. Before inserting a memory card, slide the write-protect switch to
    the unlocked position.
  • Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows a memory card, seek medical assistance immediately.
  • miniSD or microSD adapters that are larger or smaller than memory cards may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card.
  • Do not affi x labels or other objects to memory cards. Peeling labels can cause camera malfunction.
  • Movie recording may be interrupted with some types of memory card.
  • Formatting a memory card in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image files. Always use the camera to delete pictures; before editing or renaming files, copy them to a computer and edit or rename the copies, not the originals. Renaming the fi les on the camera can cause problems
    during playback.

Charging the Battery

For reasons of safety, the battery is not charged at shipment. The camera will not function if the battery is not charged; be sure to charge the battery before use. Before charging the battery, turn the camera off.

• An NP-W235 rechargeable battery is supplied with the camera.
• Charging takes about 180 minutes.

1. Attach the plug adapter to the AC power adapter.
   Attach the plug adapter as shown, making sure that it is fully inserted and clicks into place on the AC power adapter terminals.
   • The supplied plug adapter is for use exclusively with the AC-5VJ AC power adapter. Do not use it with other devices.
   • The shape of the plug adapter varies with the country of sale.
2. Charge the battery.
   Connect the camera to the supplied AC power adapter using the supplied USB cable. Then plug the AC power adapter into an indoor power outlet.
   • Connect the cable to the camera’s USB connector (Type-C).
   • Be sure the connectors are fully inserted.
   • The supplied AC power adapter is compatible with power supplies of 100 to 240 V (a plug adapter may be needed for overseas use).
   • Do not use the AC power adapter or USB cable with other devices, as this could cause malfunction.
   • Do not affi x labels or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera.
   • Do not short the battery terminals. The battery could overheat.
   • Read the cautions in “The Battery and Power Supply”.
   • Use only genuine Fujifi lm rechargeable batteries designated for use in this camera. Failure to observe this precaution could result in product malfunction.
   • Do not remove the labels from the battery or attempt to split or peel the outer casing.
   • The battery gradually loses its charge when not in use. Charge the battery one or two days before use.
   • If the battery fails to hold a charge, it has reached the end of its charging life and must be replaced.
   • Unplug the AC power adapter from the power outlet when it is not in use.
   • If the battery is left for long periods without charging, you may find that its quality degrades or that it no longer holds a charge. Charge the battery regularly.
   • Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent the battery from charging.
   • Note that charging times increase at low or high temperatures.
     Selecting ON for Bluetooth/SMARTPHONE SETTING > Bluetooth ON/OFF in the network/USB settings menu increases the drain on the battery.

Basic Photography and Playback

Taking Photographs (Mode P)

This section describes how to take pictures using program AE (mode P). See pages 72–81 for information on S, A, and M modes.

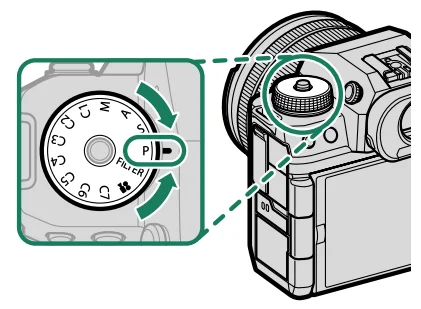

1. Rotate the mode dial to P.
   • Rotate the mode dial only after pressing the dial lock release to release the dial.

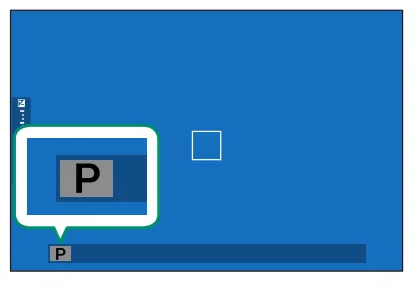

2. Confirm that P appears in the display.
3. Ready the camera.

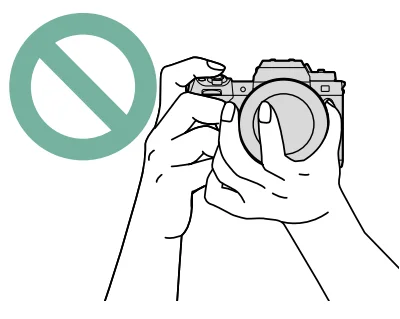

   •  Hold the camera steady with both hands and brace your elbows against your sides. Shaking or unsteady hands can blur your shots.
   • To prevent pictures that are out of focus or too dark (underexposed), keep your fi ngers and other objects away from the lens and AF-assist illuminator.
4. Frame the picture.
   Lenses with Zoom Rings

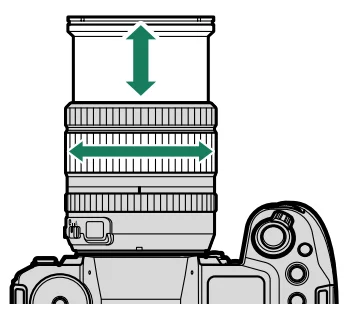

   Use the zoom ring to frame the picture in the display. Rotate the ring left to zoom out, right to zoom in.
5. Focus.
   Press the shutter button halfway to set focus and exposure.

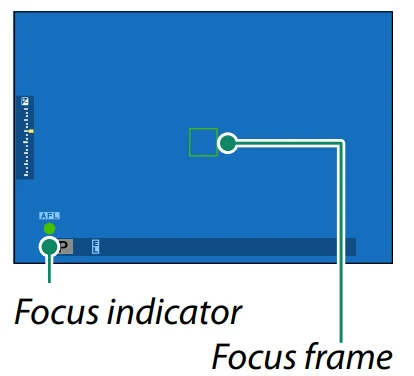

   • If the camera is able to focus, the focus frame and focus indicator will glow green.
   • If the camera is unable to focus, the focus frame will turn red, s will be displayed, and the focus indicator will blink white.
   • If the subject is poorly lit, the AF-assist illuminator may light to assist the focus operation.
   • Focus and exposure will lock when the shutter button is pressed halfway. Focus and exposure remain locked while the button is kept in this position (AF/AE lock).
   • The camera will focus on subjects at any distance in the macro and standard focus ranges for the lens.
6. Shoot.
   Smoothly press the shutter button the rest of the way down to take the picture.

Playback and the Playback Menu

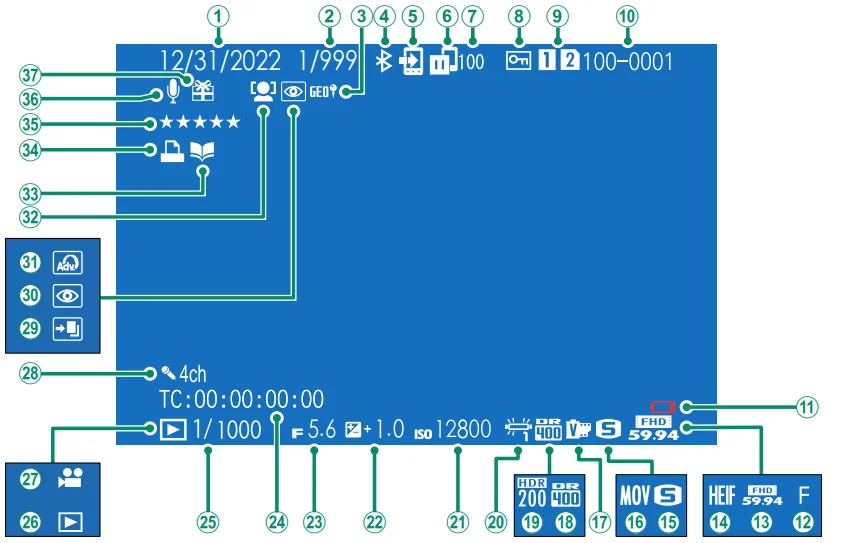

1. Date and time
2. Frame-number display
3. Location data
4. Bluetooth ON/OFF
5. Image transfer order
6.  Image transfer status
7. Number of frames selected for upload
8. Protected image Card slot
9. Frame number
10. Low battery
11. Image quality
12. Movie mode
13. HEIF
14. Image size
15. Film format
16. Film simulation
17. Dynamic range
18. HDR
19. White balance
20. Sensitivity
21. Exposure compensation
22. Aperture
23. Time code
24. Shutter speed
25. Playback mode indicator
26. Movie icon
27. Four-channel (quadrophonic) audio
28. HDR image
29. Red-eye removal indicator
30. Filter
31. Face detection indicator
32. Photobook assist indicator
33. DPOF print indicator
34. Rating
35. Voice memo
36. Gift image

The DISP/BACK Button

The DISP/BACK button controls the display of indicators during playback.

RAW CONVERSION

Even if you don’t have a computer, you can use the camera to modify RAW pictures and save them in other formats. Saving RAW Pictures in Another Format

1. Display a RAW picture.
2. Highlight RAW CONVERSION in the playback menu.
3. Press MENU/OK.

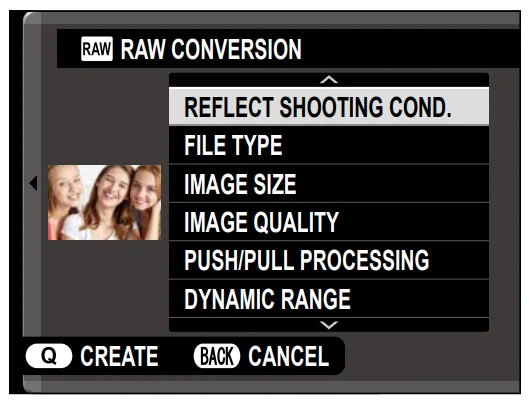

   A list of settings will be displayed.

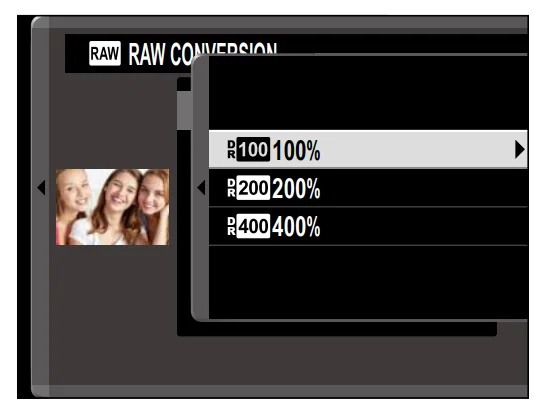

4. Press the focus stick (focus lever) up or down to highlight a setting.
5. Press the focus stick right to display options.
6. Press the focus stick up or down to highlight the desired option.
7. Press MENU/OK to select the highlighted option. The settings list shown in Step 3 will be displayed. Repeat Steps 4 to 7 to adjust additional settings.
8. Press the Q button.
   A preview of the copy will be displayed.
9. Press MENU/OK.
   The copy will be saved.

• RAW conversion options can also be displayed by pressing the Q button when a RAW pictures is displayed during playback.

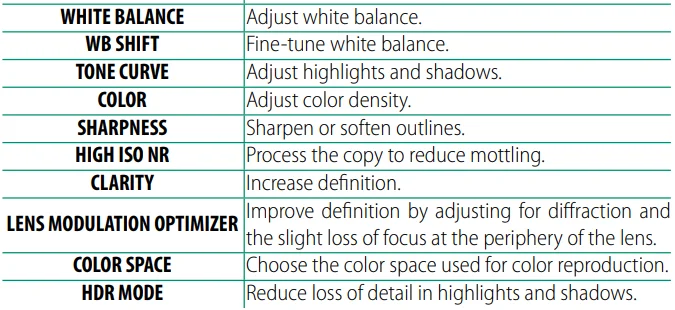

The settings that can be adjusted when converting pictures from
RAW to another format are:

• OSome settings may be unavailable depending on the options chosen when the picture was taken.

Network/USB Setting Menus

Network/USB Setting Menus

Adjust camera network and USB settings.

For more information on the network/USB settings menu, visit: https://fujifilm-dsc.com/en/manual/x-h2s_connection/

The Setup Menus

USER SETTING

Adjust basic camera settings.

To access basic camera settings, press MENU/OK, select the(SET UP) tab, and choose USER SETTING.

FORMAT

To format a memory card:

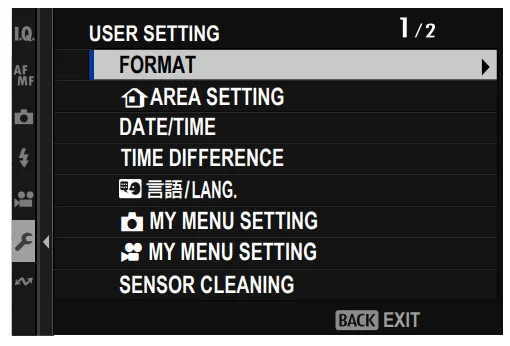

1. SelectUSER SETTING > FORMAT in the(SET UP) tab.

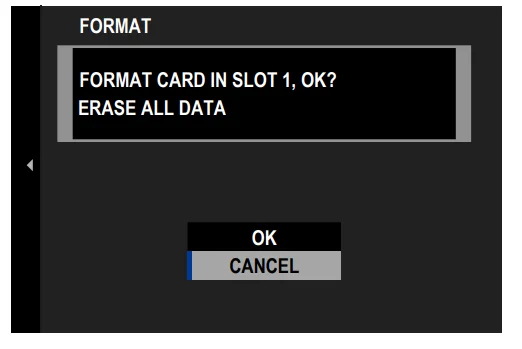

2. Highlight the slot containing the card you wish to format and
   press MENU/OK.
3. A confi rmation dialog will be displayed. To format the memory card, highlight OK and press MENU/OK.
   • To exit without formatting the memory card, select CANCEL or press DISP/BACK.
   • All data—including protected pictures—will be deleted from the memory card. Be sure important fi les have been copied to a computer or other storage device.
   • Do not open the battery-chamber cover during formatting.

SAVE DATA SETTING

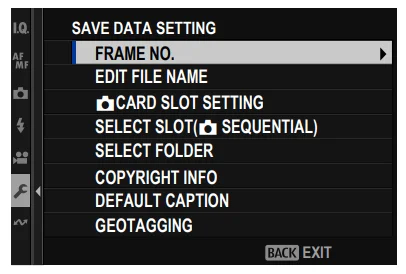

Make changes to fi le management settings. To access fi le management settings, press MENU/OK, select the(SET UP) tab, and choose SAVE DATA SET-UP.

FRAME NO.

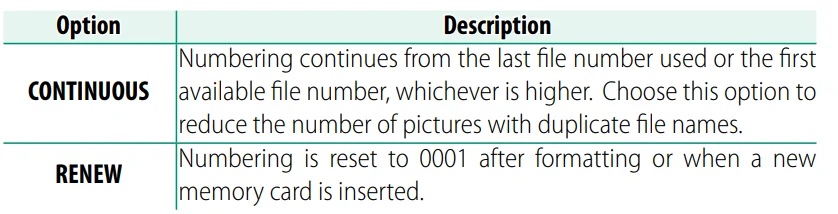

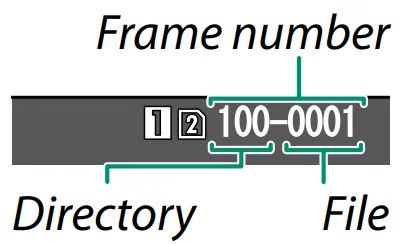

New pictures are stored in image fi les named using a four-digit fi le number assigned by adding one to the last file number used. The
fi le number is displayed during playback as shown. FRAME NO. controls whether fi le numbering is reset to 0001 when a new memory card is inserted or the current memory card is formatted.

• If the frame number reaches 999-9999, the shutter release will be
  disabled. Turn the camera off and insert a formatted memory card before resuming shooting.
• SelectingUSER SETTING > RESET sets FRAME NO. to CONTINUOUS but does not reset the fi le number.
• Frame numbers for pictures taken with other cameras may differ.

Shortcuts

Shortcut Options

Customize camera controls to suit your style or situation.

Frequently-used options can be added to the Q menu or a custom “my” menu or assigned to a function button or touch-function gesture for direct access:

Function Controls

Assign a role to each function button or touch-function gesture for quick access to the selected feature.

The Function Buttons

Assign a role to the function buttons for quick access to the selected
feature.

Function Button Defaults

The default assignments are:

Back-of-Camera Function Buttons

Peripherals and Optional Accessories

Lenses

The camera can be used with lenses for the FUJIFILM X-mount.

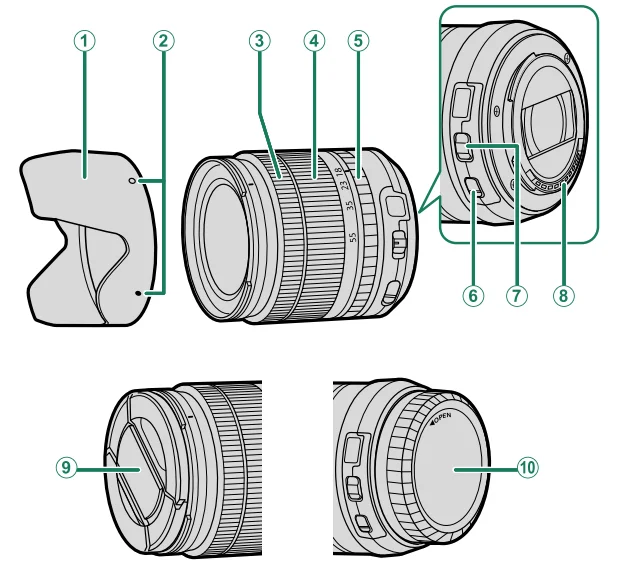

Lens Parts

1. Lens hood
2. Mounting marks
3. Focus ring
4. Zoom ring
5. Aperture ring
6. O.I.S. switch
7. Aperture mode switch
8. Lens signal contacts
9. Front lens cap
10. Rear lens cap

• A XF18-55mmF2.8-4 R LM OIS lens is used here for illustrative purposes.

Lens Care

• Use a blower to remove dust, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of Fujifi lm lens-cleaning paper to which a small amount of lens-cleaning fl uid has been applied.
• Replace the front and rear caps when the lens is not in use.

For more manuals by Fujifilm, visit ManualsLibraryy

Fujifilm X-H2S Camera-FAQs
