GermGuardian AC5350 Air Purifier for Home User Manual

GermGuardian AC5350 Air Purifier for Home

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• IMPORTANT – This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• To avoid fire or shock hazards, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazards, NEVER put the cord under rugs, near heat registers, radiators, stoves, or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
• DO NOT run a cord under the carpeting.
• DO NOT cover the cord with throw rugs, runners, or similar coverings.
• DO NOT route the cord under furniture or appliances. Arrange the cord away from the traffic area so that it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if the motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.
• Use appliances only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.
• DO NOT place anything on top of the unit.
• NEVER block the air openings, grills/outlets, or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user-serviceable parts. All servicing should be performed by qualified personnel only.
• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect the power before replacing the lamp or servicing it. Replace Lamp With Lamp Manufactured by Guardian Technologies.
• Always unplug the unit before cleaning or servicing it in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8-hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m3.

PRODUCT SPECIFICATIONS AND PARTS

CONTROLS

REPLACEMENT PARTS

AIR CLEANING SYSTEM

Improve your indoor air quality with your new germguardian® Air Cleaning System. Multiple levels of cleaning include a combination filter that captures allergens, and Charcoal filter to remove odors.

• UV-C light technology enhances germ-killing.
• Pre-Filter – Captures initial dust and allergen particles.
• Activated Carbon Filter – Charcoal/Activated Carbon contributes to the control and prevention of the growth of bacteria, germs and mold.
• UV-C Light – UV-C light technology works with Titanium Dioxide (TiO2) to enhance the elimination of airborne germs. TiO2 is activated by the UV-C light to decompose the remaining odor molecules caused by smoking, cooking, and pets.
  *Pre-filter and Carbon Filter are combined into one layer that attaches to the Filter.

AIR CLEANING LAYERS

OPERATING INSTRUCTIONS

BEFORE OPERATING THE AIR PURIFIER:

1. Select a firm, level, and flat location for the air purifier.
   • For proper airflow, locate the unit at least 1 foot from any wall or furniture.
   • Make sure none of the grills are blocked.
2. Plug the power cord into a 120V AC outlet.
   • IMPORTANT: When moving the air purifier, always lift the unit by the carrying handle located on the back.

OPERATING THE AIR PURIFIER (AC5300 SERIES):

1. Turn the unit power ON. To turn it OFF, press and hold the button for 3 seconds.
2. Select fan speed MODE 1 – 3
   • 1 = low, ultra-quiet sleep mode
   • 3= high
3. Select UV-C ON or OFF using the UV-C Mode Button.
   • Filter Replacement Indicator: The Replace HEPA light on the control panel will illuminate and flicker indicating that it is time to replace your filter. Replace the filter according to directions (E-6) then press and hold the UV Mode button for 3 seconds to reset the system
   • UV Bulb Replacement Indicator. The circular blue light on the front panel of the puncher will flicker when it’s time to replace the bulb. Replace the bulb according to directions (E- 8), then press and hold the UV Mode button for 3 seconds to reset the system.

OPERATING THE AIR PURIFIER (AC5350 SERIES):

1. Turn the unit power ON.
2. Select fan speed MODE 1-5
   • 1 = low, ultra-quiet sleep mode
   • 5= high-speed allergen control. The default setting is 5
3. Select UV-C ON or OFF using the UV-C Mode Button.
4. TIMER: If you prefer to run the purifier for a specific number of hours, you can select between 1 and 8 hours on the display.
   • Filter Replacement Indicator: The Replace HEPA light on the control panel will illuminate and flicker indicating that it is time to replace your filter. Replace the filter according to directions (E-6) then press and hold the UV Mode button for 3 seconds to reset the system
   • UV Bulb Replacement Indicator. The circular blue light on the front panel of the puncher will flicker when it’s time to replace the bulb. Replace the bulb according to directions (E- 8), then press and hold the UV Mode button for 3 seconds to reset the system.
   • Control Panel Beep/Sound: The sound emitted from pressing the buttons on the control panel can be turned off/on by holding the Speed button for 3 seconds.

FILTER REPLACEMENT

The Air Cleaner will beep for 30 seconds and the Replace HEPA light will flash continuously indicating that it is time to replace your filter. Replace the filter according to directions then restart the system. Depending on usage, the filter will last approximately 6 months.

1. Turn off and unplug the unit.

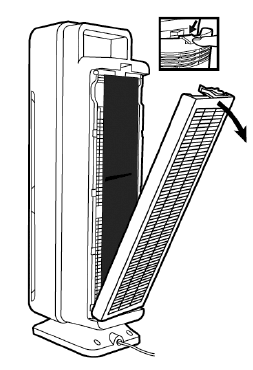

2. Press the lock and release button and remove the rear cover from the unit.
3. Remove the used Combination Filter (Filter C) and dispose of it in the garbage.
4. Insert filter system into the unit. Consult the arrow on the filter for the correct installation direction.
5. Reattach the rear cover of the unit and securely latch it into place.

CHECKING AND MAINTAINING FILTER

Maintain the filter by checking it frequently. Depending on air quality conditions, you may need to replace it more frequently. Vacuum the carbon filter layer as needed to remove loose debris and dust and to help prolong the life of your filter. To check the status of the filter, peel back the carbon layer to expose the pleated filter. If the filter is no longer white and is covered in grey dust/dirt it should be replaced.
IMPORTANT: Do NOT try to wash and re-use the Combination Filter.
IMPORTANT: To maintain the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only.

INSTALLING & REMOVING UV-C BULB

UV Bulb Replacement Indicator: The UV light on the display will flash when it is time to replace the UV bulb.

1. Turn off and unplug the unit. Press the lock and release button and remove the rear cover from the unit.

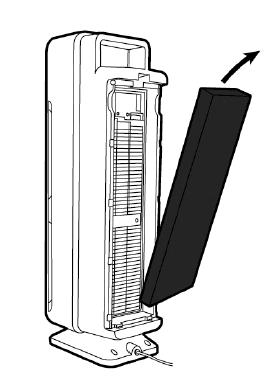

2. Remove the combination filter.

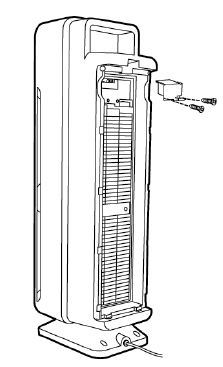

3. Use a Philips head screwdriver to remove 2 screws and detach the UV-C Metal Shield.

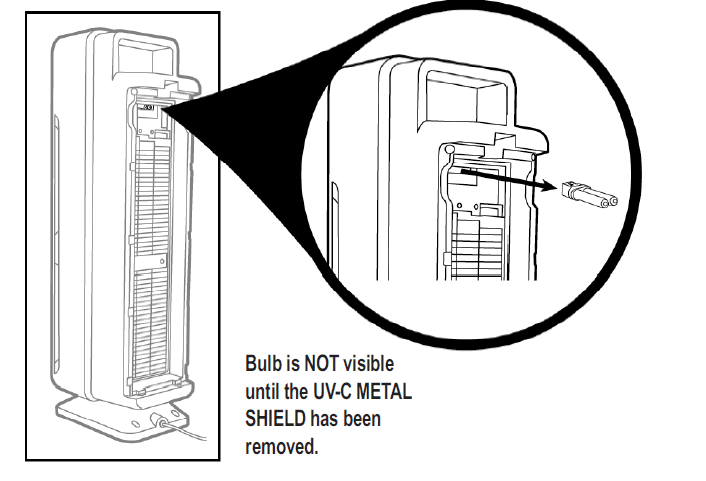

4. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.
5. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit.

TROUBLESHOOTING GUIDE

What is CADR?
CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate
From air cleaner to air cleaner, compare the CADR numbers. First, look at the suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to the website for individual model CADR numbers.
