Haier X220P Touchscreen Netbook User Manual

Haier X220P Touchscreen Netbook

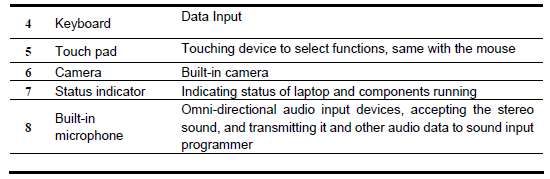

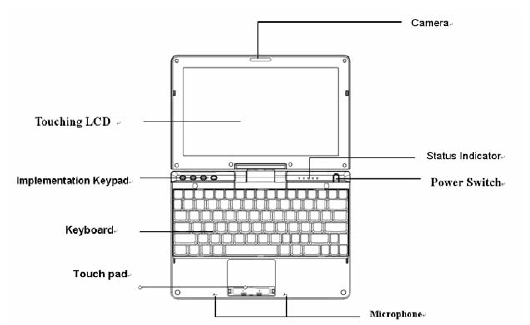

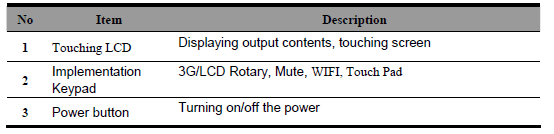

POSITIVE SIDE

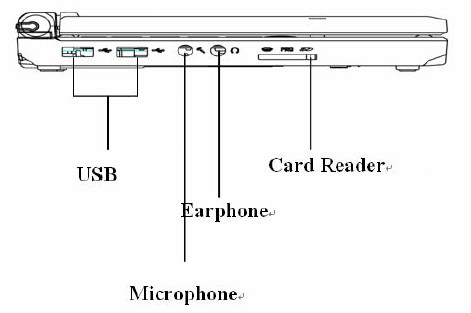

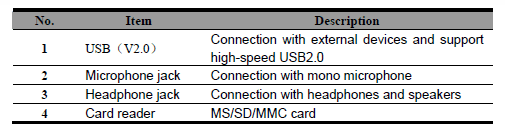

Left Side

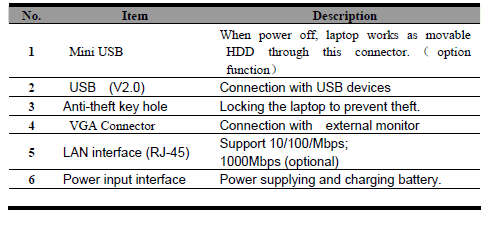

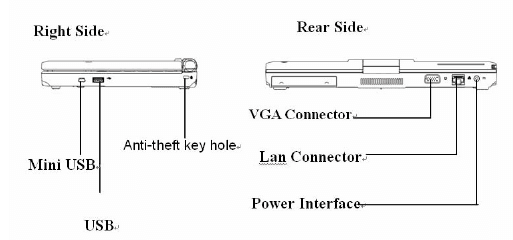

Right Side & Rear Side

Laptop User Manual

Status Indicator

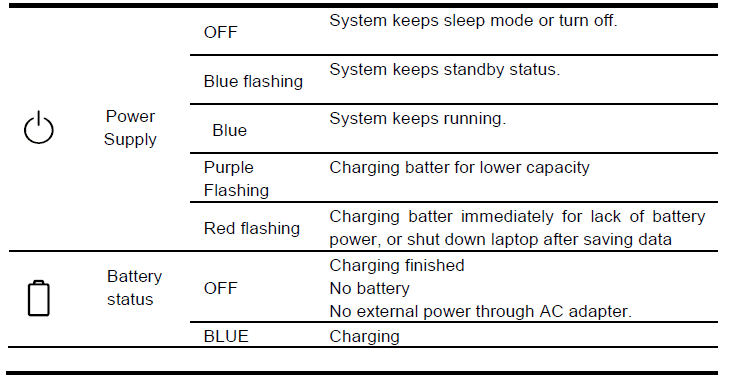

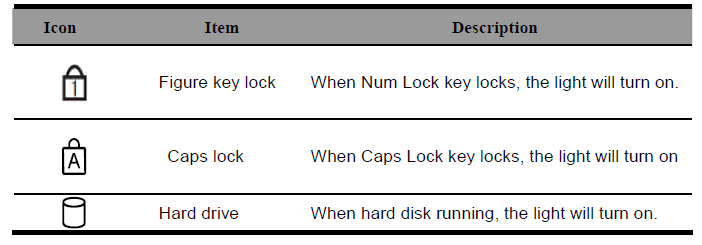

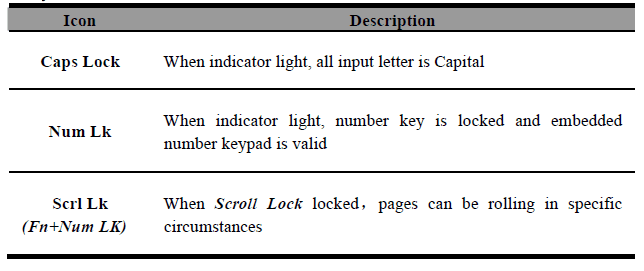

Every indicator indicates running information of laptop. Indicator symbol as follows.

Power keypad and implementation keypad

Power keypad is used for starting laptop. The implementation keypad is used for running procedures directly, when  starting the corresponding function, the indicator light will be turned on as follows.

Connecting the battery

Installing Battery

1. Laptop will be flat placed with the bottom leveled up.
2. The battery is packed into the battery slot.
3. When right locker back automatically lock, push left locker to the closed position lock, finally to fix the battery.

Connecting AC adapter

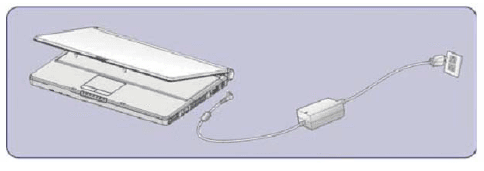

Follow these steps to connect the adapter:

1. Take out the adapter and power cord and then connect the adapter with power cord.
2. Put AC power plug into power socket.
3. Put AC adapter output jack into the computer power supply.
4. Make sure that all connections have been fully connected.

Laptop Carrying

If you want to bring laptop outside, please note the following:

1. Please make sure the entire disk stopped, check whether disk drive indicator is extinguished or not.
2. Please turn off the power supply or make laptop into the hibernation state.
3. Please disconnect all external equipment and AC adapter before moving
4. Please be sure that the closing the housing case in proper place.
5. Please do not carry laptop through the laptop rear or the LCD screen.
6. Please use dedicated laptop bag and prevent other objects placed together.

Using Touching Pad

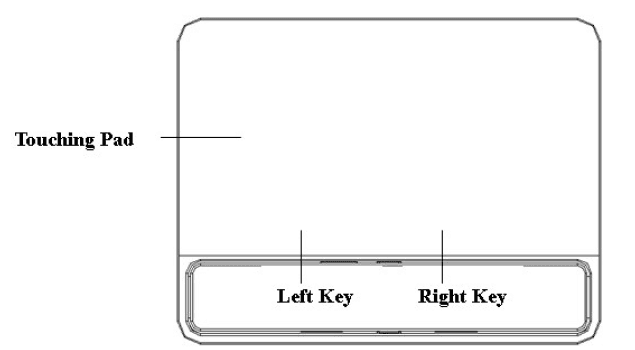

Touching Pad can position file location when you move finger on the surface

Clicking on touching pad can select target file, double clicking can complete implementation function. Left key is same with that of mouse can select menu or file. Right key is same with that of mouse, can display designated menu or complete selected function.

Keypad Operation

This is enhanced keyboard with 2 kinds of window function key, including standard function.

Lock Key

Windows Function Key

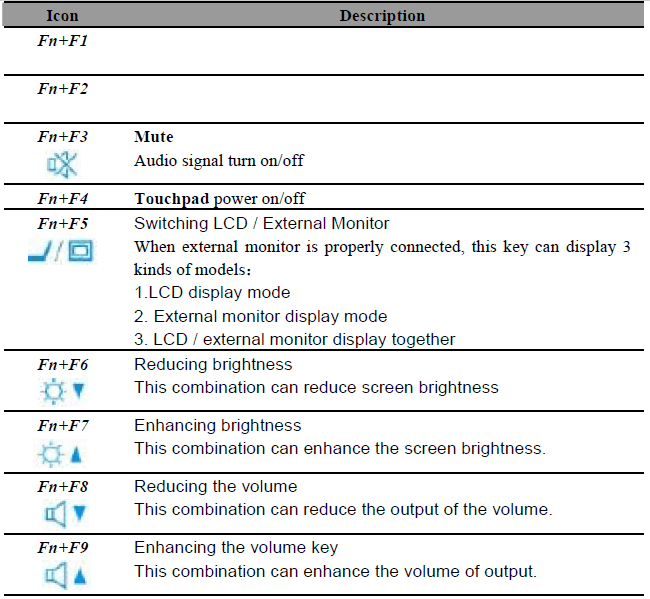

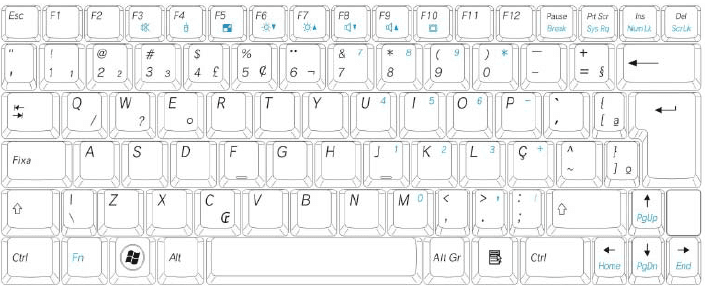

Function Keys

Function button is used together with other keys to turn off or turn on specific function.

Embedded numeric keypad

Embedded numeric keypad is same with that of desktop. Labeled figure and character are printed as following chart:

When embedded numeric keypad locked, you can do the following:

• Inputting numbers.
• Press Function key and embedded numeric keypad together to input characters; simultaneously press Fn key+ Shift key to input capital letters.

Power management

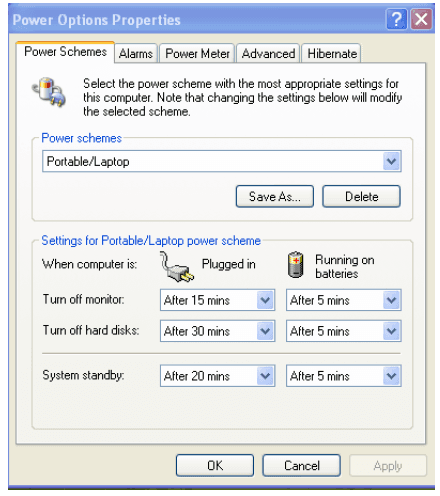

The reasonable use of power management will reduce power consumption. Setting Power management model

Start> control panel>power option

Power management model

System standby

When you leave your computer a short time, it stores tasks into memory, and shuts down monitor and hard disk, but power indication is on. Laptop will return to previous working state when pressing power key.

System Hibernate

When your computer hibernates, it stores whatever it has in memory on your hard disk, and then shuts down. When your computer comes out of hibernation, it returns to its previous state.

Getting in standby/hibernation state

• As per selected power management model, system will get in standby /hibernation automatically when you are off laptop.

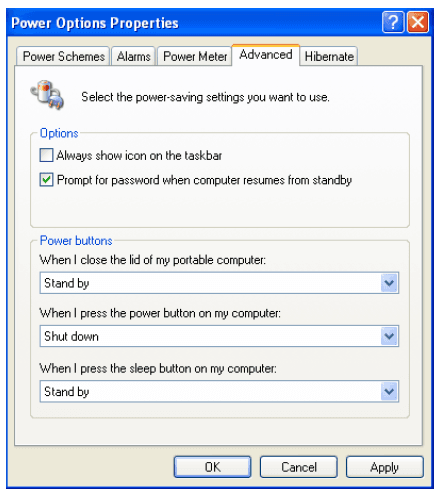

• Start>Turn off > Stand By Pressing power key or closing LCD cover will get in stand by or hibernation. Start > Control Panel > Power Option > Advanced.

Extension of battery power supply

• Choose suitable power management model
• Hibernation using at most to save power. Standby or hibernation first before leaving laptop.
• Turn off the wireless function when you do not use it.
• Remove the PC card when you do not use.
• Make a battery calibration in one Period of time (2-4 week
• Adjustment of LCD brightness to reduce consumption. Dark brightness is better if necessary.

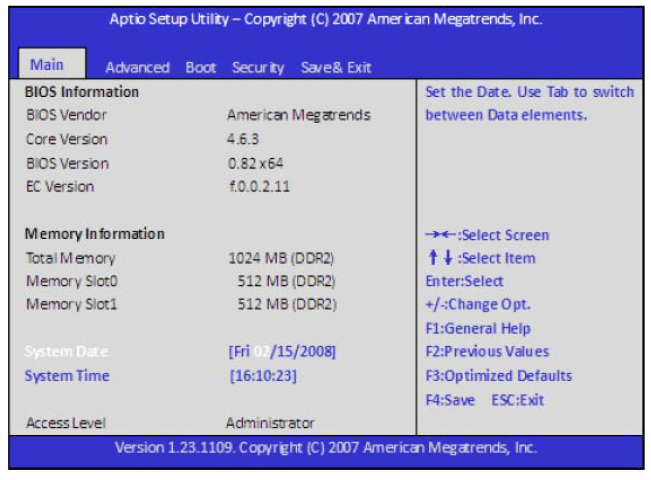

Entering BIOS setting interface

Press F2 when system power on and starting menu display ,to enter into system setting interface

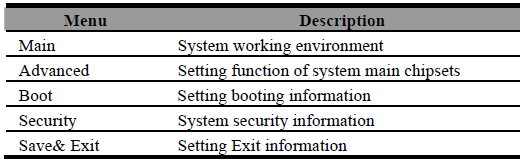

Introduction of BIOS Menu

Appendix Specifications Processor

Intel Series processors

• Chipset
  Intel chipset
• Wireless LAN
  Support 802.11b/g/n
• Memory
  DDR2 533 / 667 memories, maximum reach 2GB
• Data Storage
  Laptop Dedicated hard drive
• Videos

  • 10.1 ” wide screen display
  • 1024*600resolutions
• Audio

  • Speaker Built-in microphone
  • Separate audio input / output port, respectively headphone output and microphone input device equipment
• Keyboard and touch keypad

  • Compatible101/102 keyboard, support Windows-specific keys, embedded digital keys
  • Ergonomically designed touch pad with two buttons
• I / O ports and connecting devices
  • USB 2.0 interface
  • External display interface
  • Microphone interface
  • Headset Interface
  • RJ11 interface (non-standard configuration)
  • RJ45 interface
  • Power Interface socket
  • Card reader (supports SD / MS / MMC card)
  • Bluetooth (non-standard configuration)
  • 3G Module (non-standard configuration)
  • GPS(non-standard configuration)
• Weight and size
  • About 1.35Kg (with battery pack)
  • 261mm (L) x 185mm (W) x 28.8mm (H)
• Operating Environment

  • Temperature
  • Operating: 5 ℃ ~ 35 ℃
  • Storage: -20 ℃ ~ 60 ℃
• Humidity
  • Homework: 20% ~ 80%
  • Storage: 10% ~ 90%
• Power Battery
  • AC adapter,40 watts, 100 ~ 240 volts
  • High-capacity Polymer lithium battery
• OS
  • Support Windows ® XP
  • Linux

FCC and IC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
