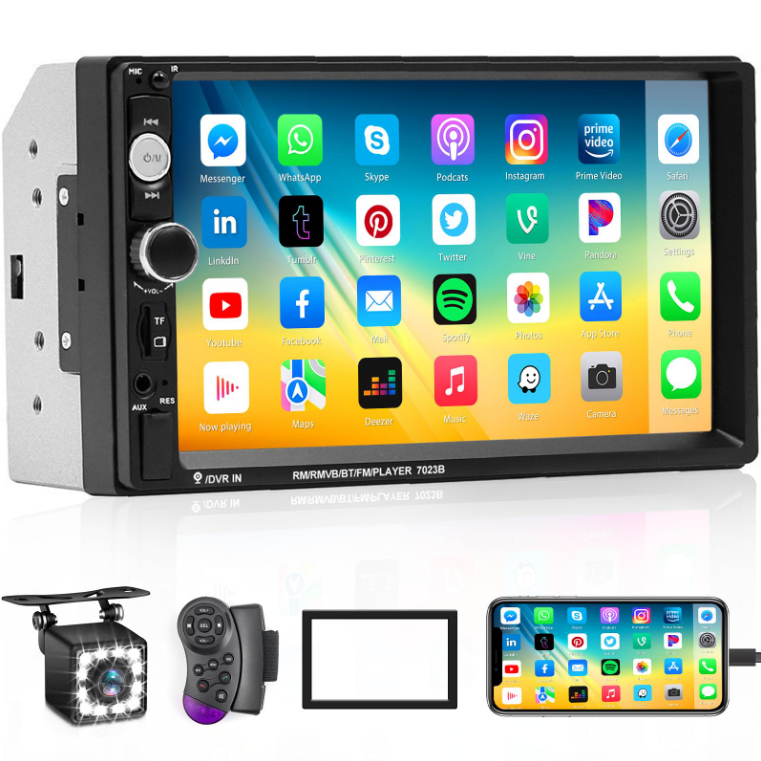

INSTALLATION

Remove the stereo carefully from the box, preserving the box, for unit warranty and service.

1. Remove screws.
2. Unpack the car dashboard and mounting bracket.
3. Check the dashboard window size to meet the requirements, the screw holes left and right plates.
4. By bracket machine is fixed with screws to the dashboard.
5. Installed dashboard.

PRECAUTIONS:

• Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver.
• Avoid installing the unit where it would be subject to high temperatures, direct sunlight, or hot air from the heater. or where it would be subject to dust, dirt, or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.

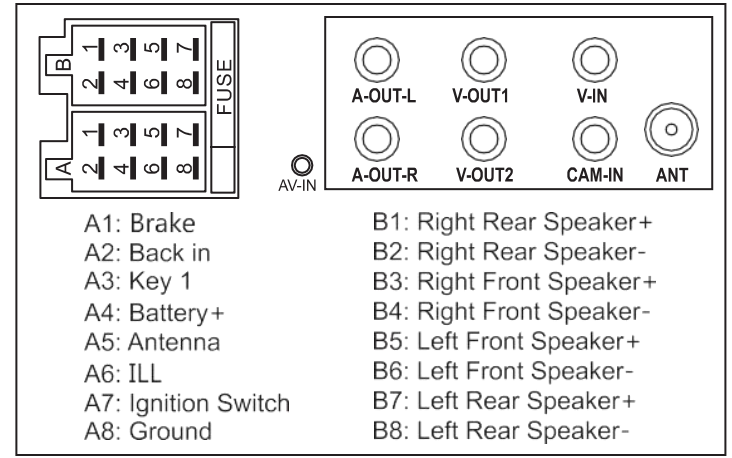

WIRING DIAGRAM

Note: Use the specified amperage fuse for each lead. Using a higher amperage fuse may cause serious damage.

Câblage de la caméra:

• Power cable: red and black.
• Red – positive reversing light
• Black – negative reversing light
• RCA cable: yellow port. Insert it into the port “CAM-IN” (yellow) of the radio
• Make sure the “back” / “back in” wire on the radio’s power cord is connected to the positive wire of the reversing light. Therefore, when you are parking, the device will display the rear view image automatically, and when the parking is over, you will return to the radio page. Note 1: The short red wires next to the RCA port do not need to be connected to anything in this wiring. Note 2: When the device is in parking mode, other functions will stop working temporarily.

How to confirm if the camera is good?

After connecting the power cables of the camera, if the LED light is on, the camera is fine.

SPECIFICATIONS

FM TUNER

• Frequency Range 87.5-108.0MHz
• Sensitivity 10 dBu
• I.F. Frequency 10.7MHz
• Frequency Response 80Hz – 12kHz (±3dB)
• Stereo Separation >25dB
• S/N Ratio >50dB

GENERAL

• Power Supply Voltage 12 V DC, Negative Ground
• Max Current Consumption 15 A
• Max Output Power 4 x 45W

Note: Specifications and the design are subject to possible modification without notice due to improvement.

Instructions Manual

Please read the following notice before installation

1. Please make sure that you or the professional is using our original connector in your first installation; otherwise, it may cause a short circuit on the radio because the cable order is not correctly matched. If you use another connector, the radio may not turn on or make any sound, even when you use our original connector for the second try. Any damage caused by the misuse of wiring will not be included in the warranty term.
2. After you install the radio, you may see some regular problems that most buyers may see, but most of which could be checked and resolved through troubleshooting.

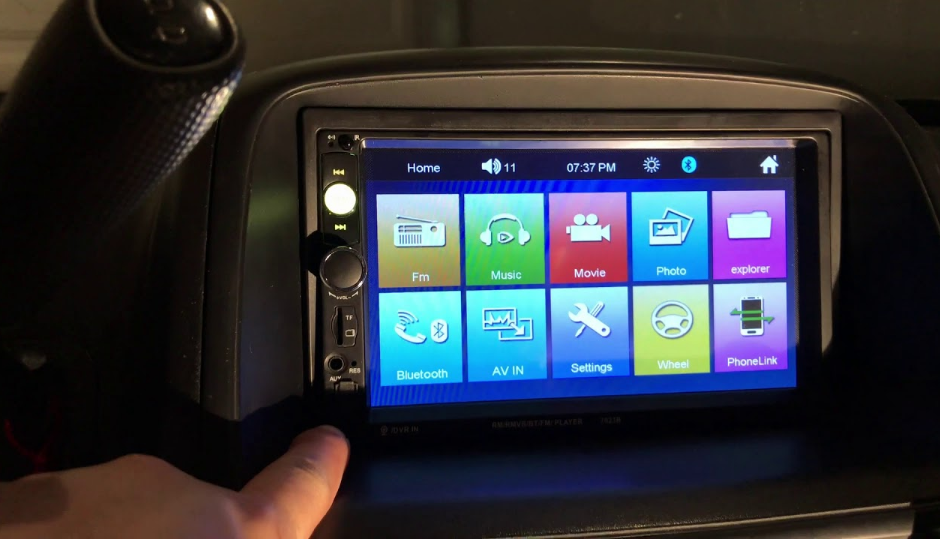

HOME

In the task bar, click to enter the main menu interface.

1. Click here to enter the music player interface.
2. Click here to go to the photo browsing interface.
3. Click here to enter the video player interface.
4. Click here to enter the radio player interface.
5. Click here to go to the Bluetooth player interface.
6. Click to go to the previous/next page.
7. Click here to adjust the screen brightness and turn off the screen.
8. Click to go to the System Settings interface.
9. Click to go to the Aux input interface.
10. Click to go to an AV input interface.

MUSIC

Features taskbar icon

1. The volume regulation, paddling can adjust the volume
2. Return
3. Enter the main menu
4. Click here to play the previous/next song.
5. Click here to play/pause.
6. Click here to loop.
7. Click here to Shuffle.
8. Click here to enter the sound settings.
9. Playback progress display.


In the main menu interface, touch the PHOTO icon to enter the photo state.

1. Click here to play the prev/next picture.
2. Click here to play/pause.
3. Click here to zoom in.
4. Click here to zoom out.
5. Click here to rotate the image.
6. Click here to play background music.

VIDEO

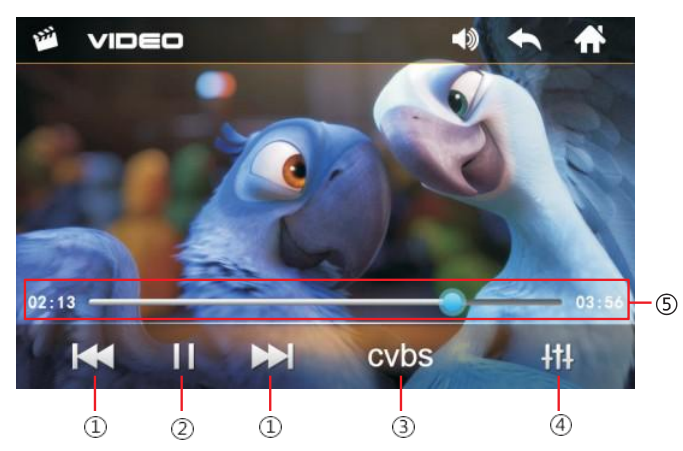

In the main menu interface, touch the VIDEO icon to enter the video state.

1. Click here to play the prev/next video.
2. Click here to play/pause.
3. Click here to display the rear view video, and press the MODE button to return to the front video.
4. Click here to enter the sound settings.
5. Playback progress display, Touch paddling can fast forward and rewind.

RADIO

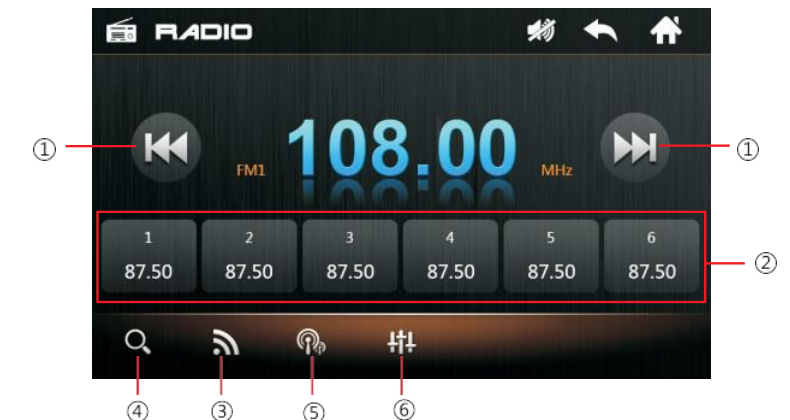

In the main menu interface, touch the RADIO icon to enter the radio state.

1. Click here to manually scan the radio.
2. In radio state, each band has six frequency points. Press any frequency, and you can store your favorite radio stations.
3. Band Switch
4. In radio mode, press to automatically search for radio stations and store the FM1, FM2, FM3 18 radio stations, short press to navigate through the radio.
5. LOC/DX Switch
6. Click to enter sound settings.

BT

In the main menu interface, touch the BT icon to enter the Bluetooth state.

Click into the dial-up interface.

1. Bluetooth dial number keys can be used to enter a phone number to dial.
2. Backspace
3. Bluetooth is available under the call state will host the button to switch the sound to the phone.
4. Hang up the phone.
5. Dial/answer a call.

Click to go to the call log interface

1. Missed record, received record, dial record list.
2. Received record
3. Dial record
4. Missed record

Click into contact interface

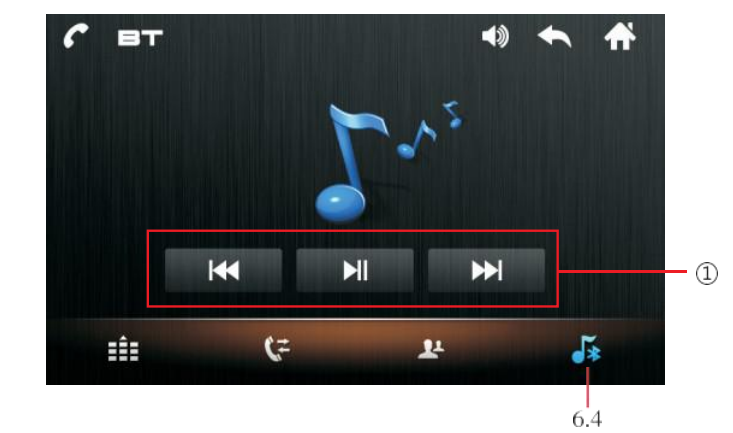

Click to go to the Bluetooth music interface.

1. Prev / Next, play/pause function.

SETUP

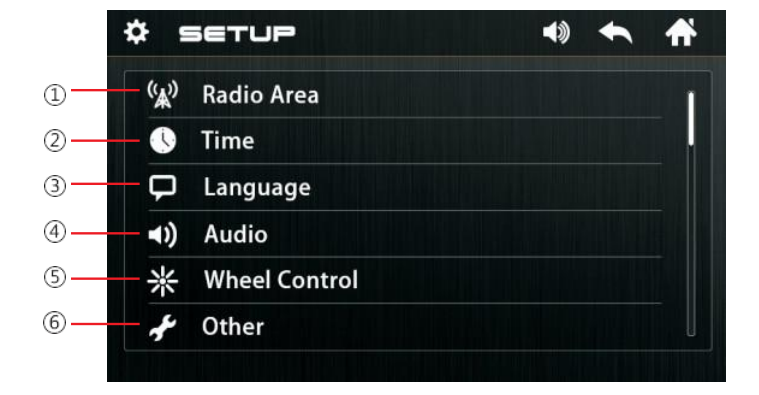

In the main menu interface, touch the SETUP icon to enter the setup state.

1. Click to go to the radio region selection.
2. Click to set the time.

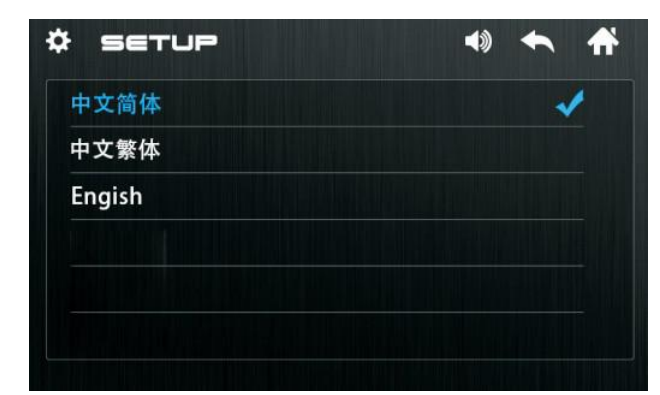

3. Click on the language Set up.
4. Click on to sound settings.
5. Click on the steering wheel control settings.
6. Other settings.

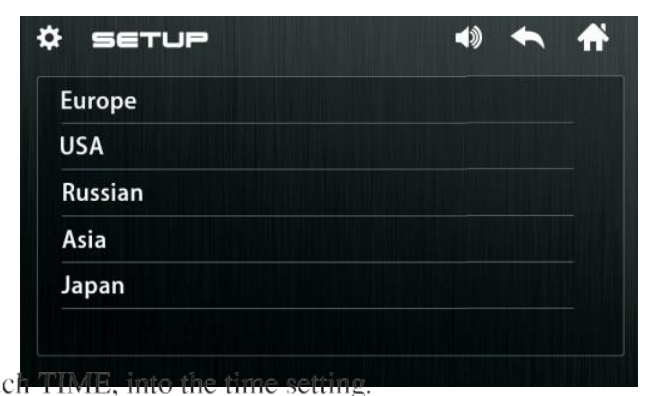

Touch Radio Area: select the radio region.

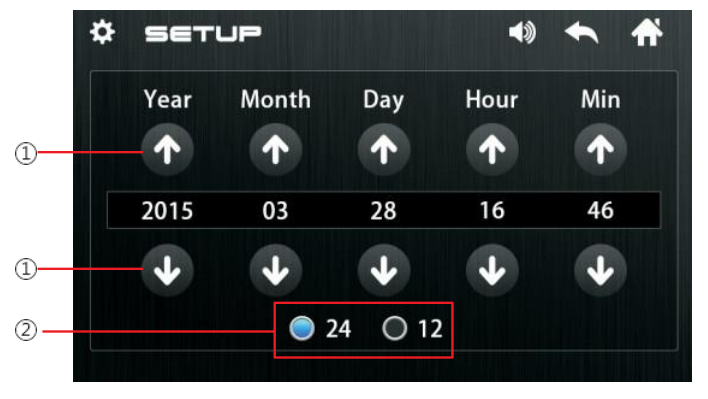

Touch TIME, into the time setting

1. Touch to set the time and date
2. 12/24 standard switch

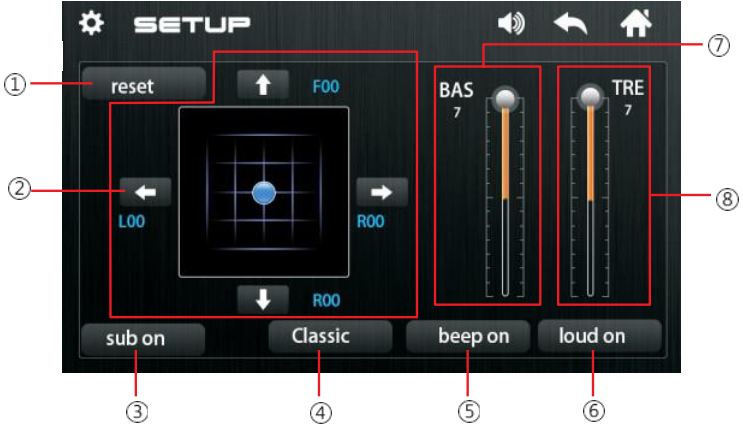

Touch 1, into the sound scene setting

1. Restored to its original state.
2. The arrow can be set to adjust front, back, left, and right audio balance.
3. Subwoofer switch
4. Preset sound
5. Ringtones switch
6. Loudness compensation switch
7. Hold down the slide can adjust the bass sound.
8. Hold down the slide can adjust the treble sound.

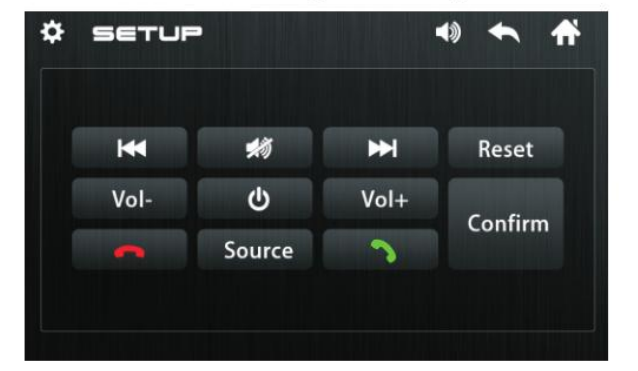

Touch Wheel Control, Steering wheel study interface.

Enter the learning state:

1. Long press button on the steering wheel using your left hand, then touch the screen corresponding function using your right hand, make it highlight, which means learn OK.
2. When the learning is completed, click Confirm.
3. When learning has failed, it should not be a response to the steering wheel.
4. If an operating mistake is made in the learning process, click Reset to relearn.

Other settings interface

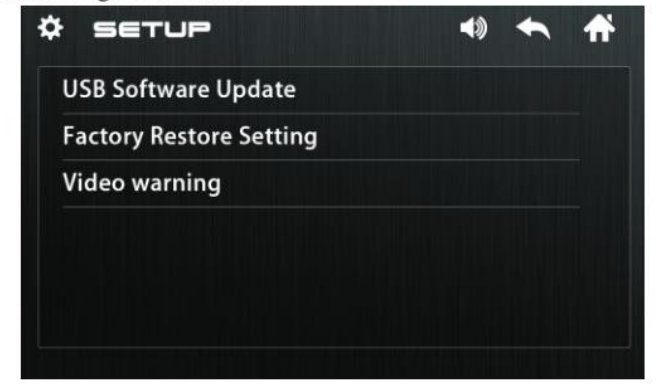

1. USB Software Update
2. Factory Restore Setting
3. Video Warning

AUX IN

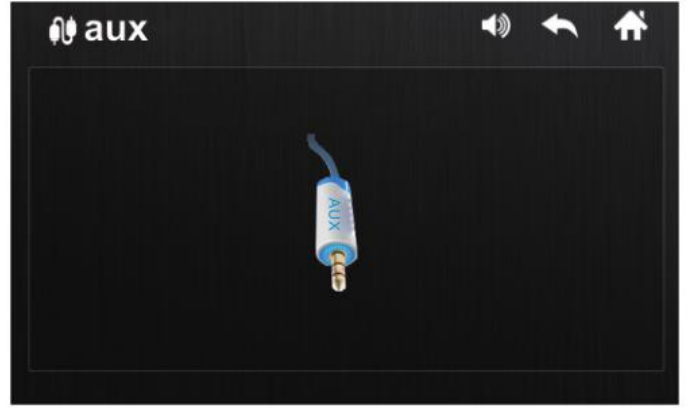

In the main menu interface, touch the aux in icon to enter the aux in state.

1. Front panel 3.5mm audio input

AV IN

In the main menu interface, touch the AV icon to enter the AV in state.

1. RCA audio/video input.

Troubleshooting

We care about every customer’s experience in using our product, so we tested every device and make sure that they can really work well before we ship it out.

No power

1. Please confirm the power source is DC 12V.
2. Please only use the power wires coming with the radio.
3. Check if you connect all power cables (red to ACC, yellow to battery positive, black to battery negative) correctly, and the ports are connected tightly.
4. Check if the fuse is good. Replace with the proper value fuse if necessary.

Car radio can turn on, but there is no sound, or the sound disappears after you play the radio for a while. (It can play USB Flash or SD card, just no sound.)

Notice: There are two main reasons that would cause “no sound”

1. The speaker’s negative cable is grounded.
2. The amplifier chip is burned when the item is shorted in the wiring.
3. Please check if your speaker cable is shorted or not, please make sure every one of them is isolated.
4. If you confirm that the wire is correctly wired, you can find a speaker elsewhere to do an extra test, which could easily confirm the problem is from the radio or your car’s system.

Car radio’s Bluetooth is not working, or it works for a while, then disconnects itself.

1. Try to “forget” the device first, and then search for the Bluetooth signal again; you may need to input the PIN code, which should be “0000”.
2. If the last step can’t make the Bluetooth back, try to find the “reset hole” on the front panel and do the reset for a try. If it’s convenient enough, you can also try to unhook the power connector behind for a few minutes and replug it in later.

Car radio’s mic is not working, and phone calls from the other side can’t be heard clearly.

1. Try to check the Bluetooth volume setting.
2. Try to check if the dashboard is too low (the mic is too far for you) for the radio’s mic to collect your voice.

Car radio cannot read your USB flash disk or SD/TF card.

Please confirm what’s the capacity of the USB flash disk or SD memory card. It can read lower than 32 GB normally. Please use the other flash disks with fewer songs to test again. (Please confirm if you insert the SD/TF card in the correct side)

Car radio’s remote control does not work.

• Please check if the remote has the correct battery inside; the correct model is CR2025.

The reversing camera cannot work with the radio.

• Please check if all cables are wired as shown in “camera wiring” on the page, especially the third point. If you don’t know how to wire it, you can also contact us for advice.

Car radio noise problem.

1. For some cars, there might be some noise generated while playing. Especially when you are using an amplifier. Usually, this kind of problem is related to interference. Please make sure all the cables are wrapped well in case of any contact with each other.
2. You can find a speaker elsewhere to do an extra test, which could easily confirm that the problem is with the radio or your car’s system.

A car radio cannot save the time or radio station settings.

• Check if the Yellow cable is wired to your car’s battery 12V+ (constant positive) or not, it provides constant power to the unit and saves the setting.

How to save my favorite radio station in bands?

• When you find and stop at the station you like, long click the band where you want to save, until the original station changes into the current station.

Mirror Link Function doesn’t work.

1. This device only supports Android phones (Android 4.0-7.0) to mirror the phone screen on the radio, but doesn’t support iPhones.
2. Please use the original USB data cable to connect, because this function is strict with the quality of the USB cable.
3. You can try another Android phone to test if it is because your phone doesn’t support this function.

Touch Screen is not sensitive

• Touch touchscreen type of this device is a resistive touchscreen, reacting to single-point touching. So you can touch it with your nail, or a single-point press of your finger.

Service:

Any confusion or problems, please contact us. We’ll reply within 24 hours and provide a satisfying solution. Description in detail and some photos or video illustrations will help us resolve your problem more quickly. And please note your order ID in the email.

For More Manuals By Hikity, Visit ManualsLibraryy.
