Hisense HRM260N6PSEW 4-Door Refrigerator User Guide

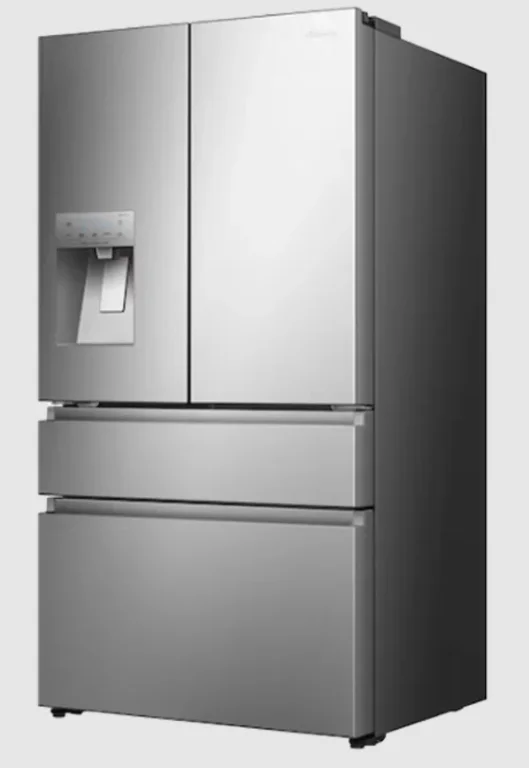

Hisense HRM260N6PSEW 4-Door Refrigerator

Brief Introduction

• Please ensure that everyone using this appliance is familiar with its operation and safety features. You must install the appliance correctly and pay careful attention to the safety instructions.
• We recommend that you keep this user’s manual with the appliance for future reference.
• This appliance is intended to be used in households and similar applications, such as Kitchen areas in shops, offices, and other working environments. Hotels, motels, and other residential environments. Bed and breakfast environments. Catering and similar non-commercial applications.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have supervision or been given instruction concerning use of the appliance. Children should be supervised to ensure that they do not play with the appliance.
• Do not store explosive substances, such as aerosol cans with flammable propellants, in this appliance.

Important Safety Instructions

General safety and daily use

It is important to use your appliance safely. We recommend that you follow the guidelines below. Store any food in accordance with the storage instructions from the manufacturer.

• Don’t try to repair the appliance yourself. It is dangerous to alter the specifications or modify this product in any way. Any damage to the power cord may cause a short circuit, fire or electric shock.
• Don’t place too much food directly against the air outlet on the rear wall of both the refrigerator and freezer compartments, as it may affect important air circulation.
• Don’t place hot items near the plastic components of this appliance.
• Frozen food must not be refrozen once it has been thawed out.
• Don’t store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode.
• Use caution when consuming popsicles or ice cubes straight from the freezer, as this can cause freezer burn to the mouth and lips.

Safety for children and other persons

• Keep all packaging away from children to avoid the risk of suffocation.
• Protect children from being scalded by touching the compressor at the rear bottom of the appliance.
• Don’t place items on top of the appliance as this could cause injury should they fall off.
• Never allow children to play with the appliance by hanging or standing over or on the doors, racks, shelves, and drawers etc.

Electrical Safety

To avoid the risks that are always present when using an electric appliance, we recommend that you pay attention to the instructions about electricity below.

• Unpack and check through the appliance. Should any damage be evident, don’t plug in the appliance and contact the dealer from which you purchased it immediately. Keep all packing materials in this case.
• We recommend that you wait for 4 hours before connecting the appliance to allow the refrigerant to flow back into the compressor.
• If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a socket. If in doubt, contact a qualified, registered electrician.
• Make sure that the plug is not squashed or damaged. Otherwise, it may cause a short circuit, electric shock or overheat and even cause a fire.
•  Do not insert the power plug if the socket is loose; there is a risk   of electric shock or fire.
• Switch off the appliance and disconnect it from the main power before you clean or move it.
• Never unplug the appliance by pulling on the electrical cord. Always grip the plug firmly and pull straight out from the socket to prevent damaging the power cord.

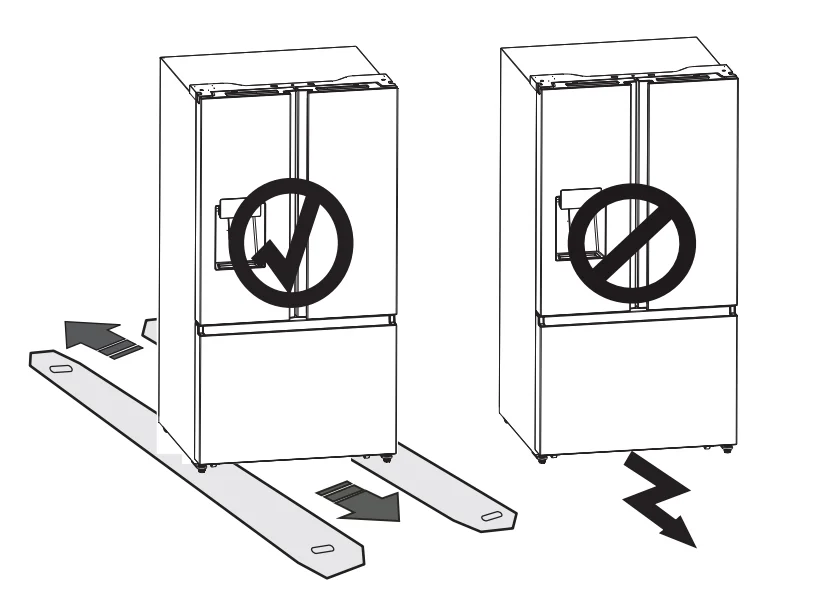

Installing Your New Appliance

Before using the appliance for the first time, you should be informed of the following tips.

WARNING: For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator. The rollers, which are not casters, should be used only for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

Ventilation of the appliance

In order to improve the efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

• Suggestion:

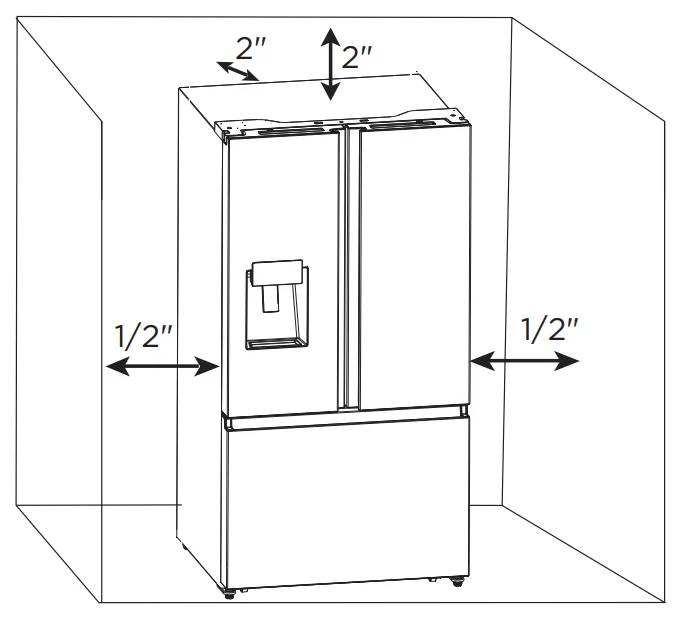

  There should be at least 2″(50mm) of clearance from the back of the fridge to the wall, at least 2″(50mm) of clearance from its top, at least 1/2″ (12mm) from its side to the wall and a clear space in front to allow the doors to open 125°, as shown in the following diagram.

• Note:

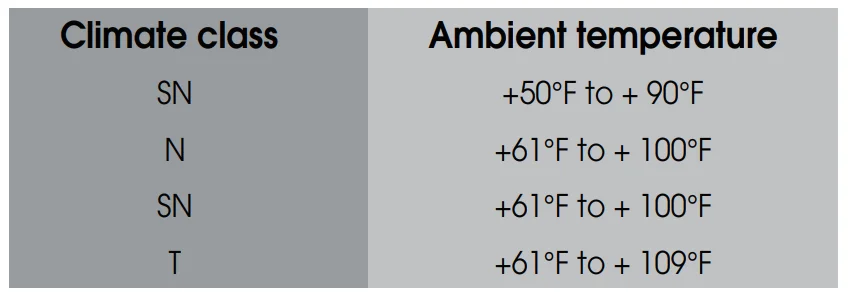

  This appliance performs well within the climate class from N to T, shown in the table below. It may not work properly if left at a temperature above or below the indicated range for a long period.

• Stand your appliance in a dry place to avoid high moisture.
• Keep the appliance out of direct sunlight, rain, or frost. Stand the appliance away from heat sources such as stoves, fires, or heaters.

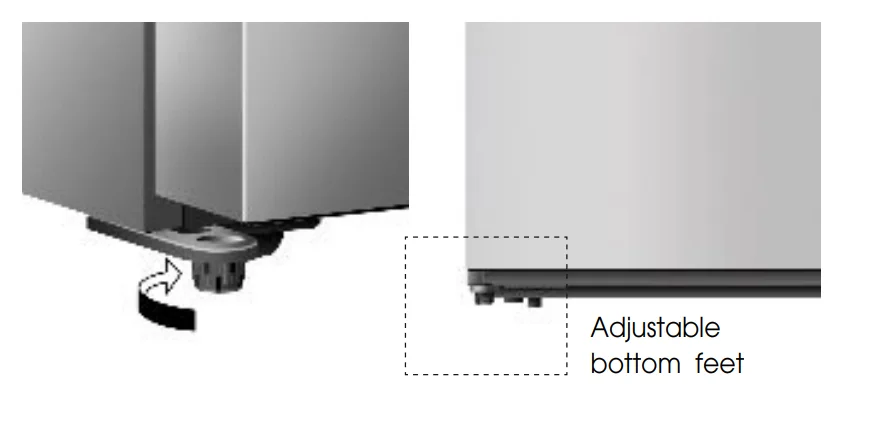

Leveling of the appliance

• For sufficient leveling and air circulation in the lower rear section of the appliance, the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable tool.

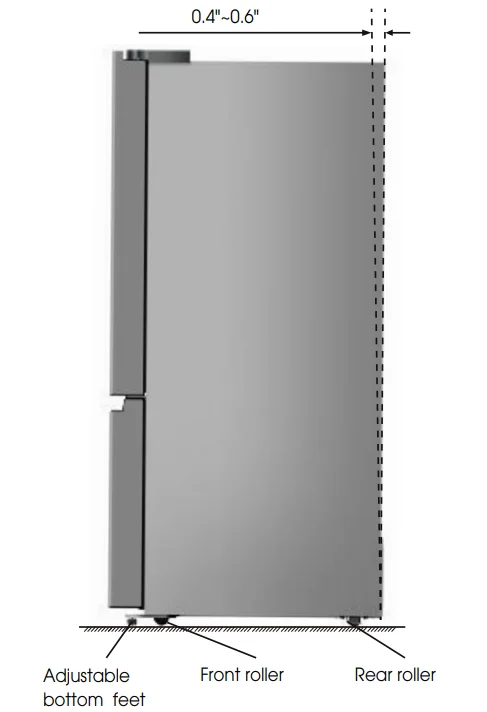

• To allow the doors to self-close, tilt the top backwards by 0.4″ – 0.6″.

Door Removal

• In case your home access door is too narrow for the refrigerator to pass through, remove the refrigerator doors and drawers. If you do not need to remove the appliance doors, proceed to ‘Installing Water Lines’ on page 8. If you need to remove the doors, continue below.

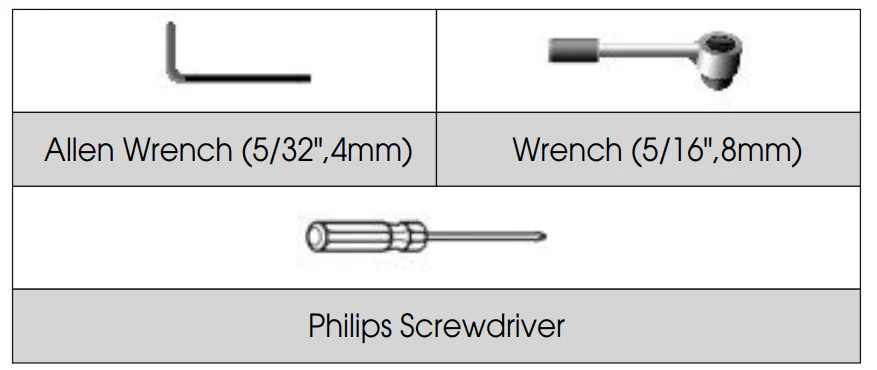

Tools you will need(Not provided)：

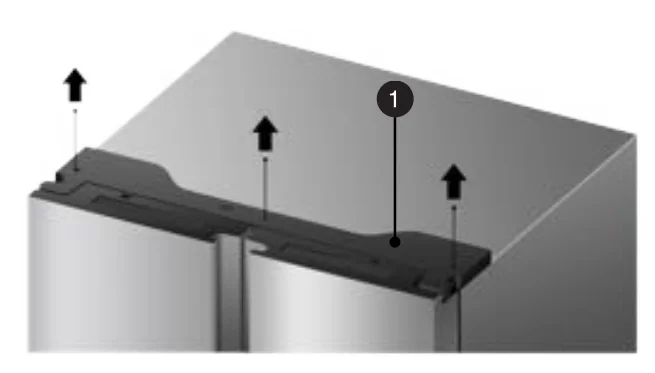

1. With the door closed, remove the 3 screws holding the top cover (1) with a Philips (+) screwdriver, and then remove the top cover with the entire harness attached.

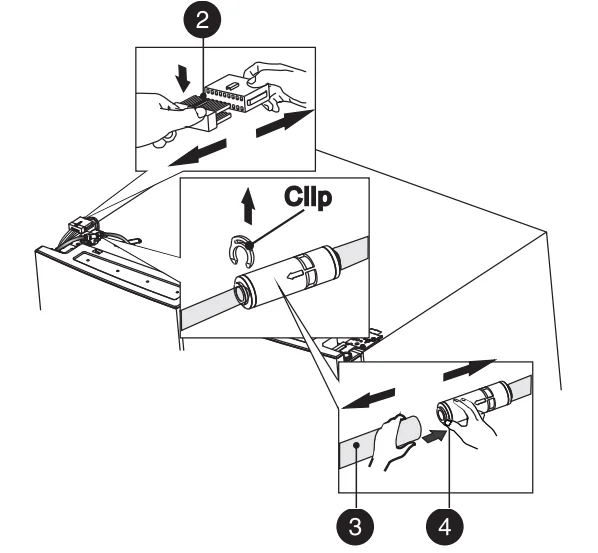

2. Separate the two connectors on the left side door. To remove the wire connector, press the top of the connector (2) and separate it from the other one. To remove the water coupler from the hinge, twist and pull the clips from the coupler. Remove the water line (3) while pressing the movable part (4) of the water line coupler.

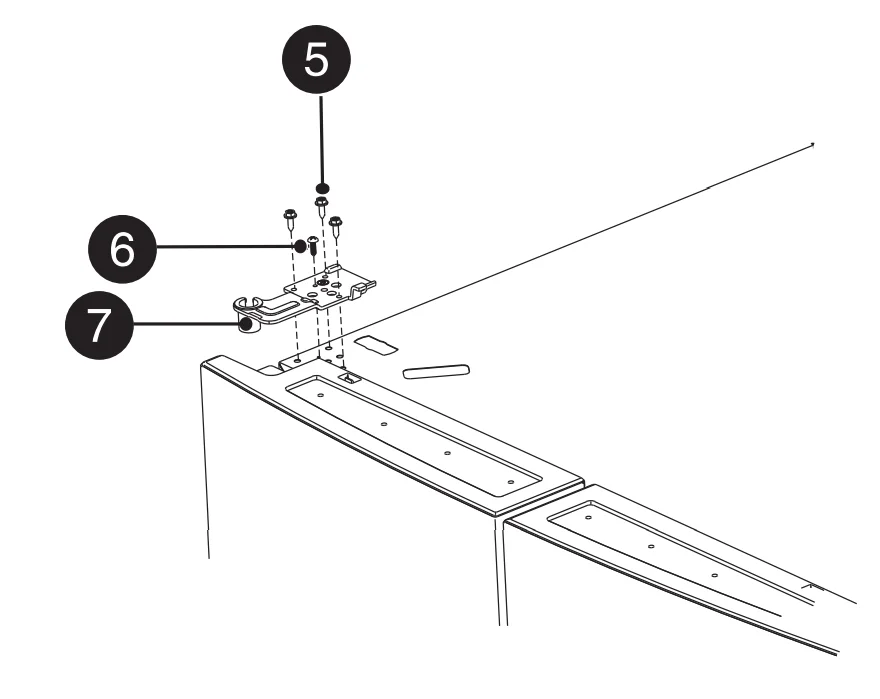

3. Remove the screws (5) fixed on the hinges with a wrench (5/16″,8mm) and 1 ground screw (6) attached to the hinge with a Philips (+) screwdriver. Remove the upper left and right door hinges ( 7 ).

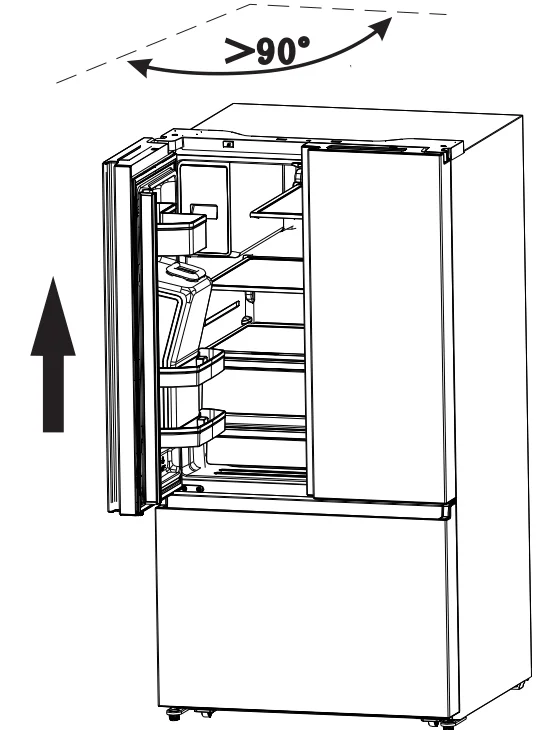

4. Use both hands to open the door more than 90°. Lift it up and take it off.

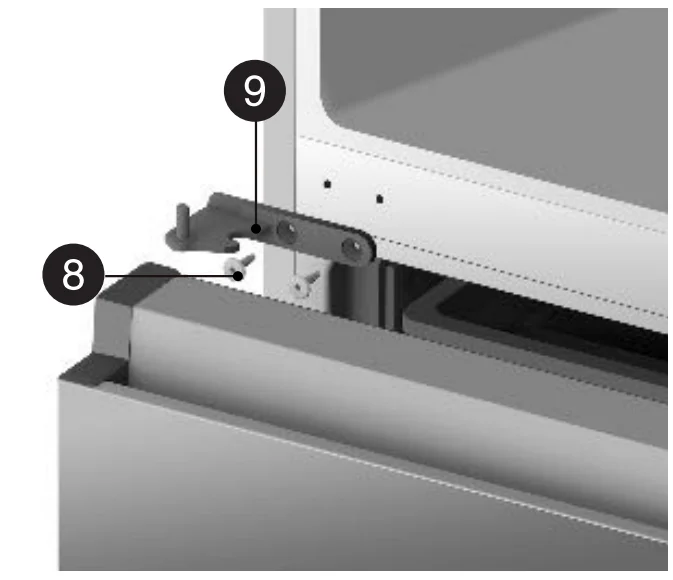

5. Remove the 4 hex head bolts hinges (8) with an Allen wrench (5/32″,4mm). Remove the lower left and right door hinges (9).

Disassembling the freezer door

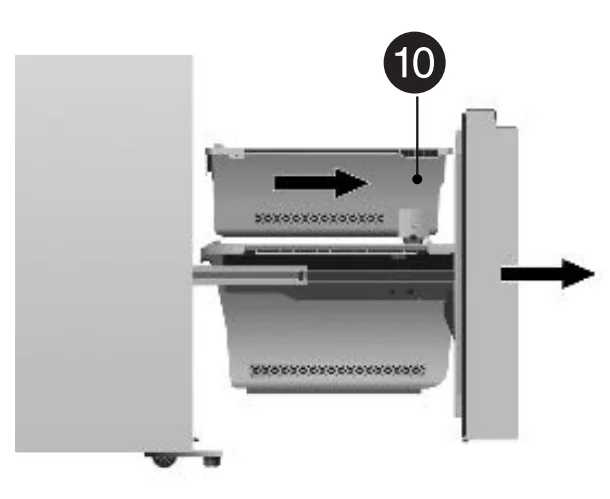

1. Pull out the freezer door and the upper freezer drawer (10) to the final position.
2. Take out the upper freezer drawer (11) by lifting it up from the rail system.

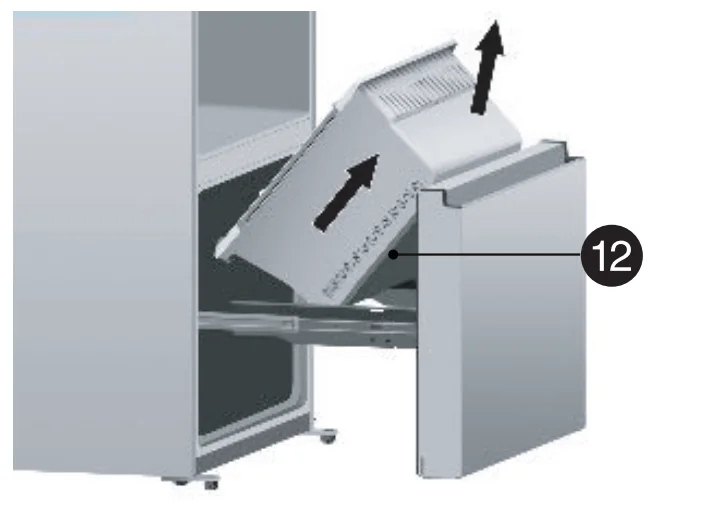

3. Remove the lower freezer drawer (12) by lifting it up.

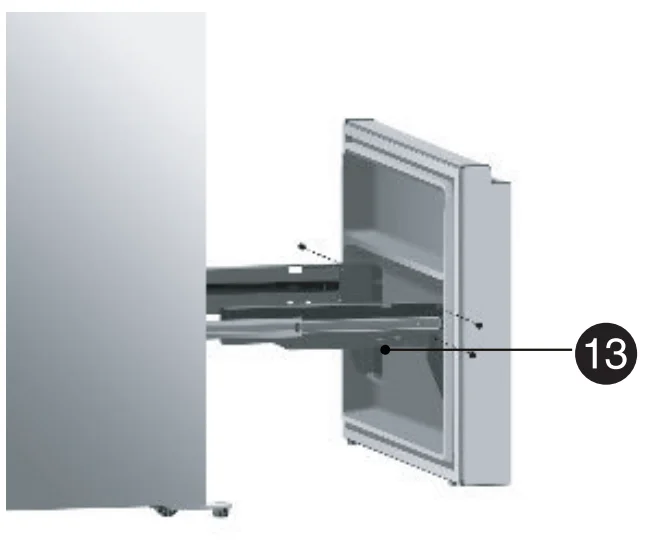

4. Remove the 4 screws attached to the supporting frame (13).

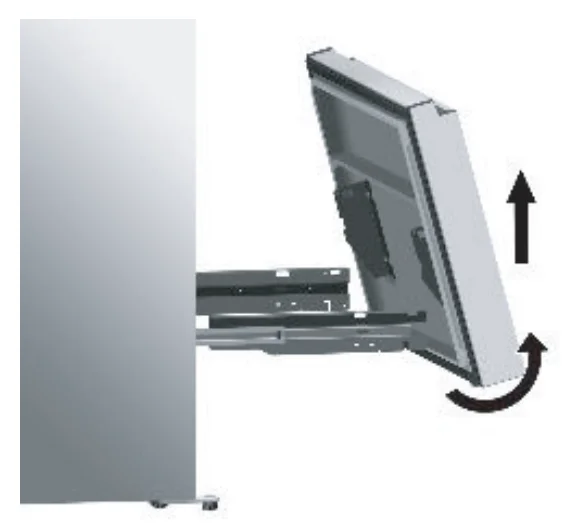

5. Pull out the freezer door and lift it upin the direction of the arrow.

Reassembling the freezer door

To reattach the drawer after you moved the appliance to its final location, assemble the parts in reverse order.

Installing the water lines

A water dispenser with a filter is one of the helpful features on your new appliance. To help promote better health, the water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that. In order for the ice maker to operate properly, a water line is required.

• The maximum inlet water pressure is 700kPa.
• The minimum inlet water pressure is 207kPa.

WARNING!
The water connection must be made by a qualified plumber. Operation outside the water pressure range may cause malfunction, severe and damaging water leaks. Under normal conditions, a200cc (5.75 oz.) cup can be filled in about 10 seconds. If the refrigerator is installed in an area with low water pressure (below 30psi), you can install a booster pump to compensate for the low pressure.

What you need to have before you start

1. Power drill and 1/4’’ drill bit.
2. 1/2’’ or adjustable wrench.
3. Flatblade and Philips head screwdrivers.

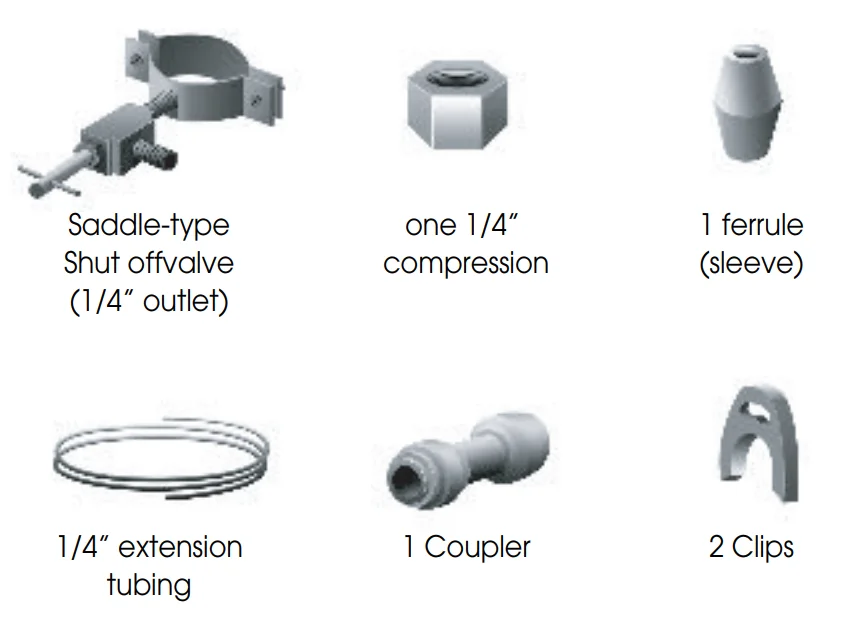

4. You need to purchase several items to complete this connection. You may find these items sold as a kit at a local hardware store.

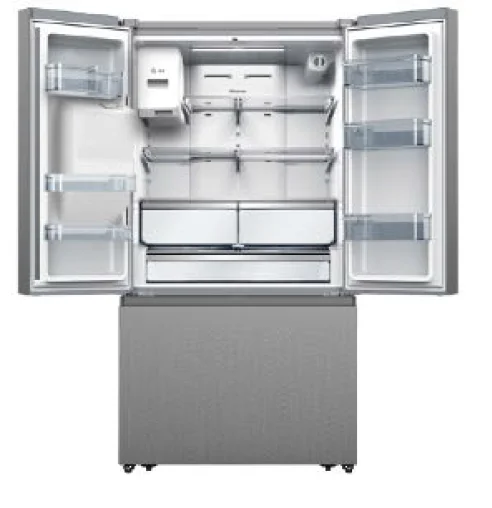

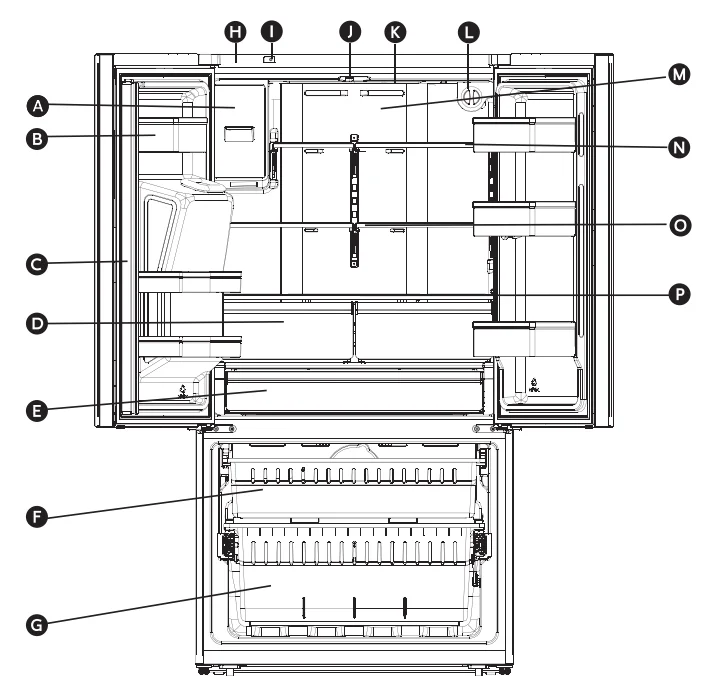

Description of the Appliance

• A. Automatic Ice Maker
• B. Door Bin
• C. Mullion
• D. Crisper Drawer
• E. Full-width Pantry
• F. Freezer Upper Drawer
• G. Freezer Lower Drawer
• H. Hinge Cover
• I. Door Switch
• J. Mullion Guide Block
• K. Refrigerator LED Light
• L. Water Filter
• K. Air Channel
• N. Glass Shelf
• O. Foldable-Shelf
• P. Crisper Cover

Using your Appliance

This section tells you how to use most of the useful features. We recommend that you read through them carefully before using the appliance.

Getting Cold Water and Ice

The water dispenser is located in the fridge door.

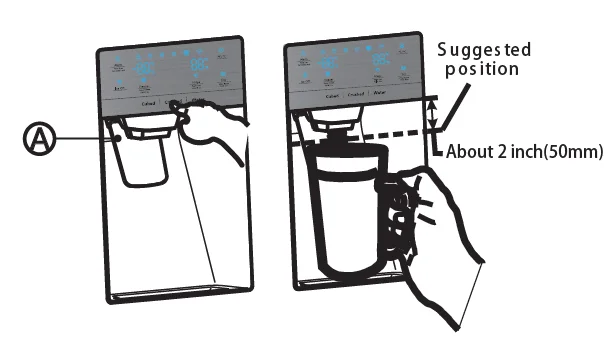

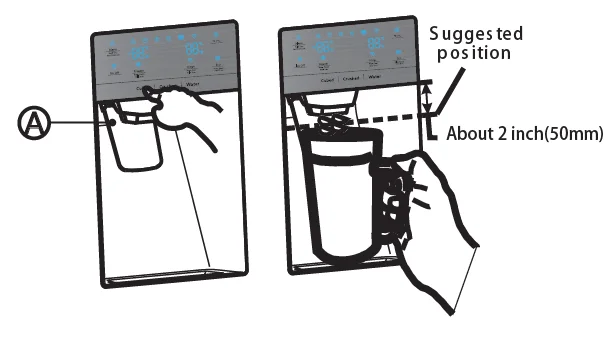

Getting Cold Water

To get water, push the water button. Then move your cup down the dispenser lever (A) to the suggested position and press it.

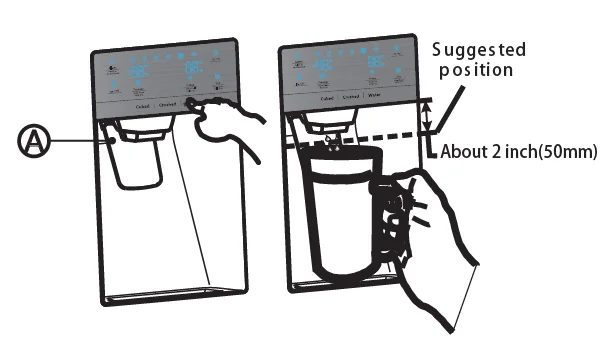

Getting Cubed Ice

To get cubed ice, push the cubed ice button as required. Then move your cup down the dispenser lever to the suggested position and press it.

Getting Crushed Ice

To get crushed ice, push the crushed ice button as required. Then move your cup down the dispenser lever to the suggested position and press it.

Changing the water filter

To drink the freshest and cleanest water from your refrigerator, change the filter on time. To change the water filter, follow these steps:

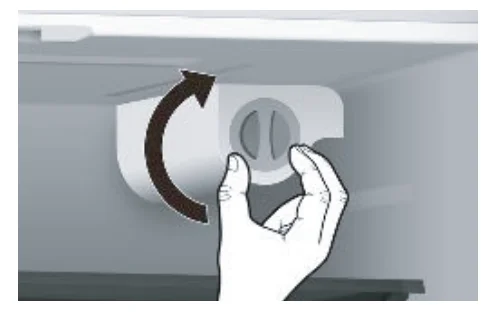

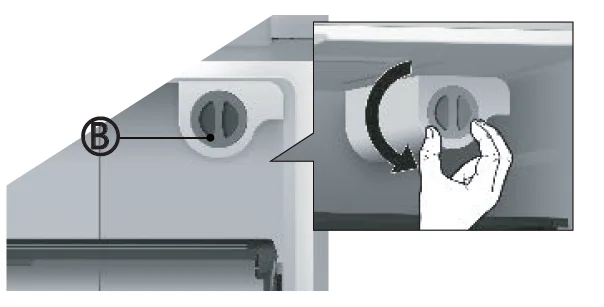

1. Shut off the water supply. Then turn the water filter (B ) about a 1/4 turn, counter-clockwise.

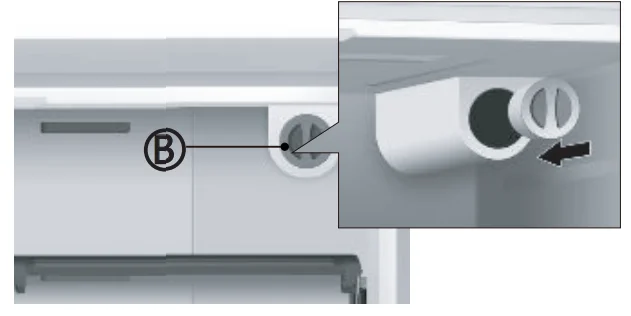

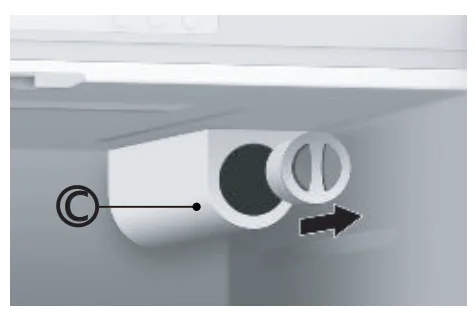

2. Pull the water filter (B) from the filter holder (C).
   Note:
   • To change the water filter easily, shut off the water supply valve.
     Sometimes, it is hard to disassemble the water filter because impurities in the water cause it to stick. If you are having difficulties, grip the water filter firmly and pull it out.
   • When you pull the water filter, a little water can leak from the opening.
   • This is normal. To minimize the water leaks, keep the filter cartridge horizontal when pulling it.

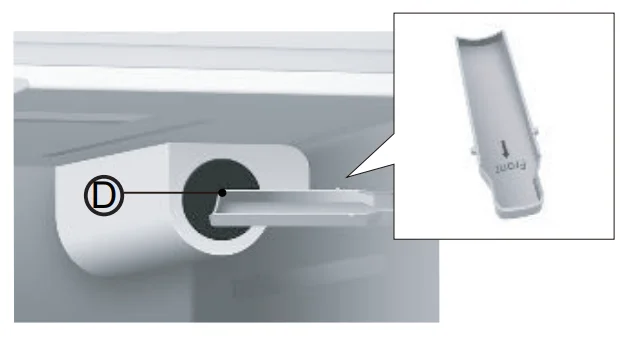

   • To prevent overflow, empty the water filter tray (D) and dry around the filter case.
   • To insert the new water filter, follow the directions below.
3. Insert the new filter into the filter holder.
4. Push the filter, and then turn it clockwise until it locks.
   • If you have trouble inserting the water filter because of high water pressure, shut off the water supply valve.
5. If you turned off the water supply, turn it back on.
   Note: After turning on the water supply, check for leaks. If leaks occur, repeat steps 1- 5. If leaks persist, discontinue use and call Hisense customer service.

Removing any residual matter inside the water supply line after installing the water filter

1. After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system.
2. Additional flushing may be required in some households.
3. Open the refrigerator door and make sure there are no water leaks coming from the water filter.

Note:

• Be sure to flush the dispenser thoroughly; water may drip from the dispenser. This means that there is still air in the line.
• Do not dispense the entire 2.5-gallon amount continuously. Press and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Reverse osmosis water supply:

The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 100psi (207 and 700kPa). If a reverse osmosis water system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

• Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill after heavy usage.
• If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. To resolve it, remove the water filter.

Door bins

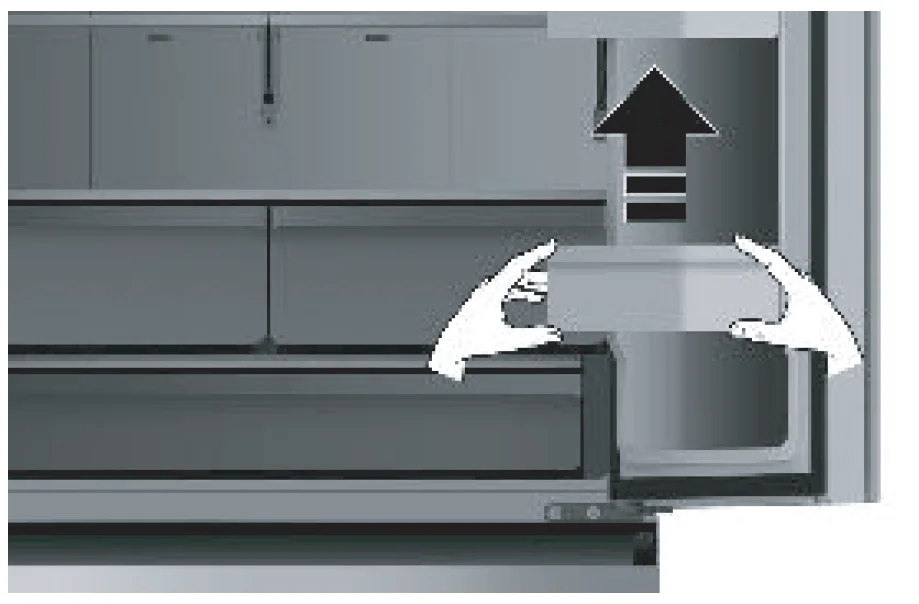

The refrigerator compartment is provided with six door bins, which are suitable for the storage of canned liquids, bottled drinks, and packaged food. To remove the door bins, simply lift the racks up and pull straight out. To relocate the door bins, slide it in above the desired location and push down until it stops.

Glass shelves

To remove the glass shelves, tilt up the front of the shelf in the direction shown (E) and lift it up vertically (F). Pull the shelf out.

To re-install the glass shelves, tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height (G). Then lower the front of the shelf so that the hooks can drop into the slots (H).

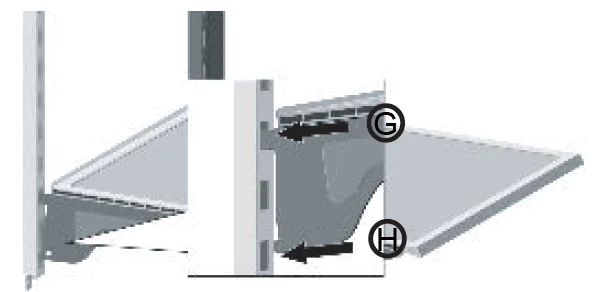

The refrigerator compartment is also provided with a foldable shelf. It may be folded as needed.

Cleaning and Care

For hygienic reasons, the appliance (including exterior and interior accessories) should be cleaned at least once every two months.

WARNING!
To avoid electrical shock, the appliance must not be connected to the main power supply during cleaning. Before cleaning, switch the appliance off and remove the plug from the main socket.

Exterior cleaning

To maintain the good appearance of your appliance, you should clean it regularly.

• Spray water onto a cleaning cloth instead of spraying directly onto the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
• Clean the doors, handles, and cabinet surfaces with a mild detergent and then wipe dry with a soft cloth.

CAUTION!

1. Don’t use sharp objects to clean with, as they are likely to scratch the surface.
2. Don’t use thinner, car cleaner, bleach, oil, abrasive cleansers or organic solvents such as benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

Clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge and freezer with a weak solution of baking soda and water, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place.

Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment’s interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follows:

• Remove existing food and accessory baskets, unplug the appliance from the main power, and leave the doors open.  Ventilate the room thoroughly to accelerate the process.
• When defrosting is completed, clean your freezer as described above.

WARNING!
Do not use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the main socket.

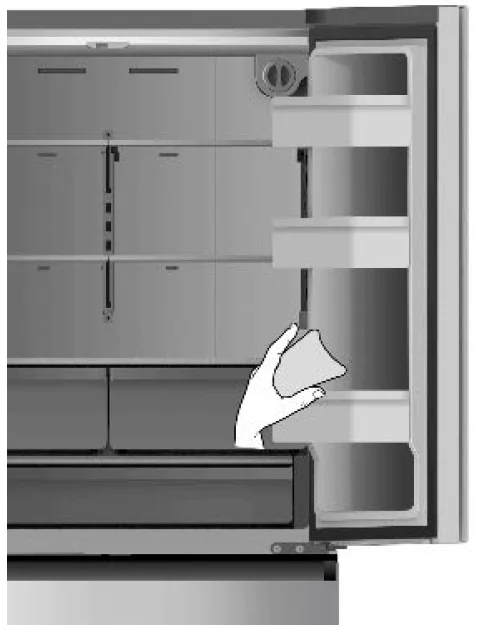

Door seal cleaning

Take care to keep the door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

CAUTION!
Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light

WARNING!
The LED light must be replaced by a competent person. If the LED light is damaged, follow the steps below：

1. Unplug your appliance.
2. Remove the light cover by lifting up and pulling it out.
3. Hold the LED light with one hand and pull it while pressing the connector latch with the other hand.
4. Replace the LED light and snap it correctly in place and replace the light cover.

Helpful Hints and Tips

Energy Saving Tips

We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods in order to conserve energy. Ensure the appliance is away from any sources of heat (direct sunlight, electric oven or cooker, etc.)
• Don’t set the temperature colder than necessary.
• Don’t store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated humidity freeroom. Please refer to Installing your New Appliance chapter.
• If the diagram shows the correct combination for the drawers, crisper, and shelves, do not adjust the combination as this is designed to be the most energy-efficient configuration.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken to prevent mold on the appliance.

• Remove all food.
• Remove the power plug from the main socket.
• Clean and dry the interior thoroughly.
• Ensure that all the doors are wedged open slightly to allow air to circulate.

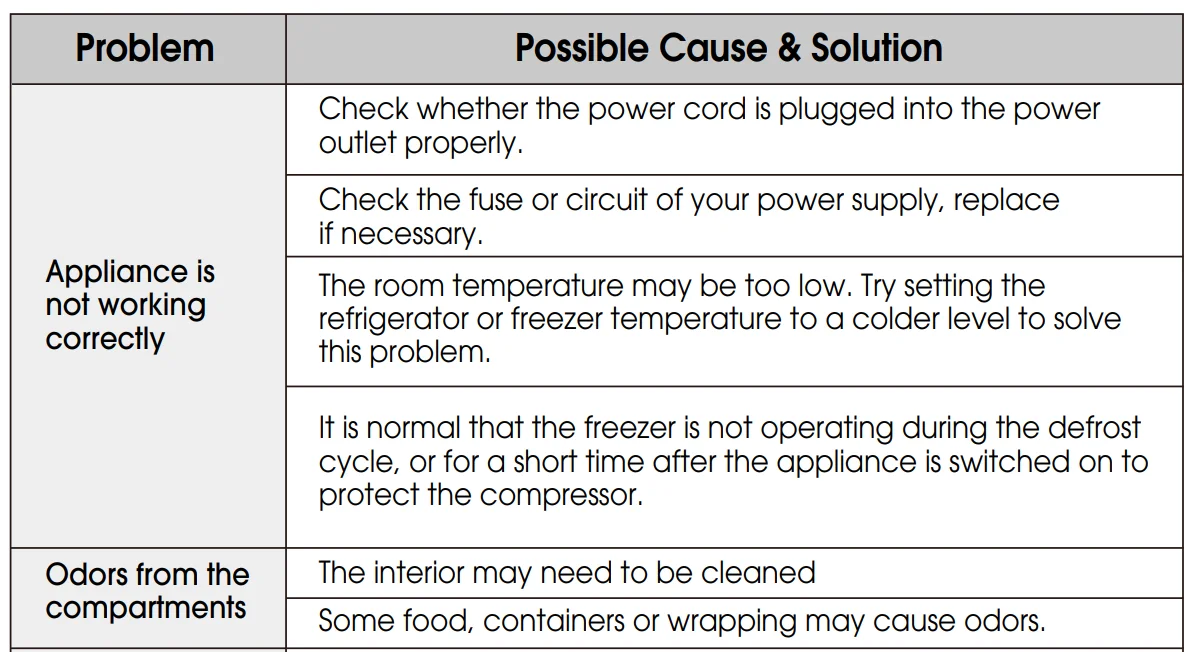

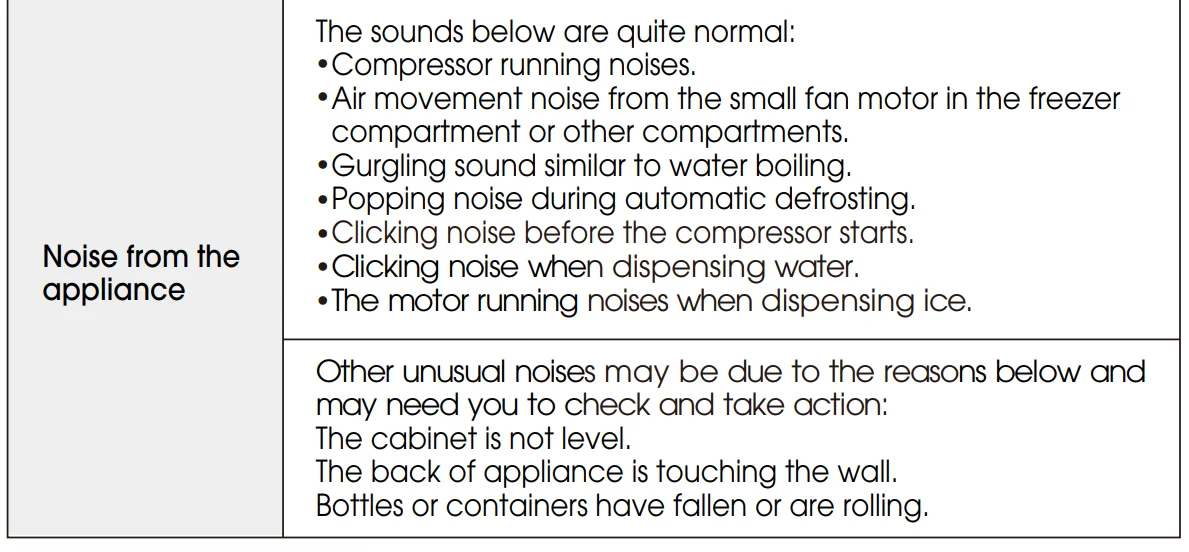

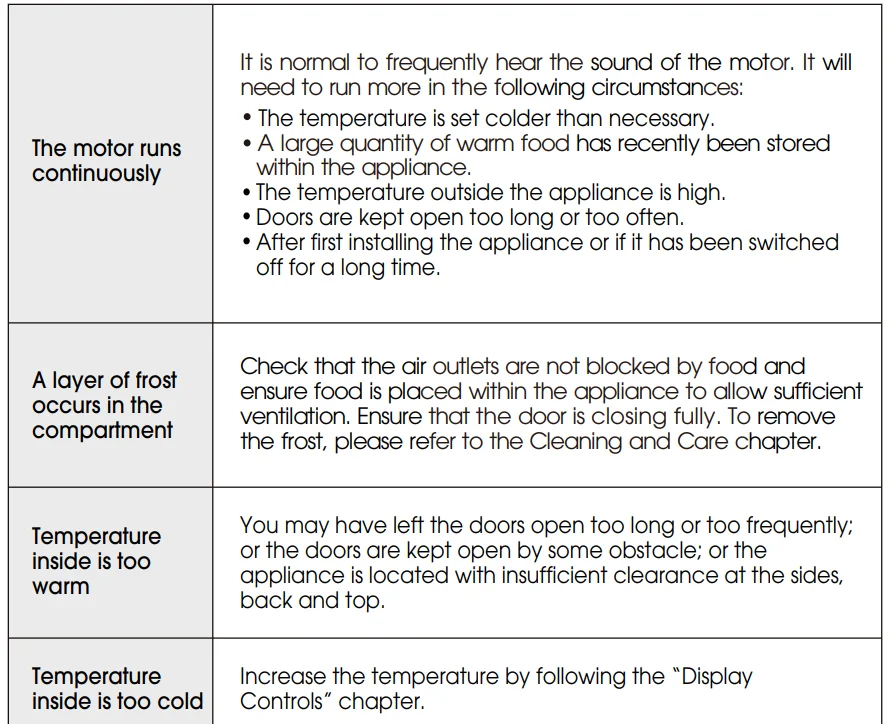

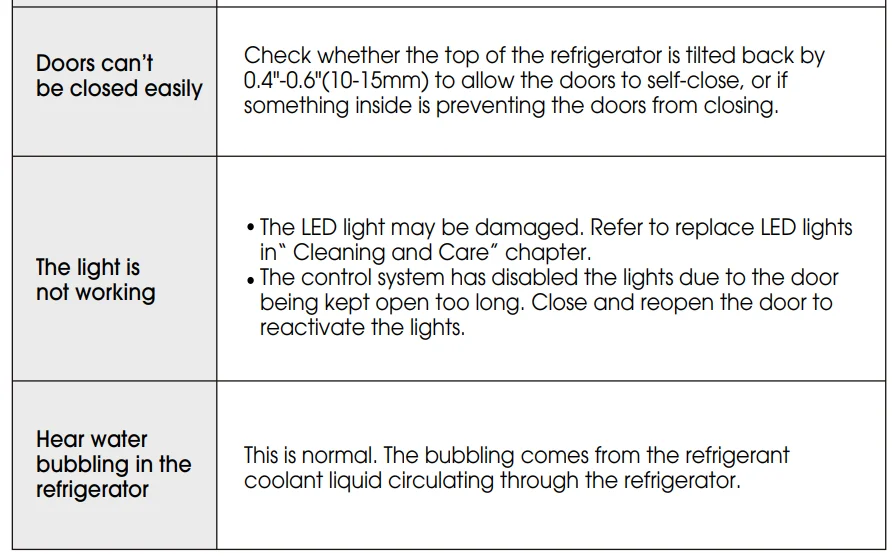

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service. Please see below.

WARNING: Don’t try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service technician or the shop where you purchased the product. A child entrapment warning statement is included below.

DANGER

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
