Human Touch Perfect Chair PC-500 Zero-Gravity Recliner

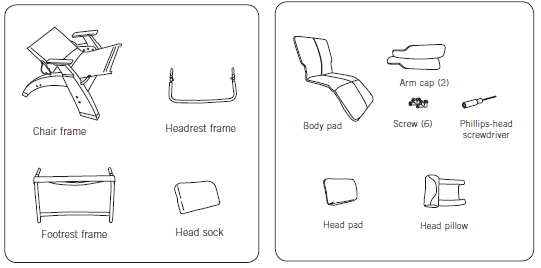

UNPACK THE BOXES
ATTACH THE BACKREST FRAME
- Raise the chair to an upright position.
For your convenience, and to better position the chair for the remaining assembly, plug in the chair, then use the electric recline lever to adjust the chair to an upright position.
- Remove the backrest frame screws.
Using the Phillips-head screwdriver (provided), remove the two screws from the headrest frame. Retain them for use in step 4.
- Insert the backrest frame into the chair base.
With the backrest frame positioned so that the headrest can tilt forward, slide the two ends of the backrest frame into the open tube ends of the chair base.
- Replace the backrest frame screws.
Using a Phillips-head screwdriver, replace the two headrest frame screws, securing the headrest frame to the backrest frame.
- Install the canvas backrest support.
Pull the chair canvas firmly upward as far as it will go, wrap the top flap around the backrest frame and secure it using the hook and loop fasteners. It is important that the canvas be stretched tight to provide proper back support.
ATTACH THE BODY PAD
- Slide the body pad onto the chair frame.
Slide the body pad onto the lower part of the chair frame, making sure that the frame slides into the fabric pocket located on the bottom side of the pad.
- Secure the body pad.
Smooth the body pad into place, from the footrest toward the backrest. The pad is automatically secured using the hook and loop fasteners.
ATTACH THE HEAD PAD
- Slide the head sock over the headrest frame.
Slide the head sock over the headrest frame, as far as it will go. The padded side of the head sock should face the back of the chair.
- Slide the head pad over the head frame.
Slide the head pad over the head frame, ensuring that the frame slides into the fabric pocket located on the bottom side of the pad. Pull the head pad down as far as it will go.
- Tuck in the body pad flap.
From the front of the chair, tuck the flap on the top of the body pad up into the head pad and smooth it flat. The flap is automatically secured to the pad, using the hook and loop fasteners.
- Attach the head pillow.
Attach the head pillow straps to the head pad straps using the hook and loop fasteners. Adjust the head pillow height for maximum comfort.
ATTACH THE ARM CAPS
Remove the three screws taped to the underside of the right-hand arm cap, then place the right-hand arm cap on top of the armrest. From the underside of the armrest, secure the arm cap using the three screws. Repeat these steps to attach the left-hand arm cap.
Adjust the recline angle

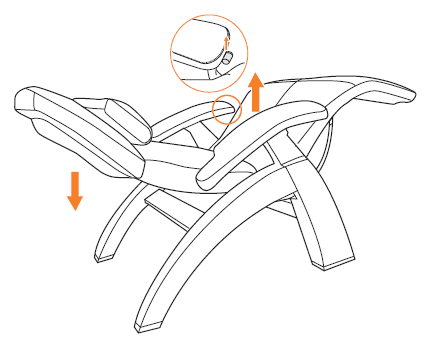

To recline, gently pull up on the recline lever, lean back on the backrest to adjust it to the desired angle, then release the lever. To incline to a more upright position, gently pull up on the recline lever, then pull up on the armrests with your hands while applying slight downward pressure with your elbows, until the backrest inclines to the desired position. Release the recline lever.
Adjust the headrest
While seated, reach up with both hands and grasp both sides of the headrest. You will feel the rigid frame beneath the soft head pad. Grasping the rigid frame, tilt the headrest forward or backward for maximum comfort. The headrest remains in this position until you adjust it again
Getting out of the perfect chair
While seated, push gently forward on the electric recline lever until the backrest automatically stops in a full upright position and the footrest automatically stops in a vertical position (the backrest stops before the footrest). Use the arms for support when getting up from the chair.
