Husqvarna YTH 2448 Hydro Riding Yard Tractor Manual

Husqvarna YTH 2448 Hydro Riding Yard Tractor

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

GENERAL OPERATION

• Read, understand, and follow all instructions on the machine and in the manual before starting.
• Do not put hands or feet near rotating parts or under the machine. Keep the discharge opening clear at all times.
• Only allow responsible adults, who are familiar with the instructions, to operate the machine.
• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades.
• Be sure the area is clear of bystanders before operating. Stop the machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.
• Never directly discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blades when crossing gravel surfaces.
• Do not operate the machine without the entire grass catcher, discharge guard, or other safety devices in place and working.
• Slow down before turning.
• Never leave a running machine unattended. Always turn off the blades, set the parking brake, stop the engine, and remove the keys before dismounting.
• Disengage blades when not mowing. Shut off the engine and wait for all parts to come to a complete stop before cleaning the machine, removing the grass catcher, or unclogging the discharge guard.
• Operate the machine only in daylight or good artificial light.
• Do not operate the machine while under the influence of alcohol or drugs.
• Watch for traffic when operating near or crossing roadways.
• Use extra care when loading or unloading the machine into a trailer or truck.
• Always wear eye protection when operating the machine.
• Data indicates that operators, aged 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.
• Follow the manufacturer’s recommendation for wheel weights or counterweights.
• Keep the machine free of grass, leaves, or other debris build-up which can touch hot exhaust/engine parts and burn. Do not allow the mower deck to plow leaves or other debris which can cause build-up to occur. Clean any oil or fuel spillage before operating or storing the machine. Allow the machine to cool before storage.

GENERAL SERVICE

• Never operate the machine in a closed area.
• Keep all nuts and bolts tight to be sure the equipment is in safe working condition.
• Never tamper with safety devices. Check their proper operation regularly. Keep the machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage and remove any fuel-soaked debris. Allow the machine to cool before storing.
• If you strike a foreign object, stop and inspect the machine. Repair, if necessary, before restarting.
• Never make any adjustments or repairs while the engine is running.
• Check grass catcher components and the discharge guard frequently and replace them with the manufacturer’s recommended parts, when necessary.
• The mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
• Check brake operation frequently. Adjust and service as required.
• Maintain or replace safety and instruction labels, as necessary.

PRODUCT SPECIFICATIONS

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for, and using your tractor.
• Follow the instructions under the “Maintenance” and “Storage” sections of this owner’s manual.

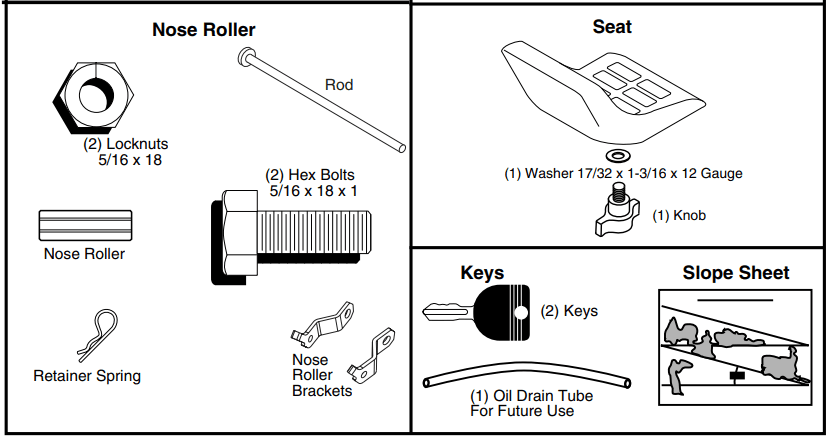

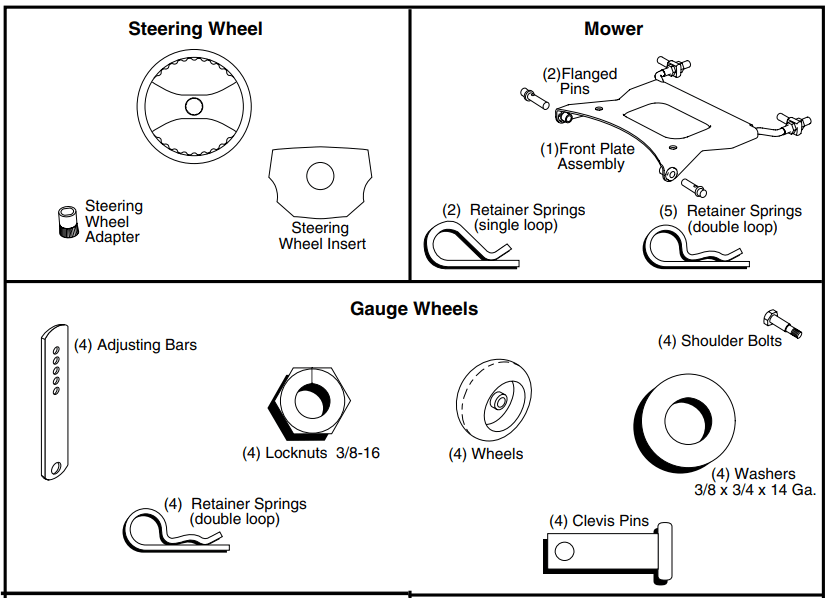

UNASSEMBLED PARTS

ASSEMBLY

Your new tractor has been assembled at the factory, with the exception of those parts left unassembled for shipping purposes. To ensure the safe and proper operation of your tractor, all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to ensure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes are listed:

1. Tire pressure gauge
2. 3/4″ wrenches
3. Utility knife
4. 7/16″ wrenches
5. 3/4″ socket w/drive ratch et
6. Pliers

When the right or left hand is mentioned in this manual, it means when you are in the operating position (seated behind the steering wheel).

TO REMOVE THE TRACTOR FROM THE CARTON UNPACK THE CARTON

• Remove all accessible loose parts and parts cartons from the carton.
• Cut along dotted lines on all four panels of the carton. Remove end panels and lay side panels fl at.
• Remove the mower and packing materials.
• Check for any additional loose parts or cartons and remove them.

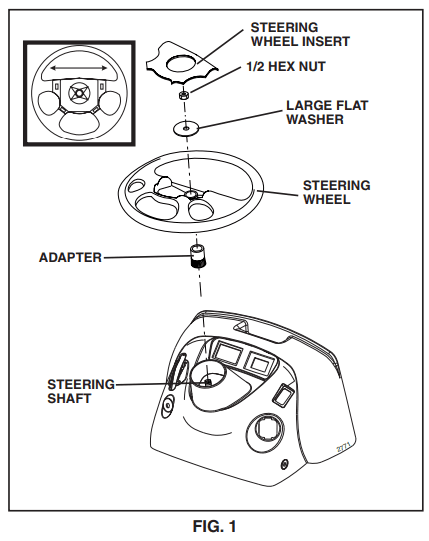

BEFORE REMOVING TRAC TOR FROM SKID ATTACH STEERING WHEEL (See Fig. 1)

• Remove the locknut and large flat washer from the steering shaft.
• Position the front wheels of the tractor so they are pointing straight forward.
• Position the steering wheel so the cross bars are horizontal (left to right) and slide onto the steering wheel adapter.
• Secure steering wheel to steering shaft with locknut and large fl at wash er pre vi ous ly removed. Tighten secure.
• Snap the steering wheel and insert it into the center of the steering wheel.
•  Remove protective materials from the tractor hood and grill.
  IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN THE SKID THAT MAY PUNCTURE TIRES WHERE THE TRACTOR IS TO ROLL OFF THE SKID.

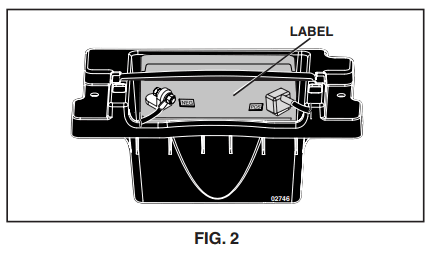

CHECK BATTERY (See Fig. 2)

• Lift the hood to a raised position.
• If this battery is put into service after the month and year indicated on the label (label located between terminals) charge the battery for a minimum of one hour at 6-10 amps. (See “BATTERY” in the Maintenance section of this manual for charging instructions).

INSTALL SEAT (See Fig. 3)

Adjust the seat before tightening the adjustment knob.

• Remove adjustment knob and fl at washer securing seat to cardboard packing and set aside for assembly of seat to tractor.
• Pivot the seat upward and remove it from the cardboard packing. Remove the cardboard packing and discard.
• Place the seat on the seat pan so the head of the shoulder bolt is positioned over a large slotted hole in the pan.
• Push down on the seat to engage the shoulder bolt in the slot and pull the seat towards the rear of the tractor.
• Pivot the seat and pan forward and assemble the adjustment knob and flat the washer loosely. Do not tighten.
• Lower the seat into the operating position and sit on the seat.
• Sl
