INSIGNIA 32F201NA23 32-inch F20 Series Smart HD 720p Fire TV

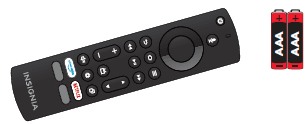

INCLUDED ACCESSORIES
- Voice Remote with Alexa and two AAA batteries
- TV stands
- Power cord
STOP
Before using your new TV, read these instructions to prevent any damage. Do not plug the power cord in until all other devices have been connected.
INSTALLING THE STANDS OR A WALL MOUNT
Place your TV face-down on a cushioned, clean surface.

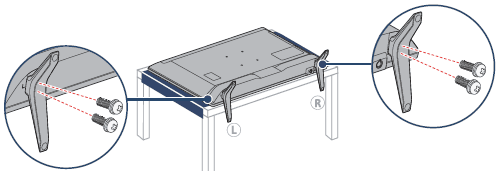

STANDS
- Align the TV stand screw holes with the holes on your TV’s bottom.
- Use a Phillips screwdriver and the four provided screws to secure the stands to your TV.
WALL MOUNT
Before you mount your TV, make sure that:
- You remove the stands.
- The wall-mount bracket supports the weight of your TV.
VESA Mounting Pattern
100 × 100 mm
Screws: type M4, 16 mm to 20 mm in length depending on the wall mount
See the instructions that came with your wall mount for more information about how to correctly mount your TV.
WARNING: Your TV has four VESA mounting holes on the back.
You must secure a wall-mount bracket for all four holes. If you do not use all four holes, your TV may fall and cause property damage or personal injury.
Note: Wall-mount screws are not included.
MAKING CONNECTIONS

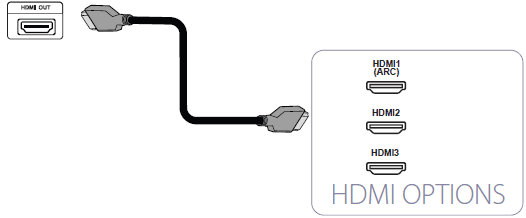

HDMI (best video quality)
Note: You can use the HDMI1 (ARC) jack to connect a digital audio system.
AV (good video quality)
Coaxial (good video quality)
Connect an antenna to access live over-the-air TV

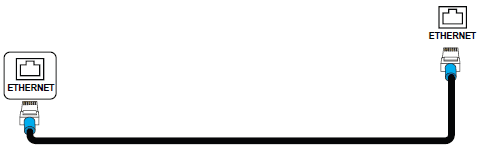

ETHERNET (optional)
Note: You can use a wired Ethernet connection to access the internet instead of a Wi-Fi connection. Plug an Ethernet cable into the ETHERNET jack on your TV and your Ethernet connection.
AUDIO OPTIONS

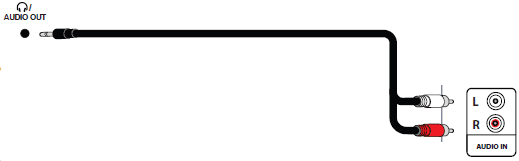

ANALOG

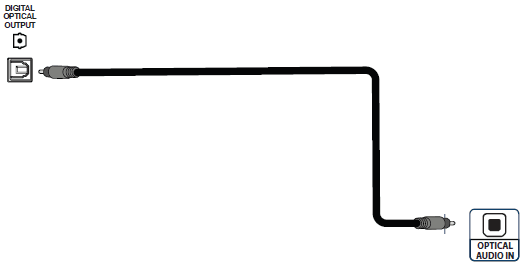

DIGITAL
You can use the DIGITAL OPTICAL OUTPUT jack or the HDMI1 (ARC) jack.
Note: If you need to change the digital audio format, go to the Home menu, select Settings, then select Display & Sounds. Select Audio Output, then select Digital Audio Format and change the setting to PCM or your preferred audio format.
TURNING ON YOUR TV
- Plug the power cord into the back of your TV and a power outlet.
- Remove the remote control cover and install the batteries.
- Press the power button on your remote.
- Follow the on-screen instructions.
COMPLETE THE ON-SCREEN SETUP
Your TV should automatically pair to your new Voice Remote with Alexa.
- If your remote is not paired, press the home button. If you continue to have issues, re-insert or replace the batteries and try again.
- Select your Wi-Fi network from the displayed network list. Note: If your Wi-Fi network is password protected, enter your network password using the on-screen keyboard. If your network is hidden, select the Join Other Network tile.
- Select your experience: Full (recommended) or Basic. Select Full to access live TV, over tens of thousands of streaming movies and TV episodes, thousands of apps, and Alexa skills. To get started, sign into or sign up for a free Amazon account. Select Basic to access live TV and the six preset streaming apps. Alexa and the full App Store are not included.
- If you connected your TV to an antenna or cable wall jack:
- Go to Settings > Live TV > Channel Scan.
- Follow the on-screen instructions to scan for channels.
Note: To browse and watch live TV, use the On Now row or press the guide button on your remote.

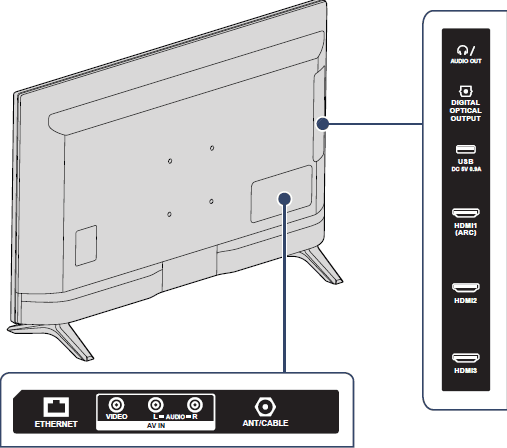

FEATURES
Power/Input button
Press to turn your TV on or off manually. When your TV is on, a short press changes the power menu and a long press turns off your TV.
Note: Images do not necessarily represent the exact design of your television.

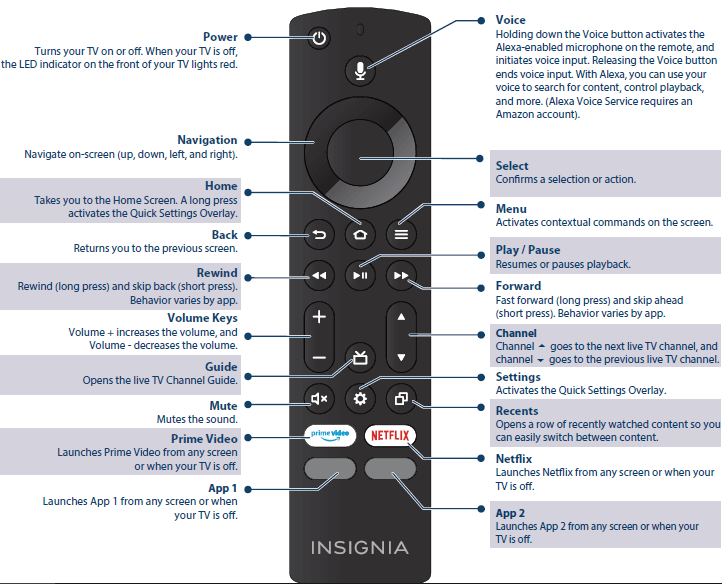

USING YOUR VOICE REMOTE WITH ALEXA
FIND YOUR USER GUIDE ONLINE
- Go to www.insigniaproducts.com.
- Use the search bar to find NS-32F201NA23.
- Select Support & Downloads.
- Next to the User Guide, select the language you want.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
NEED ADDITIONAL HELP?
Check out our Support Community at http://community.insigniaproducts.com/ for helpful information from other Insignia TV owners.
WE’RE HERE FOR YOU
For customer service, call: 1-877-467-4289 (U.S./Canada)
CONTACT AMAZON FIRE TV CUSTOMER SERVICE
www.amazon.com/deviceservices/support
