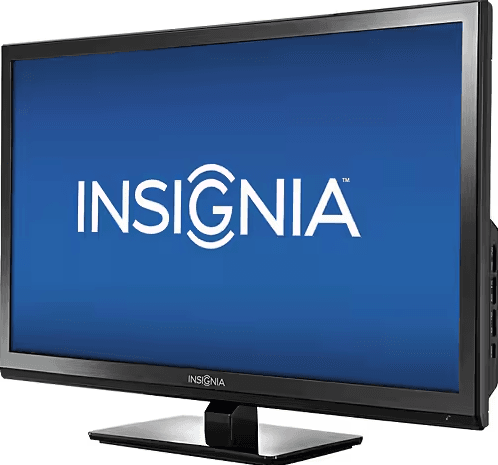

Insignia NS-24E200NA14 24-inches LED TV
START HERE

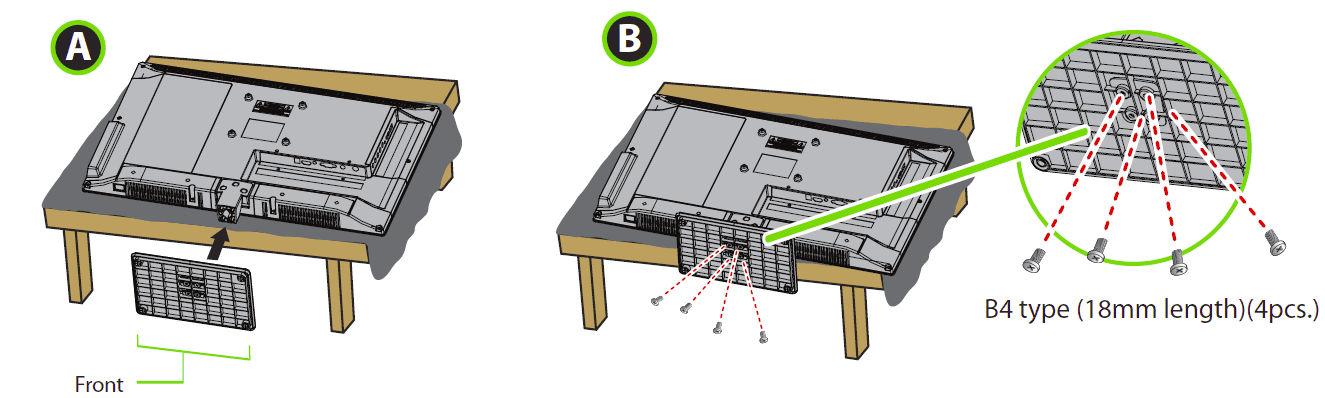

How do I attach the stand to my TV? (not for wall mounting)
You’ll need: A Phillips screwdriver and a soft surface to lay the TV on.
- A. Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damage and scratches.
- B. Secure the TV stand to the TV with the four provided screws.

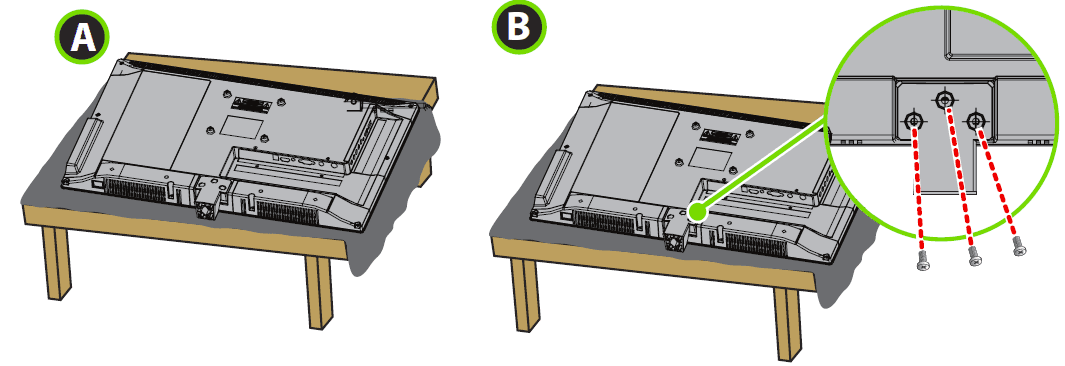

How do I prepare my TV for wall mounting? (not for use with a TV stand)
You’ll need: A Phillips screwdriver and a soft surface to lay the TV on.
- A. Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damage and scratches.
- B. Remove the three screws that secure the stand column to the TV, then remove the stand column. See the instructions that came with your wall mount for more information about how to correctly mount your TV

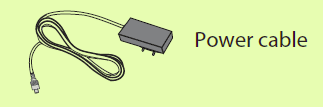

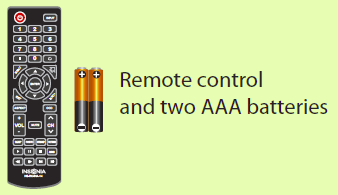

Included accessories

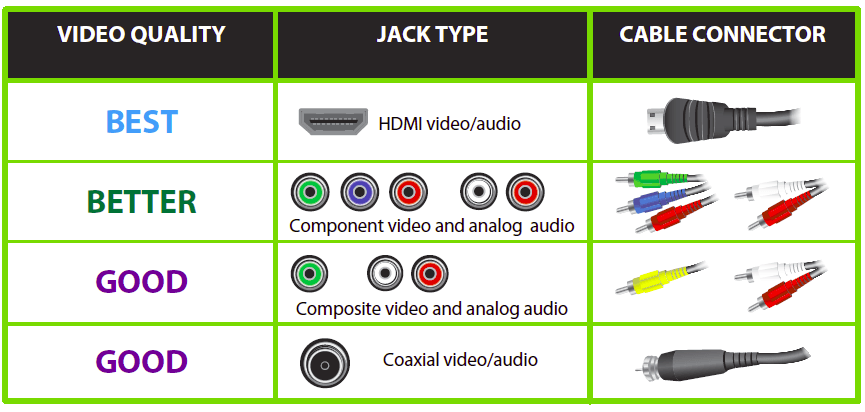

Which cables do you have?
- Your TV has several different jacks for connecting devices. For the best video quality, use the best available connection. Use the cables that came with your devices
Features

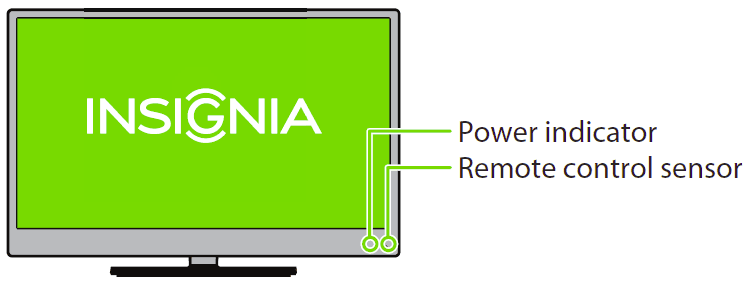

Front view

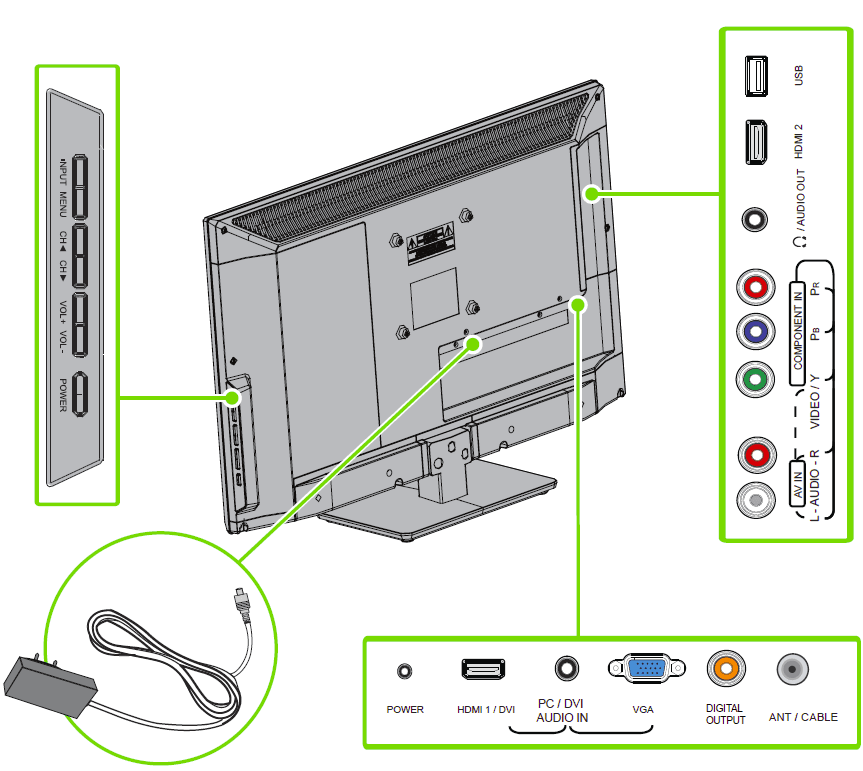

Back view
- Note: Images do not necessarily represent the exact design of your television
MAKING CONNECTIONS
- How do I watch TV (cable or satellite receiver) or connect a device such as a DVD or Blu-ray Disc player, game console, or camcorder?

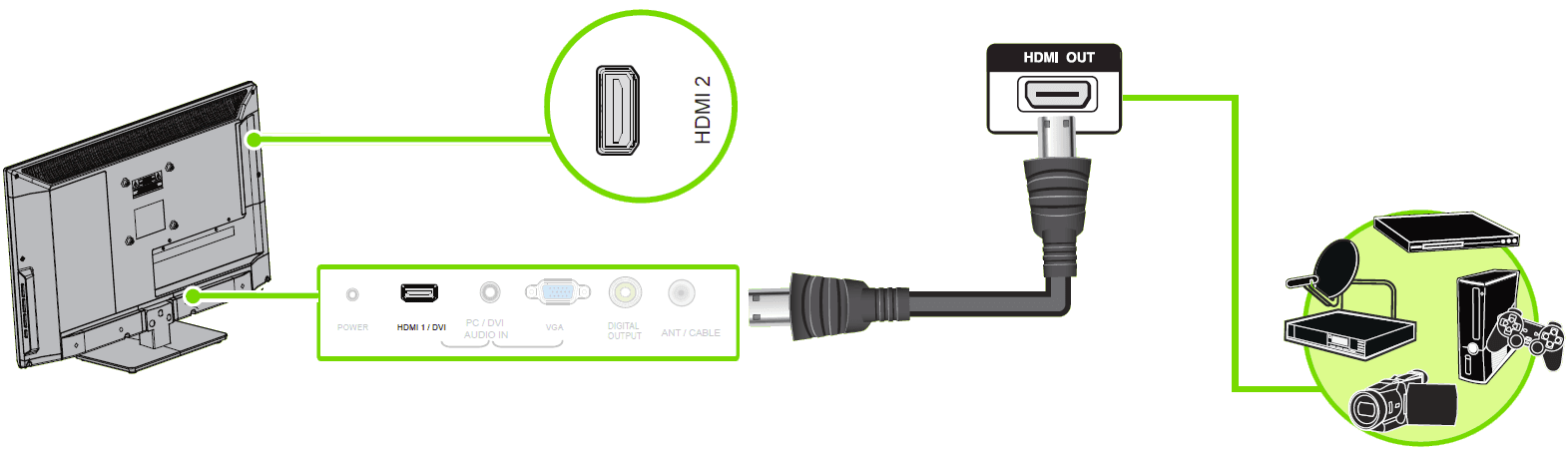

Using an HDMI cable (BEST)
- Multipurpose jacks: You can plug any device that uses HDMI into the HDMI 1/DVI jack. However, a DVI device must be connected to the HDMI 1/DVI jack. See the instructions that came with your DVI device for more information.

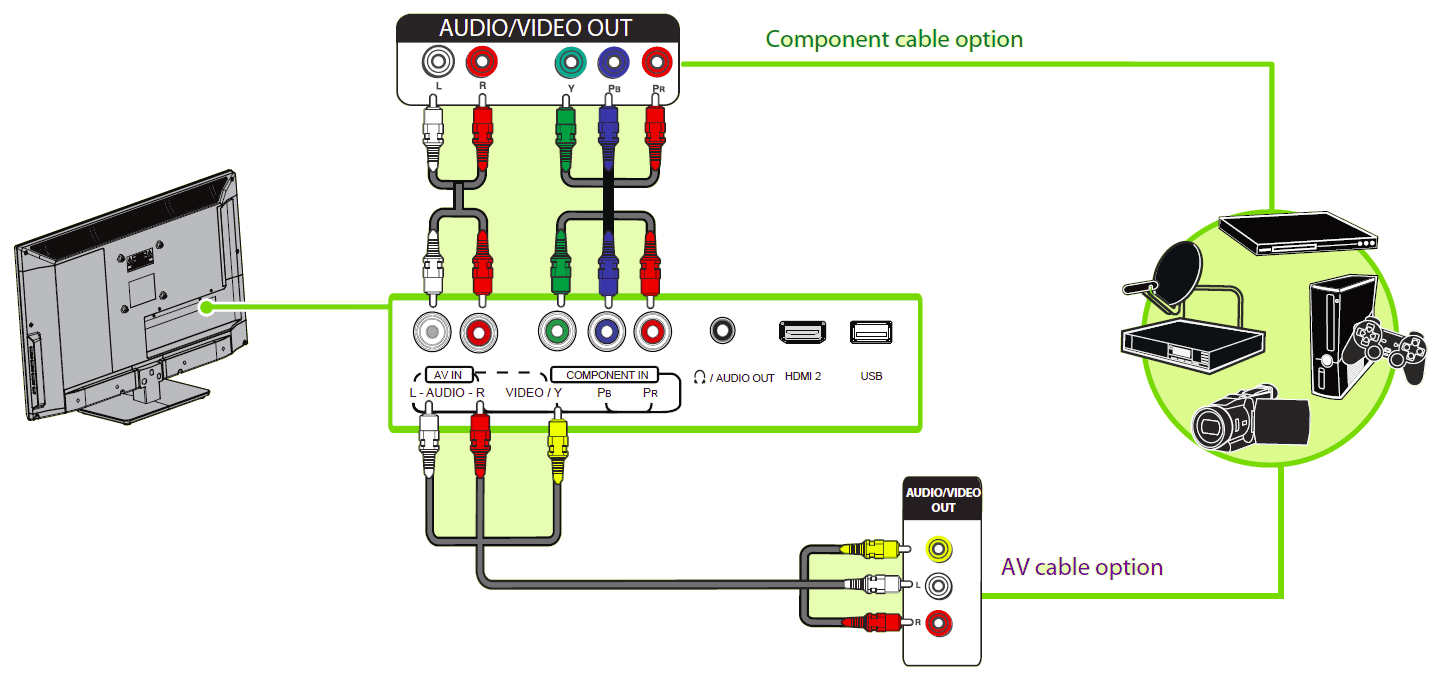

Using component cables (BETTER) – OR – Using an AV cable (GOOD)
- Note: The component video and AV jacks are shared. This means you can connect only one component video or AV device at a time. We suggest using HDMI if your device supports it.
- Note: Connect the yellow video cable connector to the green VIDEO/Y jack on the back of your TV.

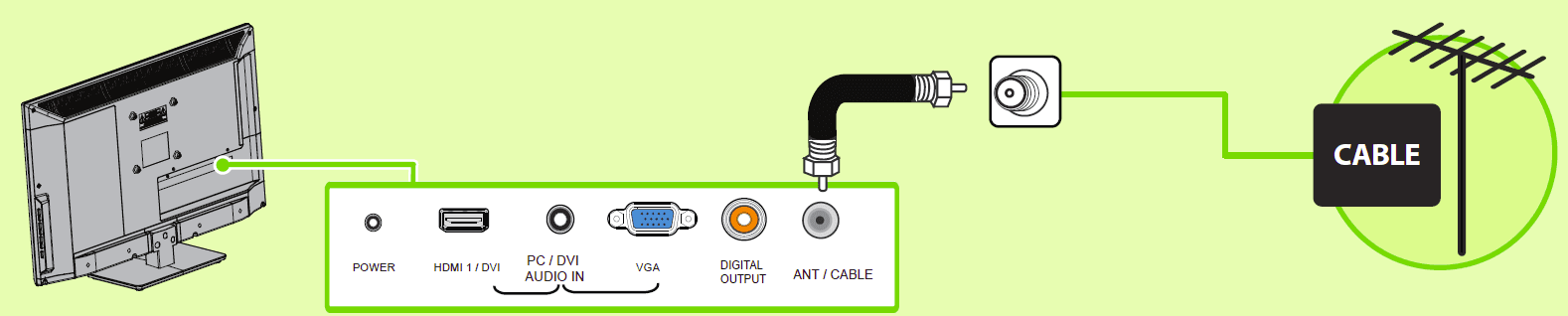

How do I connect my TV to an antenna or cable wall jack?
CONNECTING AUDIO DEVICES
How do I connect my TV to external speakers?

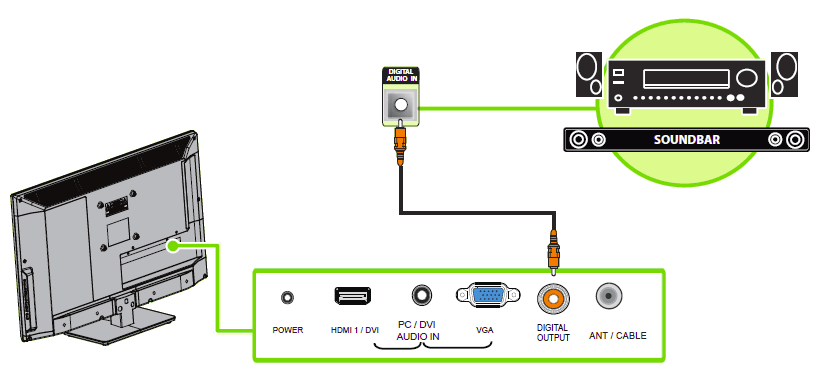

Using digital audio
- Note: Refer to the instructions that came with your speakers for more information.

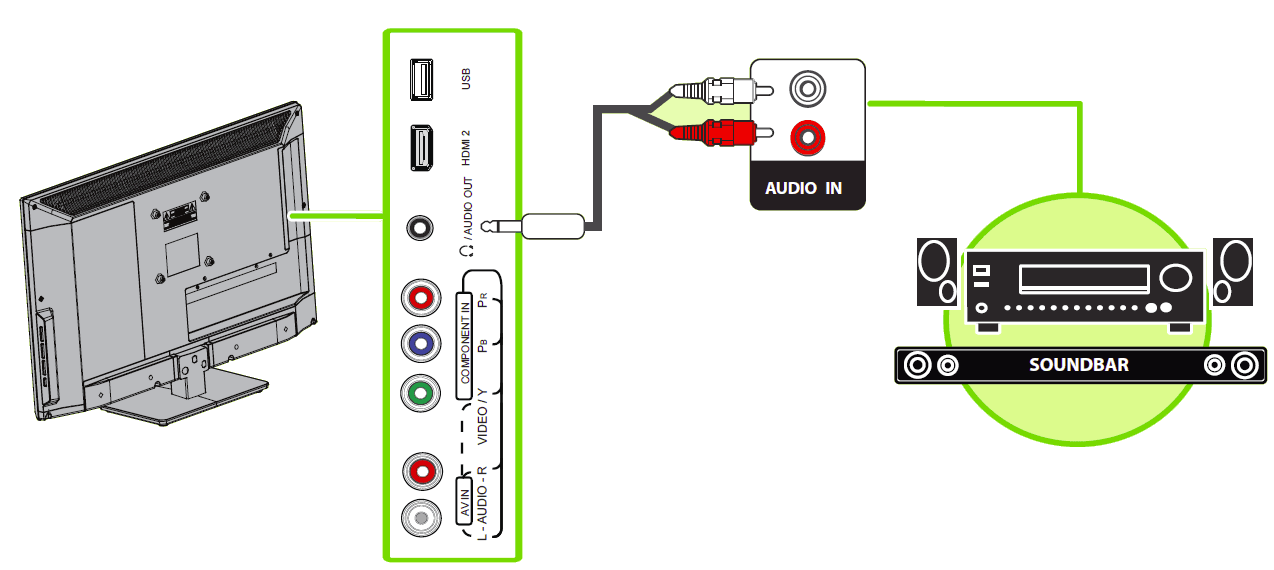

Using analog audio
- Note: Refer to the instructions that came with your speakers for more information.
TURNING ON MY TV
When can I turn on my TV?
The best time to turn on your TV is after you have attached the TV stand or wall-mounted your TV and connected all devices.

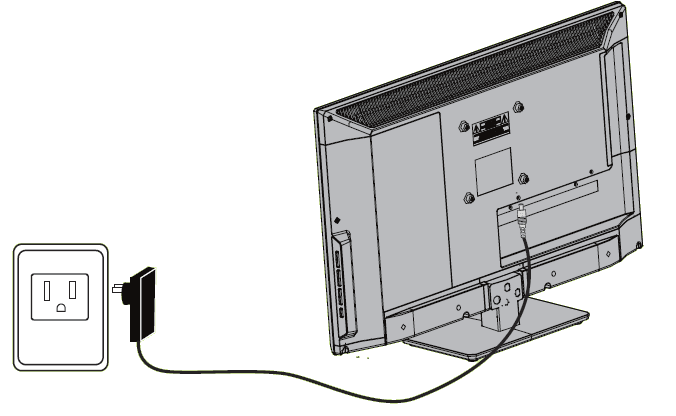

- Plug the AC power cord into the DC IN connector on the back of your TV.
- Plug the other end of the cord into a power outlet.

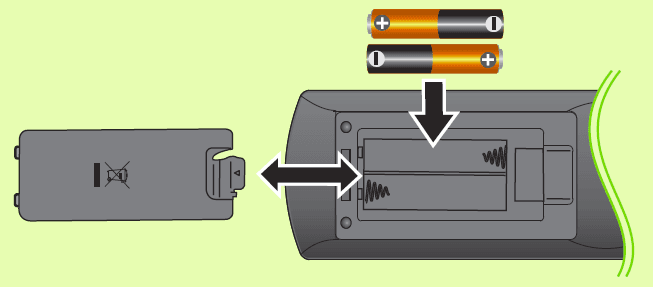

- Install the remote control batteries.

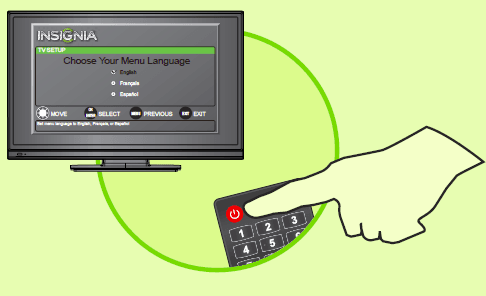

- Press (power) on your remote control.
- Follow the on-screen instructions

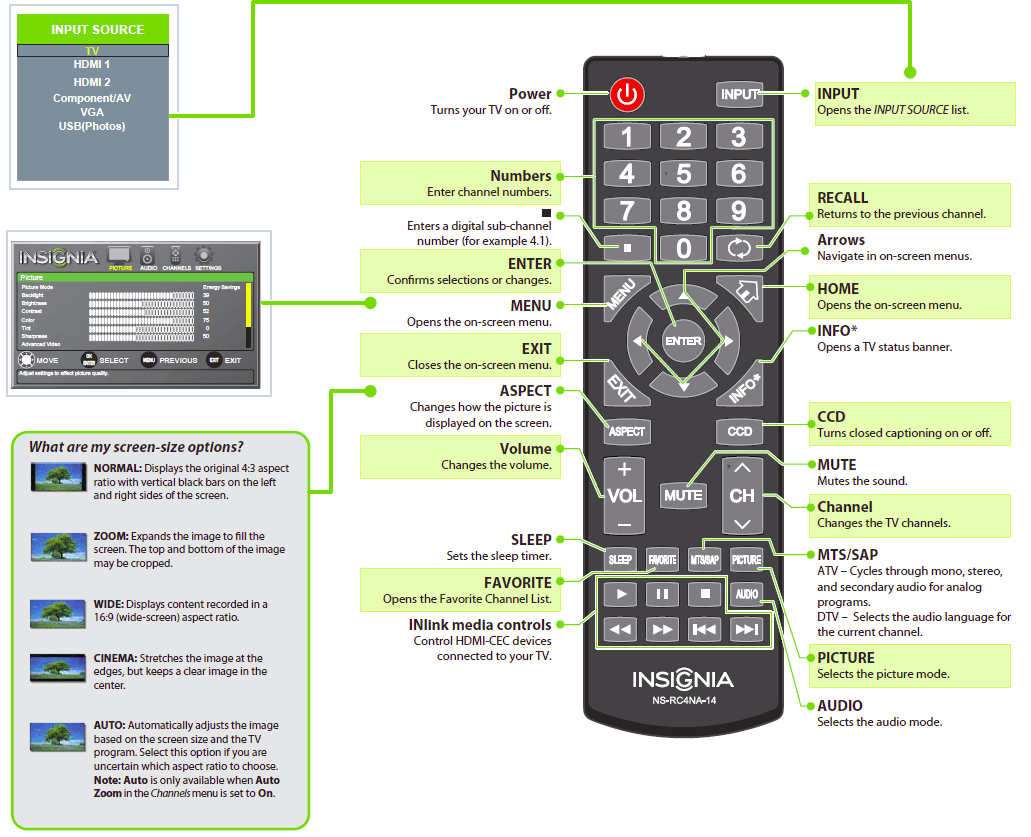

Using your remote control
I already have a universal remote control. How do I make it control this TV?

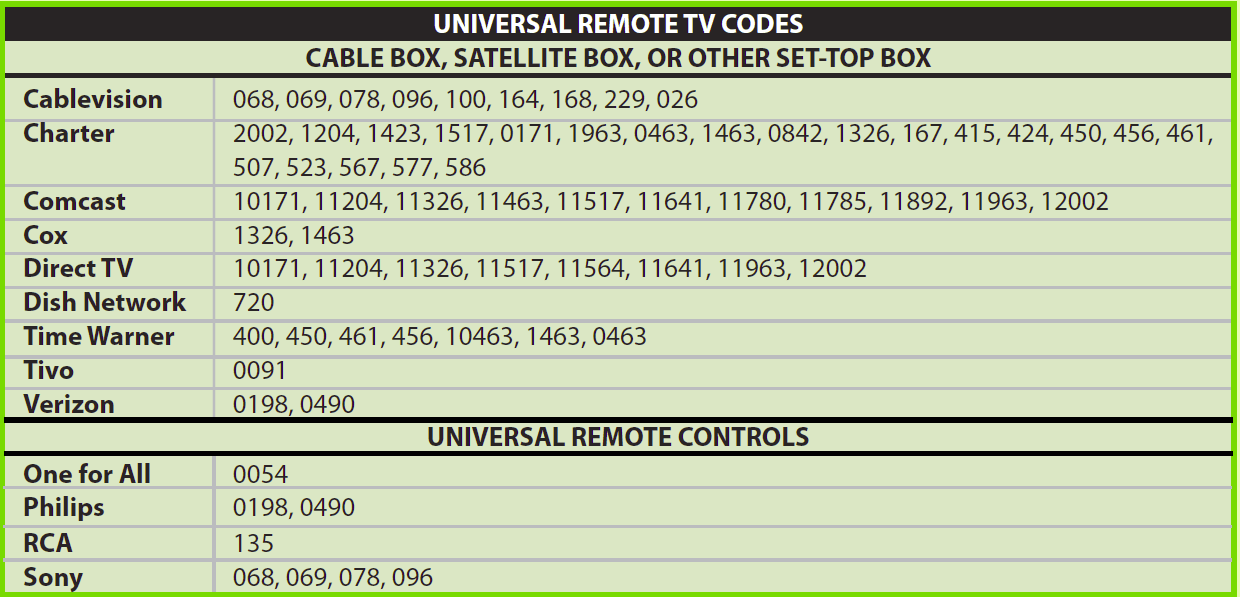

- If you already have a universal remote control that you would like to program to work with your TV and don’t want to use the included Insignia remote control, see the table for common codes.
For more manuals by Insignia visit, ManualsLibraryy
Insignia NS-24E200NA14 24-inches LED TV-FAQs
How do I set up my Insignia 24-inch LED TV?
Place the TV on a stable surface, connect the power cord, and use the remote to follow the on-screen setup instructions. Connect external devices like a cable box or gaming console as needed.
How do I scan for channels on my Insignia TV?
Go to Settings > Channels > Auto Scan and select Antenna or Cable. The TV will search for available channels automatically.
Why is my Insignia TV not turning on?
Check if the power cord is securely connected and try pressing the power button on the TV or remote. If the issue persists, unplug the TV for a few minutes and plug it back in.
How do I change the input source on my TV?
Press the Input or Source button on the remote, then select the desired input (HDMI, AV, TV, etc.) from the menu.
What should I do if my TV has no sound?
Ensure the volume is turned up and not muted. Check audio settings in the menu and confirm external devices are properly connected. If using external speakers, make sure they are powered on.
How do I adjust the picture settings?
Go to Settings > Picture and adjust Brightness, Contrast, Color, and Sharpness to your preference.
Can I mount my Insignia 24-inch TV on the wall?
Yes, the TV is VESA mount compatible. Use a compatible wall mount bracket and follow the instructions in the manual for installation.
How do I reset my Insignia TV to factory settings?
Go to Settings > System > Reset to Default and follow the prompts to restore factory settings.
Why is my remote not working?
Check and replace the batteries if needed. Ensure there are no obstructions between the remote and TV sensor. Try resetting the remote by removing the batteries and pressing the power button for 10 seconds before reinserting them.
What ports are available on my TV?
The Insignia 24-inch LED TV includes HDMI, USB, AV (RCA), and a coaxial input for connecting various devices like gaming consoles, streaming devices, and cable boxes.
